RUGGEDMASTER QS-7601 Mobile Printers
1.5million lines · Bluetooth 4.0 · 9 needles Bi-directional printing · 72mm (24 Chinese characters/line 48 English words/line) · 5.5MM/S · 72mm · -20℃–70℃
QS – 7601 76mm wireless dot matrix printer Support ordinary white paper/3-up carbon paper printing 76mm printing width, multiple receipt printing, clear handwriting, needle type printing, long-term storage and no fading Support Printing Multi-Language Spanish ,Arabic ,Vietnamese,Cambodian,Japanese, Korean, Italian, Portuguese,Turkish, Russian,French, German Customized-set up language base on customer requirements Efficient print head High-performance print head, print clearly and show quality, reject blurry and unclear printing effect, stable and fast and efficient. The sharp edge makes tearing paper easier Sharp edges, neat tearing and high efficiency Independent R & D to provide technical services Professional technical support is easy to operate
Adapter: Input AC 110V-240V Output DC 24V-2A
Printing life: 1.5million lines
Weight: 1.65KG
Size: 258mm*158mm*158mm
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

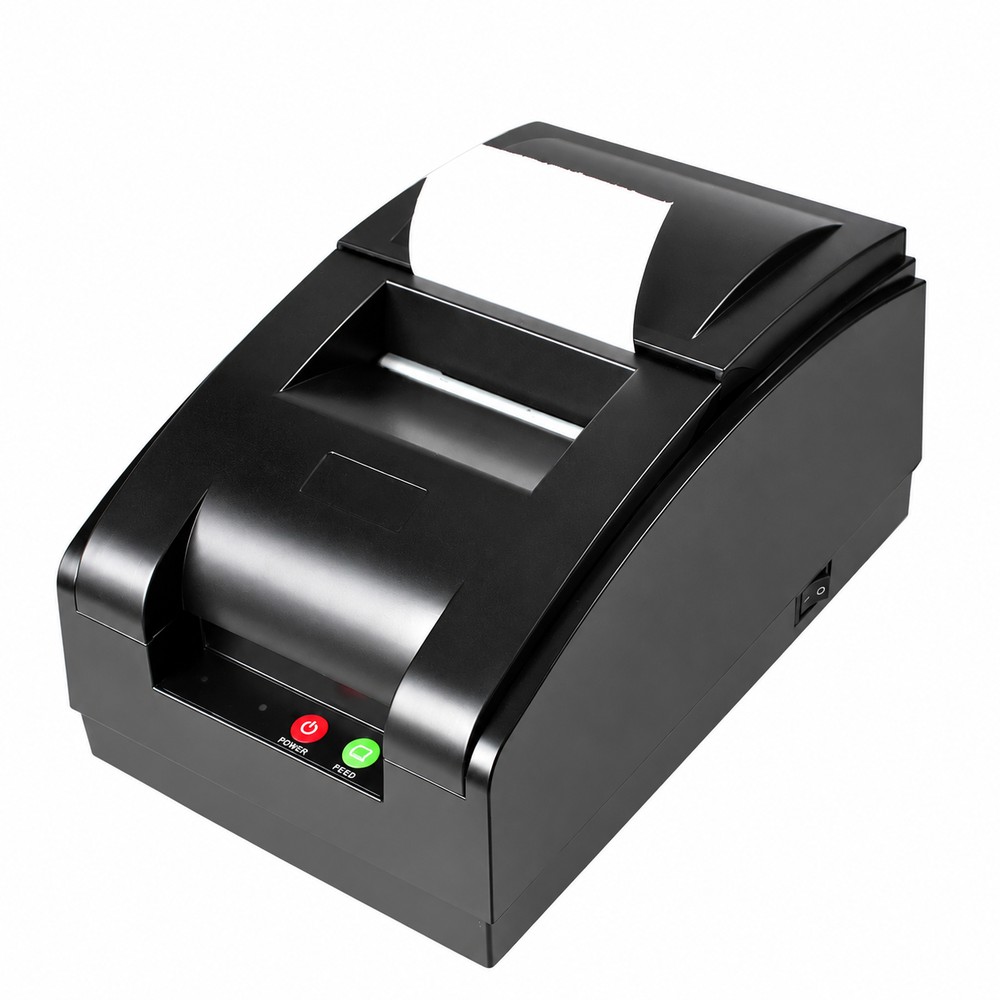

RUGGEDMASTER QS-7601 Mobile Printers
RUGGEDMASTER QS-7601 combines the features and configurations shown below. Review the product overview, original feature graphics and complete Specs when selecting units for a bulk order.

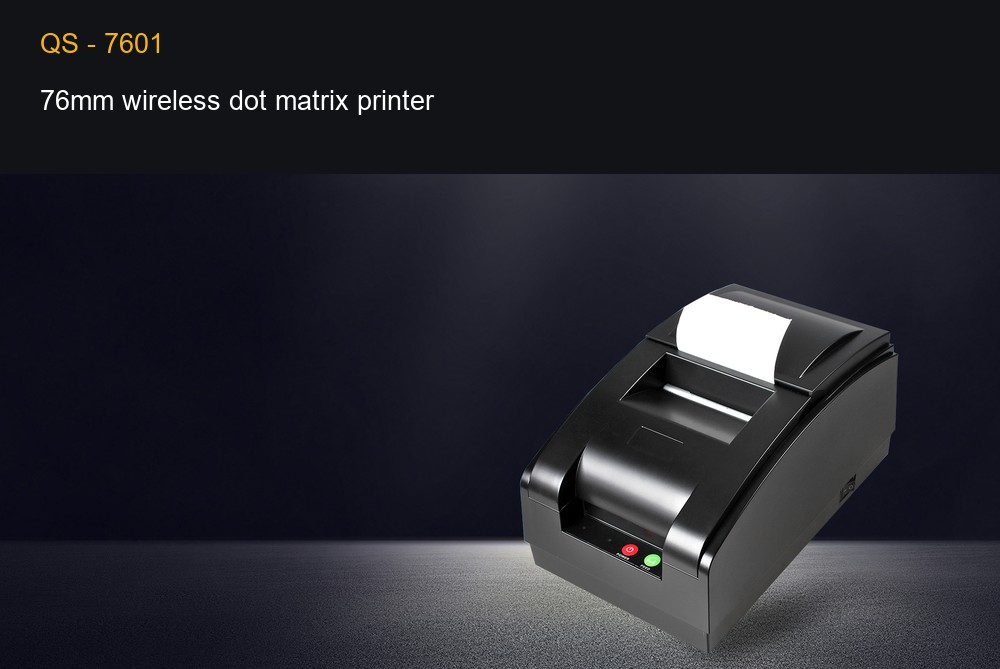

QS – 7601
76mm wireless dot matrix printer

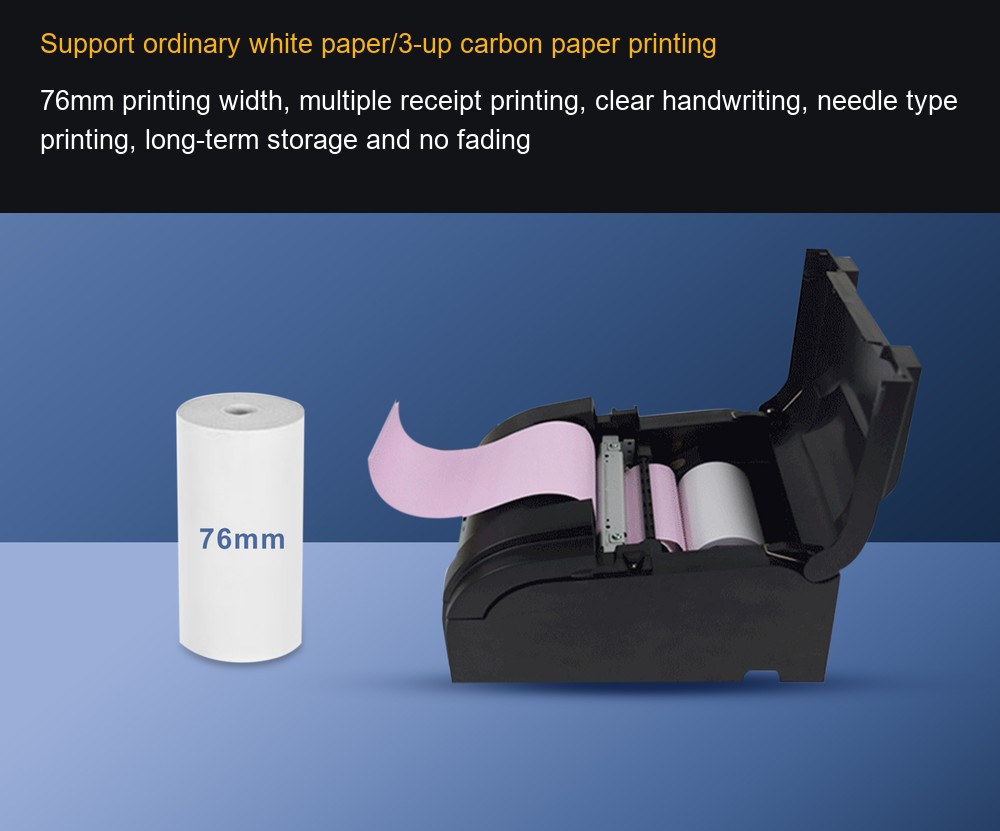

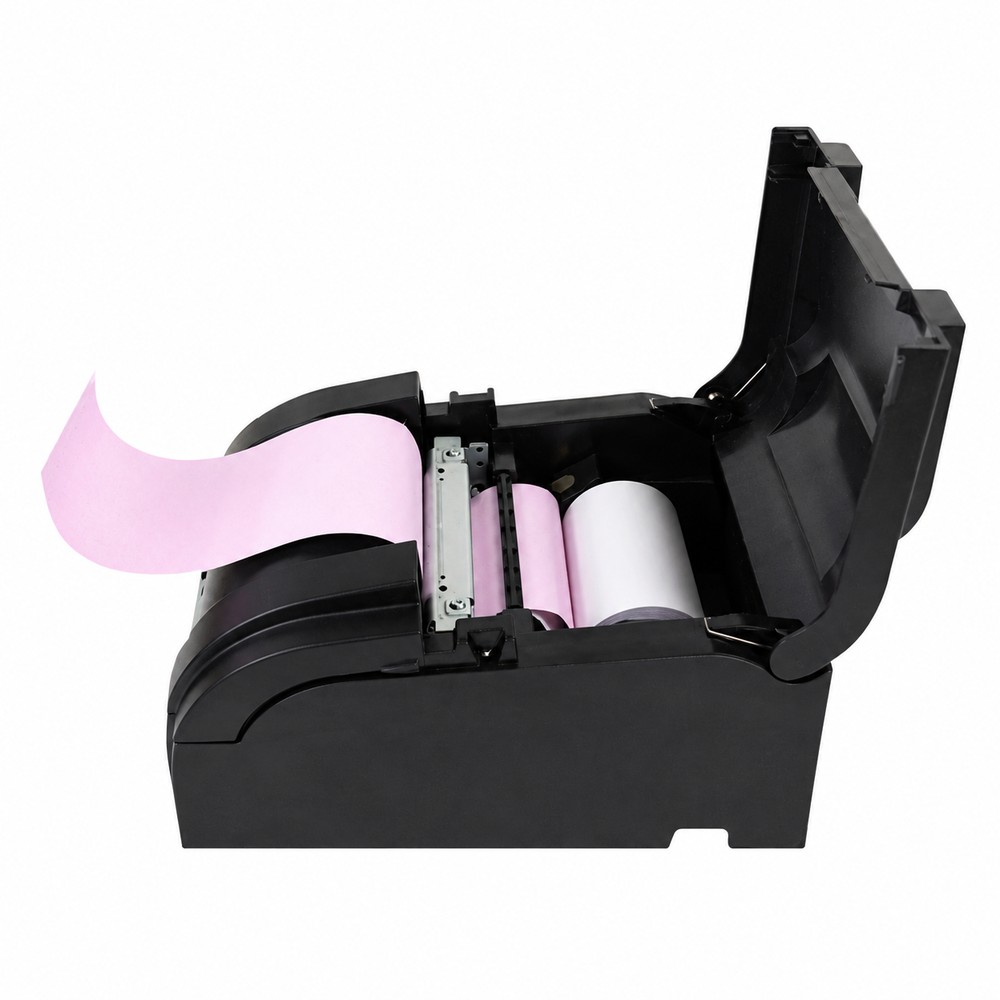

Support ordinary white paper/3-up carbon paper printing
76mm printing width, multiple receipt printing, clear handwriting, needle type printing, long-term storage and no fading

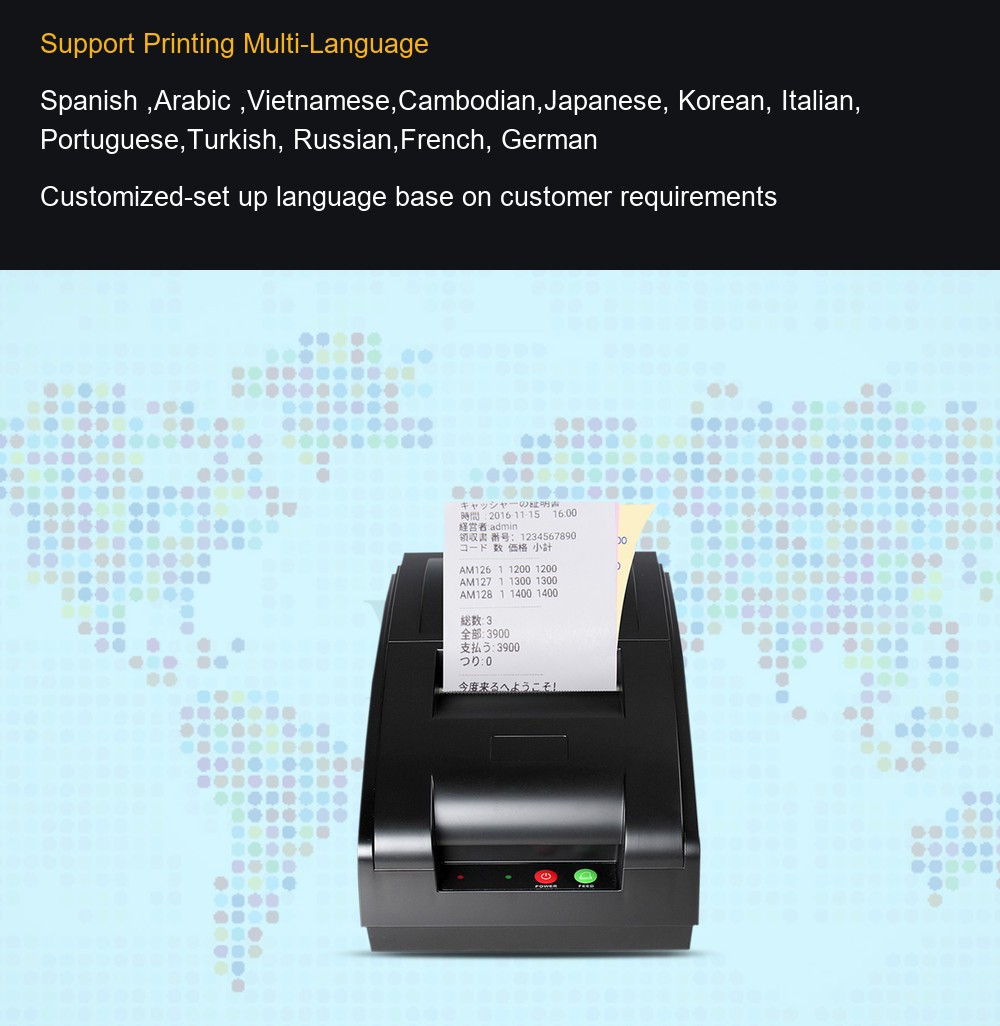

Support Printing Multi-Language
Spanish ,Arabic ,Vietnamese,Cambodian,Japanese, Korean, Italian, Portuguese,Turkish, Russian,French, German
Customized-set up language base on customer requirements

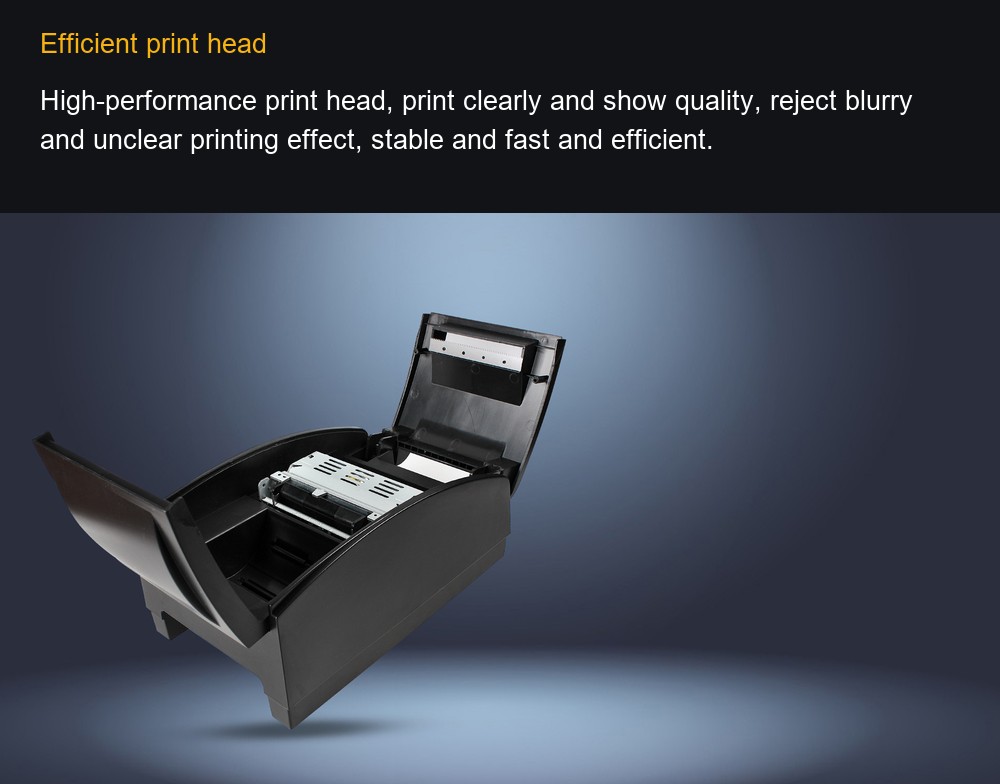

Efficient print head
High-performance print head, print clearly and show quality, reject blurry and unclear printing effect, stable and fast and efficient.

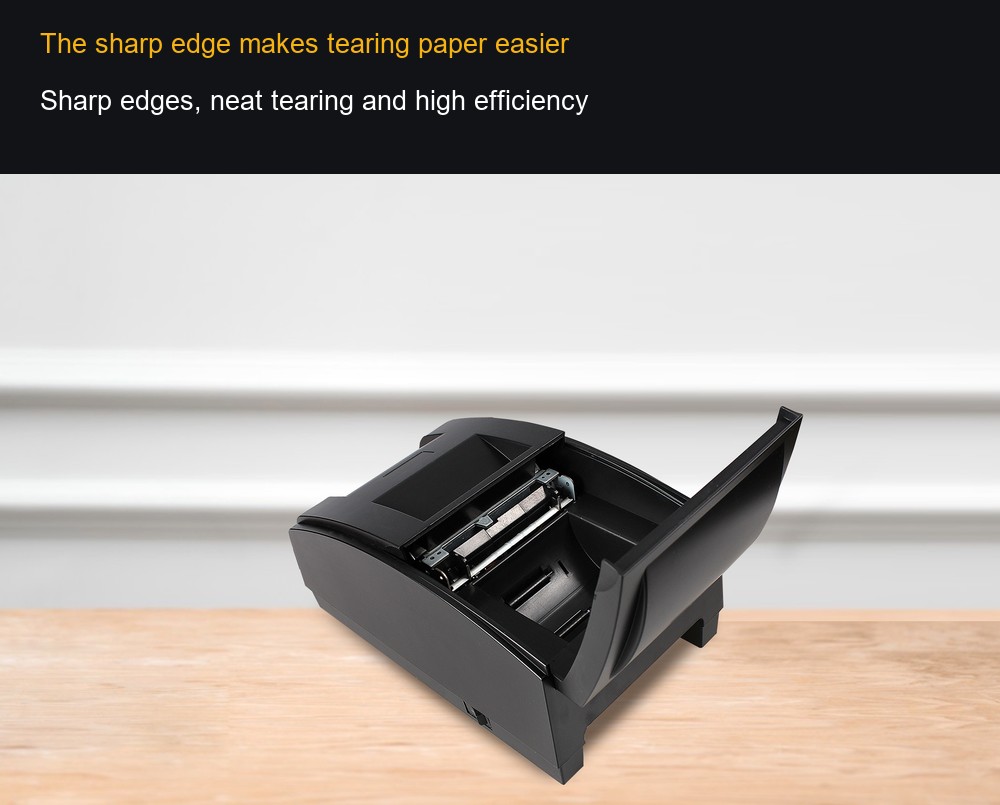

The sharp edge makes tearing paper easier
Sharp edges, neat tearing and high efficiency

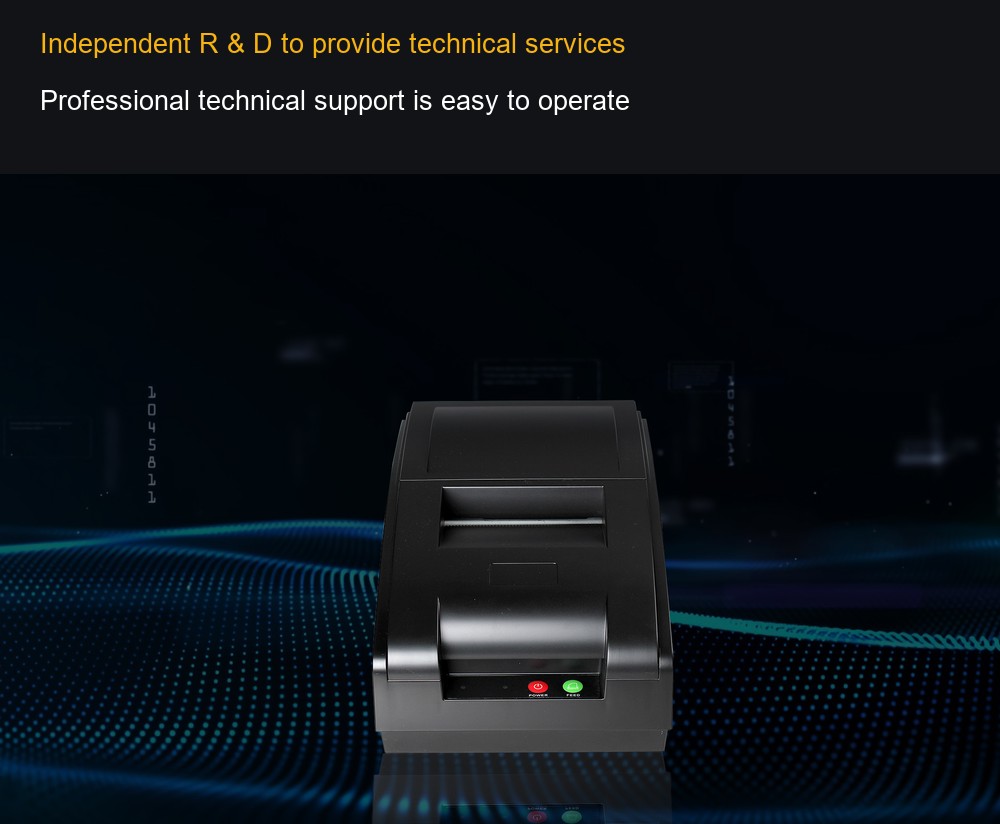

Independent R & D to provide technical services
Professional technical support is easy to operate
Configuration overview
Technical specifications include Adapter: Input AC 110V-240V Output DC 24V-2A. Printing life: 1.5million lines. Weight: 1.65KG. Size: 258mm*158mm*158mm.
Technical specifications include Net weight: 200g. Package weight: 500g. Packing List: 1* printer 1*adapter 1*USB cable 1* paper roll 1 box package. Interface: Bluetooth/USB 2.0/RS232.
Technical specifications include Bluetooth: Bluetooth 4.0. Printing method: 9 needles Bi-directional printing. Print Width: 72mm (24 Chinese characters/line 48 English words/line). Printing Speed: 5.5MM/S.
Technical specifications include Printer Width: 72mm. Paper Width: 76mm. Paper thickness: 0.06-0.08mm. Sensor: Double Black mark sensor ;low-energy;no-paper sensor.
Technical specifications include Error Reminder: No paper; door open ; print head over-heat. Installed Character: ASII(8*16 12*24 16*32 24*48 32*64) GB13080(13*13 24*24 68*48). Instruction system: POS/ESC. Resolution: 5 dot /mm.
Technical specifications include Paper Cut: Manually. System Language: English/Chinese. Paper type: 2 page copy paper. Paper roll: Max 50mm.
Wholesale purchasing information
For RUGGEDMASTER QS-7601, compare the pictured housing, connectors and controls with the configuration required by your application. The manufacturer may describe optional modules, memory configurations or regional network bands. These options are listed for reference; confirm the required configuration when requesting a quotation. Choose the interface and data-capture functions that match your existing workflow, software and installation requirements.
Review the complete Specs tab before placing a bulk order. It preserves the technical information supplied for this model, including the available operating environment and configuration details. Product pictures show the manufacturer’s existing views and available configurations. If your project needs a particular module, operating system version or connector, state that requirement in your enquiry so the configuration can be checked before ordering.
Explore related products in our RuggedMaster product catalog or send a bulk-order enquiry.
Manufacturer feature details
| Adapter | Input AC 110V-240V Output DC 24V-2A |
| Printing life | 1.5million lines |
| Weight | 1.65KG |
| Size | 258mm*158mm*158mm |
| Net weight | 200g |
| Package weight | 500g |
| Packing List | 1* printer 1*adapter 1*USB cable 1* paper roll 1 box package |
| Interface | Bluetooth/USB 2.0/RS232 |
| Bluetooth | Bluetooth 4.0 |
| Printing method | 9 needles Bi-directional printing |
| Print Width | 72mm (24 Chinese characters/line 48 English words/line) |
| Printing Speed | 5.5MM/S |
| Printer Width | 72mm |
| Paper Width | 76mm |
| Paper thickness | 0.06-0.08mm |
| Sensor | Double Black mark sensor ;low-energy;no-paper sensor |
| Error Reminder | No paper; door open ; print head over-heat |
| Installed Character | ASII(8*16 12*24 16*32 24*48 32*64) GB13080(13*13 24*24 68*48) |
| Instruction system | POS/ESC |
| Resolution | 5 dot /mm |
| Paper Cut | Manually |
| System Language | English/Chinese |
| Paper type | 2 page copy paper |
| Paper roll | Max 50mm |
| Storage Temp | -20℃--70℃ |
| Humidity | 0-95% |
