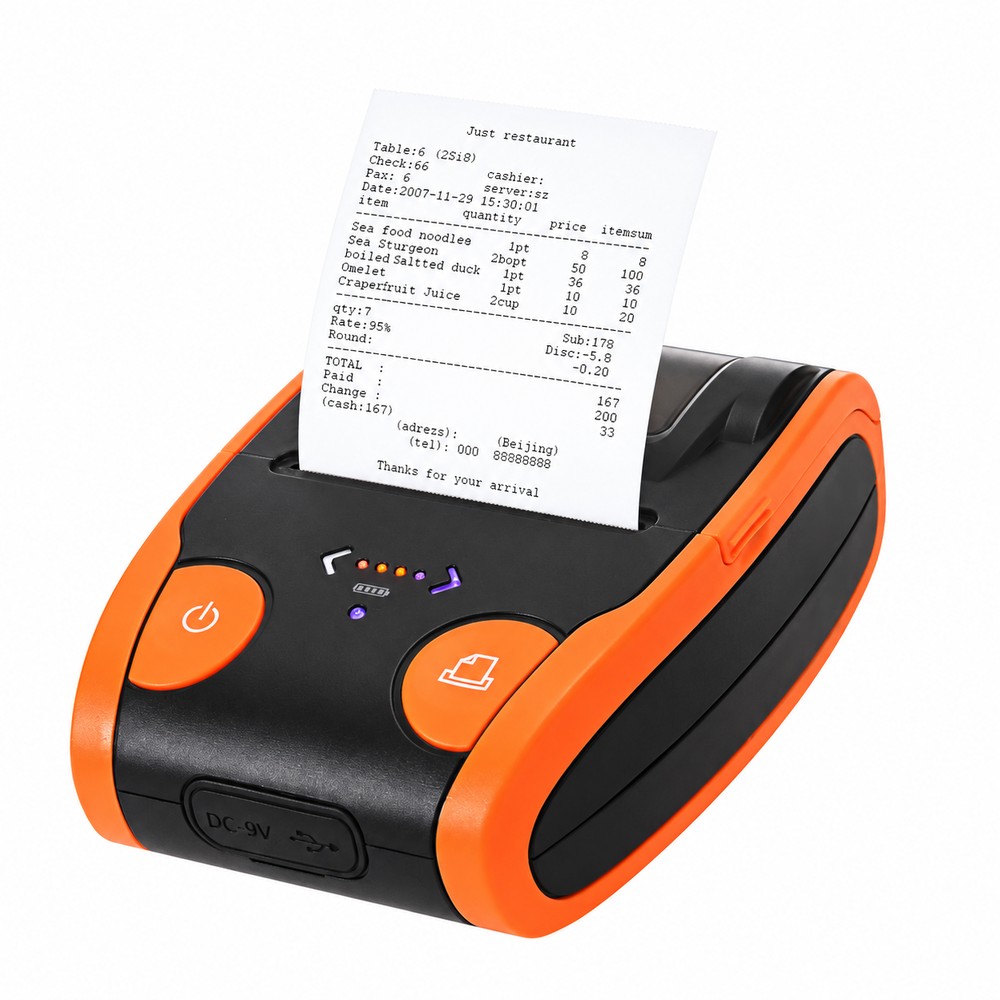

RUGGEDMASTER QS-5806 Mobile Printers
Thermal Line · 48mm · 24 Chinese/Line 48 English/Line Or 36 Chinese/Line 72 English/Line · 70MM/S · 60KM(25% printing dentsity or below) · English, numbers, various symbols, characters, pictures, 1D and 2D code printing · 1400mah Li-On rechargeable battery
QS – 5806 Portable thermal printer Support Printing Thermal Paper, Label Paper High speed printing . Legible handwriting Support Different Operating System High-speed bluetooth communication low power consumption Support Printing Multi-Language Spanish ,Arabic ,Vietnamese,Cambodian,Japanese, Korean, Italian, Portuguese,Turkish, Russian,French, German Customized-set up language base on customer requirements OEM&ODM Service Free SDK Docking Service Color customized，logo customized ,package customized . Research and development of product , support technical services Small & Delicate Appearance pocket size ,light weight ,easy to carry Handheld Rugged Durable Design Support 1.5m dropping distance . Working in bad environment
Printing Method: Thermal Line
Support System: Android(bluetooth) and Windows system(USB)
Effective Printing Width: 48mm
Paper Width: 58mm(2 inch)
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
RUGGEDMASTER QS-5806 Mobile Printers
RUGGEDMASTER QS-5806 combines the features and configurations shown below. Review the product overview, original feature graphics and complete Specs when selecting units for a bulk order.

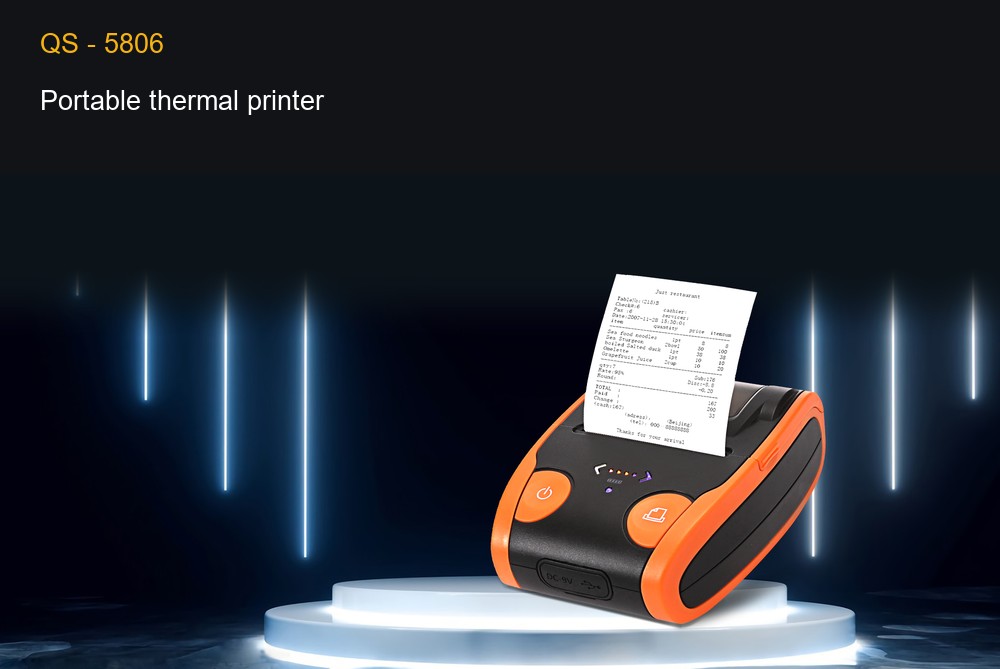

QS – 5806
Portable thermal printer

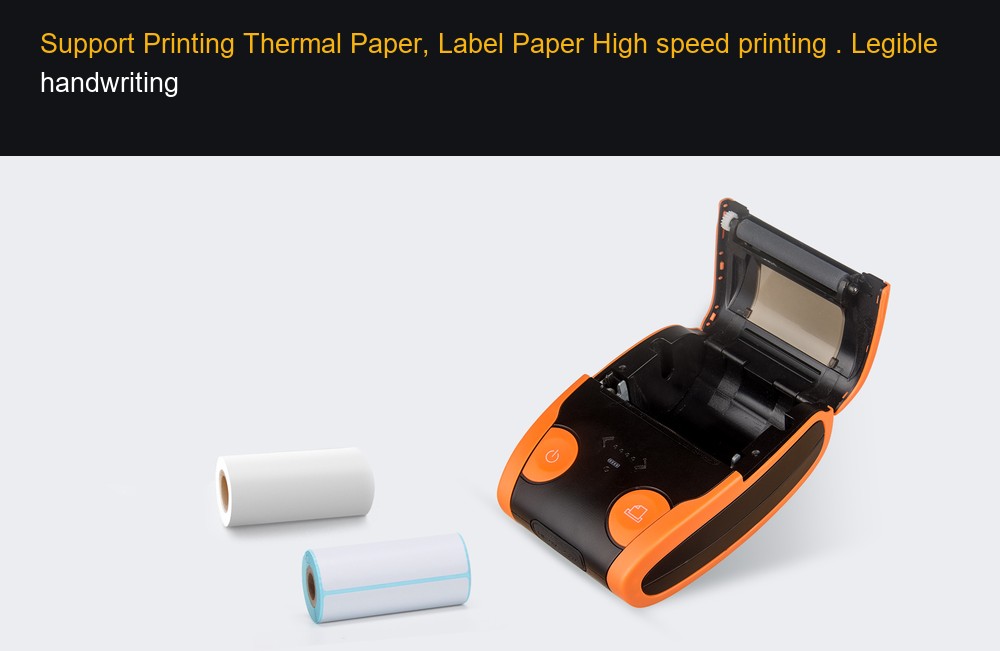

Support Printing Thermal Paper, Label Paper High speed printing . Legible handwriting

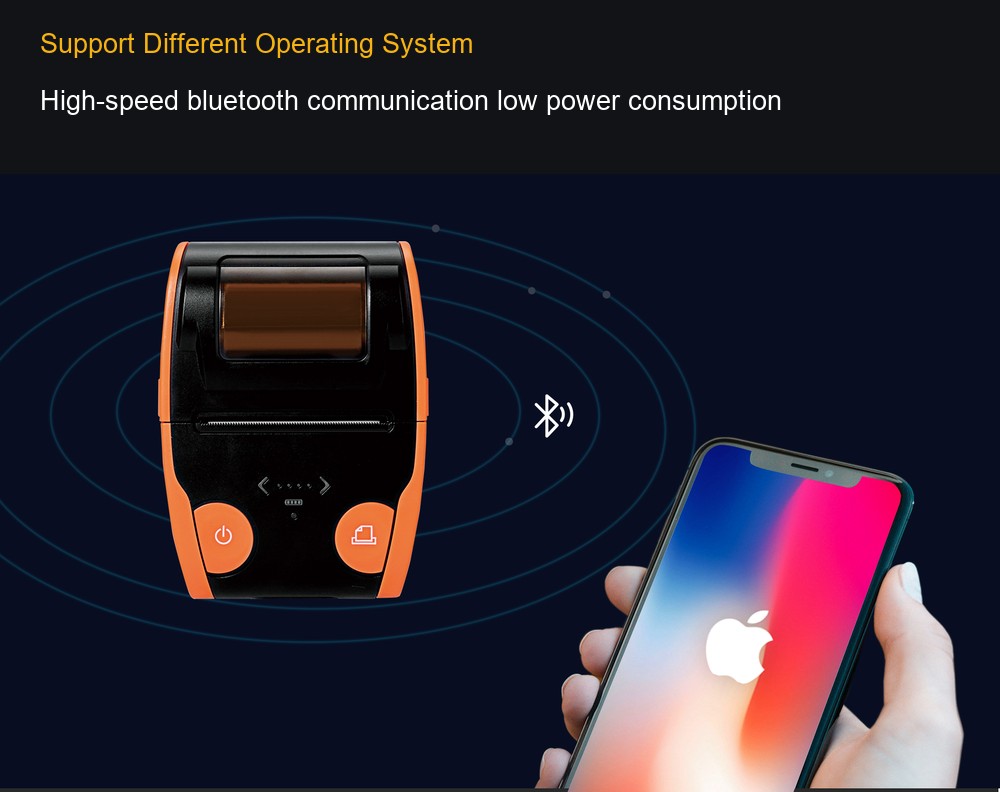

Support Different Operating System
High-speed bluetooth communication low power consumption

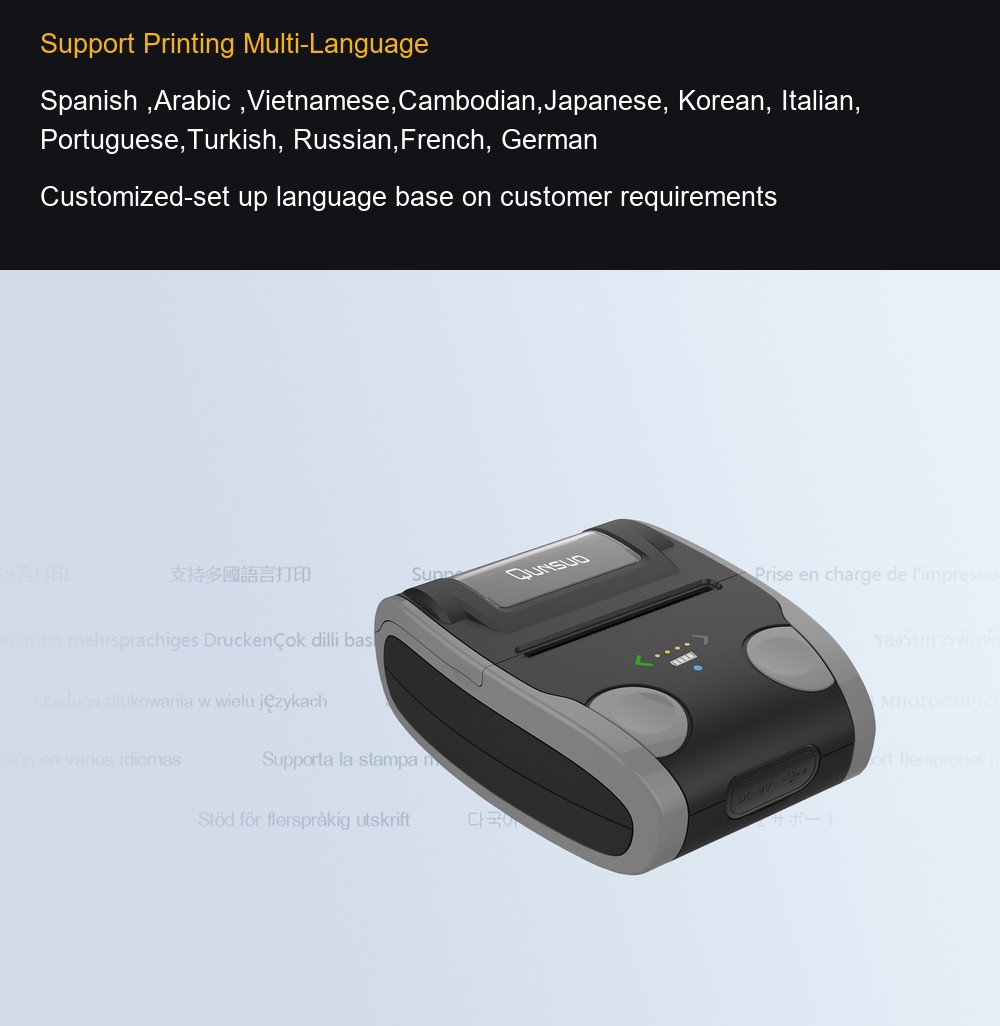

Support Printing Multi-Language
Spanish ,Arabic ,Vietnamese,Cambodian,Japanese, Korean, Italian, Portuguese,Turkish, Russian,French, German
Customized-set up language base on customer requirements

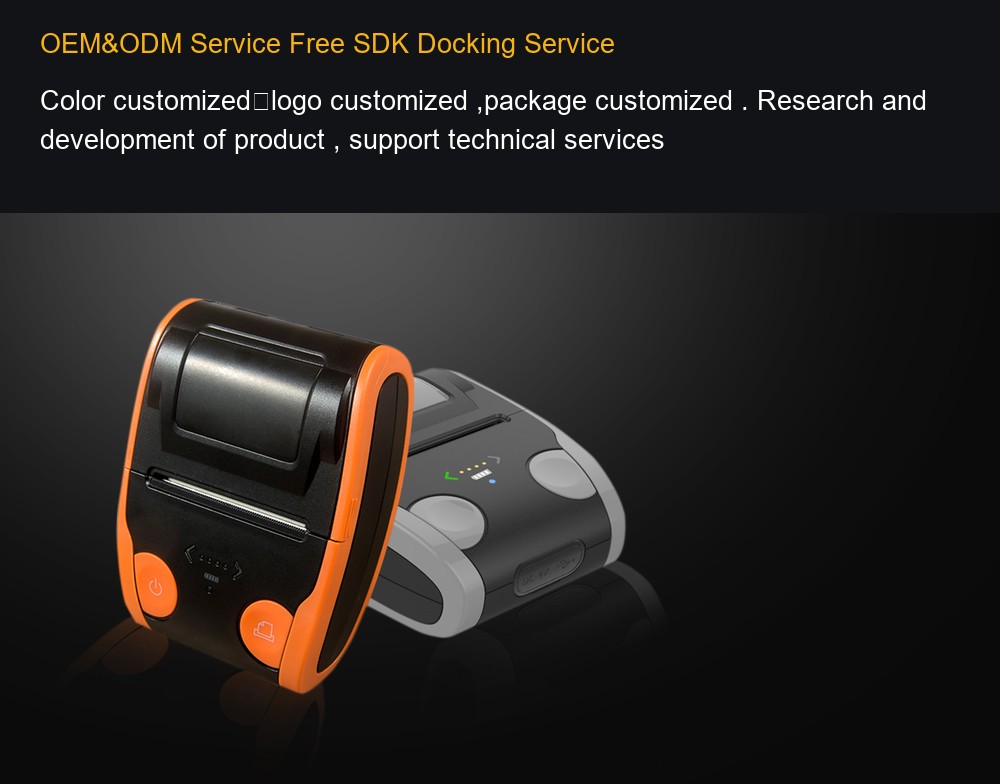

OEM&ODM Service Free SDK Docking Service
Color customized，logo customized ,package customized . Research and development of product , support technical services

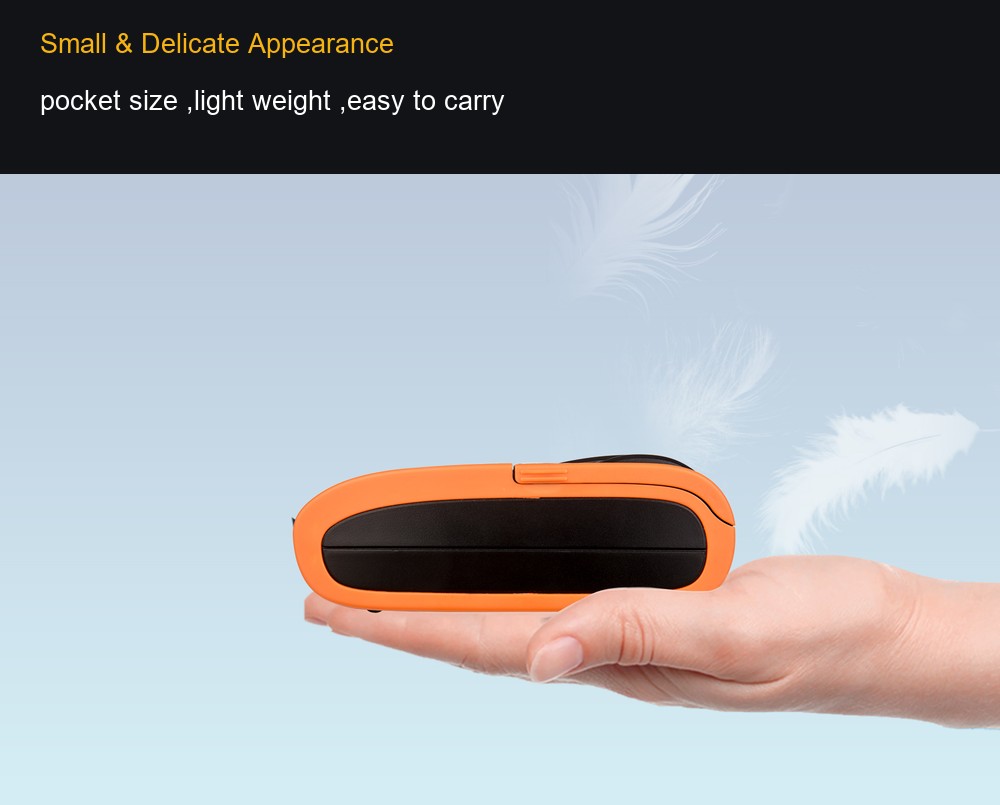

Small & Delicate Appearance
pocket size ,light weight ,easy to carry

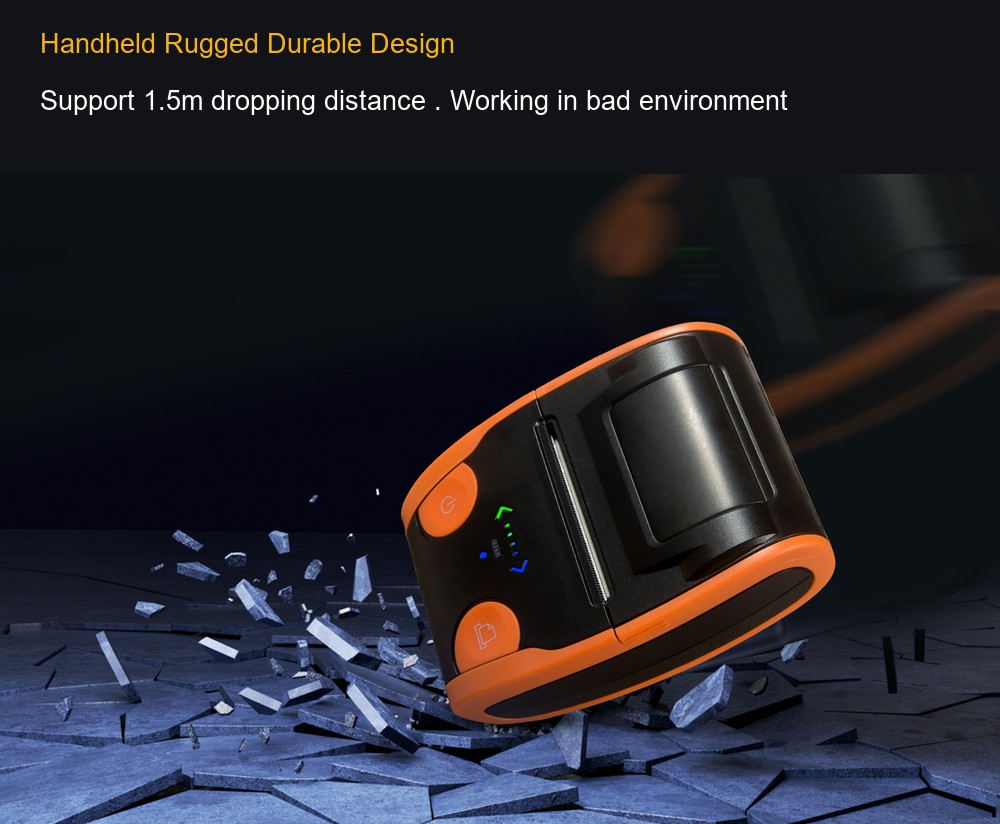

Handheld Rugged Durable Design
Support 1.5m dropping distance . Working in bad environment
Configuration overview
Technical specifications include Printing Method: Thermal Line. Support System: Android(bluetooth) and Windows system(USB). Effective Printing Width: 48mm. Paper Width: 58mm(2 inch).
Technical specifications include Dimension: 115mm*84mm*38mm. Printed Line Width: 24 Chinese/Line 48 English/Line Or 36 Chinese/Line 72 English/Line. Encoded Code: GBK,BIG5,Unicode(UTF8). Build-in Font: ASCII Font(12*24 8*16) GBK(24*24 16*16).
Technical specifications include Printing Speed: 70MM/S. Printer Life: 60KM(25% printing dentsity or below). Printing Content: English, numbers, various symbols, characters, pictures, 1D and 2D code printing. Resolution: 8 dot/mm,203 dpi.
Technical specifications include Data Communication Interface: USB 2.0 and Bluetooth 5.0. Battery: 1400mah Li-On rechargeable battery. Charge Methods: Standby Charge. Anomaly Detection: Paper-End Alarm,Low Battery Alarm.
Technical specifications include Put Paper Method: Clam Shell Method. Paper Cut Method: Manual Tearing. Instruction Set: ESC/POS Compatible Instruction Set. Locate Mode: Black Mark Location,gap identification.
Technical specifications include Locate Mode: Black Mark Location,gap identification. Power Port: DC 9V,3A DC 5V 3A(optional). Accessories: Li-ion Battery,Power Adapter 9V,3A ,Development CD,Instruction,Printing Paper,charging cable..
Wholesale purchasing information
For RUGGEDMASTER QS-5806, compare the pictured housing, connectors and controls with the configuration required by your application. The manufacturer may describe optional modules, memory configurations or regional network bands. These options are listed for reference; confirm the required configuration when requesting a quotation. Choose the interface and data-capture functions that match your existing workflow, software and installation requirements.
Review the complete Specs tab before placing a bulk order. It preserves the technical information supplied for this model, including the available operating environment and configuration details. Product pictures show the manufacturer’s existing views and available configurations. If your project needs a particular module, operating system version or connector, state that requirement in your enquiry so the configuration can be checked before ordering.
Explore related products in our RuggedMaster product catalog or send a bulk-order enquiry.
Manufacturer feature details
| Printing Method | Thermal Line |
| Support System | Android(bluetooth) and Windows system(USB) |
| Effective Printing Width | 48mm |
| Paper Width | 58mm(2 inch) |
| Dimension | 115mm*84mm*38mm |
| Printed Line Width | 24 Chinese/Line 48 English/Line Or 36 Chinese/Line 72 English/Line |
| Encoded Code | GBK,BIG5,Unicode(UTF8) |
| Build-in Font | ASCII Font(12*24 8*16) GBK(24*24 16*16) |
| Printing Speed | 70MM/S |
| Printer Life | 60KM(25% printing dentsity or below) |
| Printing Content | English, numbers, various symbols, characters, pictures, 1D and 2D code printing |
| Resolution | 8 dot/mm,203 dpi |
| Data Communication Interface | USB 2.0 and Bluetooth 5.0 |

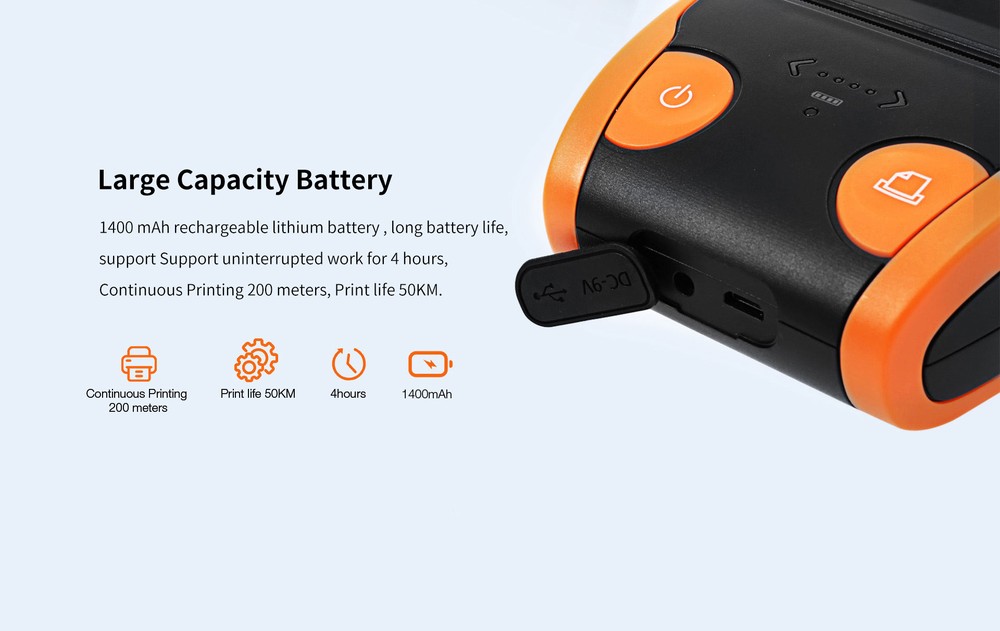

| Battery | 1400mah Li-On rechargeable battery |
| Charge Methods | Standby Charge |
| Anomaly Detection | Paper-End Alarm,Low Battery Alarm |

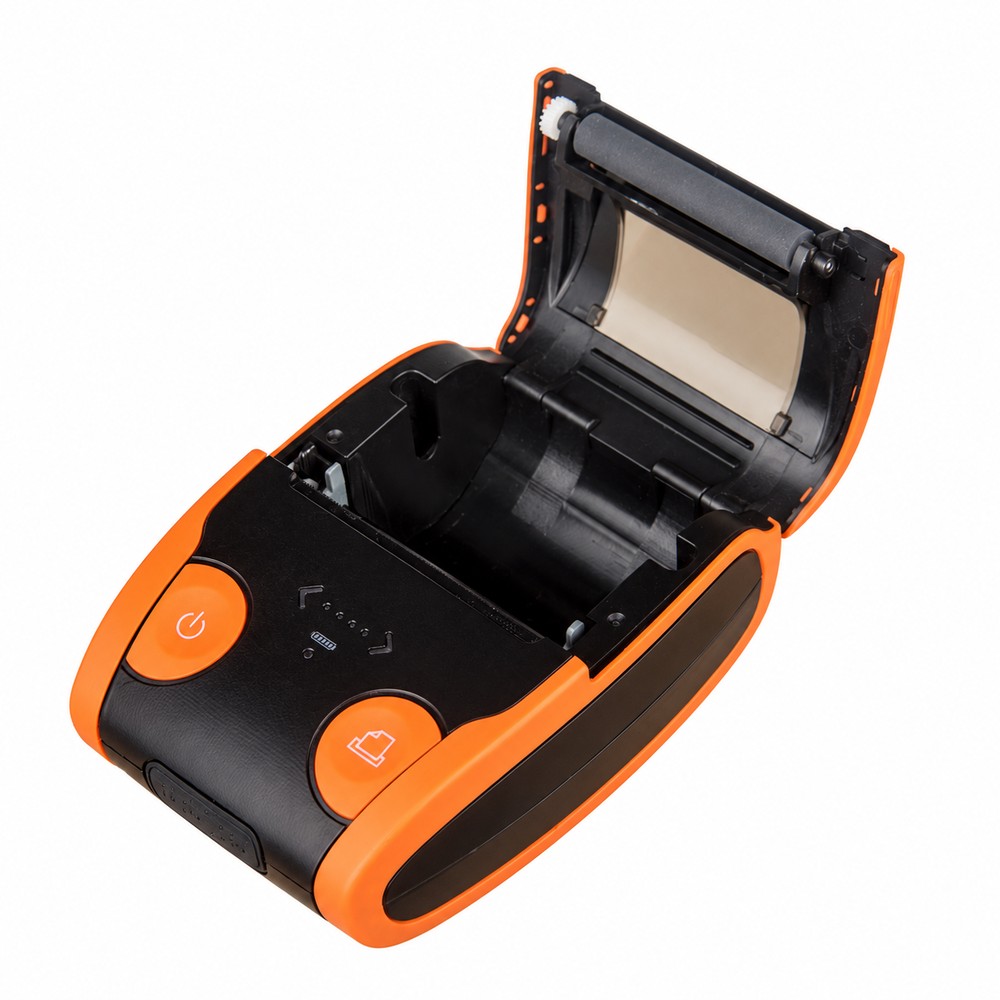

| Put Paper Method | Clam Shell Method |
| Paper Cut Method | Manual Tearing |
| Instruction Set | ESC/POS Compatible Instruction Set |
| Locate Mode | Black Mark Location,gap identification |
| Locate Mode | Black Mark Location,gap identification |
| Power Port | DC 9V,3A DC 5V 3A(optional) |
| Accessories | Li-ion Battery,Power Adapter 9V,3A ,Development CD,Instruction,Printing Paper,charging cable. |
