RUGGEDMASTER QS-1006 Rugged Tablets
10.1 inch 1920×1280 pixs FHD Screen · 5000mAh rechargeable lithium polymer battery(removable) · Intel® N100 Turbo 3.4GHZ CPU · 8GB+128GB (standard) 16GB+128GB~2TB (optional) · -20 ℃~+60 ℃ · IP65, up to IEC sealing standard · Bluetooth 5.2
Widely Used In Express Logistics, Financial Insurance, Warehouses, Retail Stores, Supermarkets And Other Industries Equipment Accessories Wrist strap Optional wrist strap for daily mobile use and hang in hand for other tasks cradle charger Equipment fixing pendant For use where equipment is to be used in a fixed position
Size: 274.9 x 188.7 x 23.1mm
Weight: 1197g (battery included)
Camera: Front: 2MP Camera Back: 5MP Camera
Display: 10.1 inch 1920×1280 pixs FHD Screen
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

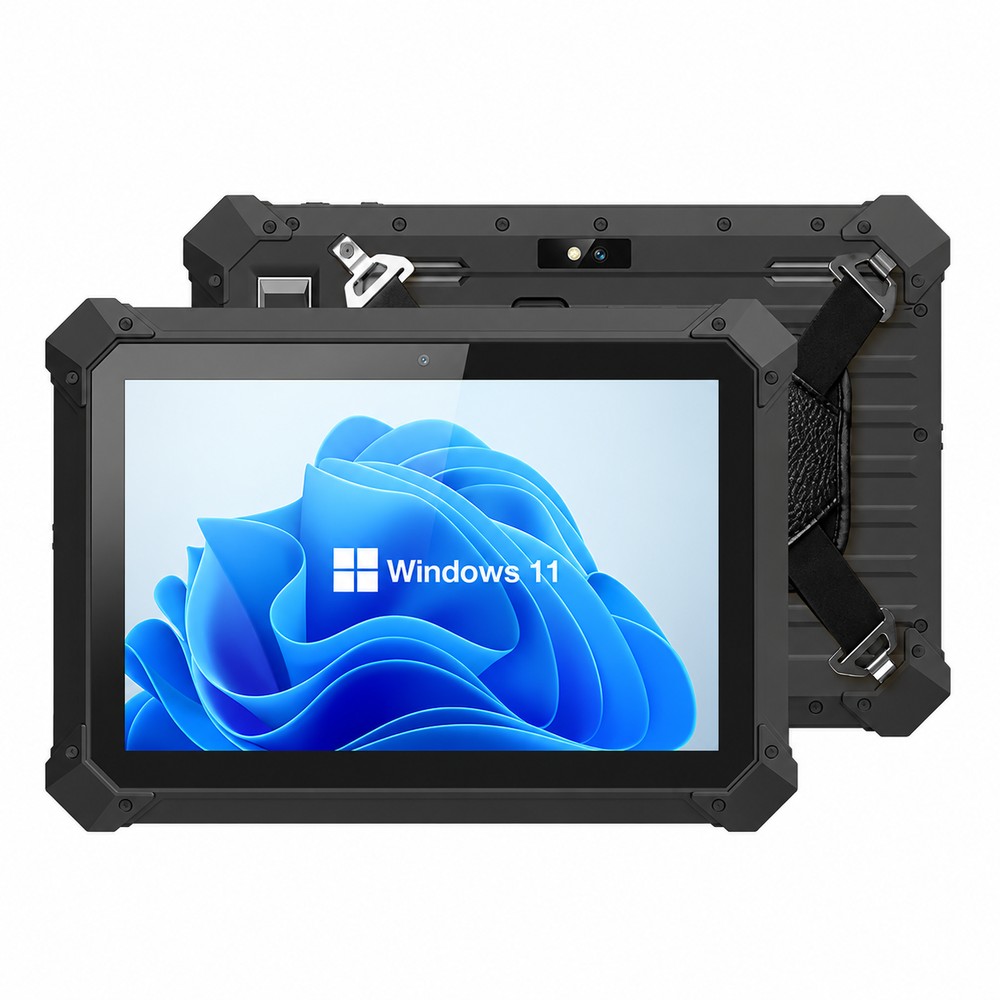

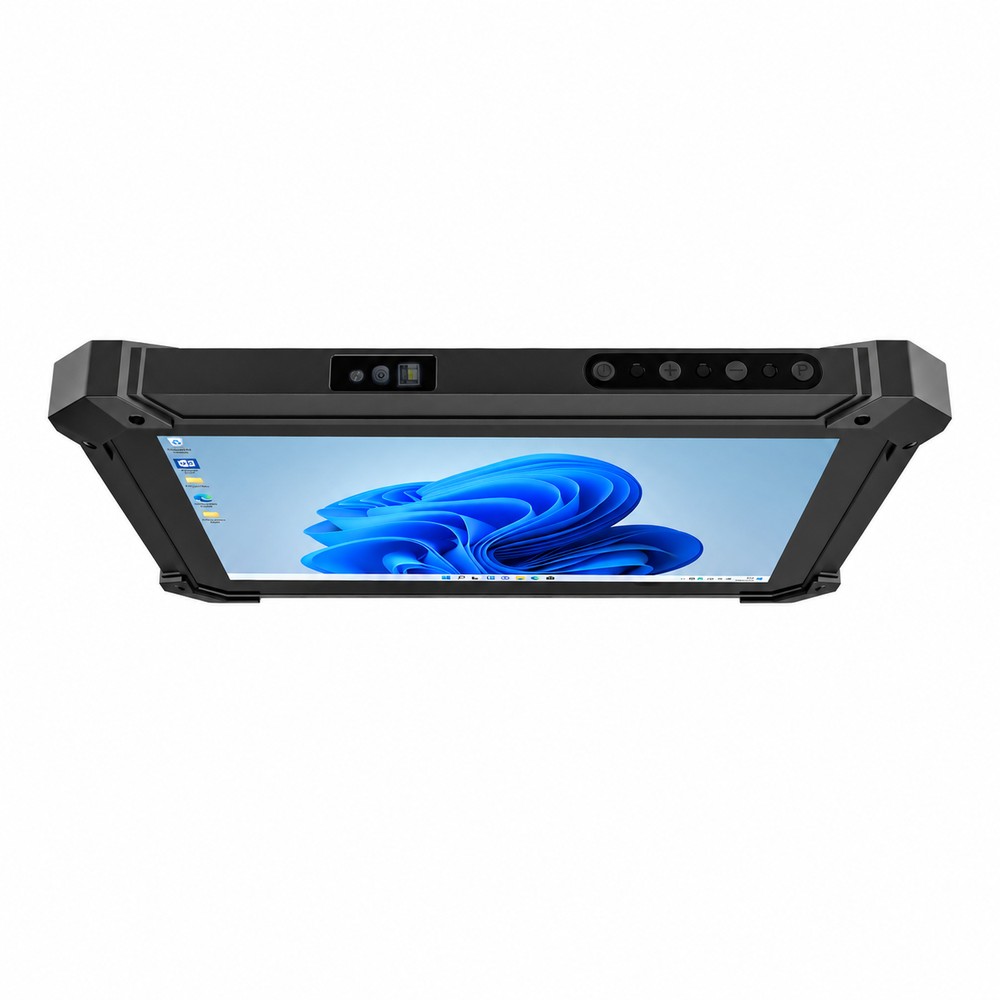

RUGGEDMASTER QS-1006 Rugged Tablets
RUGGEDMASTER QS-1006 combines the features and configurations shown below. Review the product overview, original feature graphics and complete Specs when selecting units for a bulk order.
Widely Used In Express Logistics, Financial Insurance, Warehouses, Retail Stores, Supermarkets And Other Industries

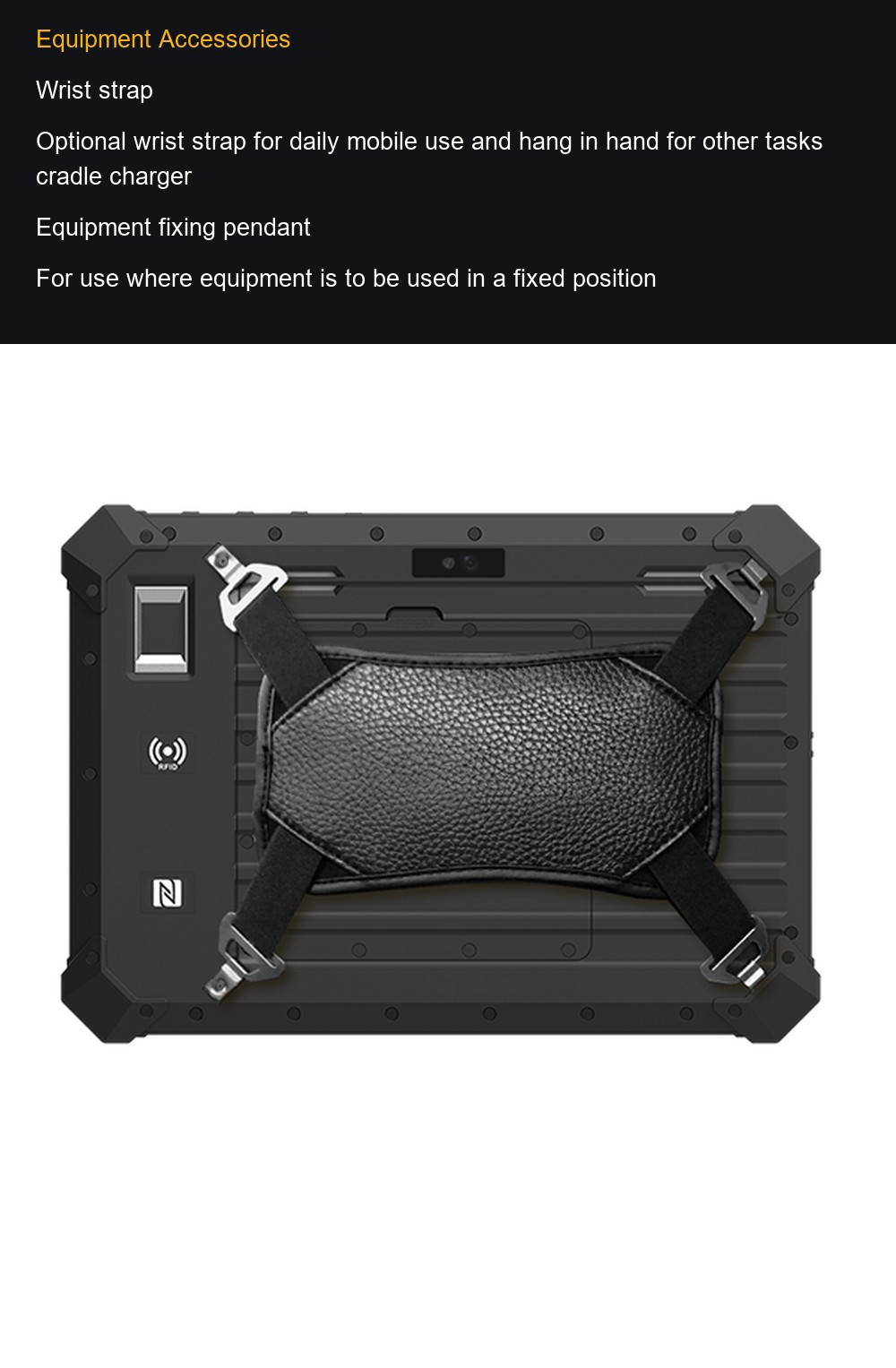

Equipment Accessories

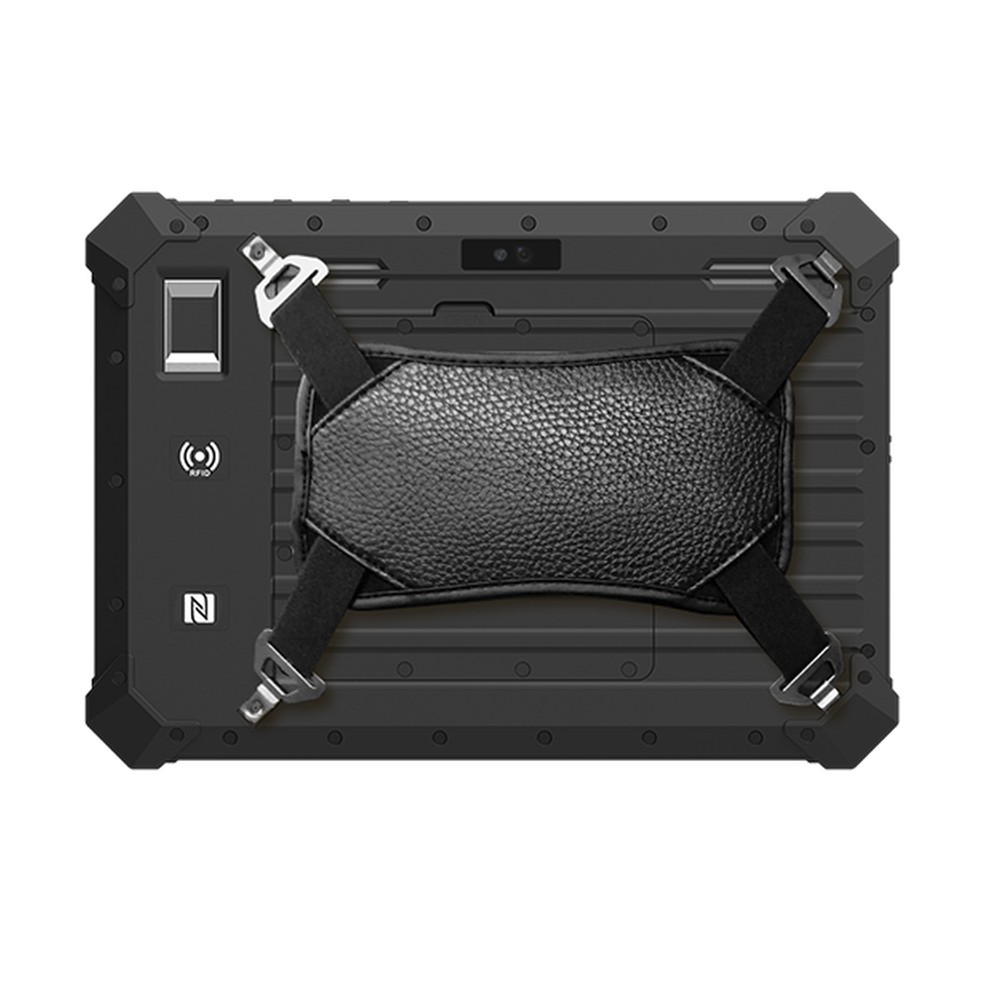

Wrist strap
Optional wrist strap for daily mobile use and hang in hand for other tasks cradle charger

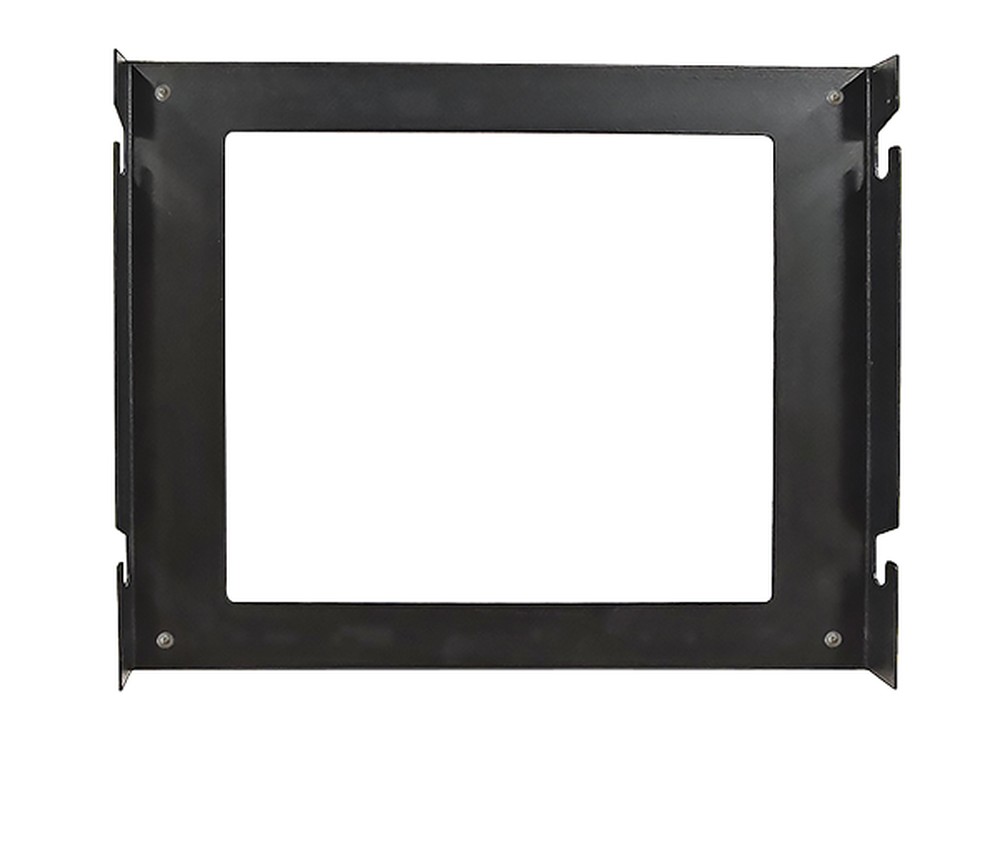

Equipment fixing pendant
For use where equipment is to be used in a fixed position
Configuration overview
Technical specifications include Size: 274.9 x 188.7 x 23.1mm. Weight: 1197g (battery included). Camera: Front: 2MP Camera Back: 5MP Camera. Display: 10.1 inch 1920×1280 pixs FHD Screen.
Technical specifications include Battery: 5000mAh rechargeable lithium polymer battery(removable). Speaker: support. Shake: support. Touch Panel: G+ G glass, support multi touch, support glove or wet hand operation.
Technical specifications include Sensor: G-sensor, Vibrating motor. Quick charge: 5V-3A 9V-2A Quick charge. CPU: Intel® N100 Turbo 3.4GHZ CPU. OS: Windows10/11 64 bit OS.
Technical specifications include RAM+ROM: 8GB+128GB (standard) 16GB+128GB~2TB (optional). Operating Temp: -10℃~+50℃. Storage Temp: -20 ℃~+60 ℃. Humidity: 95% (non-condensing).
Technical specifications include Drop specification: Within the scope of operation, 6 sides are subjected to the impact of 1.5m falling to the concrete. Electrostatic Protection: + 15 kV air discharge, 8 kV contact discharge. Rolling Test: After 1000 rolling times and 0.25m, the six contact surfaces still run stably, reaching IEC rolling specifications. Sealing: IP65, up to IEC sealing standard.
Technical specifications include WLAN: 2.4g/5g dual band, support 802.11 a/B/g/N /AC/, IPv4, IPv6;. WWAN (Optional): 2G: 850/900/1800/1900MHz 3G: CDMA EVDO: BCO WCDMA850/900/1900/2100MHz 4G:B1/B3/B5/B7/B8/B20/B38/B39/B40/B41. Bluetooth: Bluetooth 5.2. GNSS(Optional): GPS/BEIDOU/GLONASS A-GPS.
Wholesale purchasing information
For RUGGEDMASTER QS-1006, compare the pictured housing, connectors and controls with the configuration required by your application. The manufacturer may describe optional modules, memory configurations or regional network bands. These options are listed for reference; confirm the required configuration when requesting a quotation. Choose the interface and data-capture functions that match your existing workflow, software and installation requirements.
Review the complete Specs tab before placing a bulk order. It preserves the technical information supplied for this model, including the available operating environment and configuration details. Product pictures show the manufacturer’s existing views and available configurations. If your project needs a particular module, operating system version or connector, state that requirement in your enquiry so the configuration can be checked before ordering.
Explore related products in our RuggedMaster product catalog or send a bulk-order enquiry.
Manufacturer feature details
| Size | 274.9 x 188.7 x 23.1mm |
| Weight | 1197g (battery included) |

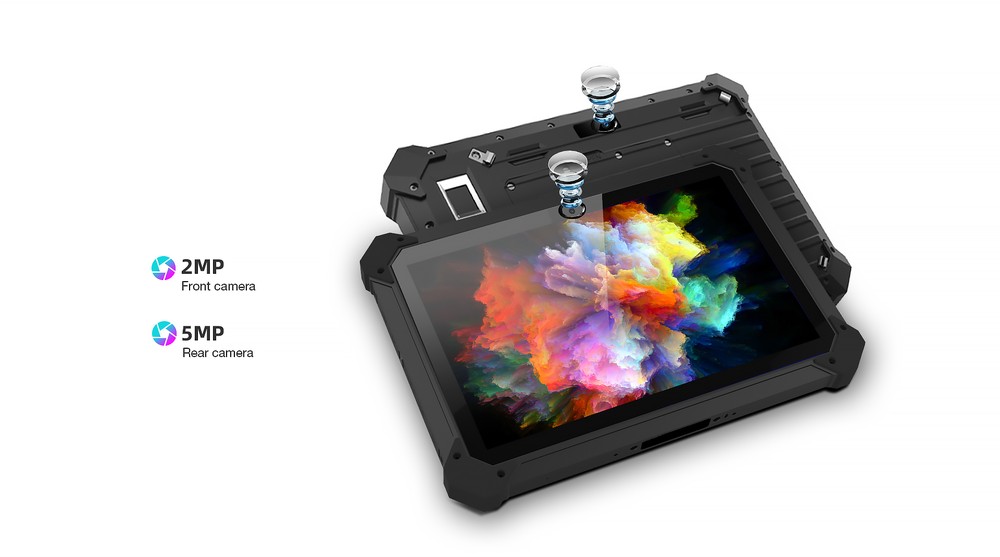

| Camera | Front: 2MP Camera Back: 5MP Camera |
| Display | 10.1 inch 1920x1280 pixs FHD Screen |

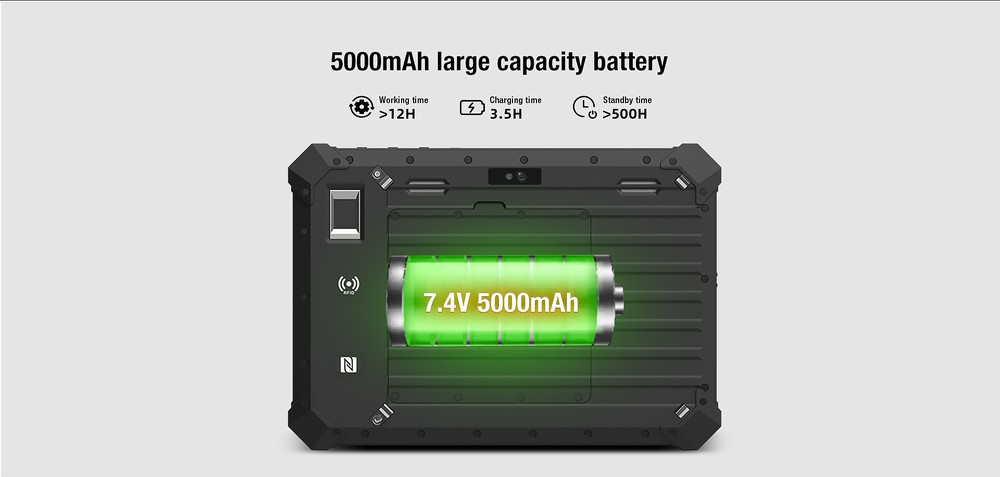

| Battery | 5000mAh rechargeable lithium polymer battery(removable) |
| Speaker | support |
| Shake | support |
| Touch Panel | G+ G glass, support multi touch, support glove or wet hand operation |
| Sensor | G-sensor, Vibrating motor |
| Quick charge | 5V-3A 9V-2A Quick charge |
| CPU | Intel® N100 Turbo 3.4GHZ CPU |
| OS | Windows10/11 64 bit OS |
| RAM+ROM | 8GB+128GB (standard) 16GB+128GB~2TB (optional) |
| Operating Temp | -10℃~+50℃ |
| Storage Temp | -20 ℃~+60 ℃ |
| Humidity | 95% (non-condensing) |
| Drop specification | Within the scope of operation, 6 sides are subjected to the impact of 1.5m falling to the concrete |
| Electrostatic Protection | + 15 kV air discharge, 8 kV contact discharge |
| Rolling Test | After 1000 rolling times and 0.25m, the six contact surfaces still run stably, reaching IEC rolling specifications |

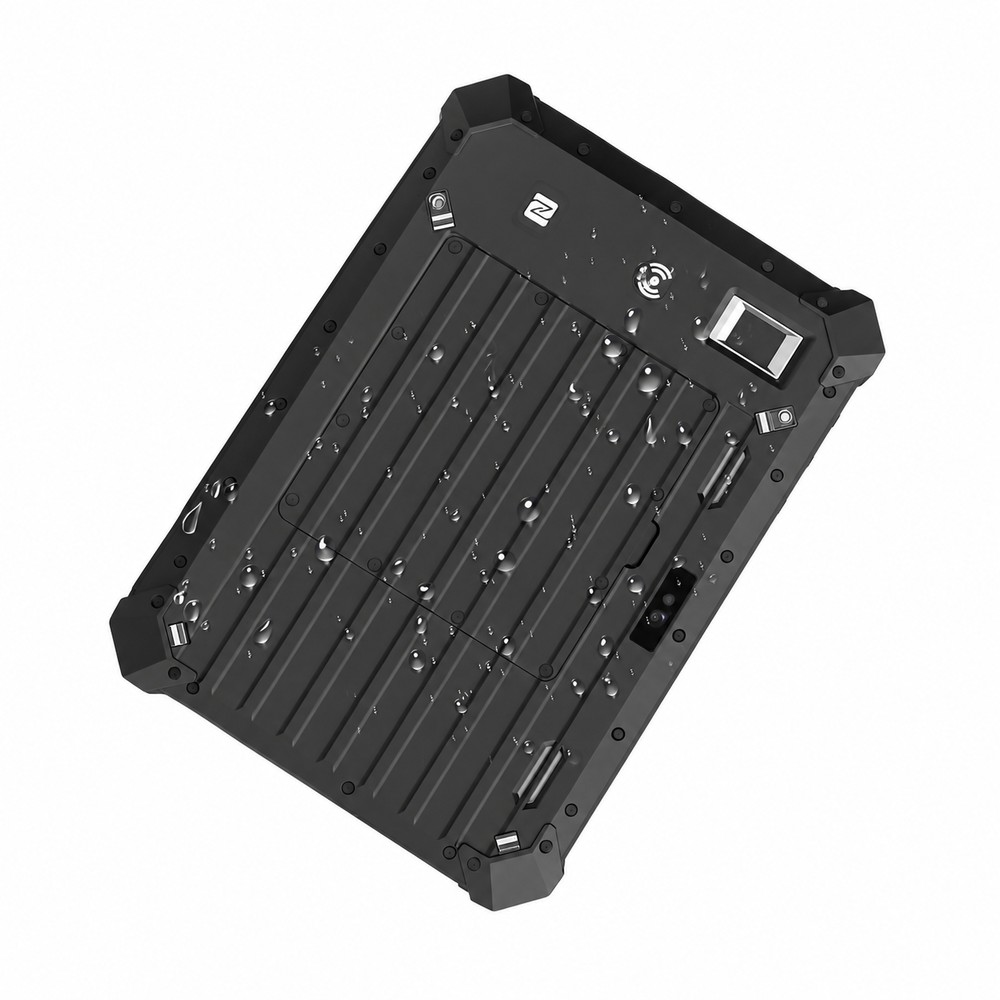

| Sealing | IP65, up to IEC sealing standard |
| WLAN | 2.4g/5g dual band, support 802.11 a/B/g/N /AC/, IPv4, IPv6; |
| WWAN (Optional) | 2G: 850/900/1800/1900MHz 3G: CDMA EVDO: BCO WCDMA850/900/1900/2100MHz 4G:B1/B3/B5/B7/B8/B20/B38/B39/B40/B41 |
| Bluetooth | Bluetooth 5.2 |
| GNSS(Optional) | GPS/BEIDOU/GLONASS A-GPS |
| NFC(Optional) | 13.56MH supports ISO/IEC14443A/B/15693/18092/mifare protocol. Card reading distance: 4cm |
| Scanning engine (Optional) | Newland N1 2D scanner, support scan ning 1D or 2D code |
| 1D | UPC/EAN,Code129,code39,code11,codabar, MSI |
| 2D | QR,PDF417,Mirco QR,RSS,Aztec,Maxincode |
| UHF RFID (Optional) | spectrum range :902MHz - 928MHz /865MHz - 868MHz (optional) recognition speed:>50 sheets/second |
| Fingerprint (Optional) | FBI PIV Mobile ID FAP 10 Standard ISO19794-2, ISO19794-4 |
| TF memory | Supports TF*1 max: 512G |
| SIM | SIM*1 |
| USB interface | USB 2.0 Type-A*1 |
| RJ45 network port | Support 100MB/S transfer rate speed |
| type-c | USB Type-C*1 |
| HDMI | HDMI*1 |
