RUGGEDMASTER QS-1002 Rugged Tablets
10000mAh rechargeable lithium polymer battery(removable) Standby time>500h（Only with the host battery installed） Working · 10.1 inch IPS 1280×800 pixs Optional 1920*1200 FHD Screen · Cortex-a53 eight core 64 bit 2.0GHz high performance processor · 4GB+64GB 6GB+128GB（optional） · -40 ℃~+70 ℃ · IP67, up to IEC sealing standard · BT4.1
QS – 1002 10.1 inch Rugged industrial Android tablet Suitable For A Variety Of Environments applications Widely Used In Express Logistics, Financial Insurance, Warehouses, Retail Stores, Supermarkets And Other Industries Professional Scanning Engine It has an international professional scanning code module, which can quickly identify the old barcodes of 1D/2D/distorted/broken that are commonly used internationally, so as to maintain efficient work at any time 10.1-inch high-definition screen The 10.1-inch IPS ultra-clear large screen with a display resolution 800*1280 or 1200*1900 allows the perfect presentation of work information and detailed data at a glance. From then on, instead of being fatigue, inefficiency, and sufficient display area to get more information at a glance NFC short-range wireless communication Built-in proximity.
Size: 280*198*28 mm
Weight: 1030g（battery included）
Keypad: Power button,scanner button, volume button
Speaker: support
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

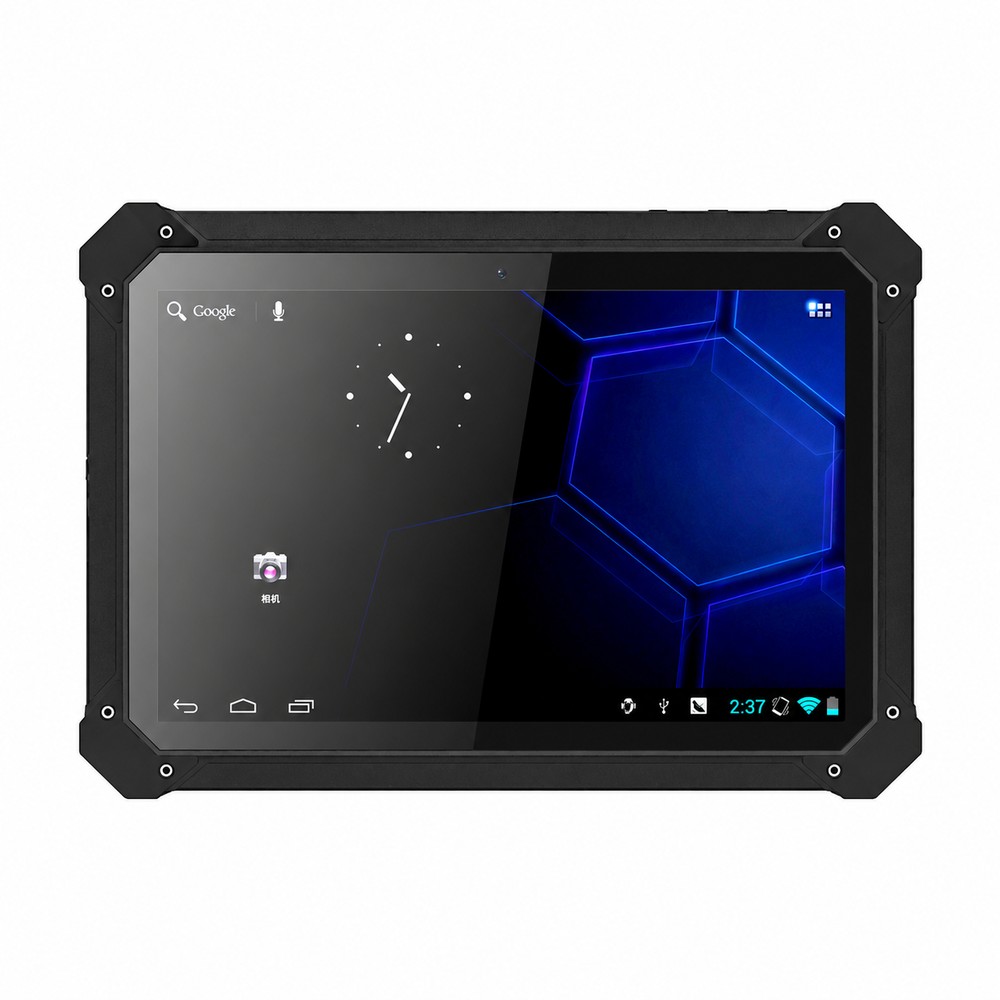

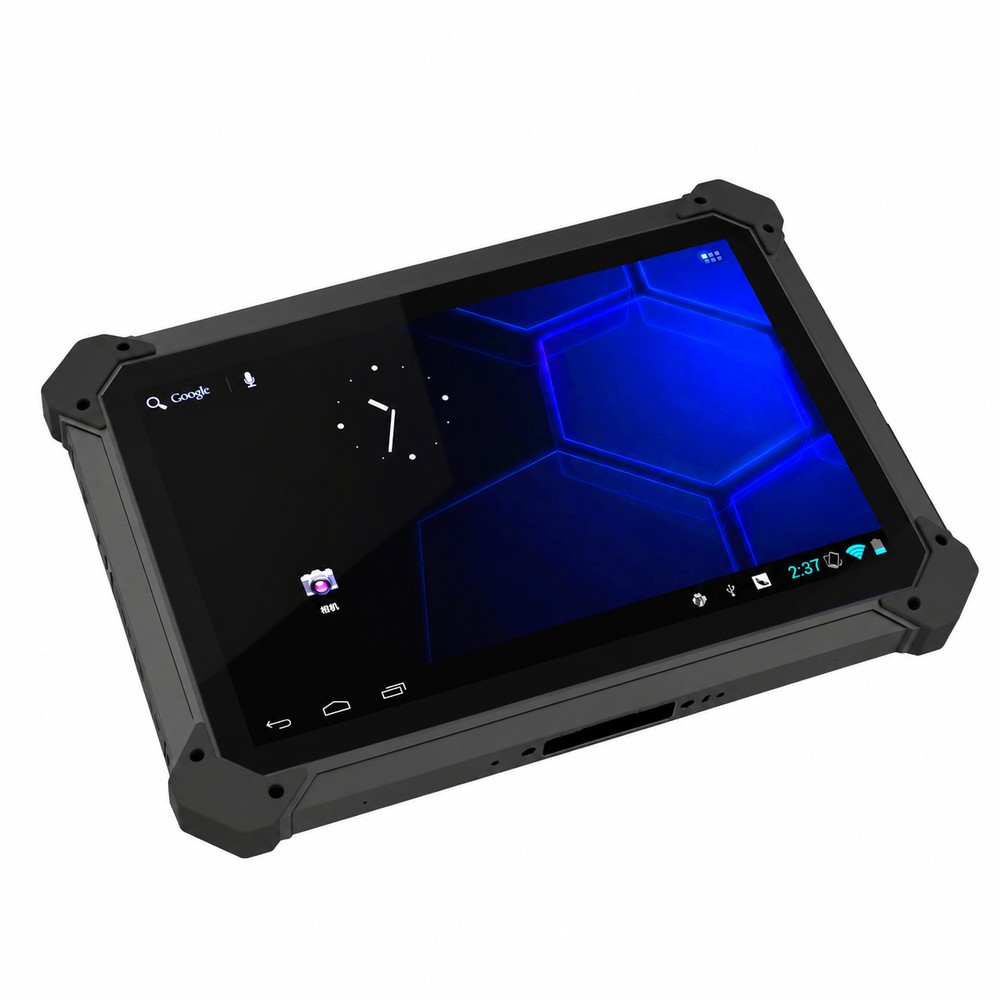

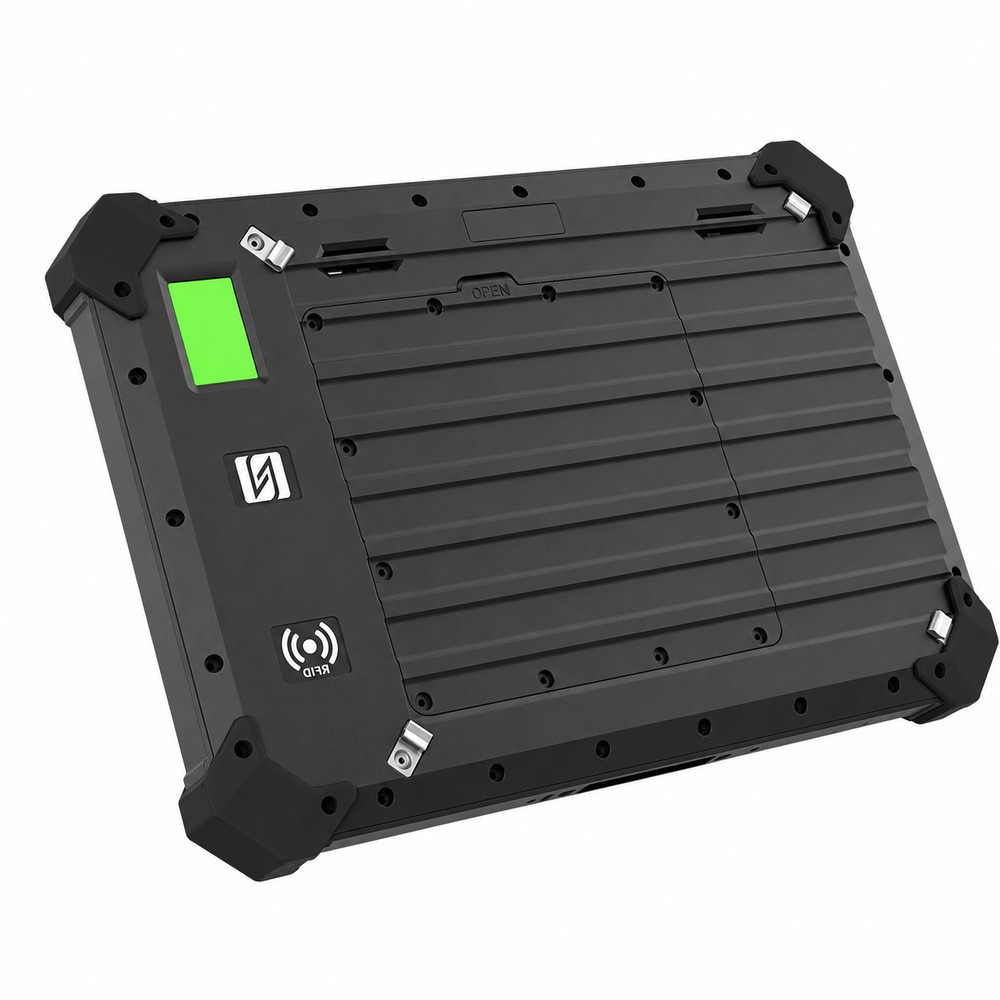

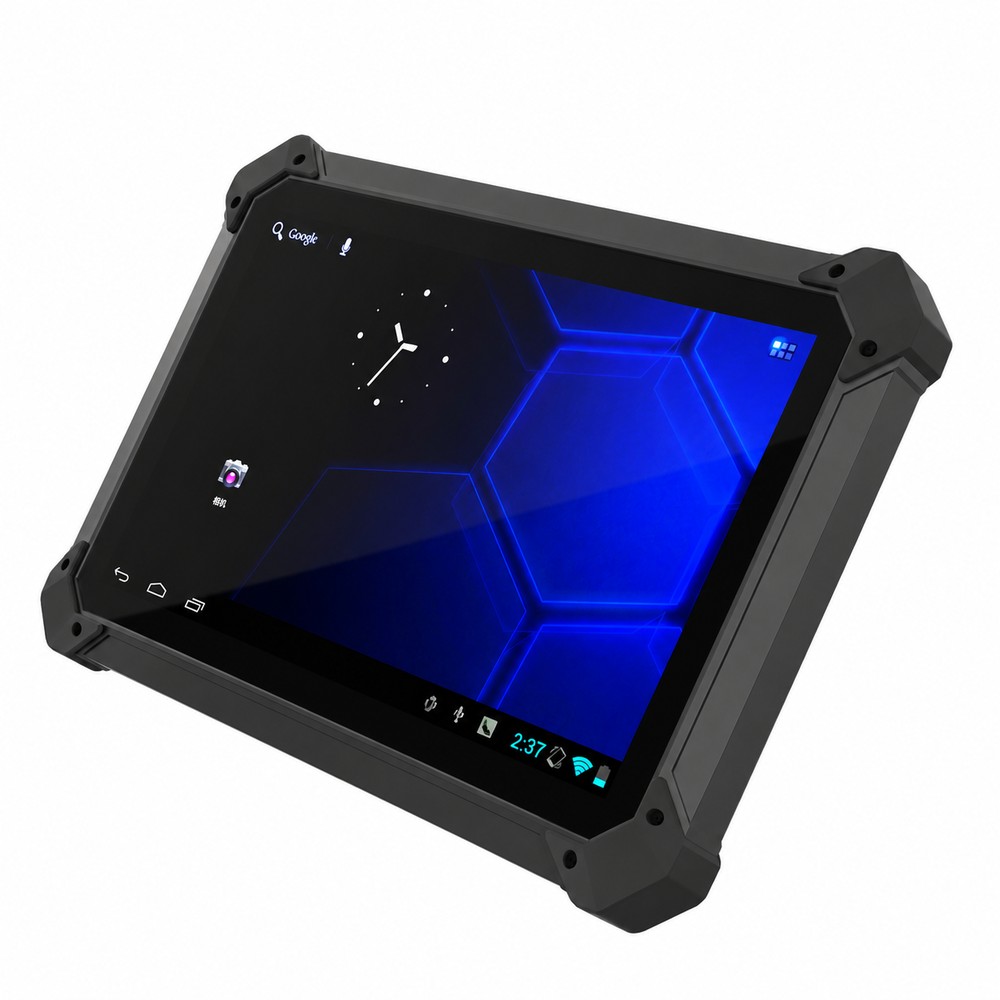

RUGGEDMASTER QS-1002 Rugged Tablets
RUGGEDMASTER QS-1002 combines the features and configurations shown below. Review the product overview, original feature graphics and complete Specs when selecting units for a bulk order.

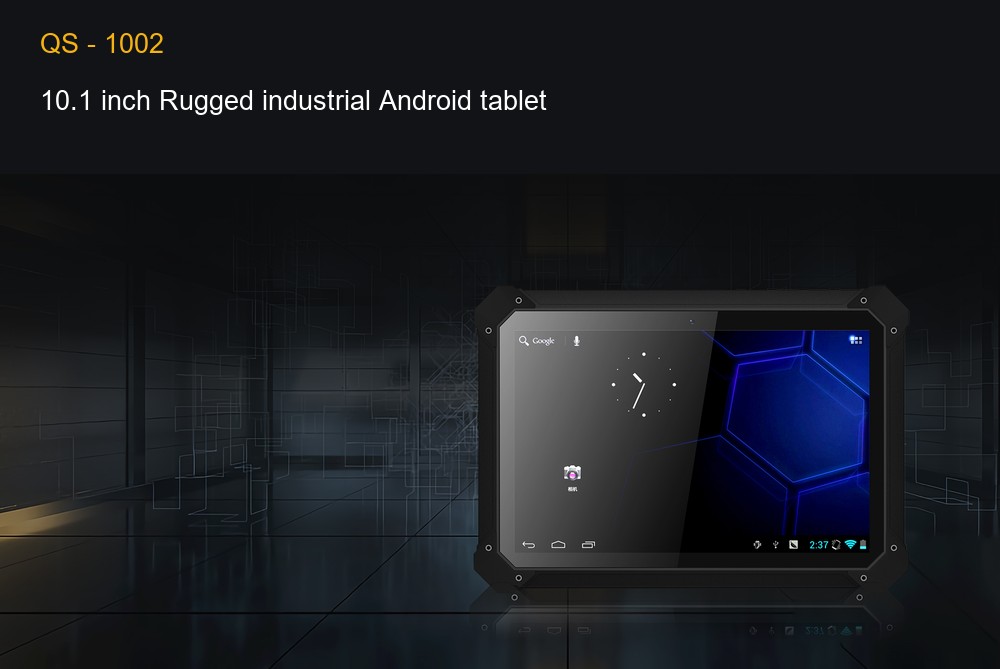

QS – 1002
10.1 inch Rugged industrial Android tablet
Suitable For A Variety Of Environments
applications
Widely Used In Express Logistics, Financial Insurance, Warehouses, Retail Stores, Supermarkets And Other Industries

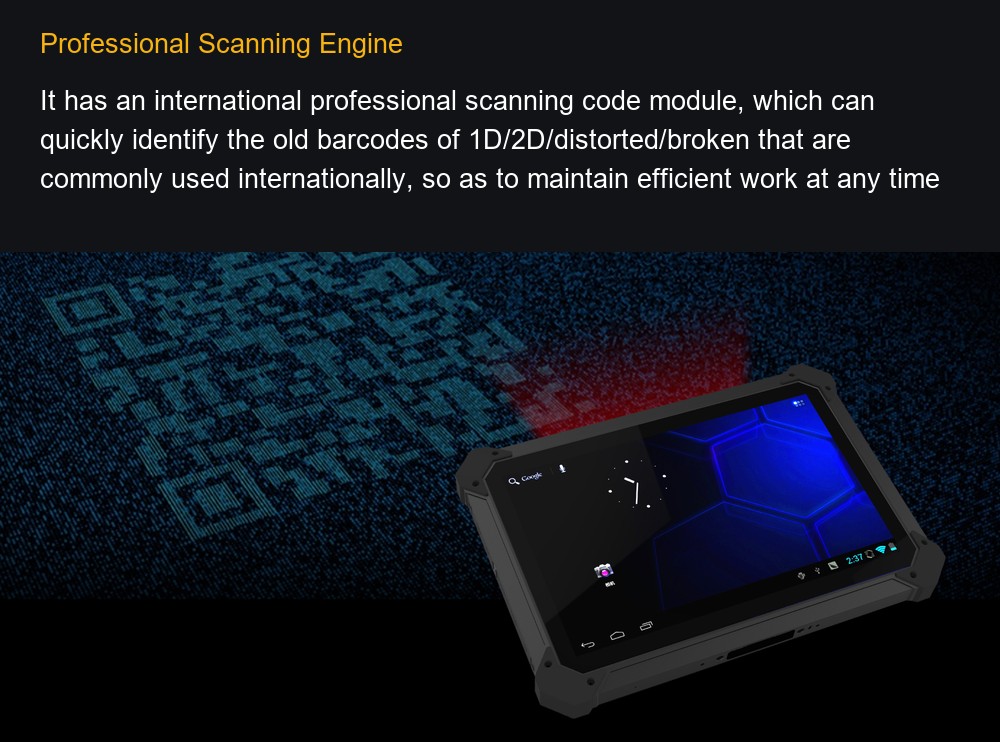

Professional Scanning Engine
It has an international professional scanning code module, which can quickly identify the old barcodes of 1D/2D/distorted/broken that are commonly used internationally, so as to maintain efficient work at any time

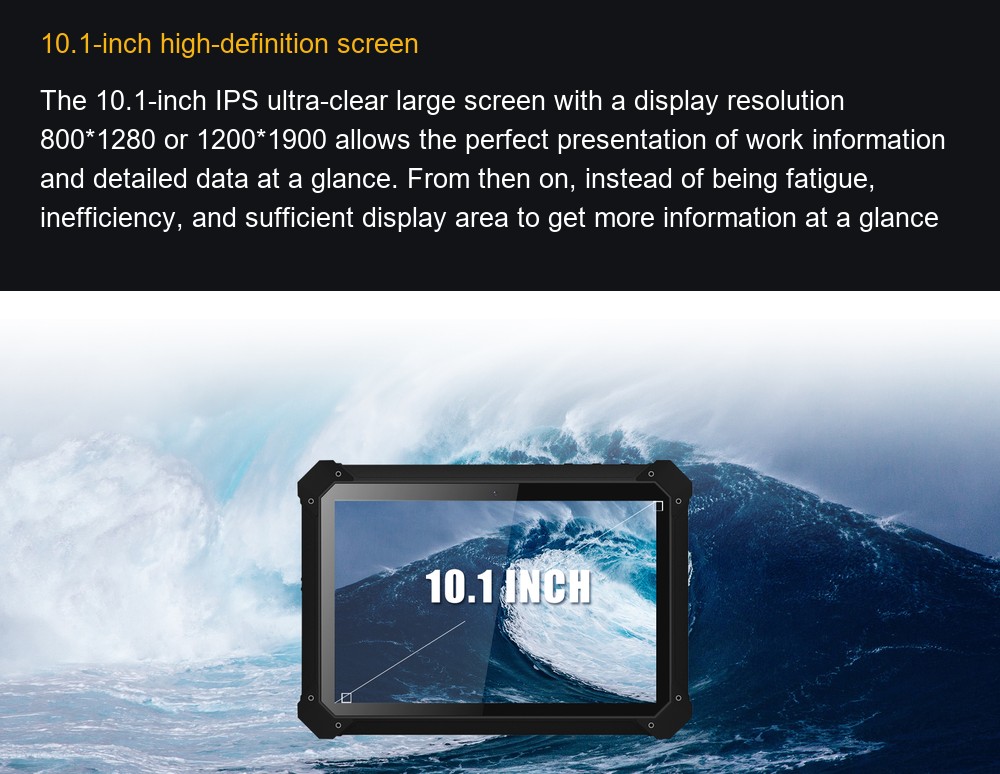

10.1-inch high-definition screen
The 10.1-inch IPS ultra-clear large screen with a display resolution 800*1280 or 1200*1900 allows the perfect presentation of work information and detailed data at a glance. From then on, instead of being fatigue, inefficiency, and sufficient display area to get more information at a glance

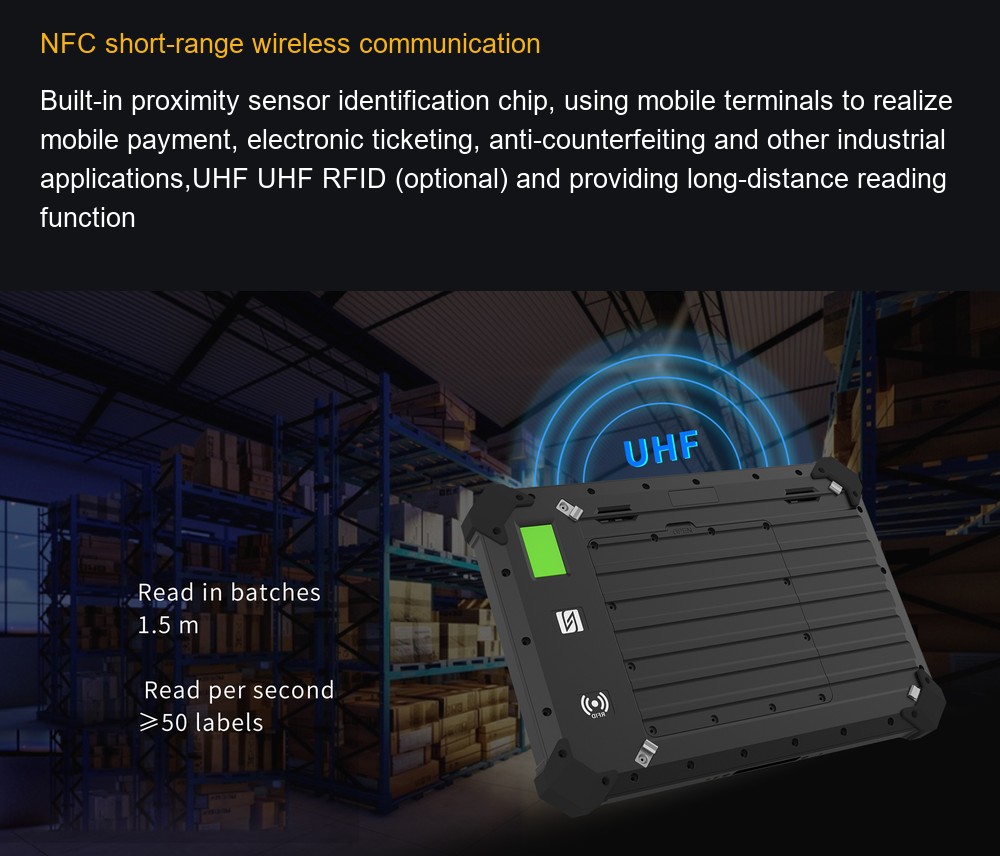

NFC short-range wireless communication
Built-in proximity sensor identification chip, using mobile terminals to realize mobile payment, electronic ticketing, anti-counterfeiting and other industrial applications,UHF UHF RFID (optional) and providing long-distance reading function

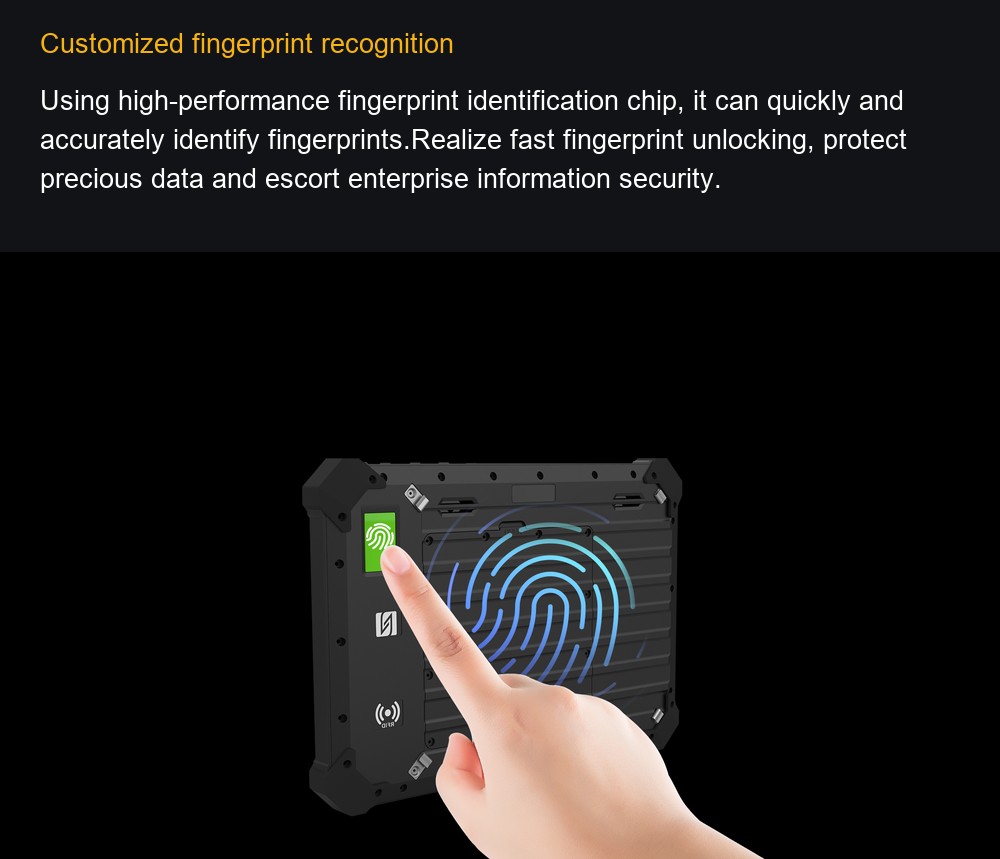

Customized fingerprint recognition
Using high-performance fingerprint identification chip, it can quickly and accurately identify fingerprints.Realize fast fingerprint unlocking, protect precious data and escort enterprise information security.
High-performance chip, smooth use without fear of lag
Octa-core
Equipped With MTK Helio Octa-core High-Performance Processor
6GB RAM+128GM ROM
Large Memory
Android 11.0
Operating System

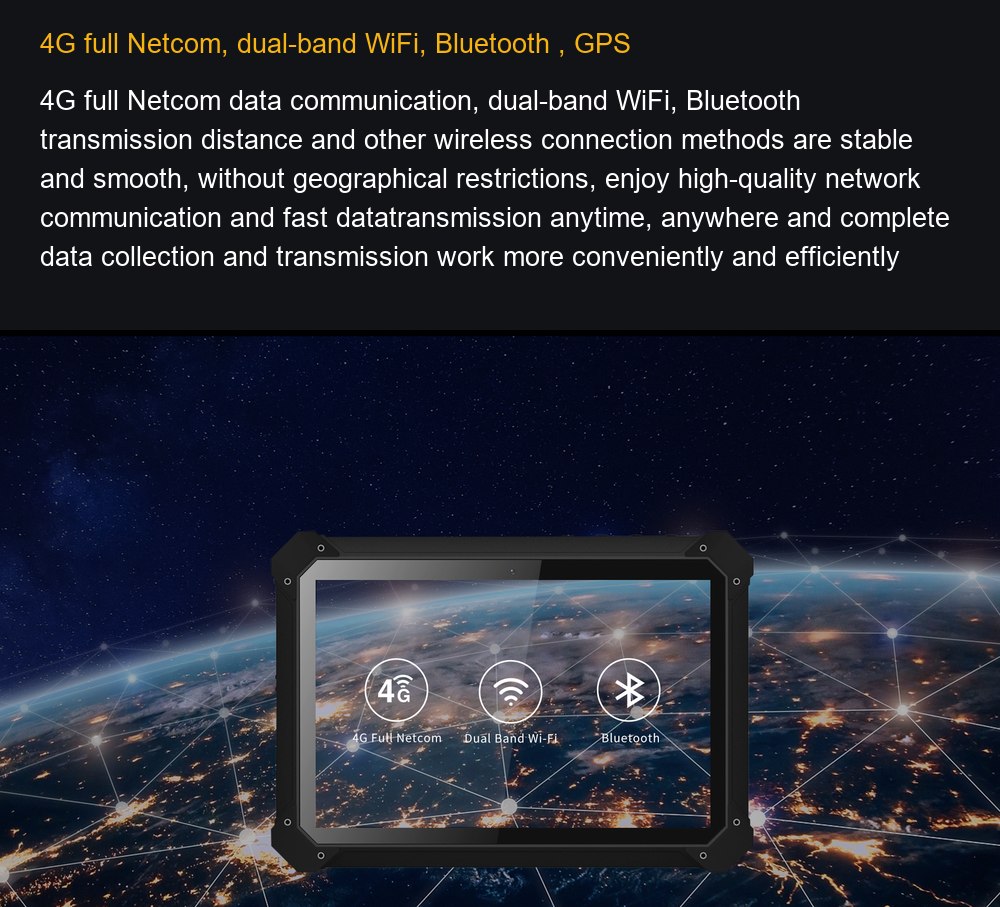

4G full Netcom, dual-band WiFi, Bluetooth , GPS
4G full Netcom data communication, dual-band WiFi, Bluetooth transmission distance and other wireless connection methods are stable and smooth, without geographical restrictions, enjoy high-quality network communication and fast datatransmission anytime, anywhere and complete data collection and transmission work more conveniently and efficiently

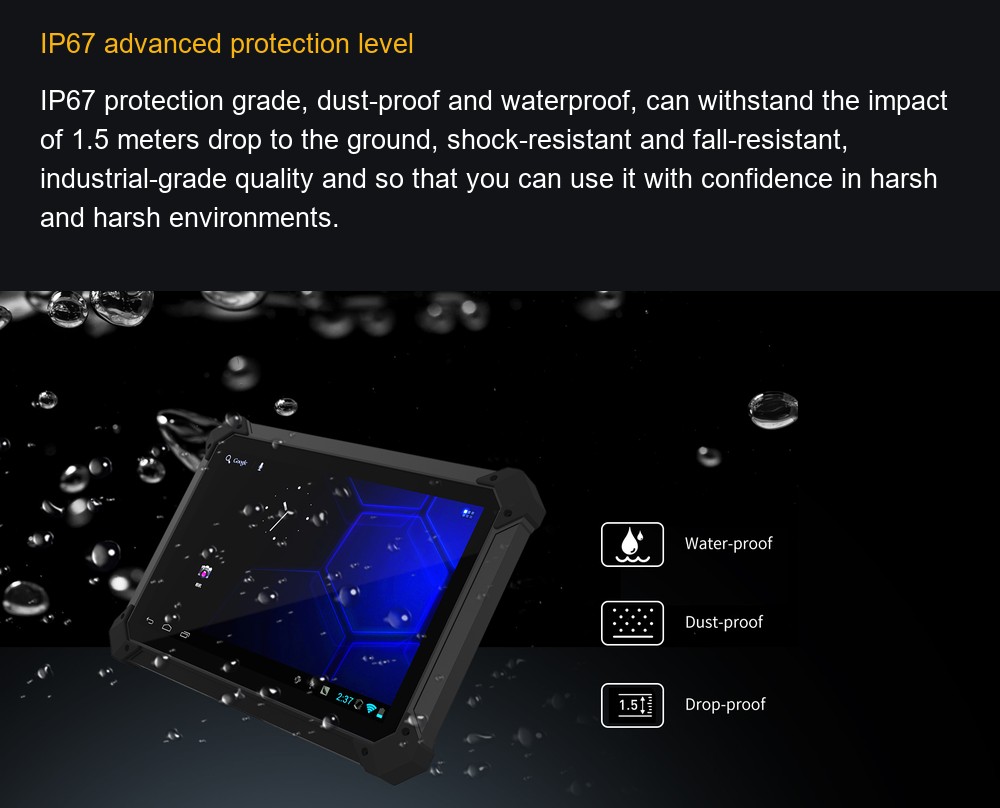

IP67 advanced protection level
IP67 protection grade, dust-proof and waterproof, can withstand the impact of 1.5 meters drop to the ground, shock-resistant and fall-resistant, industrial-grade quality and so that you can use it with confidence in harsh and harsh environments.

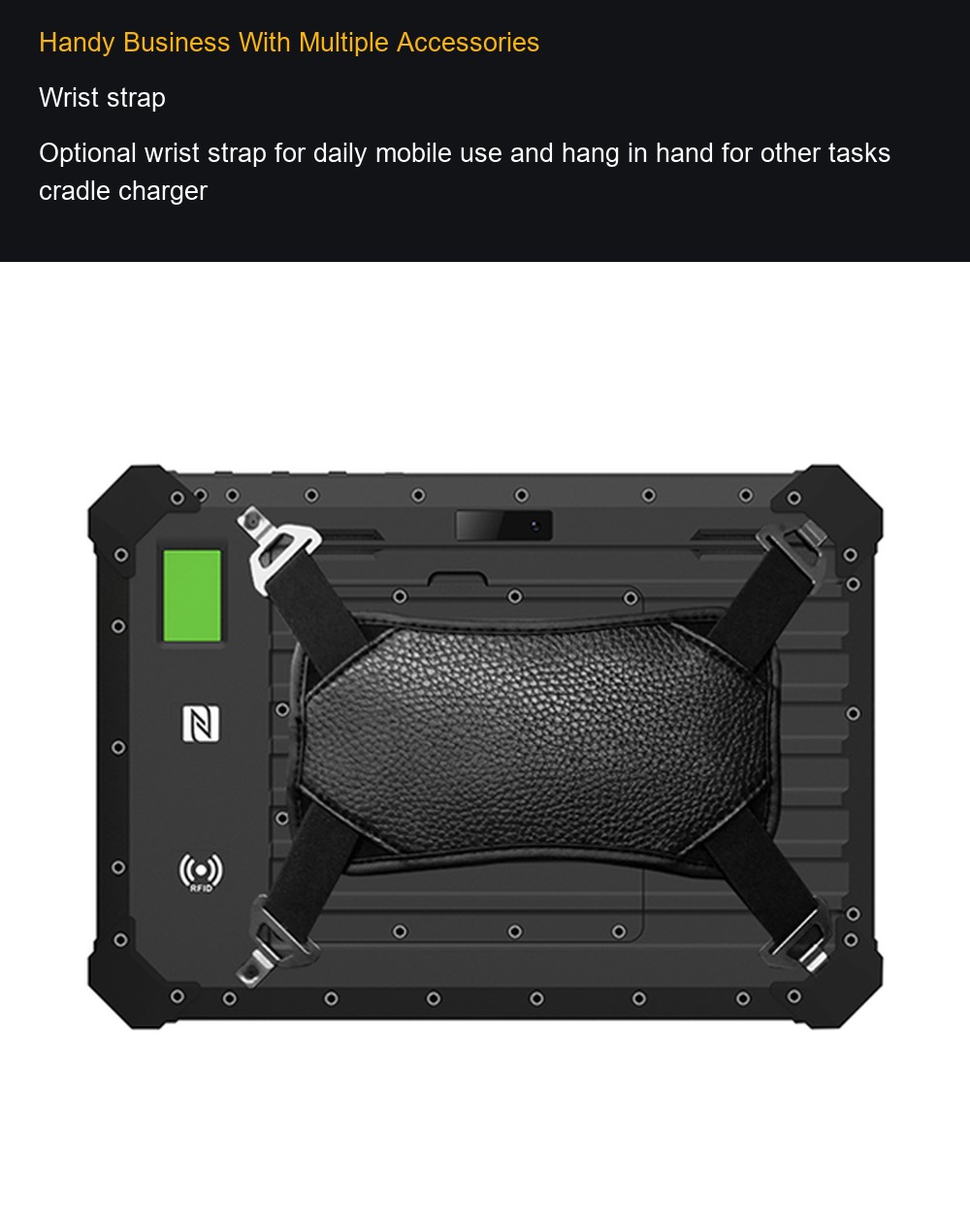

Handy Business With Multiple Accessories

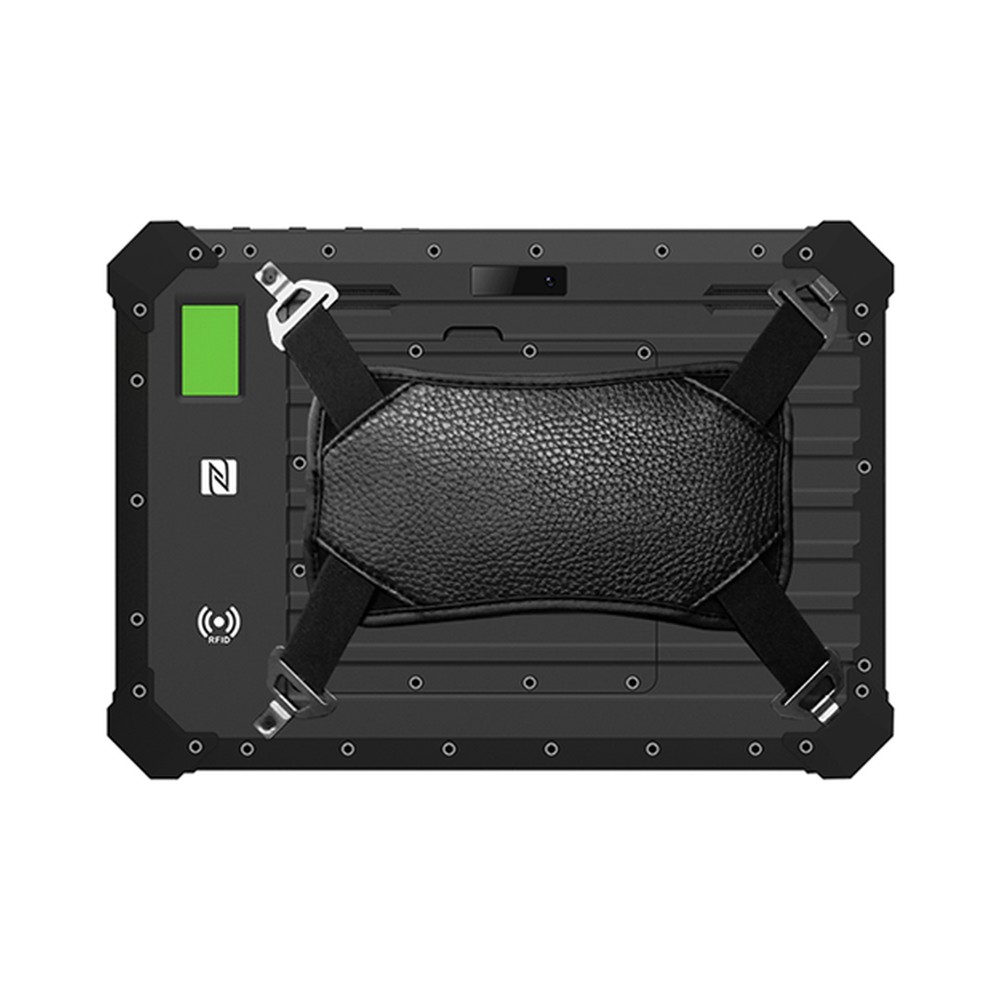

Wrist strap
Optional wrist strap for daily mobile use and hang in hand for other tasks cradle charger
Configuration overview
Technical specifications include Size: 280*198*28 mm. Weight: 1030g（battery included）. Keypad: Power button,scanner button, volume button. Battery: 10000mAh rechargeable lithium polymer battery(removable) Standby time>500h（Only with the host battery installed） Working time>12h（It depends on usage and network environment） Charger time 3 h.
Technical specifications include Speaker: support. Shake: support. Display: 10.1 inch IPS 1280×800 pixs Optional 1920*1200 FHD Screen. Touch Panel: G + G glass, support multi touch, support glove or wet hand operation.
Technical specifications include Sensor: G-sensor、Vibrating motor. Camera: Front: 5MP Camera Back:AF 8.0M Pixels autofocus with LED flash light. Card slot: 1pcs SIM slot ,1pcs PSM slot，1pcs TF slot. Interface: Micro USB/MINI USB Extend Serial Port/USB 2.0.
Technical specifications include Earphone: 3.5mm standard headphone interface. Quick charge: 5V-3A 9V-2A Quick charge. CPU: Cortex-a53 eight core 64 bit 2.0GHz high performance processor. RAM+ROM: 4GB+64GB 6GB+128GB（optional）.
Technical specifications include O.S: Android 11（64 bit）. SDK: Android SDK + JDK + Eclipse. P-Language: Java. Develop Tools: Eclipse/Android Studio.
Technical specifications include Operating Temp.: -20 ℃~+50 ℃. Storage Temp.: -40 ℃~+70 ℃. Humidity: 0 ~ 95% (non-condensing). Drop specification: Within the scope of operation, 6 sides are subjected to the impact of 1.5m falling to the concrete.
Wholesale purchasing information
For RUGGEDMASTER QS-1002, compare the pictured housing, connectors and controls with the configuration required by your application. The manufacturer may describe optional modules, memory configurations or regional network bands. These options are listed for reference; confirm the required configuration when requesting a quotation. Choose the interface and data-capture functions that match your existing workflow, software and installation requirements.
Review the complete Specs tab before placing a bulk order. It preserves the technical information supplied for this model, including the available operating environment and configuration details. Product pictures show the manufacturer’s existing views and available configurations. If your project needs a particular module, operating system version or connector, state that requirement in your enquiry so the configuration can be checked before ordering.
Explore related products in our RuggedMaster product catalog or send a bulk-order enquiry.
Manufacturer feature details
| Size | 280*198*28 mm |
| Weight | 1030g（battery included） |
| Keypad | Power button,scanner button, volume button |

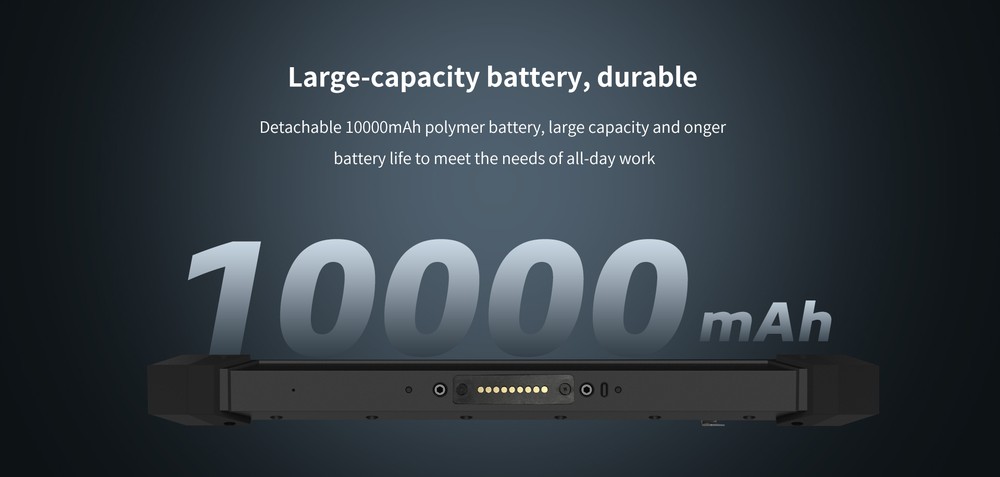

| Battery | 10000mAh rechargeable lithium polymer battery(removable) Standby time>500h（Only with the host battery installed） Working time>12h（It depends on usage and network environment） Charger time 3 h |
| Speaker | support |
| Shake | support |
| Display | 10.1 inch IPS 1280x800 pixs Optional 1920*1200 FHD Screen |
| Touch Panel | G + G glass, support multi touch, support glove or wet hand operation |
| Sensor | G-sensor、Vibrating motor |
| Camera | Front: 5MP Camera Back:AF 8.0M Pixels autofocus with LED flash light |
| Card slot | 1pcs SIM slot ,1pcs PSM slot，1pcs TF slot |
| Interface | Micro USB/MINI USB Extend Serial Port/USB 2.0 |
| Earphone | 3.5mm standard headphone interface |
| Quick charge | 5V-3A 9V-2A Quick charge |
| CPU | Cortex-a53 eight core 64 bit 2.0GHz high performance processor |
| RAM+ROM | 4GB+64GB 6GB+128GB（optional） |
| O.S | Android 11（64 bit） |
| SDK | Android SDK + JDK + Eclipse |
| P-Language | Java |
| Develop Tools | Eclipse/Android Studio |
| Operating Temp. | -20 ℃~+50 ℃ |
| Storage Temp. | -40 ℃~+70 ℃ |
| Humidity | 0 ~ 95% (non-condensing) |
| Drop specification | Within the scope of operation, 6 sides are subjected to the impact of 1.5m falling to the concrete |
| Electrostatic Protection | ± 15 kV air discharge, ± 8 kV contact discharge |
| Rolling Test | After 1000 rolling times and 0.25m, the six contact surfaces still run stably, reaching IEC rolling specifications |
| Sealing | IP67, up to IEC sealing standard |
| WLAN | 2.4g/5g dual band, support 802.11 a / B / g / N / AC /, IPv4, IPv6; |
| WWAN | 2G: 850/900/1800/1900MHz 3G: CDMA EVDO: BC0 WCDMA850/900/1900/2100MHz 4G:B1/B3/B5/B7/B8/B20/B38/B39/B40/B41 |
| Vo-LTE | Support VO LTE HD video voice call |
| Bluetooth | BT4.1 |
| GNSS | GPS/BEIDOU/GLONASS A-GPS |
| Scanning engine | Newland N1 2D scanner , support scan ning 1D or 2D code |
| 1D | UPC/EAN,Code129,code39,code11,codabar, MSI |
| 2D | QR,PDF417,Mirco QR,RSS,Aztec,Maxincode |
| Frequency | 13.56 MHz |
| Protocol | ISO14443A/B,ISO15693,NFC-IP1,NFC-IP2 |
| Tag standard | M1（S50,S70），CPU card，NFC |
| Certificate | FBI PIV Mobile ID FAP 10 |
| Standard | ISO19794-2，ISO19794-4 |
