RUGGEDMASTER Q803 Rugged Tablets

OS: Android 12, CPU: 2.2 Ghz,MTK Octa-Core processor, Screen Size: 8 inch color (800*1280) display, Memory: 8 GB RAM / 128 GB Flash

The Q803 is a compact, rugged Android tablet designed to withstand industrial use while providing advanced features that increase productivity, enhance safety, and reduce operational costs. This 8-inch tablet is IP65 rated for dust and waterproofing and comes equipped with wireless connectivity options. The device features a brilliant touchscreen display with 1280 x 800-pixel resolution and an optional 1D/2D barcode reader.

Screen Size: 8 inch color (800*1280) display

Memory: 8 GB RAM / 128 GB Flash

Battery: Rechargeable li-ion polymer, 6000mAh/3.7V

Sealing: IP65

SEND US A MESSAGE

Just Email Us :

Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109

CONTACT INFORMATION

Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109

Reply Within 24hours for almost message!

Description

RUGGEDMASTER Q803 product details

RUGGEDMASTER Q803 rugged tablets. 8 Inch Android Waterproof Tablet for tough work.

RUGGEDMASTER Q803 key specifications

  • OS: Android 12
  • CPU: 2.2 Ghz,MTK Octa-Core processor
  • Screen Size: 8 inch color (800*1280) display
  • Memory: 8 GB RAM / 128 GB Flash
  • Battery: Rechargeable li-ion polymer, 6000mAh/3.7V
  • Sealing: IP65
  • HF RFID: Support HF/NFC Frequency 13.56Mhz Support: ISO 14443A&15693, NFC-IP1, NFC-IP2

Introduction

The Q803 is a compact, rugged Android tablet designed to withstand industrial use while providing advanced features that increase productivity, enhance safety, and reduce operational costs. This 8-inch tablet is IP65 rated for dust and waterproofing and comes equipped with wireless connectivity options. The device features a brilliant touchscreen display with 1280 x 800-pixel resolution and an optional 1D/2D barcode reader. The Q803 rugged PC has been tested for MIL-STD-810G shock, drop, and vibration resistance, making it ideal for harsh environments.

Equipped with Bluetooth, Wifi, NFC, GPS, 4G LTE,this 8" rugged Android tablet is perfect for everyday tasks in the most demanding environments. If you're running a warehouse, taking orders, or checking on patients, this rugged tablet is IP65 rated, making it tough and resilient to survive rough handling, extreme heat, and dirty environments.

Compact-sized for field workers

Weighing just 1.2 pounds (approx. 550 grams), the Q803 delivers lightweight mobility in a pocket-sized rugged tablet. The device is easy to carry and handle, making it perfect for workers who are constantly on the go. With the RUGGEDMASTER Q803, you get everything you need from the familiarity of Android to the large five-inch full HD display that is easily visible in direct sunlight. The device also offers seamless scanning of barcodes, tags, and files, along with additional Wi-Fi range and speed while consuming less power.

RUGGEDMASTER Q803 rugged tablets feature illustration

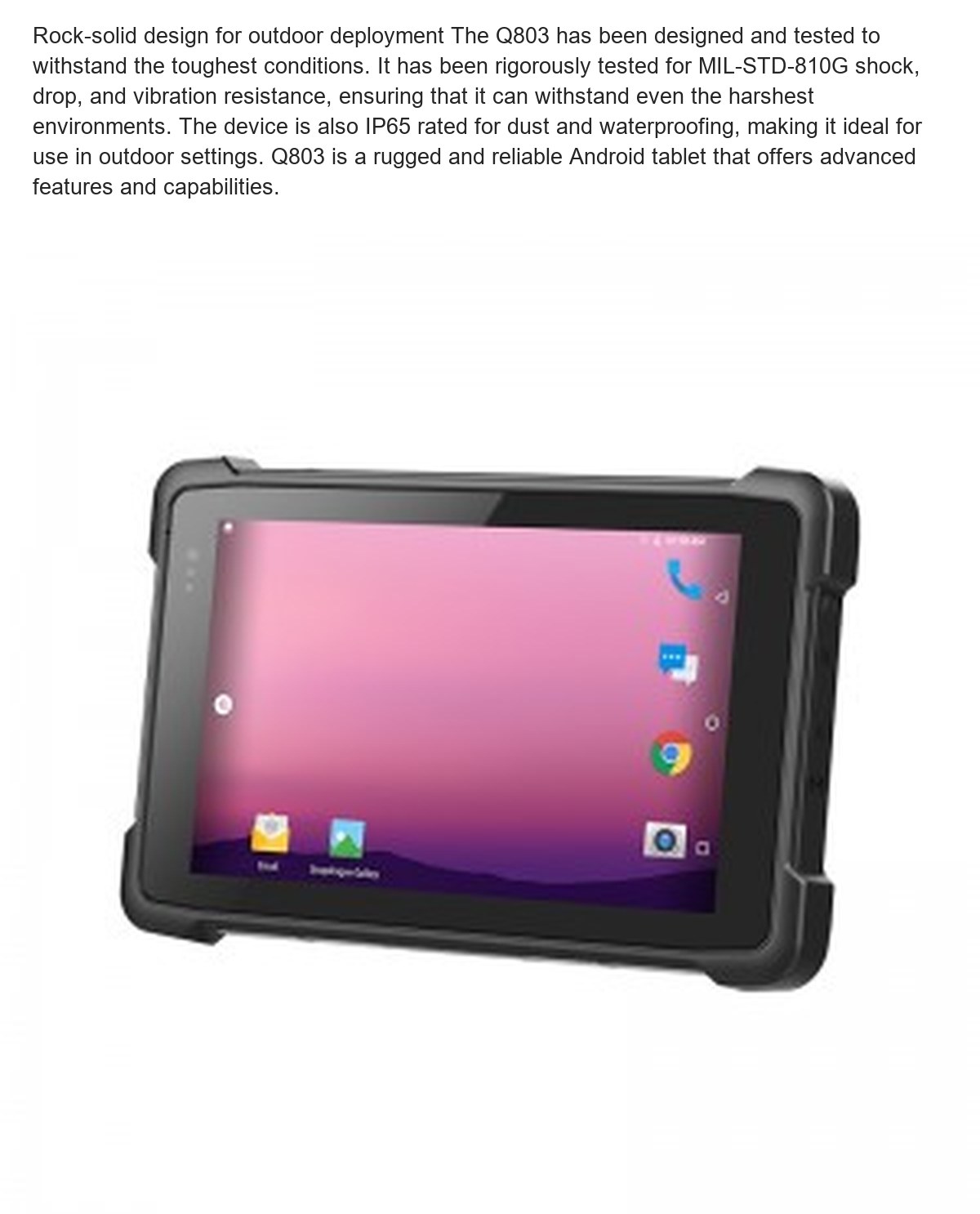

Rock-solid design for outdoor deployment

The Q803 has been designed and tested to withstand the toughest conditions. It has been rigorously tested for MIL-STD-810G shock, drop, and vibration resistance, ensuring that it can withstand even the harshest environments. The device is also IP65 rated for dust and waterproofing, making it ideal for use in outdoor settings. Q803 is a rugged and reliable Android tablet that offers advanced features and capabilities. Whether you need seamless connectivity, a high-quality display, or a durable device that can withstand the toughest conditions, the Q803 has you covered.

RUGGEDMASTER Q803 rugged tablets feature illustration

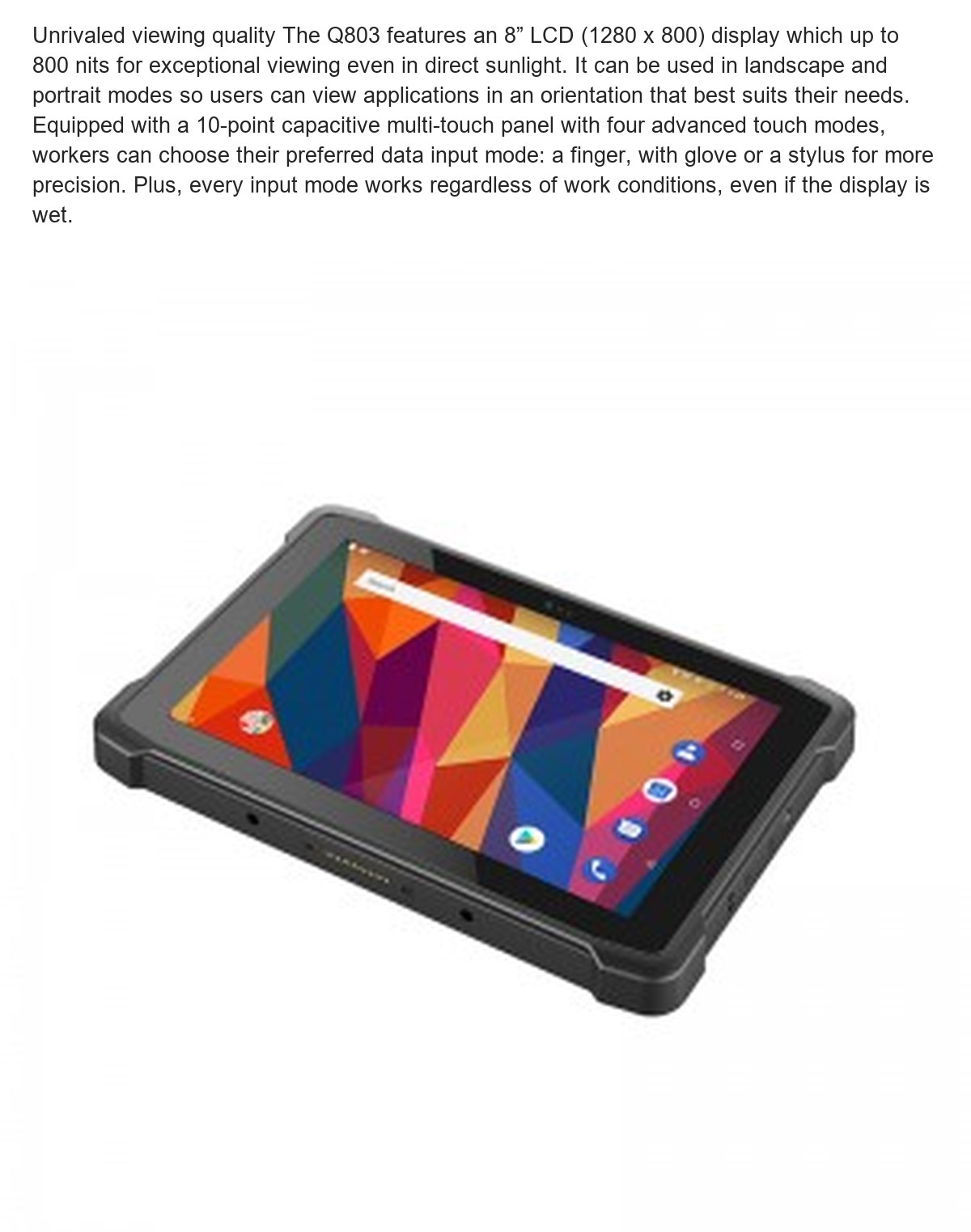

Unrivaled viewing quality

The Q803 features an 8” LCD (1280 x 800) display which up to 800 nits for exceptional viewing even in direct sunlight. It can be used in landscape and portrait modes so users can view applications in an orientation that best suits their needs. Equipped with a 10-point capacitive multi-touch panel with four advanced touch modes, workers can choose their preferred data input mode: a finger, with glove or a stylus for more precision. Plus, every input mode works regardless of work conditions, even if the display is wet.

RUGGEDMASTER Q803 rugged tablets feature illustration

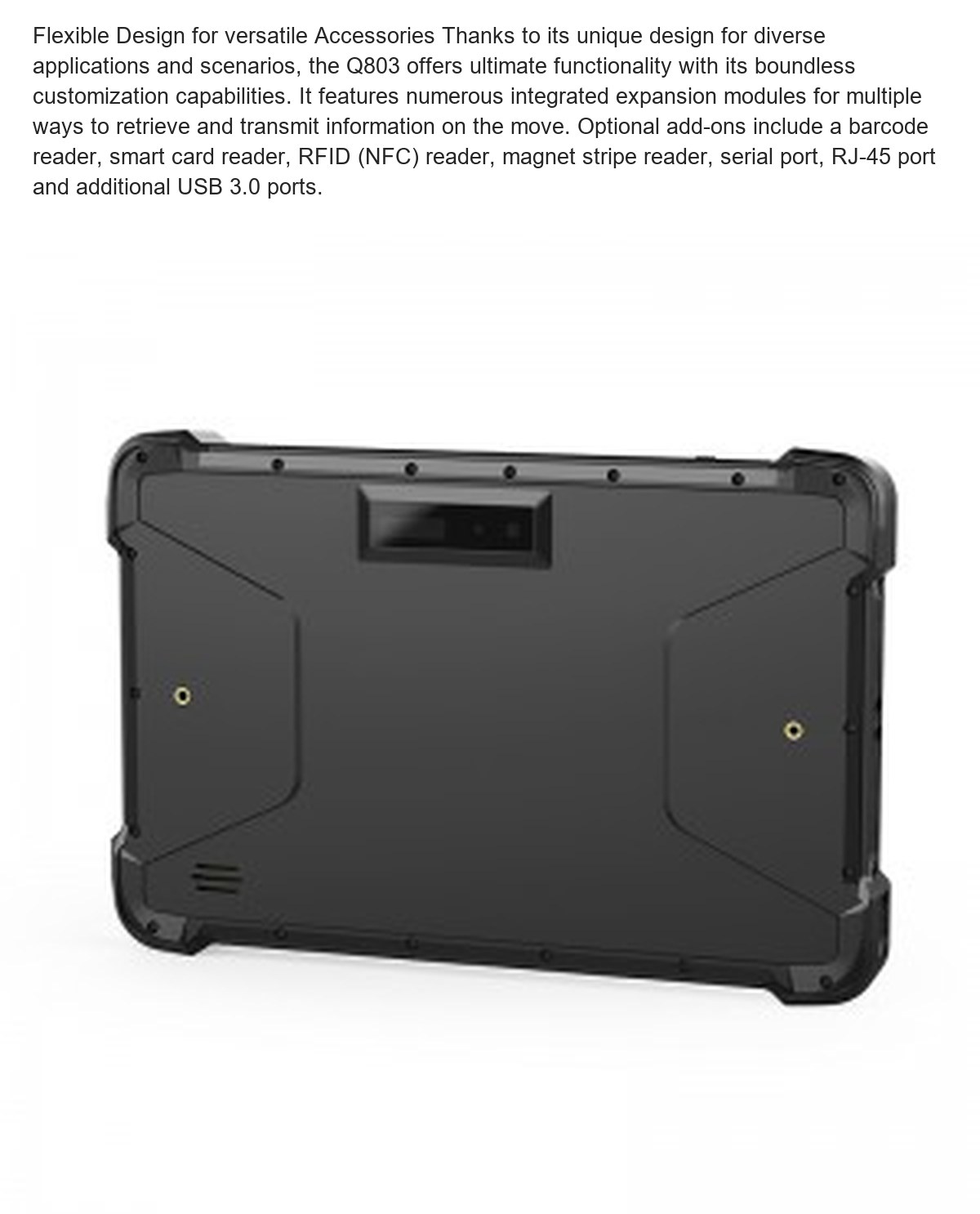

Flexible Design for versatile Accessories

Thanks to its unique design for diverse applications and scenarios, the Q803 offers ultimate functionality with its boundless customization capabilities. It features numerous integrated expansion modules for multiple ways to retrieve and transmit information on the move. Optional add-ons include a barcode reader, smart card reader, RFID (NFC) reader, magnet stripe reader, serial port, RJ-45 port and additional USB 3.0 ports. A 2MP front camera, Wi-Fi 6E and Bluetooth® V5, optional 13MP rear camera and optional GPS and 4G LTE multi-carrier mobile broadband also are features for this versatile tablet.

RUGGEDMASTER Q803 rugged tablets feature illustration

RUGGEDMASTER Q803 bulk purchasing enquiries

For wholesale quantities and bulk orders, contact RuggedMaster with the exact model, required quantities, preferred configuration and destination. Include any scanning, identification or software requirements for your application. Review the Specs tab and product illustrations when comparing models. Availability, the requested configuration and order details should be confirmed before purchase.

Operation System
OS Android 12
CPU 2.2 Ghz,MTK Octa-Core processor
Memory 8 GB RAM / 128 GB Flash
Languages support English, Simplified Chinese, Traditional Chinese, Japanese,Spanish, German, French, Italian, Portuguese, Korean and multiple languages
Hardware specification
Screen Size 8 inch color (800*1280) display
Touch Panel multi-touch Capacitive Touch Screen
Camera Front 5 megapixels, rear 13 megapixels, with flash and auto focus function
Indicator Type LED, Speaker, Vibrator
Battery Rechargeable li-ion polymer, 6000mAh/3.7V
Symbologies
HF RFID Support HF/NFC Frequency 13.56Mhz Support: ISO 14443A&15693, NFC-IP1, NFC-IP2
Bar code scanner Optional
Fingerprint scanner Optional
Communication
Bluetooth® Bluetooth®5.2
WLAN Wireless LAN 802.11a/b/g/n/ac, 2.4GHz and 5GHz Dual Frequency
WWAN GSM: 850,900,1800,1900 MHz WCDMA: 850/1900/2100MHz LTE:FDD-LTE :B1/B2/B3/B4/B5/B7/B8/B12/B17/B20 TDD-LTE :B38/B39/B40/B41
GPS GPS/BDS/Glonass, error range ± 5m
I/O Interfaces
USB USB TYPE-C*1 .USB2.0 TYPE-A *1
POGO PIN PogoPin bottom: Charging via cradle
SIM Slot Single SIM Slot
Expansion Slot MicroSD, up to 128GB
HDMI HDMI 1.4a*1
Audio One speaker with Smart PA (95±3dB @ 10cm), One receiver, Dual noise-cancelling microphones
Enclosure
Dimensions ( W x H x D ) 227.7 x 150.8 x 24.7mm
Weight 680g (with battery)
Durability
Drop Specification 1.2m, 1.5m with boot case ,MIL-STD 810G
Sealing IP65
Environmental
Operating temperature -20°C to 50°C
Storage temperature - 20°C to 70°C (without battery)
Charging temperature 0°C to 45°C
Relative Humidity 5% ~ 95% (Non-Condensing)
What comes in the box
The standard package contents Q803 Device USB Cable Adaptor (Europe)
Optional Accessory Hand Strap , Charging docking, Vehicle cradle
