RUGGEDMASTER PDA-608 Handheld Terminals
8-core 2.0GHz CPU · 4GB RAM+128GB ROM · 6.0inch IPS 720×1440 High Resolution · 80mm(3inch) thermal printer · Industrial-grade capacitive touch panel · 7.7v 2800mAh rechargeable lithium polymer battery · -40°C~ 70℃
Widely used in express logistics, finance and insurance, warehousing, retail stores, supermarkets, restaurants and other industries Product Size The body weighs only 508 grams (including battery) and can be easily held in one hand Packing List Box*1, machine*1, USB data cable*1,Instruction manual*1, charger*1, thermal printing paper*1,Wristband*1,
Processor: 8-core 2.0GHz CPU
OS: Android 12.0
Memory: 4GB RAM+128GB ROM
Display: 6.0inch IPS 720×1440 High Resolution
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

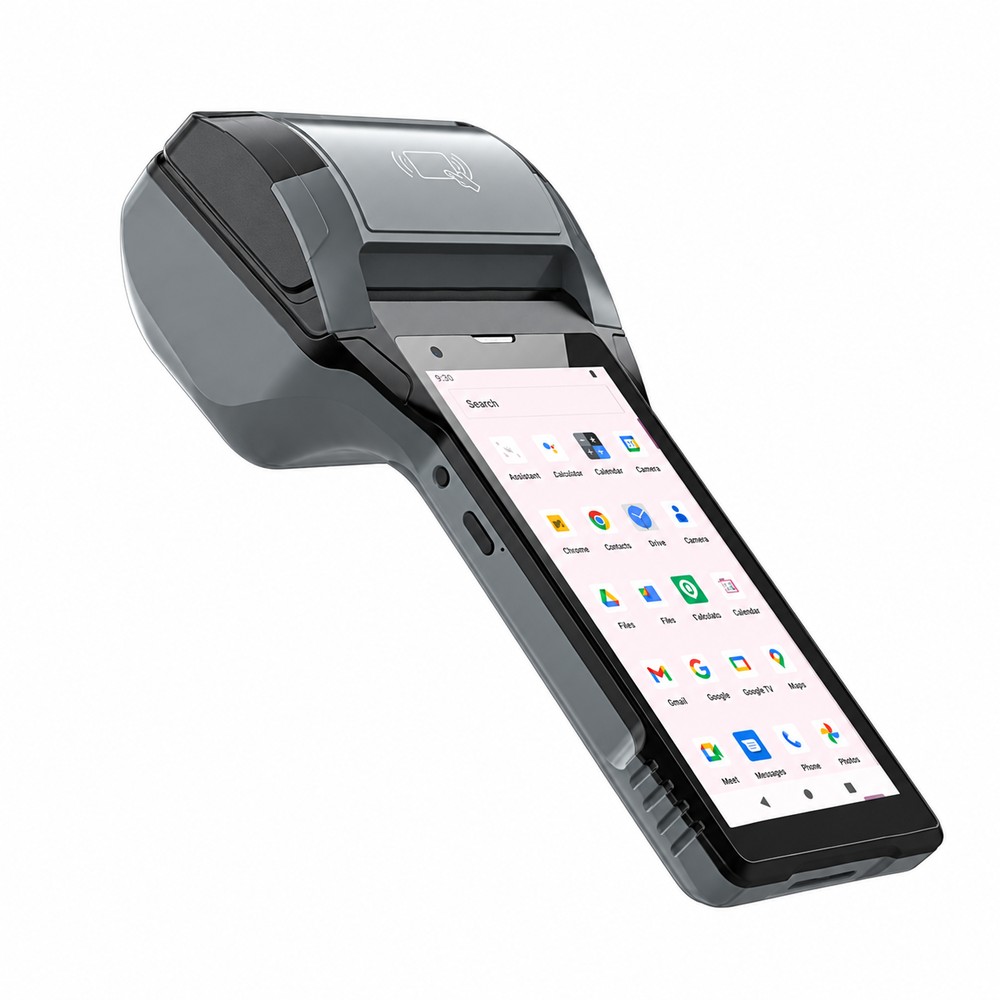

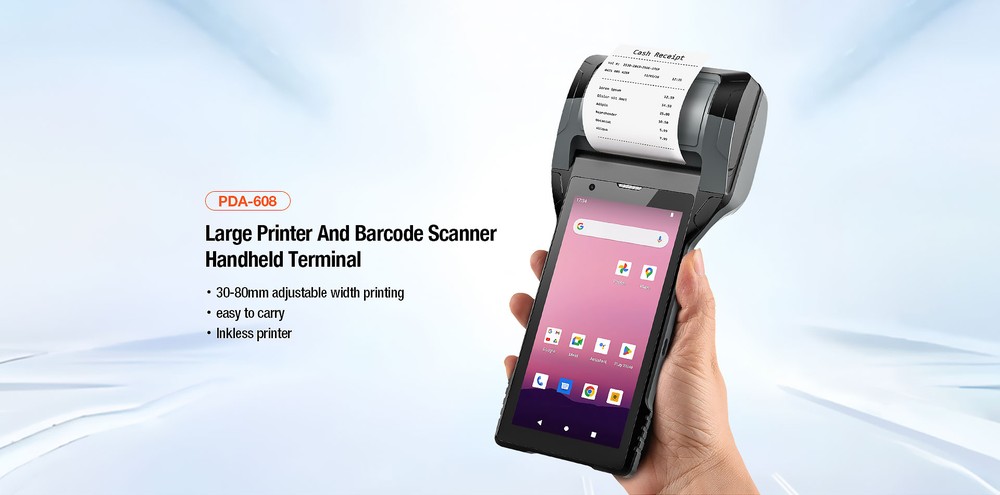

RUGGEDMASTER PDA-608 Handheld Terminals
RUGGEDMASTER PDA-608 combines the features and configurations shown below. Review the product overview, original feature graphics and complete Specs when selecting units for a bulk order.

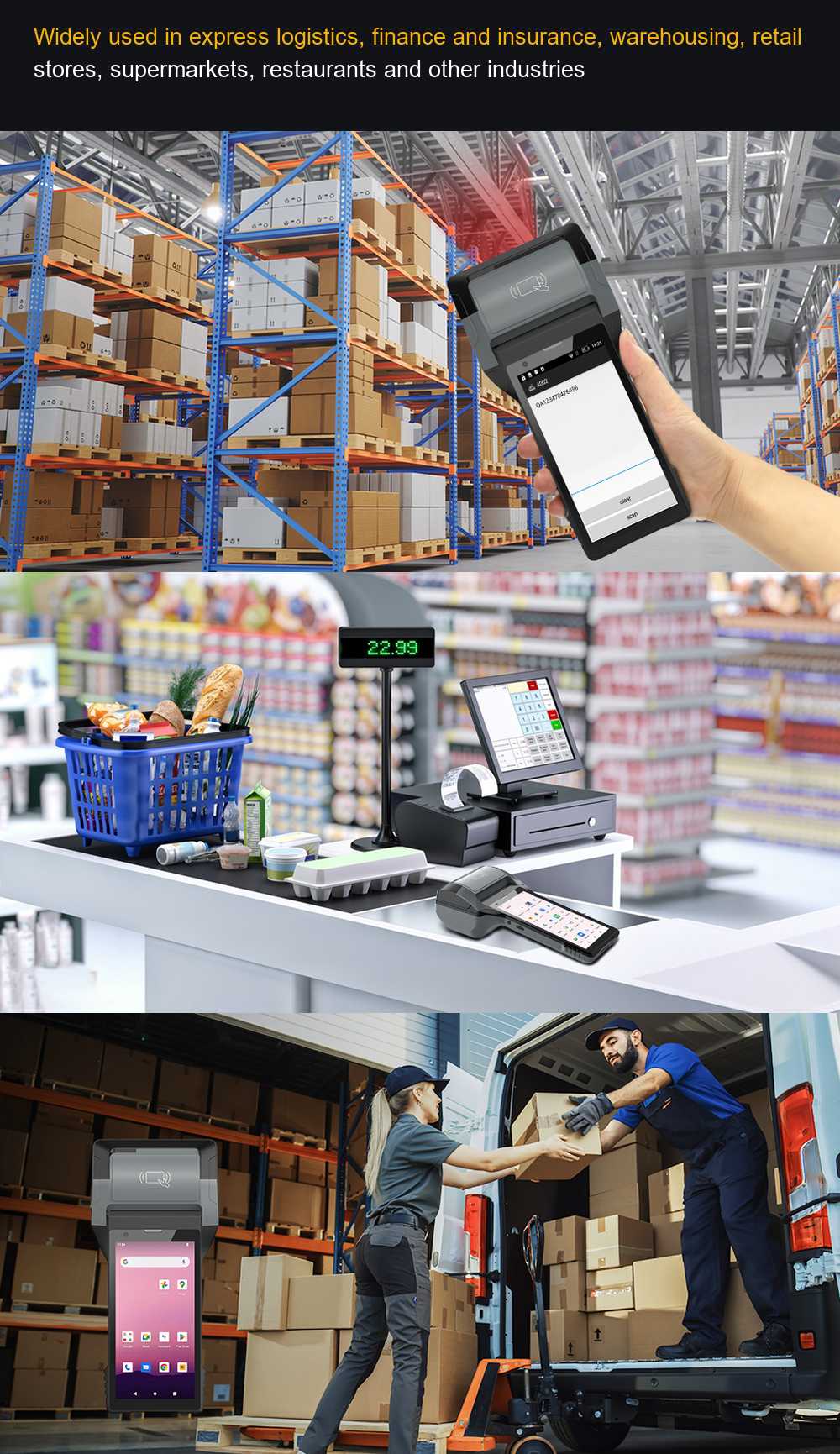

Widely used in express logistics, finance and insurance, warehousing, retail stores, supermarkets, restaurants and other industries

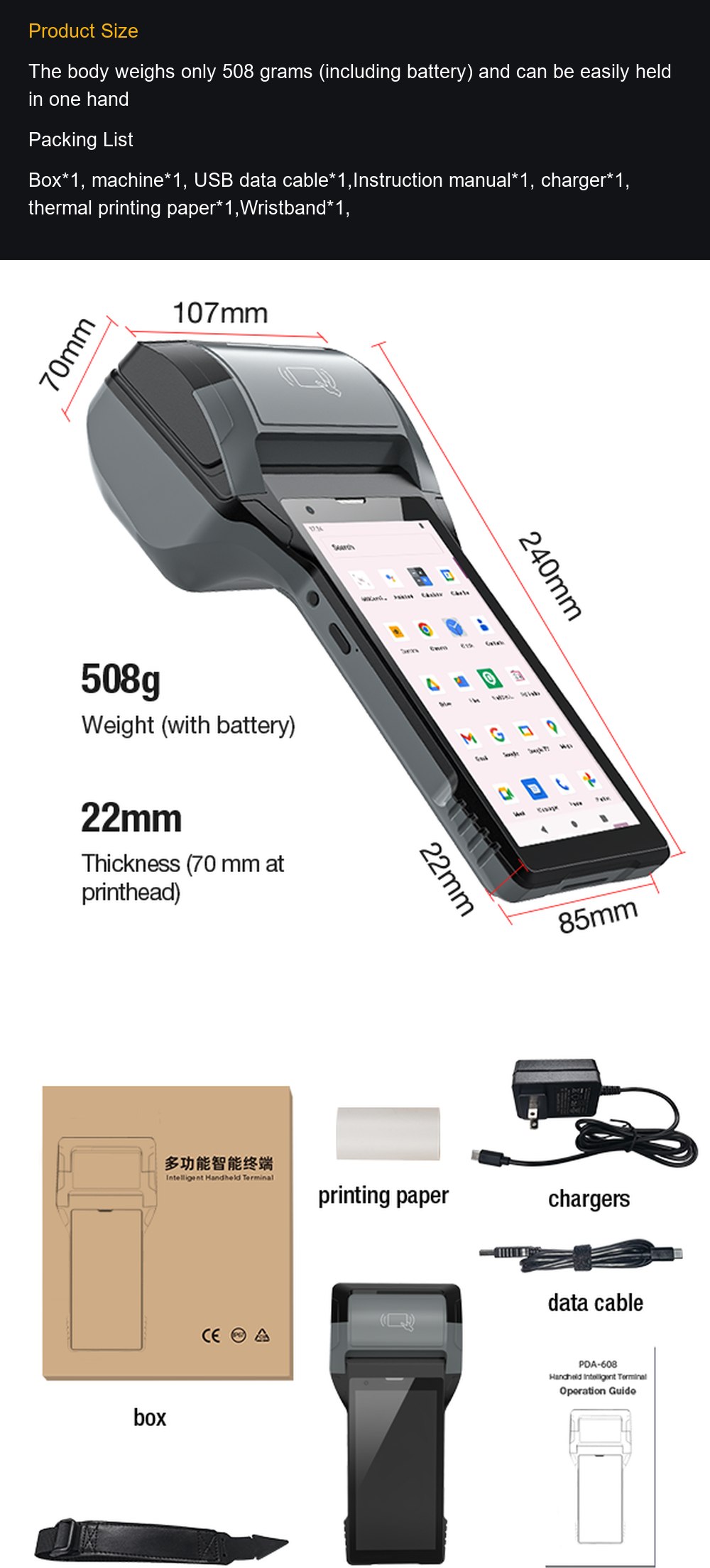

Product Size
The body weighs only 508 grams (including battery) and can be easily held in one hand
Packing List
Box*1, machine*1, USB data cable*1,Instruction manual*1, charger*1, thermal printing paper*1,Wristband*1,
Configuration overview
Technical specifications include Processor: 8-core 2.0GHz CPU. OS: Android 12.0. Memory: 4GB RAM+128GB ROM. Display: 6.0inch IPS 720×1440 High Resolution.
Technical specifications include Front camera: 5.0 MP support face recognition. Rear camera: 13.0 MP autofocus with flash light. Printer: 80mm(3inch) thermal printer. Touch screen: Industrial-grade capacitive touch panel.
Technical specifications include Keypad: Scan key/Power key/Custom key/Volume key. Notification: Vibrator/LED/Speaker. Battery: 7.7v 2800mAh rechargeable lithium polymer battery. Audio: Built-in microphone/Speaker Sensor G-sensor.
Technical specifications include Sensor: G-sensor. Charging method: Type-C, 9V-2A support PE Quickly Charge. TF card: Supports TF *1 max: 512G. Extension ports: SIM card*2, PSAM card*2, MicroSD card*1 , Type-C USB interface (fast charge)*1, Support UHF/ customer plug- in module.
Technical specifications include Dimensions (LxWxD): Approx: 240*85*70mm. weight: 508g(battery included). color: Black+Gray. Develop Tools: Android SDK+ JDK +Eclipse.
Technical specifications include P-Language: Java. Operating Temp: -20°C ~+ 50℃. Storage Temp: -40°C~ 70℃. Humidity: 0-95% (non-condensing).
Wholesale purchasing information
For RUGGEDMASTER PDA-608, compare the pictured housing, connectors and controls with the configuration required by your application. The manufacturer may describe optional modules, memory configurations or regional network bands. These options are listed for reference; confirm the required configuration when requesting a quotation. Choose the interface and data-capture functions that match your existing workflow, software and installation requirements.
Review the complete Specs tab before placing a bulk order. It preserves the technical information supplied for this model, including the available operating environment and configuration details. Product pictures show the manufacturer’s existing views and available configurations. If your project needs a particular module, operating system version or connector, state that requirement in your enquiry so the configuration can be checked before ordering.
Explore related products in our RuggedMaster product catalog or send a bulk-order enquiry.
Manufacturer feature details
| Processor | 8-core 2.0GHz CPU |
| OS | Android 12.0 |
| Memory | 4GB RAM+128GB ROM |

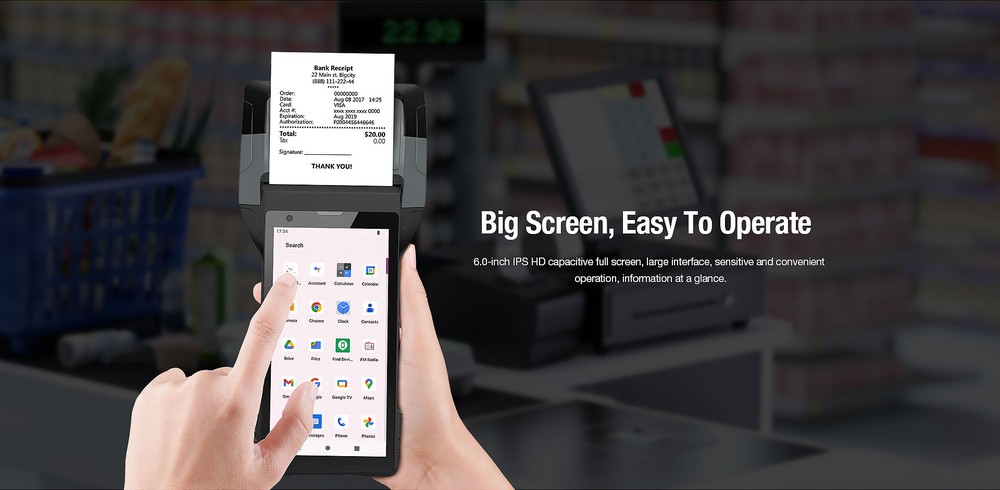

| Display | 6.0inch IPS 720x1440 High Resolution |

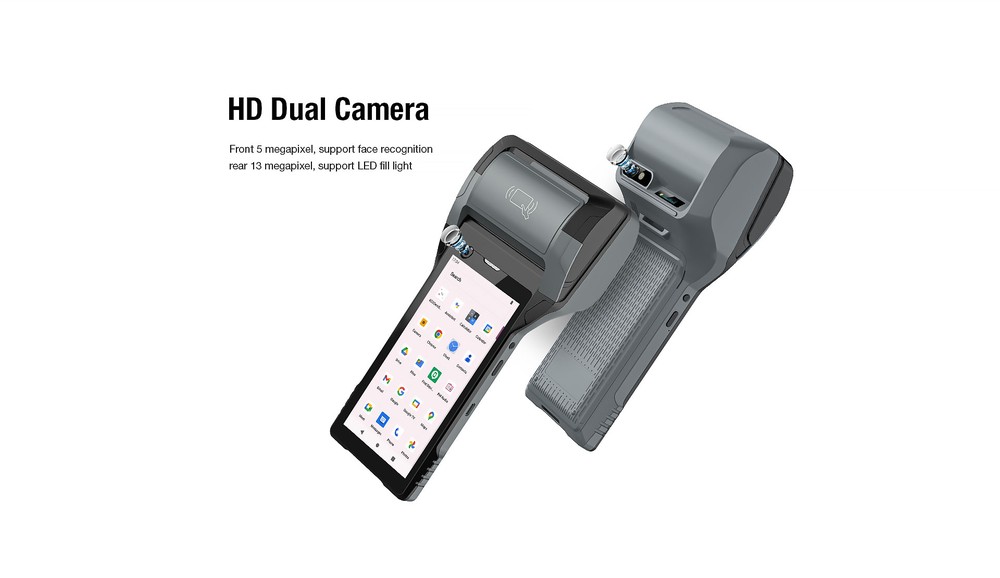

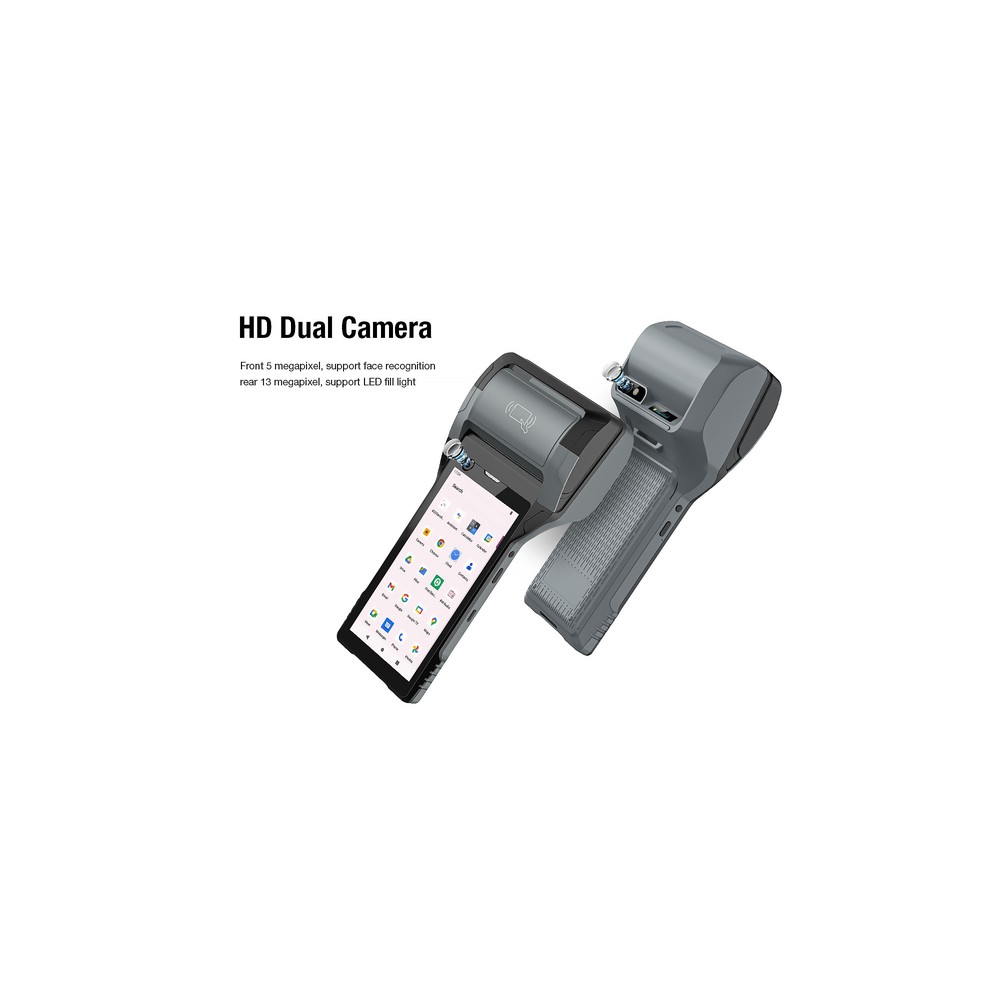

| Front camera | 5.0 MP support face recognition |
| Rear camera | 13.0 MP autofocus with flash light |
| Printer | 80mm(3inch) thermal printer |
| Touch screen | Industrial-grade capacitive touch panel |
| Keypad | Scan key/Power key/Custom key/Volume key |
| Notification | Vibrator/LED/Speaker |

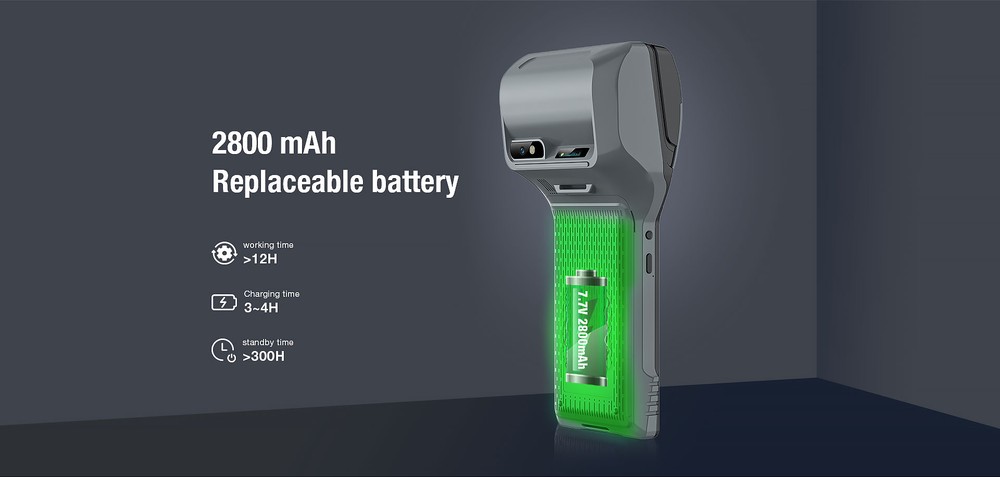

| Battery | 7.7v 2800mAh rechargeable lithium polymer battery |
| Audio | Built-in microphone/Speaker Sensor G-sensor |
| Sensor | G-sensor |
| Charging method | Type-C, 9V-2A support PE Quickly Charge |
| TF card | Supports TF *1 max: 512G |
| Extension ports | SIM card*2, PSAM card*2, MicroSD card*1 , Type-C USB interface (fast charge)*1, Support UHF/ customer plug- in module |
| Dimensions (LxWxD) | Approx: 240*85*70mm |
| weight | 508g(battery included) |
| color | Black+Gray |
| Develop Tools | Android SDK+ JDK +Eclipse |
| P-Language | Java |
| Operating Temp | -20°C ~+ 50℃ |
| Storage Temp | -40°C~ 70℃ |
| Humidity | 0-95% (non-condensing) |

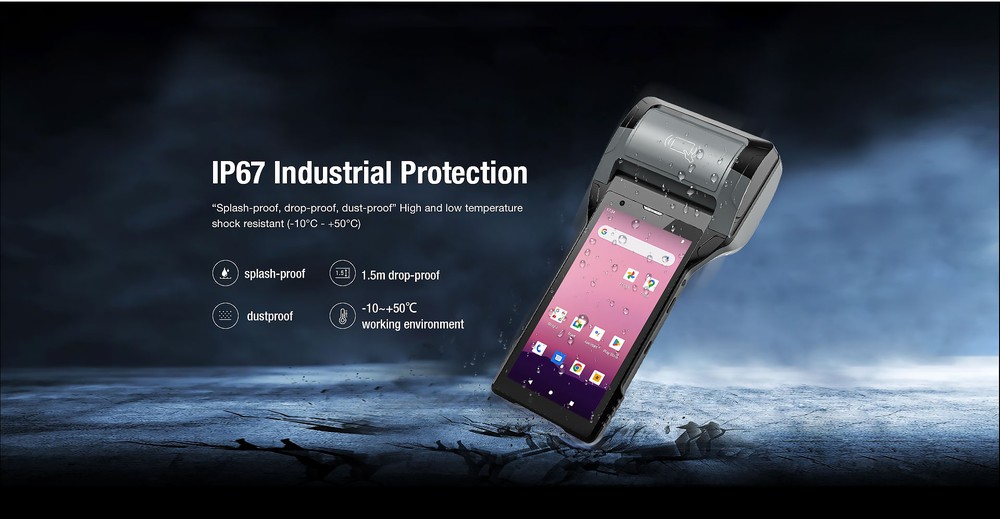

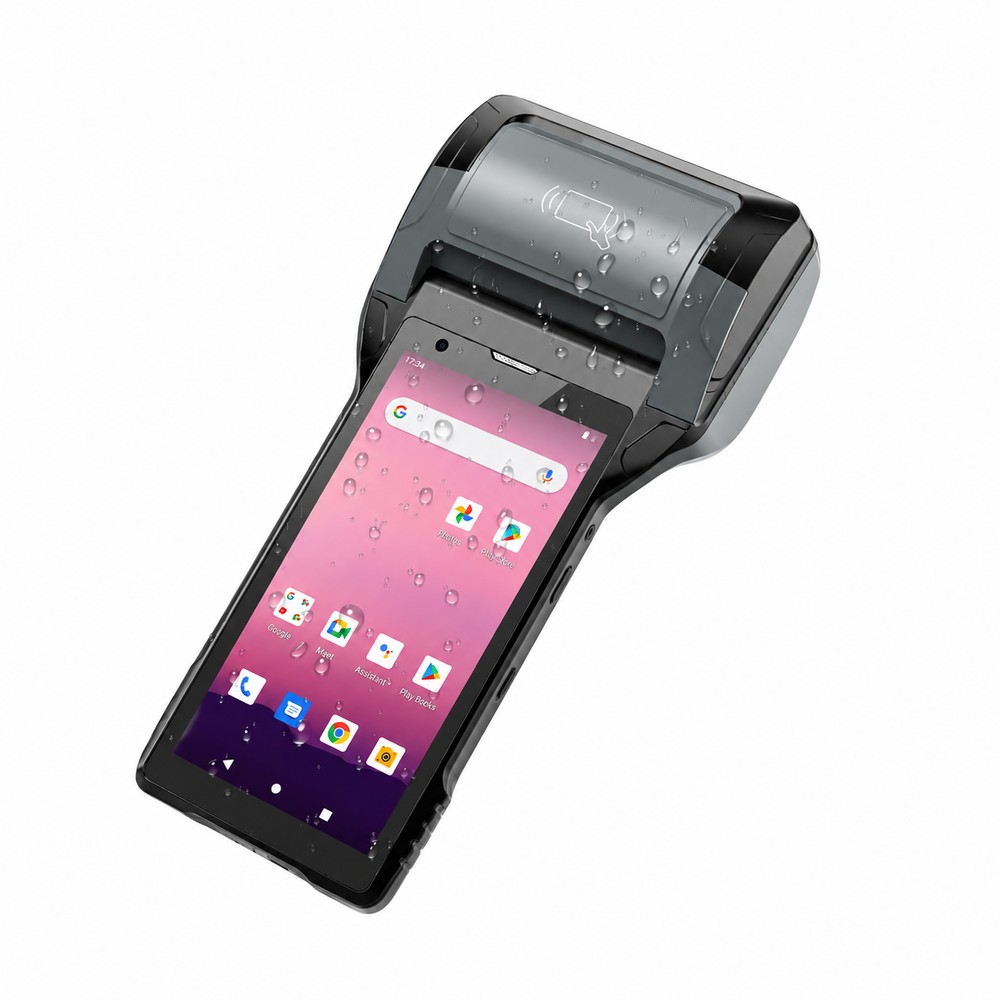

| Sealing | IP67 |
| Drop test | 1.5 meter drop test |

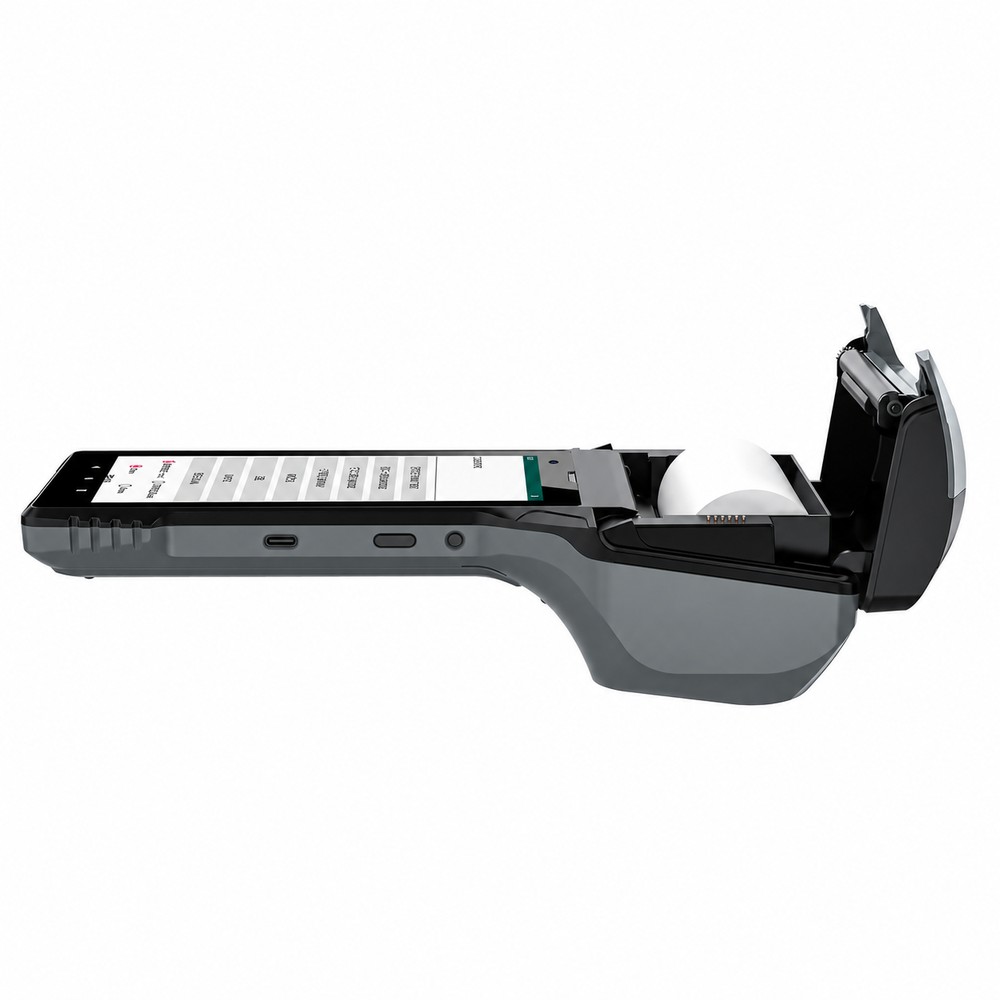

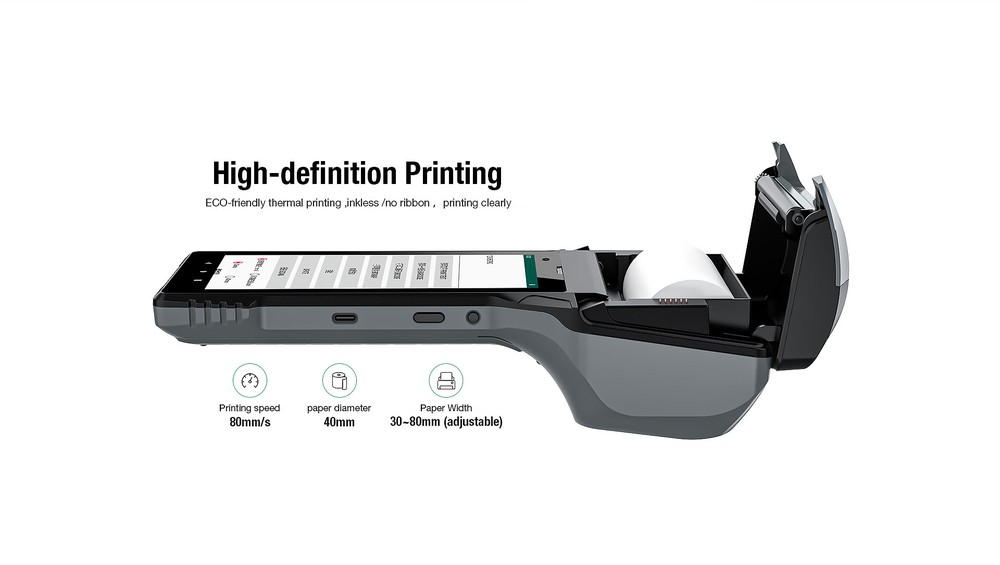

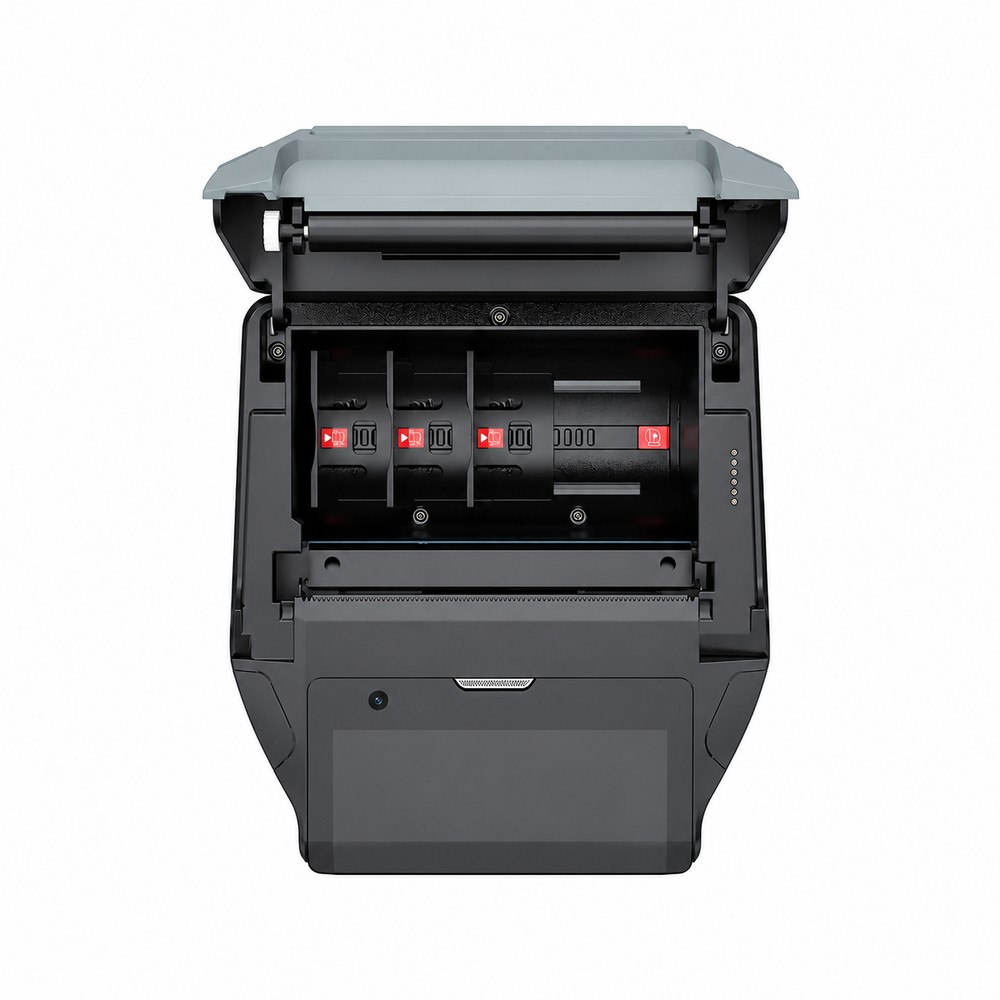

| Printing method | Built-in line thermal printer |

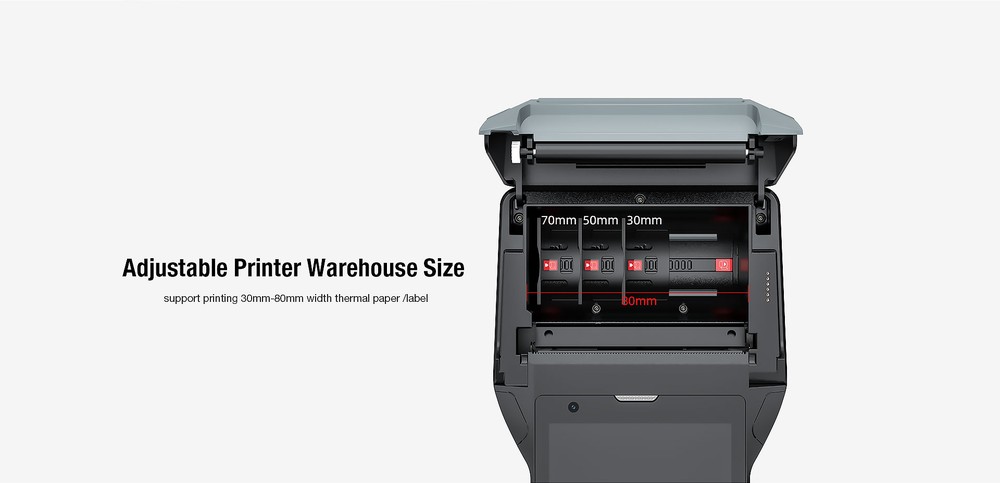

| Print width | support printing 30mm-80mm width thermal paper /label |
| Print media | Thermal paper and thermal stickers |
| Sensor | Black mark/out of paper/overheating and overvoltage protection |
| Rint type | Text/image/barcode/QR code |
| NFC | 13.56MH supports ISO/IEC 14443A/B, ISO15693 protocol Card reading distance: 4cm |

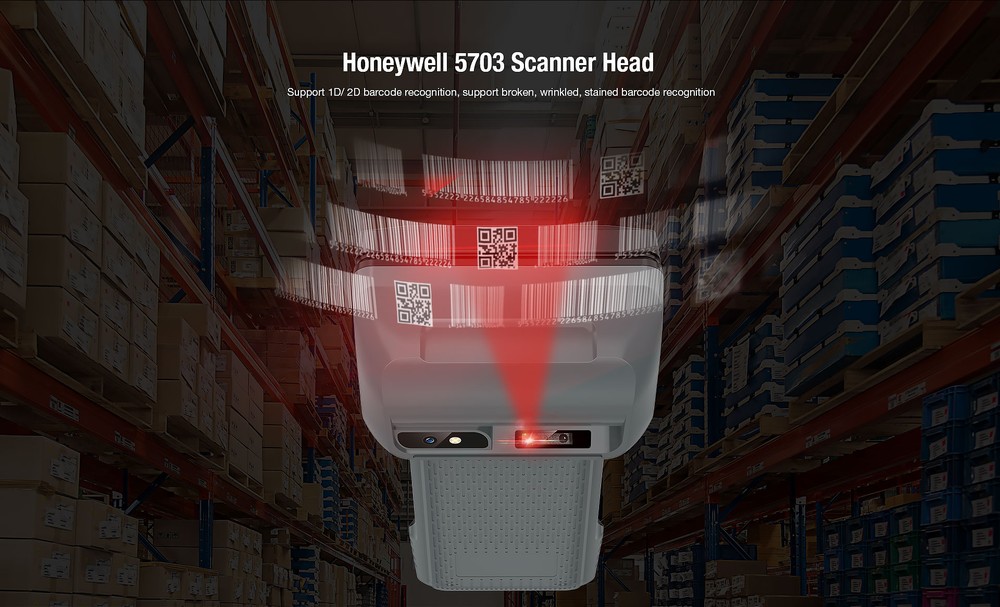

| Barcode | 1D laser scanning : Support UPC/EAN, Code129, code39, code11, cross 25 code, codabar, MSI, etc. |
| QR code | 2D professional scanning module: Supports QR, PDF417, Mirco QR, RSS, Aztec, Maxincode, etc. |
| spectrum range | 902MHz - 928MHz /865MH z - 868MHz (optional) |
| Security module | EPCglo bal UH F Class 1 Gen 2/ ISO 180 00-6C |
| Recognition speed | >50 sheets/second |
| storage | 2000 pieces |
| Read and write distance | 1- 2 meters (depending on label) |
| WLAN | W-Fi 802.11a/b/g/n/r/ac (2.4G+5G dual-band W-Fi) |
| WWAN | GSM (B2/B3/B5/B8) CDMA (B1/B2/B5/B8) FDD(B1/B2/B3/B5/B7/B8/B20/B28a&b) TDD (B38/B39/B40/B41) C network (BCO Bc1) |
| Bluetooth | Bluetooth5.0, Support BLE |
| Position | GPS/AGPS/Bidou/Gaieo/GLONASS/QZSS |
