Description

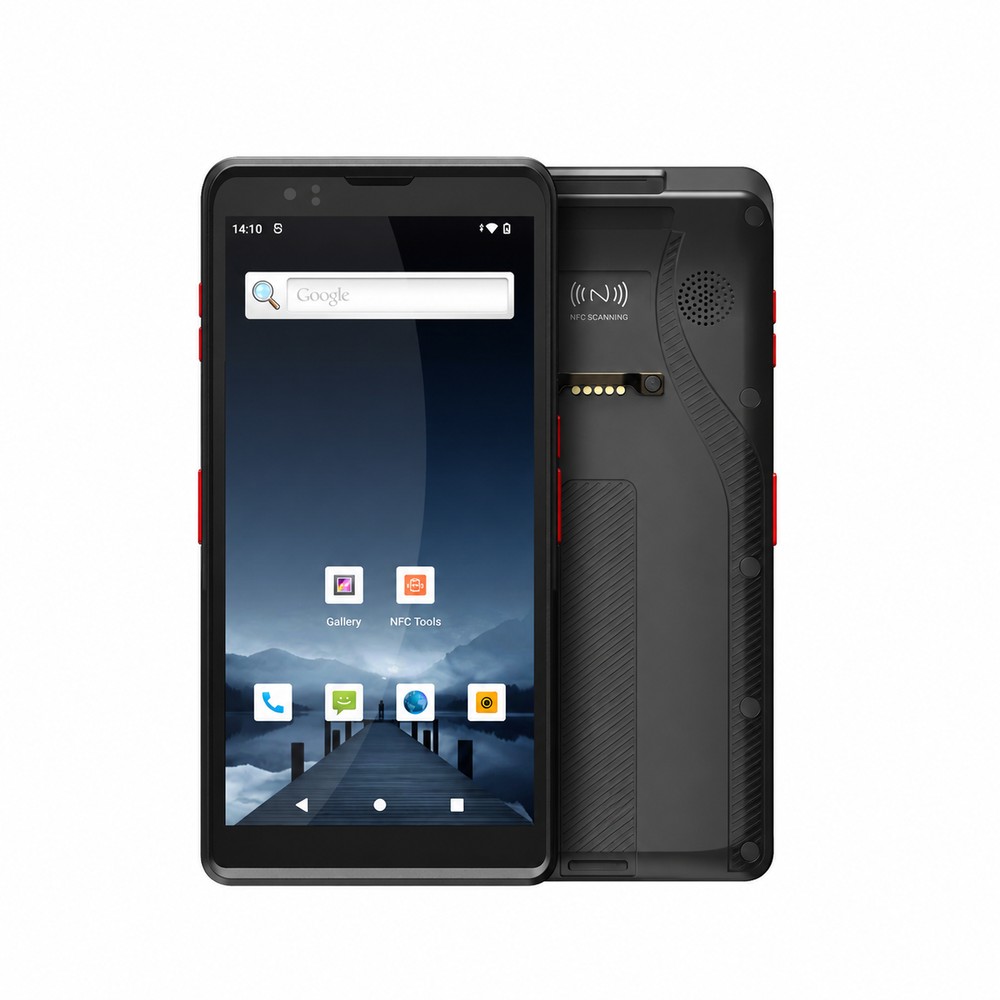

RUGGEDMASTER PDA-602 Handheld Terminals
RUGGEDMASTER PDA-602 combines the features and configurations shown below. Review the product overview, original feature graphics and complete Specs when selecting units for a bulk order.

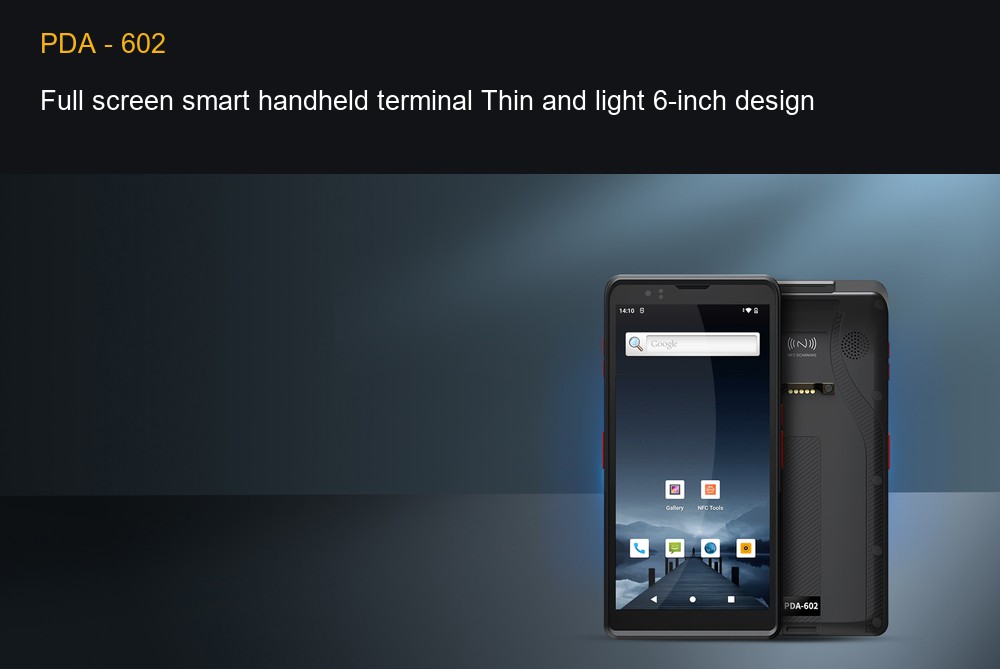

PDA – 602
Full screen smart handheld terminal Thin and light 6-inch design
Suitable For A Variety Of Environments
applications
Widely Used In Express Logistics, Financial Insurance, Warehouses, Retail Stores, Supermarkets And Other Industries

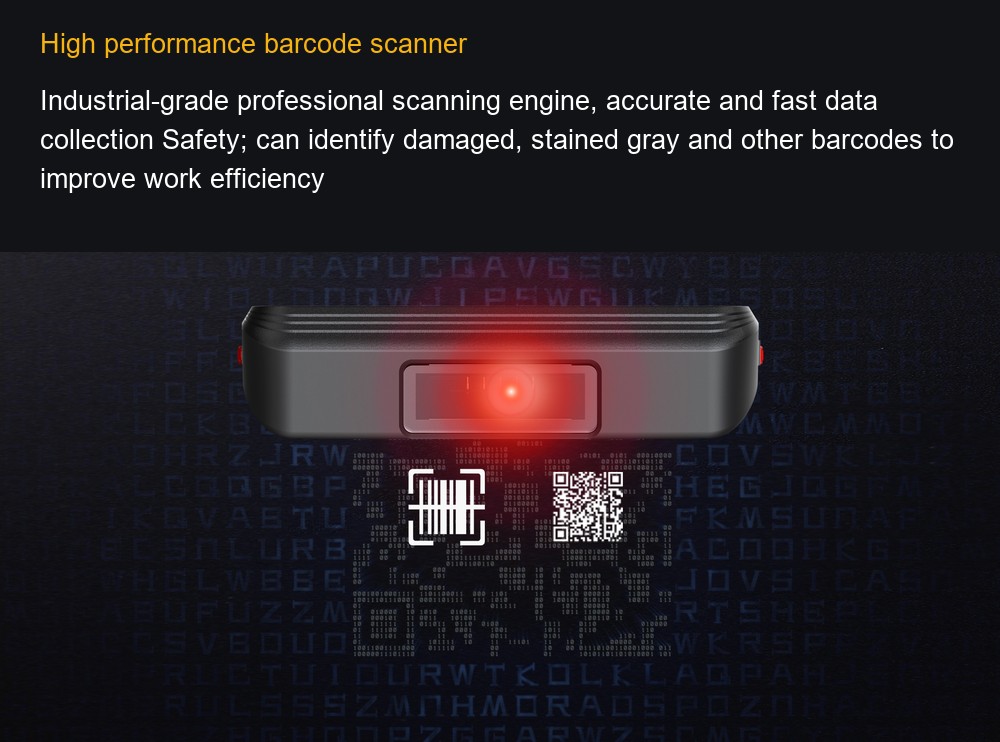

High performance barcode scanner
Industrial-grade professional scanning engine, accurate and fast data collection Safety; can identify damaged, stained gray and other barcodes to improve work efficiency

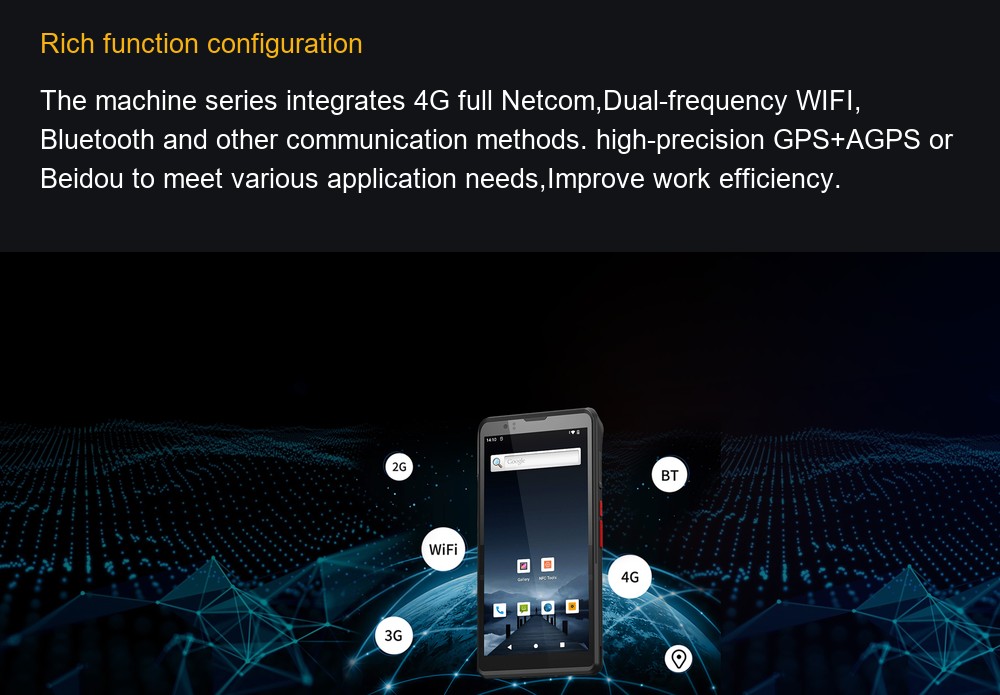

Rich function configuration
The machine series integrates 4G full Netcom,Dual-frequency WIFI, Bluetooth and other communication methods. high-precision GPS+AGPS or Beidou to meet various application needs,Improve work efficiency.

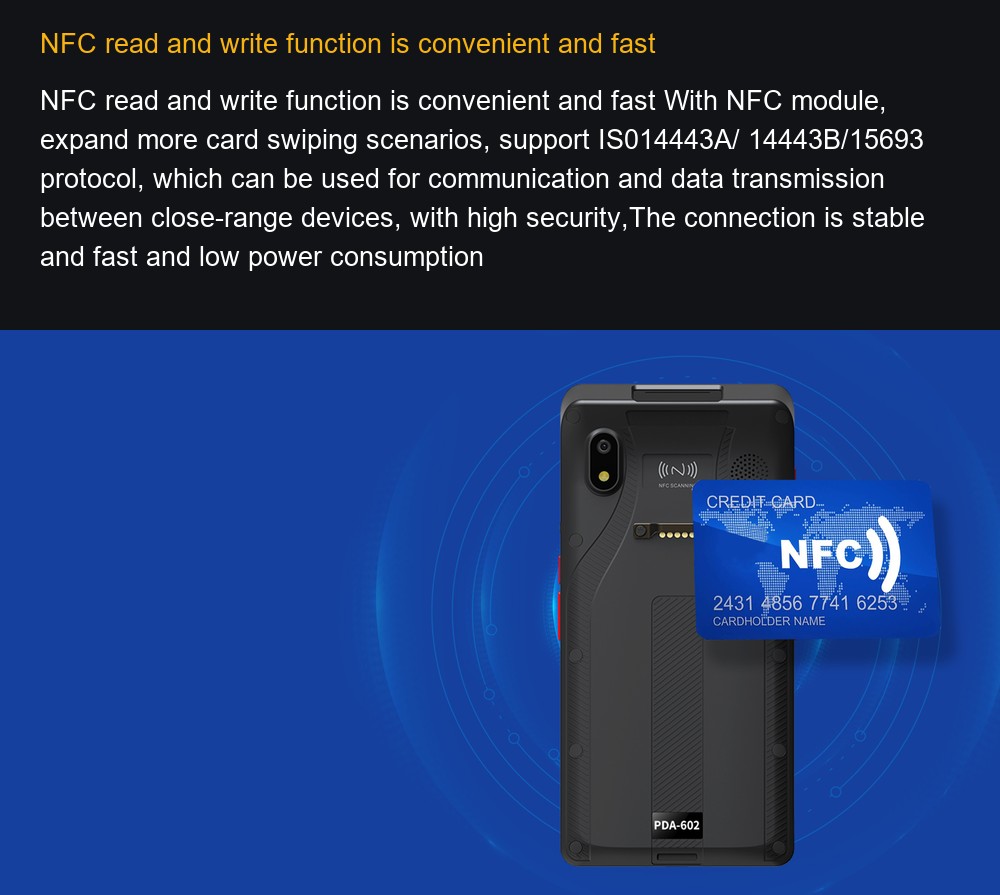

NFC read and write function is convenient and fast
NFC read and write function is convenient and fast With NFC module, expand more card swiping scenarios, support IS014443A/ 14443B/15693 protocol, which can be used for communication and data transmission between close-range devices, with high security,The connection is stable and fast and low power consumption

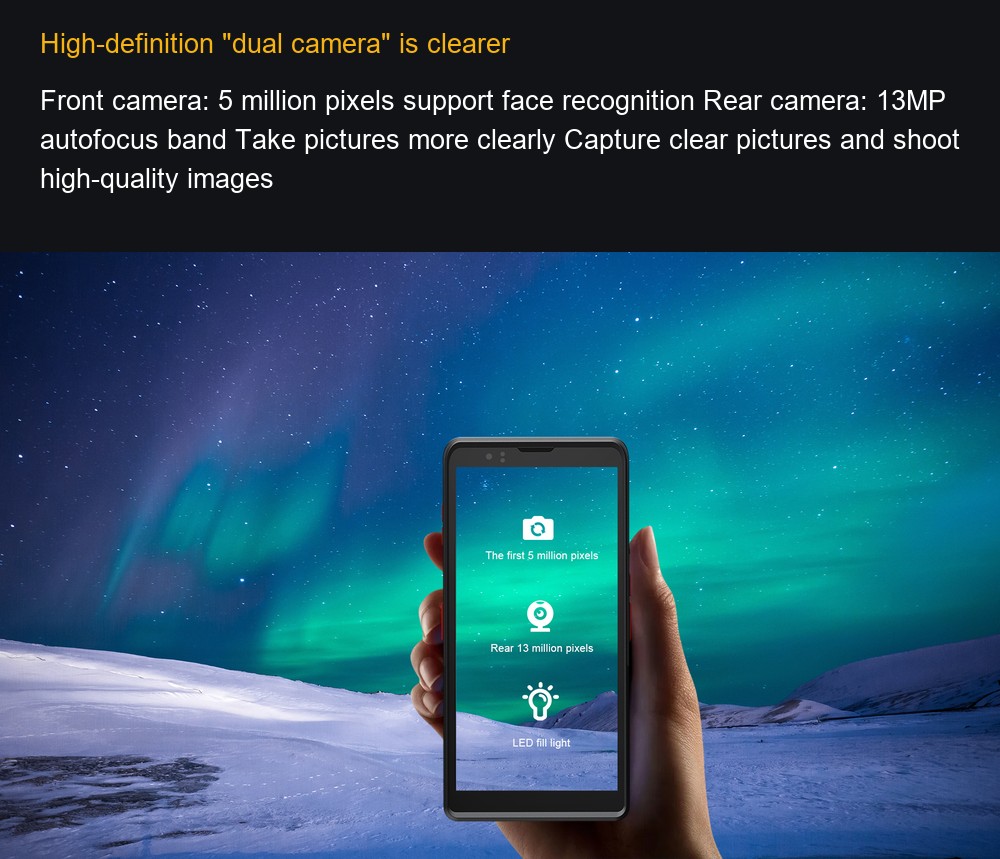

High-definition "dual camera" is clearer
Front camera: 5 million pixels support face recognition Rear camera: 13MP autofocus band Take pictures more clearly Capture clear pictures and shoot high-quality images
Brand new configuration Take performance by leaps and bounds
Octa-core
8-core 2.0GHZ high-performance processor
3GB RAM+32GB ROM or 4GB+64GB
Large Memory
Android 12.0
Operating System

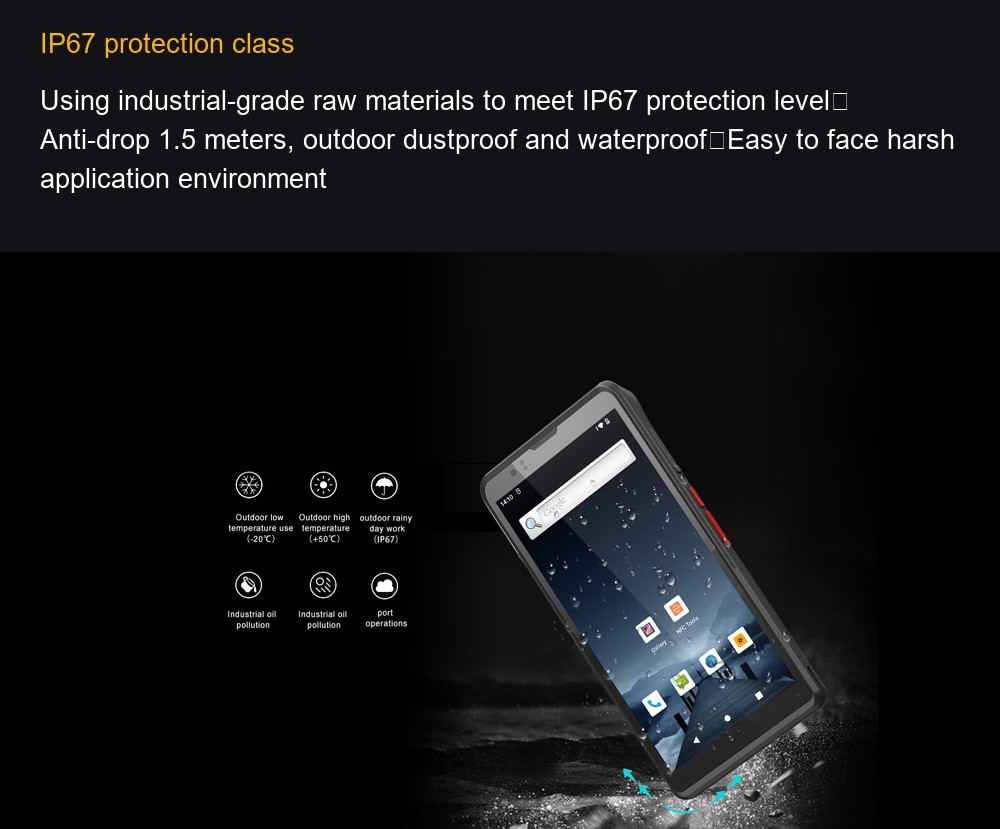

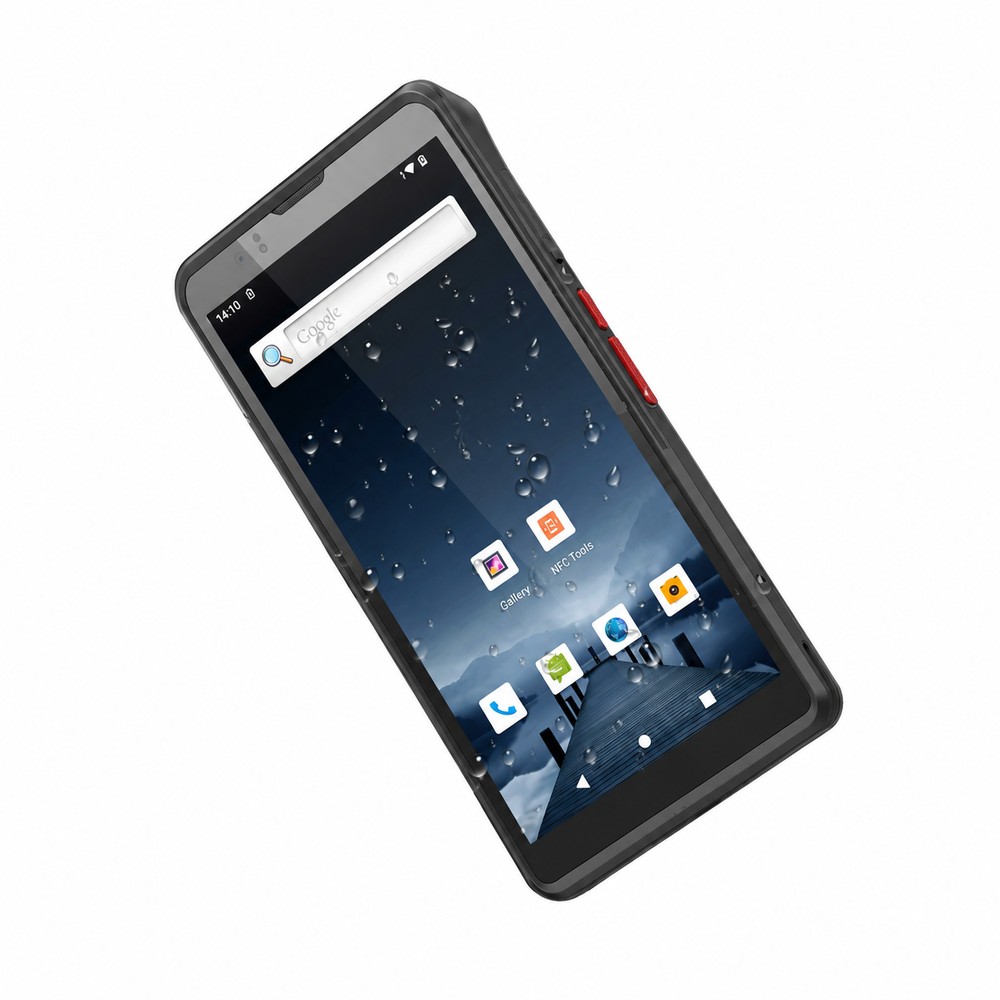

IP67 protection class
Using industrial-grade raw materials to meet IP67 protection level， Anti-drop 1.5 meters, outdoor dustproof and waterproof，Easy to face harsh application environment

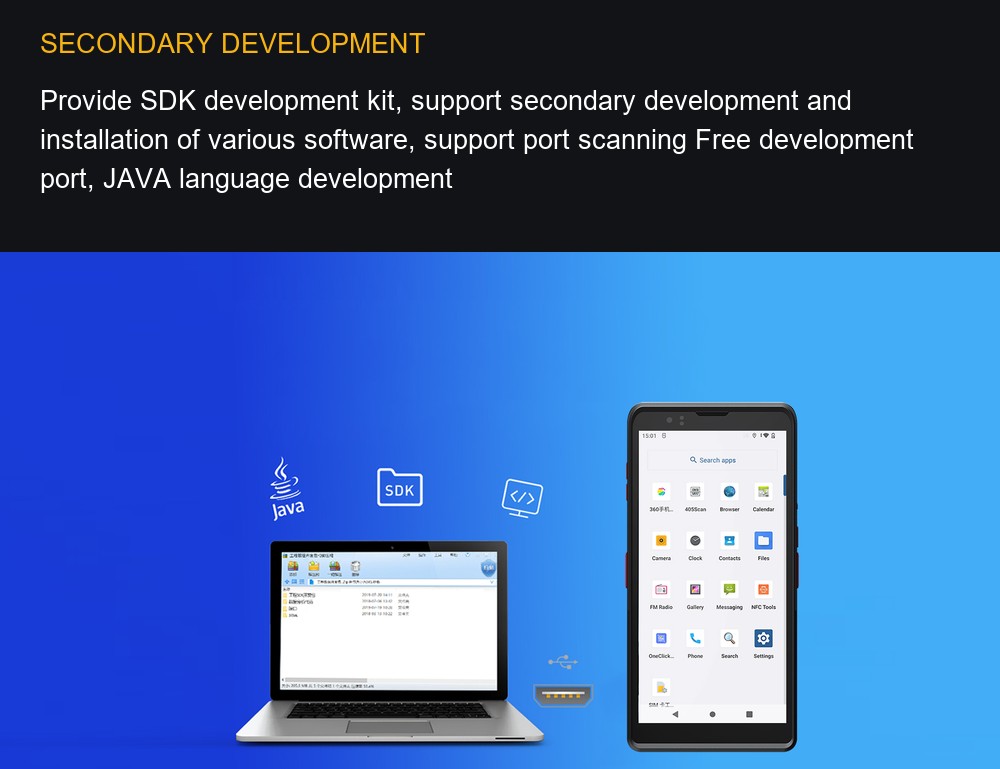

SECONDARY DEVELOPMENT
Provide SDK development kit, support secondary development and installation of various software, support port scanning Free development port, JAVA language development

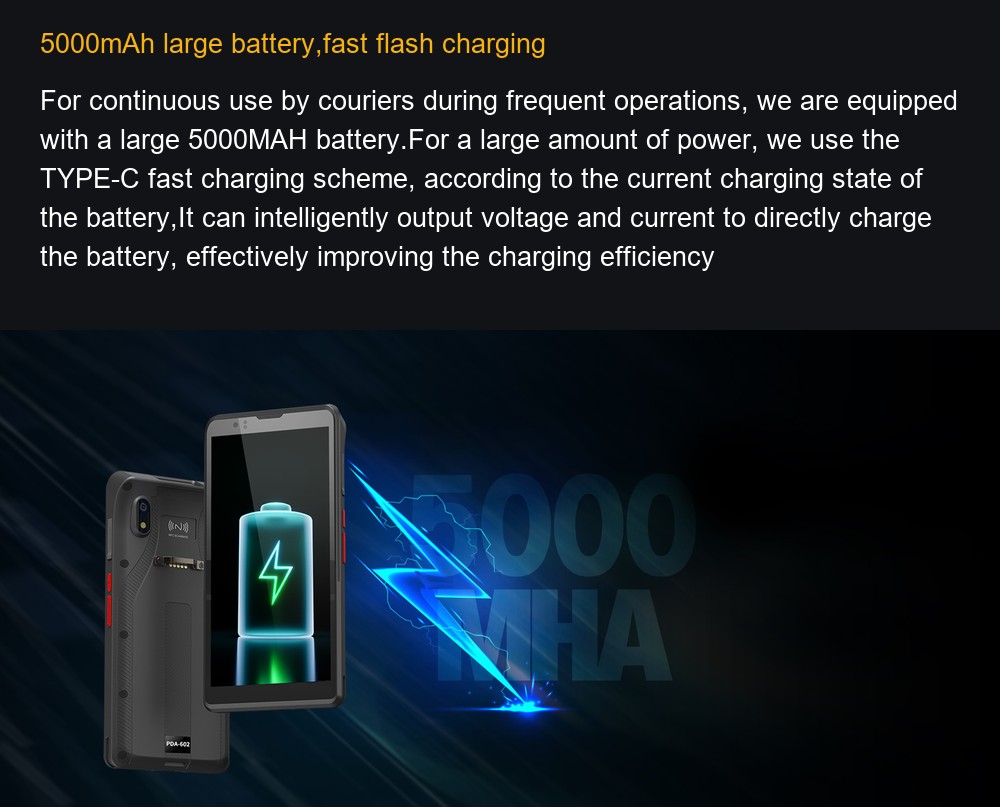

5000mAh large battery,fast flash charging
For continuous use by couriers during frequent operations, we are equipped with a large 5000MAH battery.For a large amount of power, we use the TYPE-C fast charging scheme, according to the current charging state of the battery,It can intelligently output voltage and current to directly charge the battery, effectively improving the charging efficiency

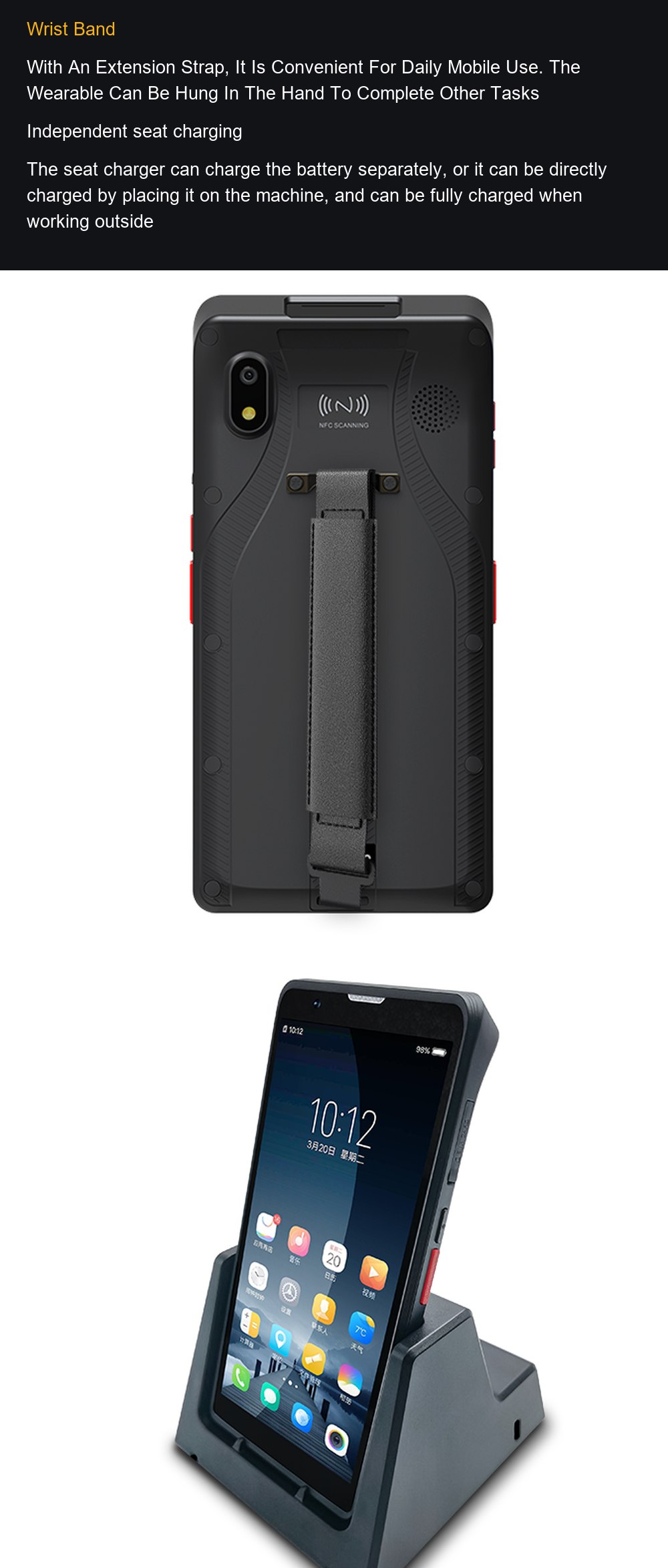

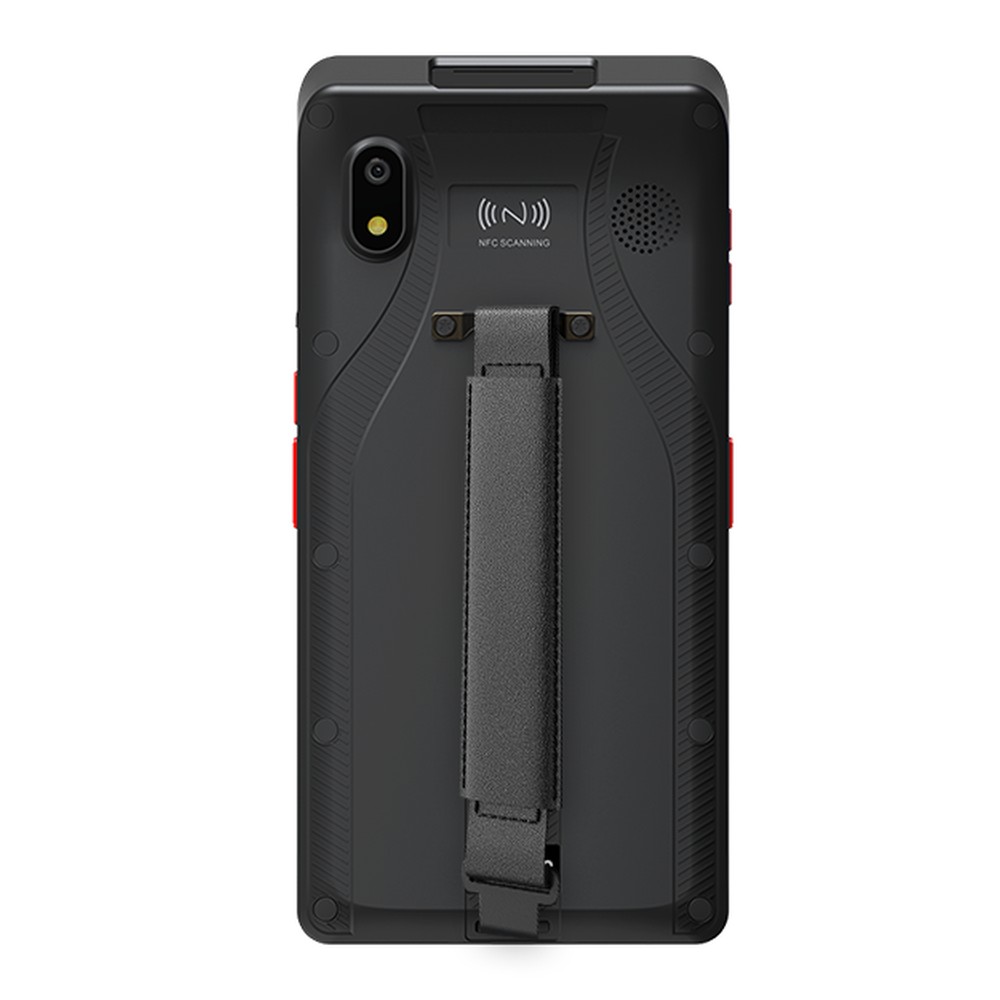

Wrist Band
With An Extension Strap, It Is Convenient For Daily Mobile Use. The Wearable Can Be Hung In The Hand To Complete Other Tasks
Independent seat charging
The seat charger can charge the battery separately, or it can be directly charged by placing it on the machine, and can be fully charged when working outside
Configuration overview
Technical specifications include Processor: Octa-core 2.0GHz high-performance processor. Operating System: Android 12.0. Memory: 3GB RAM+32GB ROM or 4GB+64GB. Display: 6.0inch IPS 720×1440 High Resolution.
Technical specifications include Camera: Front:5MP Camera Back:AF 13.0M Pixels autofocus with LED. Touch Panel: Industrial-grade capacitive touch panel. Keypad: 1 power key + 1 scan key + 1 volume key (+-) + custom key. Notification: Vibrator/LED/Speaker.
Technical specifications include Battery: High voltage 3.7V 5000mAh. Audio: Built-in microphone/Speaker. Sensor: Ambient Light sensor, Proximity sensor. Interface: Type-C interface, support PE fast charging.
Technical specifications include Dimensions (LxWxD): Approx. 164mm×81mm×20mm. Weight: 290g(battery included). Mobile Network: 2G(GSM): B2/B3/B5/B8 3G(WCDMA): ：B1/B5/B8 4G(FDD-LTE): ：B1/B3/B5/B7/B8/B20 4G(TDD-LTE):B34/B38/B39/B40/B41. Wi-Fi: Wi-Fi 802.11a/b/g/n/r/ac (2.4G+5G dual-band Wi-Fi).
Technical specifications include Bluetooth: Bluetooth 5.0, supports BLE. GPS: GPS/AGPS/Beidou/Galileo/GLONASS/QZSS. Develop Tools: Android SDK + JDK + Eclipse. P-Language: Java.
Technical specifications include Operating Temp.: -10°~ 50°C. Storage Temp.: -40°~ 70°C. Humidity: 0 ~ 95% (non-condensing). Sealing: IP67.
Wholesale purchasing information
For RUGGEDMASTER PDA-602, compare the pictured housing, connectors and controls with the configuration required by your application. The manufacturer may describe optional modules, memory configurations or regional network bands. These options are listed for reference; confirm the required configuration when requesting a quotation. Choose the interface and data-capture functions that match your existing workflow, software and installation requirements.
Review the complete Specs tab before placing a bulk order. It preserves the technical information supplied for this model, including the available operating environment and configuration details. Product pictures show the manufacturer’s existing views and available configurations. If your project needs a particular module, operating system version or connector, state that requirement in your enquiry so the configuration can be checked before ordering.
Explore related products in our RuggedMaster product catalog or send a bulk-order enquiry.
Manufacturer feature details
| Processor | Octa-core 2.0GHz high-performance processor |
| Operating System | Android 12.0 |
| Memory | 3GB RAM+32GB ROM or 4GB+64GB |
| Display | 6.0inch IPS 720x1440 High Resolution |
| Camera | Front:5MP Camera Back:AF 13.0M Pixels autofocus with LED |
| Touch Panel | Industrial-grade capacitive touch panel |
| Keypad | 1 power key + 1 scan key + 1 volume key (+-) + custom key |
| Notification | Vibrator/LED/Speaker |
| Battery | High voltage 3.7V 5000mAh |
| Audio | Built-in microphone/Speaker |
| Sensor | Ambient Light sensor, Proximity sensor |
| Interface | Type-C interface, support PE fast charging |
| Dimensions (LxWxD) | Approx. 164mm×81mm×20mm |
| Weight | 290g(battery included) |
| Mobile Network | 2G(GSM): B2/B3/B5/B8 3G(WCDMA): ：B1/B5/B8 4G(FDD-LTE): ：B1/B3/B5/B7/B8/B20 4G(TDD-LTE):B34/B38/B39/B40/B41 |
| Wi-Fi | Wi-Fi 802.11a/b/g/n/r/ac (2.4G+5G dual-band Wi-Fi) |
| Bluetooth | Bluetooth 5.0, supports BLE |
| GPS | GPS/AGPS/Beidou/Galileo/GLONASS/QZSS |
| Develop Tools | Android SDK + JDK + Eclipse |
| P-Language | Java |
| Operating Temp. | -10°~ 50°C |
| Storage Temp. | -40°~ 70°C |
| Humidity | 0 ~ 95% (non-condensing) |
| Sealing | IP67 |
| Protocol | ISO14443A/14443B/15693 |
| Frequency | 13.56MHz |
| NFC type | NXP PN557 |
| Speed | 100 lines/sec |
| Scan Angle | ±50° |
| Identification accuracy | ≥4mil |
| Decoding Type | UPC-A，UPC-E，UPC-E1，EAN-13，EAN-8，ISBN/ISSN，Code 39，code39 (ASCII full)， Interleaved 2 of 5，Industrial 2 of 5,Matrix 25,Codebar(NW7)，Code 128，UCC/EAN 128，ISBT128，code 93，MSI/Plessey，UK/Plessey，China post，GS1 Data Bar |
| Method | CMOS Image |
| Scan Speed | 60scans/sec |
| Scan Angle | 360 ° angle, Elevation angle ± 55 °, Eeflection angle ± 55 ° |
| Identification accuracy | 2D≥7.5mil，1D≥5mil |
| Decoding Type | QR Code, Data Matrix, PDF417，UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, Industrial 2 of 5,Matrix 25, Standard 25, Coda bar, MSI/MSI PLESSEY, GS1 Data Bar |
| DPM | Support DPM scanner (optional) |
