RUGGEDMASTER PDA-5502 Handheld Terminals
5.5inch(18:9) High Resolution IPS LTPS 720*1280 · Corning Gorilla Glass(High durability) · 5100mAh rechargeable lithium polymer battery Stand by time>300h Working time>12h（Depend on actual status and internet） · Octa-core ARM@Cortex -A53 MPCore 2.0 GHz · 4GB+64GB · Support extend to 128Gb · BT 5.0
PDA-5502 Industrial explosion-proof handheld terminal Suitable For A Variety Of Environments applications Widely Used In Express Logistics, Financial Insurance, Warehouses, Retail Stores, Supermarkets And Other Industries Zebra 4710 Scan Head Industrial-Grade Professional Scan Engine, Supports Scanning Of 1D/2D Barcodes, Providing Faster Identification Accuracy And Speed, And The Ability To Read Dirty/Low Quality Barcodes, Ensure Efficient And Convenient Reading. Data Transfer Wireless Connection Integrate 4G Full Netcom, WIFi Bluetooth And Other Wireless Communication Methods NFC Module Scalable UHF Module RFID (UHF) Batch Reading, Fast And Accurate It Can Read RFID Tags Within A Range Of 3 Meters In Batches Without Touching And Easily Scan, And Can Read More Than 50 Tags Per Second, Helping Enterprises To Leap To A New Level Of Work.
Keypad: 1 Power key, 1 scan key, 2 volume key
Microphone: 2 mic, one for speaking, one for denoise
Card slot: 2 SIM card slot
Structure: Bi-color injection molding
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

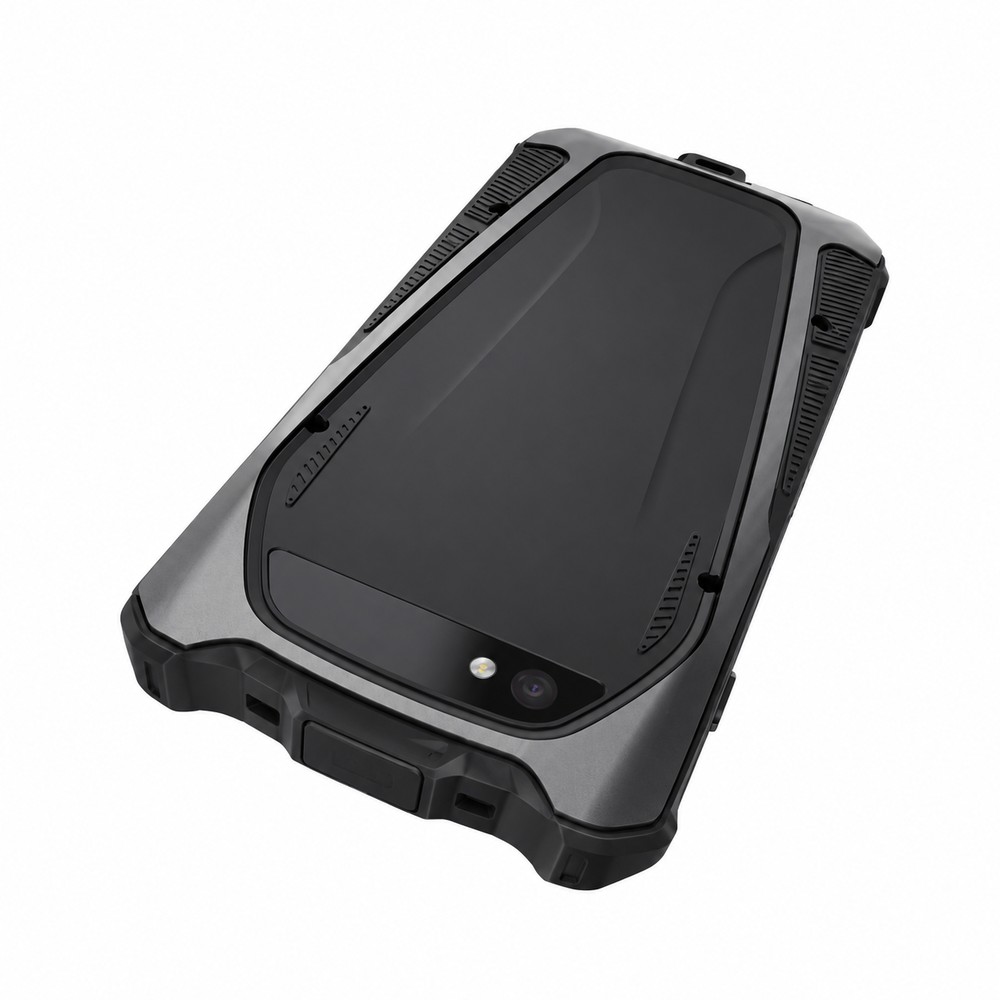

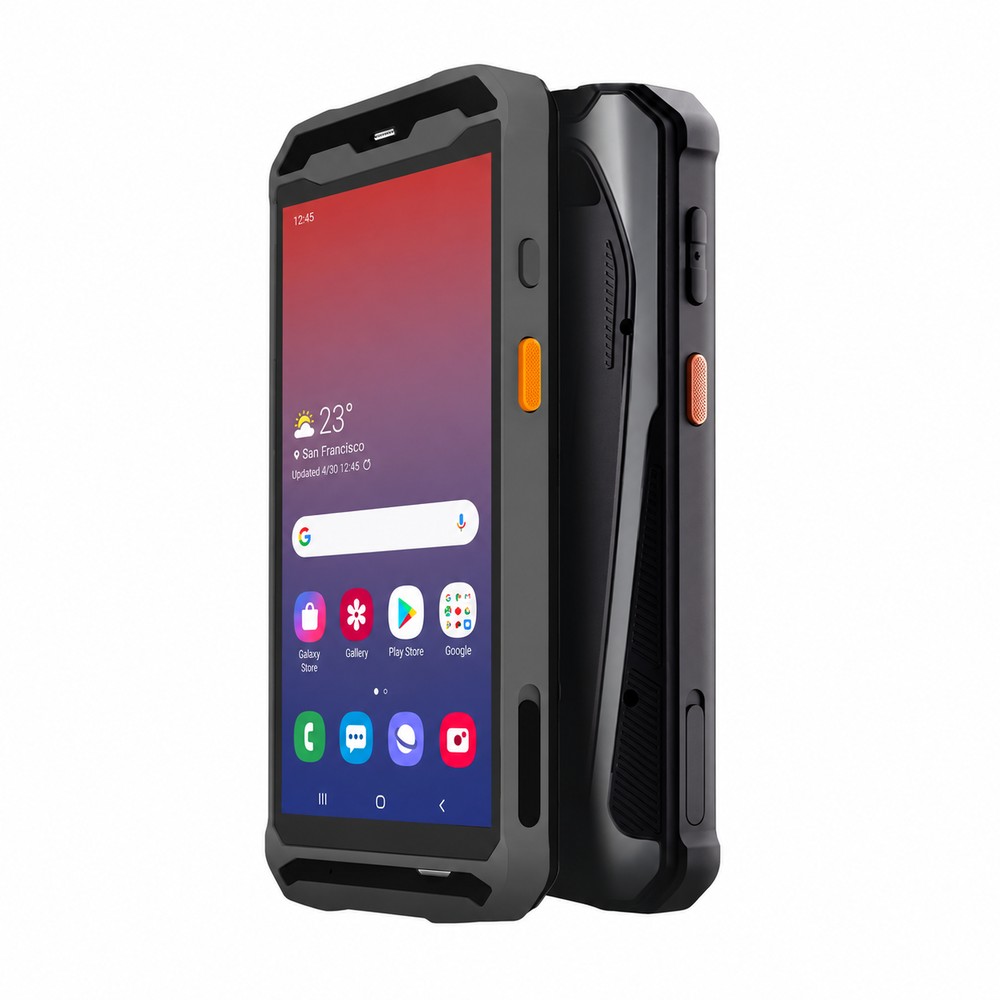

RUGGEDMASTER PDA-5502 Handheld Terminals
RUGGEDMASTER PDA-5502 combines the features and configurations shown below. Review the product overview, original feature graphics and complete Specs when selecting units for a bulk order.

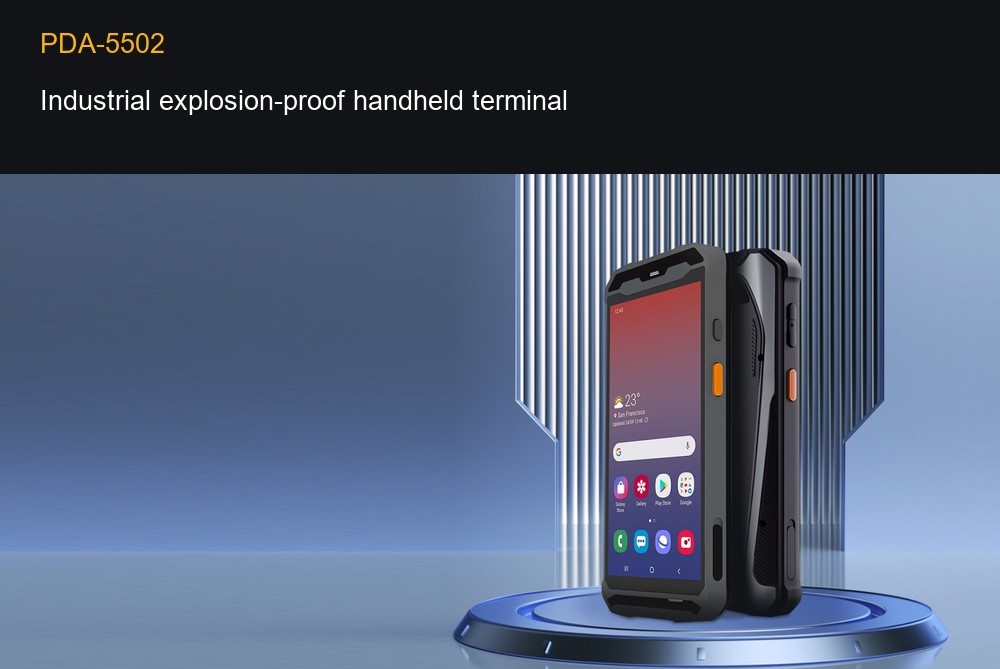

PDA-5502
Industrial explosion-proof handheld terminal
Suitable For A Variety Of Environments
applications
Widely Used In Express Logistics, Financial Insurance, Warehouses, Retail Stores, Supermarkets And Other Industries

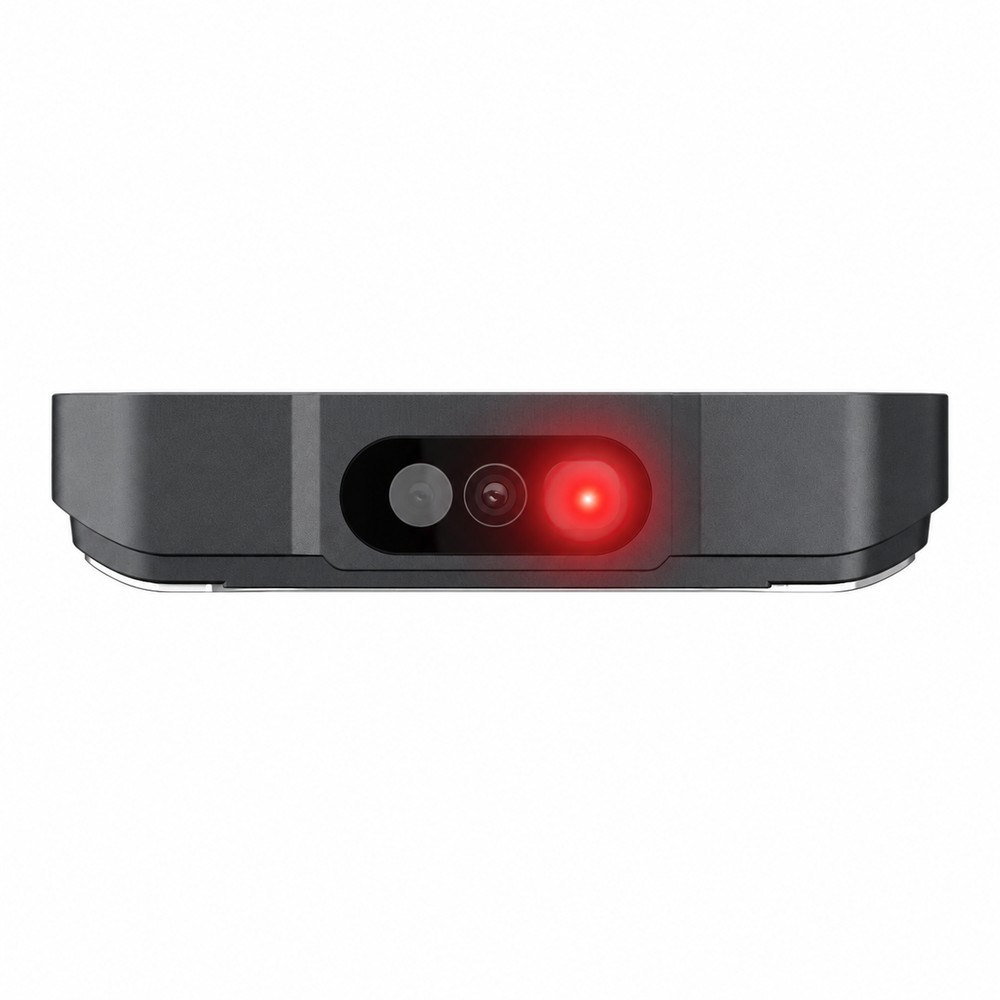

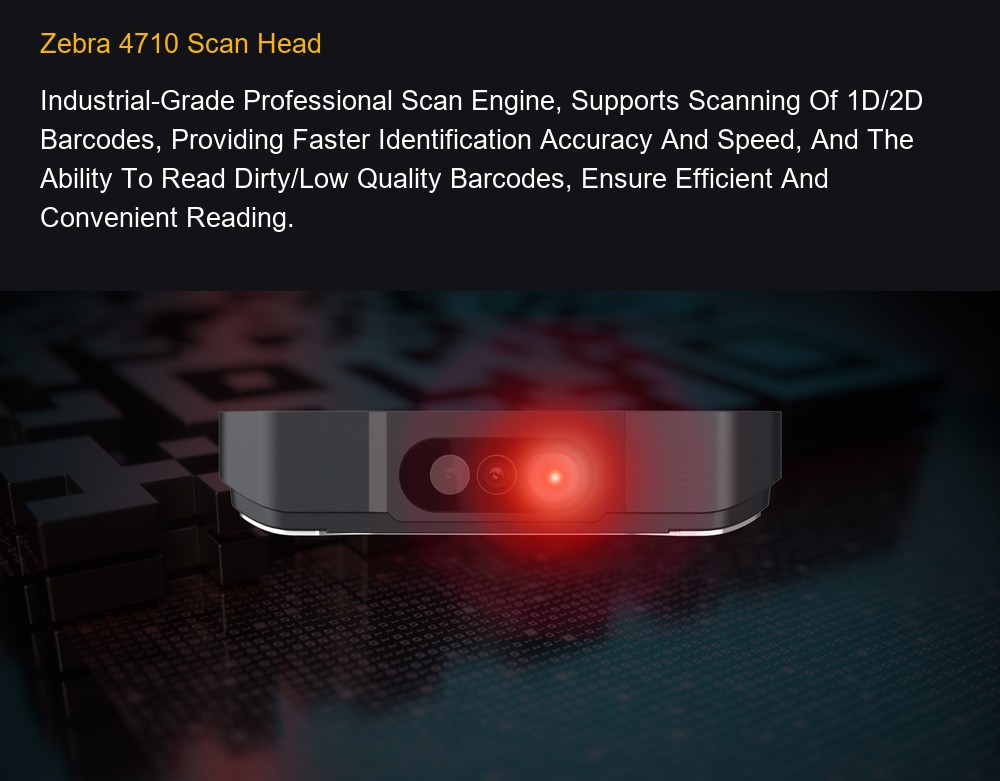

Zebra 4710 Scan Head
Industrial-Grade Professional Scan Engine, Supports Scanning Of 1D/2D Barcodes, Providing Faster Identification Accuracy And Speed, And The Ability To Read Dirty/Low Quality Barcodes, Ensure Efficient And Convenient Reading.

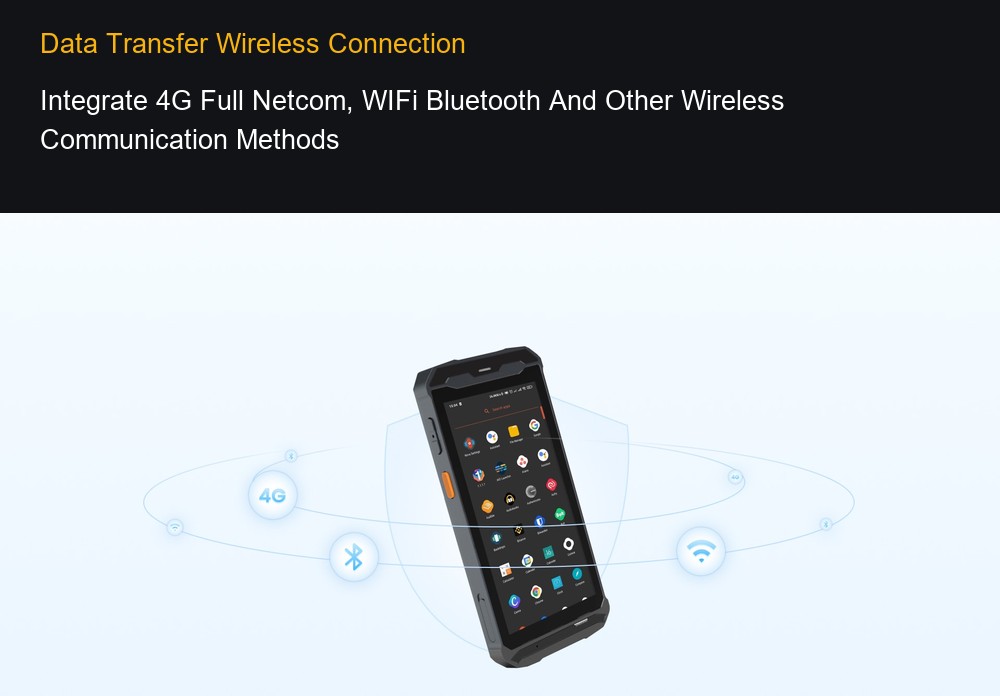

Data Transfer Wireless Connection
Integrate 4G Full Netcom, WIFi Bluetooth And Other Wireless Communication Methods

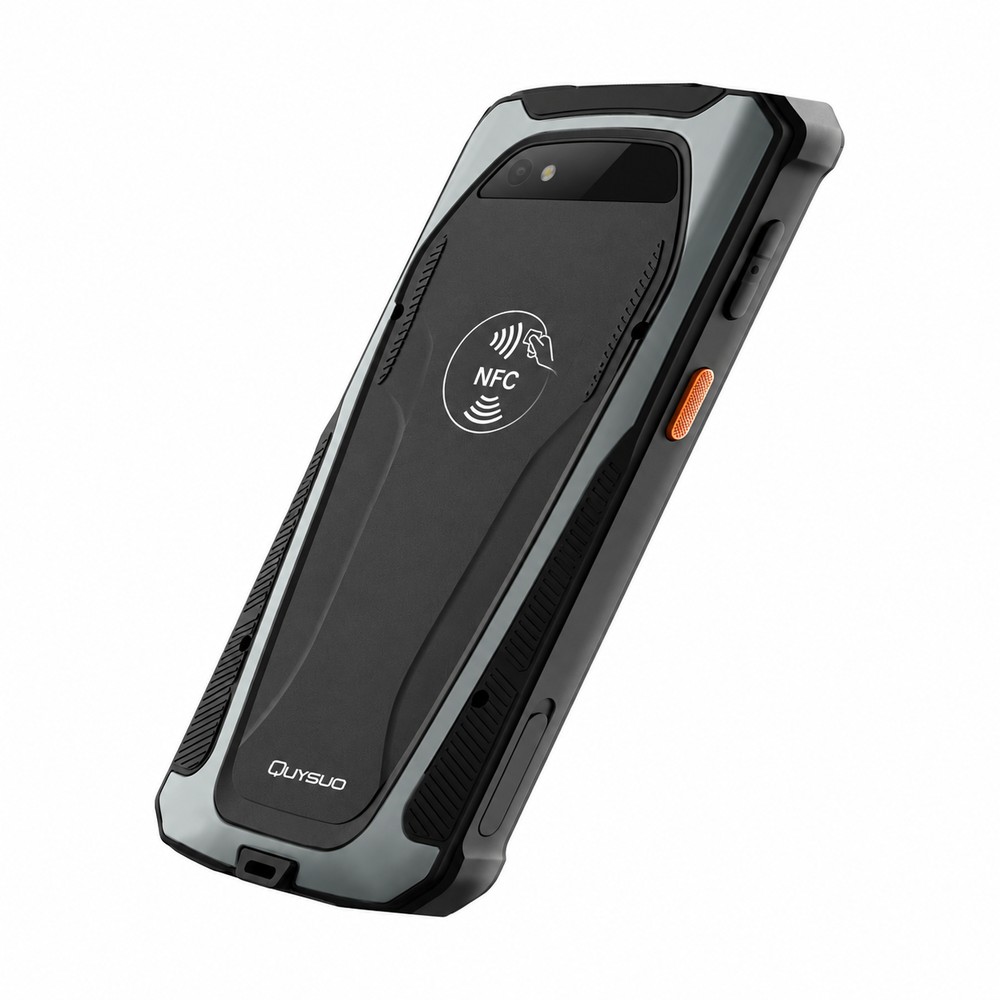

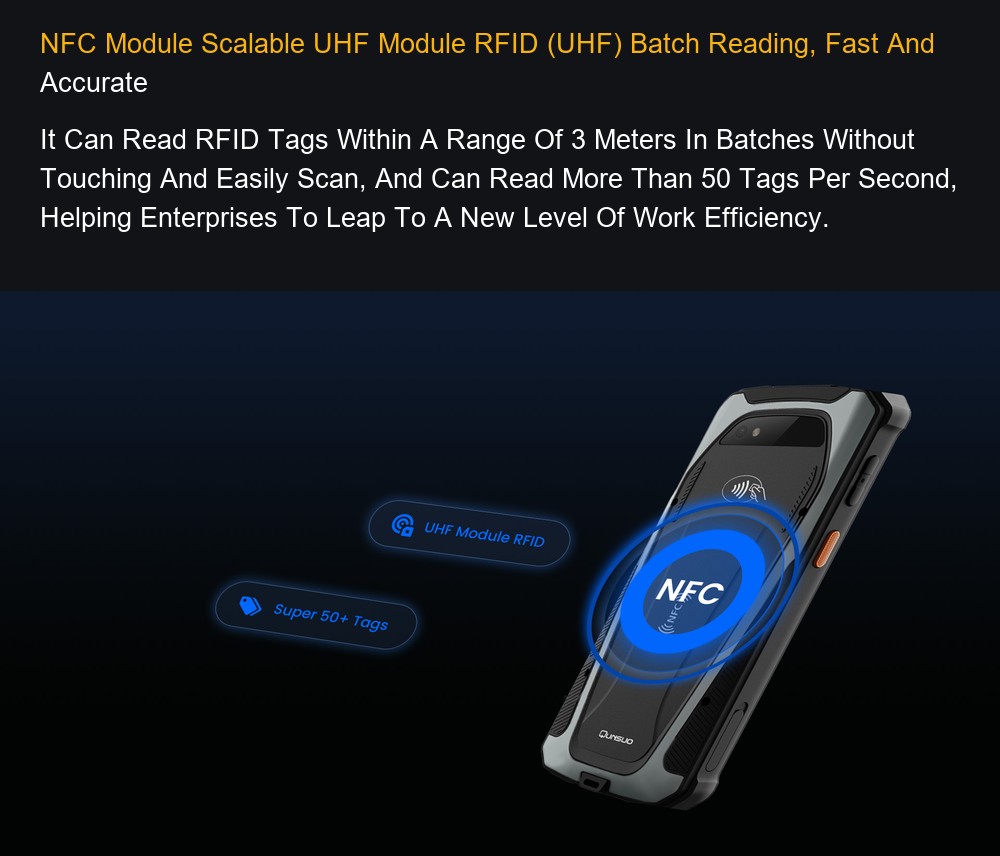

NFC Module Scalable UHF Module RFID (UHF) Batch Reading, Fast And Accurate
It Can Read RFID Tags Within A Range Of 3 Meters In Batches Without Touching And Easily Scan, And Can Read More Than 50 Tags Per Second, Helping Enterprises To Leap To A New Level Of Work Efficiency.

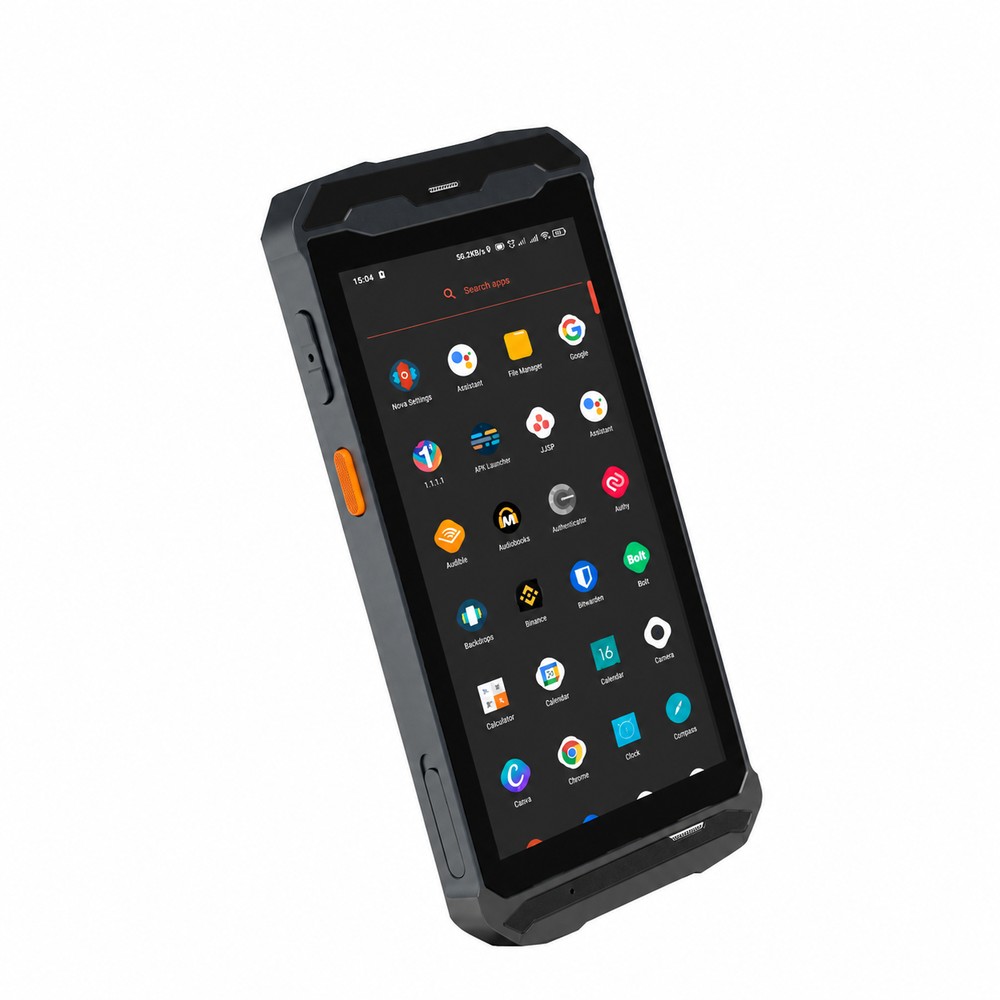

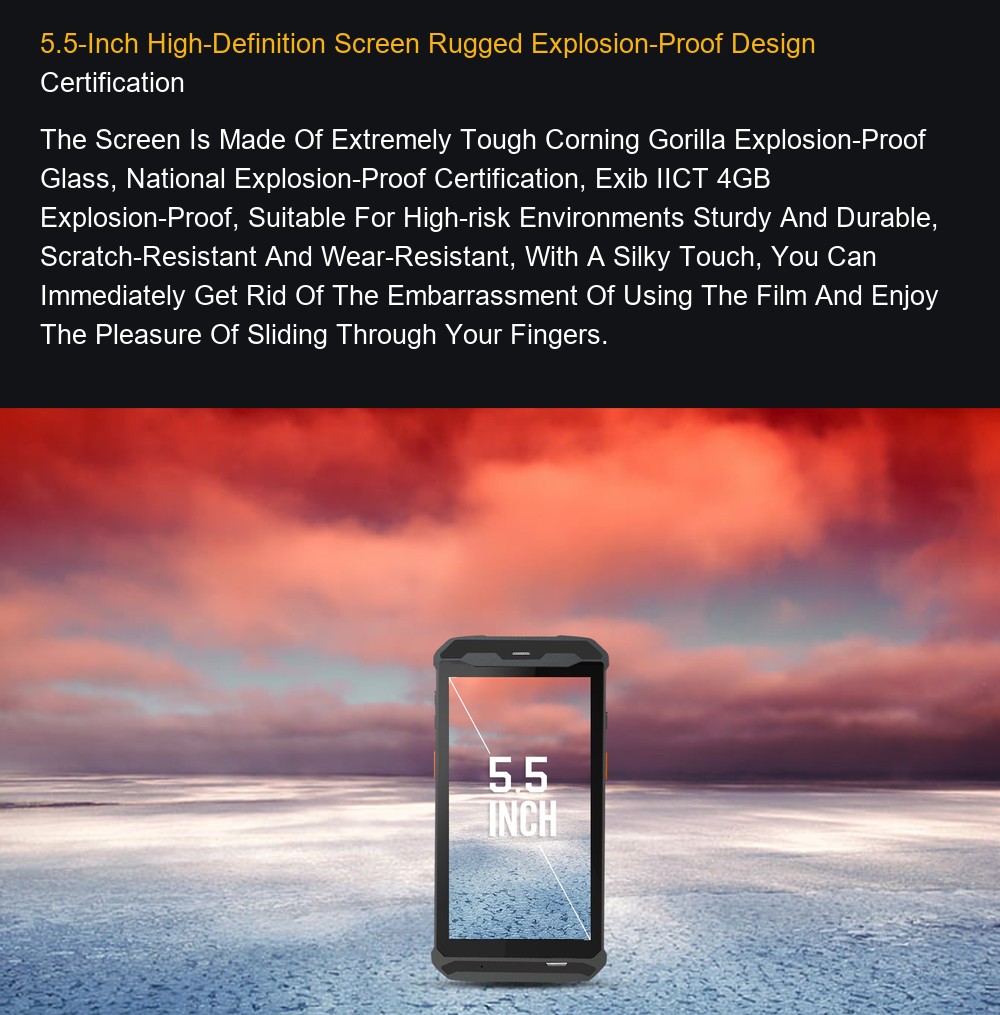

5.5-Inch High-Definition Screen Rugged Explosion-Proof Design Certification
The Screen Is Made Of Extremely Tough Corning Gorilla Explosion-Proof Glass, National Explosion-Proof Certification, Exib IICT 4GB Explosion-Proof, Suitable For High-risk Environments Sturdy And Durable, Scratch-Resistant And Wear-Resistant, With A Silky Touch, You Can Immediately Get Rid Of The Embarrassment Of Using The Film And Enjoy The Pleasure Of Sliding Through Your Fingers.
High-Performance Configuration Is More Outstanding
Octa-core
Octa-core ARM@Cortex -A53 MPCore 2.0 GHz
4GB RAM+ 64GB ROM
Large Memory
Android9.0
Operating System

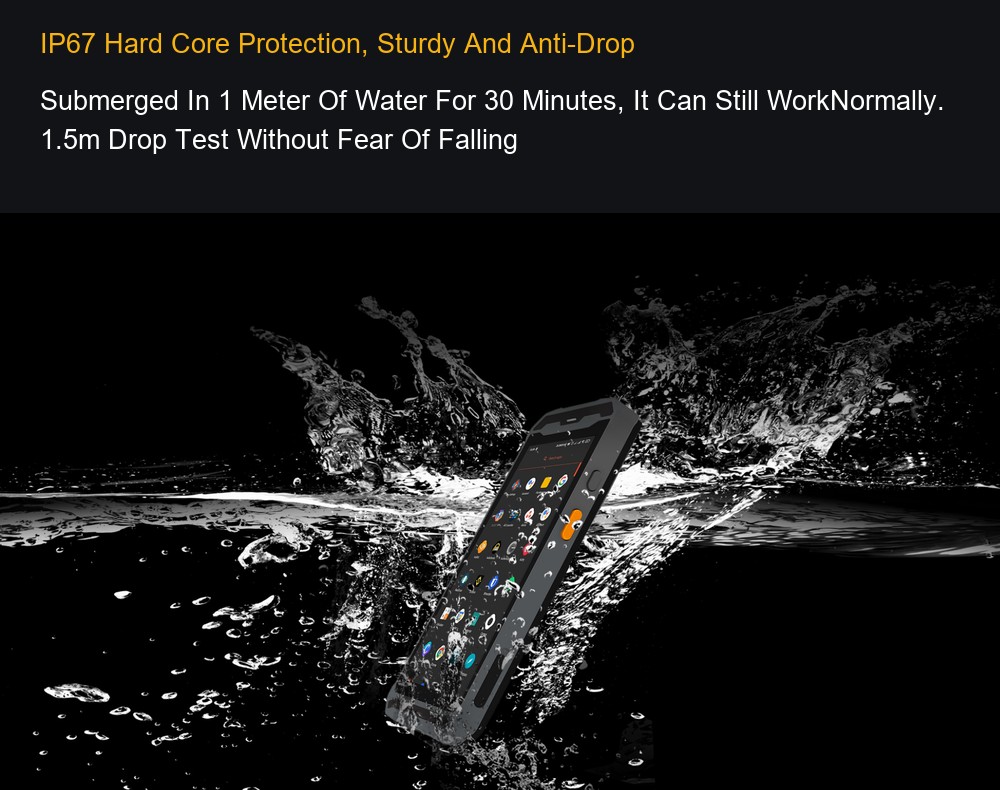

IP67 Hard Core Protection, Sturdy And Anti-Drop
Submerged In 1 Meter Of Water For 30 Minutes, It Can Still WorkNormally. 1.5m Drop Test Without Fear Of Falling

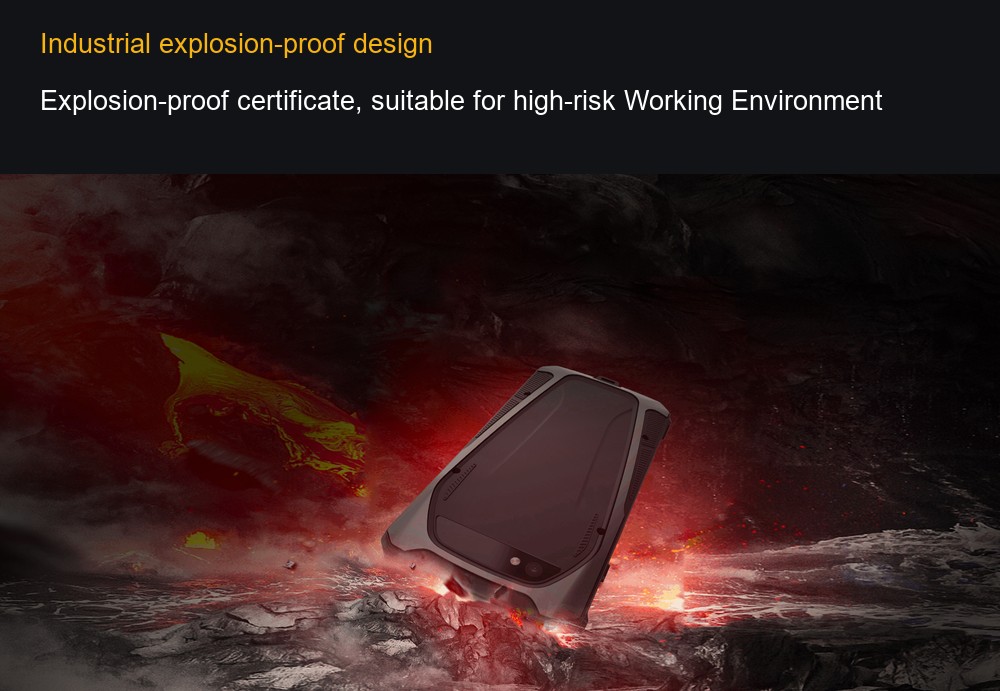

Industrial explosion-proof design
Explosion-proof certificate, suitable for high-risk Working Environment

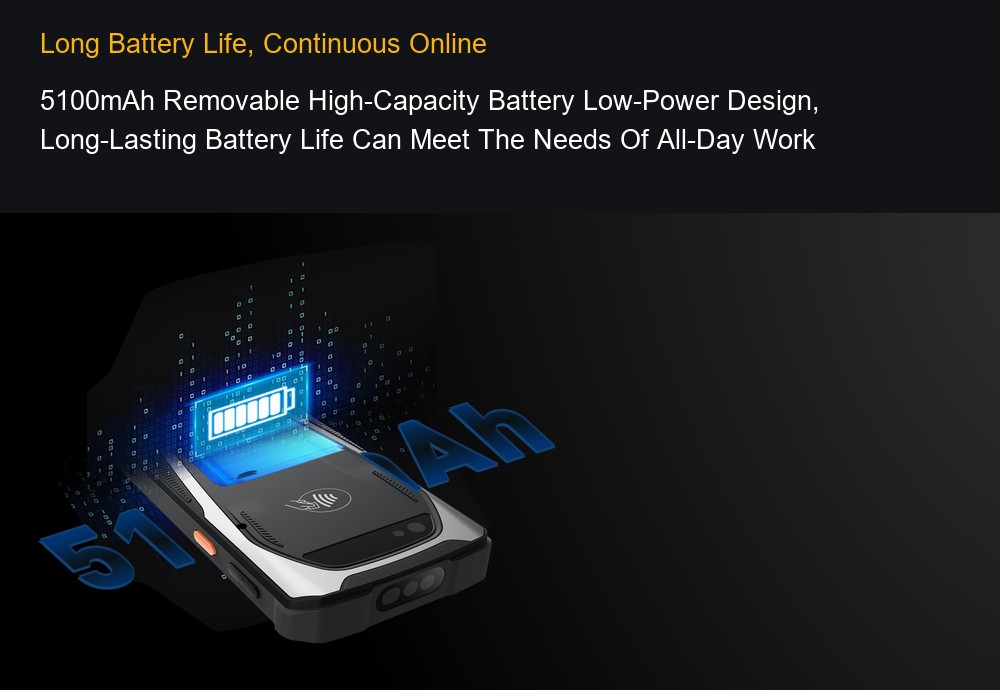

Long Battery Life, Continuous Online
5100mAh Removable High-Capacity Battery Low-Power Design, Long-Lasting Battery Life Can Meet The Needs Of All-Day Work

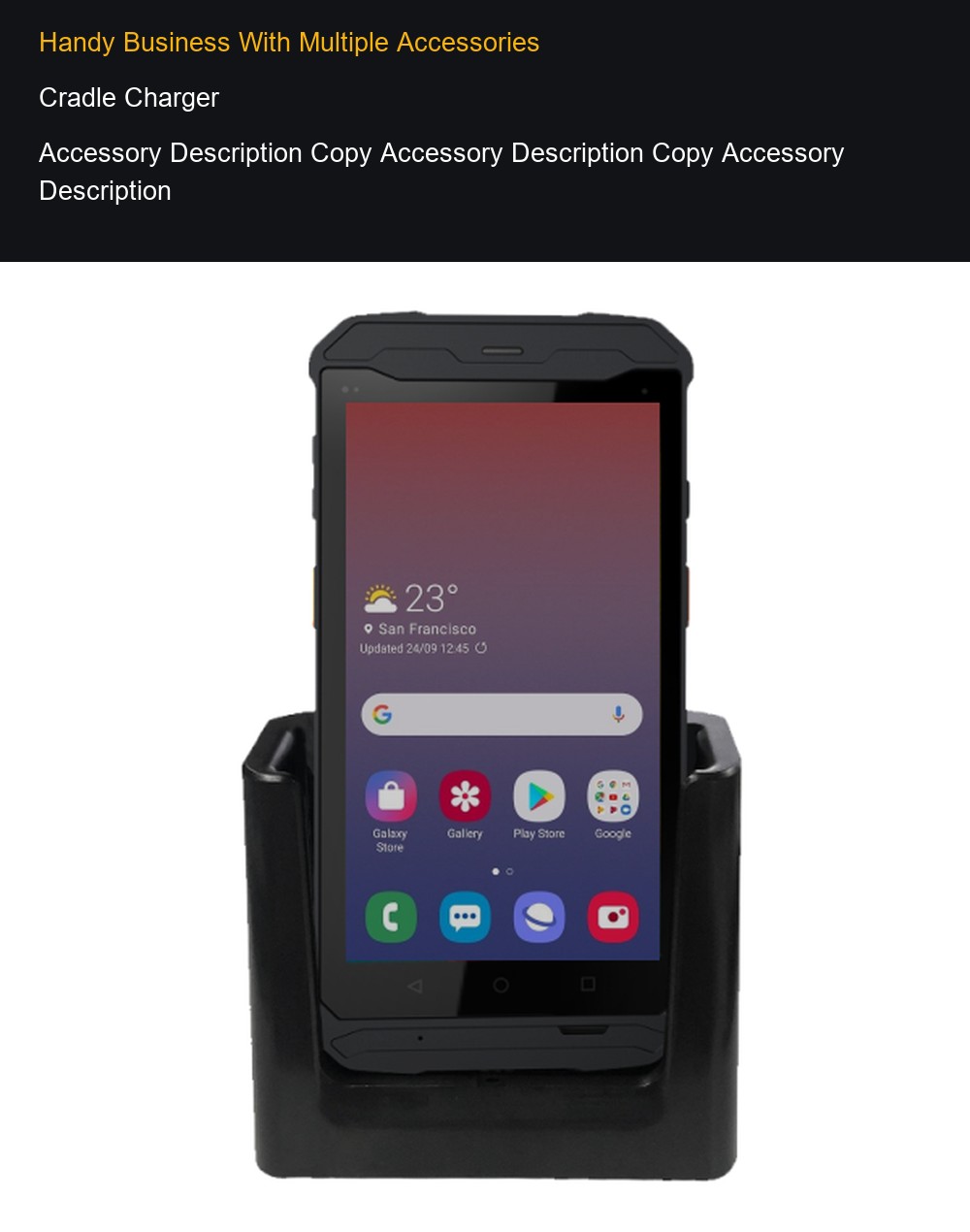

Handy Business With Multiple Accessories
Cradle Charger
Accessory Description Copy Accessory Description Copy Accessory Description
Configuration overview
Technical specifications include Keypad: 1 Power key, 1 scan key, 2 volume key. Microphone: 2 mic, one for speaking, one for denoise. Card slot: 2 SIM card slot. Structure: Bi-color injection molding.
Technical specifications include Display: 5.5inch(18:9) High Resolution IPS LTPS 720*1280. Camera: 13MP camera. Loudspeaker: Support. Touch Screen: Corning Gorilla Glass(High durability).
Technical specifications include Vibrator: Support. Indicator: Power, charging, status indicator. Sensor: G-sensor, Range sensor, Light sensor, Vibrator. Interface: Type-C.
Technical specifications include Battery: 5100mAh rechargeable lithium polymer battery Stand by time>300h Working time>12h（Depend on actual status and internet） Charging time: 4h. CPU: Octa-core ARM@Cortex -A53 MPCore 2.0 GHz. RAM+ROM: 4GB+64GB. Ex-storage: Support extend to 128Gb.
Technical specifications include Dimension (LxWxD): 160.0 x 84.0 x 17.5 mm. Weight: 287g(including battery). WWAN: 2G: 850/900/1800/1900MHz 3G: CDMA EVDO: BC0 WCDMA：850/900/1900/2100MHz 4G: B1/B3/B5/B7/B8/B20/B38/B39/B40/B41. Bluetooth: BT 5.0.
Technical specifications include Vo-LTE: Support Vo-LTE HD voice video call. WLAN: 2.4G/5G dual-band，Support 802.11 a/b/g/n/ac/,IPV4,IPV6；. GNSS: Support GPS/Beidou/Glonass/AGPS. Working temp.: 20 ℃~+50 ℃.
Wholesale purchasing information
For RUGGEDMASTER PDA-5502, compare the pictured housing, connectors and controls with the configuration required by your application. The manufacturer may describe optional modules, memory configurations or regional network bands. These options are listed for reference; confirm the required configuration when requesting a quotation. Choose the interface and data-capture functions that match your existing workflow, software and installation requirements.
Review the complete Specs tab before placing a bulk order. It preserves the technical information supplied for this model, including the available operating environment and configuration details. Product pictures show the manufacturer’s existing views and available configurations. If your project needs a particular module, operating system version or connector, state that requirement in your enquiry so the configuration can be checked before ordering.
Explore related products in our RuggedMaster product catalog or send a bulk-order enquiry.
Manufacturer feature details
| Keypad | 1 Power key, 1 scan key, 2 volume key |
| Microphone | 2 mic, one for speaking, one for denoise |
| Card slot | 2 SIM card slot |
| Structure | Bi-color injection molding |
| Display | 5.5inch(18:9) High Resolution IPS LTPS 720*1280 |
| Camera | 13MP camera |
| Loudspeaker | Support |
| Touch Screen | Corning Gorilla Glass(High durability) |
| Vibrator | Support |
| Indicator | Power, charging, status indicator |
| Sensor | G-sensor, Range sensor, Light sensor, Vibrator |
| Interface | Type-C |
| Battery | 5100mAh rechargeable lithium polymer battery Stand by time>300h Working time>12h（Depend on actual status and internet） Charging time: 4h |
| CPU | Octa-core ARM@Cortex -A53 MPCore 2.0 GHz |
| RAM+ROM | 4GB+64GB |
| Ex-storage | Support extend to 128Gb |
| Dimension (LxWxD) | 160.0 x 84.0 x 17.5 mm |
| Weight | 287g(including battery) |
| WWAN | 2G: 850/900/1800/1900MHz 3G: CDMA EVDO: BC0 WCDMA：850/900/1900/2100MHz 4G: B1/B3/B5/B7/B8/B20/B38/B39/B40/B41 |
| Bluetooth | BT 5.0 |
| Vo-LTE | Support Vo-LTE HD voice video call |
| WLAN | 2.4G/5G dual-band，Support 802.11 a/b/g/n/ac/,IPV4,IPV6； |
| GNSS | Support GPS/Beidou/Glonass/AGPS |
| Working temp. | 20 ℃~+50 ℃ |
| Storage temp. | -40 ℃~+70 ℃ |
| Humidity | 5%RH~95%RH（Non-condensing） |
| Drop test | Within operating range, 6 sides withstand 1.5 meter drop test |
| ESD protection | ±15 KV air discharge，±8 KV contact discharge |
| Rolling test | Rolling up to 1000 times 0.25 meters, 6 surface contact surfaces still running steadily after rolling, reaching IEC rolling standard |
| IP level | IP67(Meet IEC sealing standard) |
| O.S. | Android 9.0 |
| SDK | Qunsuo terminal development tool |
| P-Language | Java |
| Development tool | Eclipse/Android Studio |
| Working frequency | 13.56MHZ |
| Communication | ISO14443A/B,ISO15693,NFC-IP1,NFC-IP2 and etc. |
| NFC standard | M1(S50,S70), CPU card, NFC tag and etc. |
| Frequency | 902Mhz-928Mhz、865MHz-868MHz(optional) |
| Capture Range | 1-3m |
| Output Powe | 18-26dBm |
| Scanner engine | Zebra SE4710 |
| Scan pixels | 1280*800 |
| Decoding type | QR Code, Data Matrix, PDF417, Han letter code in line with international and domestic generic 1D code standards: UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, IS BT 128, Code39, Code93, Code11, Interleaved 2 of 5, Industrial 2 of 5, Matrix25, Standard25, Code bar MSI/MSIPLESSEY, GS1 Data Bar etc. |
