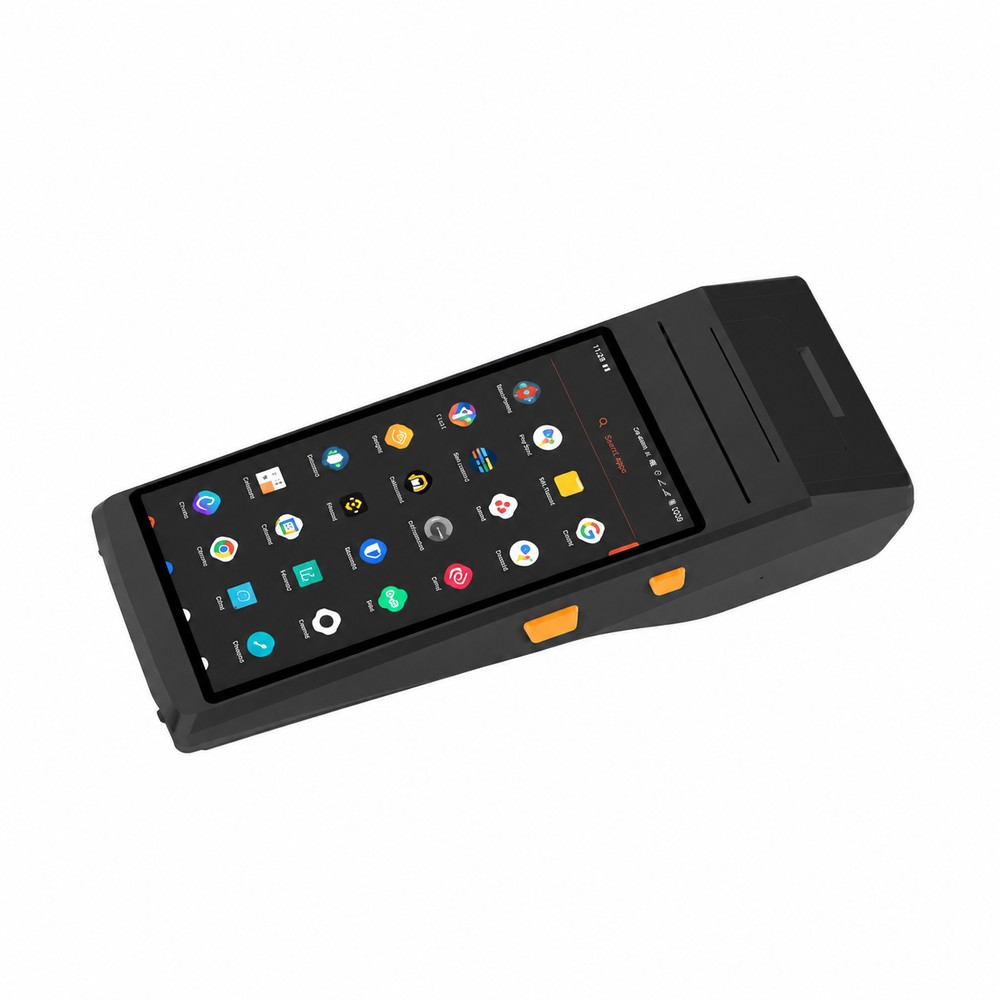

RUGGEDMASTER PDA-5501/4G Handheld Terminals
ARM Cortex A53 Quad-core 64bits 1.3GHz · 2GB+ 16GB/ 3GB+32GB / 4GB+64GB · Micro SD Card (Up To 128G) · 5.5inch IPS 720×1280 High Resolution · 7.4v 4000mAh rechargeable lithium polymer battery · Bluetooth 4.0 · Direct Thermal
PDA-5501 All-in-one smart handheld terminal Suitable For A Variety Of Environments 01 / 04 02 / 04 03 / 04 04 / 04 applications Widely Used In Express Logistics, Financial Insurance, Warehouses, Retail Stores, Public Service And Other Industries Built-in 58mm Thermal Printer Receipt and label printing modes can be switched easily To meet all your needs. Label Paper Thermal Printer Printing Speed To recognize more, swiftly and easily. A professional 1D/2D barcode scan engine can scan barcodes in all directions, even when the barcode is damaged, scratched or stained. 1D Barcode 2D Barcode Internally Expandable Function Modules Internal Function Modules Can Be Expanded According To Customer Needs ISO7816 1-3 Contact IC Card NFC Module UHF RFID IC card module is safe, stable and efficien，t Perform well in swiping and scenes, and step into a.
Processor: ARM Cortex A53 Quad-core 64bits 1.3GHz
O.S: Android 6.0/7.0/9.0
Memory: 2GB+ 16GB/ 3GB+32GB / 4GB+64GB
Ex-Storage: Micro SD Card (Up To 128G)
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

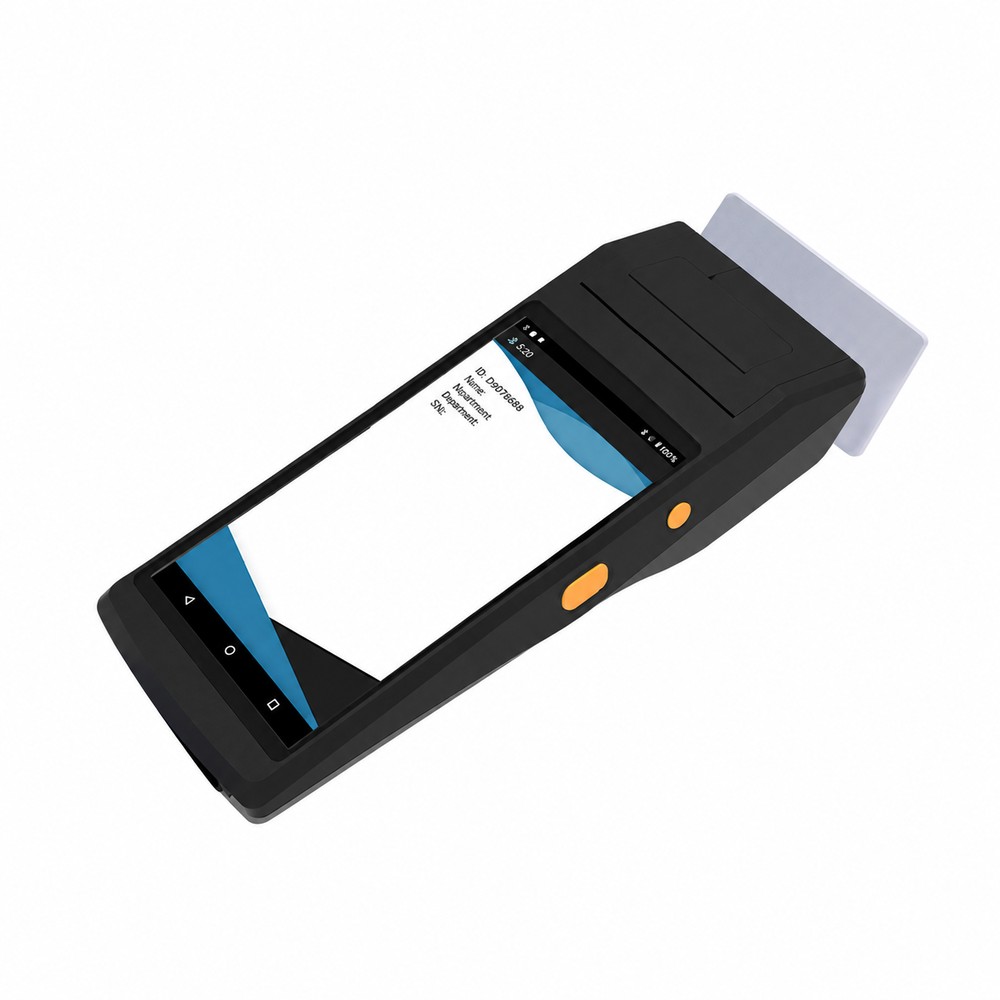

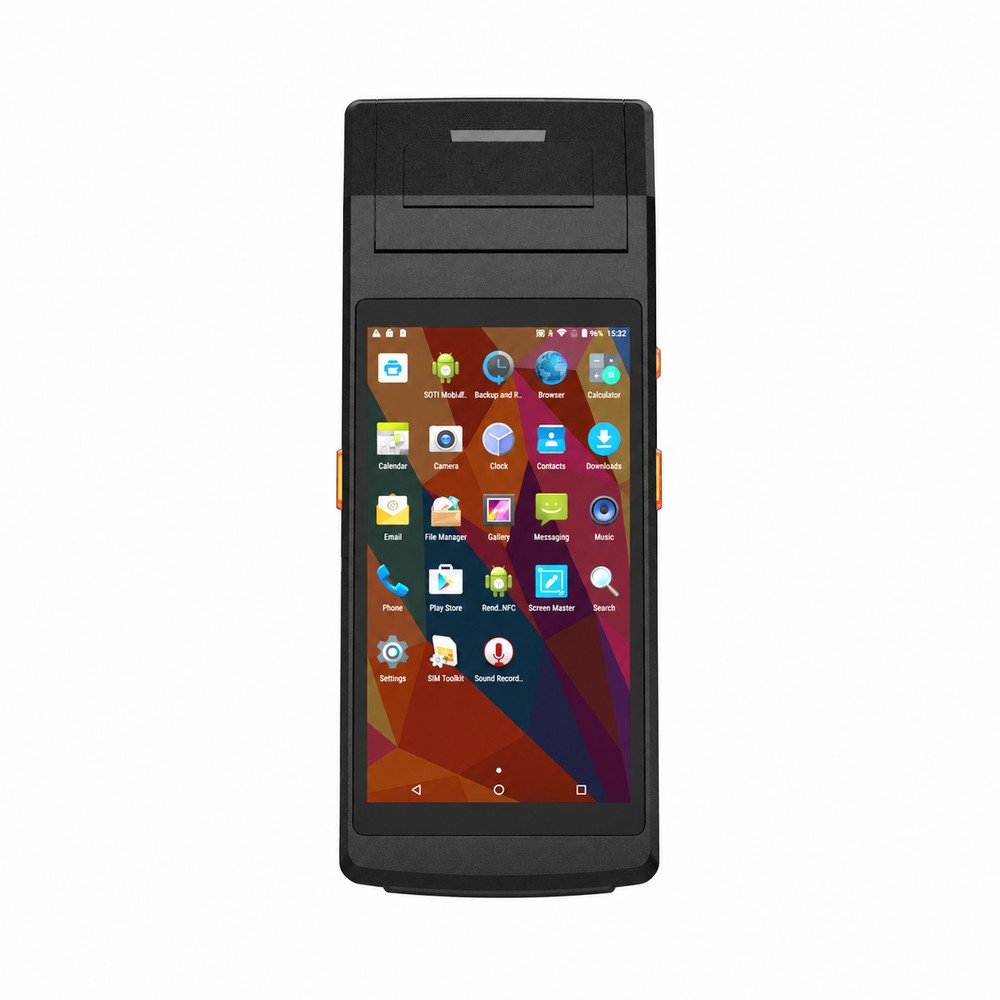

RUGGEDMASTER PDA-5501/4G Handheld Terminals
RUGGEDMASTER PDA-5501/4G combines the features and configurations shown below. Review the product overview, original feature graphics and complete Specs when selecting units for a bulk order.

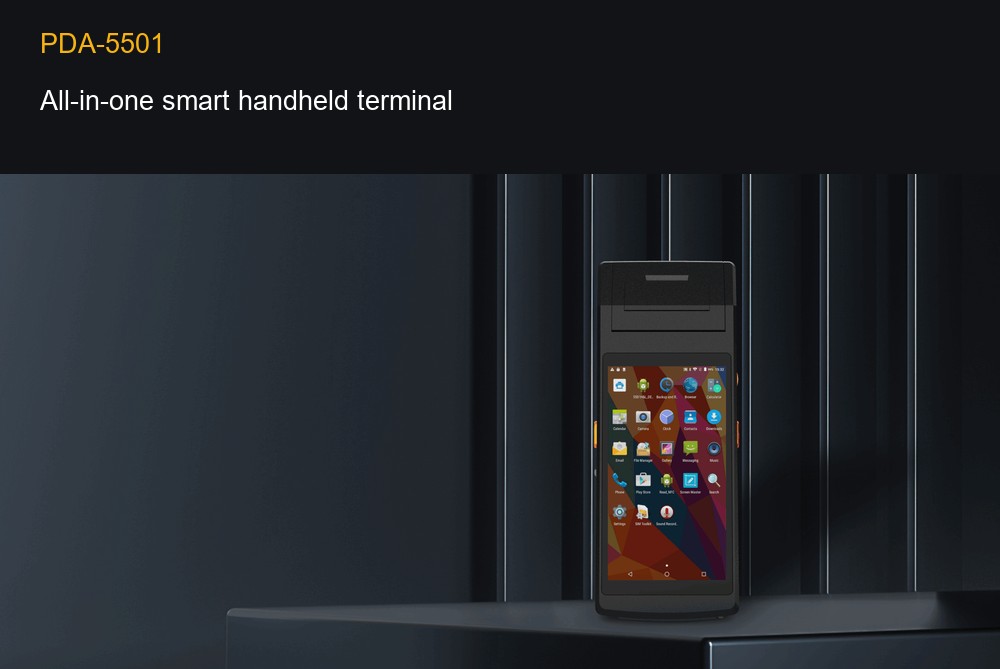

PDA-5501
All-in-one smart handheld terminal
Suitable For A Variety Of Environments
01 / 04
02 / 04
03 / 04
04 / 04
applications
Widely Used In Express Logistics, Financial Insurance, Warehouses, Retail Stores, Public Service And Other Industries

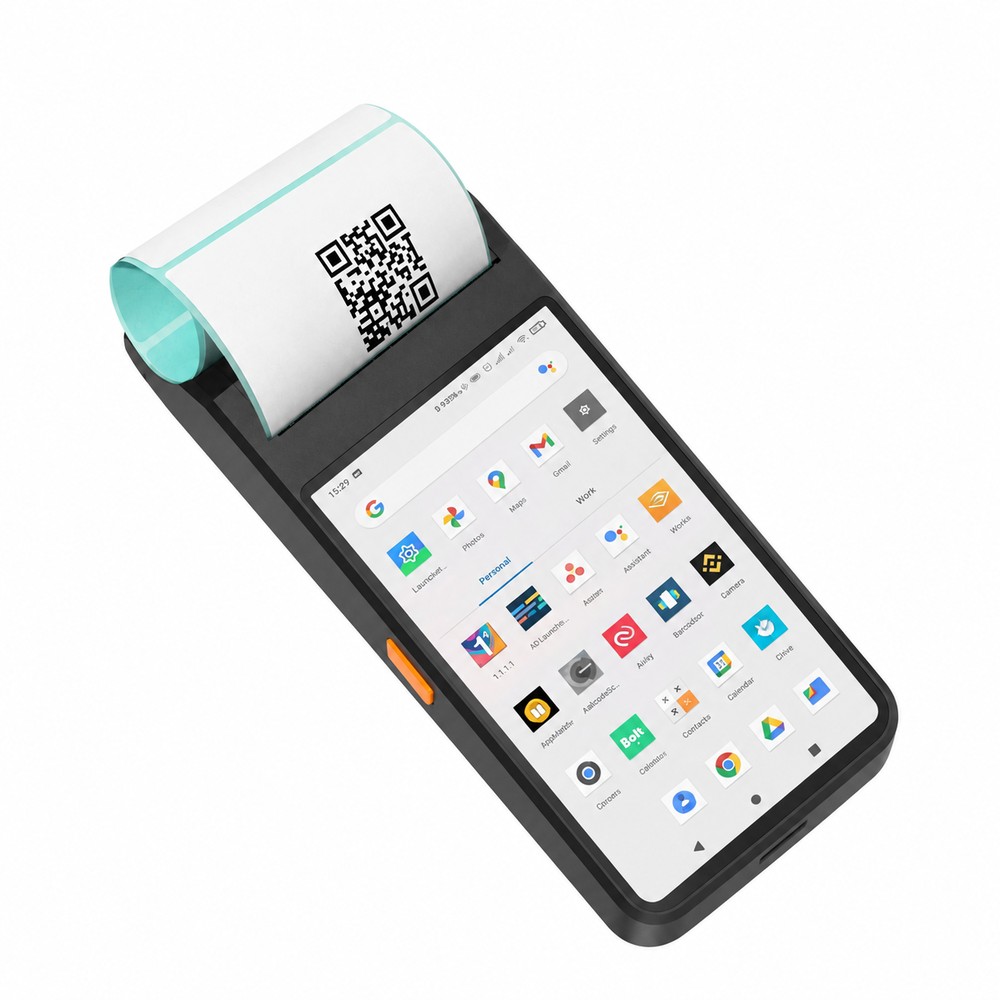

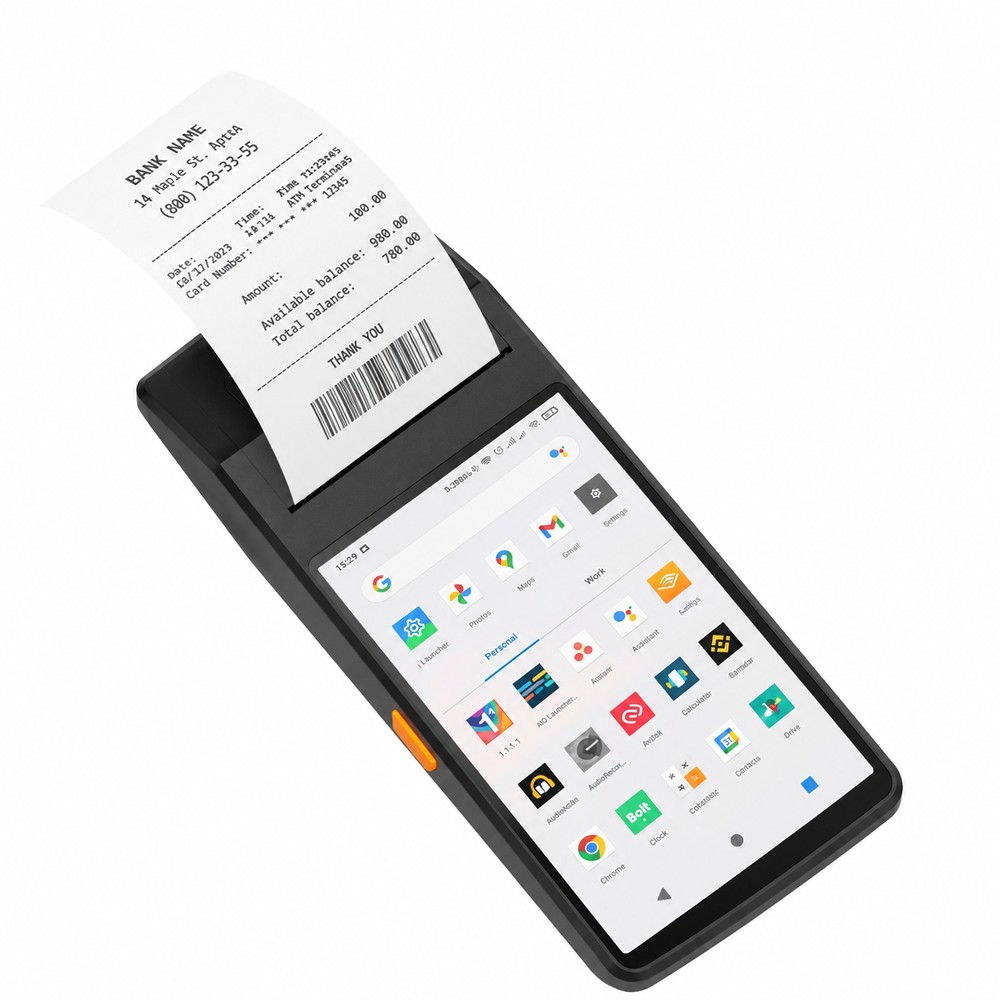

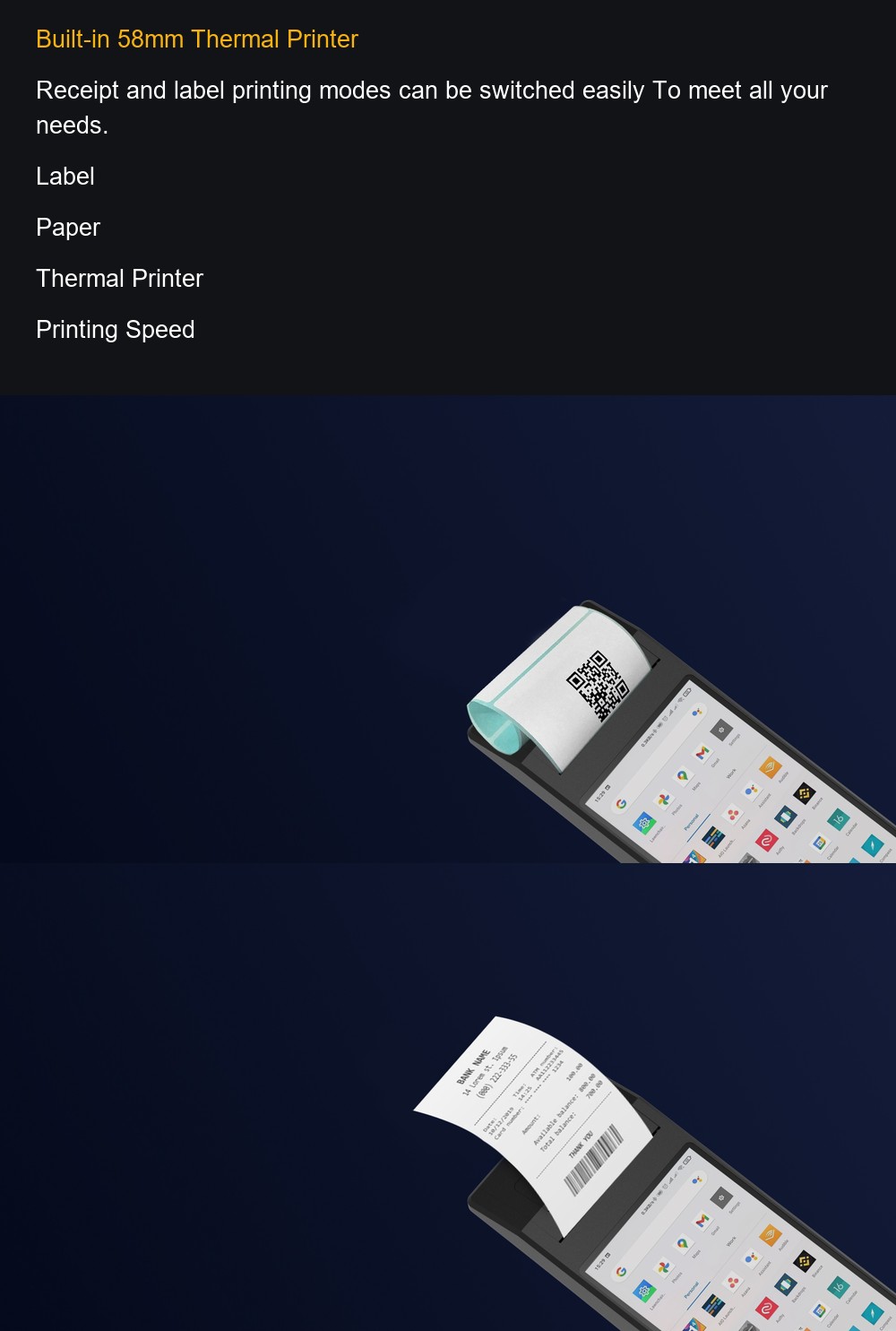

Built-in 58mm Thermal Printer
Receipt and label printing modes can be switched easily To meet all your needs.
Label
Paper
Thermal Printer
Printing Speed
To recognize more, swiftly and easily.
A professional 1D/2D barcode scan engine can scan barcodes in all directions, even when the barcode is damaged, scratched or stained.
1D Barcode
2D Barcode
Internally Expandable Function Modules
Internal Function Modules Can Be Expanded According To Customer Needs
ISO7816 1-3 Contact IC Card
NFC Module
UHF RFID
IC card module is safe, stable and efficien，t Perform well in swiping and scenes, and step into a new realm of work efficiency
It Can Read RFID Tags Within A Range Of 3 Meters In Batches Without Touching And Easily Scan , And Can Read More Than 50 Tags Per Second, Helping Enterprises To Leap To A New Level Of Work Efficiency.
spectrum range : 902MHz – 928MHz / 865MH z – 868MH z (optional)Read and write distance : 1 – 2 meters
4G Full Netcom + Dual-Band Wi-Fi + Bluetooth, High-Speed And Stable Wireless Transmission
IP65 Protection Class
Working Temperature -10~60°C Easily Adapt To Various Complex And Harsh Application Scenarios, Safe, Reliable And Durable
Dustproof and waterproof
IP65
High-Performance Configuration Is More Outstanding
Equipped With Qualcomm 8-Core High-Performance Processor, Android9.0 Operating System, Synchronous Processing Of Multiple Processes, Low Power Consumption, More Efficient Work;4GB RAM+ 64GB ROM Mass Data Storage

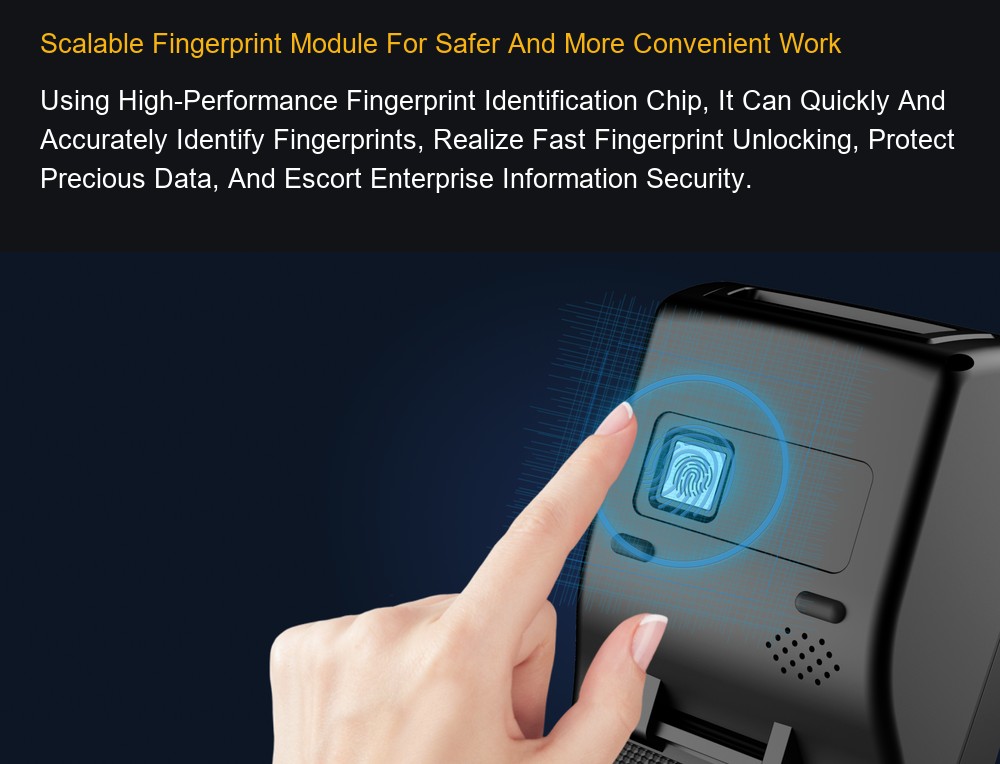

Scalable Fingerprint Module For Safer And More Convenient Work
Using High-Performance Fingerprint Identification Chip, It Can Quickly And Accurately Identify Fingerprints, Realize Fast Fingerprint Unlocking, Protect Precious Data, And Escort Enterprise Information Security.

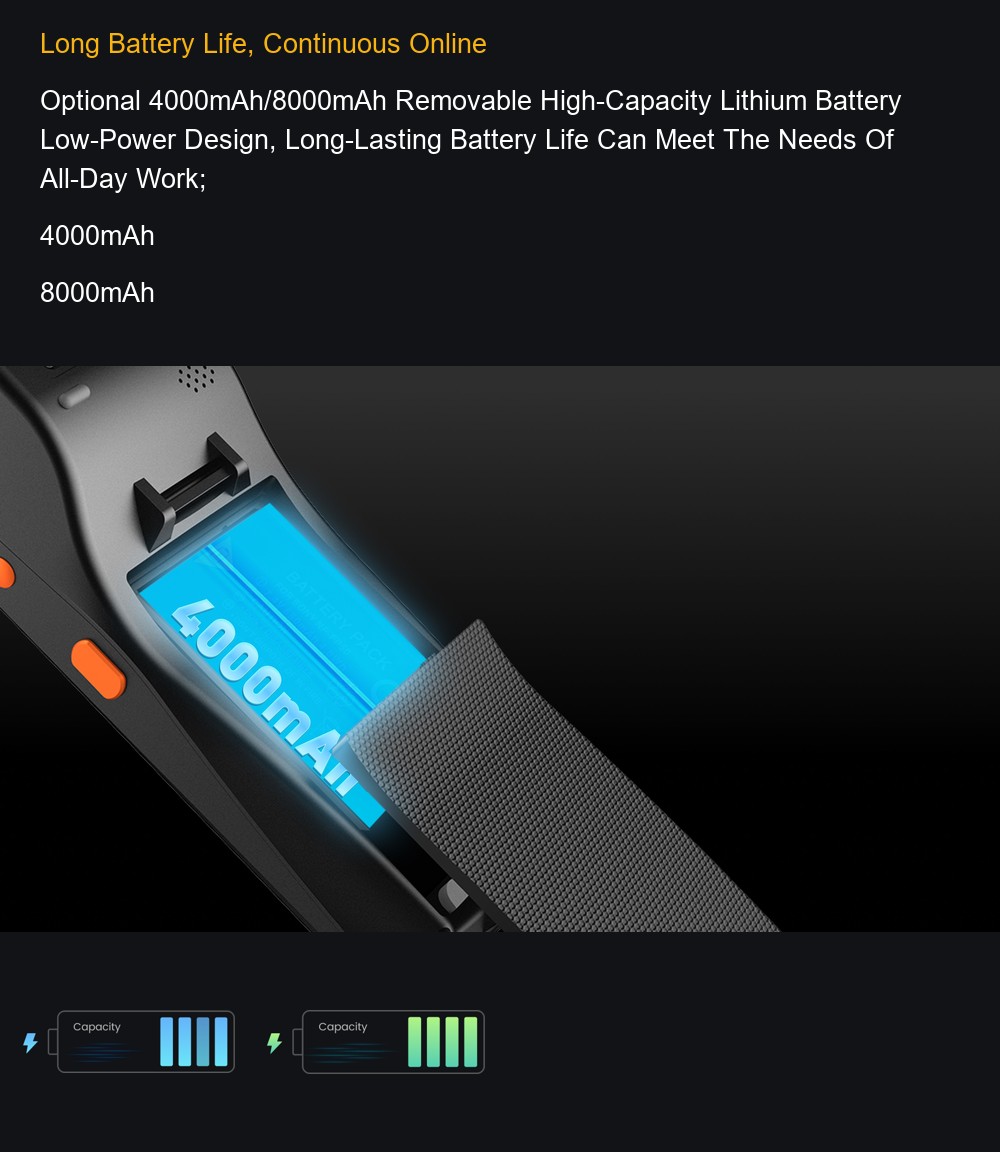

Long Battery Life, Continuous Online
Optional 4000mAh/8000mAh Removable High-Capacity Lithium Battery Low-Power Design, Long-Lasting Battery Life Can Meet The Needs Of All-Day Work;
4000mAh
8000mAh
Configuration overview
Technical specifications include Processor: ARM Cortex A53 Quad-core 64bits 1.3GHz. O.S: Android 6.0/7.0/9.0. Memory: 2GB+ 16GB/ 3GB+32GB / 4GB+64GB. Ex-Storage: Micro SD Card (Up To 128G).
Technical specifications include Display: 5.5inch IPS 720×1280 High Resolution. Camera: AF 8.0M Pixels with LED flash light. Touch Panel: Industrial-grade capacitive touch panel. Keypad: 2 side keys,Power key.
Technical specifications include Notification: Vibrator/LED/Speaker. Battery: 7.4v 4000mAh rechargeable lithium polymer battery. Audio: Built-in microphone/Headphone slot. Sensor: G-sensor.
Technical specifications include Interface: Micro USB/Serial Port(TTL). Dimensions (LxWxD): 210*80*42mm. Weight: 505g(battery included). Mobile Network: 3G： WCDMA:850/900/1900/2100MHz CDMA/EVDO 800MHz GSM: 850/900/1800/1900MHz 4G：LTE-FDD:B1/B3/B7/B8/B28 LTE-TDD:B38/B39/B40/B41.
Technical specifications include Wi-Fi: IEEE 802.11 b/g/n. Bluetooth: Bluetooth 4.0. GPS: Supporting GPS/AGPS. Printing Method: Direct Thermal.
Technical specifications include Speed: 70mm/sec. Width: 48mm(384 Dots/lines). Sensor: Black mark / out of paper / overheat over-voltage protection. Medium: Thermal paper and label.
Wholesale purchasing information
For RUGGEDMASTER PDA-5501/4G, compare the pictured housing, connectors and controls with the configuration required by your application. The manufacturer may describe optional modules, memory configurations or regional network bands. These options are listed for reference; confirm the required configuration when requesting a quotation. Choose the interface and data-capture functions that match your existing workflow, software and installation requirements.
Review the complete Specs tab before placing a bulk order. It preserves the technical information supplied for this model, including the available operating environment and configuration details. Product pictures show the manufacturer’s existing views and available configurations. If your project needs a particular module, operating system version or connector, state that requirement in your enquiry so the configuration can be checked before ordering.
Explore related products in our RuggedMaster product catalog or send a bulk-order enquiry.
Manufacturer feature details
| Processor | ARM Cortex A53 Quad-core 64bits 1.3GHz |
| O.S | Android 6.0/7.0/9.0 |
| Memory | 2GB+ 16GB/ 3GB+32GB / 4GB+64GB |
| Ex-Storage | Micro SD Card (Up To 128G) |
| Display | 5.5inch IPS 720x1280 High Resolution |
| Camera | AF 8.0M Pixels with LED flash light |
| Touch Panel | Industrial-grade capacitive touch panel |
| Keypad | 2 side keys,Power key |
| Notification | Vibrator/LED/Speaker |
| Battery | 7.4v 4000mAh rechargeable lithium polymer battery |
| Audio | Built-in microphone/Headphone slot |
| Sensor | G-sensor |
| Interface | Micro USB/Serial Port(TTL) |
| Dimensions (LxWxD) | 210*80*42mm |
| Weight | 505g(battery included) |
| Mobile Network | 3G： WCDMA:850/900/1900/2100MHz CDMA/EVDO 800MHz GSM: 850/900/1800/1900MHz 4G：LTE-FDD:B1/B3/B7/B8/B28 LTE-TDD:B38/B39/B40/B41 |
| Wi-Fi | IEEE 802.11 b/g/n |
| Bluetooth | Bluetooth 4.0 |
| GPS | Supporting GPS/AGPS |
| Printing Method | Direct Thermal |
| Speed | 70mm/sec |
| Width | 48mm(384 Dots/lines) |
| Sensor | Black mark / out of paper / overheat over-voltage protection |
| Medium | Thermal paper and label |
| Type | Text/image/bar code/QR code |
| Develop Tools | Android SDK + JDK + Eclipse |
| P-Language | Java |
| Operating Temp. | -10°~ 50°C |
| Storage Temp. | -20°~ 70°C |
| Humidity | 0 ~ 95% (non-condensing) |
| Sealing | IP65 |
| Protocol | ISO/IEC 14443A/B,ISO15693 |
| Frequency | 13.56MHz |
| NFC type | Type1-4Tag/Mifare/Felica |
| PSAM | IS0/IEC 7816 1-4 |
| Contact chip card | IS0/IEC 7816 (optional) |
| Method | CMOS Image |
| Scan Speed | 60scans/sec |
| Scan Angle | 360 ° angle, Elevation angle ± 55 °, Eeflection angle ± 55 ° |
| Identification accuracy | 2D≥7.5mil，1D≥5mil |
| DPM | Support DPM scanner (optional) |
| Decoding Type | QR Code, Data Matrix, PDF417，UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, Industrial 2 of 5,Matrix 25, Standard 25, Coda bar, MSI/MSI PLESSEY, GS1 Data Bar |
| Speed | 100 lines/sec |
| Scan Angle | ±50° |
| Identification accuracy | ≥4mil |
| Decoding Type | UPC-A，UPC-E，UPC-E1，EAN-13，EAN-8，ISBN/ISSN，Code 39，code39 (ASCII full)， Interleaved 2 of 5，Industrial 2 of 5,Matrix 25,Codebar(NW7)，Code 128，UCC/EAN 128，ISBT128，code 93，MSI/Plessey，UK/Plessey，China post，GS1 Data Bar |
| Method | Flat surface press to semiconductor sensor |
| Sensor | FPC1020 |
| Image | 242*266 pixels |
| Image resolution | 508dpi |
| Storage | 2000 pieces |
| Frequency | 902Mhz-928Mhz、865MHz-868MHz(optional) |
| Protocol | EPC global UHF Class 1 Gen 2/ISO 18000-6C |
| Capture Range | 1-2m |
| Output Power | 18-26dBm |
