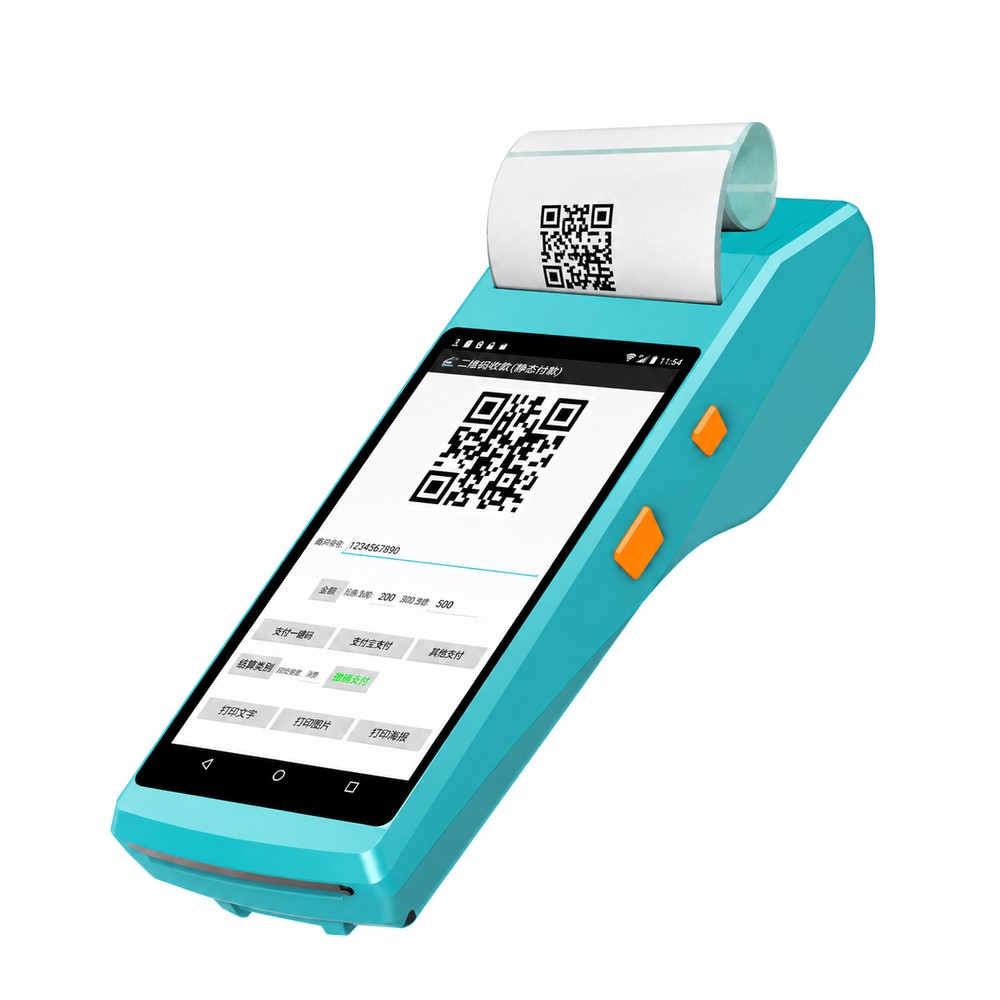

RUGGEDMASTER PDA-5501/3G Handheld Terminals
3G Version ARM7 Quad-core1.3GHz · 16GB R0M+2GB RAM · Micro SD（UP to 64G ) · 5.5 inch IPS(720 x 1280) high-definition screen · Industrial capacitive screen · Built in detachable 7.4v 4000mAh Lithium Polymer Battery · Built in line thermal printer
PDA – 5501L 3G Handheld Smart Terminal Suitable For A Variety Of Environments 01 / 04 02 / 04 03 / 04 04 / 04 Applications Widely Used In Express Logistics, Financial Insurance, Warehouses, Retail Stores, Supermarkets，Healthcare And Other Industries Built-in 58mm Thermal Printer Receipt and label printing modes can be switched easily To meet all your needs. Paper Label Printing Speed Internally Expandable Function Modules Internal Function Modules Can Be Expanded According To Customer Needs NFC Module It Can Read RFID Tags Within A Range Of 3 Meters In Batches Without Touching And Easily Scan , And Can Read More Than 50 Tags Per Second, Helping Enterprises To Leap To A New Level Of Work Efficiency. 3G Full Netcom + Dual-Band Wi-Fi + Bluetooth, High-Speed And Stable Wireless Transmission HD camera Standard 2 million pixel camera, auto.
Processor: 3G Version ARM7 Quad-core1.3GHz
OS: Android 6.0
Storage: 16GB R0M+2GB RAM
Extended Storage: Micro SD（UP to 64G )
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

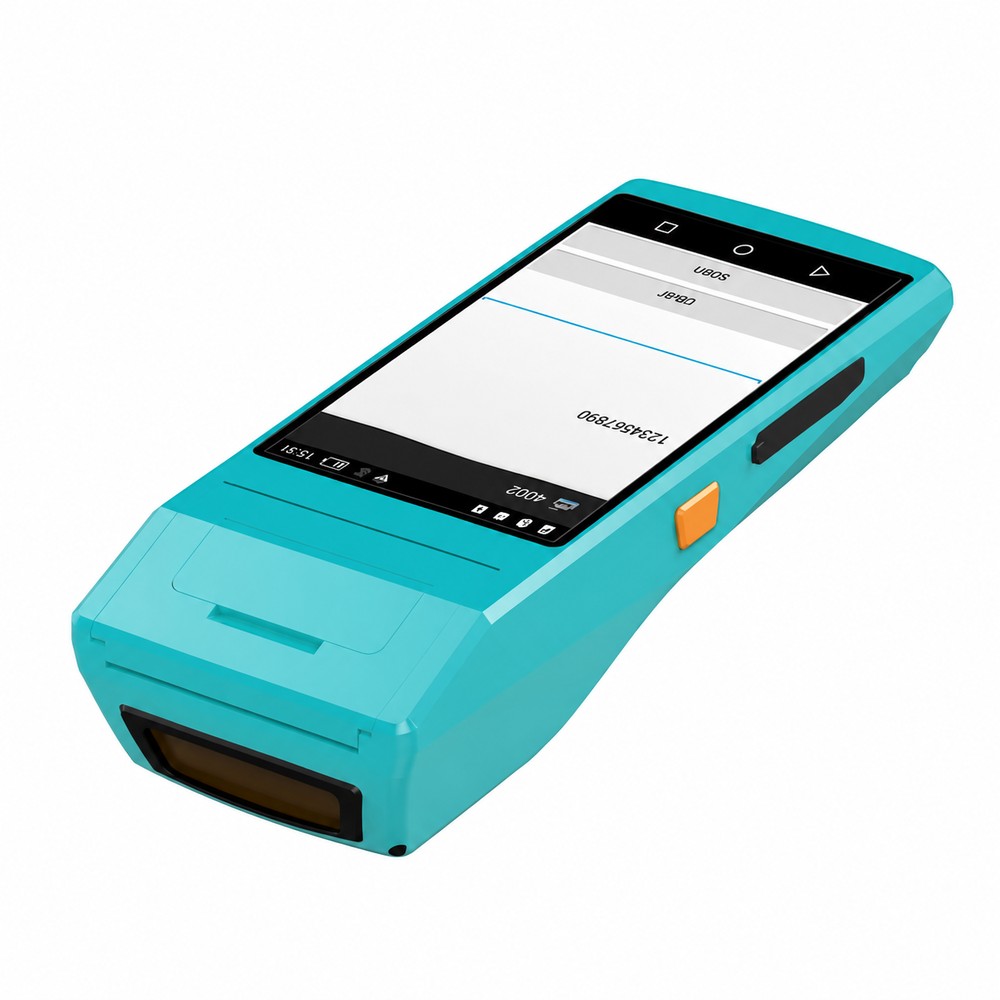

RUGGEDMASTER PDA-5501/3G Handheld Terminals
RUGGEDMASTER PDA-5501/3G combines the features and configurations shown below. Review the product overview, original feature graphics and complete Specs when selecting units for a bulk order.

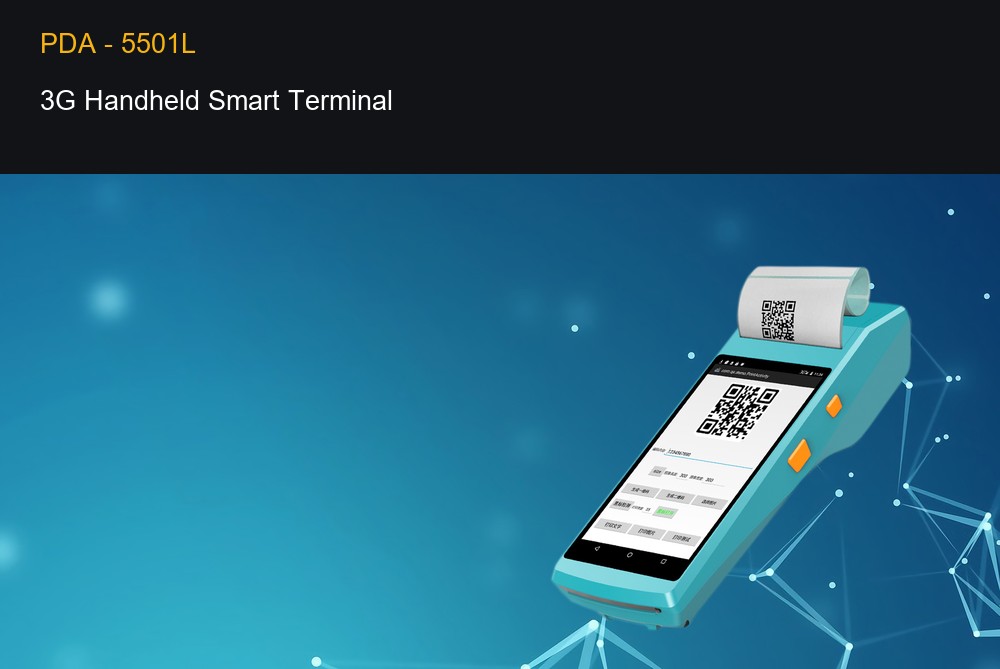

PDA – 5501L
3G Handheld Smart Terminal
Suitable For A Variety Of Environments
01 / 04
02 / 04
03 / 04
04 / 04
Applications
Widely Used In Express Logistics, Financial Insurance, Warehouses, Retail Stores, Supermarkets，Healthcare And Other Industries

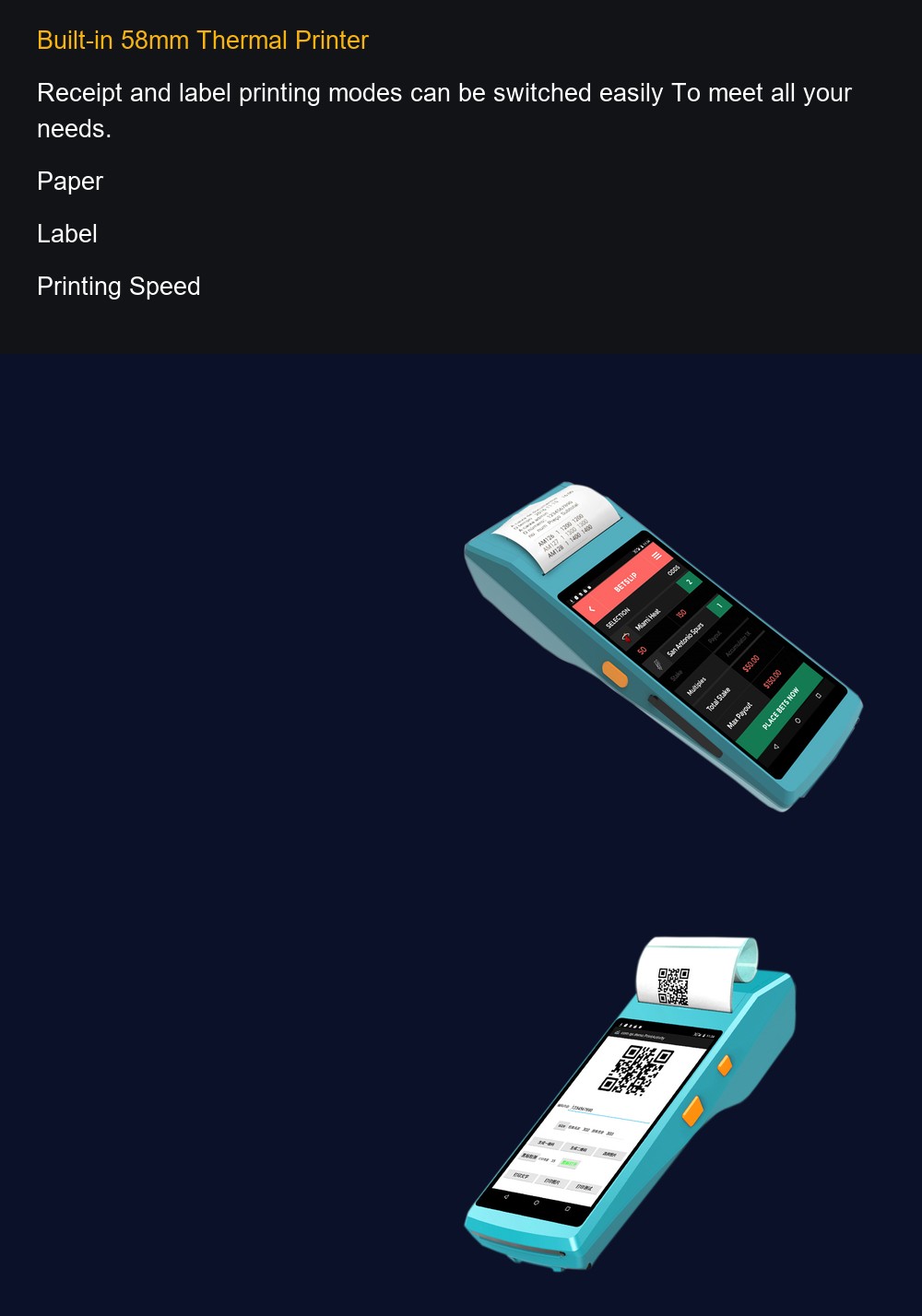

Built-in 58mm Thermal Printer
Receipt and label printing modes can be switched easily To meet all your needs.
Paper
Label
Printing Speed

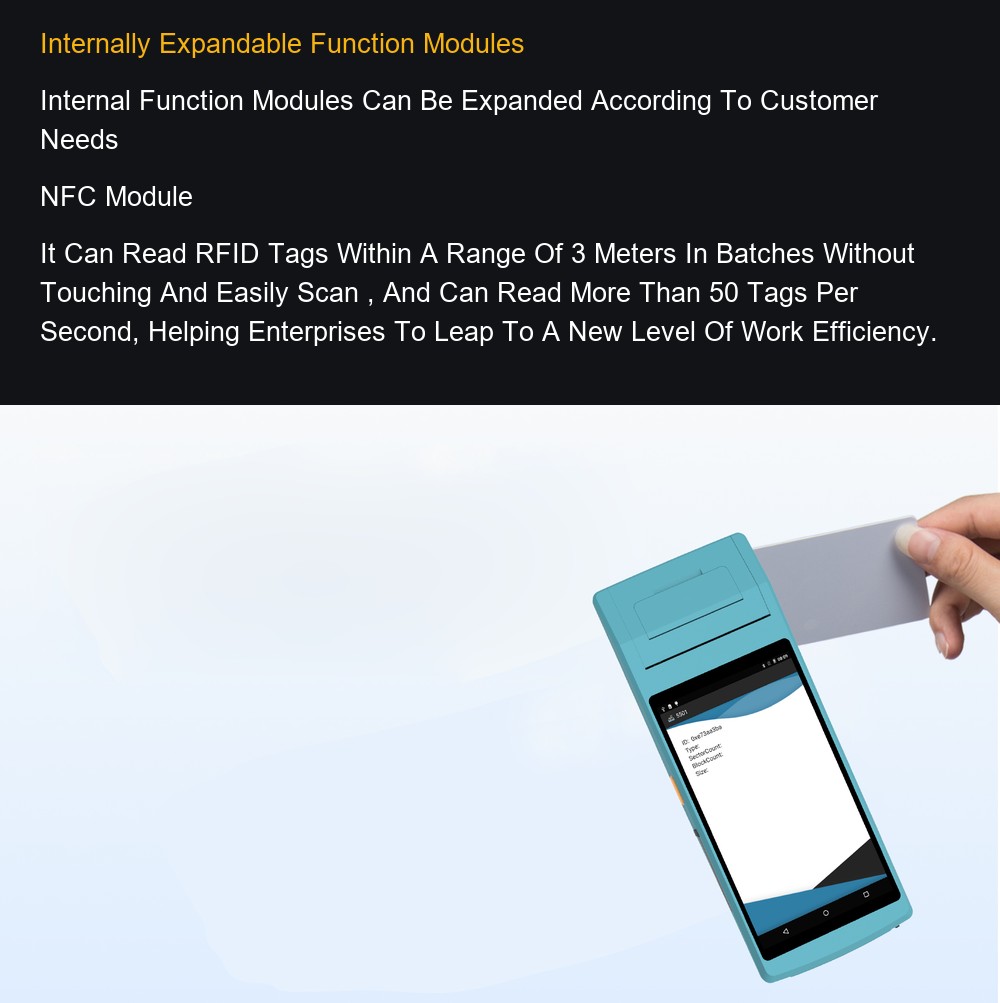

Internally Expandable Function Modules
Internal Function Modules Can Be Expanded According To Customer Needs

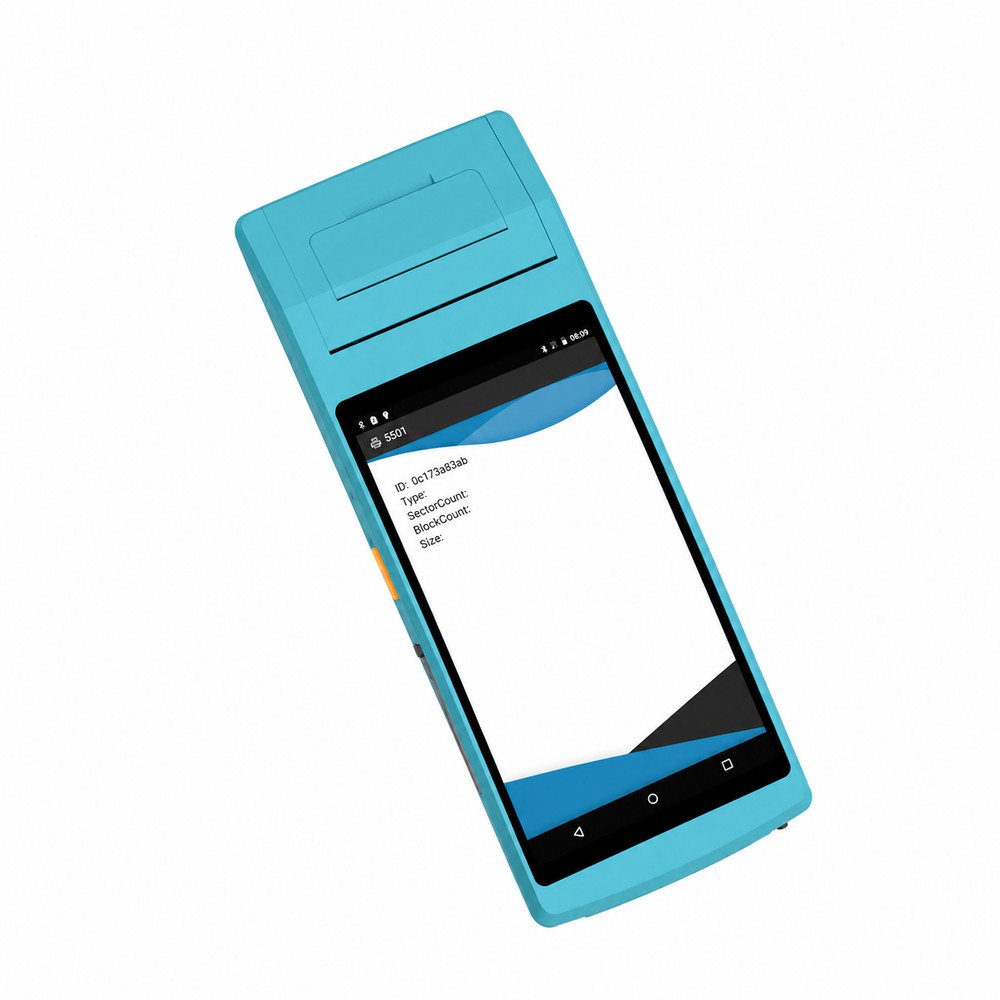

NFC Module
It Can Read RFID Tags Within A Range Of 3 Meters In Batches Without Touching And Easily Scan , And Can Read More Than 50 Tags Per Second, Helping Enterprises To Leap To A New Level Of Work Efficiency.
3G Full Netcom + Dual-Band Wi-Fi + Bluetooth, High-Speed And Stable Wireless Transmission
HD camera
Standard 2 million pixel camera, auto focus, flash, anti-shake, effectively improve the shooting effect in low light, convenient for users to flexibly collect video information, and work easier
64-bit power processor
64 Bit multi-core processor, plus 8 GB of storage, powerful configuration, let the system, run more smoothly

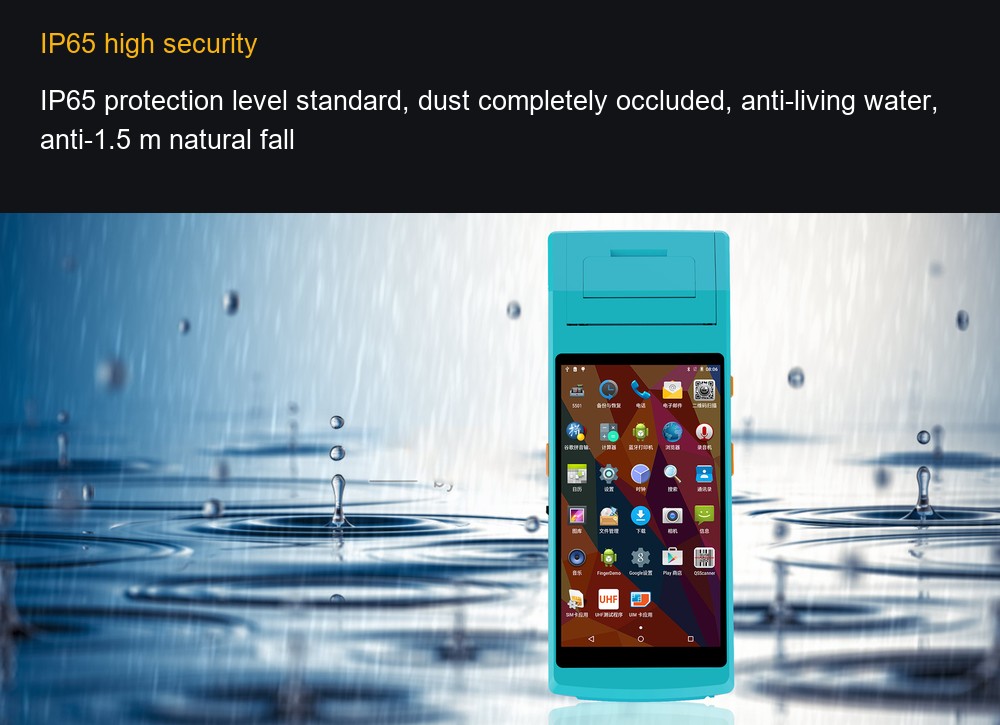

IP65 high security
IP65 protection level standard, dust completely occluded, anti-living water, anti-1.5 m natural fall

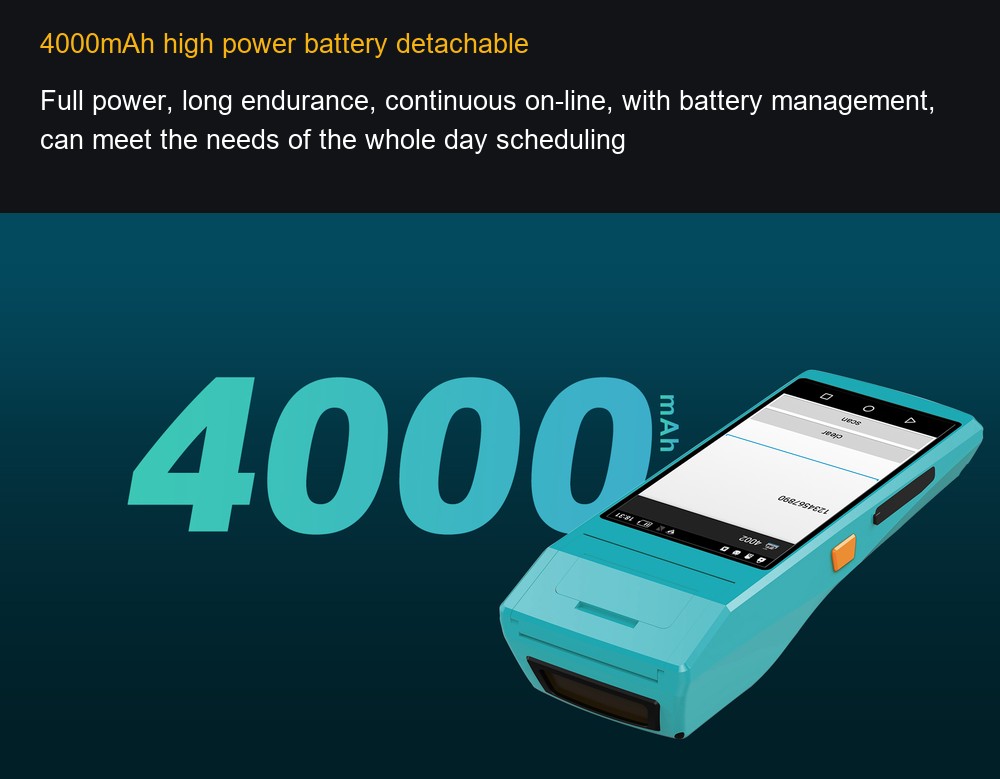

4000mAh high power battery detachable
Full power, long endurance, continuous on-line, with battery management, can meet the needs of the whole day scheduling
Configuration overview
Technical specifications include Processor: 3G Version ARM7 Quad-core1.3GHz. OS: Android 6.0. Storage: 16GB R0M+2GB RAM. Extended Storage: Micro SD（UP to 64G ).
Technical specifications include Display: 5.5 inch IPS(720 x 1280) high-definition screen. Camera: 2.0M pixels AF with LED light automatic focusing. Touch screen: Industrial capacitive screen. Indicator: Vibration indicator / LED indicator / audio indicator.
Technical specifications include Battery: Built in detachable 7.4v 4000mAh Lithium Polymer Battery. Audio: Built-in microphone / speaker. Sensor: G-sensor. Size:(LxWxD): 210*80*42mm.
Technical specifications include Weight: 505g（including battery）. Mobile data communication: 3G Version: WCDMA :850 /900 /1 90 0/210 0M Hz GSM: 850/900/1800/1900MHz. Wi -Fi: IEEE 802.11 b/g/n. Blue tooth: Bluetooth 4.0.
Technical specifications include GPS: High pe rformance GPS / AGPS nav igation chip. Printing method: Built in line thermal printer. Printing width: 58 mm. Print media: The rmal printer and thermal labe l paper.
Technical specifications include Sensor: Black mark / out of paper / ove rheat ove r voltage protec tion. Print type: Tex t / image/bar code/Q R code. Development tools: Android SDK + JDK + Eclipse. Language: Java.
Wholesale purchasing information
For RUGGEDMASTER PDA-5501/3G, compare the pictured housing, connectors and controls with the configuration required by your application. The manufacturer may describe optional modules, memory configurations or regional network bands. These options are listed for reference; confirm the required configuration when requesting a quotation. Choose the interface and data-capture functions that match your existing workflow, software and installation requirements.
Review the complete Specs tab before placing a bulk order. It preserves the technical information supplied for this model, including the available operating environment and configuration details. Product pictures show the manufacturer’s existing views and available configurations. If your project needs a particular module, operating system version or connector, state that requirement in your enquiry so the configuration can be checked before ordering.
Explore related products in our RuggedMaster product catalog or send a bulk-order enquiry.
Manufacturer feature details
| Processor | 3G Version ARM7 Quad-core1.3GHz |
| OS | Android 6.0 |
| Storage | 16GB R0M+2GB RAM |
| Extended Storage | Micro SD（UP to 64G ) |
| Display | 5.5 inch IPS(720 x 1280) high-definition screen |
| Camera | 2.0M pixels AF with LED light automatic focusing |
| Touch screen | Industrial capacitive screen |
| Indicator | Vibration indicator / LED indicator / audio indicator |
| Battery | Built in detachable 7.4v 4000mAh Lithium Polymer Battery |
| Audio | Built-in microphone / speaker |
| Sensor | G-sensor |
| Size:(LxWxD) | 210*80*42mm |
| Weight | 505g（including battery） |
| Mobile data communication | 3G Version: WCDMA :850 /900 /1 90 0/210 0M Hz GSM: 850/900/1800/1900MHz |
| Wi -Fi | IEEE 802.11 b/g/n |
| Blue tooth | Bluetooth 4.0 |
| GPS | High pe rformance GPS / AGPS nav igation chip |
| Printing method | Built in line thermal printer |
| Printing width | 58 mm |
| Print media | The rmal printer and thermal labe l paper |
| Sensor | Black mark / out of paper / ove rheat ove r voltage protec tion |
| Print type | Tex t / image/bar code/Q R code |
| Development tools | Android SDK + JDK + Eclipse |
| Language | Java |
| Operating Temperature | -10 ° ~ 50 °C |
| Storage Temperature | -20 °~ 70 °C |
| Humidity | 0 to 95% rel ative humidity (non- condensing) |
| Drop Specifications | can bear impac t from 1.5m drop to cement floor |
| Electrostatic discharge | ± 15kV air discharge, 8kV direct discharge |
| Protection class | IP65 /Explosion-Proof certificate |

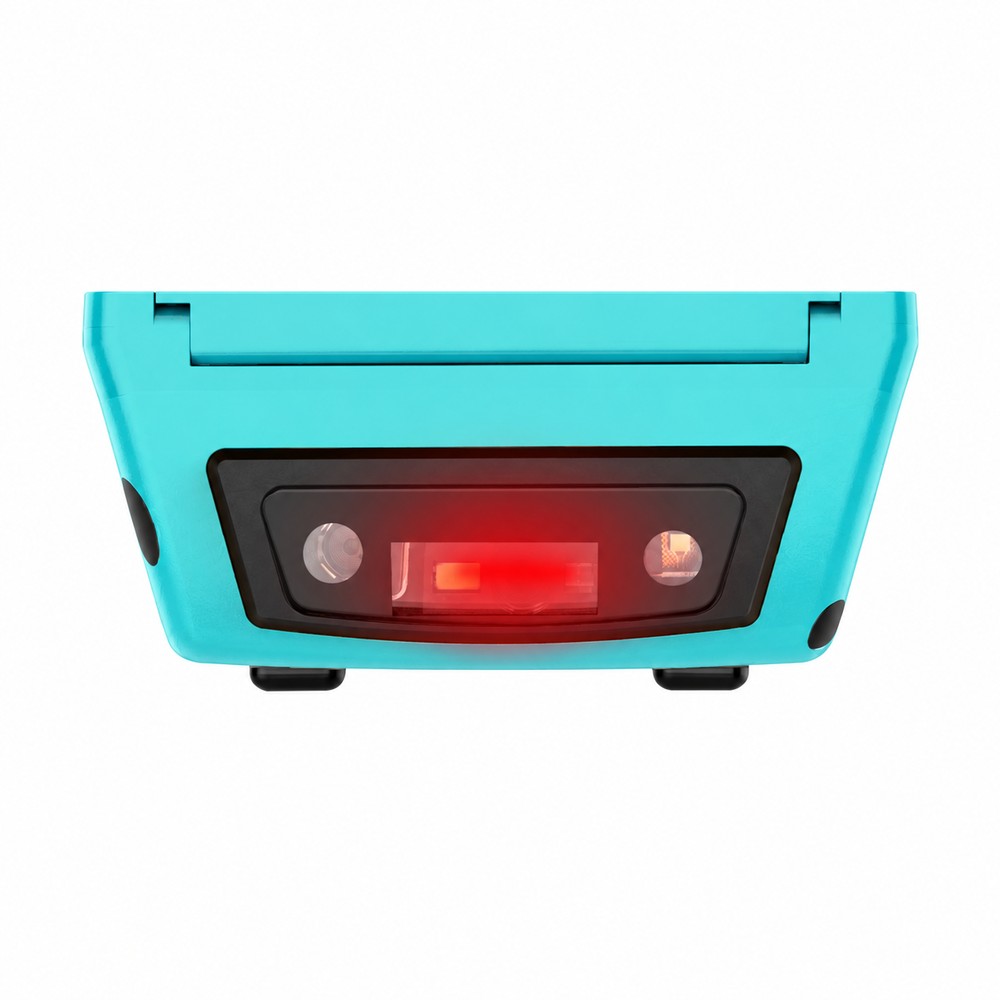

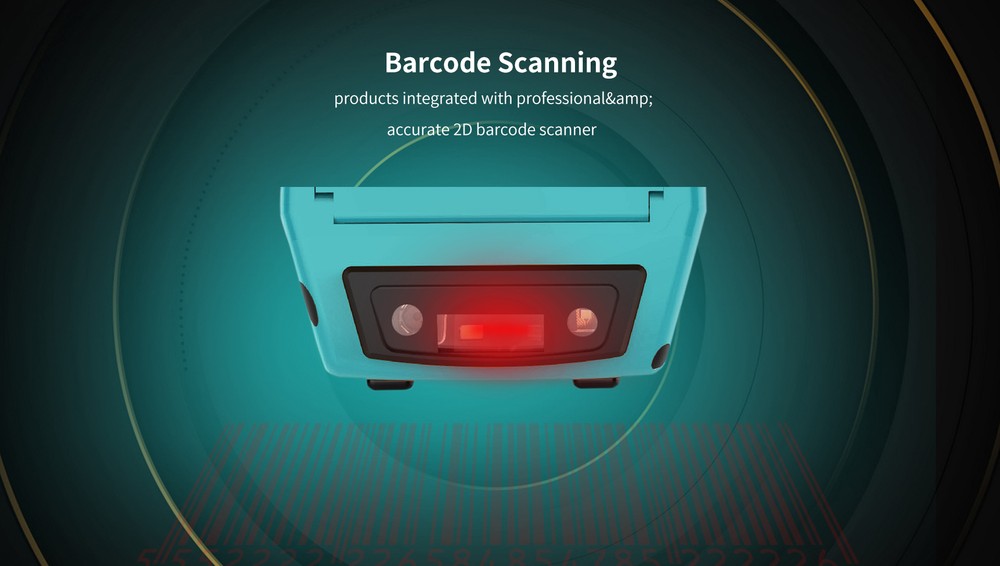

| 1D laser scanner | UPC-A ，UPC-E ，UPC-E1 ，EA N-1 3 ，EA N-8 ，ISBN/ ISSN ，39 code ， 39 code （ ASCII code ）， 32 code ， Trioptic 39 code ， Interle aved 25 code ， indus tr y 25 code （ Disc re te 2 of 5）， Matrix 25 code ， Codabar（ NW7 ）， 128 code ， UCC/EAN 128 ， ISBT1 28 ， 93 code ， 11 code （ USD-8 ）， MSI /Ples sey ， UK/Plessey ， China Pos tal， GS1 DataBar |
| 2D image scanner | QR Code , Data Matrix , PDF4 17 ， Hanlette r code in line with inte rnational and domestic gene ric 1D code standards : UPC-A , UPC-E, EA N-8 , EAN-1 3, ISBN , Code 128 , GS1 128, ISBT 128, Code 39, Code93,Code 11, Inte rle aved 2 of 5, Indus trial 2 of 5,Matrix 25, Standard 25, Codabar, MSI /MSI PLESSEY, GS1 DataBar etc . |
| Communication | ISO / IEC 1444 3A/B,ISO 15693 |
| Work ing frequency | 13.56MHz |
| Card type | Type1-4Tag/Mifare /F elica |
| PSAM card | IS0 / IEC 781 6 1-4 |
