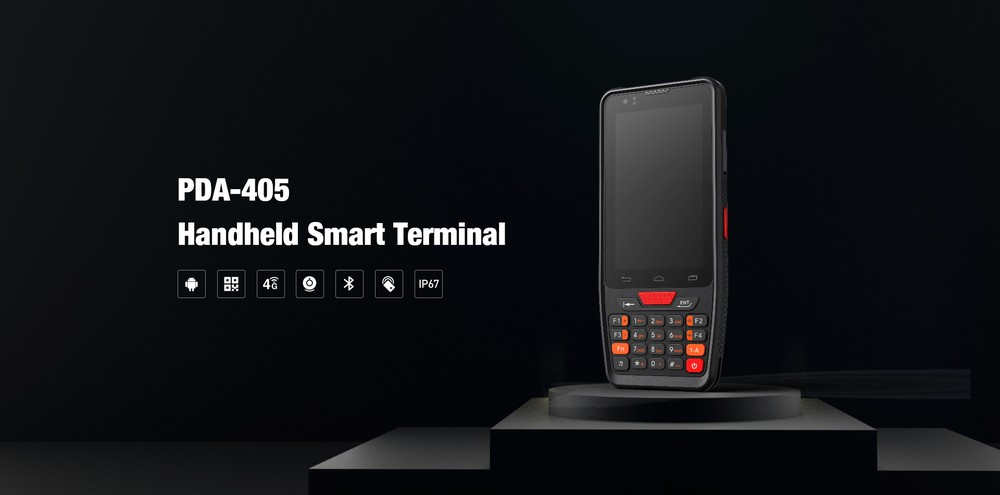

RUGGEDMASTER PDA-405 Handheld Terminals
Octa-core 2.0GHz high-performance processor · Android 12.0 · 3GB RAM+32GB ROM or 4GB+64GB · Micro SD (Up to 128GB) · 4.0inch IPS 480×800 High Resolution · 5v 3500mAh rechargeable lithium polymer battery · Bluetooth 5.0, supports BLE
Suitable For A Variety Of Environments Widely Used In Express Logistics, Financial Insurance, Warehouses, Retail Stores, Supermarkets And Other Industries Handy Business With Multiple Accessories Wrist Band With An Extension Strap, It Is Convenient ForDaily Mobile Use. The Wearable Can Be Hung In The Hand To Complete Other Tasks Independent seat charging The seat charger can charge the battery separately, or it can be directly charged by placing it on the machine, and can be fully charged when working outside
Processor: Octa-core 2.0GHz high-performance processor
Operating System: Android 12.0
Memory: 3GB RAM+32GB ROM or 4GB+64GB
Ex-Storage: Micro SD (Up to 128GB)
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
RUGGEDMASTER PDA-405 Handheld Terminals
RUGGEDMASTER PDA-405 combines the features and configurations shown below. Review the product overview, original feature graphics and complete Specs when selecting units for a bulk order.

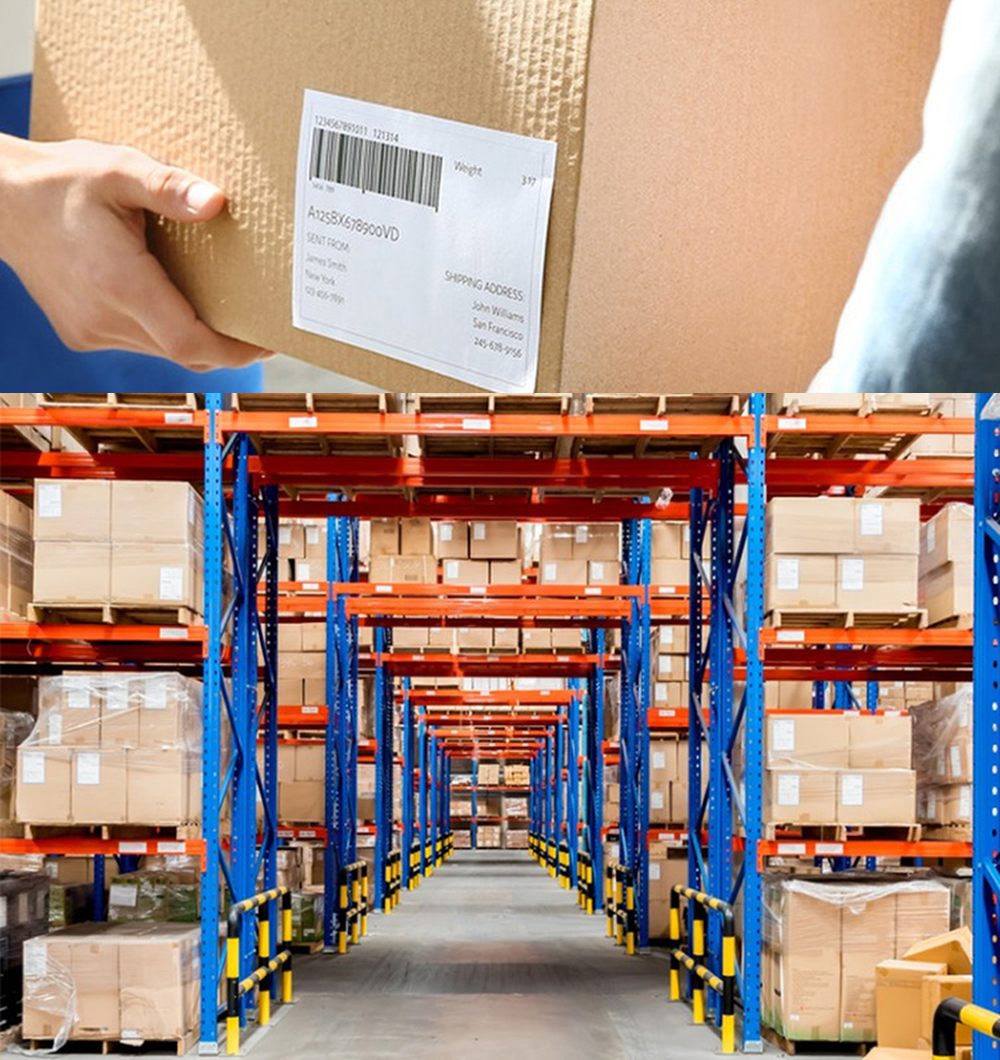

Suitable For A Variety Of Environments
Widely Used In Express Logistics, Financial Insurance, Warehouses, Retail Stores, Supermarkets And Other Industries

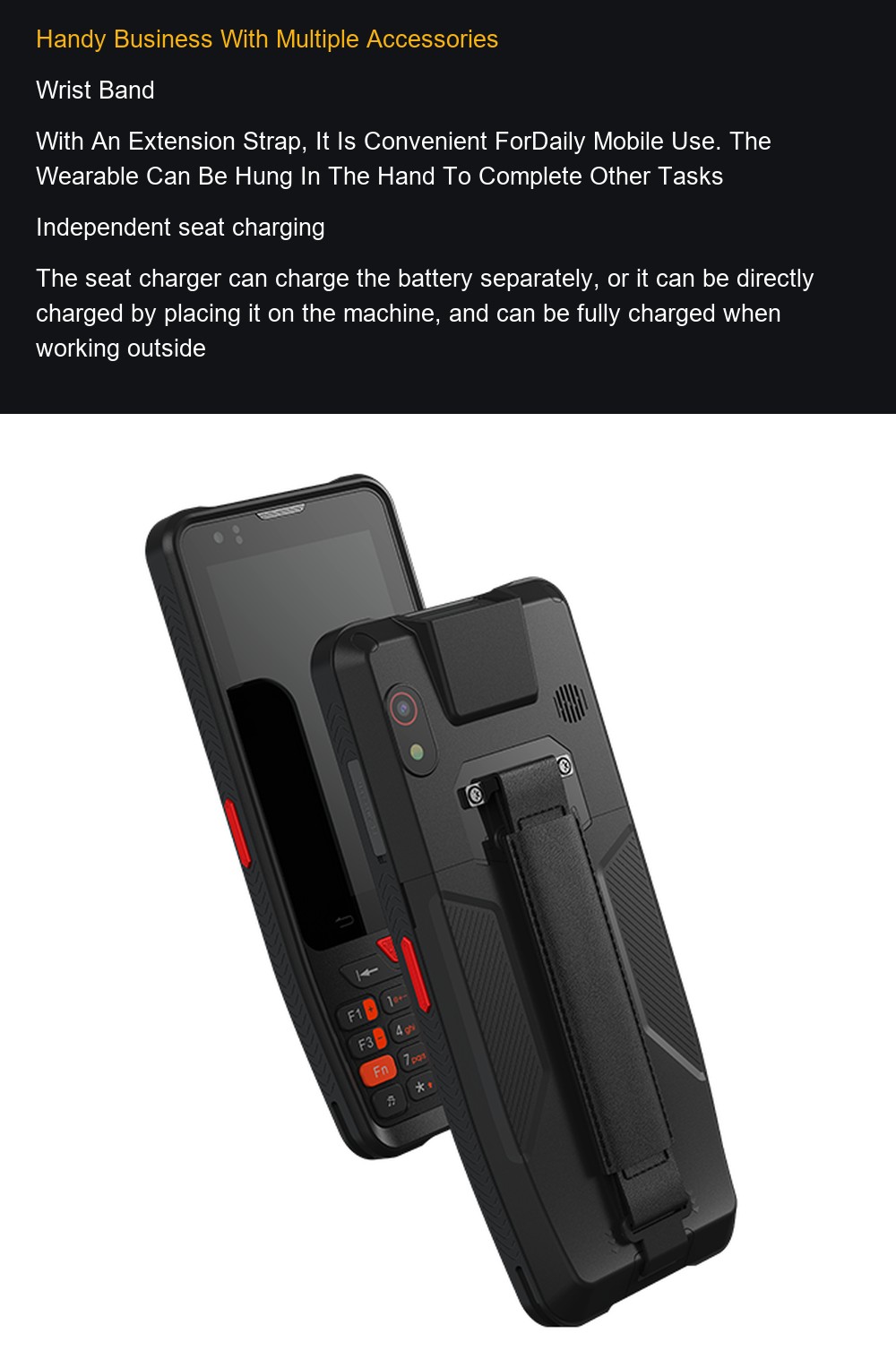

Handy Business With Multiple Accessories

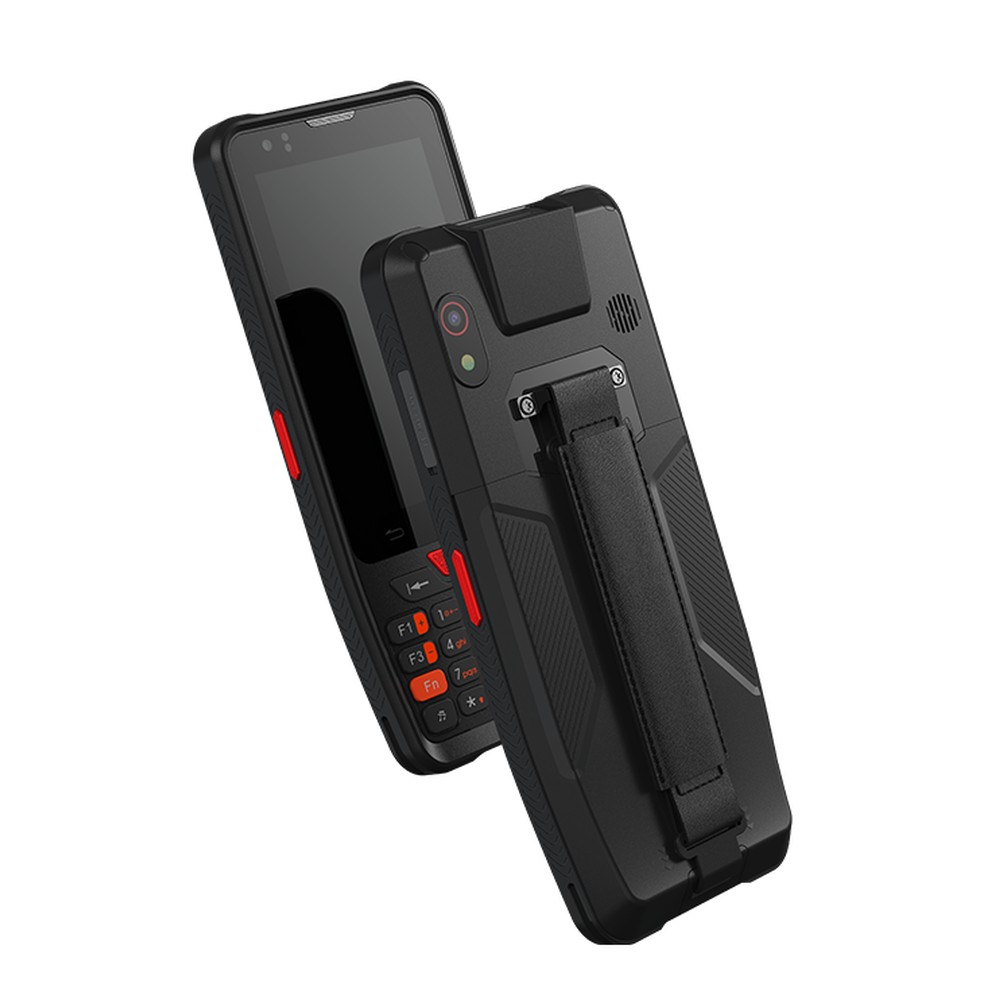

Wrist Band
With An Extension Strap, It Is Convenient ForDaily Mobile Use. The Wearable Can Be Hung In The Hand To Complete Other Tasks

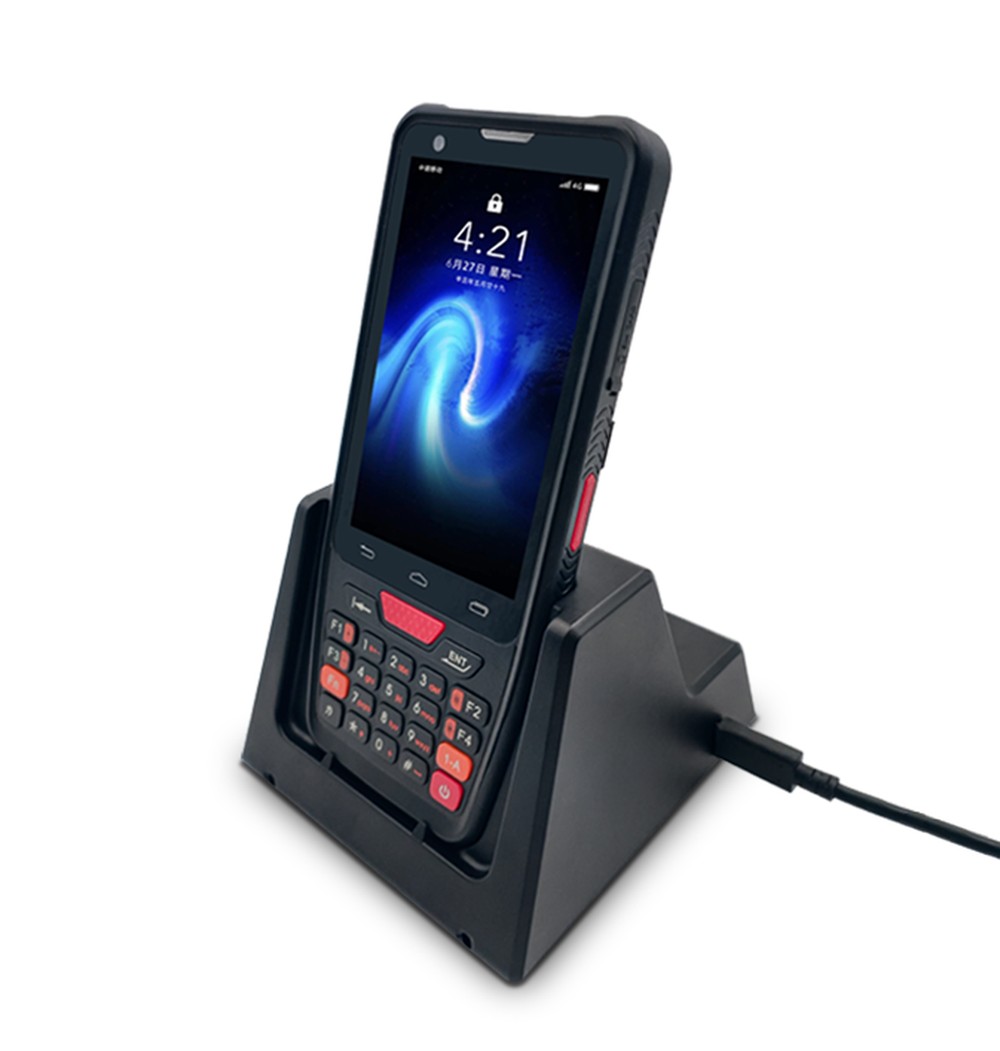

Independent seat charging
The seat charger can charge the battery separately, or it can be directly charged by placing it on the machine, and can be fully charged when working outside
Configuration overview
Technical specifications include Processor: Octa-core 2.0GHz high-performance processor. Operating System: Android 12.0. Memory: 3GB RAM+32GB ROM or 4GB+64GB. Ex-Storage: Micro SD (Up to 128GB).
Technical specifications include Display: 4.0inch IPS 480×800 High Resolution. Camera: Front:5MP Camera Back:AF 13.0M Pixels autofocus with LED. Touch Panel: Industrial-grade capacitive touch panel. Keypad: Front keys*19, left and right scan keys*2.
Technical specifications include Notification: Vibrator/LED/Speaker. Battery: 5v 3500mAh rechargeable lithium polymer battery. Audio: Built-in microphone/Speaker. Sensor: Ambient Light sensor, Proximity sensor.
Technical specifications include Interface: Type-C interface, support PE 5.0V and 9.0V fast charging. Dimensions (LxWxD): Approx. 166mm×75mm×20mm. Weight: 240g(battery included). Mobile Network: 2G(GSM): B2/B3/B5/B8 3G: WCDMA:850/900/1900/2100MHz CDMA/EVDO 800MHz GSM: 850/900/1800/1900MHz 4G: LTE-FDD:B1/B3/B7/B8/B28 LTE-TDD:B38/B39/B40/B41.
Technical specifications include Wi-Fi: Wi-Fi 802.11a/b/g/n/r/ac (2.4G+5G dual- band Wi-Fi). Bluetooth: Bluetooth 5.0, supports BLE. GPS: GPS/AGPS/Beidou/Galileo/GLONASS/QZSS. Develop Tools: Android SDK+ JDK +Eclipse.
Technical specifications include P-Language: Java. Operating Temp: -10°~ 50℃. Storage Temp: -20°~ 70℃. Humidity: 0~95% (non-condensing).
Wholesale purchasing information
For RUGGEDMASTER PDA-405, compare the pictured housing, connectors and controls with the configuration required by your application. The manufacturer may describe optional modules, memory configurations or regional network bands. These options are listed for reference; confirm the required configuration when requesting a quotation. Choose the interface and data-capture functions that match your existing workflow, software and installation requirements.
Review the complete Specs tab before placing a bulk order. It preserves the technical information supplied for this model, including the available operating environment and configuration details. Product pictures show the manufacturer’s existing views and available configurations. If your project needs a particular module, operating system version or connector, state that requirement in your enquiry so the configuration can be checked before ordering.
Explore related products in our RuggedMaster product catalog or send a bulk-order enquiry.
Manufacturer feature details
| Processor | Octa-core 2.0GHz high-performance processor |
| Operating System | Android 12.0 |
| Memory | 3GB RAM+32GB ROM or 4GB+64GB |
| Ex-Storage | Micro SD (Up to 128GB) |
| Display | 4.0inch IPS 480x800 High Resolution |
| Camera | Front:5MP Camera Back:AF 13.0M Pixels autofocus with LED |
| Touch Panel | Industrial-grade capacitive touch panel |

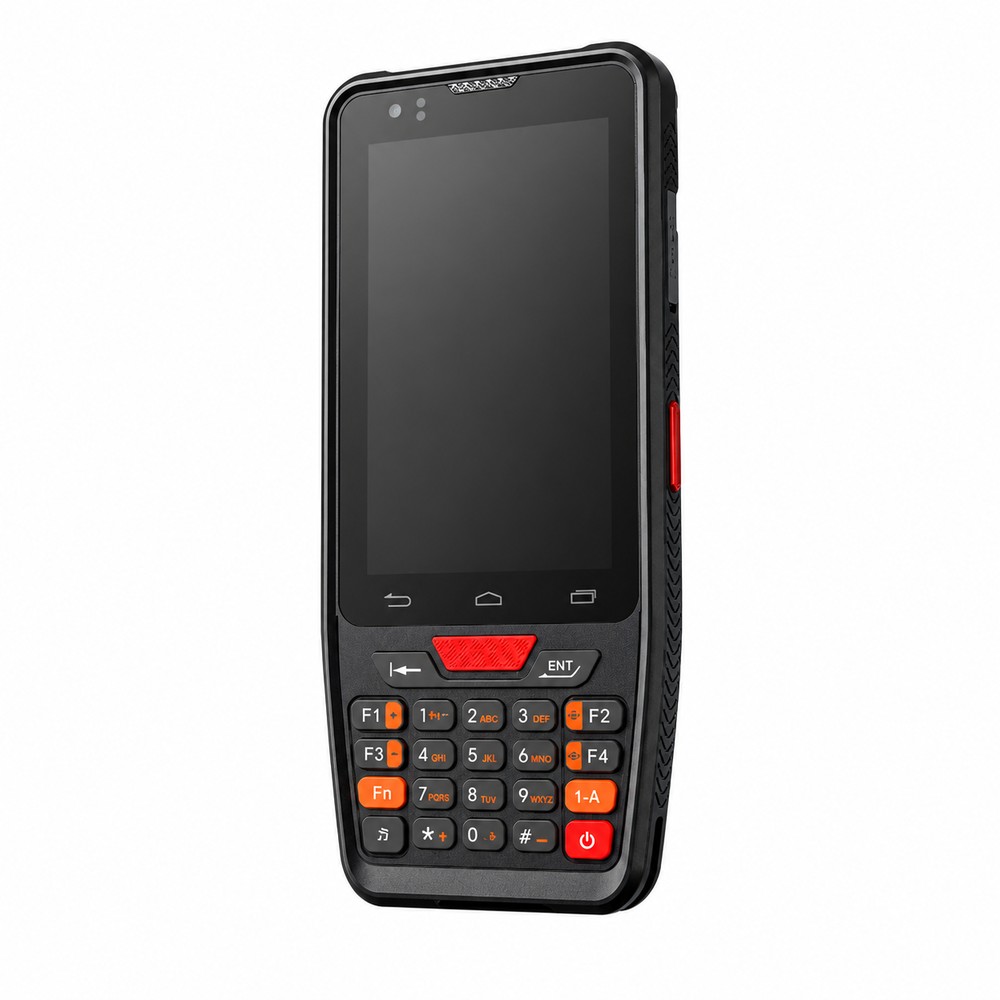

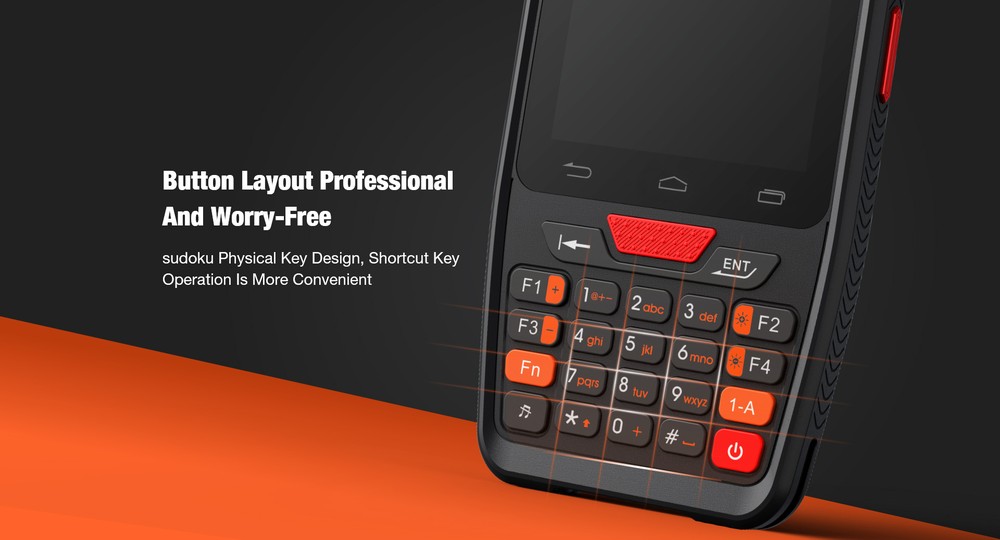

| Keypad | Front keys*19, left and right scan keys*2 |
| Notification | Vibrator/LED/Speaker |

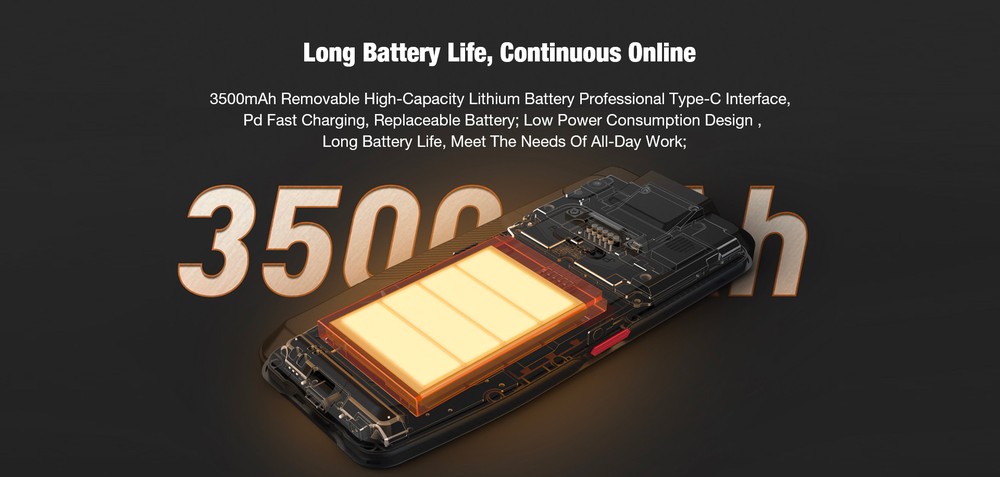

| Battery | 5v 3500mAh rechargeable lithium polymer battery |
| Audio | Built-in microphone/Speaker |
| Sensor | Ambient Light sensor, Proximity sensor |
| Interface | Type-C interface, support PE 5.0V and 9.0V fast charging |
| Dimensions (LxWxD) | Approx. 166mm×75mm×20mm |

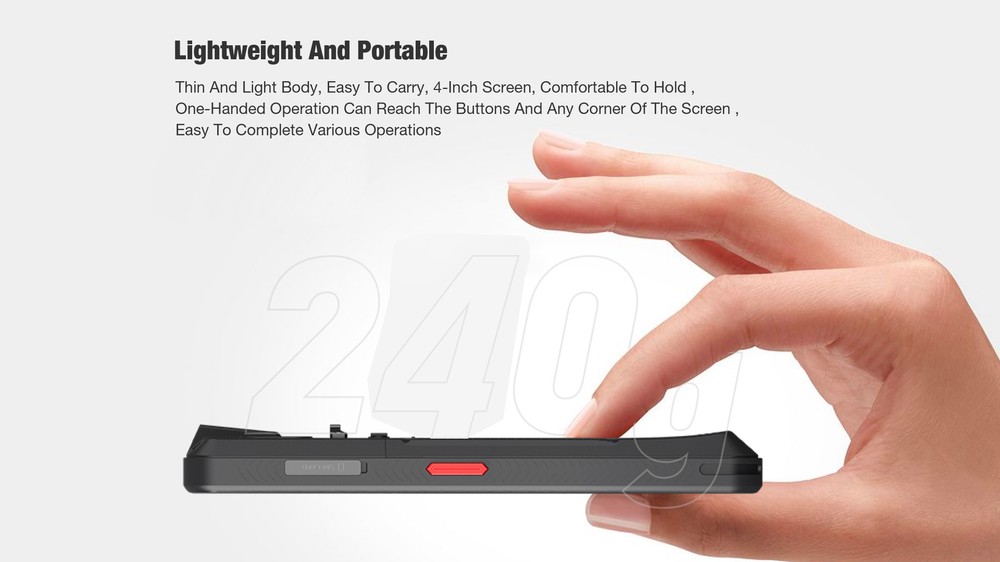

| Weight | 240g(battery included) |
| Mobile Network | 2G(GSM): B2/B3/B5/B8 3G: WCDMA:850/900/1900/2100MHz CDMA/EVDO 800MHz GSM: 850/900/1800/1900MHz 4G: LTE-FDD:B1/B3/B7/B8/B28 LTE-TDD:B38/B39/B40/B41 |

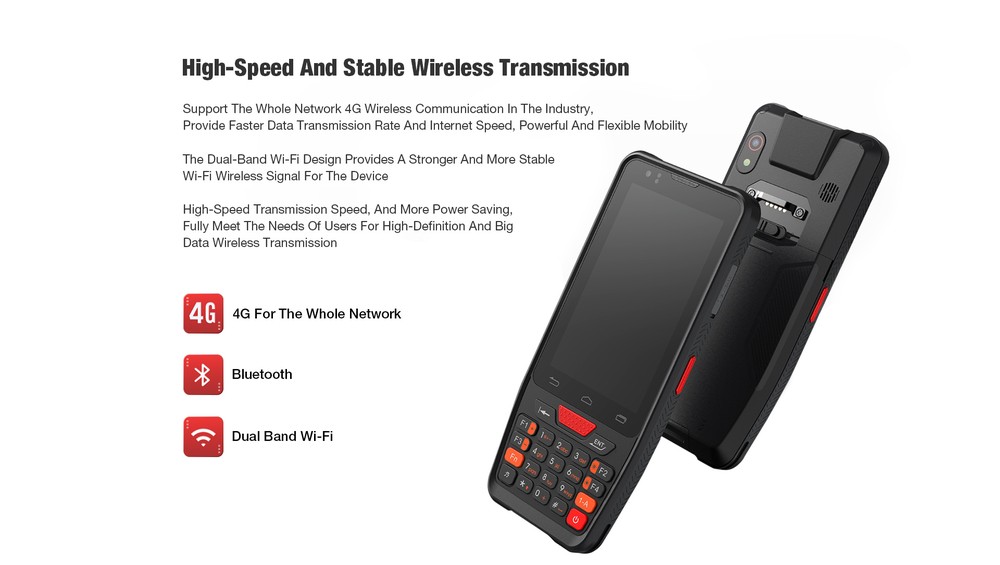

| Wi-Fi | Wi-Fi 802.11a/b/g/n/r/ac (2.4G+5G dual- band Wi-Fi) |
| Bluetooth | Bluetooth 5.0, supports BLE |
| GPS | GPS/AGPS/Beidou/Galileo/GLONASS/QZSS |
| Develop Tools | Android SDK+ JDK +Eclipse |
| P-Language | Java |
| Operating Temp | -10°~ 50℃ |
| Storage Temp | -20°~ 70℃ |
| Humidity | 0~95% (non-condensing) |

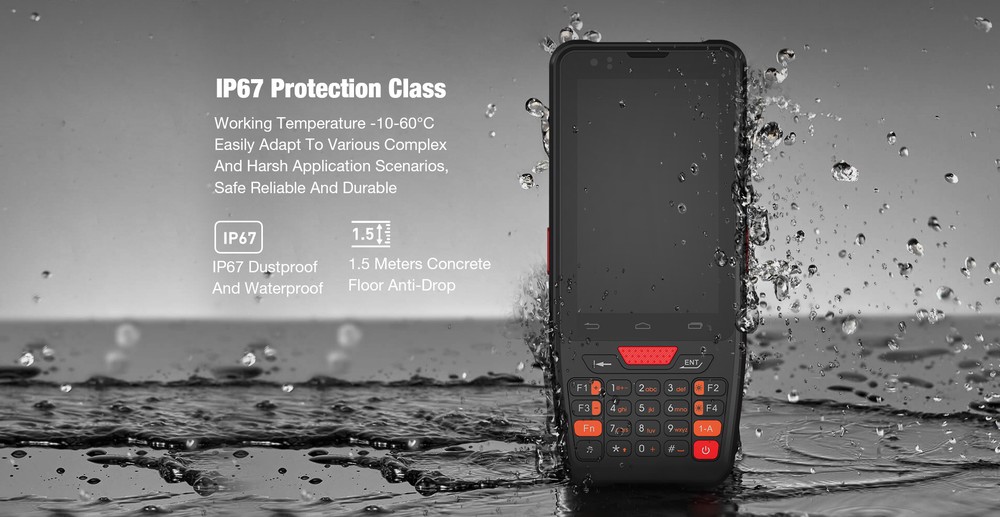

| Sealing | IP67 |

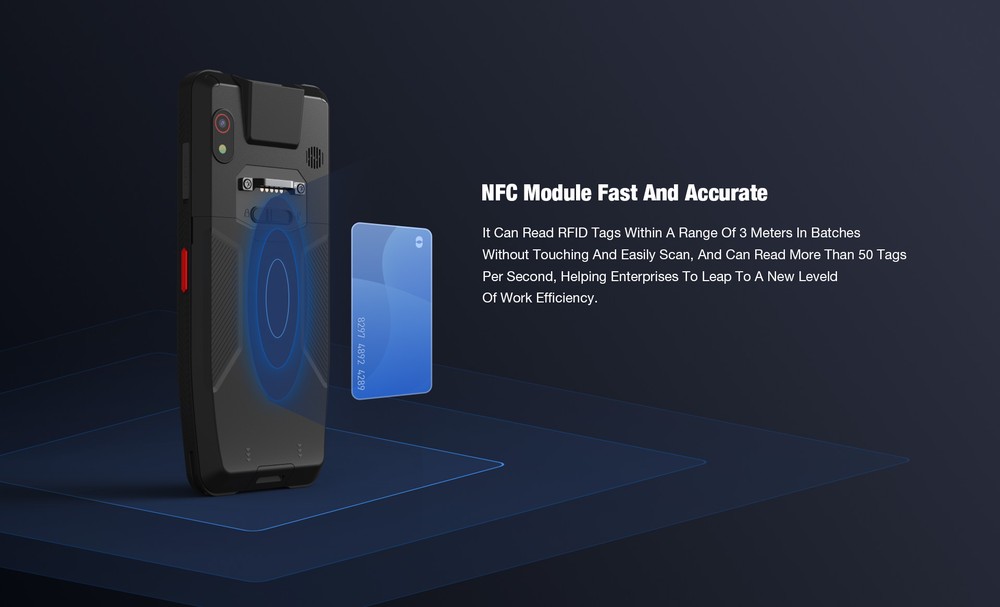

| Protocol | ISO14443A/14443B/15693 |
| Frequency | 13.56MHz |
| NFC type | NXP PN557 |

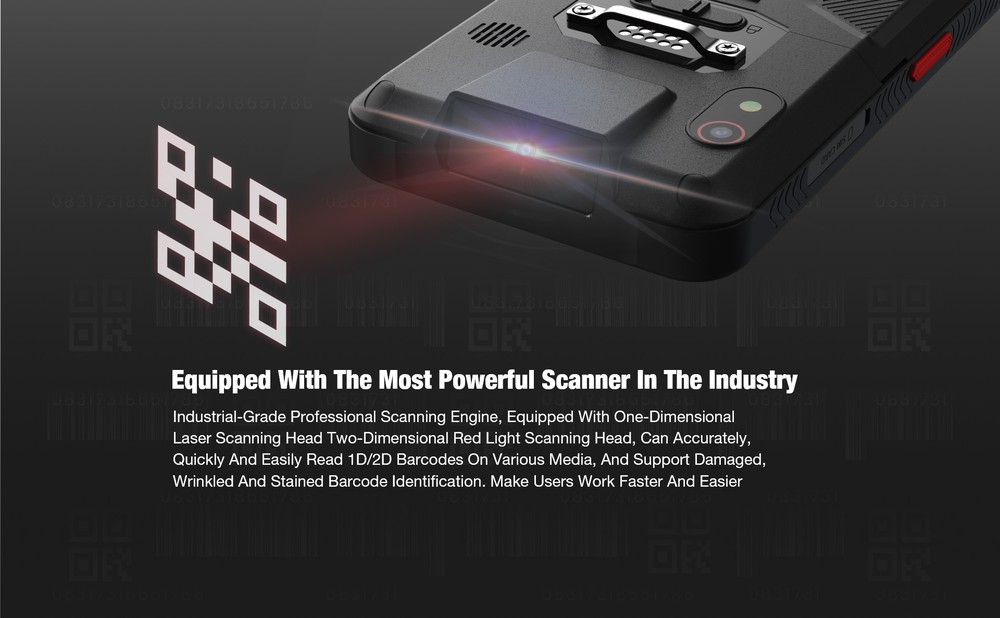

| Method | CMOS Image |
| Scan Speed | 60scans/sec |
| Scan Angle | 360°angle, Elevation angle ± 55°, Eeflection angle ± 55° |
| Identification accuracy | 2D27.5mil, 1D25mil |
| Decoding Type | QR Code, Data Matrix, PDF417, UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, Industrial 2 of 5,Matrix 25, Standard 25, Coda bar, MSI/MSI PLESSEY, GS1 Data Bar |
| DPM | Support DPM scanner (optional) |
| Speed | 100 lines/sec |
| Scan Angle | ±50° |
| Identification accuracy | ≧4mil |
| Decoding Type | UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN/ISSN, Code 39, code39 (ASCII full), Interleaved 2 of 5, Industrial 2 of 5,Matrix 25,Codebar(NW7), Code 128, UCC/EAN 128, ISBT128, code 93, MSI/Plessey, UK/Plessey, China post, GS1 Data Bar |
