RUGGEDMASTER PDA-401 Handheld Terminals
ARM Cortex A53 Quad-core 64bits 1.3GHz · 2GB RAM+16GB ROM 3GB RAM+32GB ROM（optional） · Micro SD (Up to 64GB) · 4.0inch IPS 480×800 High Resolution · 3.7v 4000mAh rechargeable lithium polymer battery · Bluetooth 4.0 · -20°~ 70°C
PDA – 401 Full Netcom Handheld Smart Terminal High-performance configuration is more outstanding ARM Cortex A53 Quad-core 64bits 1.3GHz Android9.0 Operating System 3GB RAM+32GB ROM Support NFC to expand more possibilities Support NFC short-distance communication technology High security,Fast link, Stable and Low power consumption, Can meet the characteristics of applications such as user authentication, Electronic payment and other applications Optional UHF to meet the higher requirements of customers. Reading speed 1/60s UHF reading distance 2m 4-inch high-definition screen Its body is thin and light, easy to operate and it is more comfortable and convenient to hold with one hand Dustproof waterproof anti-drop Strict and meticulous production process, IP65 protection grade, not only dustproof and waterproof but also specially designedto.
Processor: ARM Cortex A53 Quad-core 64bits 1.3GHz
O.S: Android 9.0
Memory: 2GB RAM+16GB ROM 3GB RAM+32GB ROM（optional）
Ex-Storage: Micro SD (Up to 64GB)
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

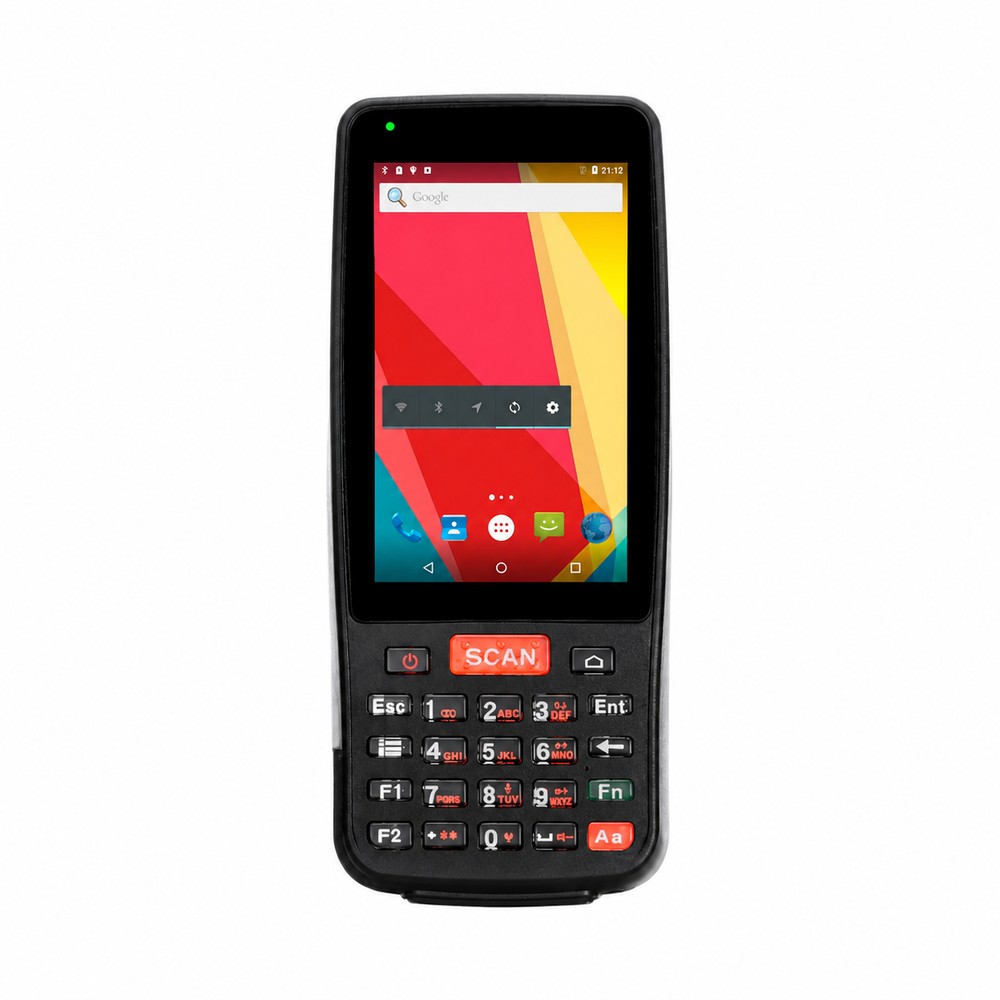

RUGGEDMASTER PDA-401 Handheld Terminals
RUGGEDMASTER PDA-401 combines the features and configurations shown below. Review the product overview, original feature graphics and complete Specs when selecting units for a bulk order.

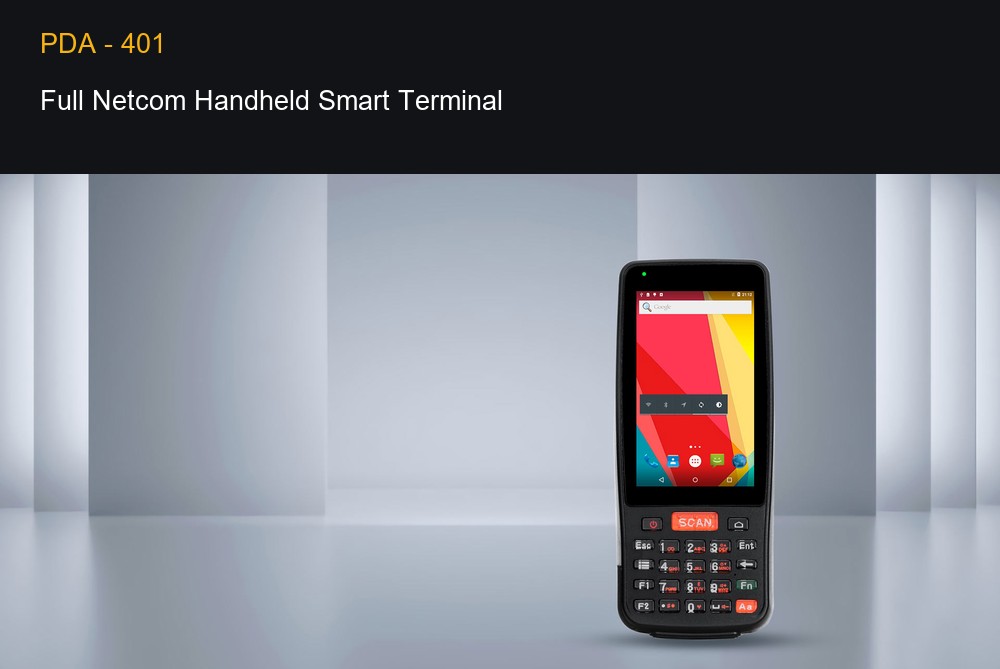

PDA – 401
Full Netcom Handheld Smart Terminal
High-performance configuration is more outstanding
ARM Cortex A53 Quad-core 64bits 1.3GHz
Android9.0 Operating System
3GB RAM+32GB ROM

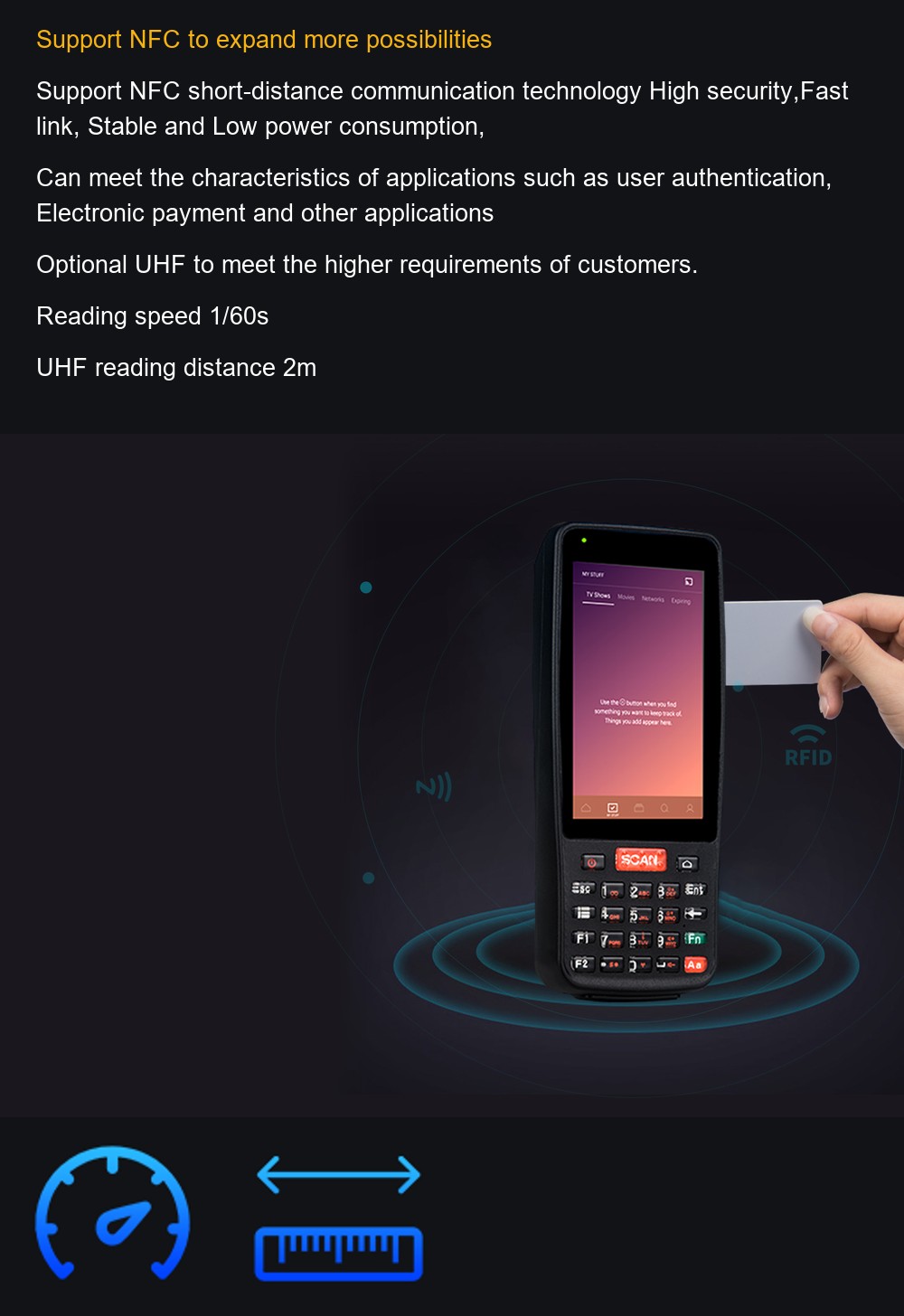

Support NFC to expand more possibilities
Support NFC short-distance communication technology High security,Fast link, Stable and Low power consumption,
Can meet the characteristics of applications such as user authentication, Electronic payment and other applications
Optional UHF to meet the higher requirements of customers.
Reading speed 1/60s
UHF reading distance 2m

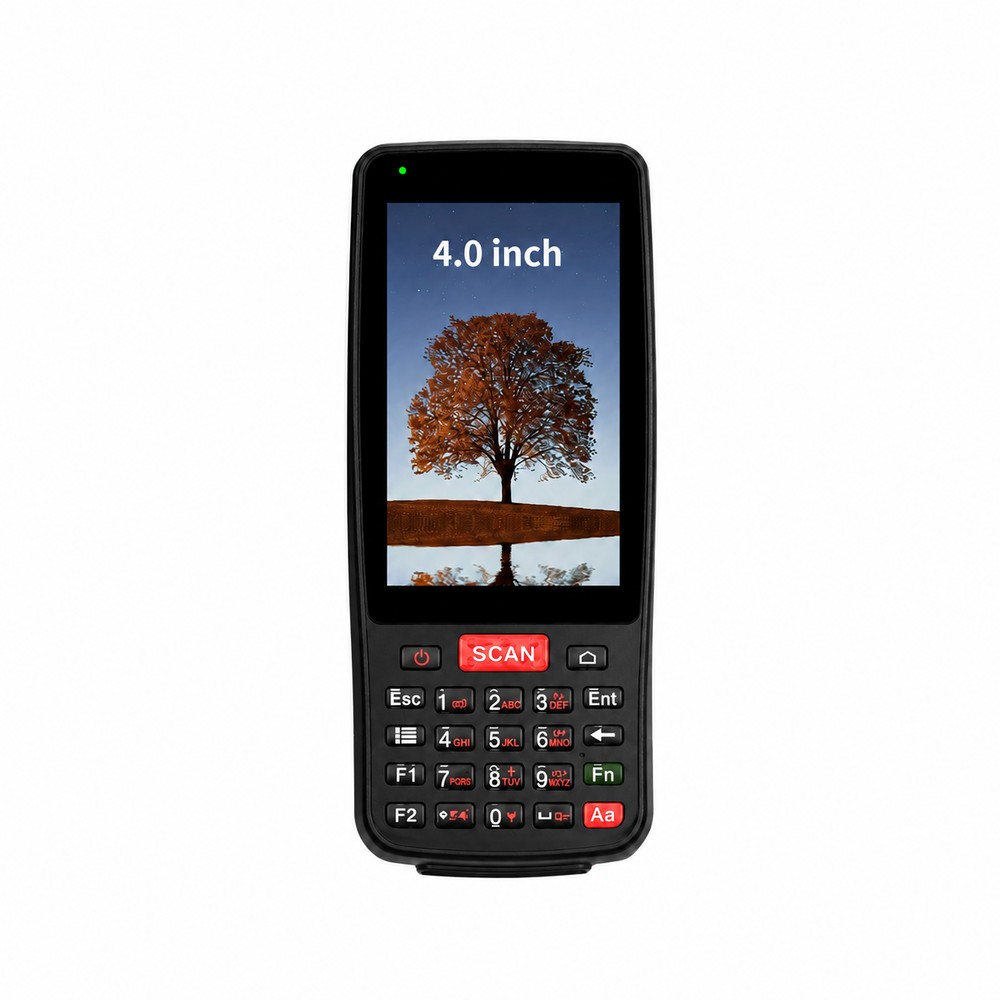

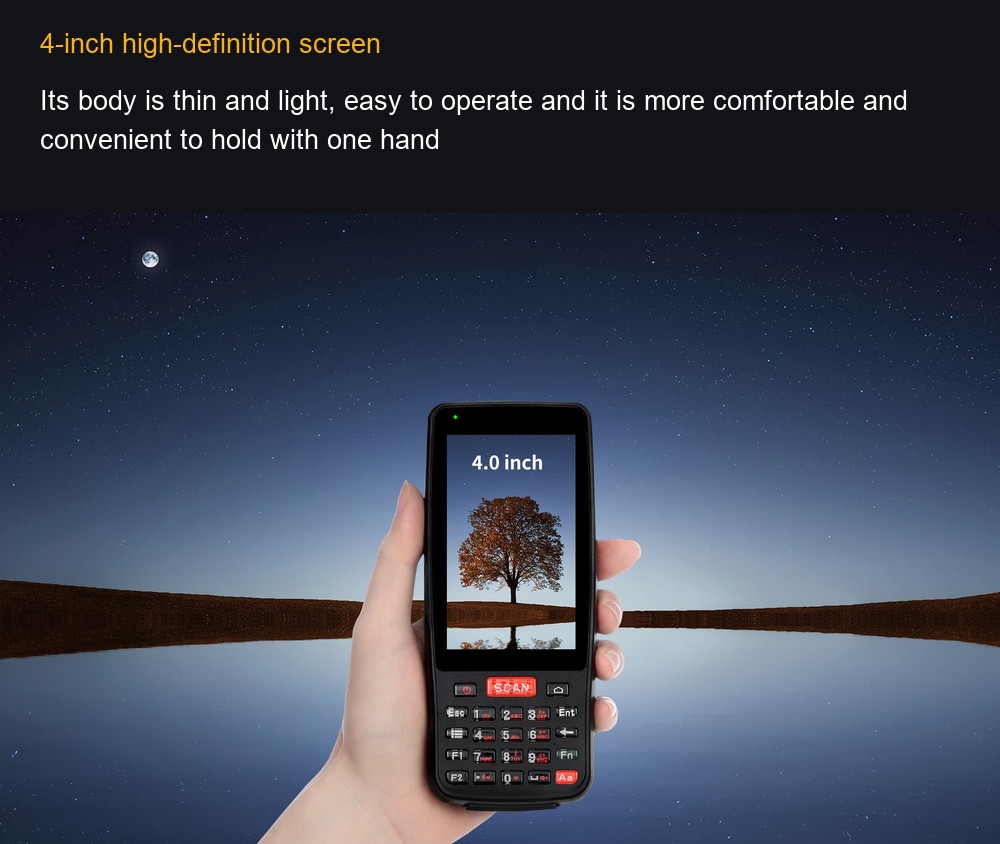

4-inch high-definition screen
Its body is thin and light, easy to operate and it is more comfortable and convenient to hold with one hand

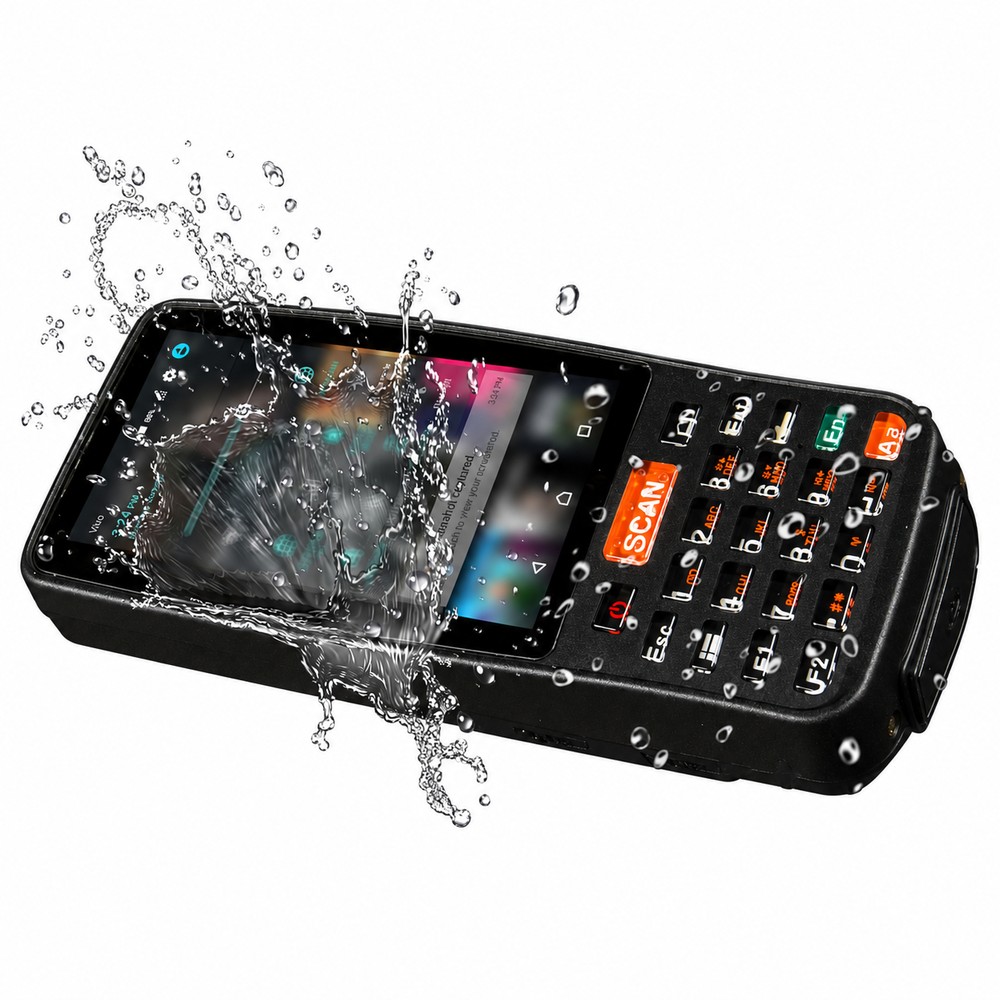

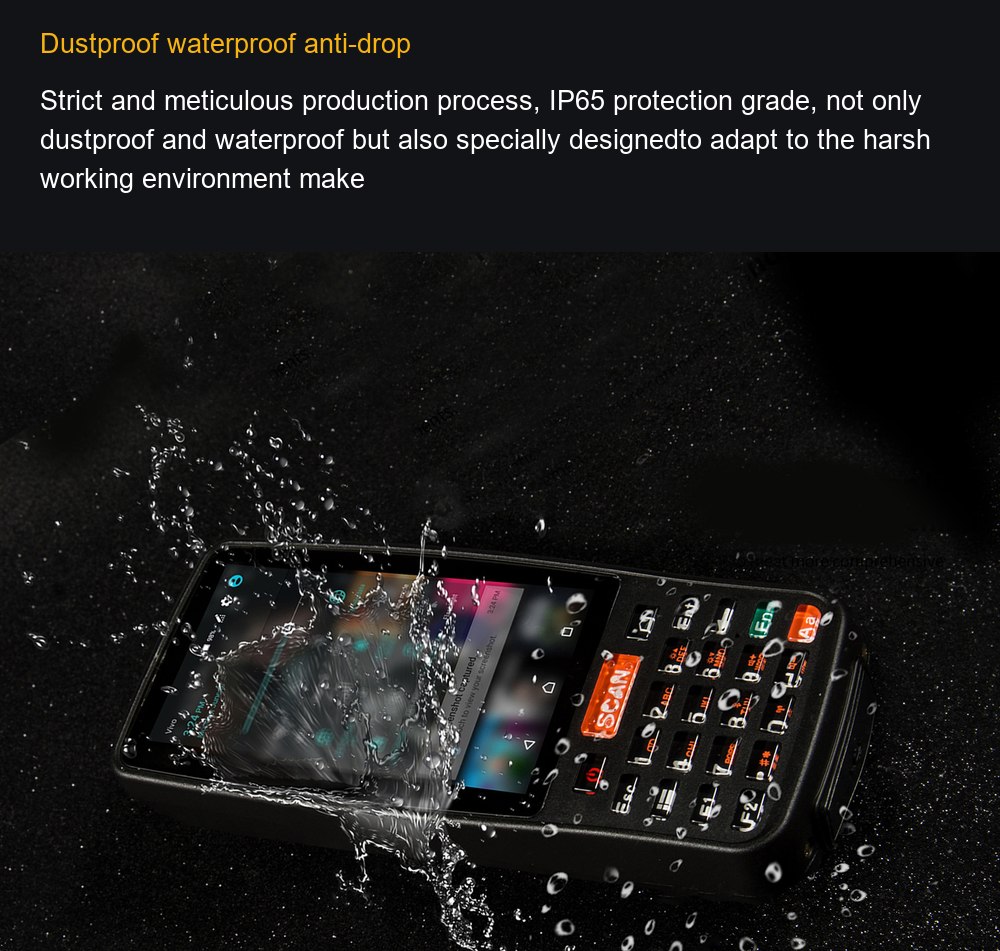

Dustproof waterproof anti-drop
Strict and meticulous production process, IP65 protection grade, not only dustproof and waterproof but also specially designedto adapt to the harsh working environment make

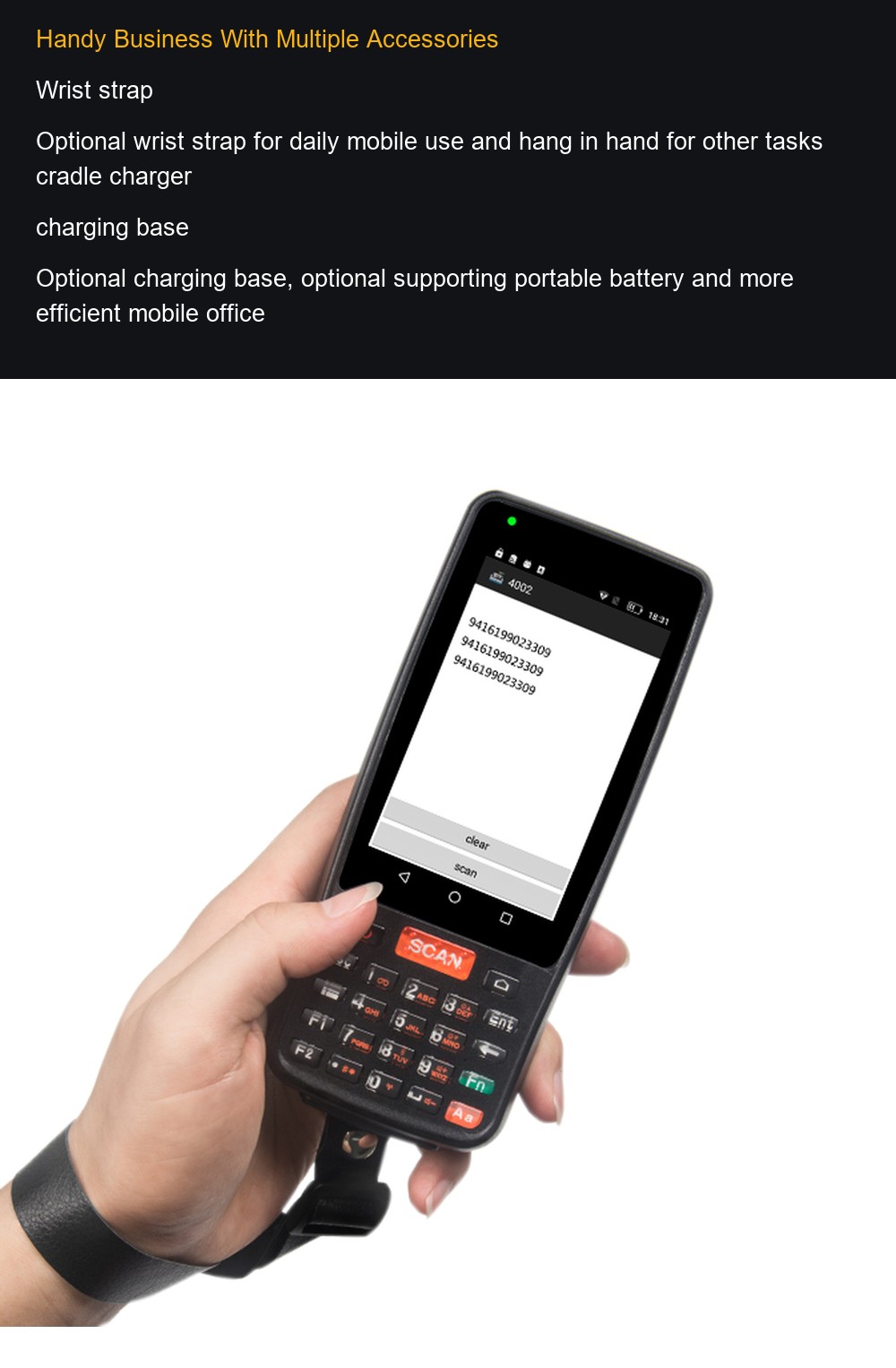

Handy Business With Multiple Accessories
Wrist strap
Optional wrist strap for daily mobile use and hang in hand for other tasks cradle charger

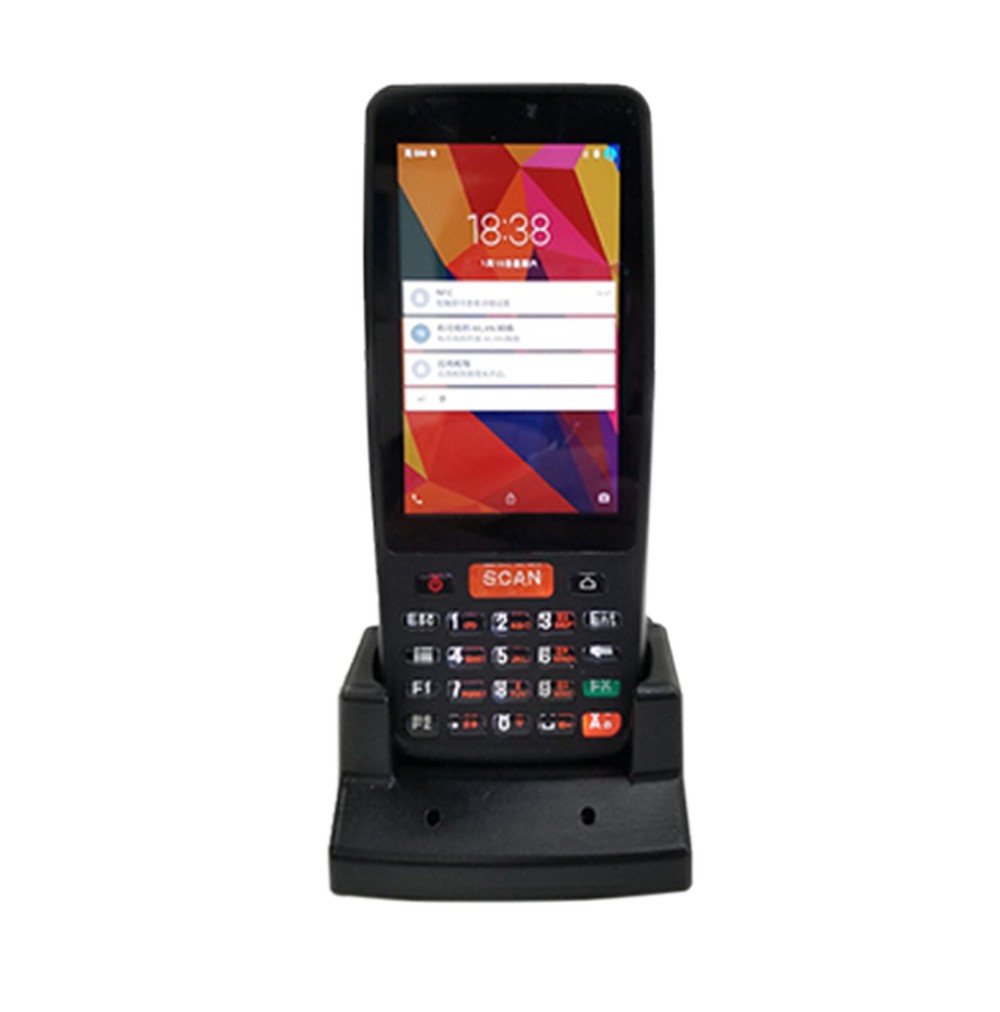

charging base
Optional charging base, optional supporting portable battery and more efficient mobile office
Configuration overview
Technical specifications include Processor: ARM Cortex A53 Quad-core 64bits 1.3GHz. O.S: Android 9.0. Memory: 2GB RAM+16GB ROM 3GB RAM+32GB ROM（optional）. Ex-Storage: Micro SD (Up to 64GB).
Technical specifications include Display: 4.0inch IPS 480×800 High Resolution. Camera: AF 5.0M(8.0M) Pixels with LED flash light. Touch Panel: Industrial-grade capacitive touch panel. Keypad: 23 anti-wear, within the light waterproof industrial keyboard.
Technical specifications include Notification: Vibrator/LED/Speaker. Battery: 3.7v 4000mAh rechargeable lithium polymer battery. Audio: Built-in microphone/Speaker. Sensor: G-sensor.

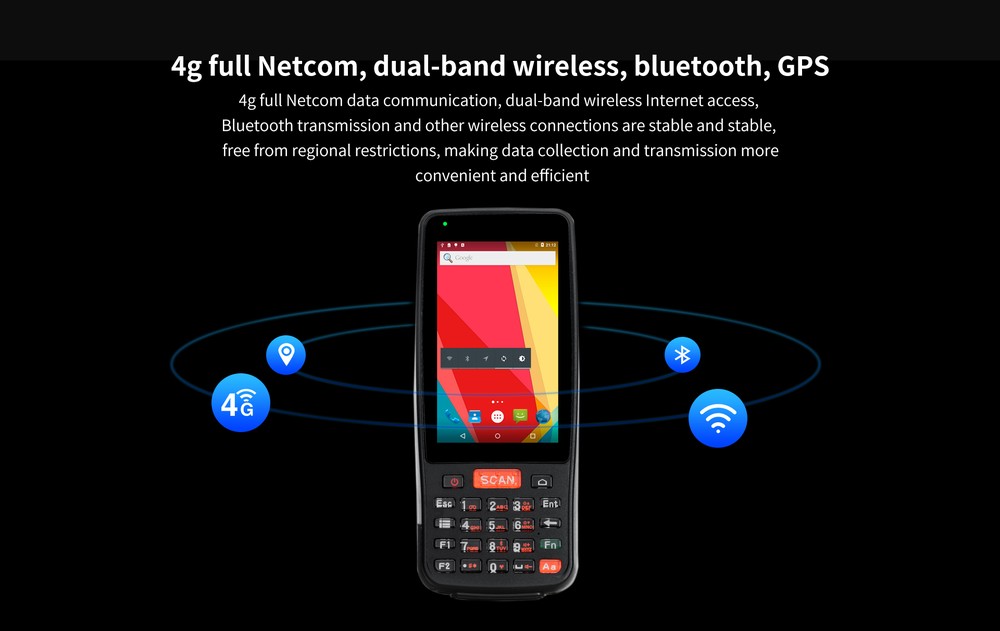

Technical specifications include Interface: Micro USB/Serial Port(TTL). Dimensions(L x W x D): 162mm×70mm×31mm. Weight: 345g(battery included). Mobile Network: 3G： WCDMA:850/900/1900/2100MHz CDMA/EVDO 800MHz GSM: 850/900/1800/1900MHz 4G：LTE-FDD:B1/B3/B7/B8/B28 LTE-TDD:B38/B39/B40/B41.
Technical specifications include Wi-Fi: IEEE 802.11 b/g/n. Bluetooth: Bluetooth 4.0. GPS: Supporting GPS/AGPS. Protocol: ISO/IEC 14443A/B,ISO15693.
Technical specifications include Frequency: 13.56MHz. NFC type: Type1-4Tag/Mifare/Felica. PSAM: IS0/IEC 7816 1-4. Develop Tools: Android SDK + JDK + Eclipse.
Wholesale purchasing information
For RUGGEDMASTER PDA-401, compare the pictured housing, connectors and controls with the configuration required by your application. The manufacturer may describe optional modules, memory configurations or regional network bands. These options are listed for reference; confirm the required configuration when requesting a quotation. Choose the interface and data-capture functions that match your existing workflow, software and installation requirements.
Review the complete Specs tab before placing a bulk order. It preserves the technical information supplied for this model, including the available operating environment and configuration details. Product pictures show the manufacturer’s existing views and available configurations. If your project needs a particular module, operating system version or connector, state that requirement in your enquiry so the configuration can be checked before ordering.
Explore related products in our RuggedMaster product catalog or send a bulk-order enquiry.
Manufacturer feature details
| Processor | ARM Cortex A53 Quad-core 64bits 1.3GHz |
| O.S | Android 9.0 |
| Memory | 2GB RAM+16GB ROM 3GB RAM+32GB ROM（optional） |
| Ex-Storage | Micro SD (Up to 64GB) |
| Display | 4.0inch IPS 480x800 High Resolution |
| Camera | AF 5.0M(8.0M) Pixels with LED flash light |
| Touch Panel | Industrial-grade capacitive touch panel |
| Keypad | 23 anti-wear, within the light waterproof industrial keyboard |
| Notification | Vibrator/LED/Speaker |

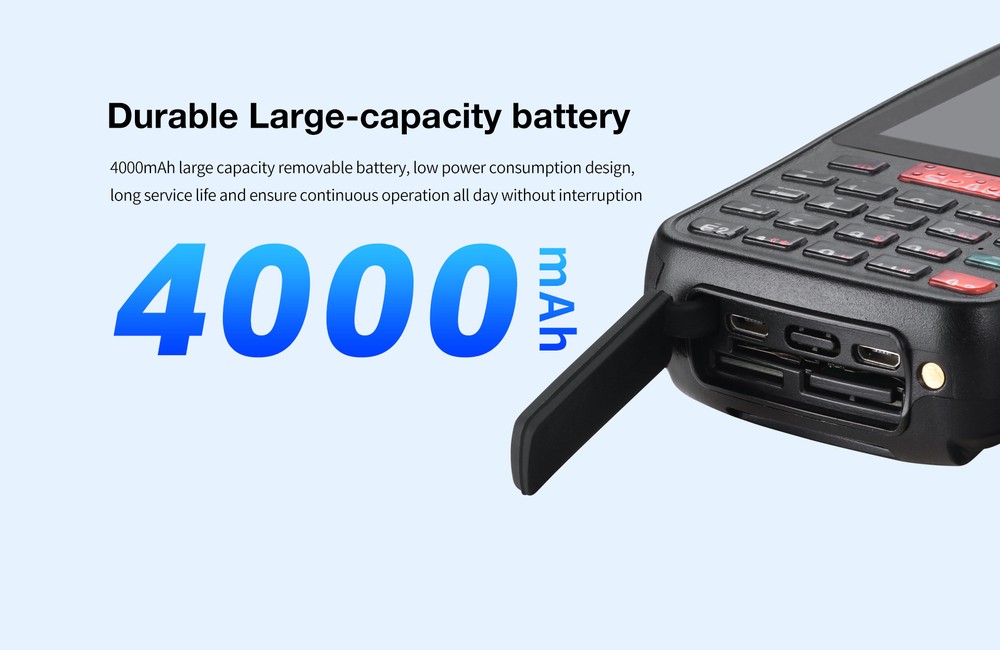

| Battery | 3.7v 4000mAh rechargeable lithium polymer battery |
| Audio | Built-in microphone/Speaker |
| Sensor | G-sensor |
| Interface | Micro USB/Serial Port(TTL) |
| Dimensions(L x W x D) | 162mm×70mm×31mm |
| Weight | 345g(battery included) |
| Mobile Network | 3G： WCDMA:850/900/1900/2100MHz CDMA/EVDO 800MHz GSM: 850/900/1800/1900MHz 4G：LTE-FDD:B1/B3/B7/B8/B28 LTE-TDD:B38/B39/B40/B41 |
| Wi-Fi | IEEE 802.11 b/g/n |
| Bluetooth | Bluetooth 4.0 |
| GPS | Supporting GPS/AGPS |
| Protocol | ISO/IEC 14443A/B,ISO15693 |
| Frequency | 13.56MHz |
| NFC type | Type1-4Tag/Mifare/Felica |
| PSAM | IS0/IEC 7816 1-4 |
| Develop Tools | Android SDK + JDK + Eclipse |
| P-Language | Java |
| Operating Temp. | -10°~ 50°C |
| Storage Temp. | -20°~ 70°C |
| Humidity | 0 ~ 95% (non-condensing) |
| Sealing | IP65 |

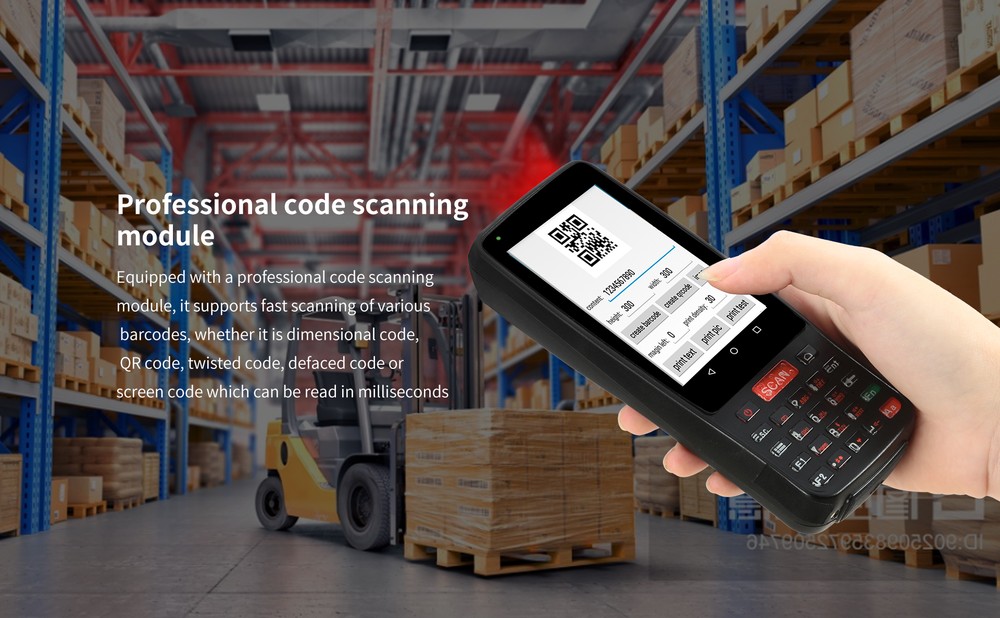

| Speed | 100 lines/sec |
| Scan Angle | ±50° |
| Identification accuracy | ≥4mi |
| Decoding Type | UPC-A，UPC-E，UPC-E1，EAN-13，EAN-8，ISBN/ISSN，Code 39，code39 (ASCII full)， Interleaved 2 of 5，Industrial 2 of 5,Matrix 25,Codebar(NW7)，Code 128，UCC/EAN 128，ISBT128，code 93，MSI/Plessey，UK/Plessey，China post，GS1 Data Bar |
| Method | CMOS Image |
| Scan Speed | 60scans/sec |
| Scan Angle | 360 ° angle, Elevation angle ± 55 °, Eeflection angle ± 55 ° |
| Identification accuracy | 2D≥7.5mil，1D≥5mil |
| DPM | Support DPM scanner (optional) |
| Decoding Type | QR Code, Data Matrix, PDF417，UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, Industrial 2 of 5,Matrix 25, Standard 25, Coda bar, MSI/MSI PLESSEY, GS1 Data Bar |
| Frequency | 902Mhz-928Mhz、865MHz-868MHz(optional) |
| Protocol | EPC global UHF Class 1 Gen 2/ISO 18000-6C |
| Capture Range | 1-2m |
| Output Power | 18-26dBm |
