RUGGEDMASTER PDA-3505 Handheld Terminals
4G Version: ARM Cortex A53 Quad-core 64 bites 1.3 GHz · 2GB RAM+16GB ROM 3GB RAM+32GB ROM(optional) · Micro SD (UP to 64G) · Standard : 4inch HVGA (320 x 480) high- definition screen · Industrial capacitive screen · Built in detachable 7.4v 3400mAh Lithium Polymer Battery · Bluetooth 4.0
PDA -3505 Handheld terminal built in scanner and printer 01 / 04 02 / 04 03 / 04 04 / 04 widely used in gas stations, liquefied gas, industry, administrative law enforcement, manufacturing, medical care, etc. field. Handy Business With Multiple Accessories Wrist strap charging base Optional wrist strap for daily mobile use and hang in hand for other tasks cradle charger Optional charging base, optional supporting portable battery and more efficient mobile office
Size:(LxWxD): 220*85*59mm
Weight:: 485g (including battery)
Processor: 4G Version: ARM Cortex A53 Quad-core 64 bites 1.3 GHz
OS: Android 9.0/7.0
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

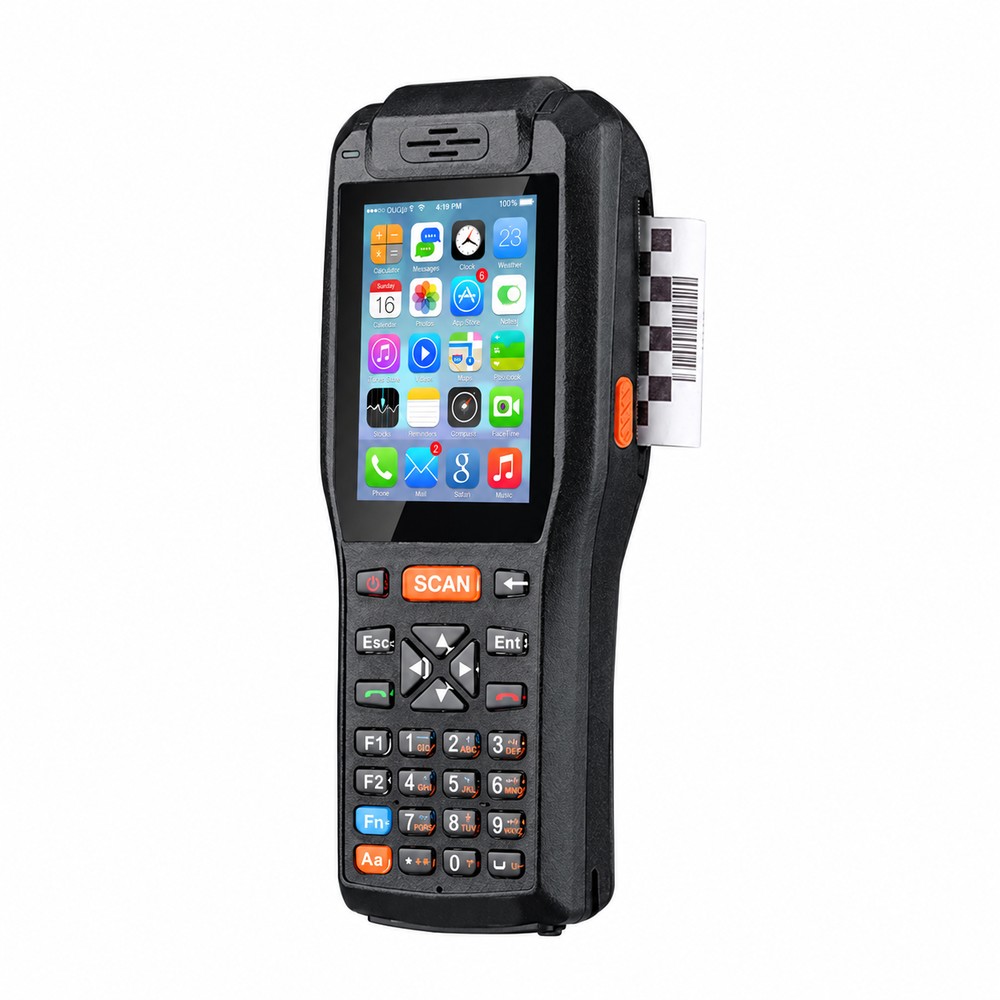

RUGGEDMASTER PDA-3505 Handheld Terminals
RUGGEDMASTER PDA-3505 combines the features and configurations shown below. Review the product overview, original feature graphics and complete Specs when selecting units for a bulk order.

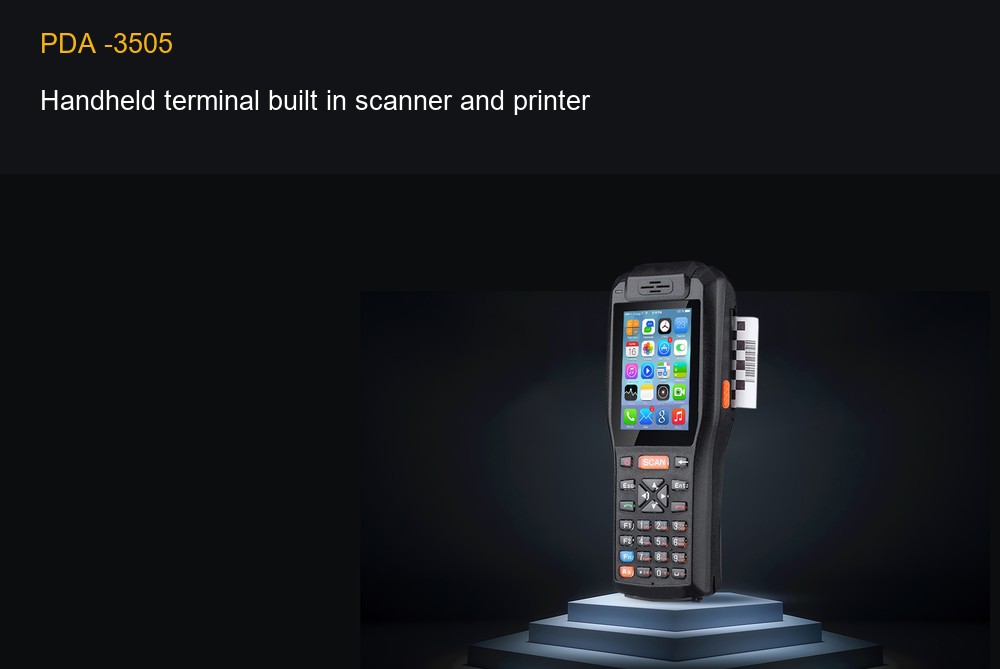

PDA -3505

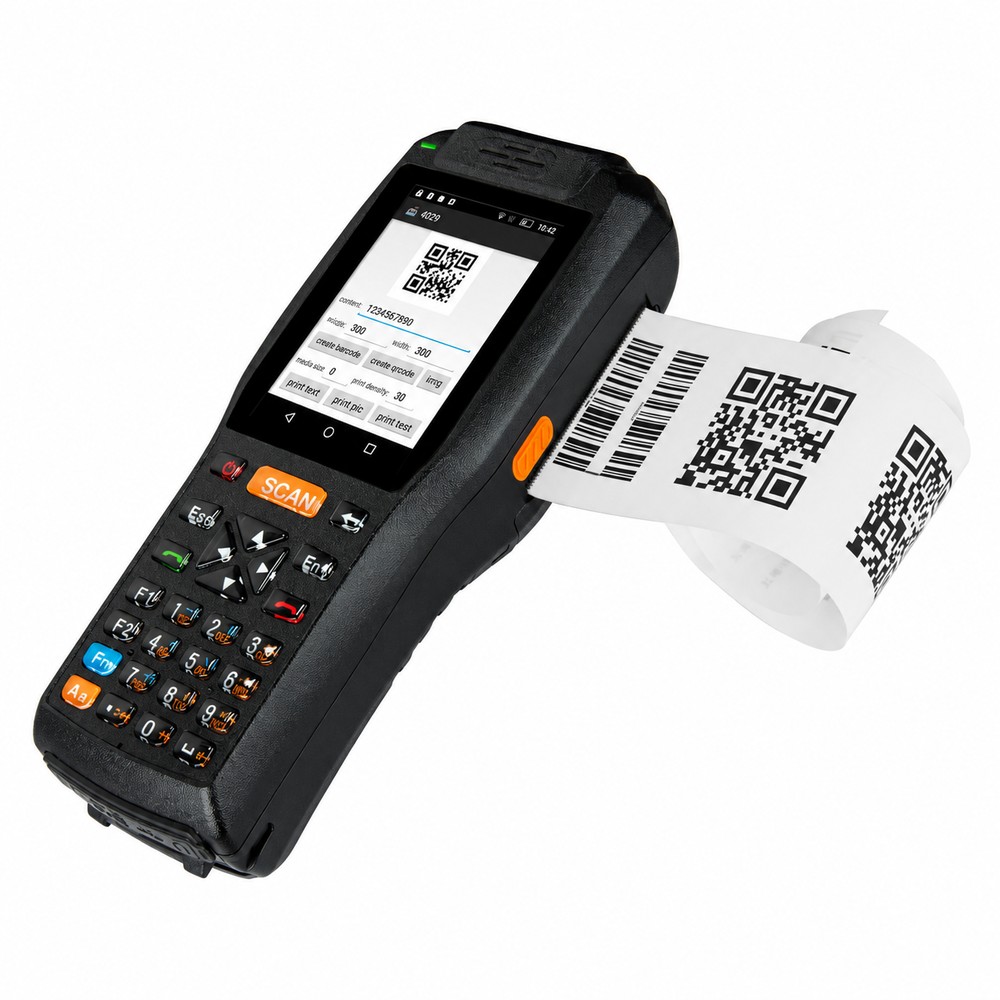

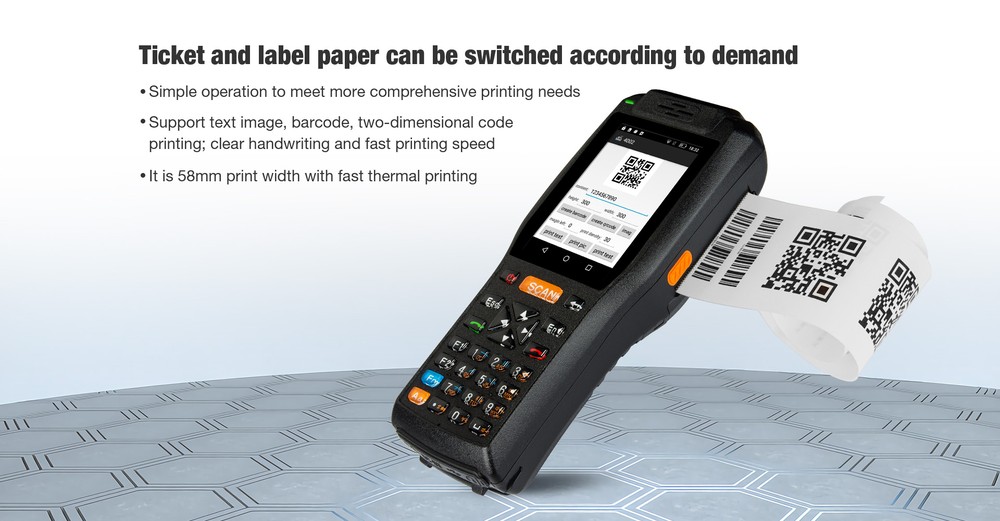

Handheld terminal built in scanner and printer
01 / 04
02 / 04
03 / 04
04 / 04
widely used in gas stations, liquefied gas, industry, administrative law enforcement, manufacturing, medical care, etc. field.

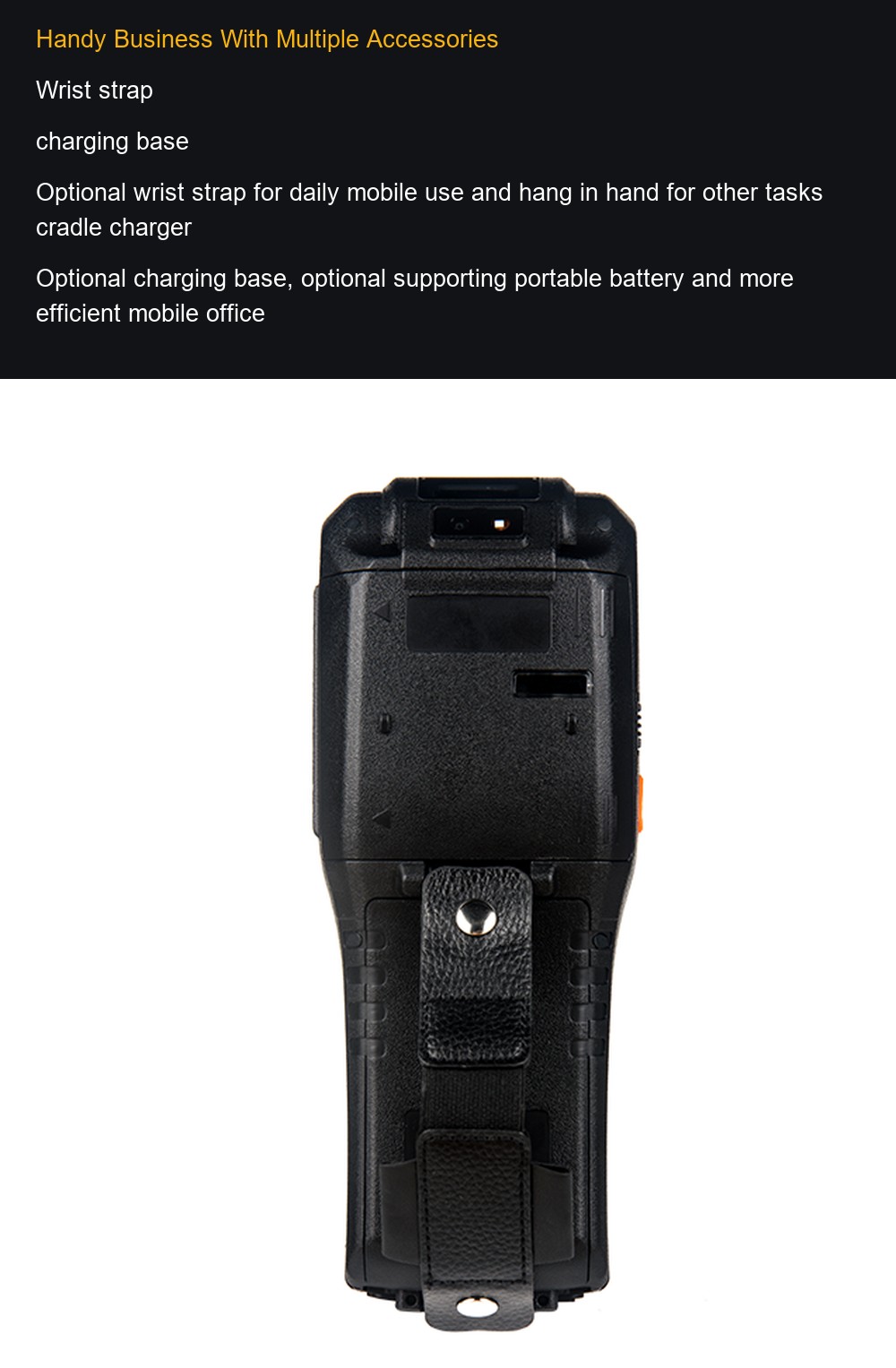

Handy Business With Multiple Accessories

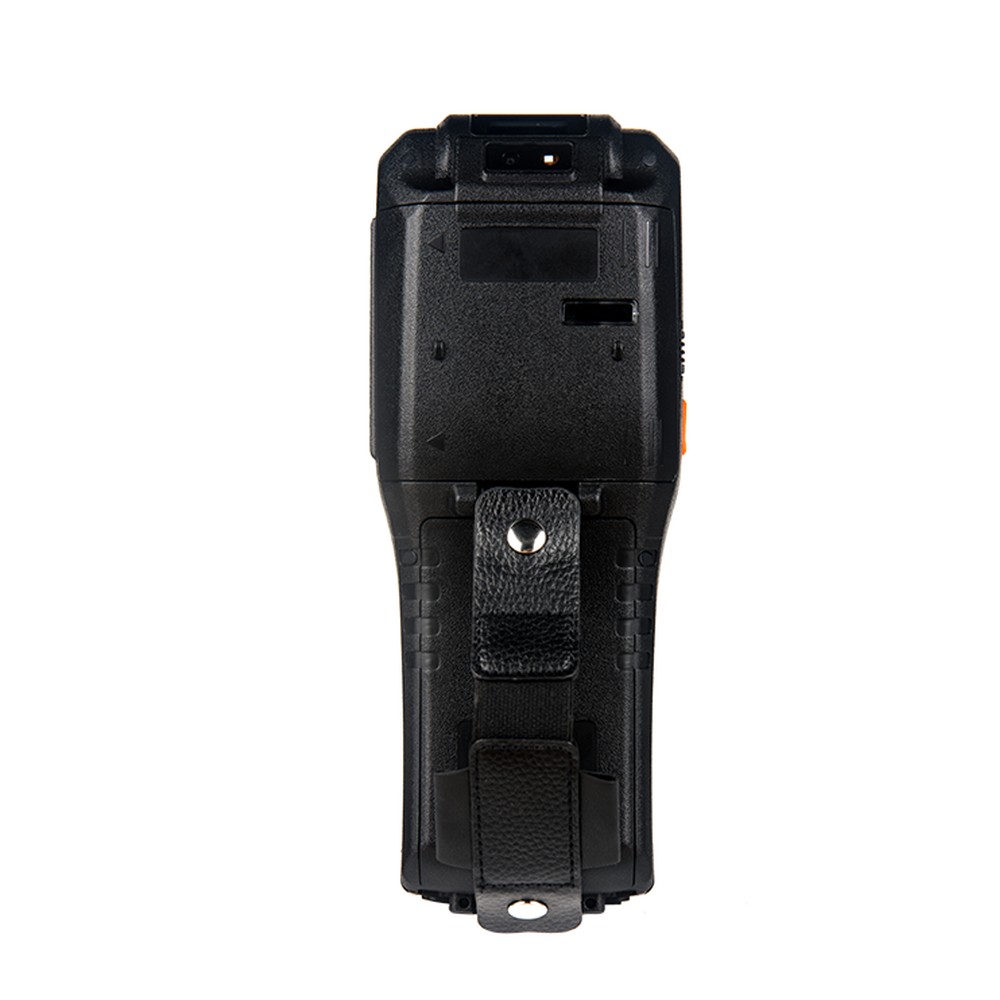

Wrist strap

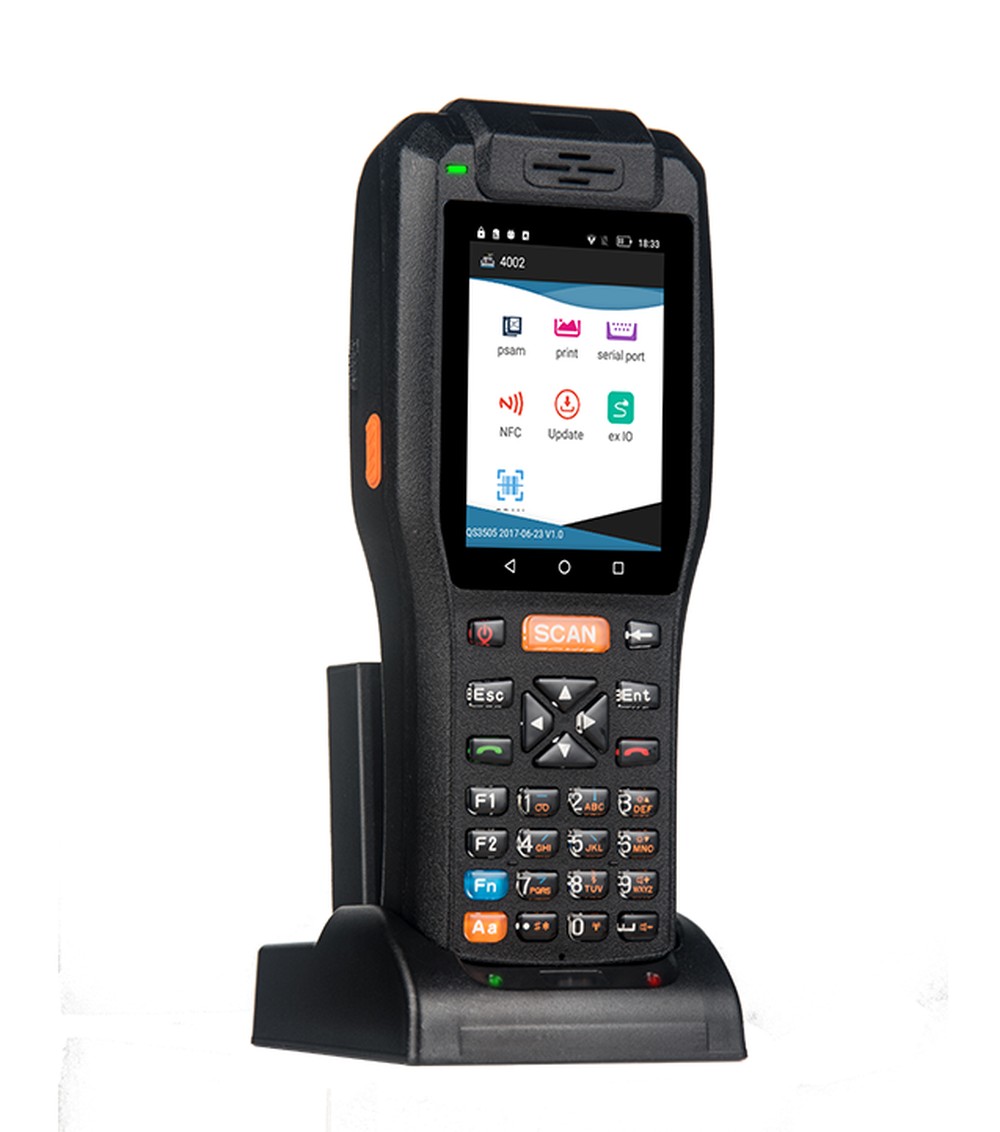

charging base
Optional wrist strap for daily mobile use and hang in hand for other tasks cradle charger
Optional charging base, optional supporting portable battery and more efficient mobile office
Configuration overview
Technical specifications include Size:(LxWxD): 220*85*59mm. Weight:: 485g (including battery). Processor: 4G Version: ARM Cortex A53 Quad-core 64 bites 1.3 GHz. OS: Android 9.0/7.0.
Technical specifications include Storage: 2GB RAM+16GB ROM 3GB RAM+32GB ROM(optional). Extended Storage: Micro SD (UP to 64G). Display: Standard : 4inch HVGA (320 x 480) high- definition screen. Camera: 5.0M pixels AF with LED light automatic focusing (8.0 M optional).
Technical specifications include Touch screen: Industrial capacitive screen. Indicator: Vibration indicator /LED indicator /audio indicator. Keyboard: 29 anti-wear, within the light waterproof industrial keyboard. Battery: Built in detachable 7.4v 3400mAh Lithium Polymer Battery.
Technical specifications include Audio: Built-in microphone /speaker. Sensor: G-sensor. Mobile data communication: 3G Version: WCDMA:850/900/1900/2100MHz GSM: 850/900/1800/1900MHz 4G Version: LTE-FDD:B1/B3/B7/B8/B28 E- TDD:B38/B39/B40/B41 CDMA/EVDO 800MHz WCDMA:850/1900/2100MHz. Wi-Fi: IEEE 802.11 b/g/n.
Technical specifications include Bluetooth: Bluetooth 4.0. GPS: High performance GPS/AGPS navigation chip. Development tools: Android SDK +JDK+Eclipse. Language: Java.
Technical specifications include Operating Temperature: -10° ~ 50℃. Storage Temperature: -20°~ 70℃. Humidity: 0 to 95% relative humidity (non-condensing. Drop Specifications: can bear impact from 1.5m drop to cement floo.
Wholesale purchasing information
For RUGGEDMASTER PDA-3505, compare the pictured housing, connectors and controls with the configuration required by your application. The manufacturer may describe optional modules, memory configurations or regional network bands. These options are listed for reference; confirm the required configuration when requesting a quotation. Choose the interface and data-capture functions that match your existing workflow, software and installation requirements.
Review the complete Specs tab before placing a bulk order. It preserves the technical information supplied for this model, including the available operating environment and configuration details. Product pictures show the manufacturer’s existing views and available configurations. If your project needs a particular module, operating system version or connector, state that requirement in your enquiry so the configuration can be checked before ordering.
Explore related products in our RuggedMaster product catalog or send a bulk-order enquiry.
Manufacturer feature details
| Size:(LxWxD) | 220*85*59mm |
| Weight: | 485g (including battery) |
| Processor | 4G Version: ARM Cortex A53 Quad-core 64 bites 1.3 GHz |
| OS | Android 9.0/7.0 |
| Storage | 2GB RAM+16GB ROM 3GB RAM+32GB ROM(optional) |
| Extended Storage | Micro SD (UP to 64G) |
| Display | Standard : 4inch HVGA (320 x 480) high- definition screen |
| Camera | 5.0M pixels AF with LED light automatic focusing (8.0 M optional) |
| Touch screen | Industrial capacitive screen |
| Indicator | Vibration indicator /LED indicator /audio indicator |
| Keyboard | 29 anti-wear, within the light waterproof industrial keyboard |

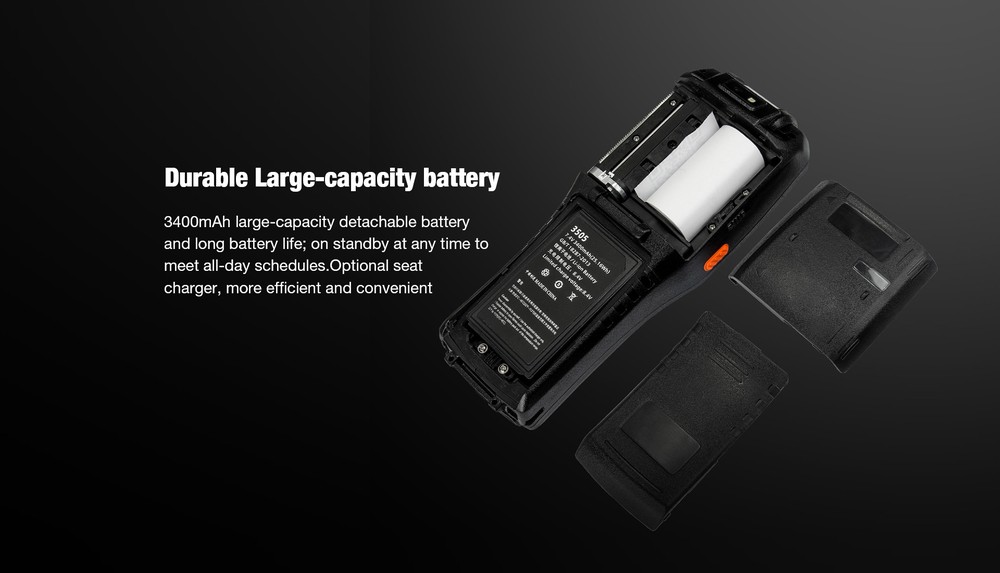

| Battery | Built in detachable 7.4v 3400mAh Lithium Polymer Battery |
| Audio | Built-in microphone /speaker |
| Sensor | G-sensor |

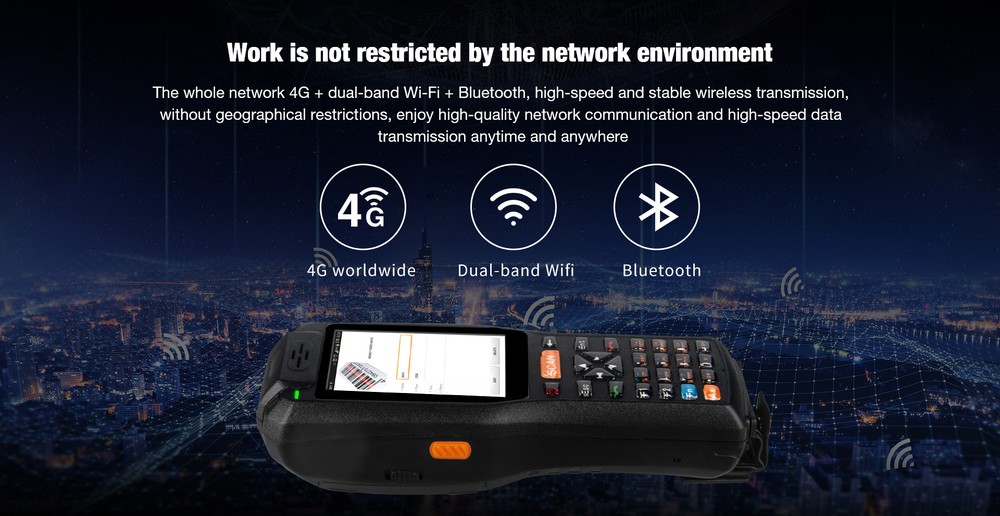

| Mobile data communication | 3G Version: WCDMA:850/900/1900/2100MHz GSM: 850/900/1800/1900MHz 4G Version: LTE-FDD:B1/B3/B7/B8/B28 E- TDD:B38/B39/B40/B41 CDMA/EVDO 800MHz WCDMA:850/1900/2100MHz |
| Wi-Fi | IEEE 802.11 b/g/n |
| Bluetooth | Bluetooth 4.0 |
| GPS | High performance GPS/AGPS navigation chip |
| Development tools | Android SDK +JDK+Eclipse |
| Language | Java |
| Operating Temperature | -10° ~ 50℃ |
| Storage Temperature | -20°~ 70℃ |
| Humidity | 0 to 95% relative humidity (non-condensing |
| Drop Specifications | can bear impact from 1.5m drop to cement floo |
| Electrostatic discharge | + 15kV air discharge, 8kV direct discharge |

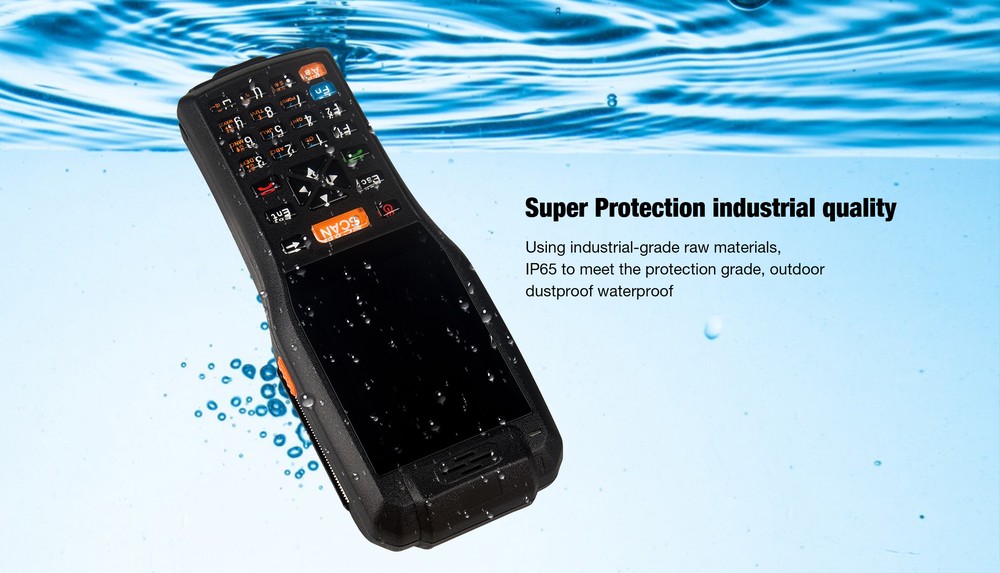

| Protection class | IP65/Explosion-Proof certificate |

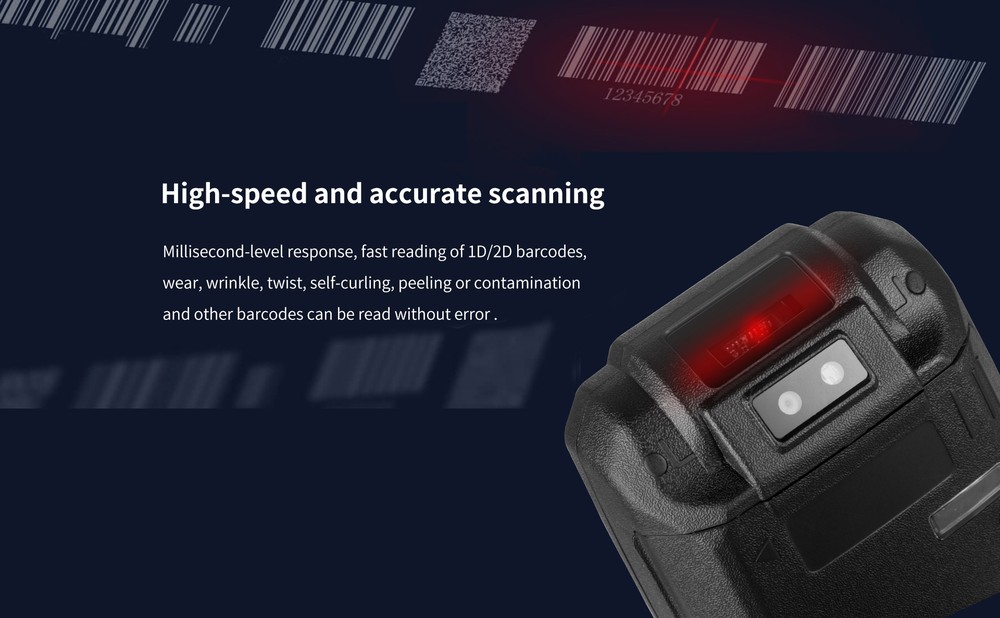

| Scanning light | Visible laser diodes with a wavelength of 650 nm |
| Scanning speed | 100 line/s |
| Scanning angle | +50°, +65° (R/L, F/B) |
| Resolution | 4mil |
| Decoding type | UPC-A , UPC-E , UPC-E1 , EAN-13 , EAN-8 , ISBN/ISSN , 39 code , 39 code (ASCII code ), 32 code , Trioptic 39 code , Interleaved 25 code , industry 25 code ( Discrete 2 of 5), Matrix 25 code , Codabar (NW7),128 code, UCC/EAN 128, ISBT128, 93 code, 11 code (USD-8), MSI/Plessey, UK/Plessey, China Postal, GS1 DataBar |

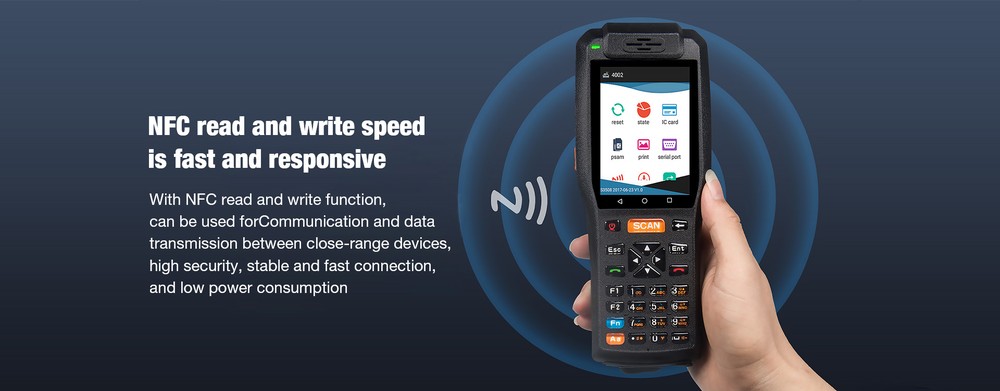

| Communication | ISO/IEC 14443A/B,ISO15693 |
| Working frequency | 13.56MHz |
| Card type | Type1-4Tag/Mifare/Felica |
| PSAM card | ISO/IEC 7816 1-4 |

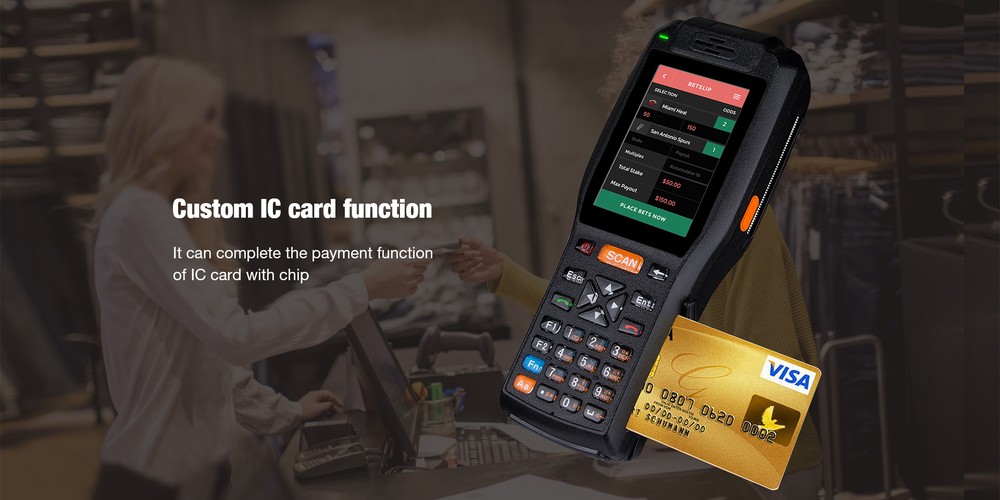

| Contact chip card | ISO/IEC 7816 (optional) |
| Collection method | CMOS |
| Scanning speed | 1/60s |
| Scanning angle | Corner 360°, Elevation angle ± 55°, Declination + 55° |
| 2D optional | Support DPM (component identification code) |
| Decoding type | QR Code, Data Matrix, PDF417, Han letter code in line with international and domestic generic 1Dcode standards: UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code93, Code 11, Interleaved 2 of 5, Industrial 2 of 5, Matrix 25, Standard 25, Codabar, MSI/MSI PLESSEY, GS1 DataBar etc. |
