RUGGEDMASTER MR20 Wearable RFID Readers
Robust RFID Reading and WritingFeaturesOperated with Hand Wrap Wristband or LanyardSDK: Support Android/iOS1200mAh Removable BatteryLight Weight and Small SizeFunctionsShort Range UHF Scanning (Impinj E310/E510/CM-Q)Bluetooth Low Energy (BLE) 5.0
Robust RFID Reading and WritingFeaturesOperated with Hand Wrap Wristband or LanyardSDK: Support Android/iOS1200mAh Removable BatteryLight Weight and Small SizeFunctionsShort Range UHF Scanning (Impinj E310/E510/CM-Q)Bluetooth Low Energy (BLE) 5.0
Exact model: MR20
Product group: Wearable RFID Readers
Complete manufacturer specifications in Specs

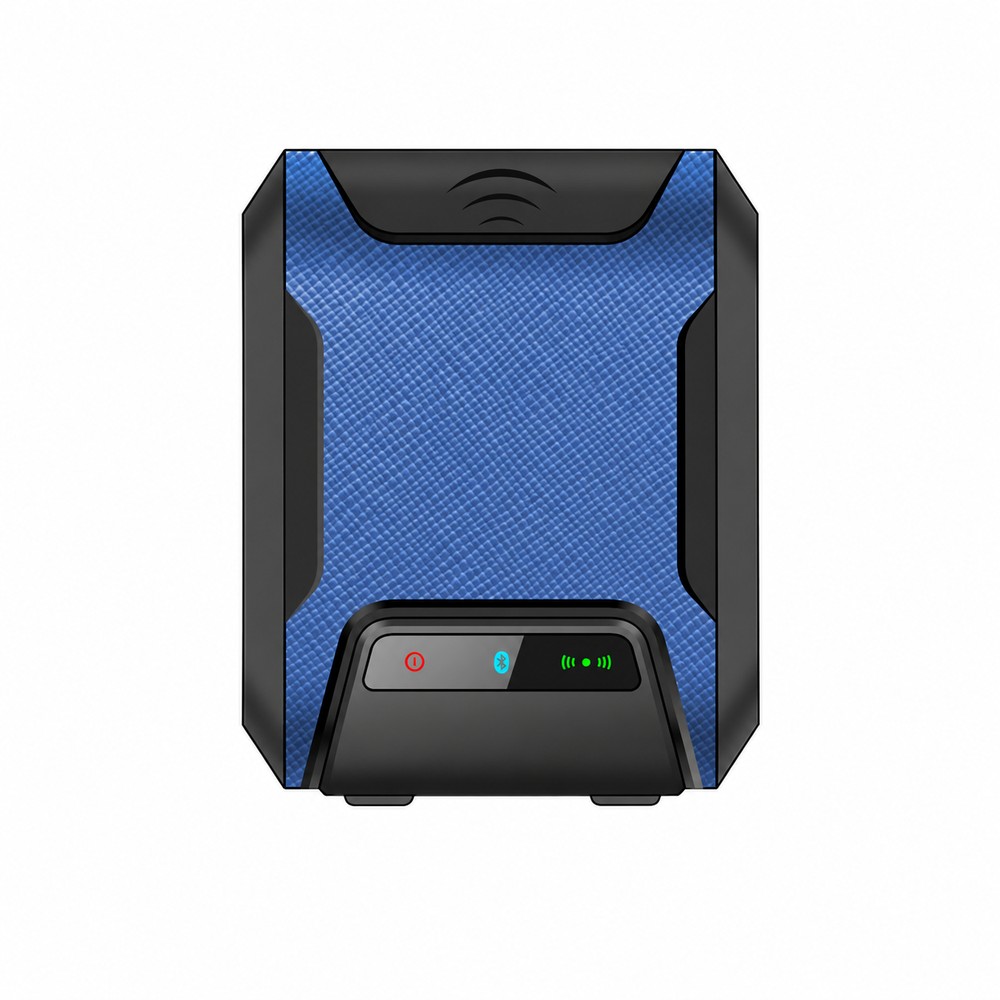

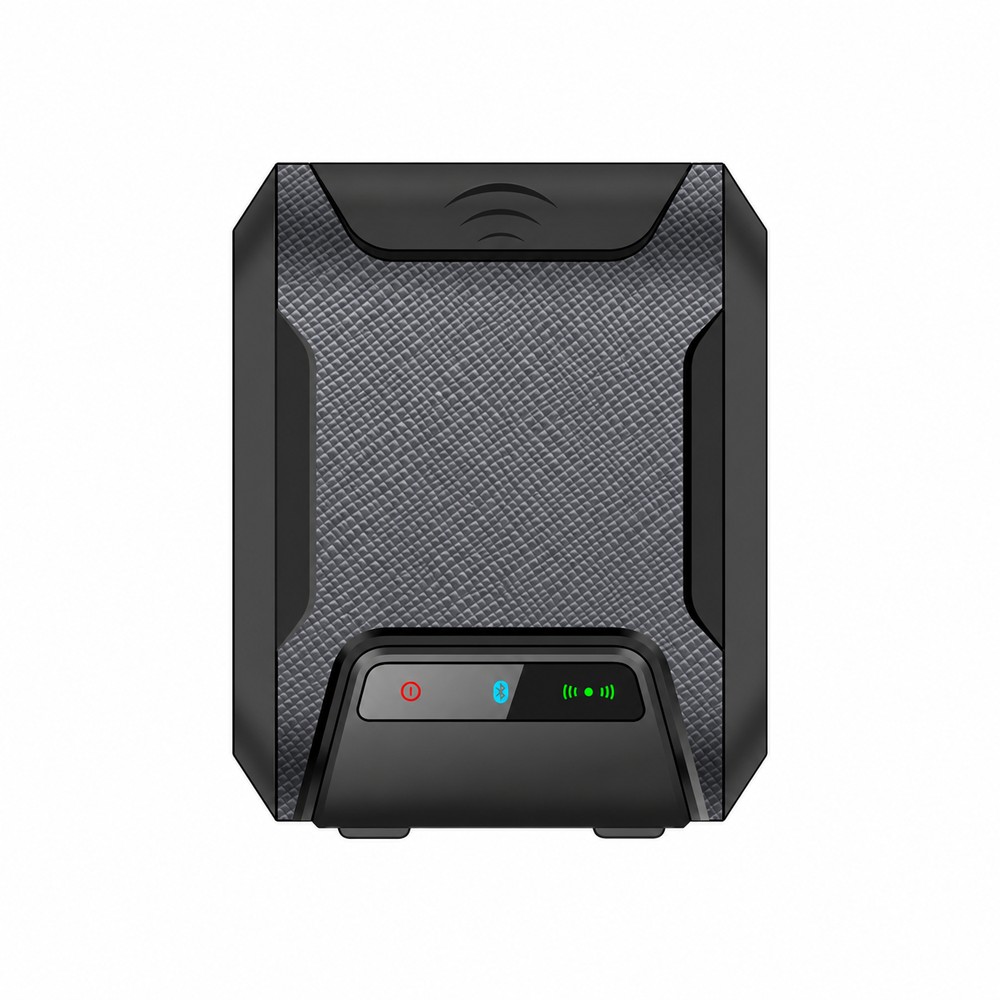

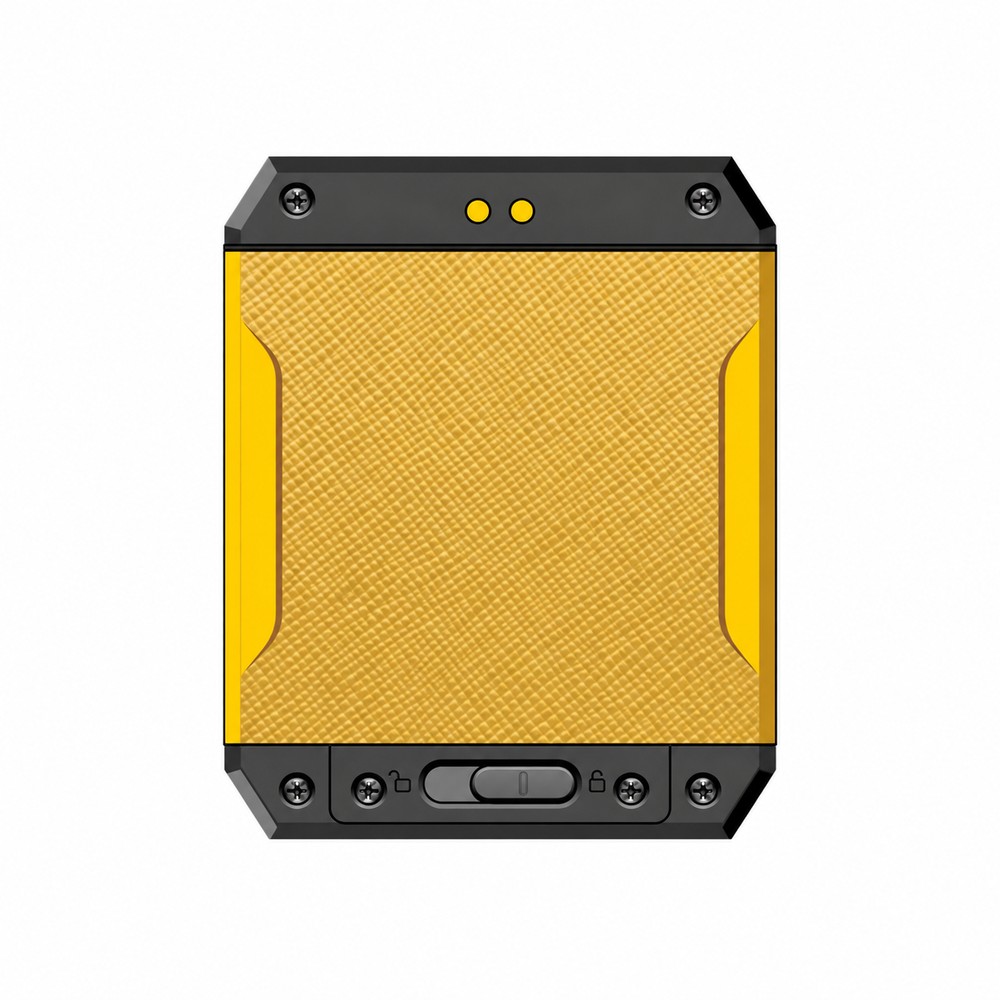

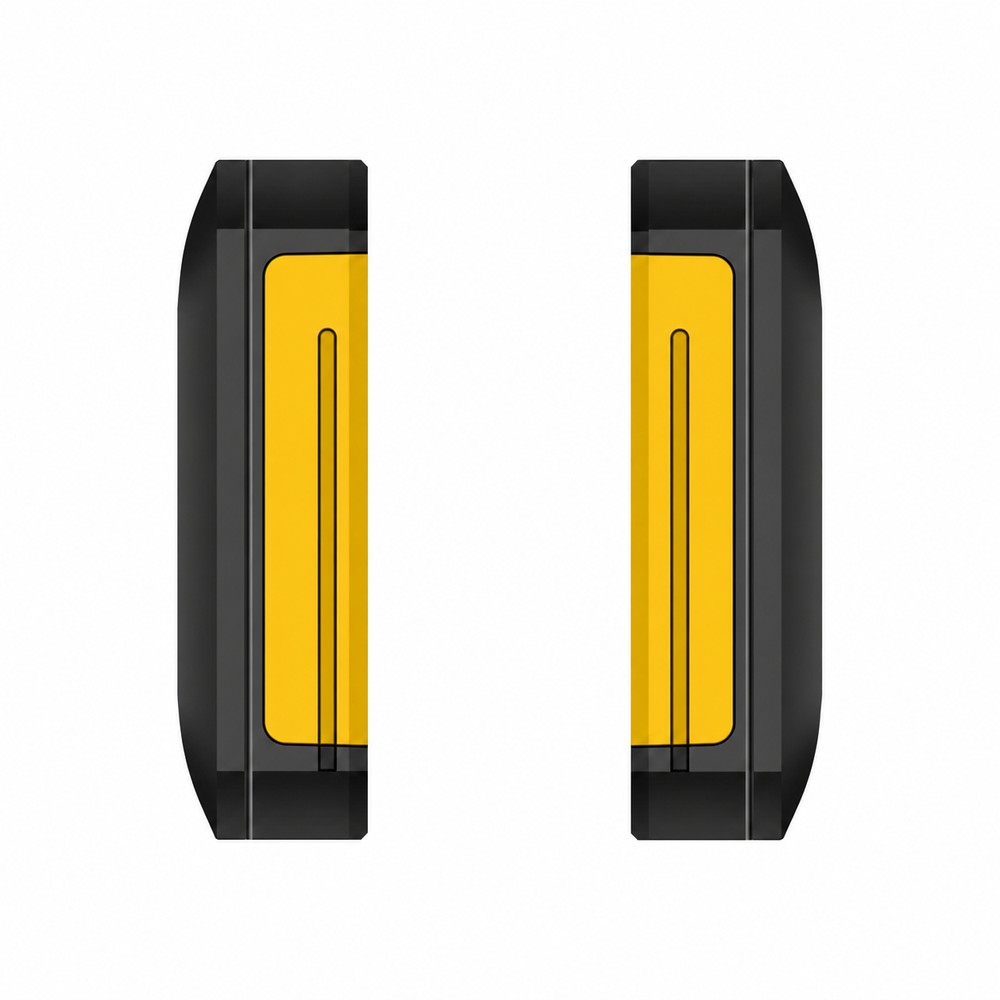

Available configurations shown in the product gallery
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

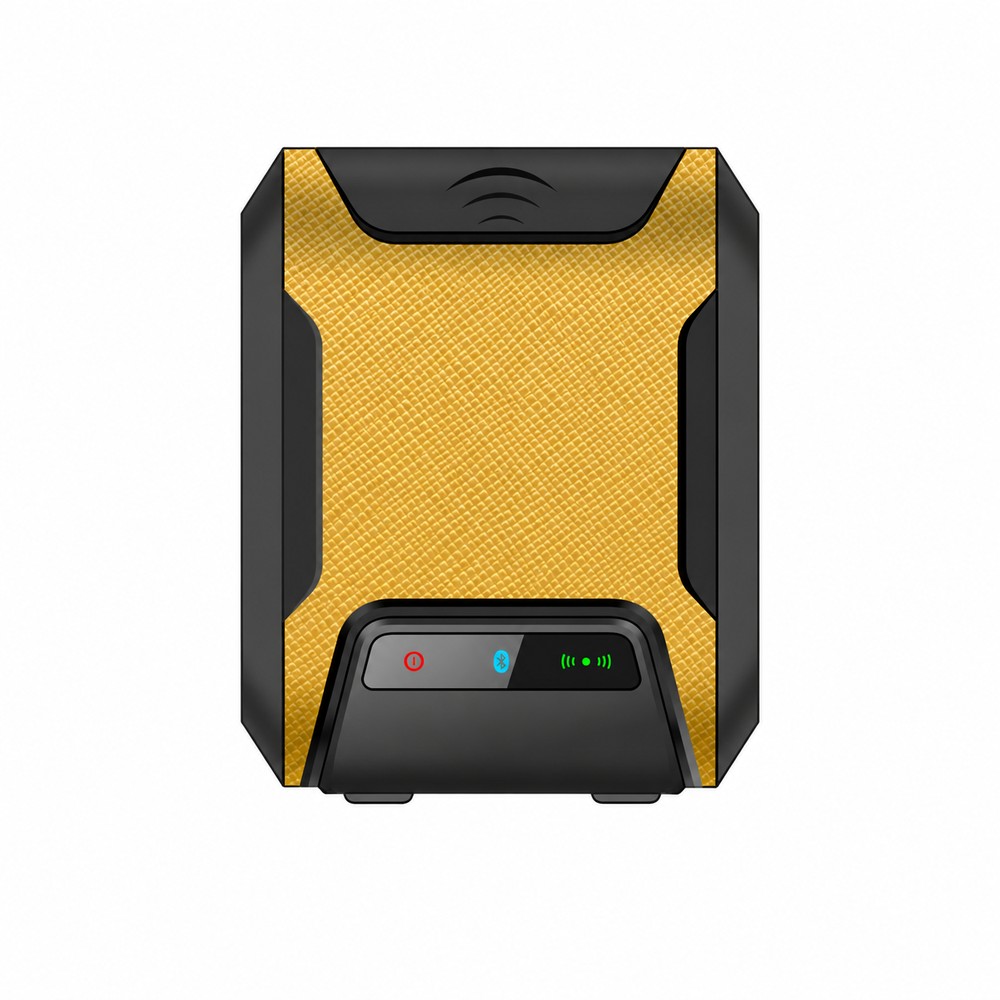

RUGGEDMASTER MR20 Wearable RFID Readers
RUGGEDMASTER MR20 combines the features and configurations shown below. Review the product overview, original feature graphics and complete Specs when selecting units for a bulk order.
Robust RFID Reading and WritingFeaturesOperated with Hand Wrap Wristband or LanyardSDK: Support Android/iOS1200mAh Removable BatteryLight Weight and Small SizeFunctionsShort Range UHF Scanning (Impinj E310/E510/CM-Q)Bluetooth Low Energy (BLE) 5.0
Configuration overview
The manufacturer data sheet lists Specification Physical Characteristics Dimensions 50 × 62 × 19 mm / 1.97 × 2.44 × 0.75 in. Weight 64 g / 2.26 oz. ( with glove: 90 g / 3.17 oz. ) Color Yellow, Blue, Gray Port USB Type-C Button ON/OFF, SCAN Battery 1200 mAh ( removable ) Charging Current 5 V / 1.5 A Charging 1 hours Duration Red indicator will be ON when charging; Blue indicator will be ON when device has been fully charged; Green indicator will be ON when battery is higher than 20%; LED Indicator Green indicator will flash when battery is lower than 20%; Bluetooth is not paired when bluetooth indicator is OFF; Bluetooth is paired when bluetooth indicator is ON Performance Cortex-M3 MCU 72MHz Developing Environment SDK Android / IOS SDK Supported Security RFID Encrypted Module ( reserve ) Communication USB Type C USB connection to realize data transfer BT Bluetooth Low Energy (BLE) User Environment Operating Temp. -20 °C to +50 °C Storage Temp. -40 °C to +70 °C Humidity 5% RH – 95% RH non condensing Dropping 1.2 m dropping on concrete Sealing IP65 UHF CM-3N module based on Impinj E310 Engine CM-5N module based on Impinj E510 Antenna Linear Polarized Antenna (-2.2dBi) parameter Frequency 920-925 MHz / 902-928 MHz / 865-868 MHz Protocol EPC C1 GEN2 / ISO18000-6C Power 0.5W.
Wholesale purchasing information
For RUGGEDMASTER MR20, compare the pictured housing, connectors and controls with the configuration required by your application. The manufacturer may describe optional modules, memory configurations or regional network bands. These options are listed for reference; confirm the required configuration when requesting a quotation. Choose the interface and data-capture functions that match your existing workflow, software and installation requirements.
Review the complete Specs tab before placing a bulk order. It preserves the technical information supplied for this model, including the available operating environment and configuration details. Product pictures show the manufacturer’s existing views and available configurations. If your project needs a particular module, operating system version or connector, state that requirement in your enquiry so the configuration can be checked before ordering.
Explore related products in our RuggedMaster product catalog or send a bulk-order enquiry.

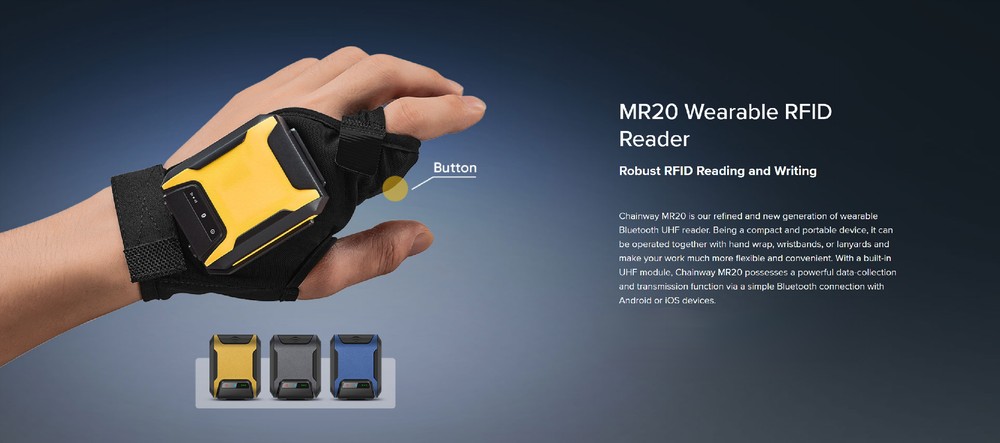

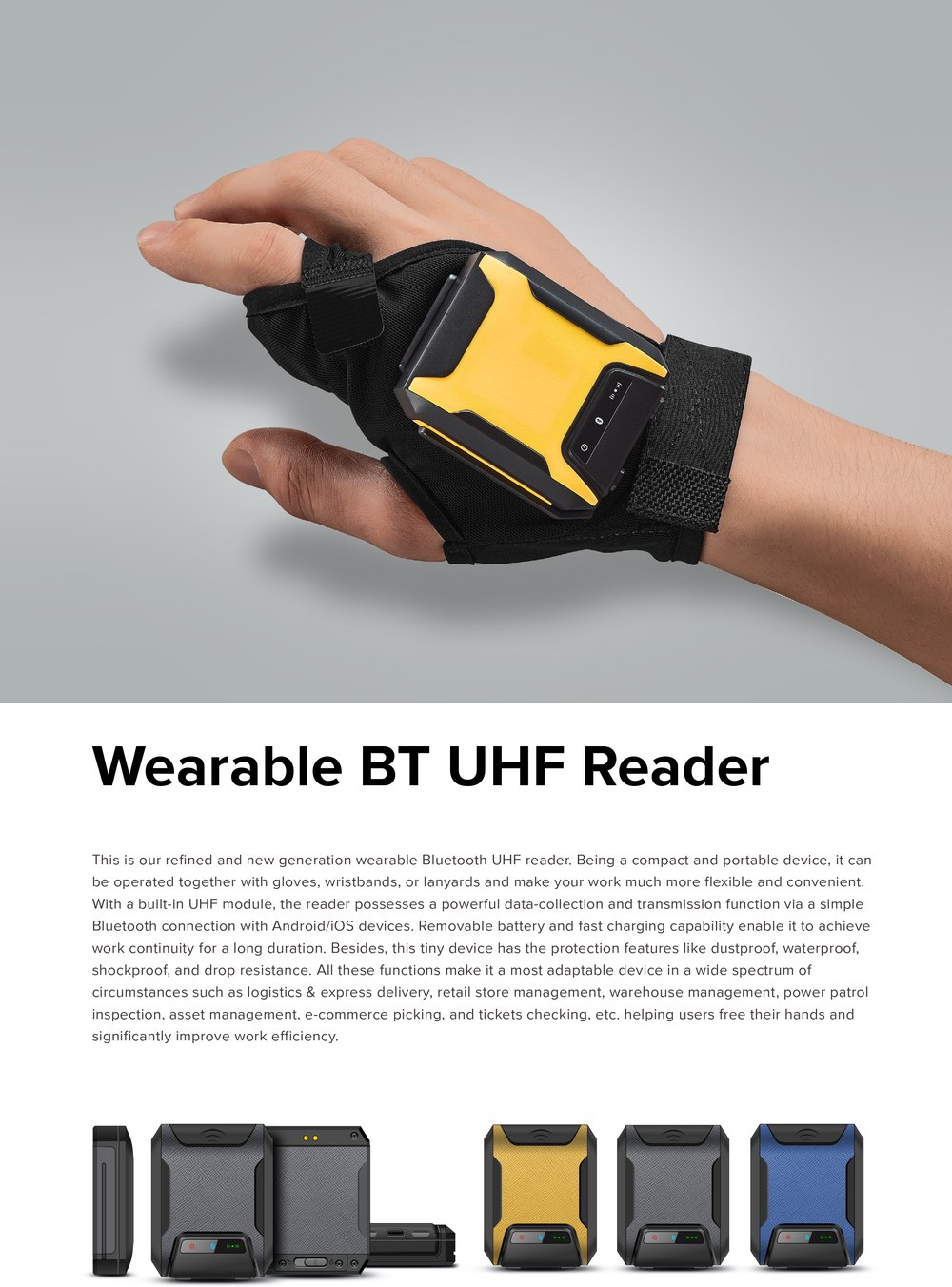

Manufacturer feature details

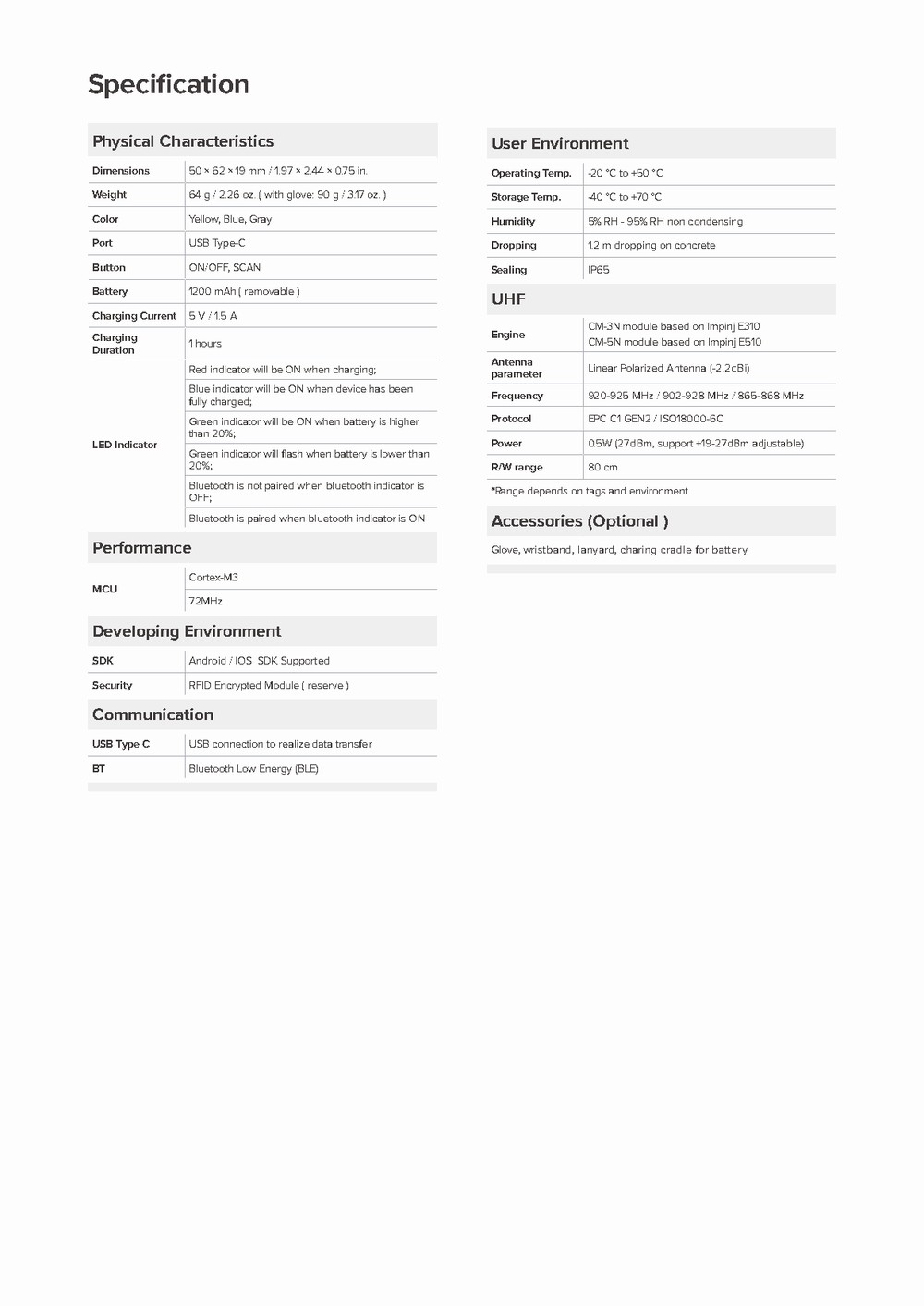

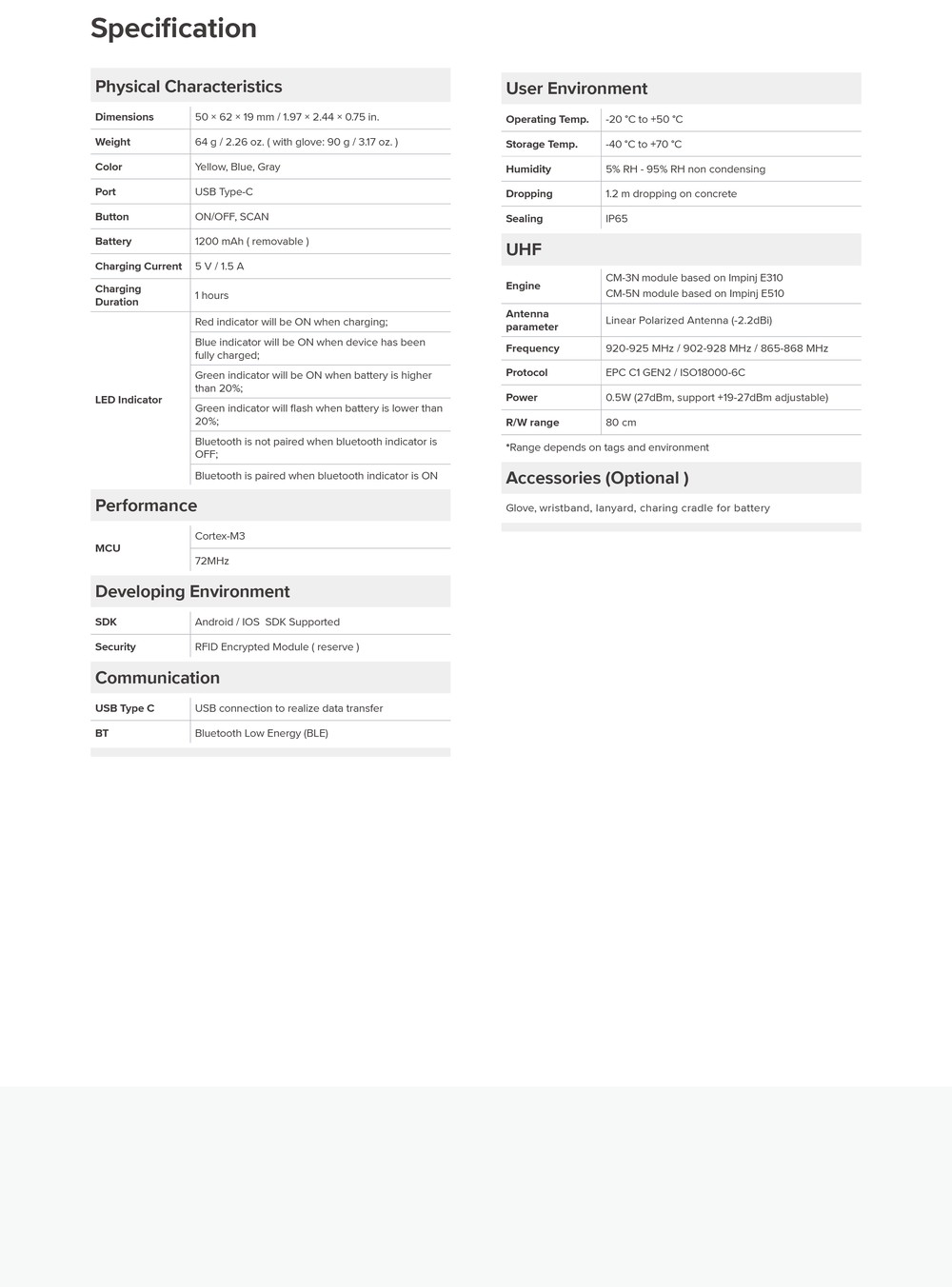

MR20(without+logo)-EN(20221202).pdf — Specifications (page 2)
Specification Physical Characteristics Dimensions 50 × 62 × 19 mm / 1.97 × 2.44 × 0.75 in. Weight 64 g / 2.26 oz. ( with glove: 90 g / 3.17 oz. ) Color Yellow, Blue, Gray Port USB Type-C Button ON/OFF, SCAN Battery 1200 mAh ( removable ) Charging Current 5 V / 1.5 A Charging 1 hours Duration Red indicator will be ON when charging; Blue indicator will be ON when device has been fully charged; Green indicator will be ON when battery is higher than 20%; LED Indicator Green indicator will flash when battery is lower than 20%; Bluetooth is not paired when bluetooth indicator is OFF; Bluetooth is paired when bluetooth indicator is ON Performance Cortex-M3 MCU 72MHz Developing Environment SDK Android / IOS SDK Supported Security RFID Encrypted Module ( reserve ) Communication USB Type C USB connection to realize data transfer BT Bluetooth Low Energy (BLE)
User Environment Operating Temp. -20 °C to +50 °C Storage Temp. -40 °C to +70 °C Humidity 5% RH - 95% RH non condensing Dropping 1.2 m dropping on concrete Sealing IP65 UHF CM-3N module based on Impinj E310 Engine CM-5N module based on Impinj E510 Antenna Linear Polarized Antenna (-2.2dBi) parameter Frequency 920-925 MHz / 902-928 MHz / 865-868 MHz Protocol EPC C1 GEN2 / ISO18000-6C Power 0.5W (27dBm, support +19-27dBm adjustable) R/W range 80 cm *Range depends on tags and environment Accessories (Optional ) Glove, wristband, lanyard, charing cradle for battery
