RUGGEDMASTER M1146 Smart Tablets
10.95 Inch FHD IPS Touch Screen, Android 14 Operating System, 6GB RAM+128GB ROM, Metal Back Cover, Unisoc T616 Octa Core Processor, 5MP+13MP Double Cameras, Built-in 7000mAh Big Battery, Four Stereo Loudspeaker
RUGGEDMASTER M1146 combines 10.95 Inch FHD IPS Touch Screen, Android 14 Operating System, 6GB RAM+128GB ROM. Additional features include Metal Back Cover, Unisoc T616 Octa Core Processor, 5MP+13MP Double Cameras. The product photos show the appearance and connection details. Review the full specifications below to compare the available configuration for your application. Contact RUGGEDMASTER with the quantity and destination for a wholesale enquiry.
10.95 Inch FHD IPS Touch Screen
Android 14 Operating System
6GB RAM+128GB ROM
Metal Back Cover
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
RUGGEDMASTER M1146 Smart Tablets
RUGGEDMASTER M1146 combines 10.95 Inch FHD IPS Touch Screen, Android 14 Operating System, 6GB RAM+128GB ROM. Additional features include Metal Back Cover, Unisoc T616 Octa Core Processor, 5MP+13MP Double Cameras. The product photos show the appearance and connection details. Review the full specifications below to compare the available configuration for your application. Contact RUGGEDMASTER with the quantity and destination for a wholesale enquiry.
RUGGEDMASTER M1146 features
[High-Performance Processor] Android 14.0 operating system. The powerful octa-core processor with the main frequency of up to 2.0GHz.
[Large capacity] The tablet has 6 GB RAM and 128 GB of internal storage space . Plenty of space to store the photos, e-books, songs and movies you need, so you don’t have to worry about space capacity.
[Support 2.4g/5g dual-band Wi-Fi] It supports 802.11b/g/n/ac 2.4G/5G Wi-Fi. In addition, it is equipped with BT BT5.0.
[Capacitive Multitouch Screen] Tablet PC 10.95 inches 1200*1920 FHD, clear and sharp, saturated and bright, every eye is a gorgeous visual feast. Providing you with an optimal viewing experience. Perfect for streaming TV, videos, movies, online reading, gaming, etc.
[7,000 mAh Battery] 7000mA /3.8V battery, you can watch, read and play games anytime, anywhere.
Design and technical configuration
The RUGGEDMASTER M1146 technical information lists the following configuration details.
Processor: CPU | Spreadtrum T616 Dual-core A75 2.0Ghz + Six-core A55 1.8GHz. Processor: GPU | Mali-G57-3EE-1core 750MHz. RAM: DDR | 6GB. ROM: EMMC | 128GB.
Display: LCD | 10.95 inches 1200*1920 FHD. Touch Panel: TP | Incell Multi-touch. Camera: Front Camera | 5MP Fixed focus. Camera: Rear camera | 13MP autofocus.
Speaker: Loudspeaker | 8Ω/1W *2. Vibration: support | Built-in flat vibration motor. MIC: support | Built-in capacitive mic. Type-C: OTG | Support.
Type-C: Charging | Type-C 5V/2A. earphone: US regulations | 3.5mm 4-section headset with MIC. Battery: lithium battery | Standard: 7000mA /3.8V, battery life: 7 hours to 10 hours. Sensors: Gravity/Gyroscope | Support 3D G-sensor games and applications.
Sensors: Hall | Support (optional). Card slot: SIM + TF | Choose two out of three (Nano SIM *2 or Nano SIM + TF). GNSS: support | GPS/GLONASS/BDS. WCN: WiFi/BT | 802.11b/g/n/ac 2.4G/5G +BT5.0.
Network: 4G+3G+2G | GSM:(B2/B3/B5/B8 ) ; WCDMA:(B1/B2/B5/B8 );TD-SCDMA:(B34/B39); LTE-TDD:(B38/B39/B40/B41); LTE-FDD: (B1/B2/B3/ B4/ B5/B7/B8/B12/B17/B20/B25/B26/B28/B66) Five modes, select by region. handwriting: Capacitive stylus | Support. Operating System: Android | Android 14.0. Software: Video Format | H.264&H.265 &MPEG4 1080p 60 fps, H.263 16CIF 30 fps, VP8&VP9 1080p 60fps.
RUGGEDMASTER M1146 wholesale enquiries
Explore the product photos and the separate Specs tab for RUGGEDMASTER M1146. Browse our smart tablets to compare related models, or send a wholesale enquiry with your quantity, destination and preferred configuration. RUGGEDMASTER can confirm supply and package details. The original product information provides the technical reference.
RUGGEDMASTER M1146 specifications
| RUGGEDMASTER M1146 technical specifications | |
|---|---|
| Processor | CPU | Spreadtrum T616 Dual-core A75 2.0Ghz + Six-core A55 1.8GHz |
| Processor | GPU | Mali-G57-3EE-1core 750MHz |
| RAM | DDR | 6GB |
| ROM | EMMC | 128GB |
| Display | LCD | 10.95 inches 1200*1920 FHD |
| Touch Panel | TP | Incell Multi-touch |
| Camera | Front Camera | 5MP Fixed focus |
| Camera | Rear camera | 13MP autofocus |
| Speaker | Loudspeaker | 8Ω/1W *2 |
| Vibration | support | Built-in flat vibration motor |
| MIC | support | Built-in capacitive mic |
| Type-C | OTG | Support |
| Type-C | Charging | Type-C 5V/2A |
| earphone | US regulations | 3.5mm 4-section headset with MIC |
| Battery | lithium battery | Standard: 7000mA /3.8V, battery life: 7 hours to 10 hours |
| Sensors | Gravity/Gyroscope | Support 3D G-sensor games and applications |
| Sensors | Hall | Support (optional) |

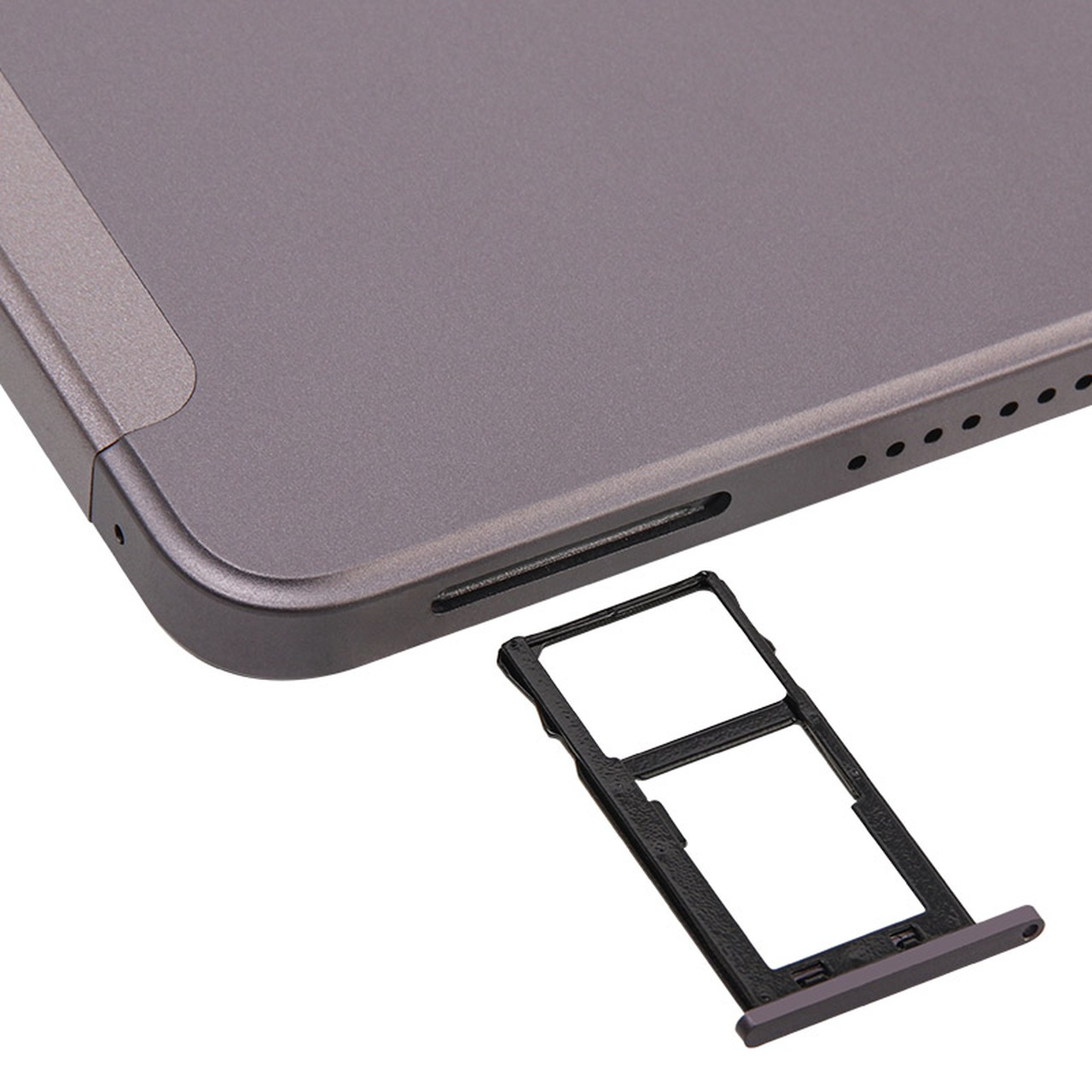

| Card slot | SIM + TF | Choose two out of three (Nano SIM *2 or Nano SIM + TF) |
| GNSS | support | GPS/GLONASS/BDS |
| WCN | WiFi/BT | 802.11b/g/n/ac 2.4G/5G +BT5.0 |
| Network | 4G+3G+2G | GSM:(B2/B3/B5/B8 ) ; WCDMA:(B1/B2/B5/B8 );TD-SCDMA:(B34/B39); LTE-TDD:(B38/B39/B40/B41); LTE-FDD: (B1/B2/B3/ B4/ B5/B7/B8/B12/B17/B20/B25/B26/B28/B66) Five modes, select by region |
| handwriting | Capacitive stylus | Support |
| Operating System | Android | Android 14.0 |
| Software | Video Format | H.264&H.265 &MPEG4 1080p 60 fps, H.263 16CIF 30 fps, VP8&VP9 1080p 60fps |
| Software | Audio Format | MP3/AAC/AAC+/AMR-NB |
| Software | Image Format | JPG, JPEG, GIF, BMP, PNG |
| Software | eBooks | TXT, EPUB, PDF,WORD,EXCEL, POWERPOINTS |
| Software | use | Google, Chromeme, Gmail, Maps, YouTube, Photos, Messages, Calculator, Clock, Duo, Sound Record, Play Store, Camera, YT Music |
| Software | Office software | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| Software | Supported languages | Multilingual |
| Software | Third-party certification | FCC, CE,ROHS(As requested by Po) |
| Body | Shell material | Hardware + Plastic Hot Melt |
| Body | size | 258*169.6*8.0mm |
| Body | weight | 650g |
| Working Environment | Working temperature | 0-45℃ |
| Working Environment | Working humidity | 10%-90% non-condensing |
| Working Environment | Storage temperature | -10~60℃ |
| Working Environment | Storage humidity | 5%-90% non-condensing |
| USB Charger (5V/2A) | *1 （According to buyer's country, or default EU Charger) | *1 （According to buyer's country, or default EU Charger) |
| USB cable | *1 | *1 |
| User manual | *1 | *1 |
| Protective Case | Optional | Optional |
| Screen Protector Film | Optional | Optional |
| Stylus Pen | Optional | Optional |
