RUGGEDMASTER KT-V520 pos terminals is listed for wholesale enquiries through RuggedMaster. ARM Quad core Contex-A53@1.5GHz, Android11.0, 2GB(Standard), 3GB(Optional), 5 inch (IPS), TFT-LCD, 720*1280 IPS, G+F, 4.2V/5200mAh(7.6 V/ 2 6 0 0 mAh).

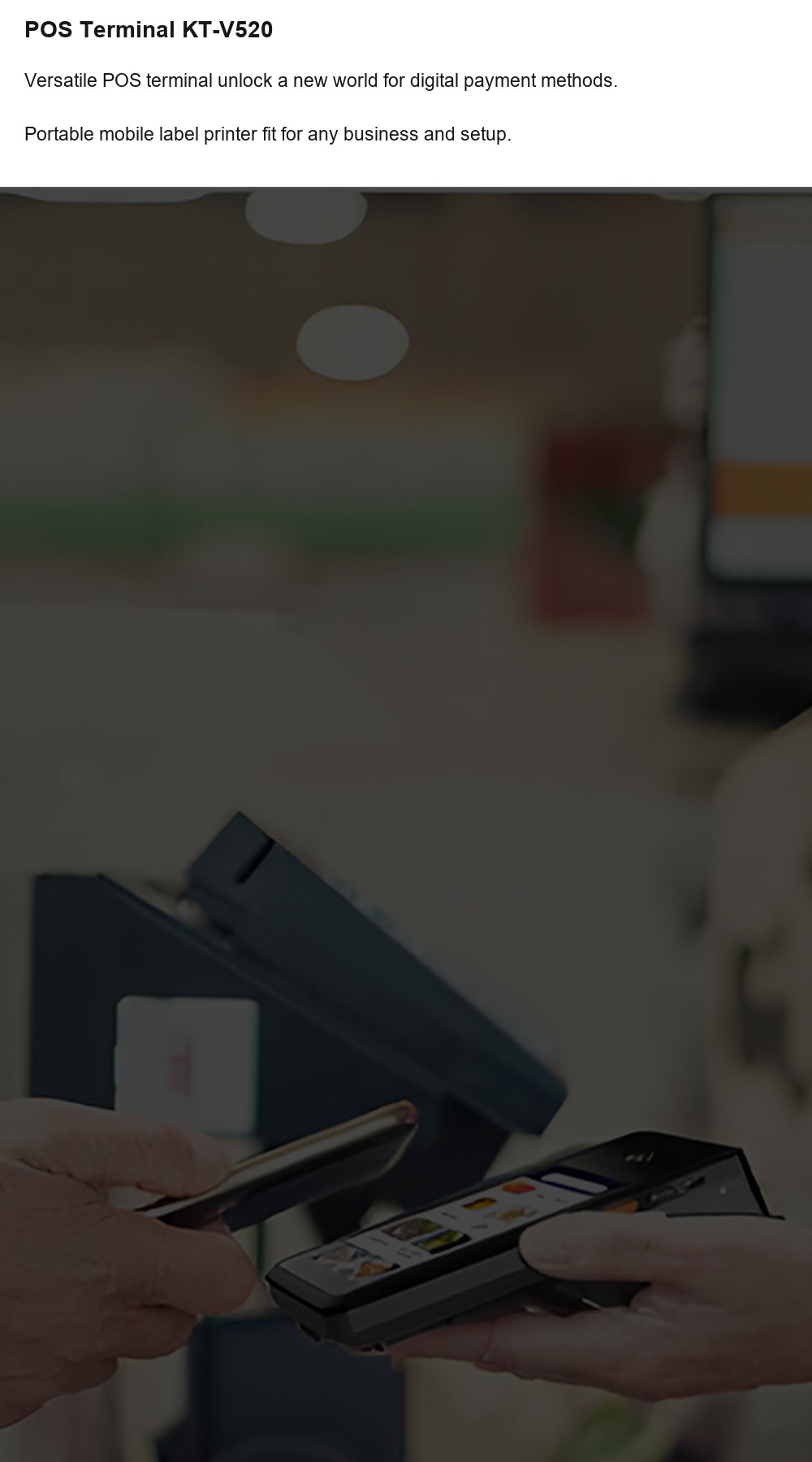

POS Terminal KT-V520

Versatile POS terminal unlock a new world for digital payment methods.

Portable mobile label printer fit for any business and setup.

58MM Receipt Printer with Android 11.0

Android 11

Dual SIM card slots

2G/3G/4G

2.4G/5G WiFi 802.11ac

Bluetooth 4.1

2GB+16GB

MediaTek 6739

LCD 5-inch IPS

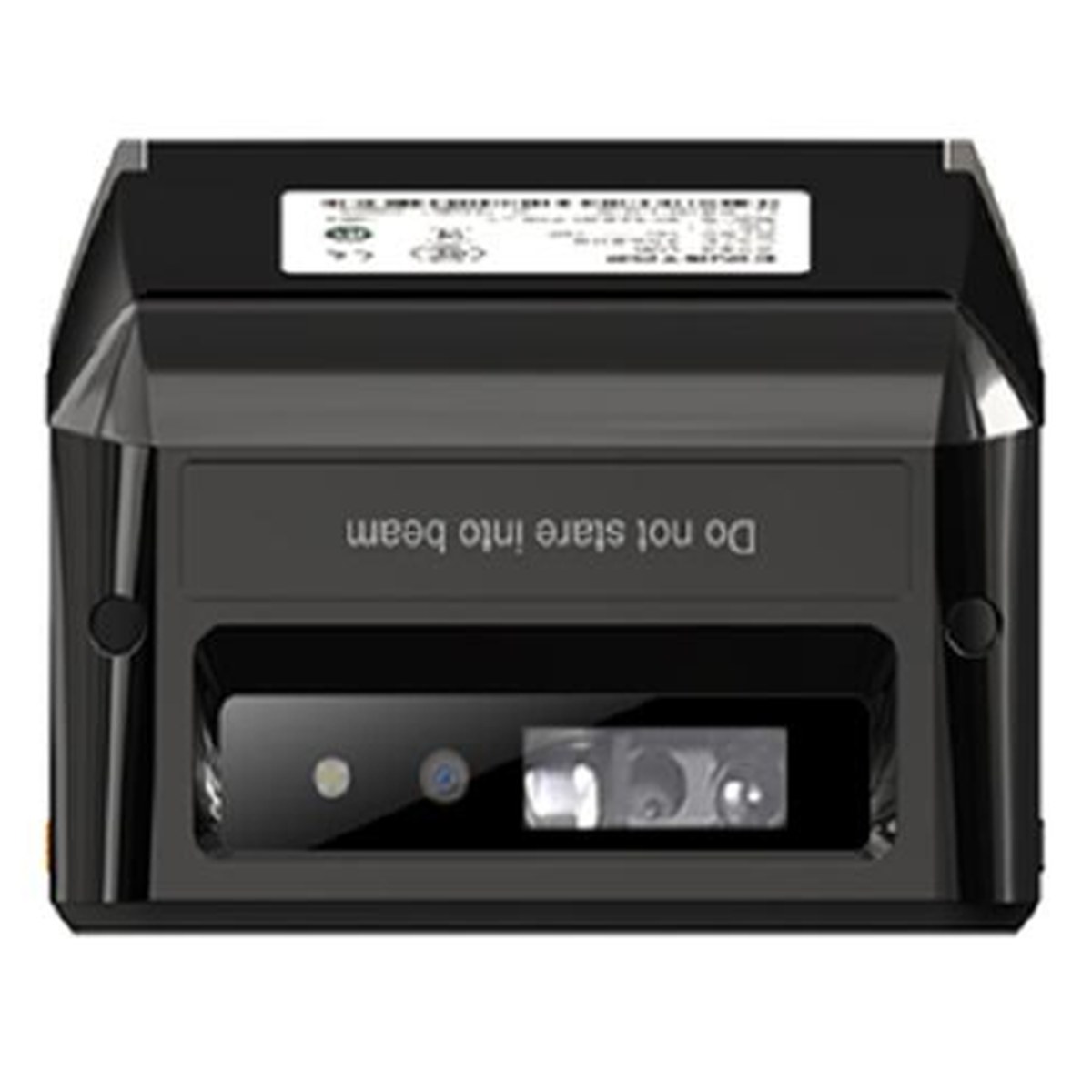

Bar code scanner

58mm built-in thermal printer

NFC, Magnetic/chip card reader (optional)

Face recognition unlock (optional)

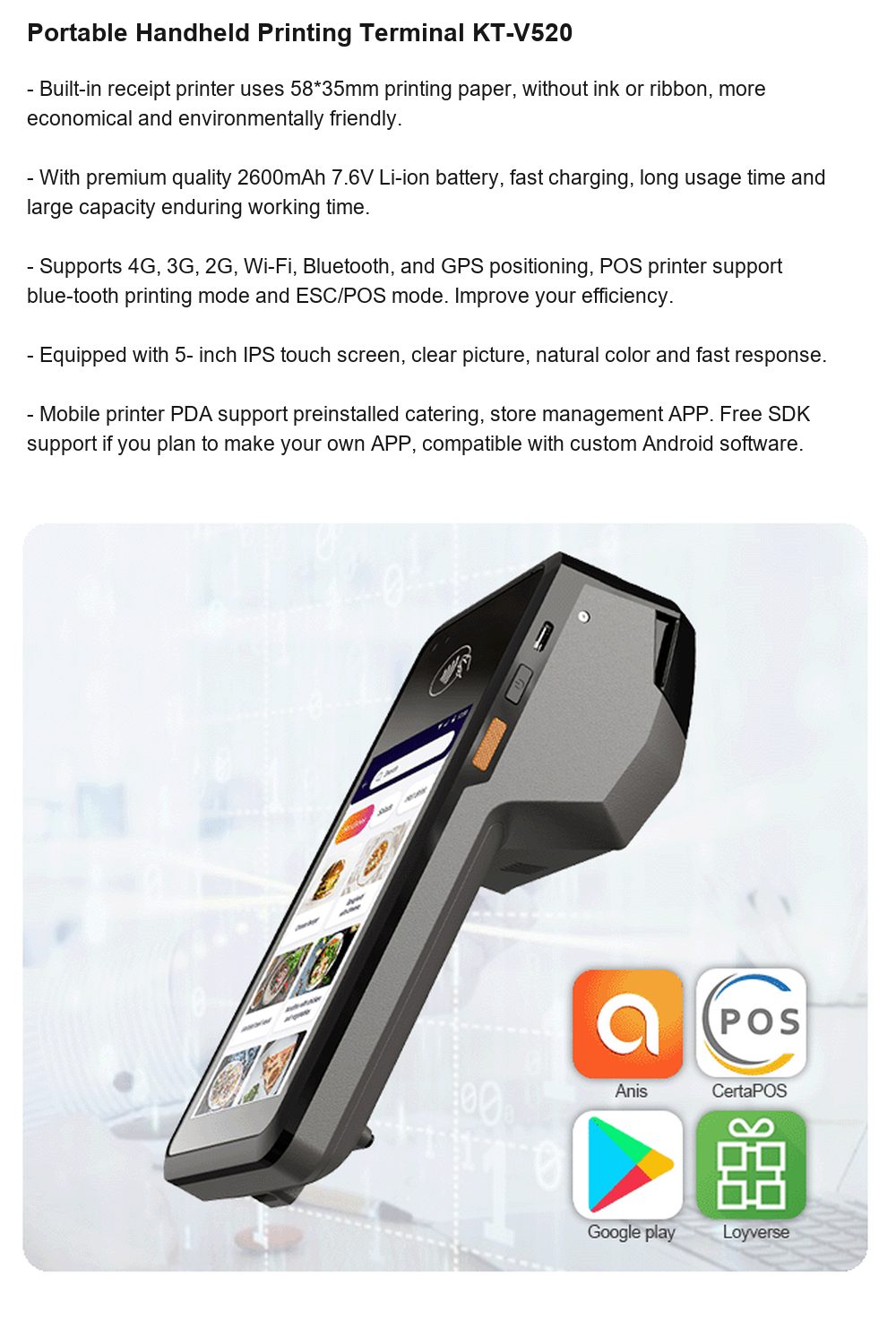

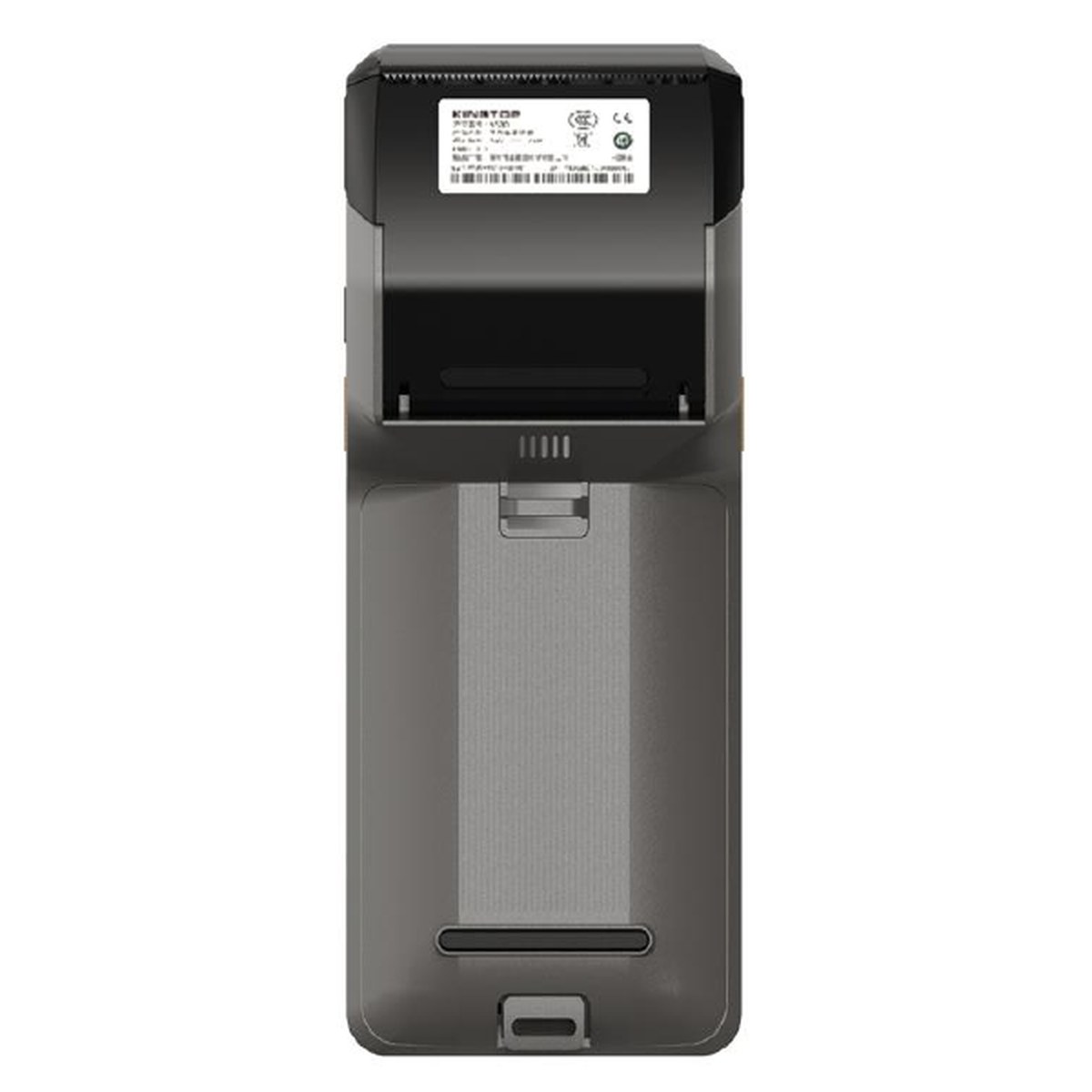

Portable Handheld Printing Terminal KT-V520

– Built-in receipt printer uses 58*35mm printing paper, without ink or ribbon, more economical and environmentally friendly.

– With premium quality 2600mAh 7.6V Li-ion battery, fast charging, long usage time and large capacity enduring working time.

– Supports 4G, 3G, 2G, Wi-Fi, Bluetooth, and GPS positioning, POS printer support blue-tooth printing mode and ESC/POS mode. Improve your efficiency.

– Equipped with 5- inch IPS touch screen, clear picture, natural color and fast response.

– Mobile printer PDA support preinstalled catering, store management APP. Free SDK support if you plan to make your own APP, compatible with custom Android software.

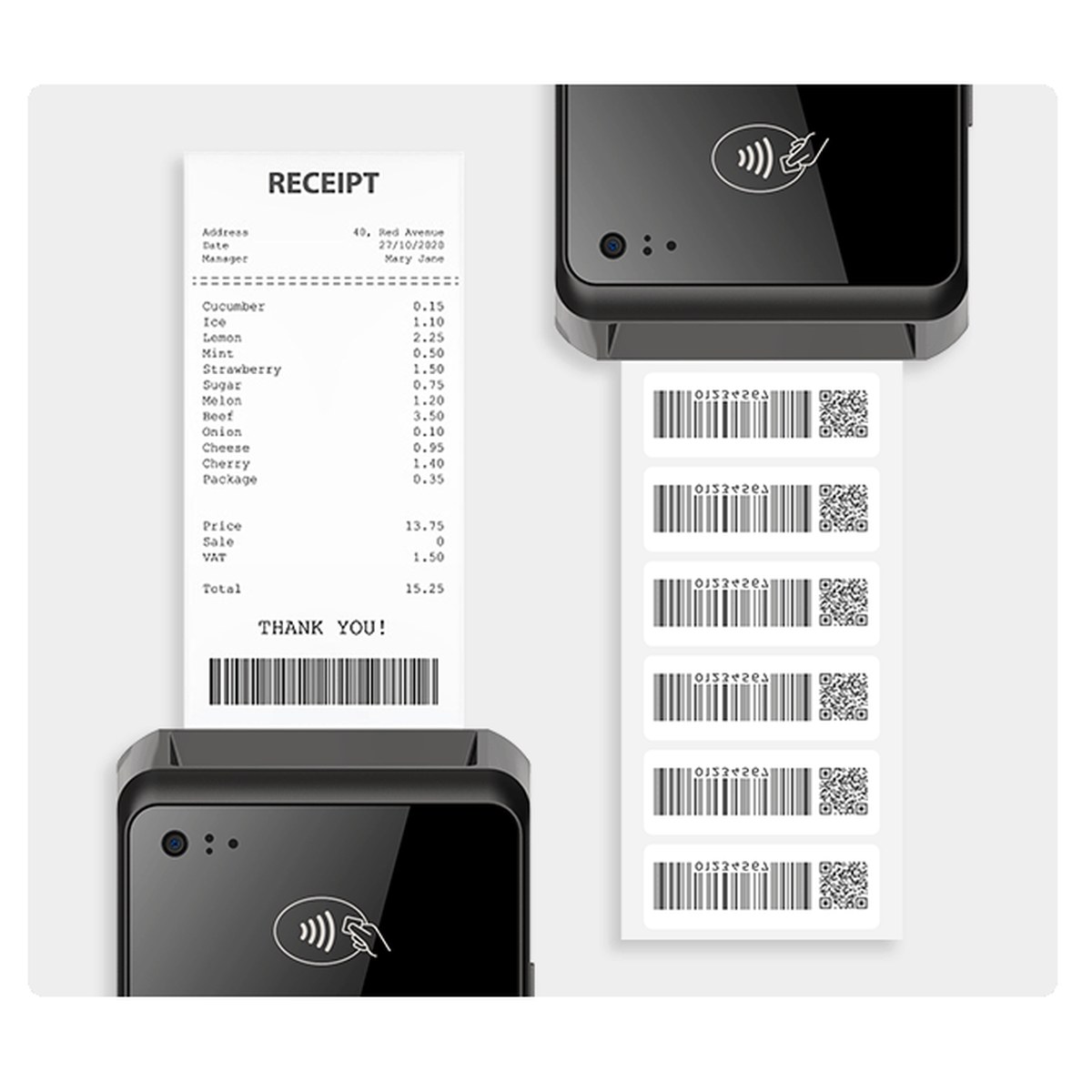

Labels &Tickets Dual Printing

Kingtop KT-V520 supports dual printing of tickets and labels. 80mm/s high speed printing allows you to switch between busy business situations without having to worry about the business process and waiting problems.

90mm/s Printing Speed

58mm Paper Width

0.2s Scan code

38mm Paper Diameter

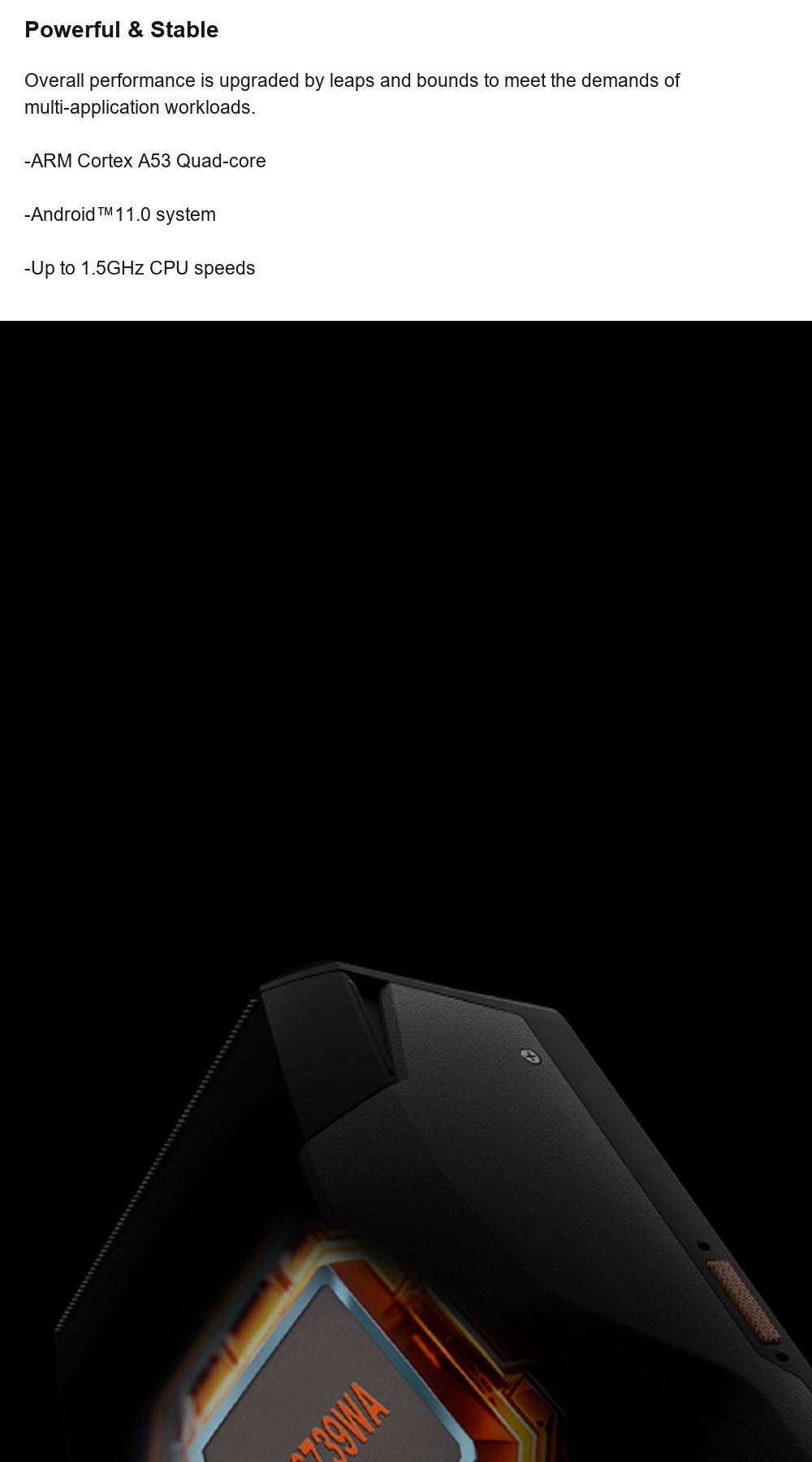

Powerful & Stable

Overall performance is upgraded by leaps and bounds to meet the demands of multi-application workloads.

-ARM Cortex A53 Quad-core

-Android™11.0 system

-Up to 1.5GHz CPU speeds

Wireless Bluetooth Printing

By connecting your mobile device to the handheld POS terminal KT-V520 via Bluetooth, you can easily enjoy fast printing.

BT4.2

WIFI

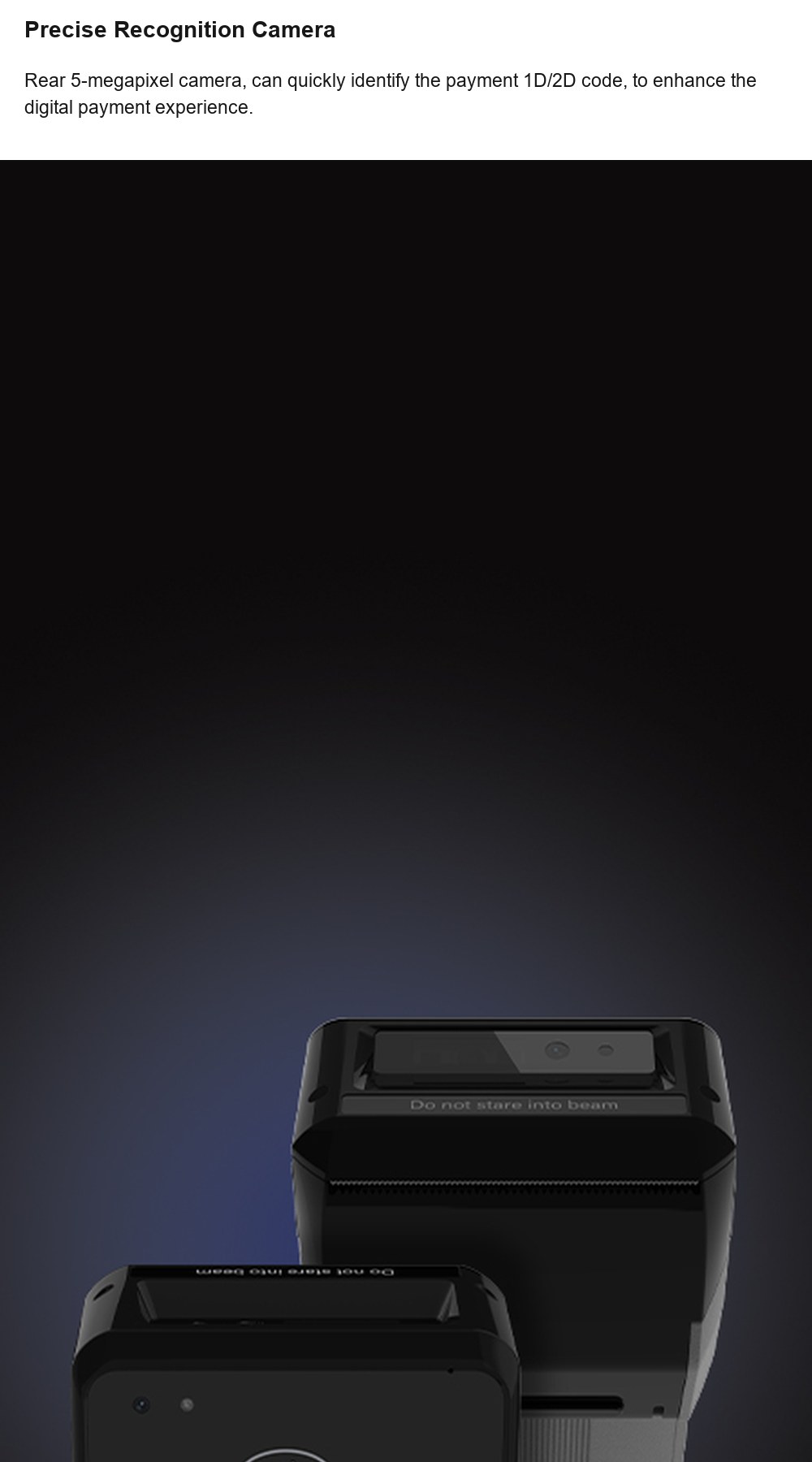

Precise Recognition Camera

Rear 5-megapixel camera, can quickly identify the payment 1D/2D code, to enhance the digital payment experience.

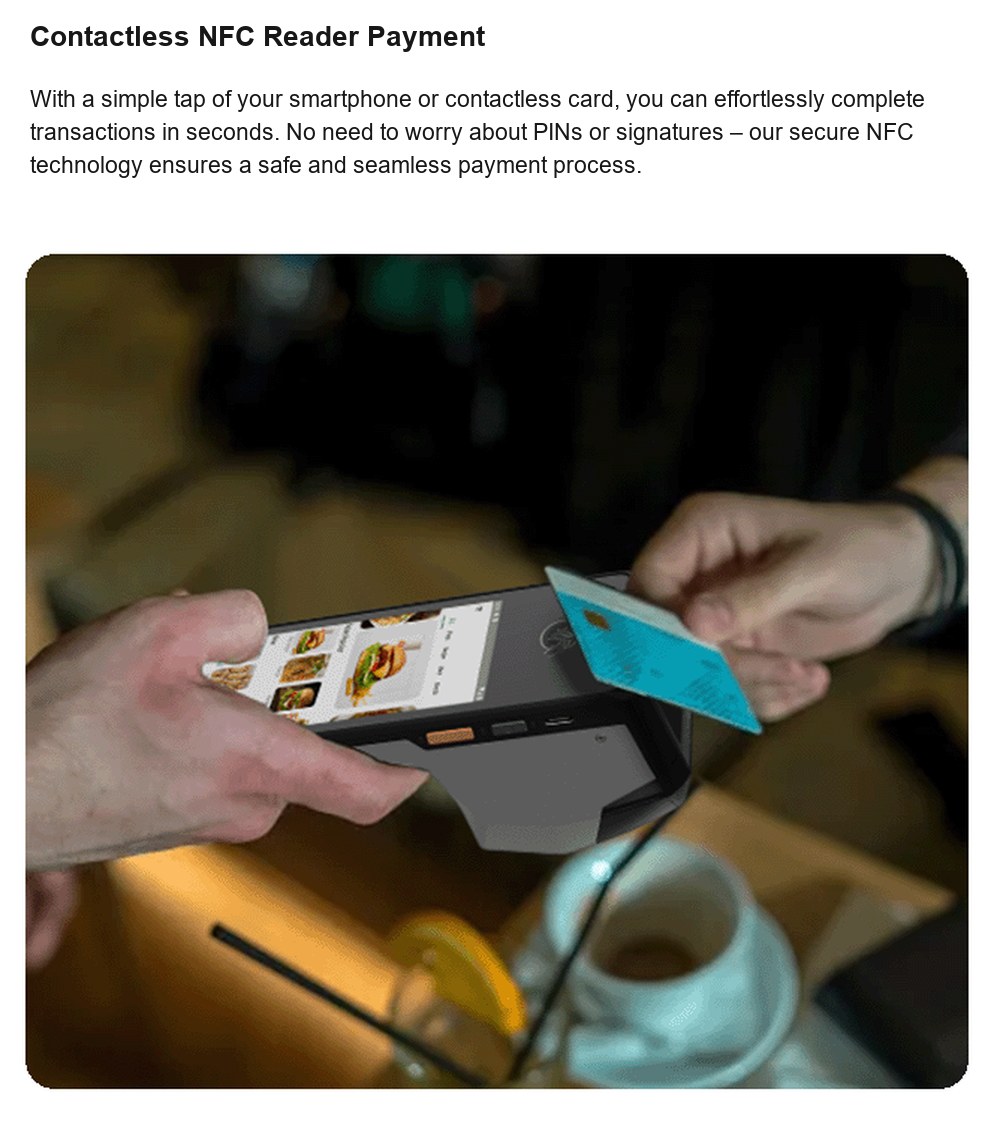

Contactless NFC Reader Payment

With a simple tap of your smartphone or contactless card, you can effortlessly complete transactions in seconds. No need to worry about PINs or signatures – our secure NFC technology ensures a safe and seamless payment process.

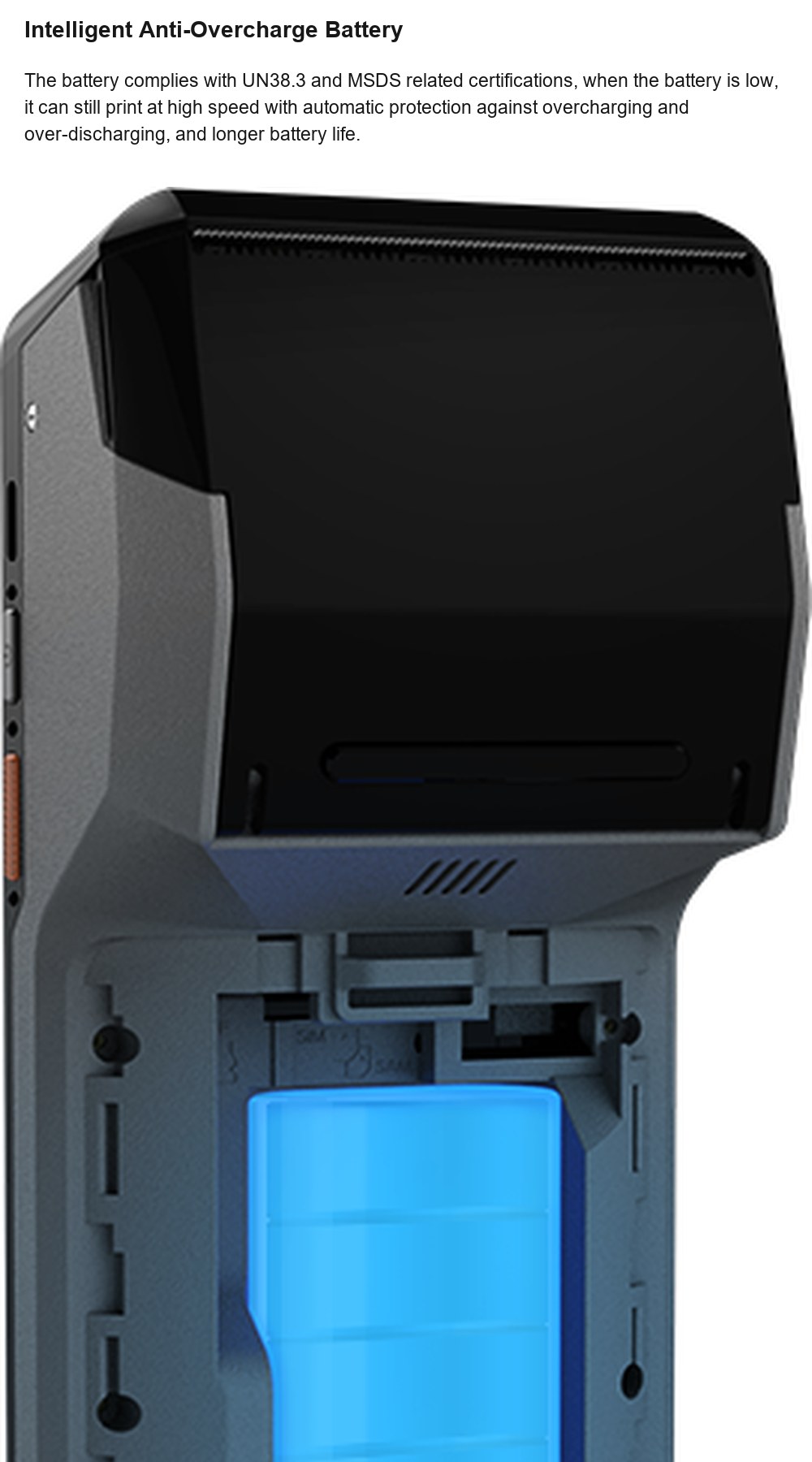

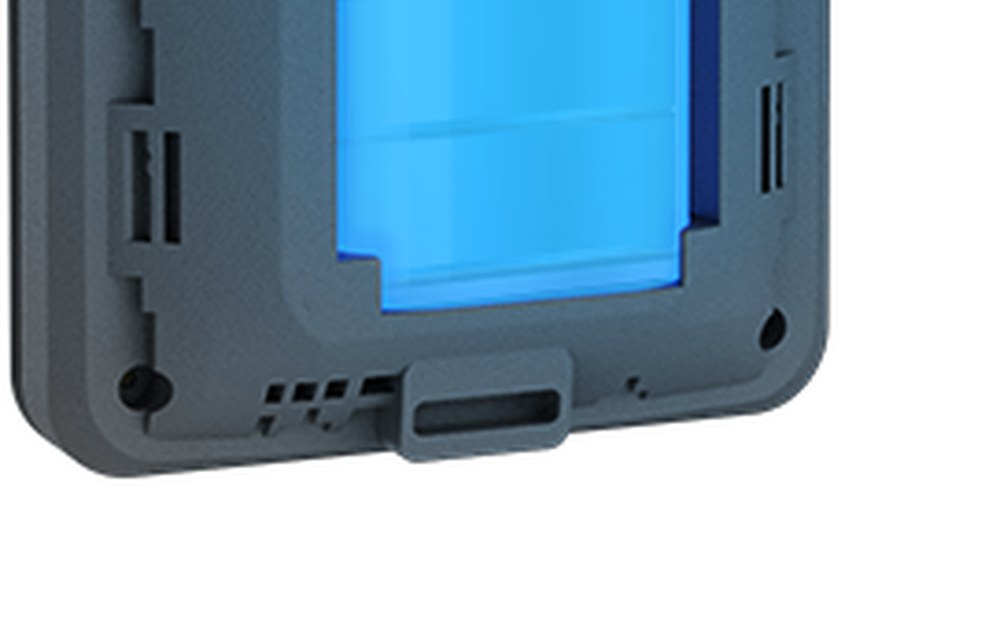

Intelligent Anti-Overcharge Battery

The battery complies with UN38.3 and MSDS related certifications, when the battery is low, it can still print at high speed with automatic protection against overcharging and over-discharging, and longer battery life.

Applicable to Many More Scenarios

“ Overall the features on this excel at scanning, printing and more in any inventory system. Simple thermal printing that comes out high quality on normal stock, you can even take one you just made and scan it with this tool and it reads right up. ”

——Brian Lera, Founding Manager, Cambridge, MA

RUGGEDMASTER KT-V520 features and specifications

Product Model: KT-V520.

CPU: ARM Quad core Contex-A53@1.5GHz.

OS Version: Android11.0.

RAM: 2GB(Standard), 3GB(Optional).

ROM: 16GB(Standard), /32GB/64GB(Optional).

Bluetooth: BT4.2.

LCD: 5 inch (IPS), TFT-LCD, 720*1280 IPS, G+F.

Front: 2mp FF.

Rear: 5mp AF+fill light.

1D/2D scanning: Support.

Wi-Fi: 2.4G&5GHz, WIFI5: IEEE 802.11 ac/a/b/g/n.

2G/3G/4G Cellular: 【Default Eurasian version】 FDD-LTE:B1/B3/B5/B7/B8/B20/B26/B28 TDD-LTE:B38/B39/B40/B41 WCDMA:B1/B2/B5/B8 GSM/EDGE/GPRS：850/900/1800/1900 【Optional Latin American version】 FDD-LTE:B2/B4/B5/B7/B12/B13/B17/B28 TDD-LTE:B38/B40/B41 WCDMA: B2/B4/B5/B8 GSM/EDGE/GPRS: 850/900/1800/1900.

GNSS: Support GPS/Glonass/Beidou/QZSS.

Hardware Scanning Engine (Optional): Supported QR code systems: QR Code, Micro QR, Data Mat rix ,PDF 417, Micro PDF 417, Aztec Support one dimensional code system: Code 128, EAN – 13, EAN – 8, UPC – E, UPC -A ,ISBN, ISSN,Code 11,ITF – 25(Inter leaved 2 of 5), Code 39, Code 93, Code 32, Coda bar, Matrix 2 of 5, Industrial 25, IATA 25, MSI Plessey.

NFC: Standard Android interface NFC version Support Type A, TypeB, Mifare, Felica, ID card SUPPORTS 13.56MHZ, IISO/ICE14443, ISO15693 STANDARDS Support card reading, card emulation, peer-to-peer.

USB interface: Support TYPE-C, Micro USB v2.0, OTG.

SIM card: 1×SIM decks.

PSAM: 2 pcs standard PSAM decks.

Extend SD: Support.

POGOPIN: 6 pin POGOPIN support for charging and USB communication.

Speaker: 1 x 2030 speaker, rated power 1W, loudness 95dB.

MIC: Supports sound wave payment and recording.

Audio Jack: Not Support.

ICCR Card: Not Support.

MSR Card: Not Support.

Printer: High speed thermal printer, paper roll width 58mm, paper roll diameter 40mm Speed:90mm/s.

Adaptor: DC: 5V/2A(optional).

Cable: Type-C.

Printing paper: Thermal printing paper φ40*57mm.

Manual: English version(default), support customized.

Battery: 4.2V/5200mAh(7.6 V/ 2 6 0 0 mAh).

Dimension: 183.6 x 80 x 57.6 mm.

Google GMS: Support.

Operating Temperature: -10℃-50℃.

Storage Temperature: -20℃-70℃.

Working Humidity: 5%-95%.

RUGGEDMASTER KT-V520 bulk orders

For a RUGGEDMASTER KT-V520 wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.

Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.

Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.

Compare the RUGGEDMASTER KT-V520 dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
