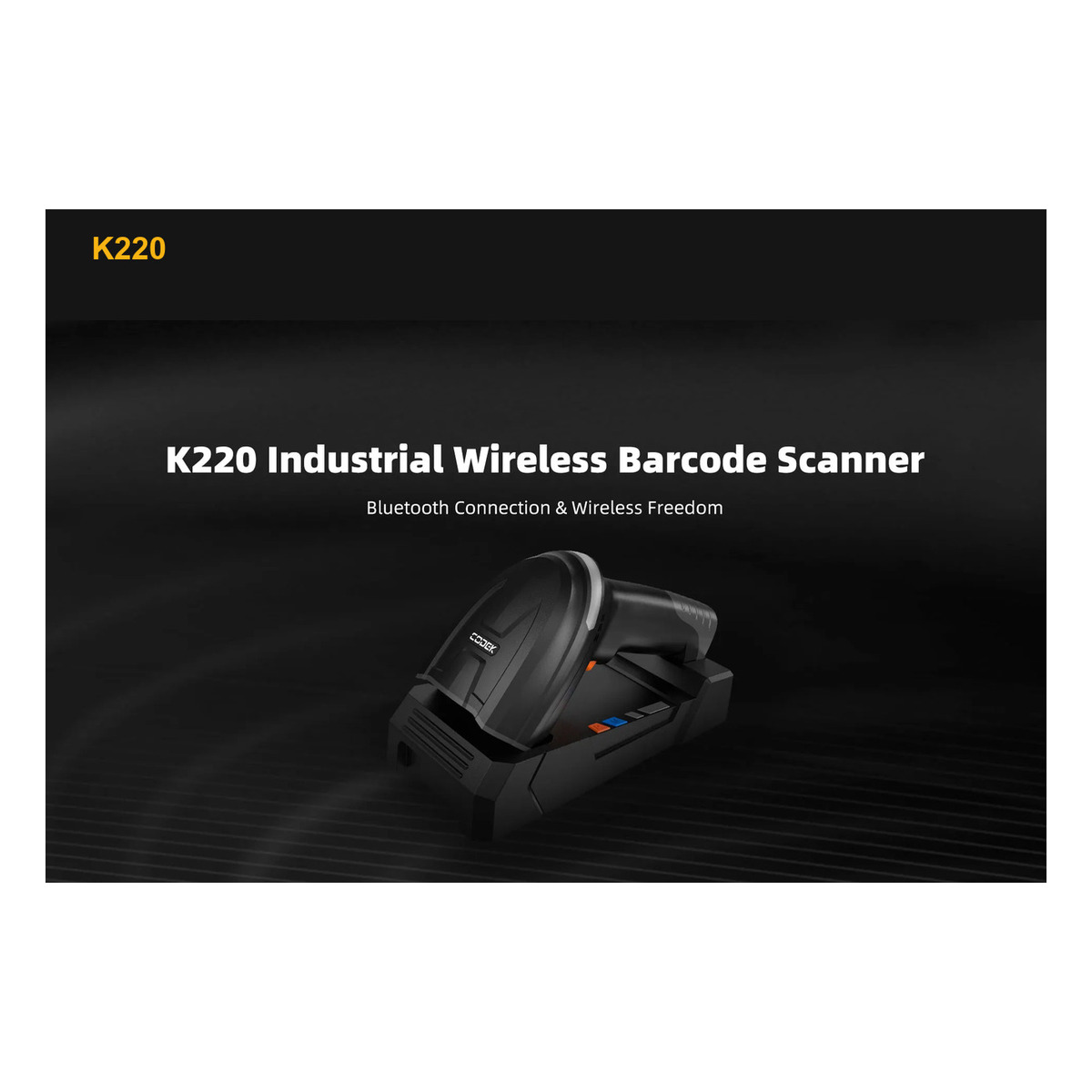

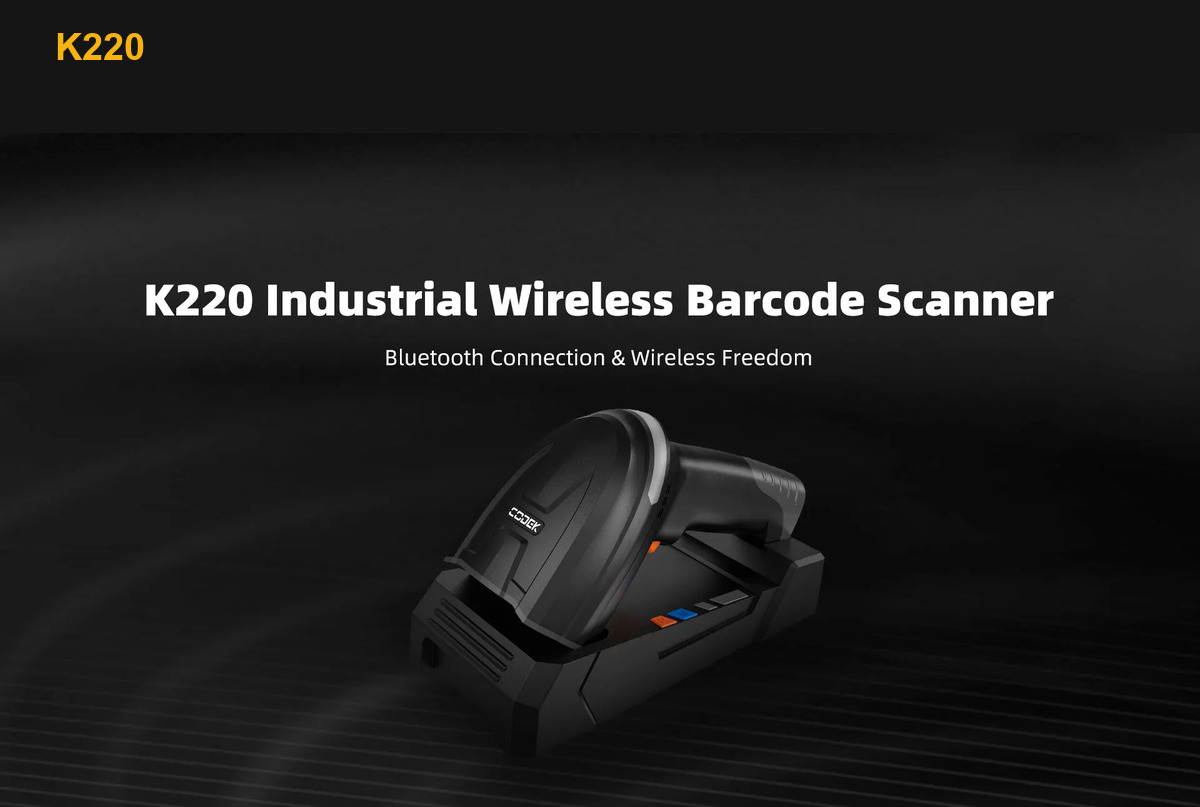

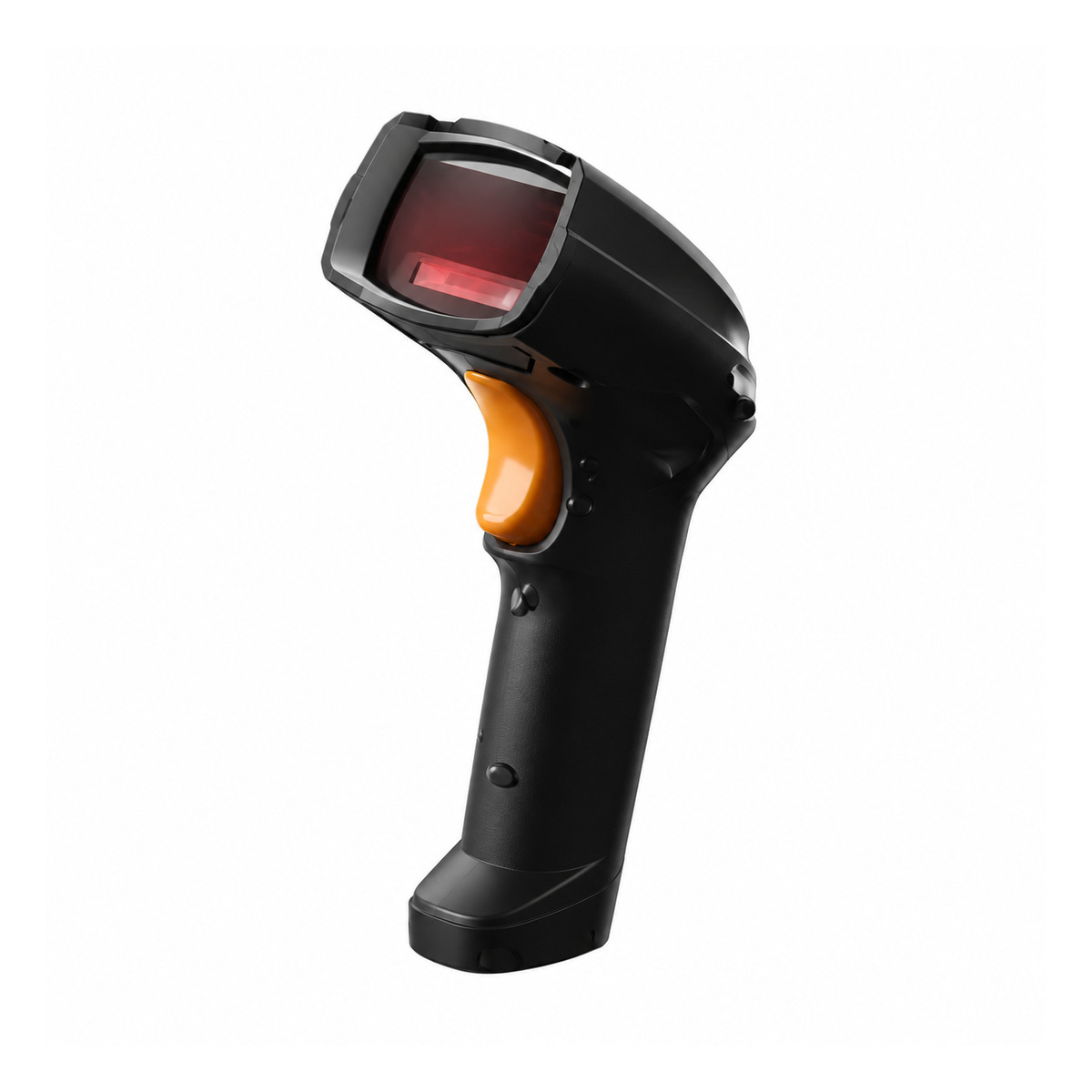

RUGGEDMASTER K220 Barcode Scanners

Wholesale RUGGEDMASTER K220 Barcode Scanners for bulk orders at RuggedMaster. High-Performance Scanning on DPM and 1D/2D Barcodes Equipped with a professional scan engine, it can accurately and rapidly read 1D/2D barcodes

RUGGEDMASTER K220 Product Features

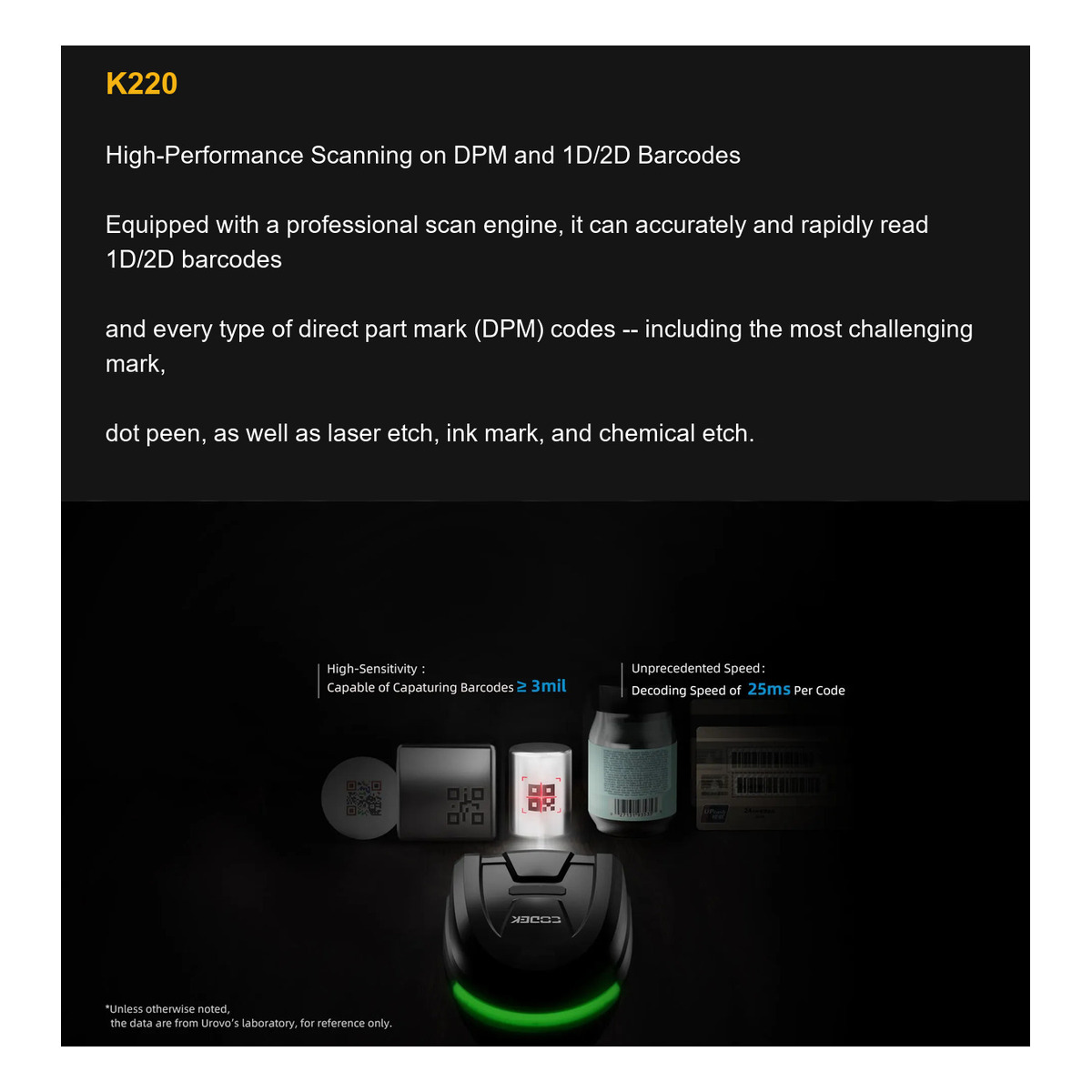

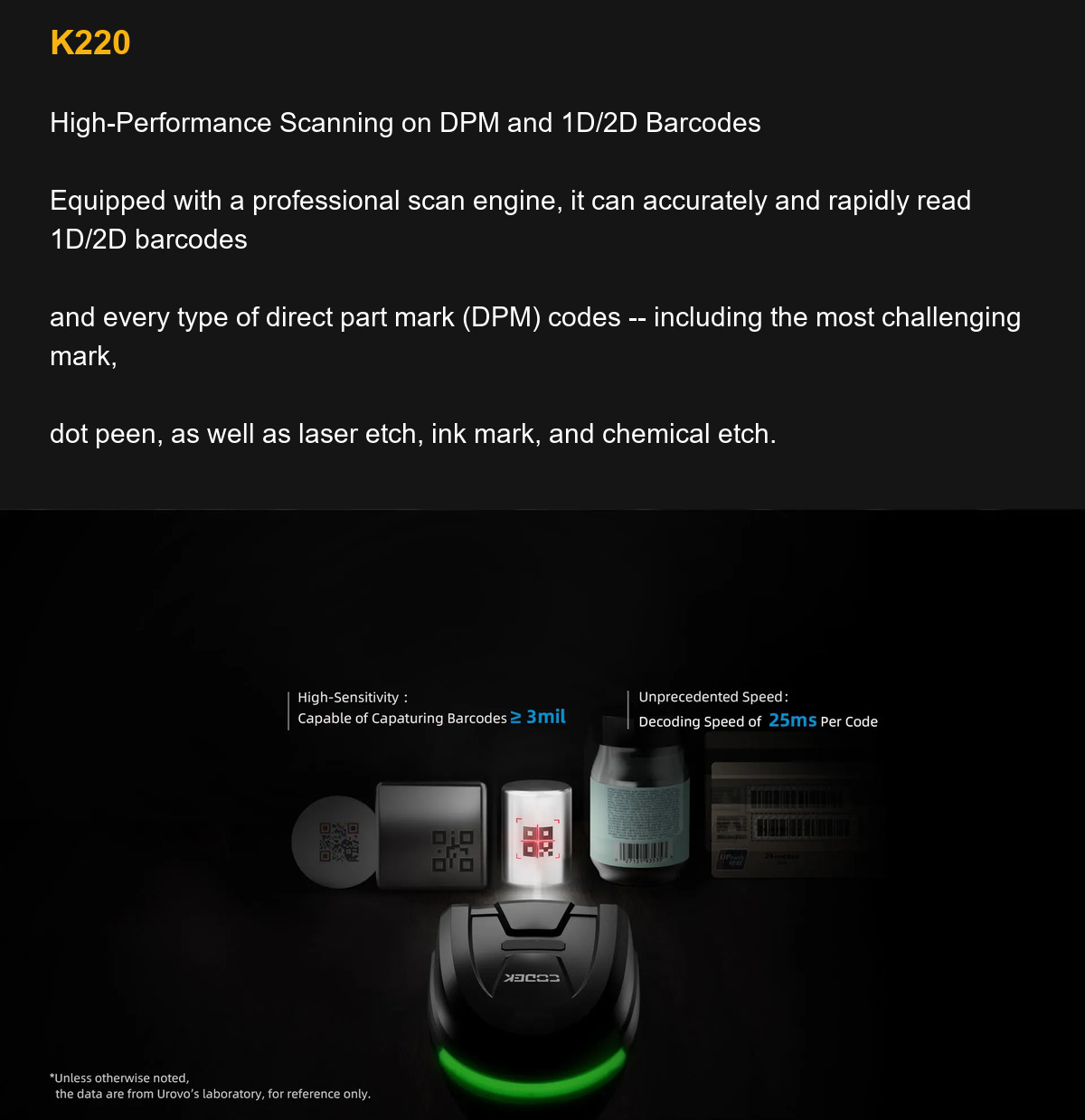

High-Performance Scanning on DPM and 1D/2D Barcodes

Equipped with a professional scan engine, it can accurately and rapidly read 1D/2D barcodes

and every type of direct part mark (DPM) codes — including the most challenging mark,

dot peen, as well as laser etch, ink mark, and chemical etch.

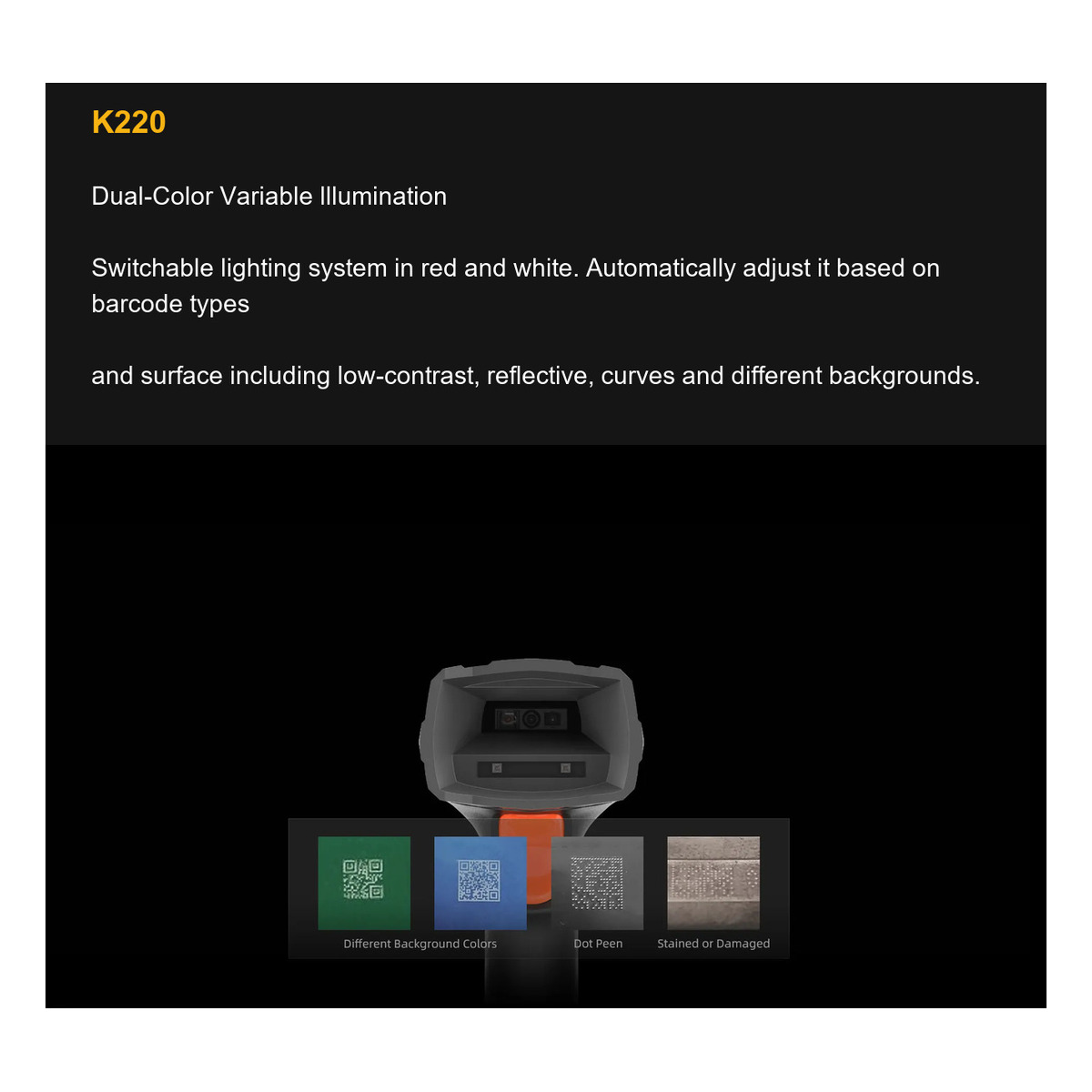

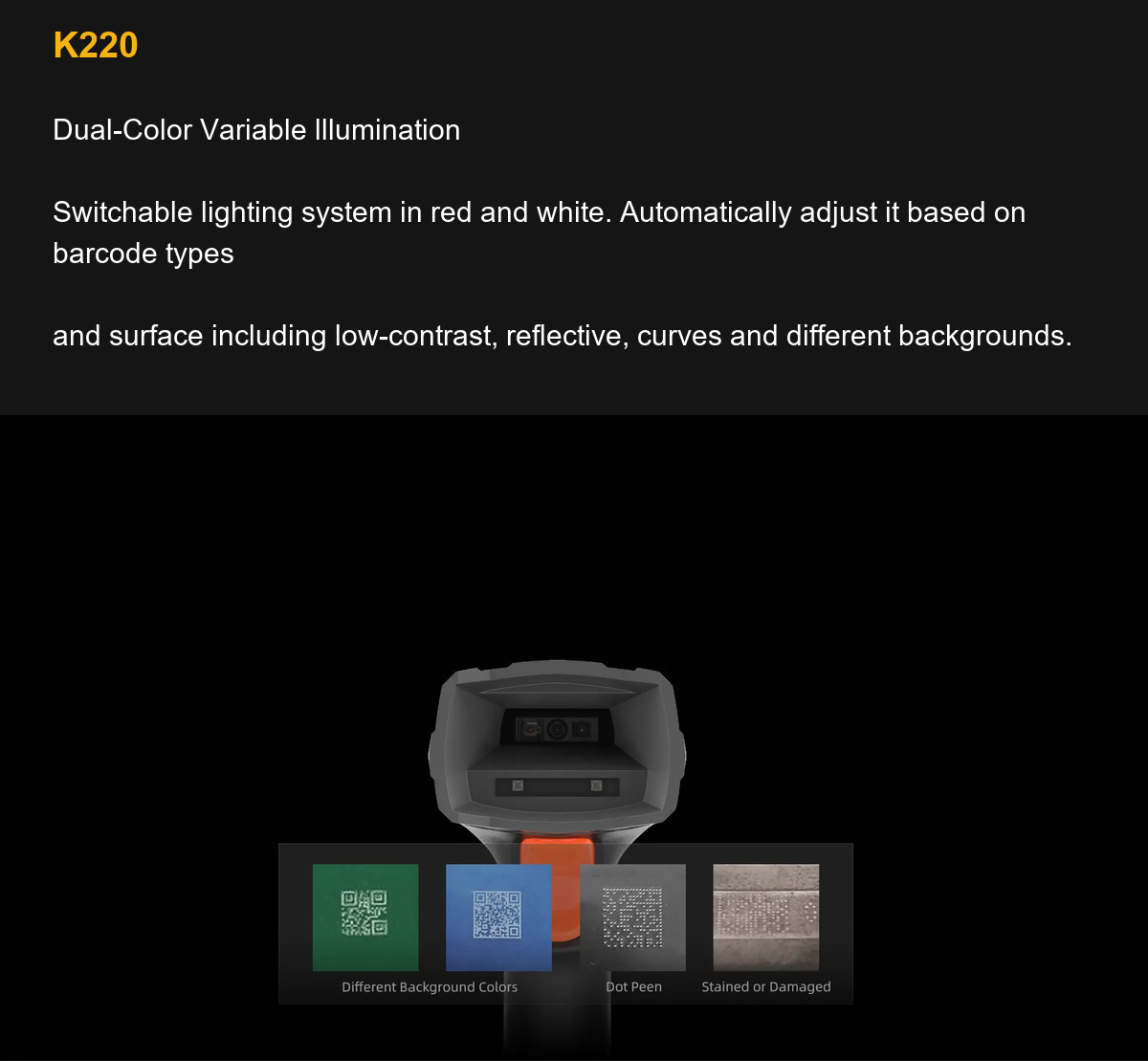

Dual-Color Variable lllumination

Switchable lighting system in red and white. Automatically adjust it based on barcode types

and surface including low-contrast, reflective, curves and different backgrounds.

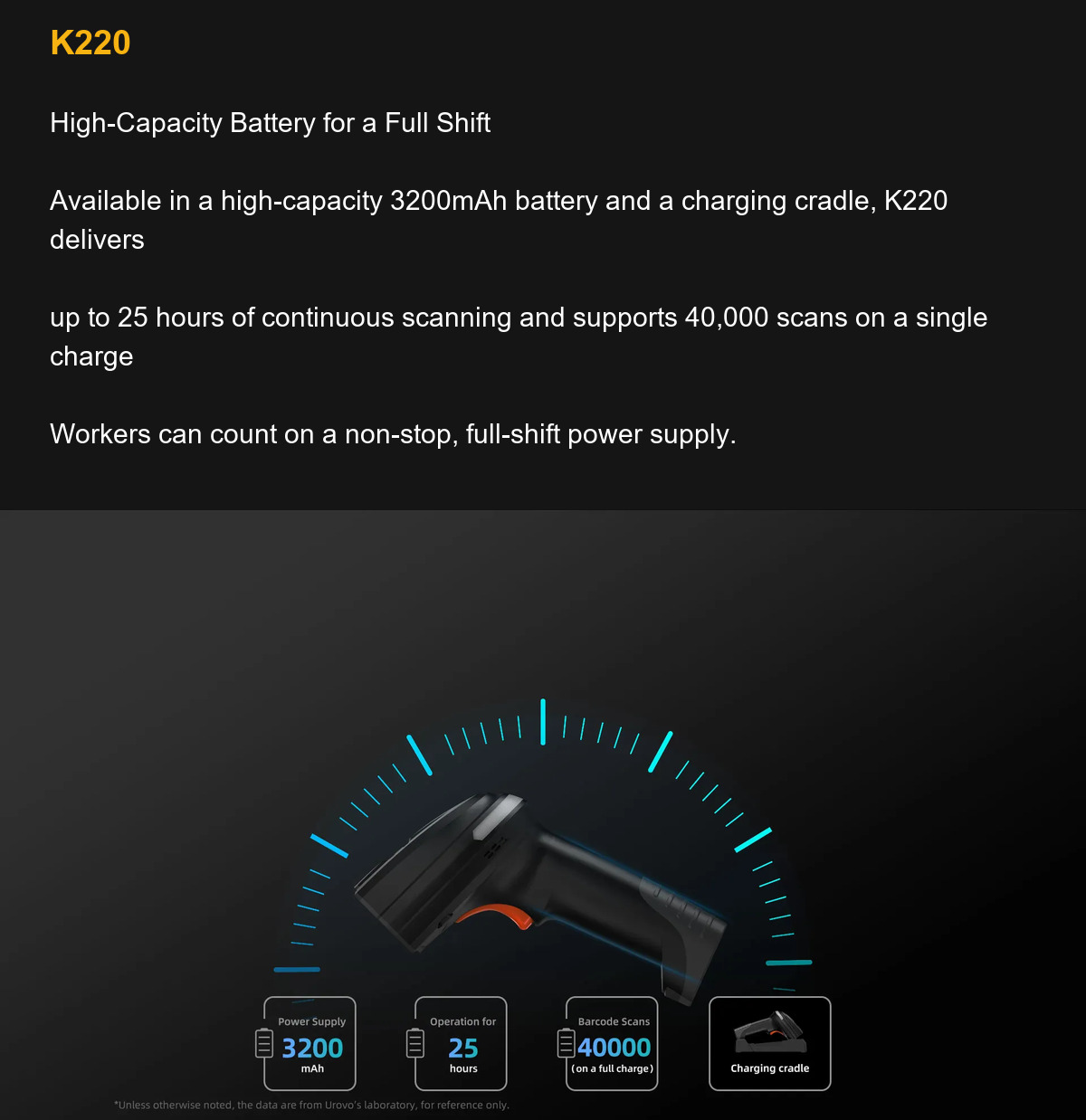

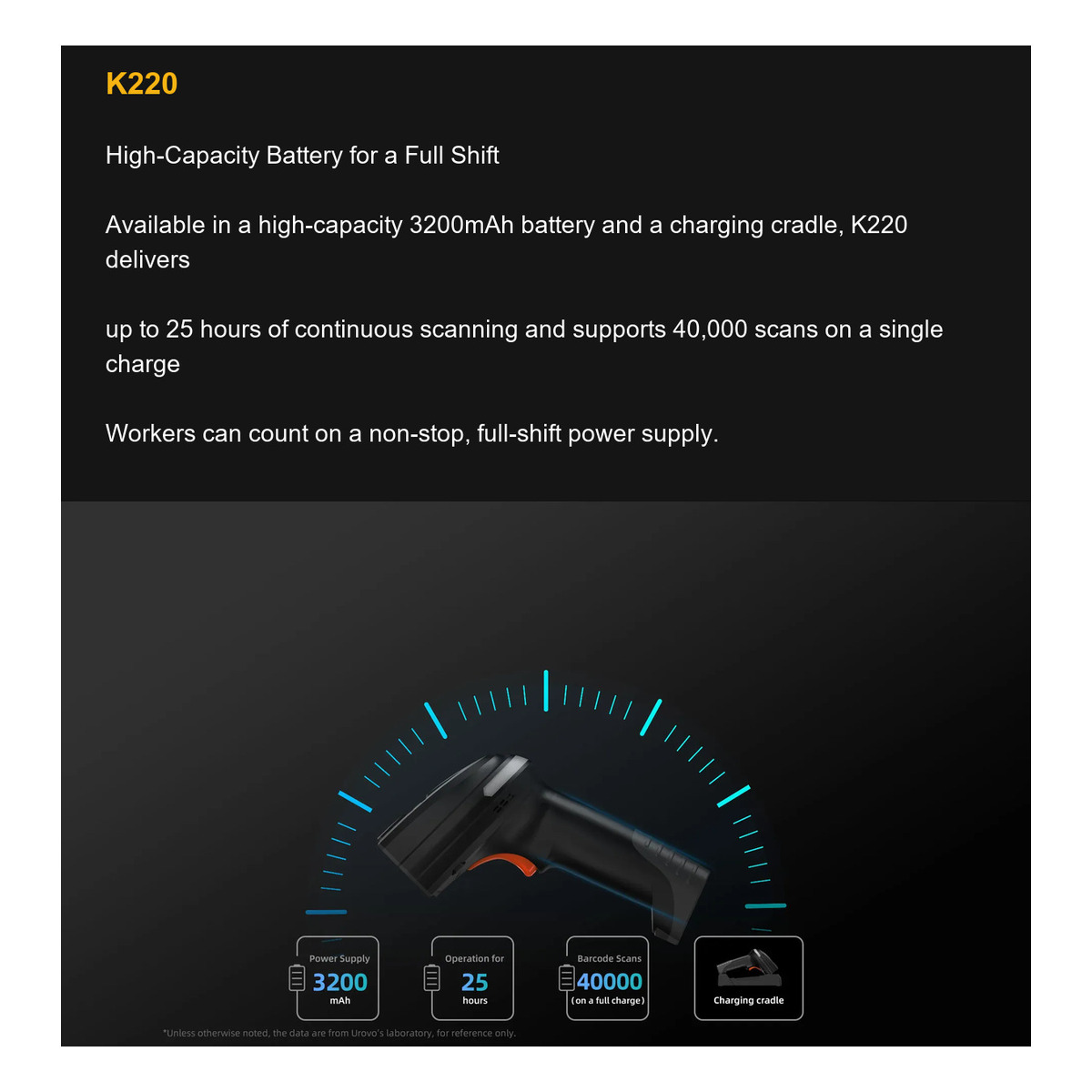

High-Capacity Battery for a Full Shift

Available in a high-capacity 3200mAh battery and a charging cradle, K220 delivers

up to 25 hours of continuous scanning and supports 40,000 scans on a single charge

Workers can count on a non-stop, full-shift power supply.

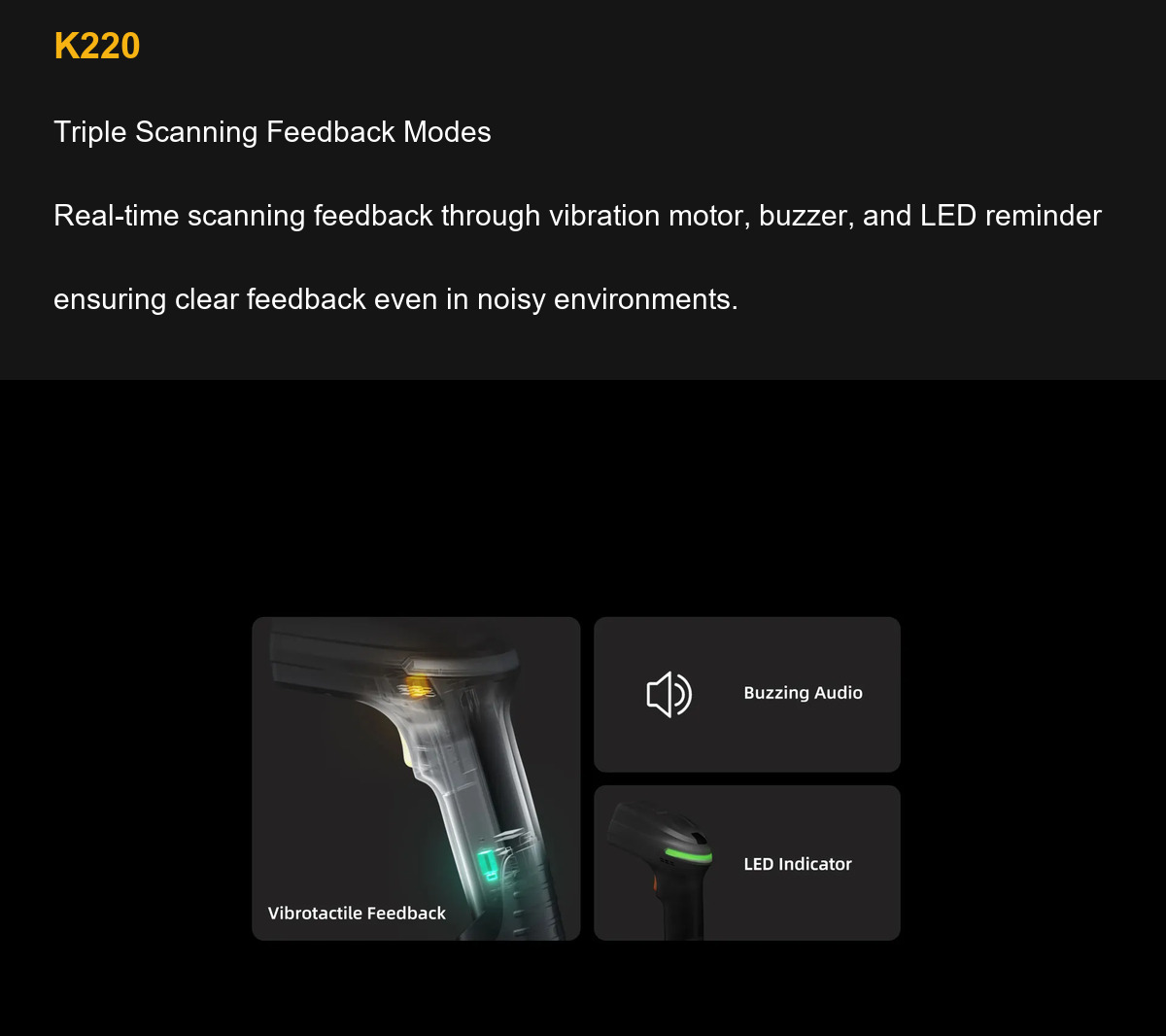

Triple Scanning Feedback Modes

Real-time scanning feedback through vibration motor, buzzer, and LED reminder

ensuring clear feedback even in noisy environments.

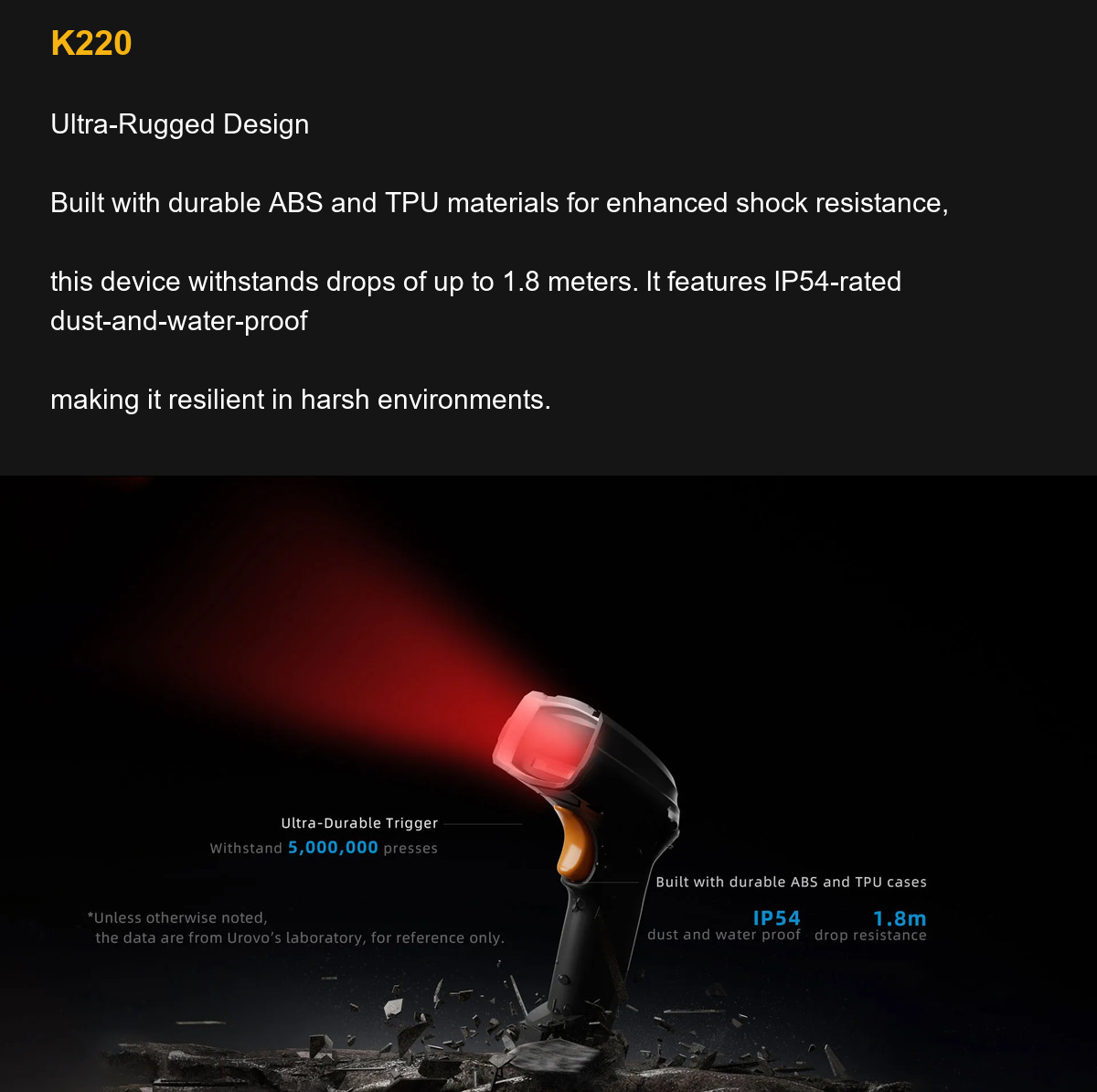

Ultra-Rugged Design

Built with durable ABS and TPU materials for enhanced shock resistance,

this device withstands drops of up to 1.8 meters. lt features lP54-rated dust-and-water-proof

making it resilient in harsh environments.

High-Performance Scanning on DPM and 1D/2D Barcodes

Equipped with a professional scan engine, it can accurately and rapidly read 1D/2D barcodes

and every type of direct part mark (DPM) codes — including the most challenging mark,

dot peen, as well as laser etch, ink mark, and chemical etch.

Dual-Color Variable lllumination

Switchable lighting system in red and white. Automatically adjust it based on barcode types

and surface including low-contrast, reflective, curves and different backgrounds.

High-Capacity Battery for a Full Shift

Available in a high-capacity 3200mAh battery and a charging cradle, K220 delivers

up to 25 hours of continuous scanning and supports 40,000 scans on a single charge

Workers can count on a non-stop, full-shift power supply.

Triple Scanning Feedback Modes

Real-time scanning feedback through vibration motor, buzzer, and LED reminder

ensuring clear feedback even in noisy environments.

Ultra-Rugged Design

Built with durable ABS and TPU materials for enhanced shock resistance,

this device withstands drops of up to 1.8 meters. lt features lP54-rated dust-and-water-proof

making it resilient in harsh environments.

RUGGEDMASTER K220 Technical Overview

Sensor: 1280*1080, 1.3MP, CMOS, 60 frames per second

Illumination: Warm white LED & red LED

Aimer: 650 nm laser

Dimensions: 98mmx72mmx186mm Scanner Weight: 238g Cradle Weight: 216g

Scan Angle: Roll angle 360°, pitch angle ±60° , skew angle ± 60°

Resolution: ≧3mil

Scanning Feedback: Vibration, buzzer, and LED

Decode Capabilities: 1D: UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS 1128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Industrial 2 of 5, Matrix 25, Standard 25, Codabar, MSI/MSI PLESSEY, GS1 DataBar etc. 2D: QR Code, Data Matrix, PDF417 etc.

Protection: IP54 dustproof and waterproof 1.8m drop resistance

Environmental: Operating temperature: -20~50°C Storage temperature: -40~70°C Humidit y: 5%~95%(non-condensing) Ambient light immunity: 0~100000 LUX ESD: ±16kV air discharge, ±8kV direct discharge

Communication Mode: Synchronous mode Asynchronous mode Batch mode

RUGGEDMASTER K220 Wholesale Selection

Select RUGGEDMASTER K220 by reviewing the configuration, dimensions and manufacturer details above. For bulk orders, provide the complete model name, intended application, required quantity and delivery destination. Keep optional configurations separate in your purchasing request so they can be checked against the listed technical information.

Compare the operating system, data capture functions and connectivity shown in the Specs tab with the requirements of your existing workflow. Check the stated interface, power supply and physical dimensions before planning installation or daily use. Where several configurations are listed, confirm the required configuration in your inquiry. Product images can show different views and example applications of the same model.

For deployment across a team or multiple locations, record the configuration required at each location and the intended working environment. Review the documented environmental limits, scanning requirements and supported connections when those fields are supplied. Optional functions listed by the manufacturer should be confirmed for the equipment you order. Use the full model name and requested quantity when preparing your wholesale inquiry.
