RUGGEDMASTER HR838X Rugged Tablets

RUGGEDMASTER HR838X product details

RUGGEDMASTER HR838X rugged tablets. 8 inch Rugged Tablet PC Android 15 700cd/m2 Screen 4G LTE WIFI RJ45/USB2.0 Port NFC Fingerprint 2D Barcode Scanner UHF RFID Industrial Tablet Pc.

RUGGEDMASTER HR838X key features

• Operation System: Android 15.0;
• CPU: MediaTek MTK6789 Octa (8)-core 2.2GHz;
• Display & Touch screen: 8 inch multi-touch Capacitive screen, HD screen 800*1280 Pixels, 700cd/m2 brightness, FHD 1200*1920 pixels 800cd/m2 is optional;
• Memory & Storage: 8GB Ram+128GB Rom (Default), 12GB+256GB is optional, micro SD card slot support max 1TB;
• Battery: Built-in 3.8V / 10000mAh Lithium Battery;
• 4G Networks: support B5/B8/B3/B2,3G WCDMA: B1/B2/B8/B5,TD-SCDMA:B34/B39,CDMA2000,4G TDD-LTE: B38/B39/B40/B41; 4G FDD LTE: B1/B2/B3/B4/B5/B7/B8/B28A;
• Wireless network: 802.11 a/b/g/n/ac 2.4G+5Ghz dual-band wifi and blutooth V5.3;
• HF RFID / NFC: 13.56MHZ,support ISO14443A/B/15693;
• 2D barcode scanner: Newland N1 or Zebra SE4710,optional;
• Fingerprint scanner: Normal Industrial Fingerprint, or FBI Certificated Fingerprint scanner,optional;
• RFID: UHF RFID 1-2 Meter or 3-5 Meter reading distance or 125K LF RFID, is optional;

Model NO. : HR838X

Specifications:

1.CPU: MediaTek MTK6789 Octa (8)-core 2.2GHz;

2.Operation System: Android 15.0;

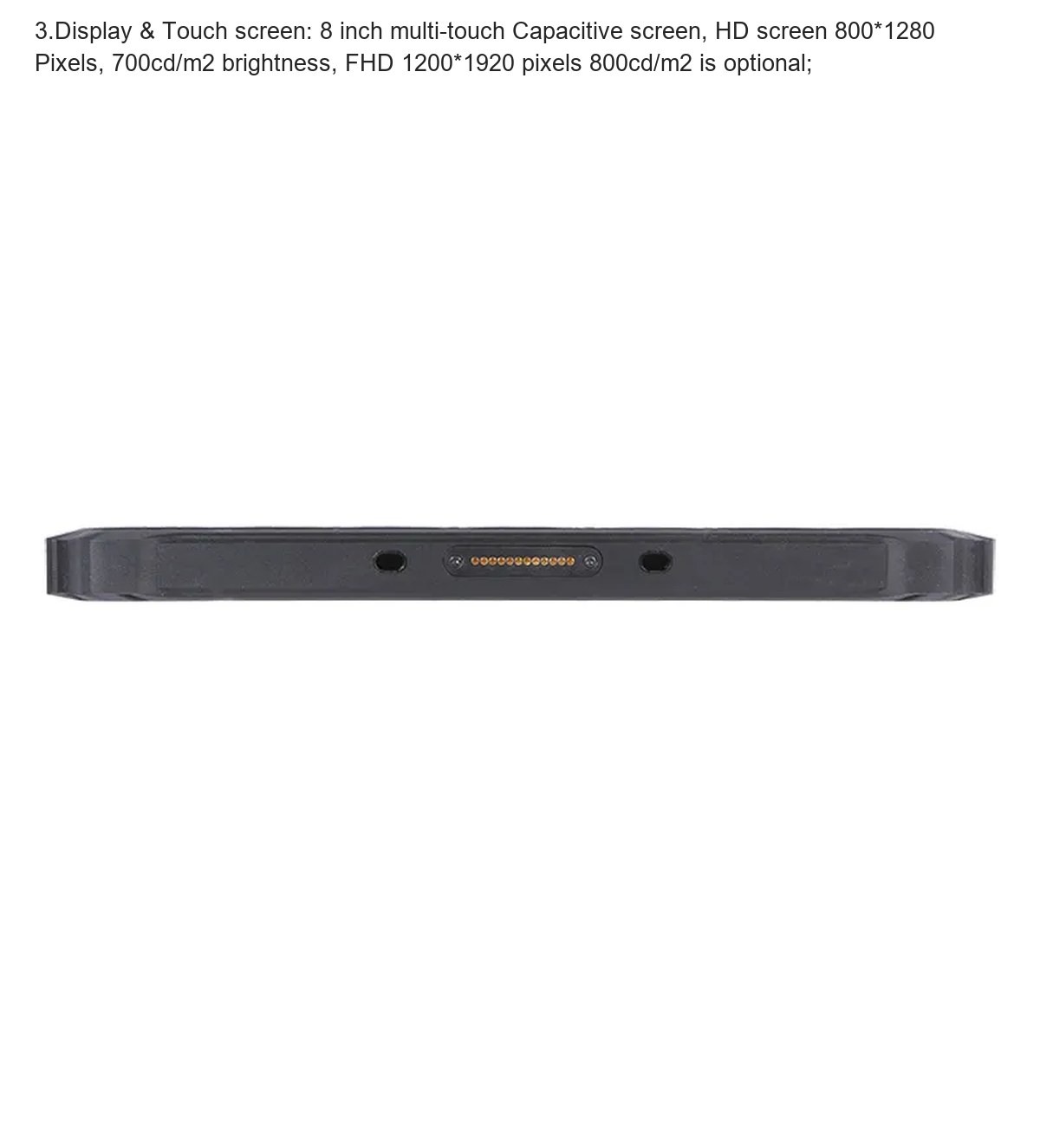

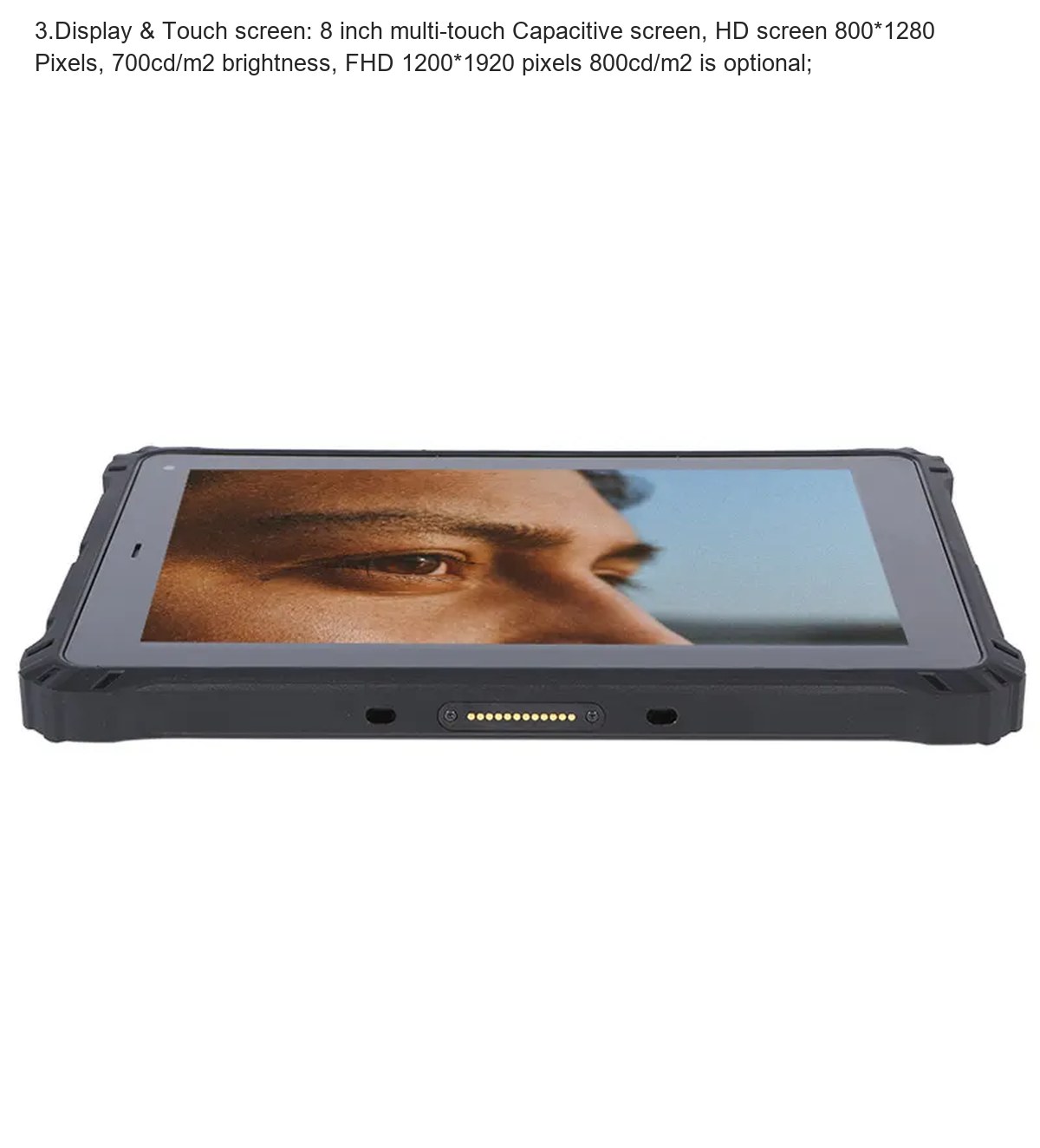

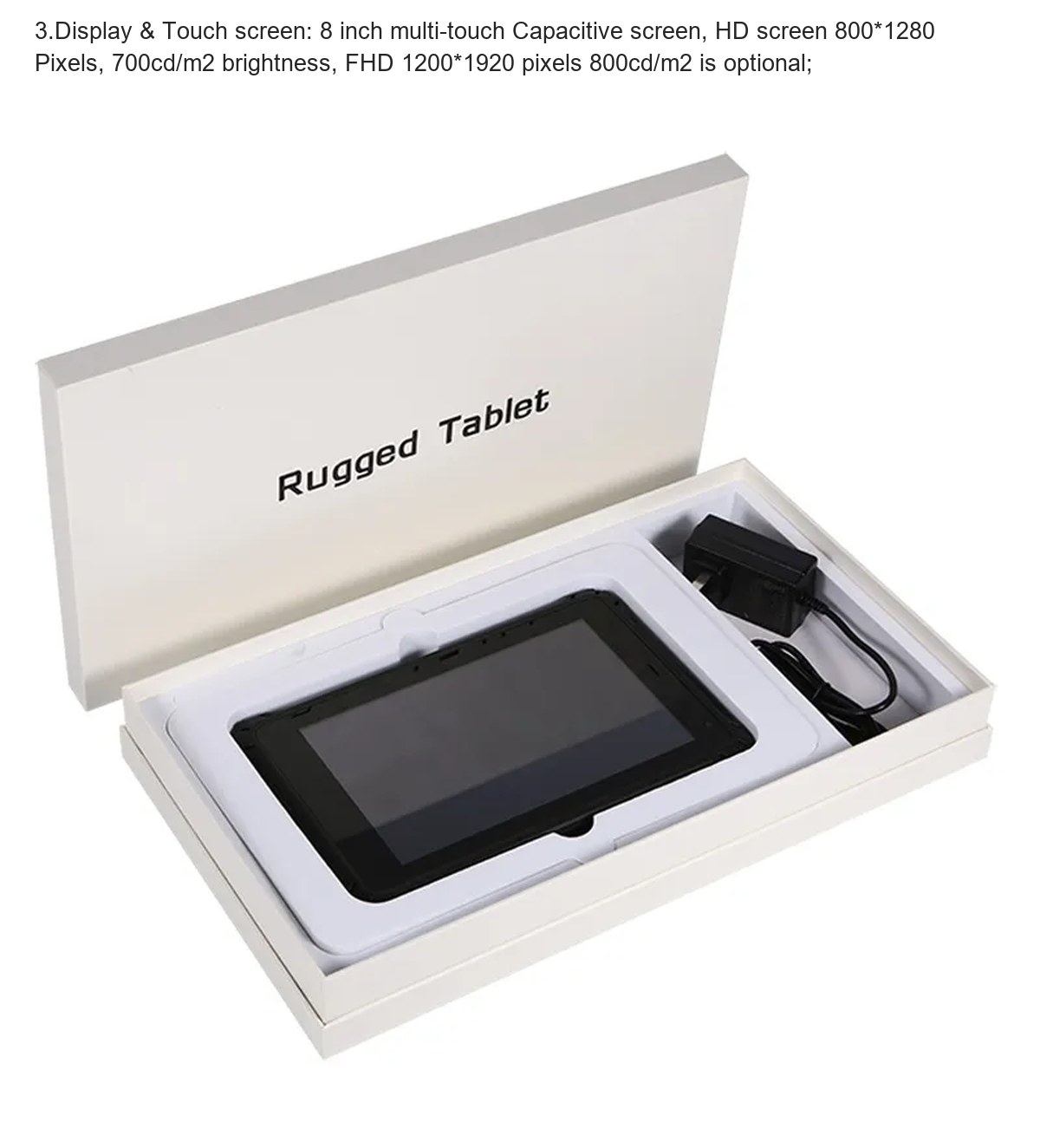

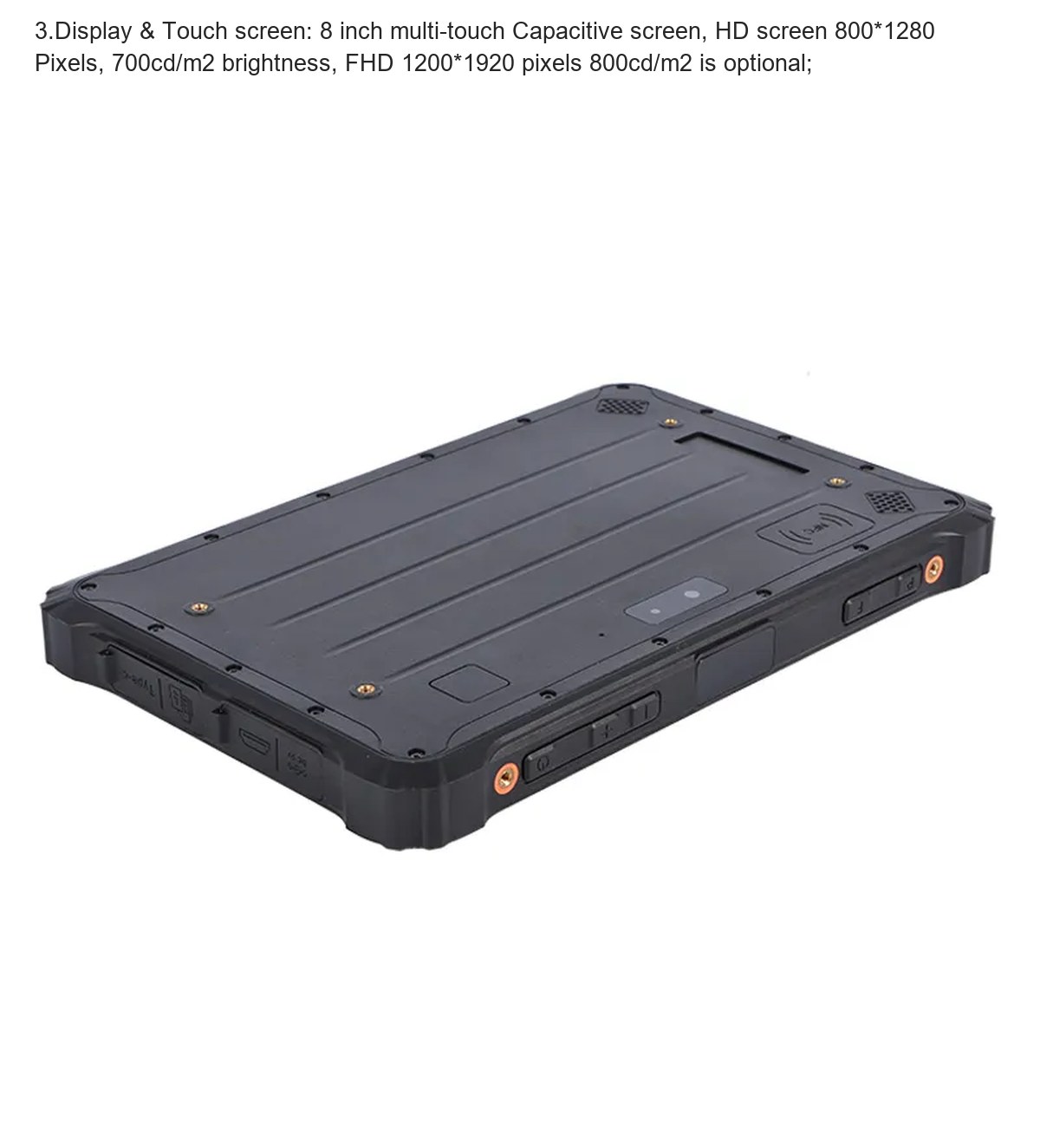

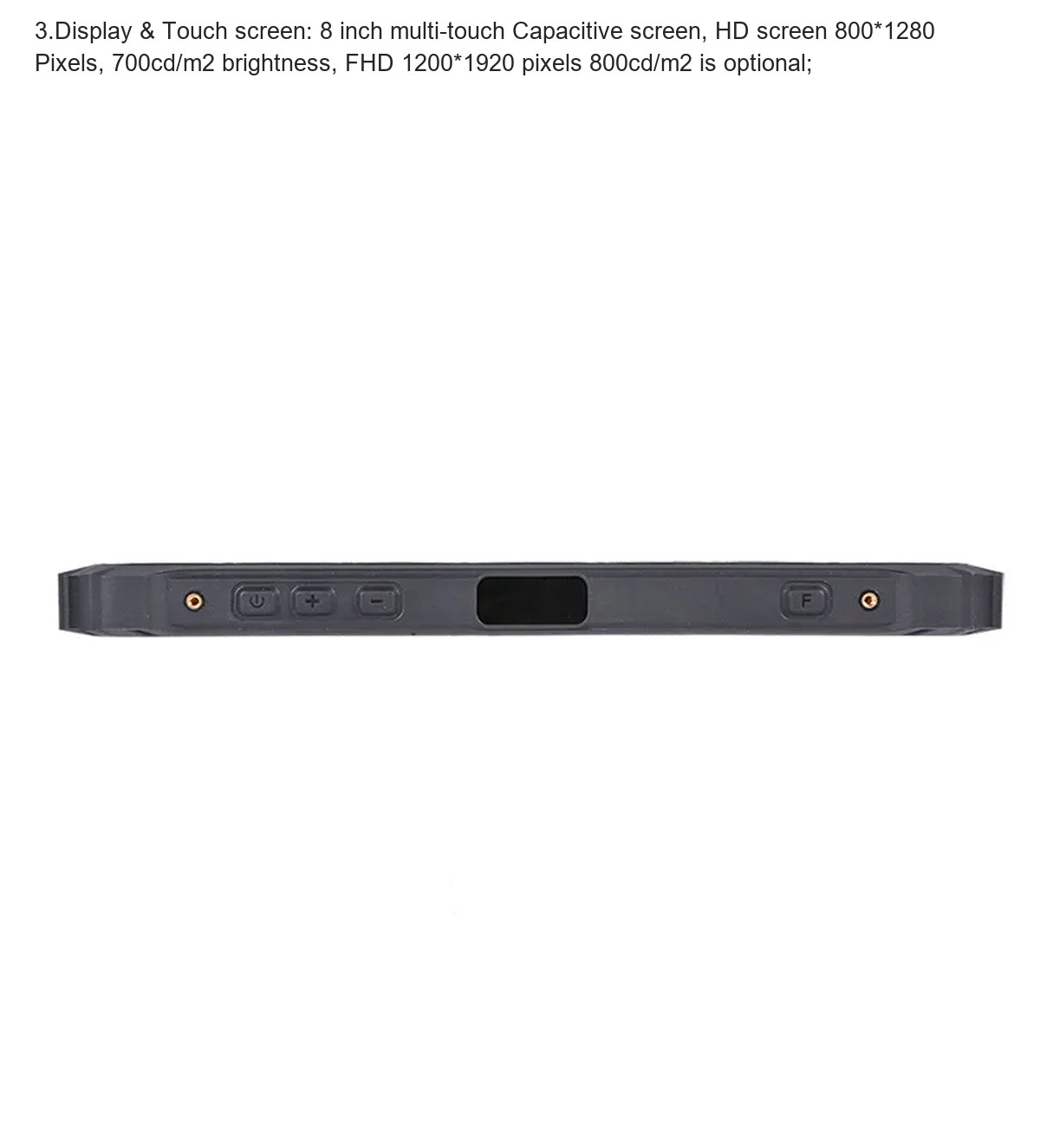

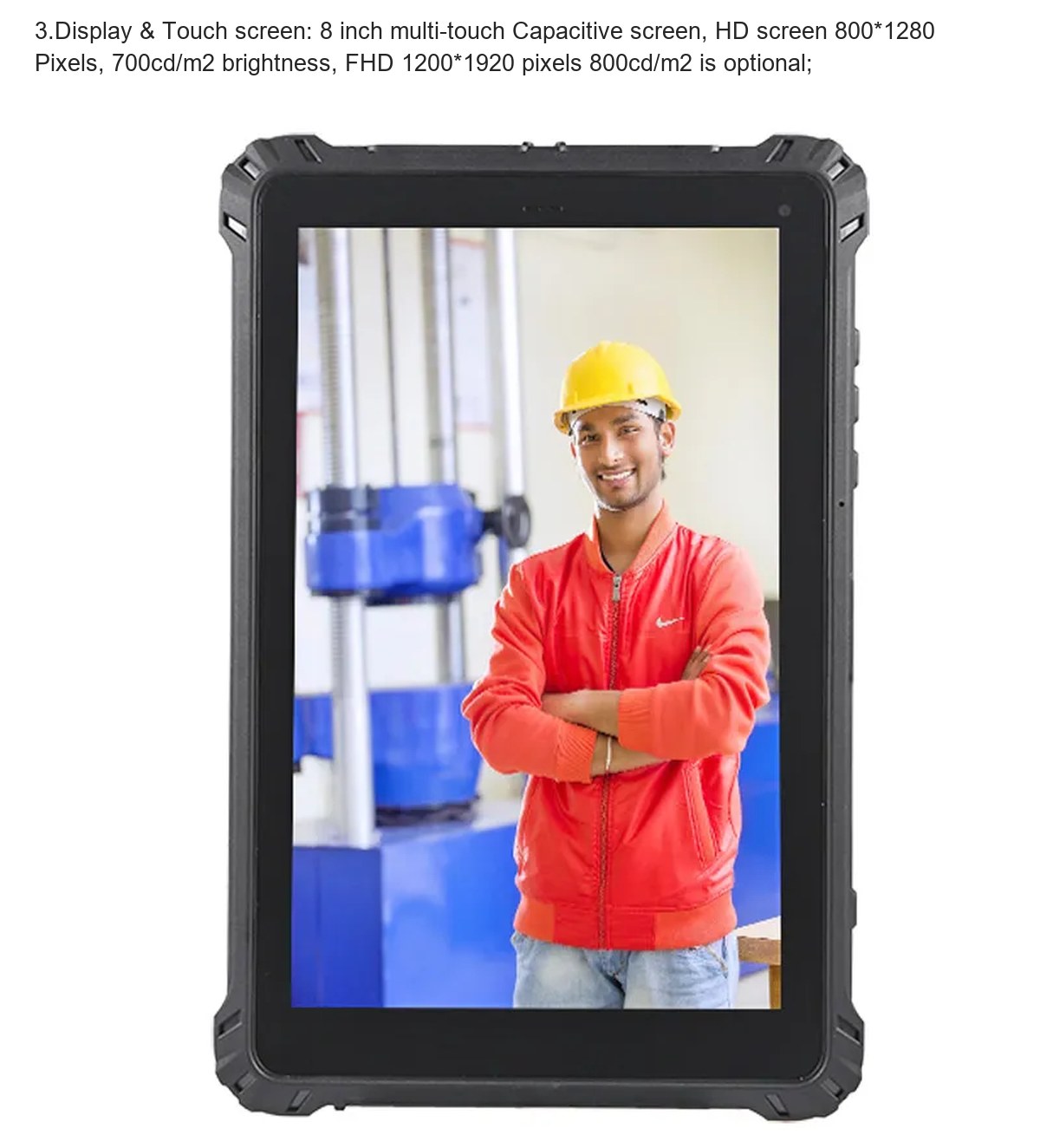

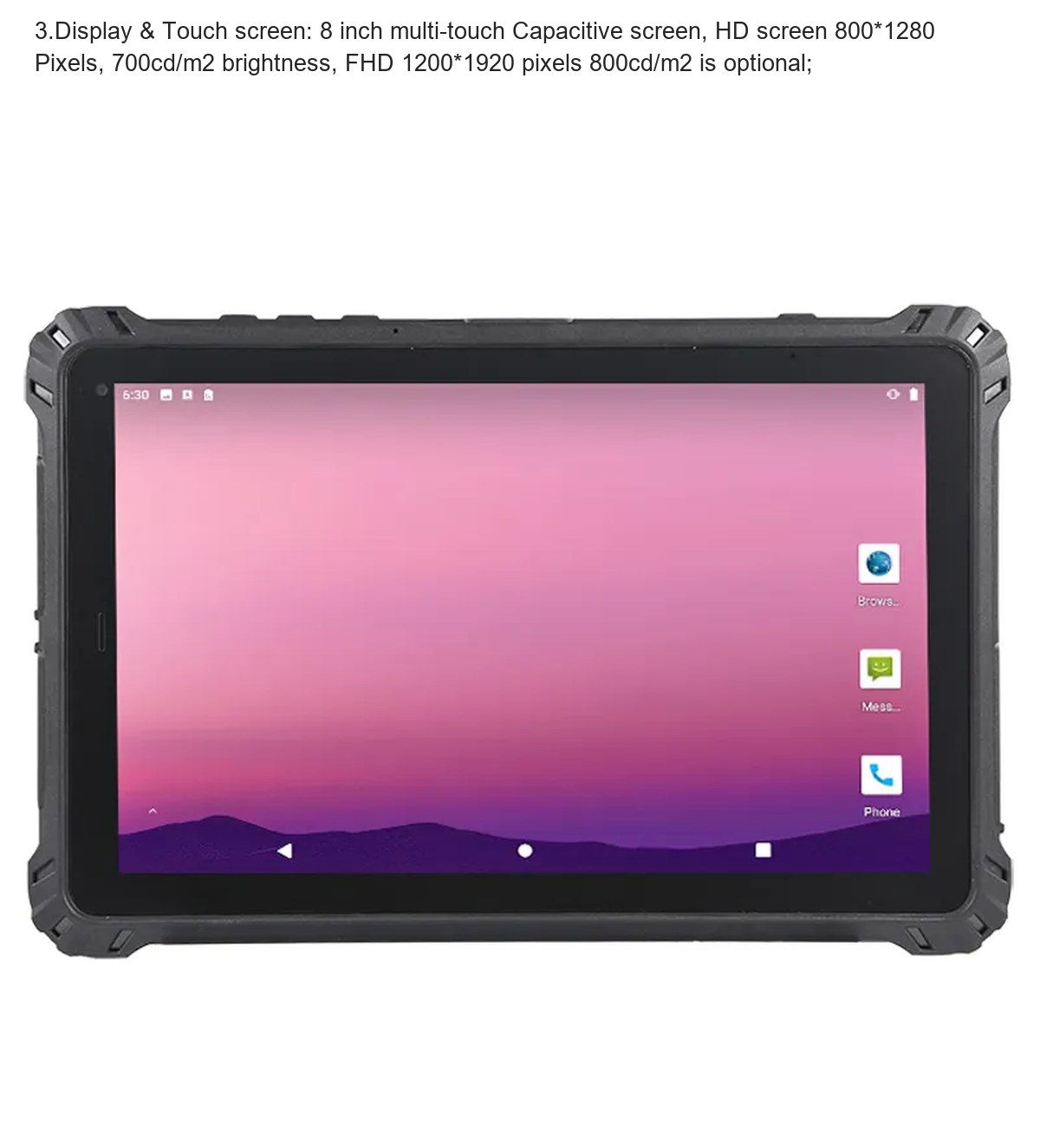

3.Display & Touch screen: 8 inch multi-touch Capacitive screen, HD screen 800*1280 Pixels, 700cd/m2 brightness, FHD 1200*1920 pixels 800cd/m2 is optional;

4.4G Networks: support B5/B8/B3/B2,3G WCDMA: B1/B2/B8/B5,TD-SCDMA:B34/B39,CDMA2000,4G TDD-LTE: B38/B39/B40/B41; 4G FDD LTE: B1/B2/B3/B4/B5/B7/B8/B28A;

5.Two Cameras: Front 5.0MP camera,Rear 13.0MP Camera;

6.Memory & Storage: 8GB Ram+128GB Rom (Default), 12GB+256GB is optional, micro SD card slot support max 1TB;

7.Wireless network: 802.11 a/b/g/n/ac 2.4G+5Ghz dual-band wifi and blutooth V5.3;

8.Battery: Built-in 3.8V / 10000mAh Lithium Battery;

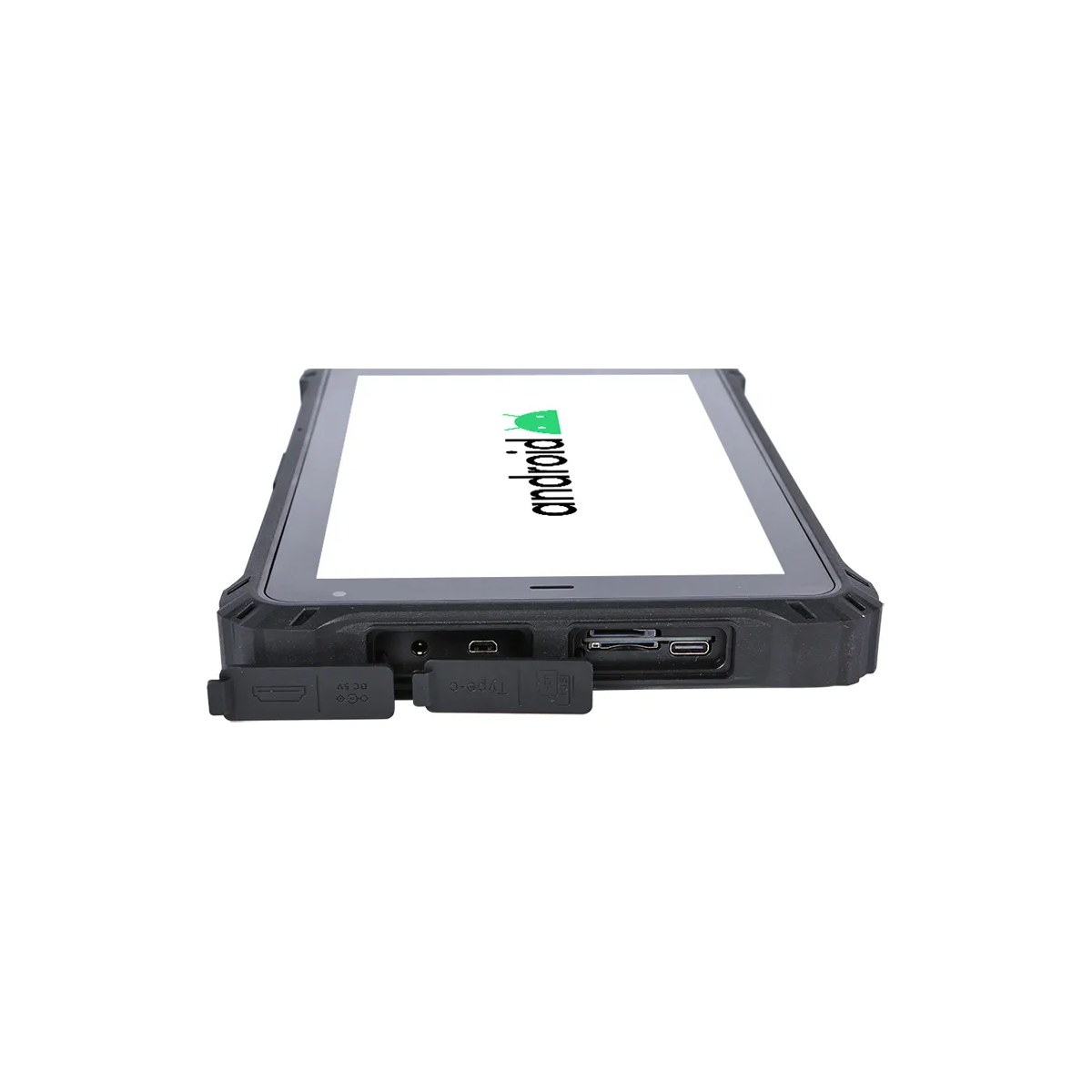

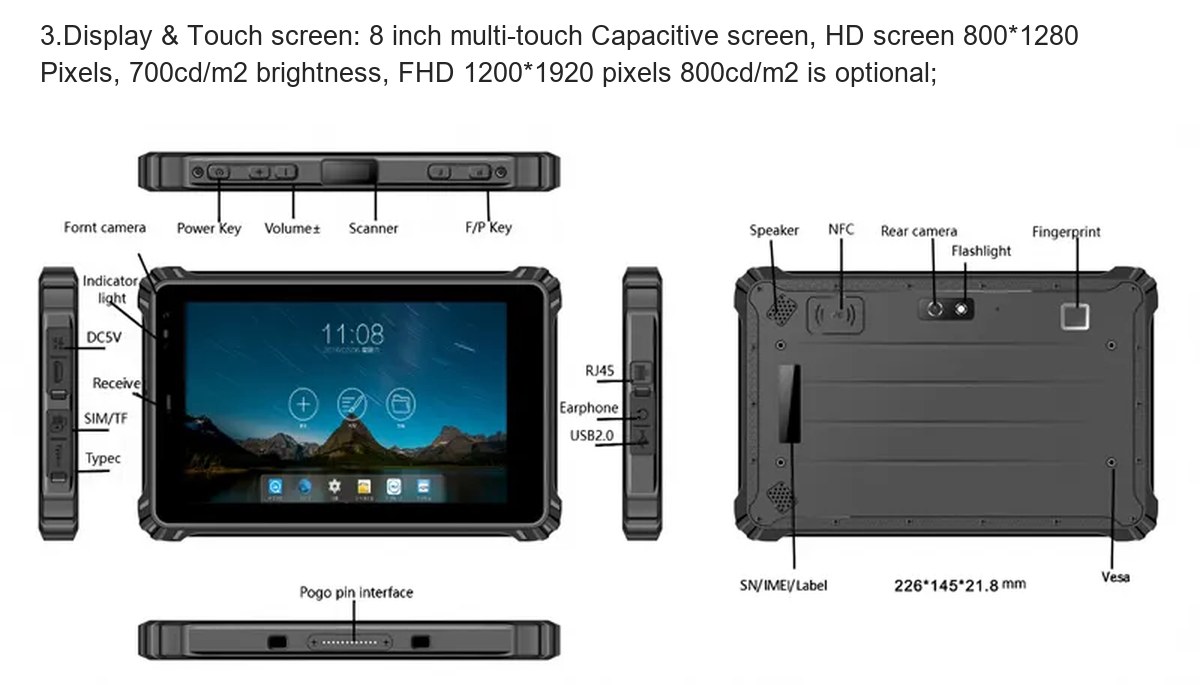

9.I/O ports: 1*DC port,1*Type-C Port,1*10M/100M RJ45 Ethernet port ,1*USB2.0 Type-A Host,1*Earphone jack,1*Sim card slot,1*12-pin Pogo-Pin port;

10.Navigation and Location: Support GPS+Glonass+Beidou;

11.HF RFID / NFC:13.56MHZ,support ISO14443A/B/15693;

12.Rugged Durability: Waterproof and dustproof rate: IP67, MIL-STD-810G complying with 1.2 meter dropproof;

13.2D barcode scanner: Newland N1 or Zebra SE4710,optional;

14.Fingerprint scanner:Normal Industrial Fingerprint, or FBI Certificated Fingerprint scanner,optional;

15. RFID: UHF RFID 1-2 Meter or 3-5 Meter reading distance or 125K LF RFID, is optional;

16.Fingerprint scanner:Normal Industrial Fingerprint, or FBI Certificated Fingerprint scanner,optional;

17.Vehicle holder : is optional;

18.Handbelt or hand strap or shoulder Strap:  is optional;

19.Docking Station: 1*DC port+2*USB2.0 host+1*RJ45+1*RS232, is optional;

20.Dimension: 226*145*21.8mm,about 760g.

Planning a team deployment

Review the RUGGEDMASTER HR838X specifications alongside the applications your team needs to use. Check the listed operating system, display dimensions and available interfaces before selecting a device for your workflow. When a scanner, reader or other module is described as optional, include that requirement in your enquiry so the exact configuration can be confirmed. Product illustrations may show an optional module or an example application. Use the written specifications to identify the capabilities required for your project.

Configuration and compatibility

For a team rollout, record the exact model, the quantity needed at each location and the software used by your staff. Match the listed network information to your destination and operating environment. Check storage requirements, charging arrangements and existing peripheral connections before preparing your shortlist. Where several memory or processor configurations are listed, confirm the requested configuration with RuggedMaster. Optional accessories and example setups help illustrate a workflow; configuration requirements should be included in your purchasing enquiry.

RUGGEDMASTER HR838X bulk order enquiries

For wholesale quantities and bulk orders, contact RuggedMaster with the exact model, required quantities, preferred configuration and destination. Include any scanning, identification or software requirements for your application. Review the Specs tab and product illustrations when comparing models. Availability, the requested configuration and order details should be confirmed before purchase.
