RUGGEDMASTER HQ-R48 industrial computers. 7 Inch Dual-Core 800*1280 Linux USB2.0 ID Card NFC 2D Barcode Wide Motion Face Recognition Machine.

RUGGEDMASTER HQ-R48 key features

• Operating system: Linux system
• Display: 7 inch HD IPS LCD screen with brightness of 500 LU, 800*1280, touch screen is optional
• I/O interfaces: network port *1, USB2.0*1, power port *1, relay output port *1, Wigan output port *1, audio output port * 1

Product Description

 Product Description

Model NO.: HQ-R48

1. Operating system: Linux system;
2. Face recognition: the face database: 20,000 people; the recognition speed: 300ms; support living body detection; the recognition distance: 0.5-2 m;
3. Face registration: support importing faces into the face machine, adding people and faces individually, registering faces individually on the computer side, registering faces in batches, and expanding the registration of faces of visitors in a limited time;
4. Record query: 100,000 records, support all record query, exported and uploaded to platforms;
5. Time limit: can limit the time of entry and exit, and limit the number of entries and exits (overtime is invalid);
6. Display: 7 inch HD IPS LCD screen with brightness of 500 LU, 800*1280, touch screen is optional;
7. Cameras: standard 200W*200W, visible light+infrared, with fill light, supporting wide motion;
8. Navigation: support GPS+GLONASS+ Beidou;
9. I/O interfaces: network port *1, USB2.0*1, power port *1, relay output port *1, Wigan output port *1, audio output port * 1;
10. Upgrade mode: USB flash drive upgrade, computer software upgrade and remote upgrade;
11. Multi-machine networking: support multi-machine networking, share database and access at any point;
12. Data backup: the software provides an operation interface for database backup and recovery;
13. Secondary development: provide http local area network interface and http wide area network interface;
14. WeChat reservation: can extend the permission of issuing face, QR code and time setting after WeChat reservation;
15. Communication: Full Netcom 4G (optional), Ethernet TCP/IP RJ45 interface, Wi-Fi 2.4G;
16. Power supply: power adapter, input 220W, output DC12V/3A, and equipment power consumption is about 12W;
17. Operating environment: working temperature:-20℃-+60℃, storage temperature: -40℃-80℃, humidity: 20%-90%, and electrostatic protection of 12KV;
18. Memory & storage: 1GB RAM+ 8GB ROM ;
19. CPU: RV1109 dual-core 1.5GHz;
20. 2D barcode identification (optional): adopt RS232 serial communication with baud rate of 9600, support barcode and 2D code identification, support visitors to register for entry and exit by 2D code, and support internal staff 2D code identification;
21. ID card identification (optional): support extended ID card identification, verification of the integration of person and certificate, ID card white list comparison, limited time;
22. Card reading module (optional): support NFC serial number, IC card and ID card;
23. Temperature measurement function (optional): support opening the door after taking temperature, person-card comparison+temperature measurement, face recognition+temperature measurement;
24. Sound system: built-in speaker, 4Ω3W;
25. Size: 252*130*26mm;
26. Weight: about 1.3KG.

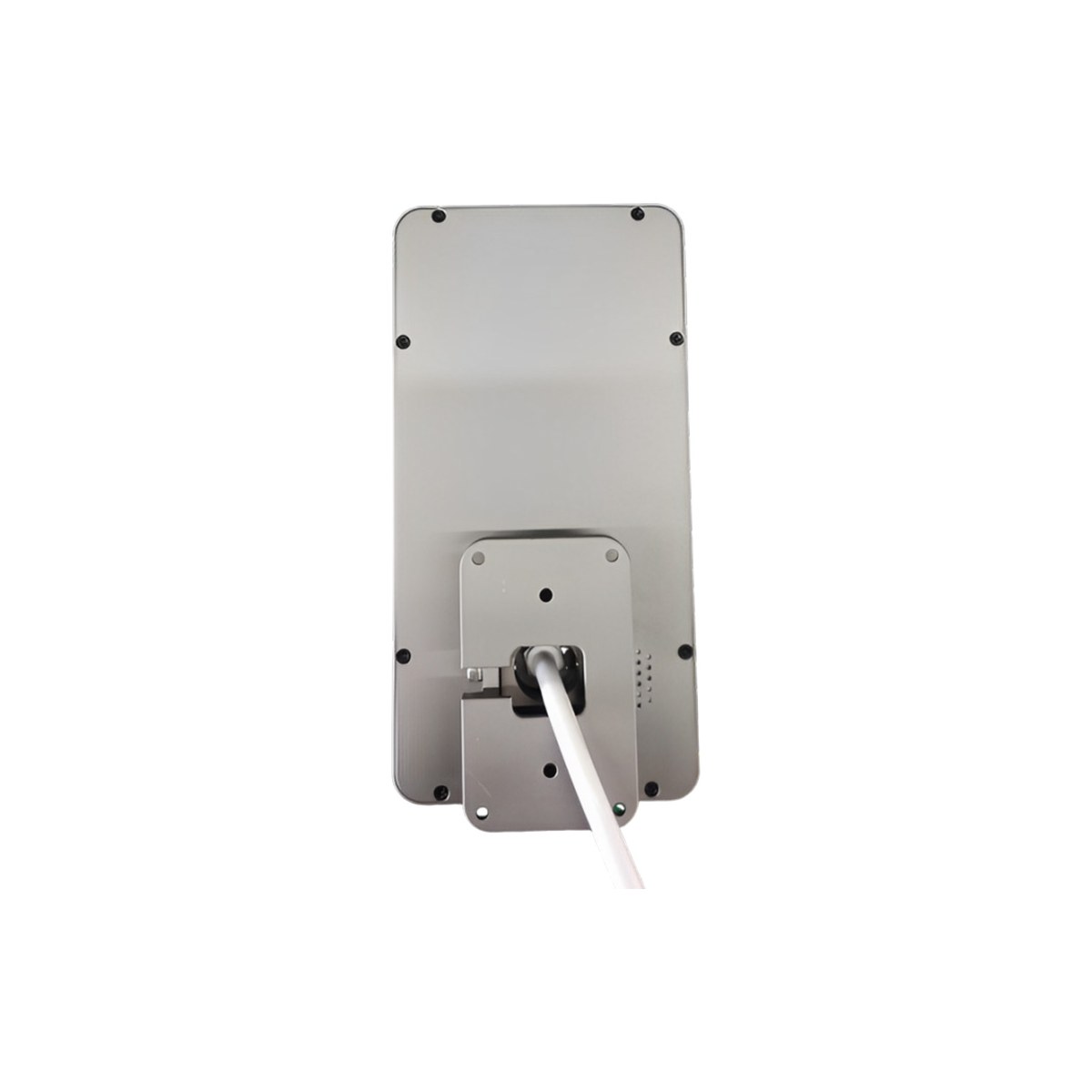

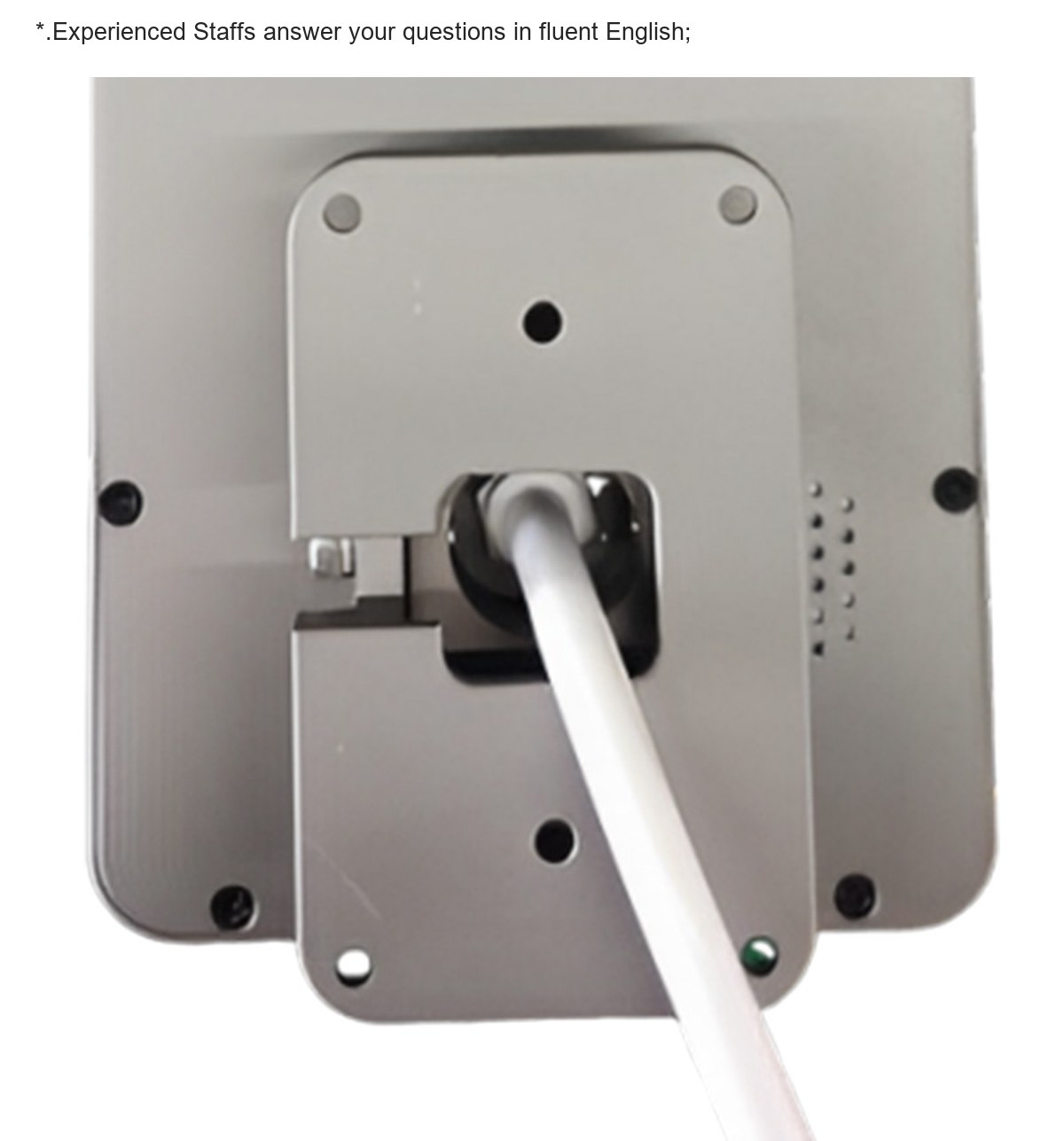

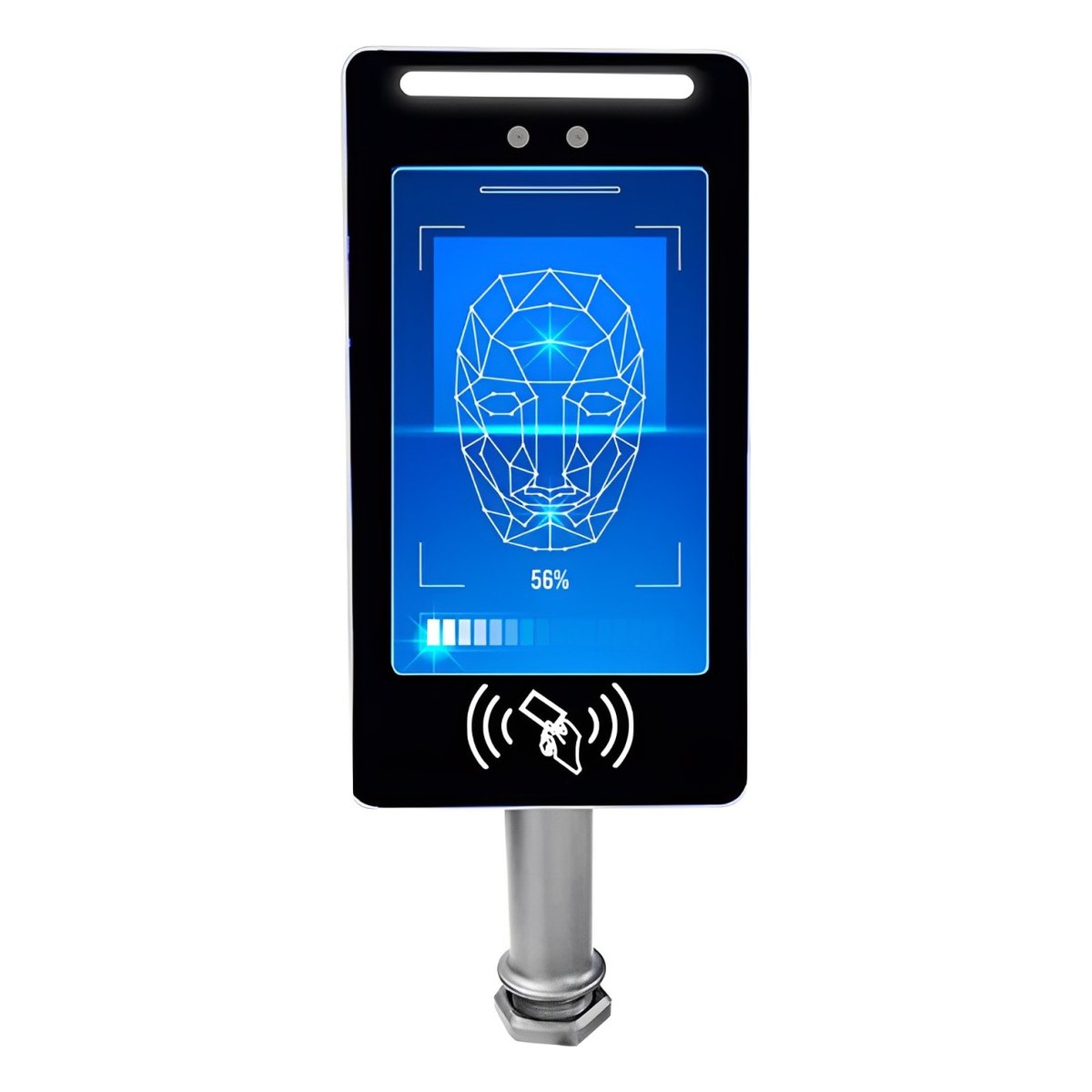

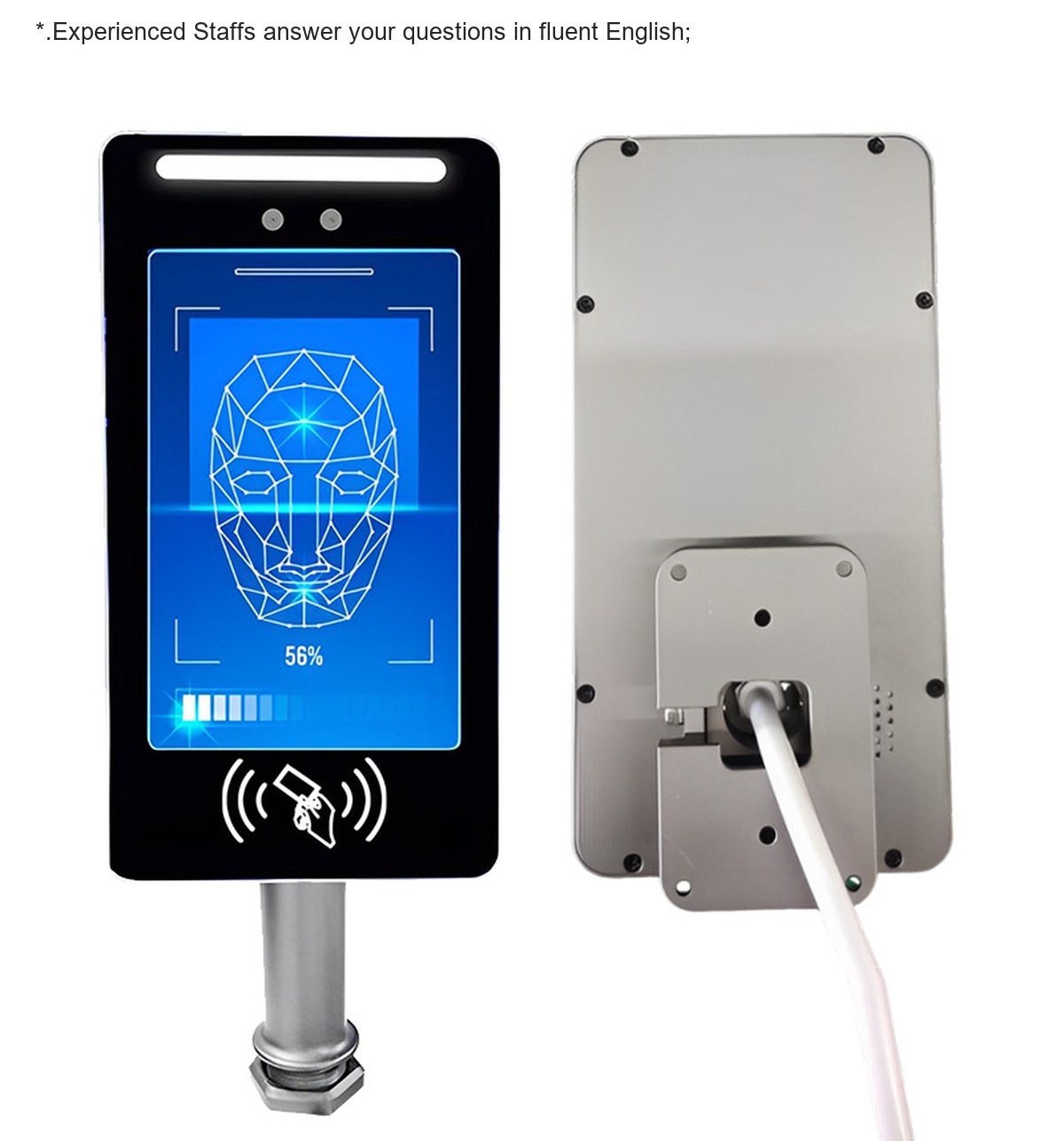

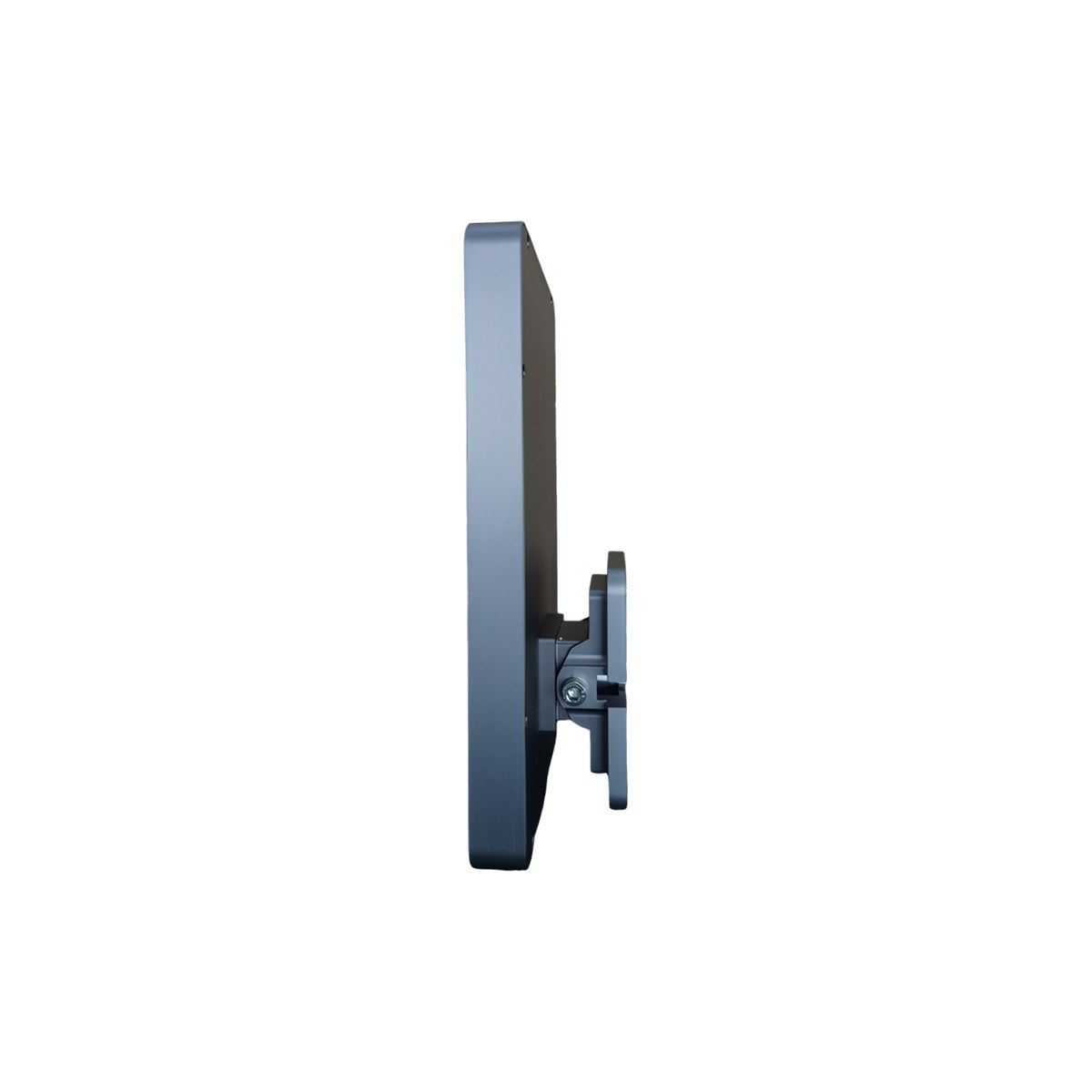

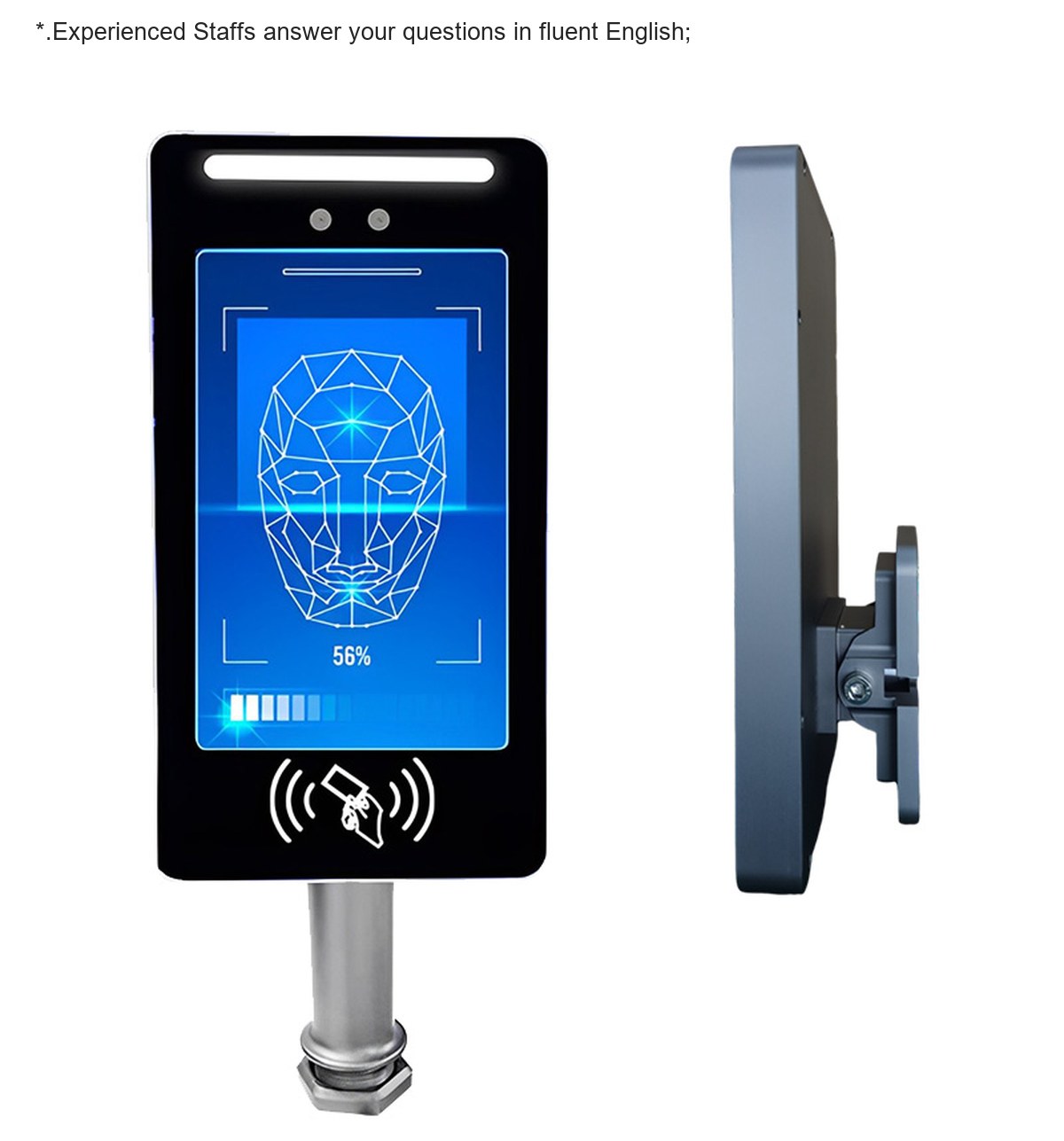

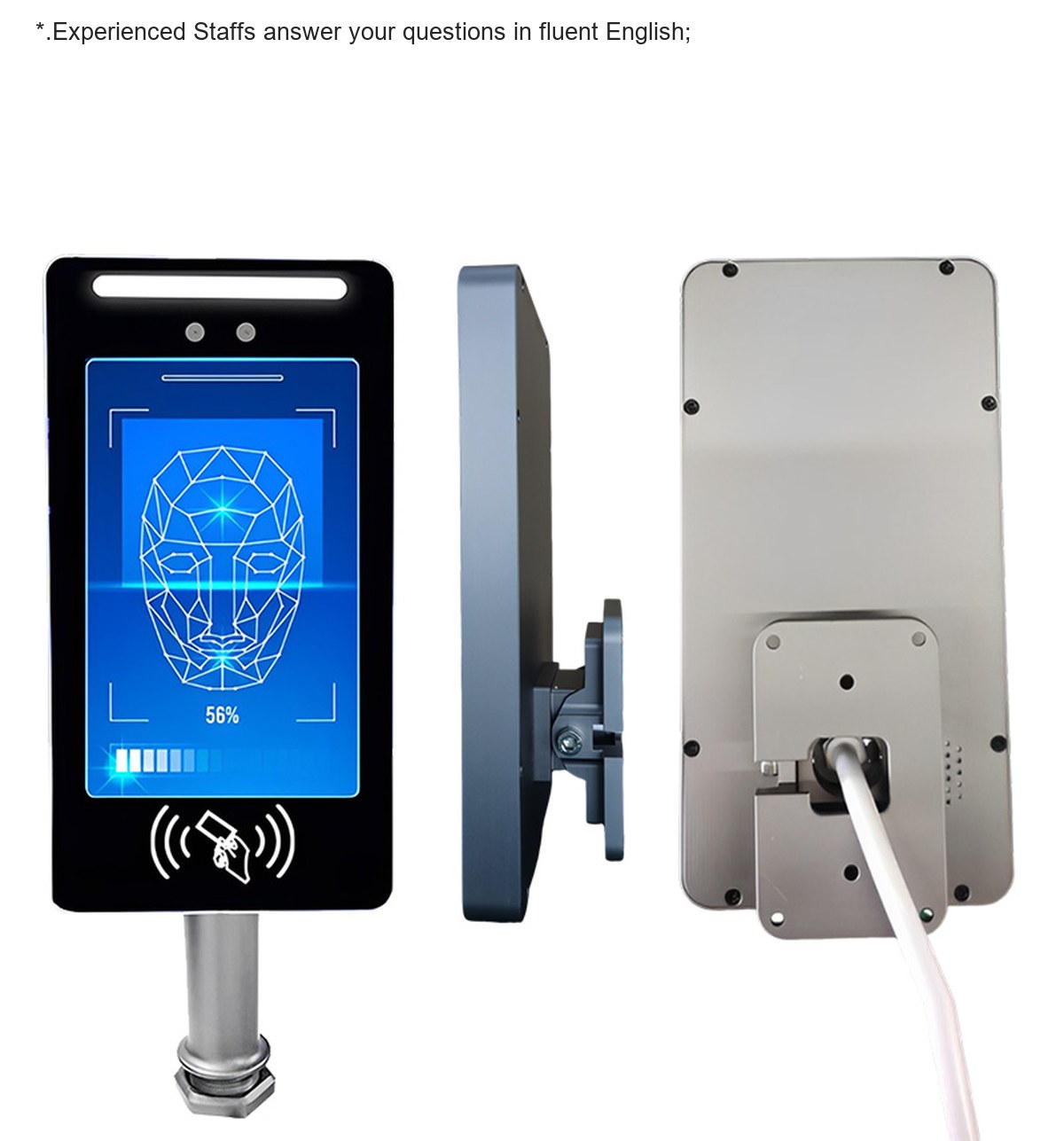

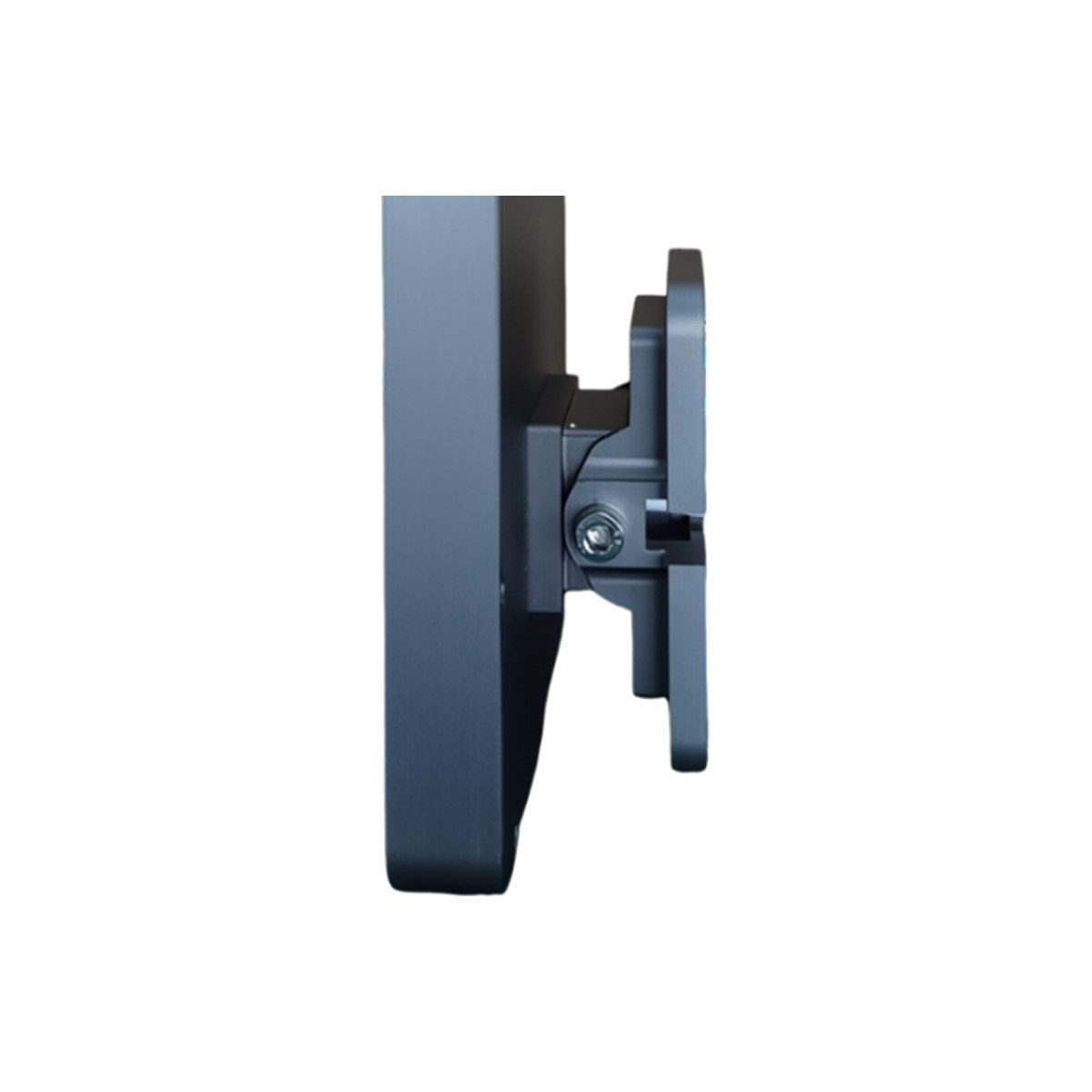

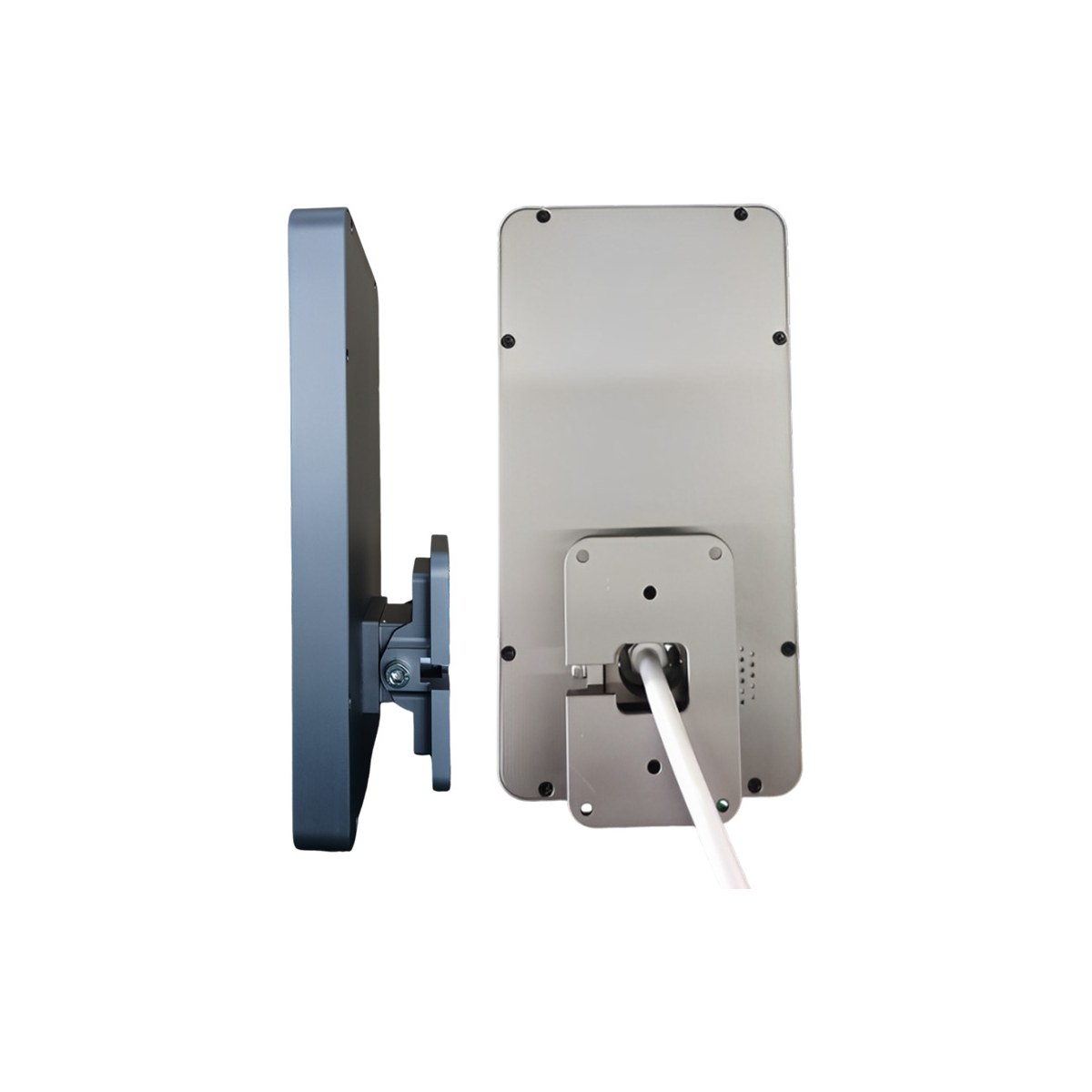

Product Pictures

 Product Pictures

Shipping & Packing

Shipping & Packing

Our Services

Our Services

*.We try to reply your inquiry as soon as possible;

*.Experienced Staffs answer your questions in fluent English;

*.OEM & ODM are welcomed after receiving your specification;

*.Special Discount and Protection of sales are provided by us;

*.Most parts are produced by ourselves, so can help to reduce product cost.

 Note:

Highton Electronics CO., LTD manufactures all kinds of 4 to 12 inch Android or Windows rugged tablets or PDA Handhelds and other smart terminals, With many Optional functions: NFC,  Fingerprint scanner, Barcode scanner, IC/ID card reader, LF/UHF RFID, walki-talkie/DMR, IRIS, Thermometer, satellite phone, ATEX/explosion-proof, your own module, and many other functions you want.

Optional interfaces: RJ45 Ethernet Lan port, serial port, CAN port…….. If our existing products can’t meet your demands, we can develop and customize new products for you. Please feel free to contact with us.

For same quality and same configuration, our price is trying to be the BEST around the world.
