RUGGEDMASTER H7S Industrial Panel PCs supports wholesale and bulk order enquiries. Compare the standard specifications and optional modules for the configuration required by your project.

The H7S is developed for projects that require a small Windows display and computer in one enclosure. Its 7-inch format is easier to integrate into equipment, counters and compact operator stations than a conventional desktop PC and separate monitor.

It can be considered for:

Equipment-status displays

Basic machine interfaces

Room-control systems

Information terminals

Data-entry stations

Instrument-control applications

Simple production dashboards

Access-management interfaces

Compact self-service systems

OEM equipment integration

Frequently Asked Questions About the H7S Industrial Panel PC

1. What is the H7S designed for?

The H7S combines a 7-inch touchscreen and a Windows computer in one compact enclosure (178×118×52mm), designed for equipment-status displays, basic machine interfaces, room-control systems, data-entry stations and OEM equipment integration.

2. What are the core specs — processor, memory and storage?

The H7S uses an Intel Celeron N3350 (2 cores / 2 threads, up to 2.4GHz, 6W TDP) with Intel HD Graphics 500, paired with 2GB RAM and 64GB onboard storage, expandable via TF card.

3. How is the H7S different from the RUGGEDMASTER H7?

The H7S uses the Intel N3350 processor with 2GB RAM, while the H7 uses a newer N4020 platform with 4GB RAM. The H7 suits projects needing more memory or newer processor performance; the H7S is the cost-optimized option for lighter workloads.

4. Is the H7S the same as the Android H7A?

No. The H7S is a Windows/Intel product; the H7A runs Android/Linux on an RK3288 ARM processor. They use different applications and drivers and are not interchangeable.

5. Can storage be expanded?

Yes, via the TF card slot, suitable for documents, media and exported records rather than as primary system storage.

6. Does it have four USB 3.0 ports?

Yes, four USB 3.0 ports are included.

7. Does the H7S support PoE?

PoE is supported as a project-configurable option.

8. Does the H7S have a battery?

No main operating battery — it requires continuous external 12V DC power. A small onboard button-cell battery (for the real-time clock/BIOS settings) is not a substitute for main power.

9. Can it connect to an external monitor?

Yes, via a standard HDMI output.

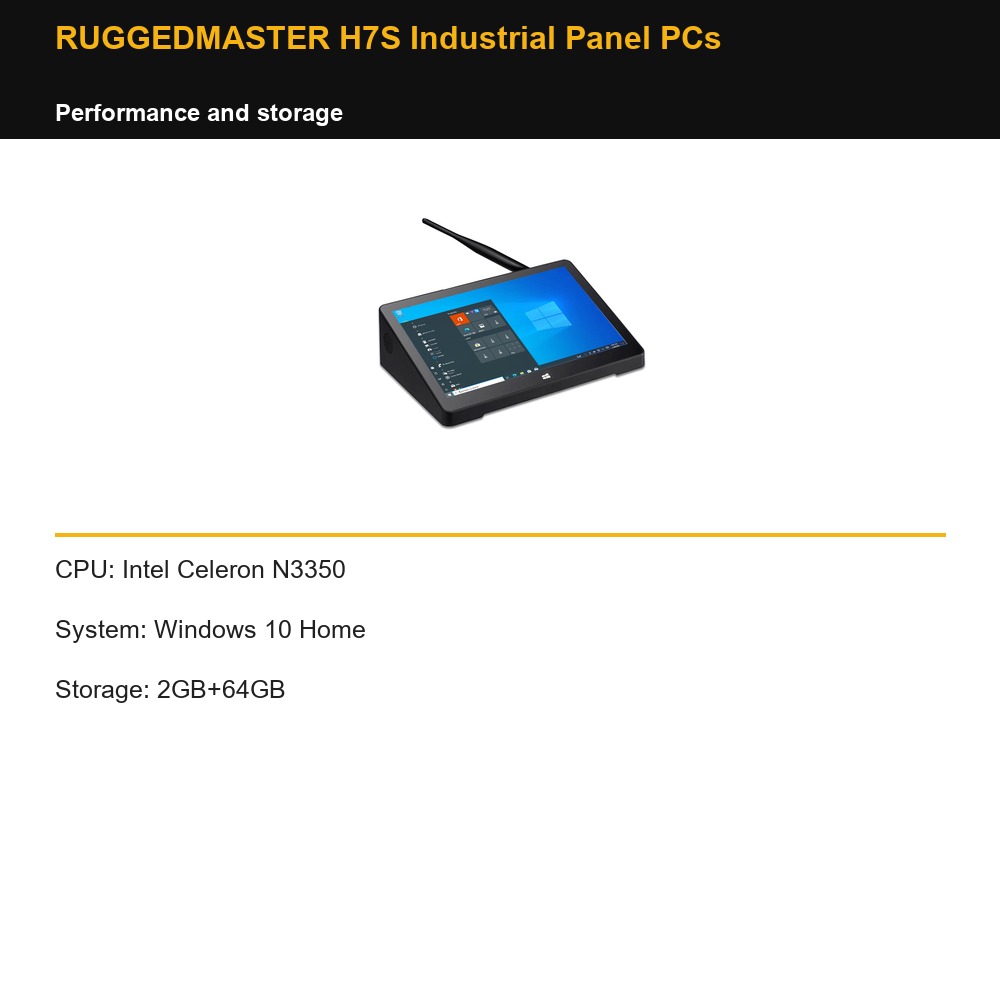

RUGGEDMASTER H7S Industrial Panel PCs — performance and storage

CPU: Intel Celeron N3350

System: Windows 10 Home

Storage: 2GB+64GB

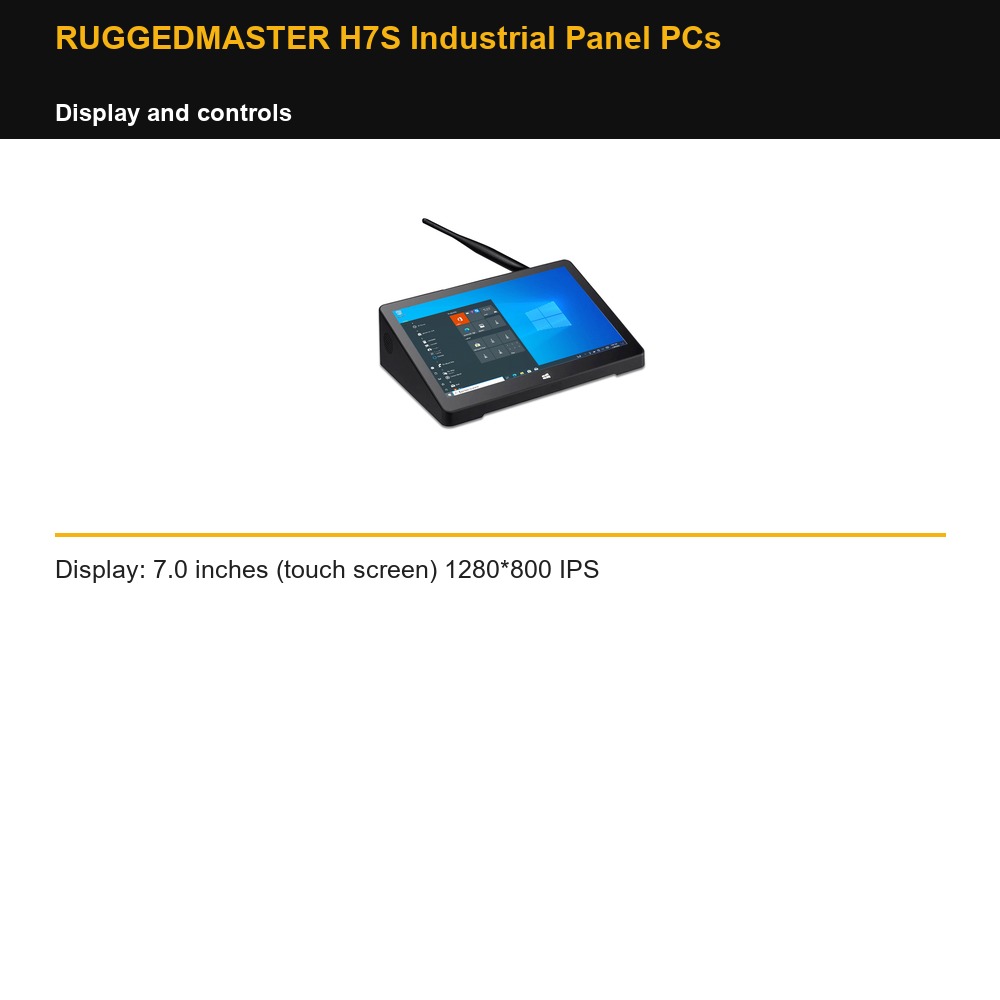

RUGGEDMASTER H7S Industrial Panel PCs — display and controls

Display: 7.0 inches (touch screen) 1280*800 IPS

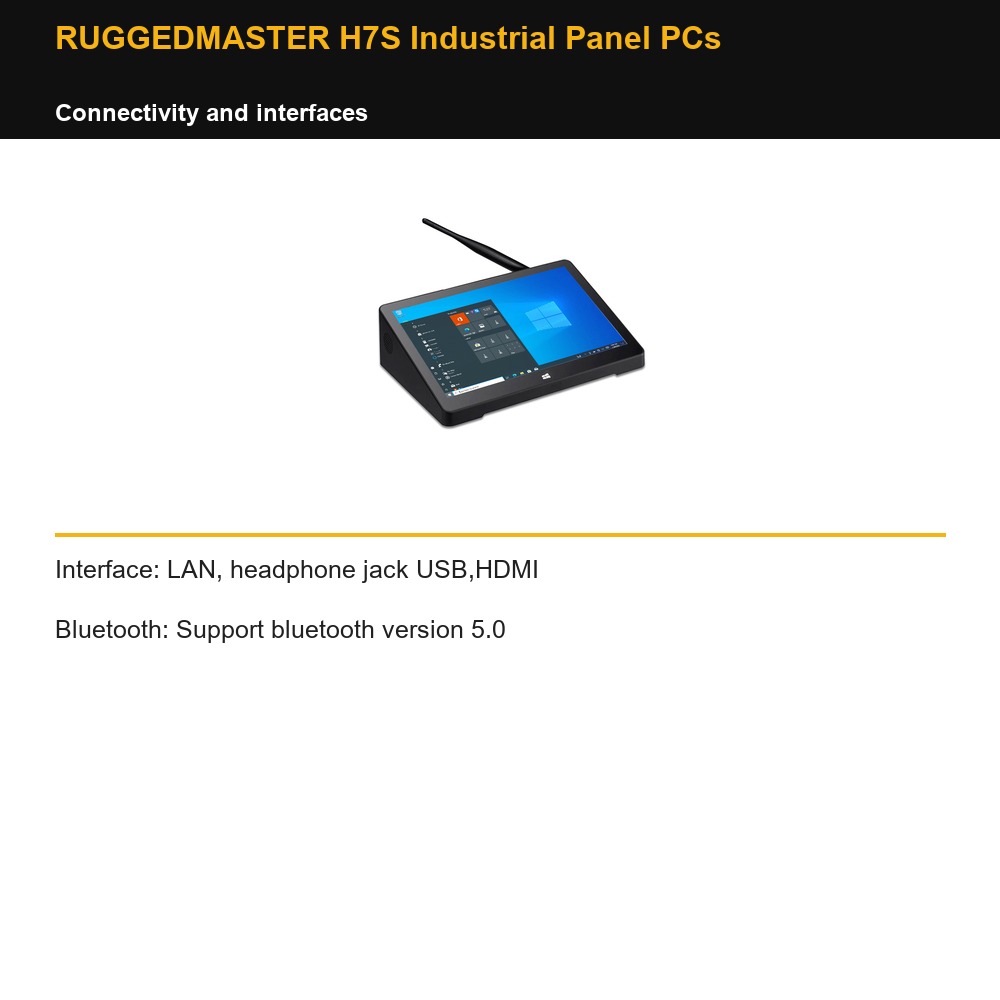

RUGGEDMASTER H7S Industrial Panel PCs — connectivity and interfaces

Interface: LAN, headphone jack USB,HDMI

Bluetooth: Support bluetooth version 5.0

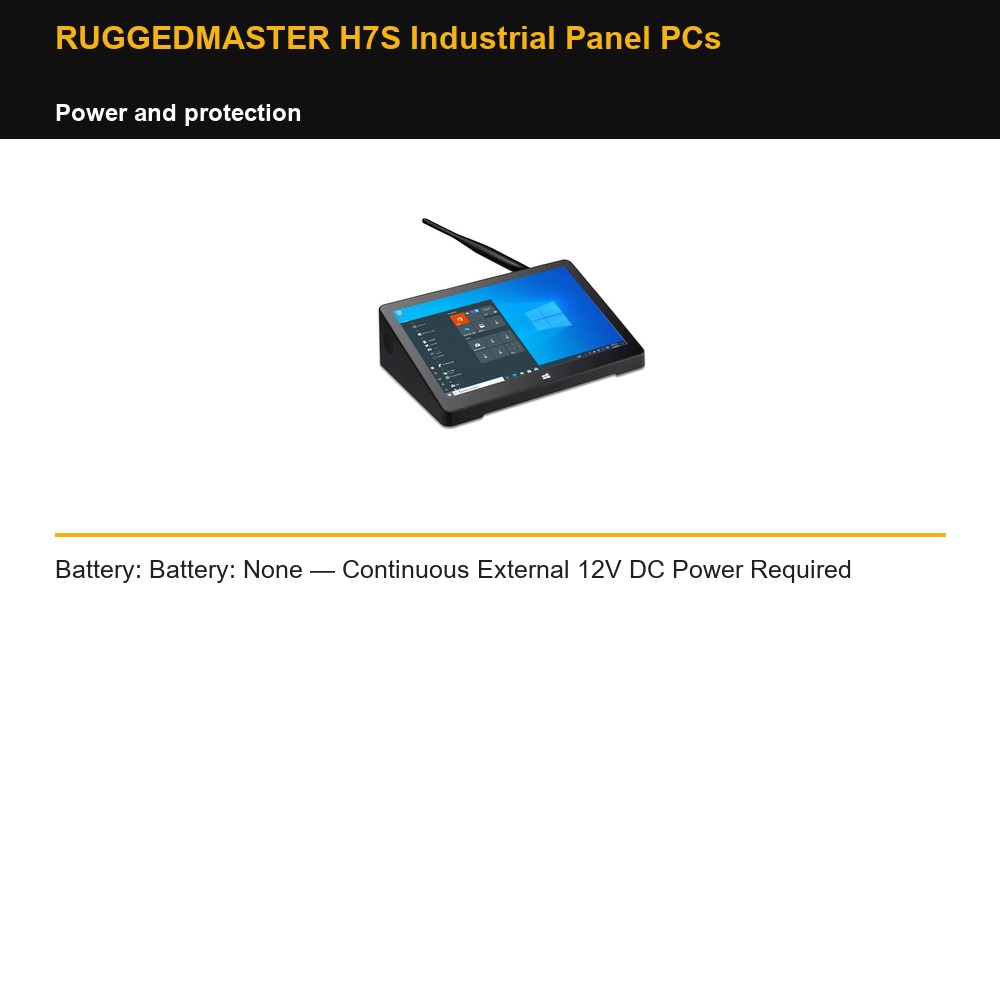

RUGGEDMASTER H7S Industrial Panel PCs — power and protection

Battery: Battery: None — Continuous External 12V DC Power Required

RUGGEDMASTER H7S Industrial Panel PCs technical specifications

Wholesale configuration enquiries

For bulk orders, specify the model, required operating system, memory and storage configuration, and any optional communication or data-capture modules. Optional features are configuration dependent. Use the Specs tab to check the full interface, power and environmental requirements.
