RUGGEDMASTER H7 Industrial Panel PCs
Intel Celeron N4020 2 cores 2 threads 1.1GHz~2.8GHz; 4GB+64GB; 7.0 inches (touch screen) 1280*800IPS; Windows 10
The H7 is more accurately classified as a 7-inch industrial panel PC because it combines a touchscreen, Windows computer hardware, storage, audio and external interfaces in one compact enclosure.
Battery: Battery: None — Continuous External 12V DC Power Required
Interface: LAN, headphone jack USB,HDMI
Bluetooth: Support bluetooth version 5.0
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

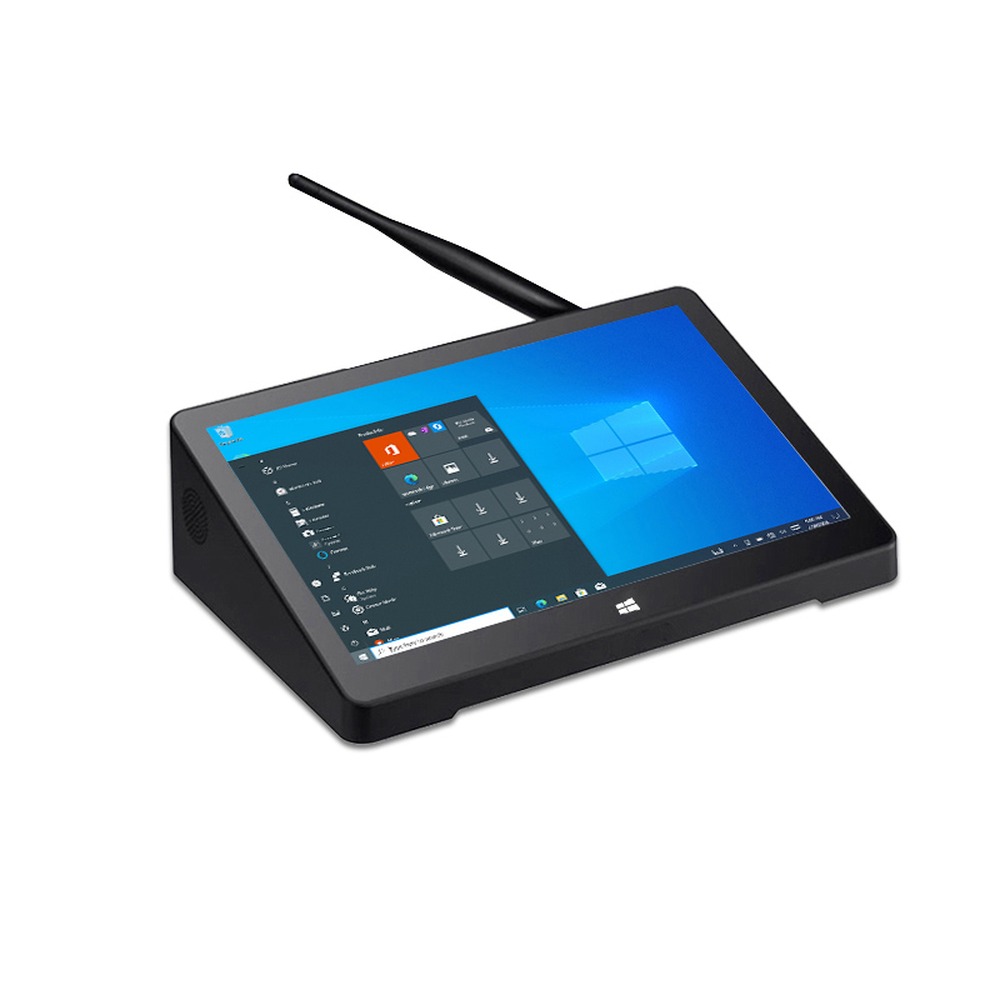

RUGGEDMASTER H7 Industrial Panel PCs
RUGGEDMASTER H7 Industrial Panel PCs supports wholesale and bulk order enquiries. Compare the standard specifications and optional modules for the configuration required by your project.
H7 7 Inch Industrial Panel PC Details:
Frequently Asked Questions About the H7 Industrial Panel PC
1. Is the H7 a Box PC or an industrial panel PC?
The H7 is more accurately classified as a 7-inch industrial panel PC because it combines a touchscreen, Windows computer hardware, storage, audio and external interfaces in one compact enclosure.
2. Which processor does the H7 use?
The H7 uses the Intel Celeron N4020, a dual-core, dual-thread processor with a 1.10GHz base frequency. 3. What type of 64GB storage is installed?
The page lists 64GB storage but does not identify whether it is eMMC or an SSD.
4. Does the H7 include a battery?
No. The H7 requires continuous external 12V DC power. An external UPS or controlled power supply is recommended when temporary operation or graceful shutdown during a power interruption is required.
5. Which interfaces are included?
The page references Ethernet, USB, HDMI and a headphone jack.
6. Is the H7 suitable for 24/7 operation?
The H7 is described as a fanless, battery-free fixed terminal. A continuous deployment should still be validated for ambient temperature, application load, display brightness, storage writes, USB load and power-supply quality.

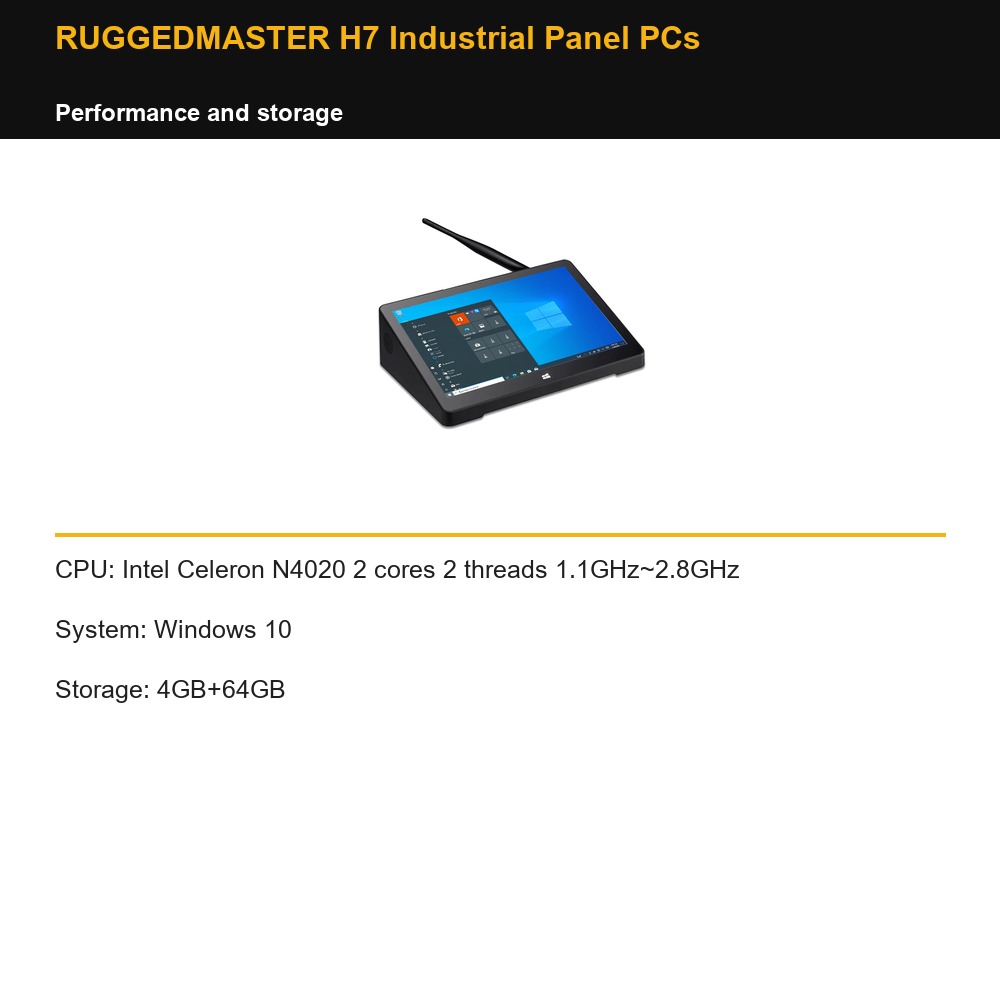

RUGGEDMASTER H7 Industrial Panel PCs — performance and storage
CPU: Intel Celeron N4020 2 cores 2 threads 1.1GHz~2.8GHz
System: Windows 10
Storage: 4GB+64GB

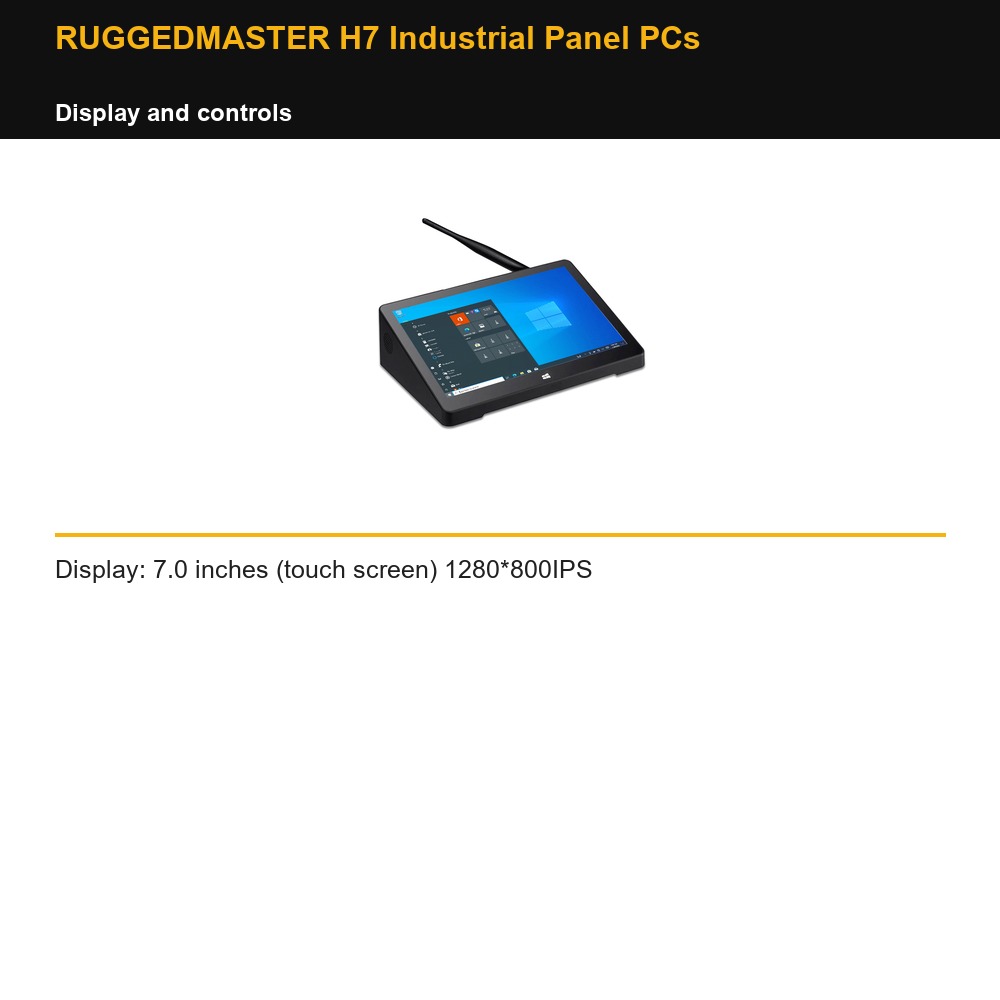

RUGGEDMASTER H7 Industrial Panel PCs — display and controls
Display: 7.0 inches (touch screen) 1280*800IPS

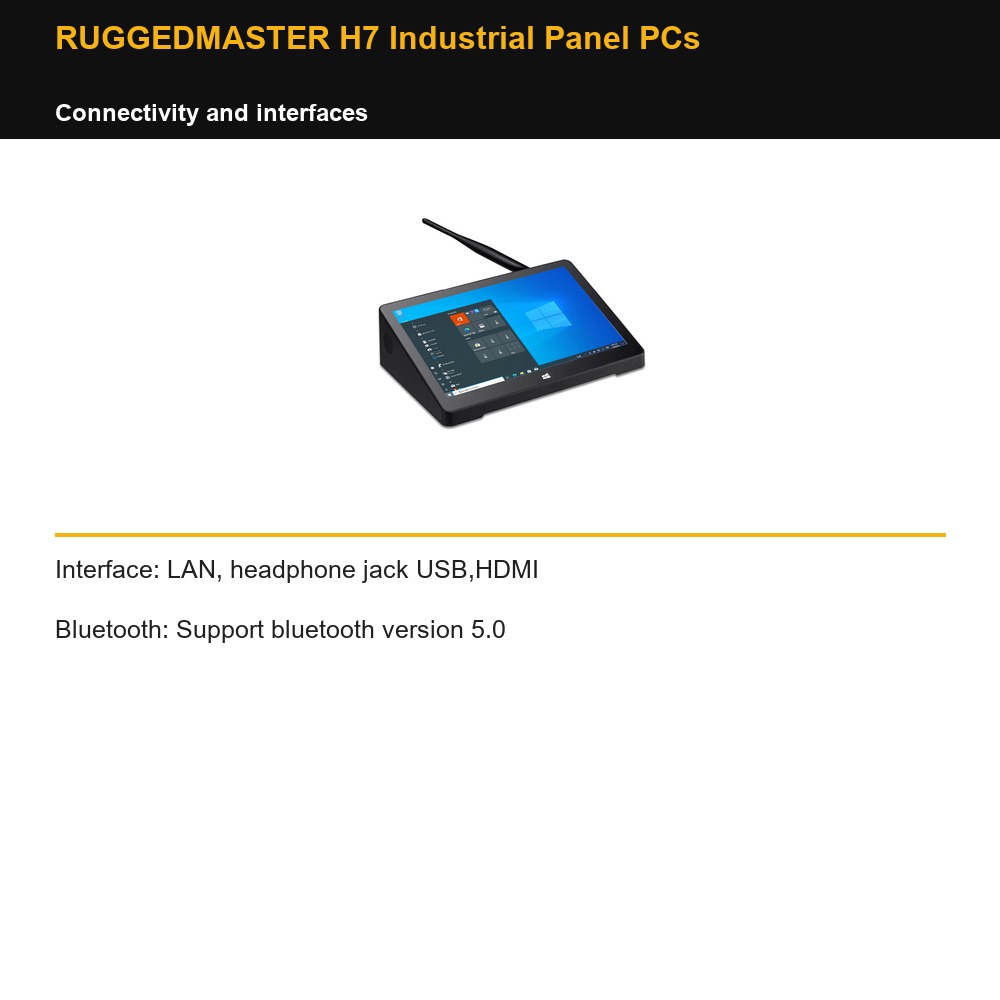

RUGGEDMASTER H7 Industrial Panel PCs — connectivity and interfaces
Interface: LAN, headphone jack USB,HDMI
Bluetooth: Support bluetooth version 5.0

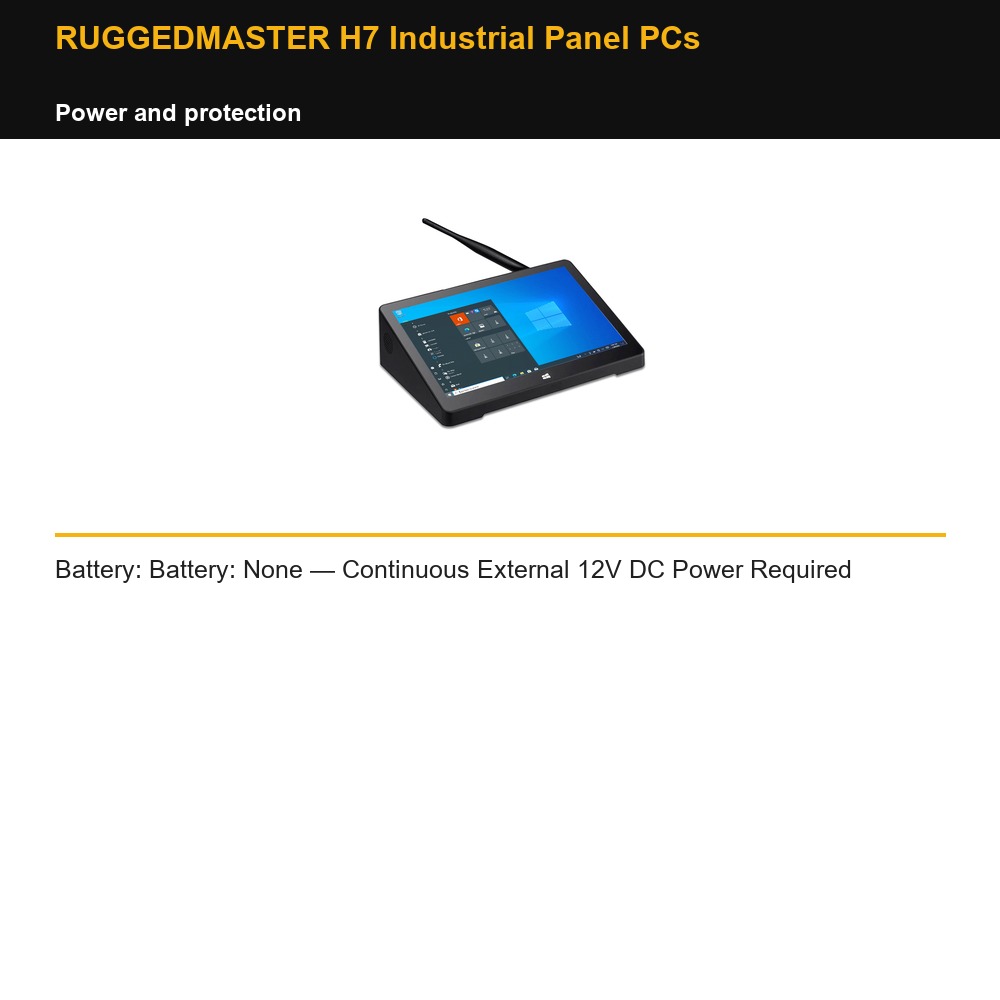

RUGGEDMASTER H7 Industrial Panel PCs — power and protection
Battery: Battery: None — Continuous External 12V DC Power Required
RUGGEDMASTER H7 Industrial Panel PCs technical specifications
| CPU | Intel Celeron N4020 2 cores 2 threads 1.1GHz~2.8GHz |
|---|---|
| System | Windows 10 |
| Storage | 4GB+64GB |
| Display | 7.0 inches (touch screen) 1280*800IPS |
| Speaker | Dual speaker |
| Media playback | Support for music, videos, and images |
| Battery | Battery: None — Continuous External 12V DC Power Required |
| Key | Power button Volume up/down button |
| Card slot | MicroSD Expansion up to 128GB |
| Interface | LAN, headphone jack USB,HDMI |
| Weight | 178*118*52mm 433g |
| Status indicator | Power Status Indicator |
| Funtion | support a variety of PC software run |
| Button | Power button Volume plus or minus button |
| Speaker | Built-in speakerX2 |
| Bluetooth | Support bluetooth version 5.0 |
| WiFi Funtion | 802.11 a/b/g/n/ac |
| POE | Support |
| Interface | TF card slot X1 |
| GPU Multimedia support (hardware decoding) | Music | MP3, WMA, WAV, OGG, FLAC, ALAC, APE, AAC, AC-3 |
| Picture | JPG,JPEG,BMP, GIF,PNG… |
| Video | MEPG 1/2/4,H.263/H.264，RMVB，WMV/VC-1, MVC, AVS, MJPEG. |
| Accessories | 12V 2.4A charger |
Wholesale configuration enquiries
For bulk orders, specify the model, required operating system, memory and storage configuration, and any optional communication or data-capture modules. Optional features are configuration dependent. Use the Specs tab to check the full interface, power and environmental requirements.
Browse related industrial panel pcs from RuggedMaster for your product comparison.
| CPU | Intel Celeron N4020 2 cores 2 threads 1.1GHz~2.8GHz |
|---|---|
| System | Windows 10 |
| Storage | 4GB+64GB |
| Display | 7.0 inches (touch screen) 1280*800IPS |
| Speaker | Dual speaker |
| Media playback | Support for music, videos, and images |
| Battery | Battery: None — Continuous External 12V DC Power Required |
| Key | Power button Volume up/down button |
| Card slot | MicroSD Expansion up to 128GB |
| Interface | LAN, headphone jack USB,HDMI |
| Weight | 178*118*52mm 433g |
| Status indicator | Power Status Indicator |
| Funtion | support a variety of PC software run |
| Button | Power button Volume plus or minus button |
| Speaker | Built-in speakerX2 |
| Bluetooth | Support bluetooth version 5.0 |
| WiFi Funtion | 802.11 a/b/g/n/ac |
| POE | Support |
| Interface | TF card slot X1 |
| GPU Multimedia support (hardware decoding) | Music | MP3, WMA, WAV, OGG, FLAC, ALAC, APE, AAC, AC-3 |
| Picture | JPG,JPEG,BMP, GIF,PNG... |
| Video | MEPG 1/2/4,H.263/H.264，RMVB，WMV/VC-1, MVC, AVS, MJPEG. |
| Accessories | 12V 2.4A charger |
