RUGGEDMASTER H10PRO Industrial Panel PCs
Intel Processor N100, 4 Cores / 4 Threads; 8GB DDR4 RAM + 128GB M.2 SSD; 10.1 inch 10-Point Projected Capacitive Touchscreen 1920*1200 IPS Reinforced Capacitive Touchscreen; Windows 11
The H10PRO is more accurately classified as a 10.1-inch industrial panel PC because it combines a touchscreen, processor, memory, storage, audio, battery and industrial interfaces in one enclosure. A conventional Box PC normally does not include an integrated display.
Battery: 7.4V 5000mAh
Interface: Gigabit Ethernet,Headphone jack USB3.0*4,HDMI,DB9 RS232 Serial Port
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
RUGGEDMASTER H10PRO Industrial Panel PCs
RUGGEDMASTER H10PRO Industrial Panel PCs supports wholesale and bulk order enquiries. Compare the standard specifications and optional modules for the configuration required by your project.
H10PRO 10.1 Inch Industrial Touch Panel PCs Details:
Frequently Asked Questions About the H10PRO Industrial Panel PC
1. Is the H10PRO a Box PC or an industrial panel PC?
The H10PRO is more accurately classified as a 10.1-inch industrial panel PC because it combines a touchscreen, processor, memory, storage, audio, battery and industrial interfaces in one enclosure. A conventional Box PC normally does not include an integrated display.
2. Which processor does H10PRO use?
The current H10PRO uses the Intel Processor N100 with four cores, four threads, a maximum frequency of up to 3.40GHz and Intel UHD Graphics.
3. Does the H10PRO support Windows 11?
Yes. The Intel Processor N100 belongs to a processor series supported for Windows 11.
4. Can the H10PRO be configured with 16GB of RAM?
Yes,16GB memory.
5. What type of storage is installed?
128GB storage M.2 2280 SSD.
6. Which interfaces are included?
The current configuration lists four USB 3.0 ports, one Gigabit Ethernet port, one HDMI Type-A output, one DB9 RS232 port and an audio interface.

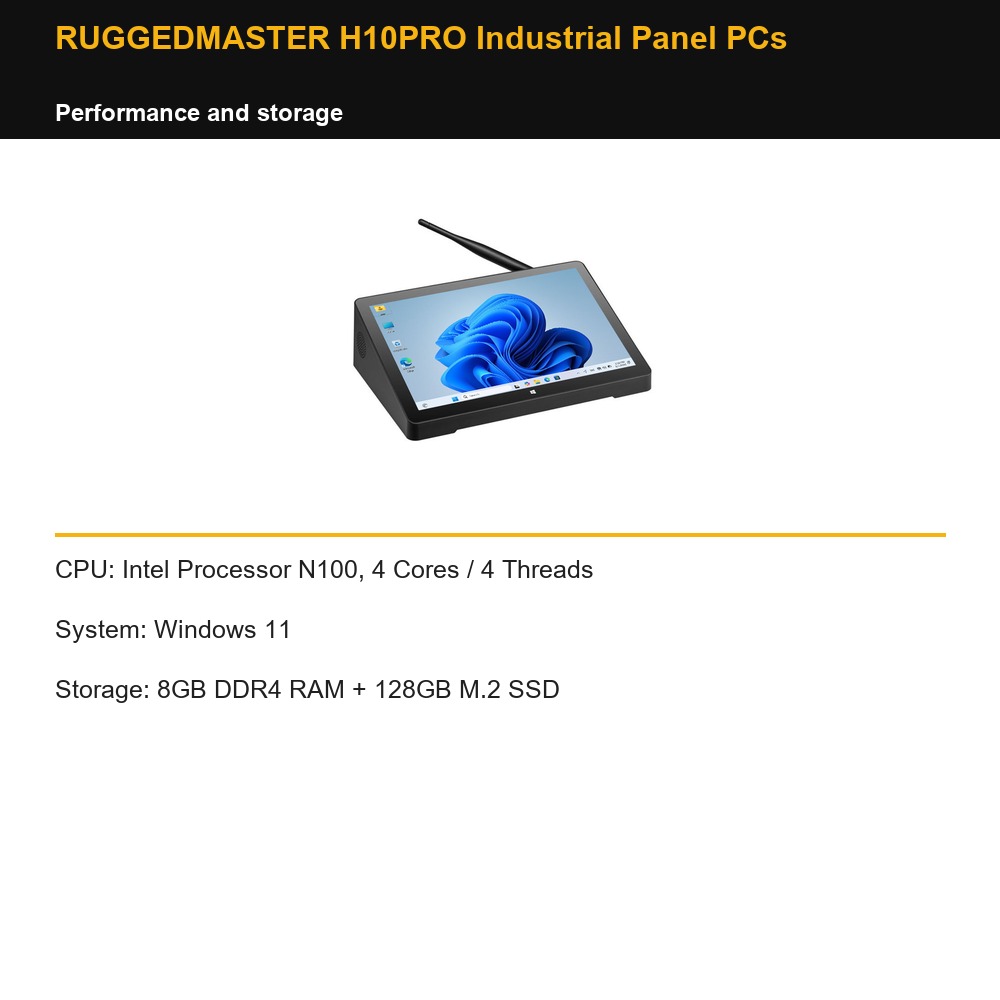

RUGGEDMASTER H10PRO Industrial Panel PCs — performance and storage
CPU: Intel Processor N100, 4 Cores / 4 Threads
System: Windows 11
Storage: 8GB DDR4 RAM + 128GB M.2 SSD

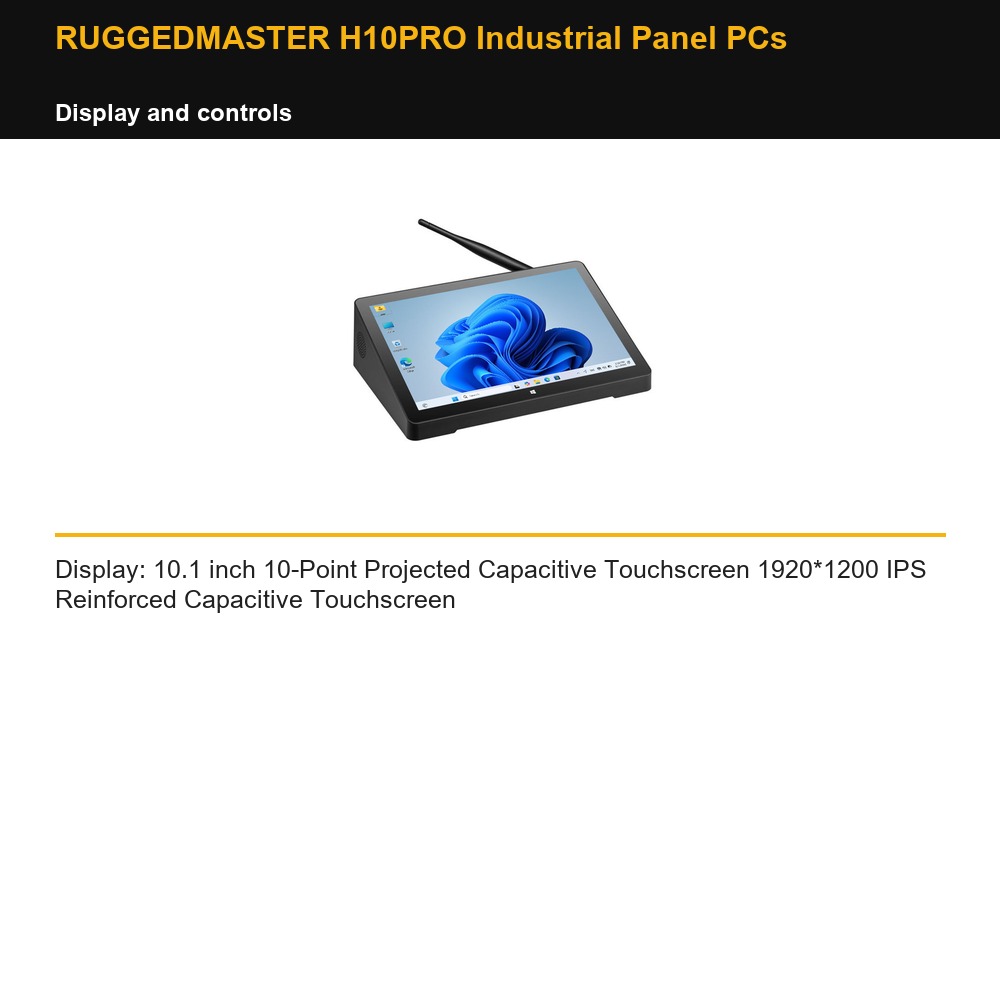

RUGGEDMASTER H10PRO Industrial Panel PCs — display and controls
Display: 10.1 inch 10-Point Projected Capacitive Touchscreen 1920*1200 IPS Reinforced Capacitive Touchscreen

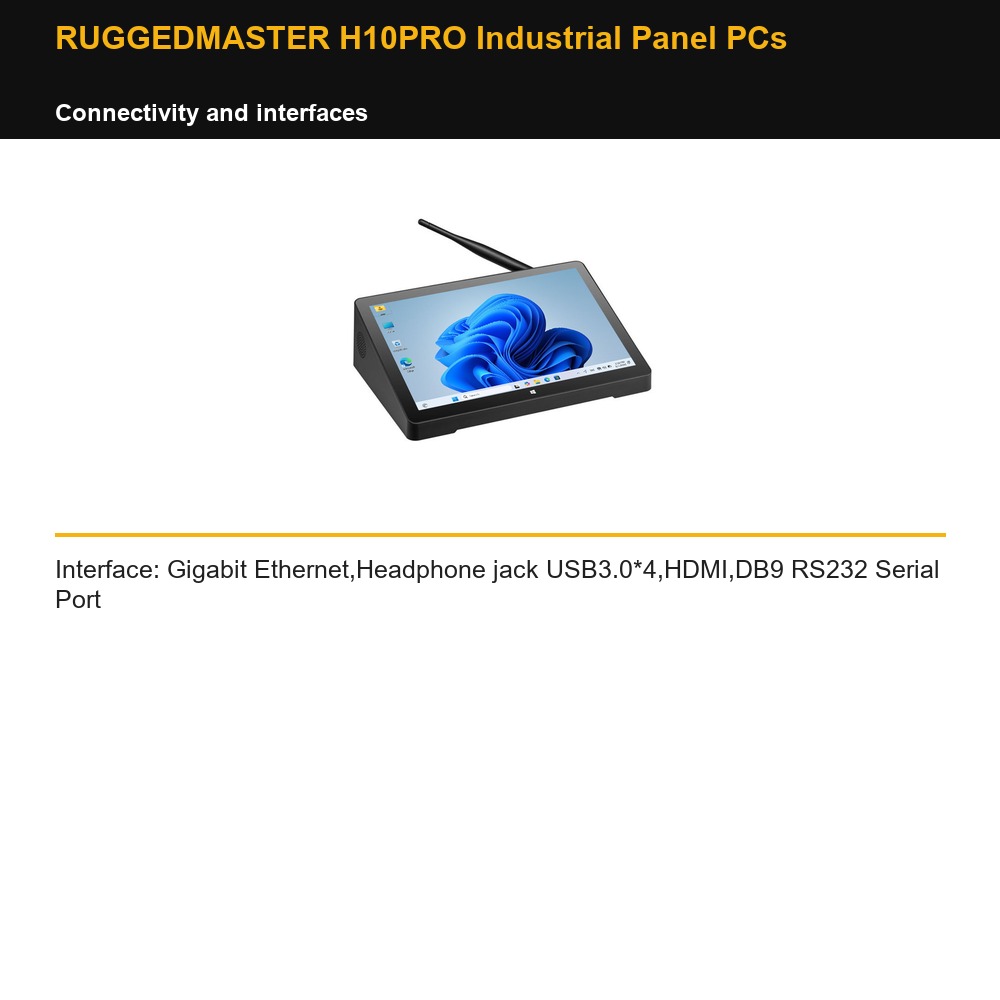

RUGGEDMASTER H10PRO Industrial Panel PCs — connectivity and interfaces
Interface: Gigabit Ethernet,Headphone jack USB3.0*4,HDMI,DB9 RS232 Serial Port

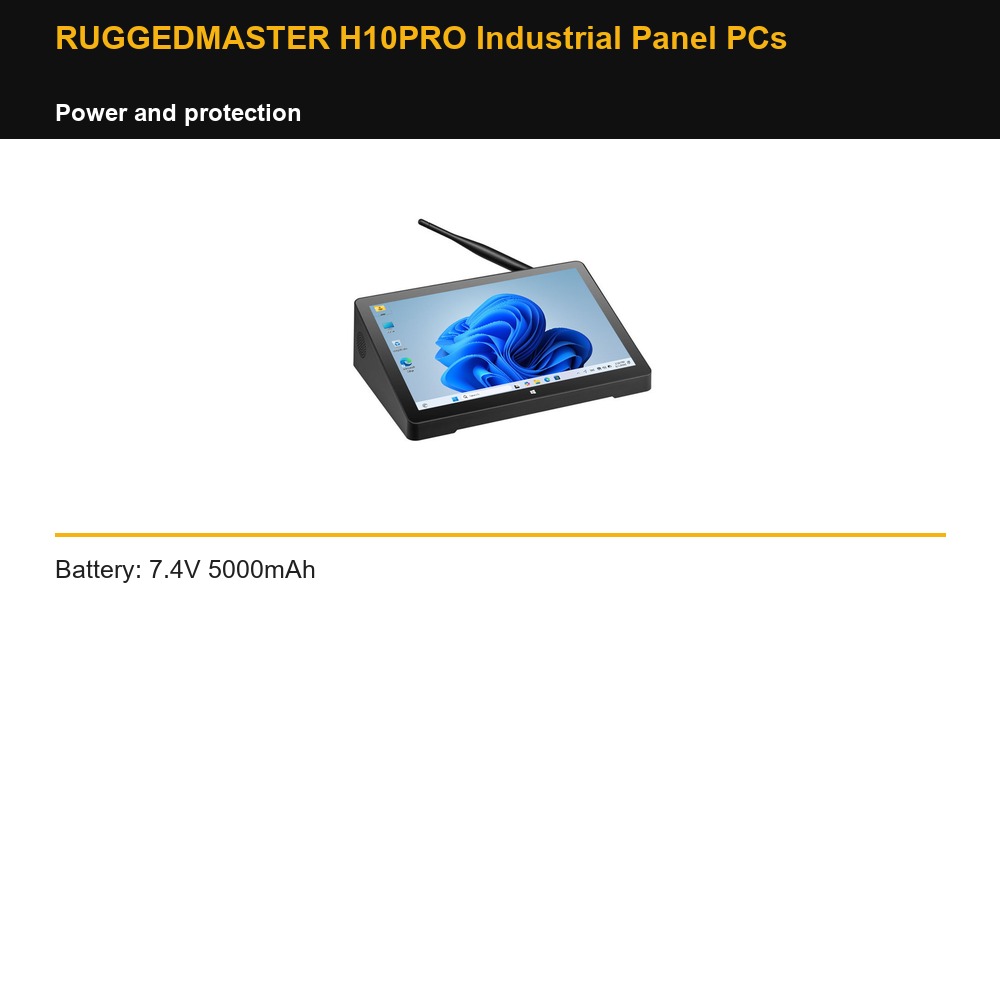

RUGGEDMASTER H10PRO Industrial Panel PCs — power and protection
Battery: 7.4V 5000mAh
RUGGEDMASTER H10PRO Industrial Panel PCs technical specifications
| CPU | Intel Processor N100, 4 Cores / 4 Threads |
|---|---|
| System | Windows 11 |
| Storage | 8GB DDR4 RAM + 128GB M.2 SSD |
| Display | 10.1 inch 10-Point Projected Capacitive Touchscreen 1920*1200 IPS Reinforced Capacitive Touchscreen |
| Speaker | Dual speaker Noise reduction microphone |
| Media playback | Support for music, videos, and images |
| Battery | 7.4V 5000mAh |
| Key | Power button Volume up/down button |
| Card slot | TF 128GB |
| Interface | Gigabit Ethernet,Headphone jack USB3.0*4,HDMI,DB9 RS232 Serial Port |
| Weight | 1045g |
| Status indicator | Charging indicator light |
| Operating System | Windows 11 |
| Audio output interface | Dual speaker 4 Ω 3 w |
| Microphone recording | Built-in mic, sensitivity -38db |
| gravity sensor | Three axis rotation |
| USB | 4 × USB Type-A 3.2 Gen 1 Ports |
| RJ45 | *1 Optional IEEE 802.3af/at PoE input |
| TF&SIM 2in1 card slot | *1 |
| Audio output and microphone input | *1 |
| HDMI output interface | *1 HDMI TYPE-A |
| RS232 | *1 DDB9 RS232 Serial Port, pin definition available upon request. |
| WIFI+BT 2in1 module | Intel Wi-Fi 6 AX101, dual-band 2.4GHz/5GHz, 1×1, up to 600Mbps, with Bluetooth 5.2. |
| charger | 12V/2.4A, 28.8W |
| Material | Metal and Reinforced Polymer Enclosure |
| Product Size | 249*162*68mm |
Wholesale configuration enquiries
For bulk orders, specify the model, required operating system, memory and storage configuration, and any optional communication or data-capture modules. Optional features are configuration dependent. Use the Specs tab to check the full interface, power and environmental requirements.
Browse related industrial panel pcs from RuggedMaster for your product comparison.
| CPU | Intel Processor N100, 4 Cores / 4 Threads |
|---|---|
| System | Windows 11 |
| Storage | 8GB DDR4 RAM + 128GB M.2 SSD |
| Display | 10.1 inch 10-Point Projected Capacitive Touchscreen 1920*1200 IPS Reinforced Capacitive Touchscreen |
| Speaker | Dual speaker Noise reduction microphone |
| Media playback | Support for music, videos, and images |
| Battery | 7.4V 5000mAh |
| Key | Power button Volume up/down button |
| Card slot | TF 128GB |
| Interface | Gigabit Ethernet,Headphone jack USB3.0*4,HDMI,DB9 RS232 Serial Port |
| Weight | 1045g |
| Status indicator | Charging indicator light |
| Operating System | Windows 11 |
| Audio output interface | Dual speaker 4 Ω 3 w |
| Microphone recording | Built-in mic, sensitivity -38db |
| gravity sensor | Three axis rotation |
| USB | 4 × USB Type-A 3.2 Gen 1 Ports |
| RJ45 | *1 Optional IEEE 802.3af/at PoE input |
| TF&SIM 2in1 card slot | *1 |
| Audio output and microphone input | *1 |
| HDMI output interface | *1 HDMI TYPE-A |
| RS232 | *1 DDB9 RS232 Serial Port, pin definition available upon request. |
| WIFI+BT 2in1 module | Intel Wi-Fi 6 AX101, dual-band 2.4GHz/5GHz, 1×1, up to 600Mbps, with Bluetooth 5.2. |
| charger | 12V/2.4A, 28.8W |
| Material | Metal and Reinforced Polymer Enclosure |
| Product Size | 249*162*68mm |
