RUGGEDMASTER H10F Industrial Panel PCs
Intel Processor N100, 4 Cores / 4 Threads; 8GB DDR4 RAM + 128GB M.2 SSD; 10.1 inch 10-Point Projected Capacitive Touchscreen 1920*1200 IPS Reinforced Capacitive Touchscreen; Windows 11
The H10F is more accurately classified as an industrial panel PC because it combines a 10.1-inch touchscreen, computer hardware, audio, battery and industrial interfaces in one enclosure.
Battery: 7.4V 5000mAh
Interface: Gigabit Ethernet,Headphone jack USB3.0*4,HDMI,DB9 RS232 Serial Port
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
RUGGEDMASTER H10F Industrial Panel PCs
RUGGEDMASTER H10F Industrial Panel PCs supports wholesale and bulk order enquiries. Compare the standard specifications and optional modules for the configuration required by your project.
H10 FAll-in-One Industrial Panel PCs Details:
Frequently Asked Questions About the H10F Industrial Panel PC
1. Which processor does the current H10F use?
The current H10F uses the Intel Processor N100 with four cores, four threads and a maximum frequency of up to 3.40GHz.
2. Is the H10F a Box PC or a panel PC?
The H10F is more accurately classified as an industrial panel PC because it combines a 10.1-inch touchscreen, computer hardware, audio, battery and industrial interfaces in one enclosure.
3. Does the H10F support Windows 11?
Yes. The current H10F is listed with Windows 11.
4. Is the storage eMMC or an M.2 SSD?
128GB M.2 SSD.
5. Which 2D barcode scanner is available?
The H10F lists an optional integrated 2D scanner, but the scan-engine manufacturer and model are not currently provided.
6. Does the Ethernet port support PoE?
Optional IEEE 802.3af/at PoE input is listed. Buyers should confirm the actual PoE standard, power class, input voltage, isolation, Ethernet speed and whether PoE can charge the internal battery.
7. Can the H10F be wall mounted?
The page lists a 100×100mm wall-mounting pattern.

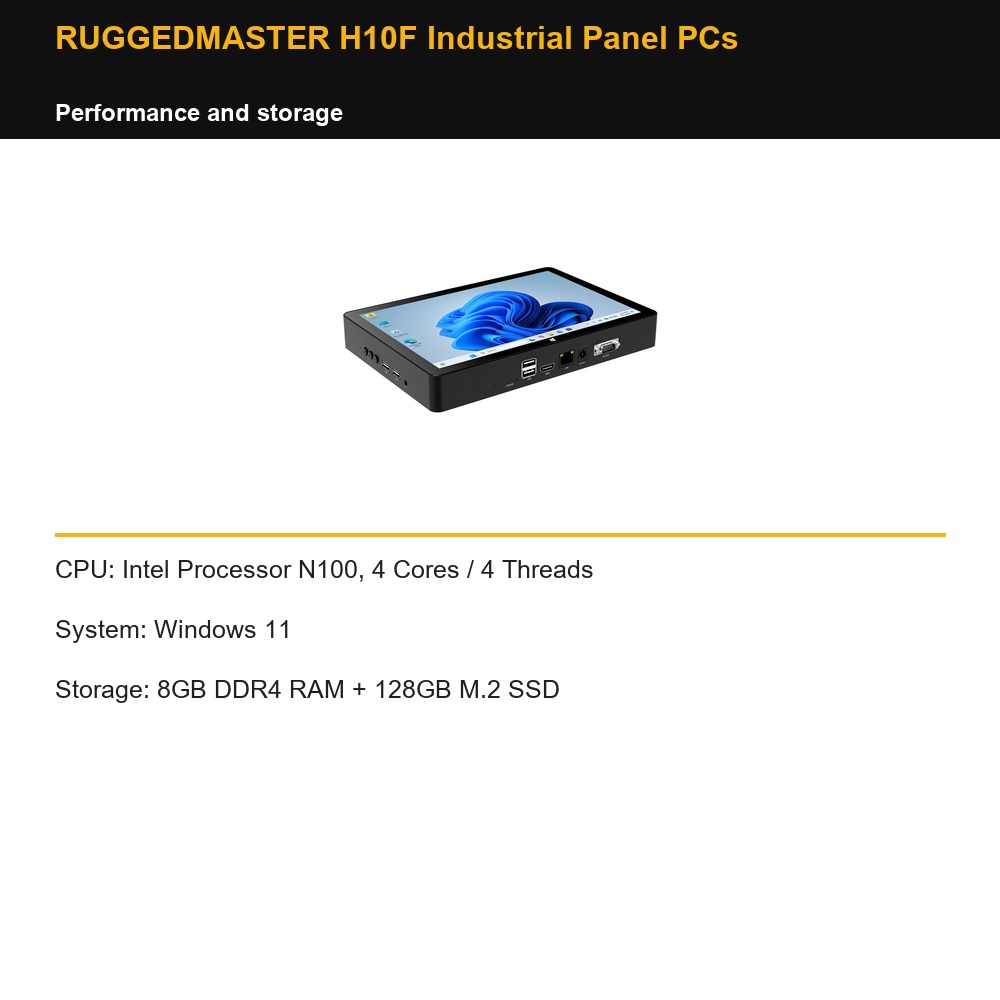

RUGGEDMASTER H10F Industrial Panel PCs — performance and storage
CPU: Intel Processor N100, 4 Cores / 4 Threads
System: Windows 11
Storage: 8GB DDR4 RAM + 128GB M.2 SSD

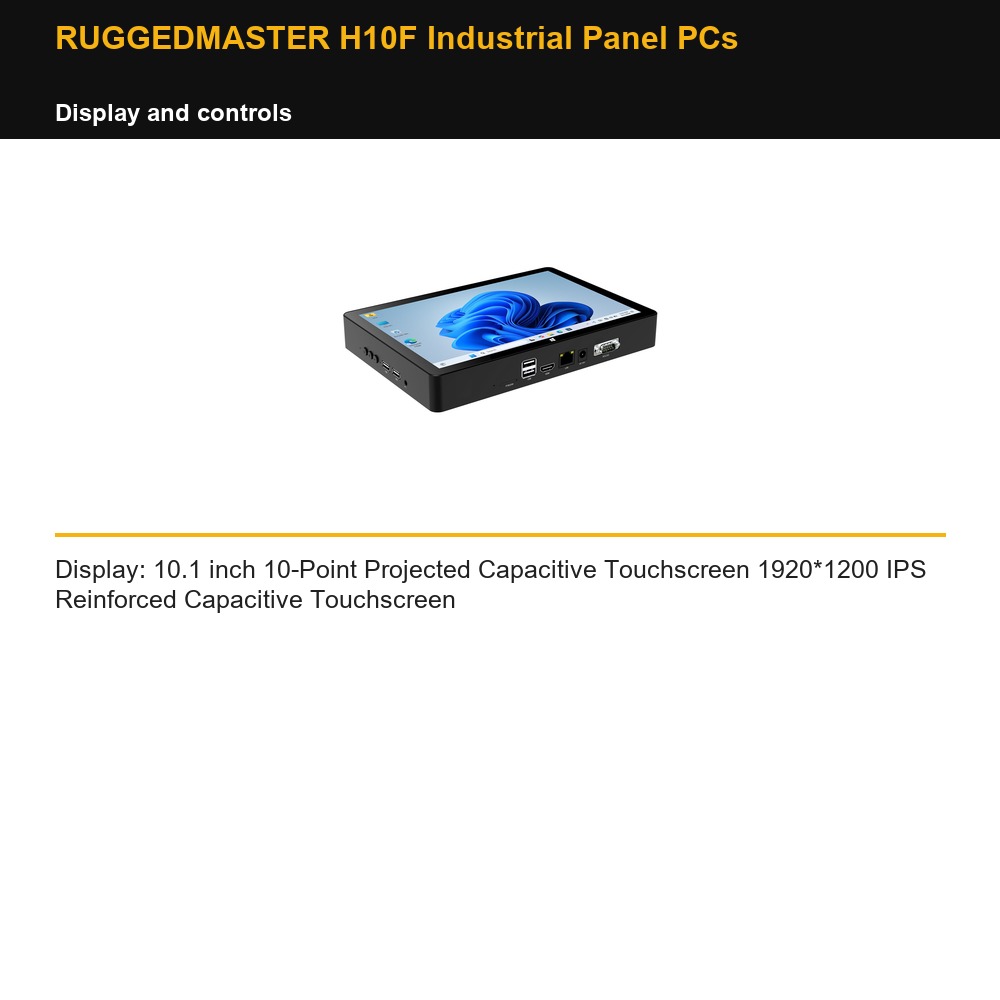

RUGGEDMASTER H10F Industrial Panel PCs — display and controls
Display: 10.1 inch 10-Point Projected Capacitive Touchscreen 1920*1200 IPS Reinforced Capacitive Touchscreen

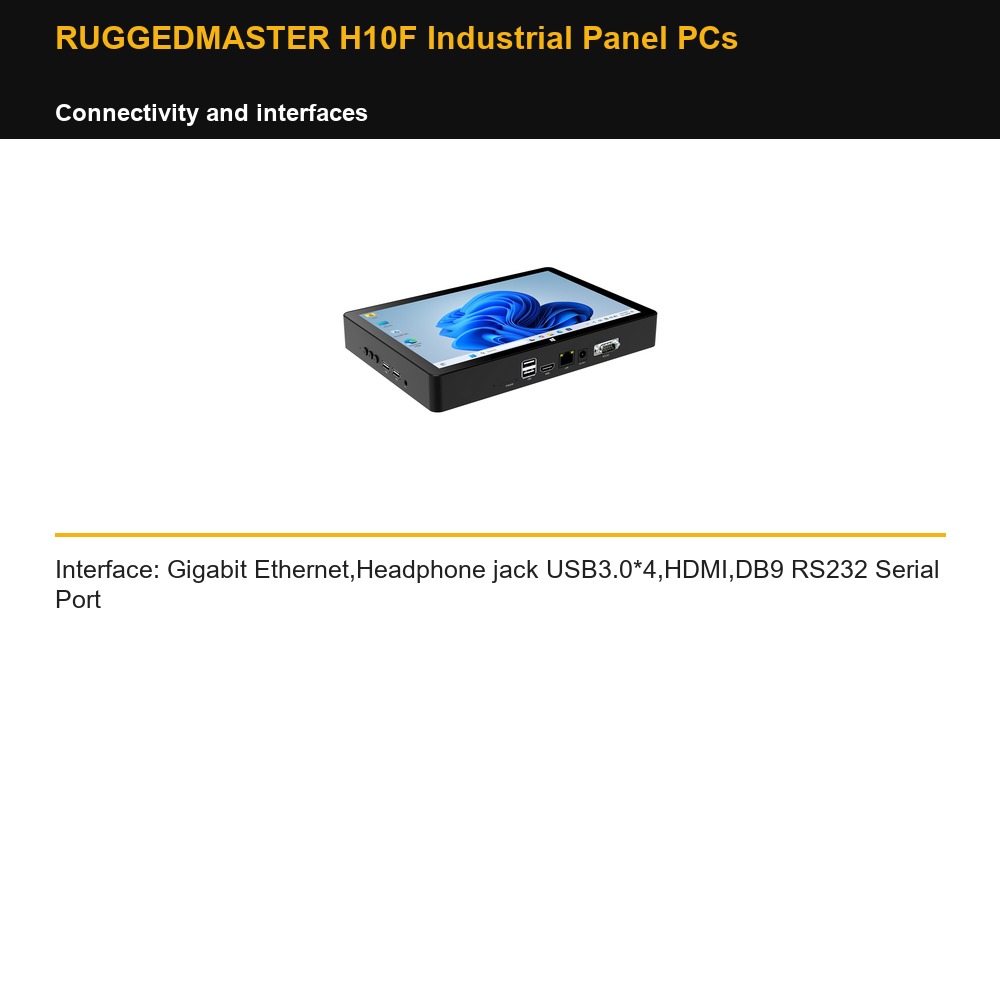

RUGGEDMASTER H10F Industrial Panel PCs — connectivity and interfaces
Interface: Gigabit Ethernet,Headphone jack USB3.0*4,HDMI,DB9 RS232 Serial Port

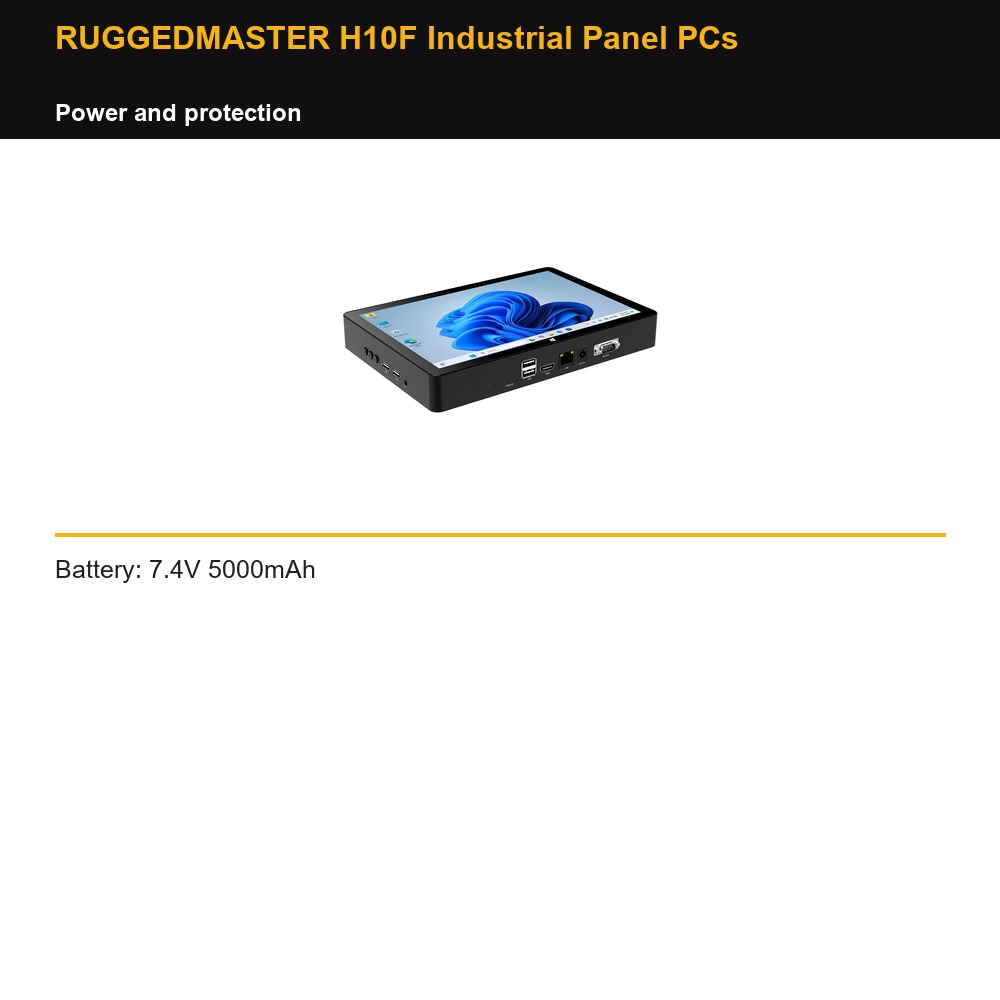

RUGGEDMASTER H10F Industrial Panel PCs — power and protection
Battery: 7.4V 5000mAh
RUGGEDMASTER H10F Industrial Panel PCs technical specifications
| CPU | Intel Processor N100, 4 Cores / 4 Threads |
|---|---|
| System | Windows 11 |
| Storage | 8GB DDR4 RAM + 128GB M.2 SSD |
| Display | 10.1 inch 10-Point Projected Capacitive Touchscreen 1920*1200 IPS Reinforced Capacitive Touchscreen |
| Speaker | Dual speaker Noise reduction microphone |
| Media playback | Support for music, videos, and images |
| Battery | 7.4V 5000mAh |
| Key | Power button Volume up/down button |
| Card slot | TF 128GB |
| Interface | Gigabit Ethernet,Headphone jack USB3.0*4,HDMI,DB9 RS232 Serial Port |
| Weight | 990g |
| Status indicator | Charging indicator light |
| Funtion | Optional 4G module, supports WiFi6, memory/SSD can be plugged and replaced, 4 Ω 3W dual speakers with loud sound |
| Audio output interface | Dual speaker 4 Ω 2.5W |
| Microphone recording | Built-in mic, sensitivity -38db |
| gravity sensor | Three axis rotation |
| USB | 4 × USB Type-A 3.2 Gen 1 Ports |
| RJ45 | *1 Optional IEEE 802.3af/at PoE input |
| TF&SIM 2in1 card slot | *1 |
| Audio output and microphone input | *1 |
| HDMI output interface | *1 HDMI TYPE-A |
| RS232 | *1 DDB9 RS232 Serial Port, pin definition available upon request. |
| 2D | custom made 2D scan |
| WIFI+BT 2in1 module | Intel Wi-Fi 6 AX101, dual-band 2.4GHz/5GHz, 1×1, up to 600Mbps, with Bluetooth 5.2. |
| charger | 12V/2.4A, 28.8W |
| Material | Metal and Reinforced Polymer Enclosure |
| Wall hanging installation | Wall hanging hole position 100x100mm，M3*4mm |
| Product Size | 243*166*32mm |
Wholesale configuration enquiries
For bulk orders, specify the model, required operating system, memory and storage configuration, and any optional communication or data-capture modules. Optional features are configuration dependent. Use the Specs tab to check the full interface, power and environmental requirements.
Browse related industrial panel pcs from RuggedMaster for your product comparison.
| CPU | Intel Processor N100, 4 Cores / 4 Threads |
|---|---|
| System | Windows 11 |
| Storage | 8GB DDR4 RAM + 128GB M.2 SSD |
| Display | 10.1 inch 10-Point Projected Capacitive Touchscreen 1920*1200 IPS Reinforced Capacitive Touchscreen |
| Speaker | Dual speaker Noise reduction microphone |
| Media playback | Support for music, videos, and images |
| Battery | 7.4V 5000mAh |
| Key | Power button Volume up/down button |
| Card slot | TF 128GB |
| Interface | Gigabit Ethernet,Headphone jack USB3.0*4,HDMI,DB9 RS232 Serial Port |
| Weight | 990g |
| Status indicator | Charging indicator light |
| Funtion | Optional 4G module, supports WiFi6, memory/SSD can be plugged and replaced, 4 Ω 3W dual speakers with loud sound |
| Audio output interface | Dual speaker 4 Ω 2.5W |
| Microphone recording | Built-in mic, sensitivity -38db |
| gravity sensor | Three axis rotation |
| USB | 4 × USB Type-A 3.2 Gen 1 Ports |
| RJ45 | *1 Optional IEEE 802.3af/at PoE input |
| TF&SIM 2in1 card slot | *1 |
| Audio output and microphone input | *1 |
| HDMI output interface | *1 HDMI TYPE-A |
| RS232 | *1 DDB9 RS232 Serial Port, pin definition available upon request. |
| 2D | custom made 2D scan |
| WIFI+BT 2in1 module | Intel Wi-Fi 6 AX101, dual-band 2.4GHz/5GHz, 1×1, up to 600Mbps, with Bluetooth 5.2. |
| charger | 12V/2.4A, 28.8W |
| Material | Metal and Reinforced Polymer Enclosure |
| Wall hanging installation | Wall hanging hole position 100x100mm，M3*4mm |
| Product Size | 243*166*32mm |
