RUGGEDMASTER GZ-T14A Rugged Tablets
OS: Windows 11 Pro (Home, IOT) 64bit, Language by default: EnglishOptional: Windows 10 IOT 64bit Windows 10 Pro 64bit Windows 10 Home 64bit, CPU: 12TH i5-1235U, TDP15W, 2P-Cores, 8E-Cores, 12threads, 0.9GHz~4.4GHzOptional: i7-1255U, TDP15W, 2P-Cores, 8E-Cores, 12threads, 1.2GHz~4.7GHz, LCD Display: 14 inch 16:10, 1080×1920P With 1000 cd/m2
ULTRA-LARGE RUGGED TABLETThe GZ-T14A features the 12th Generation Intel® Core™ i5/i7 processors and runs on Windows 11/10 operating systems. It comes standard with 16GB RAM + 256GB SSD, and boasts a dual-memory and dual-hard drive slot design that supports free upgrades and expansions. Options for M.2 interface 5G/4G connectivity are available, along with efficient
RAM/ROM: 16GB DDR5 Optional: 32GB, up to 64GB / 256GB NGFF SSD Removeable, Optional: 512GB, up to 1TB/2TB
External Memory: Support TF*1,MAX 128GB
RTC Battery: 3.0V/220MAH
Battery: UN38.3，MSDS,IEC62133
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
RUGGEDMASTER GZ-T14A product details

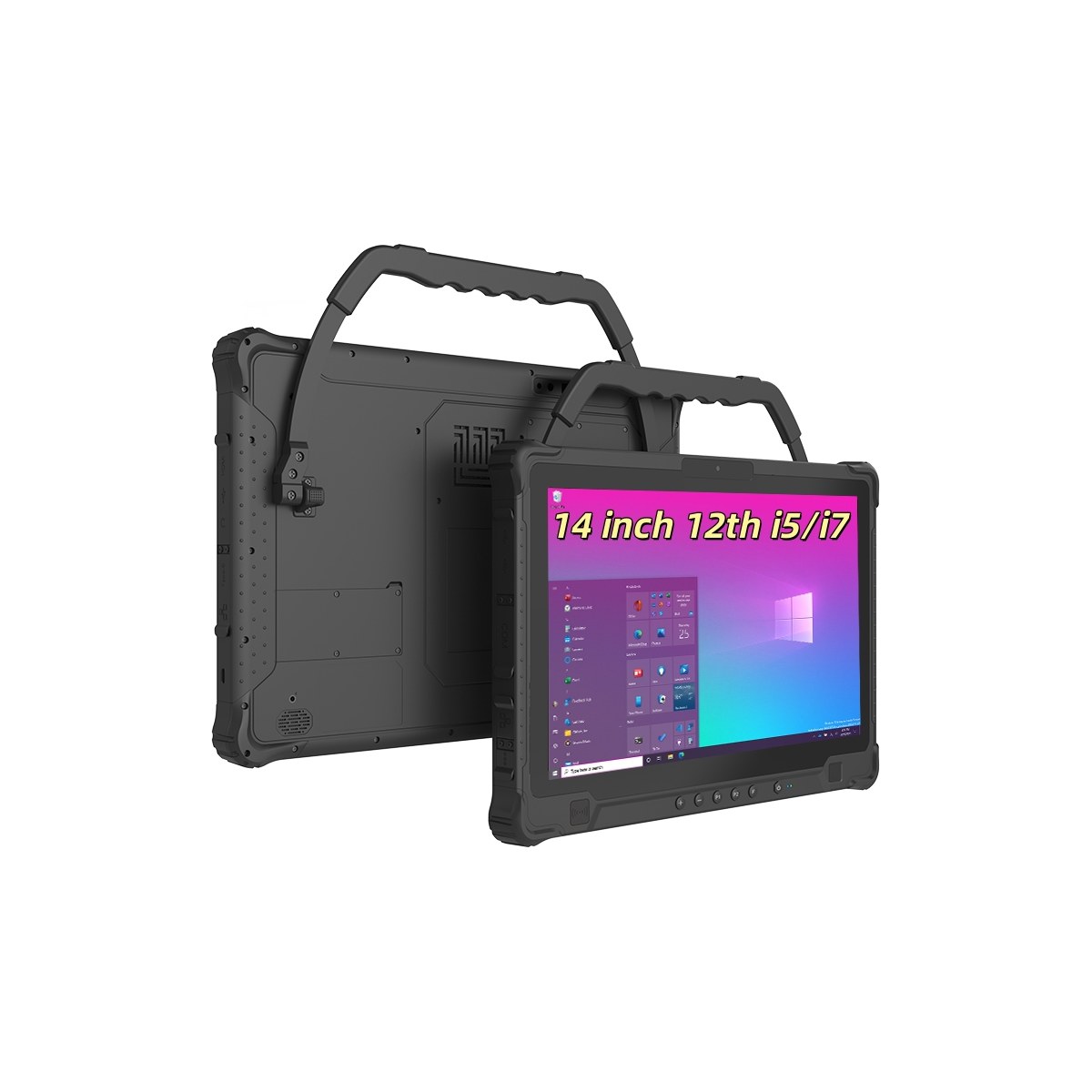

RUGGEDMASTER GZ-T14A rugged tablets. Big Screen 14 inch Rugged Tablet GZ-T14A.
RUGGEDMASTER GZ-T14A key features
- OS: Windows 11 Pro (Home, IOT) 64bit, Language by default: EnglishOptional: Windows 10 IOT 64bit Windows 10 Pro 64bit Windows 10 Home 64bit
- CPU: 12TH i5-1235U, TDP15W, 2P-Cores, 8E-Cores, 12threads, 0.9GHz~4.4GHzOptional: i7-1255U, TDP15W, 2P-Cores, 8E-Cores, 12threads, 1.2GHz~4.7GHz
- LCD Display: 14 inch 16:10, 1080×1920P With 1000 cd/m2
- RAM/ROM: 16GB DDR5 Optional: 32GB, up to 64GB / 256GB NGFF SSD Removeable, Optional: 512GB, up to 1TB/2TB
- External Memory: Support TF*1,MAX 128GB
- RTC Battery: 3.0V/220MAH
- Battery: UN38.3，MSDS,IEC62133
- Barcode Scanner: 2D Optional Honeywell N3680/N4680 hardcode(Code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse)
- NFC: Optional USB interface, supports ISO14443A, ISO14443B, IOS15693, ISO18092, Felica.
- Ethernet interface: 1* RJ45 board,(10/100M/1000M) Ethernet interface(Standard Machine including RJ45)
Big Screen 14 inch Rugged Tablet GZ-T14A
ULTRA-LARGE RUGGED TABLETThe GZ-T14A features the 12th Generation Intel® Core™ i5/i7 processors and runs on Windows 11/10 operating systems. It comes standard with 16GB RAM + 256GB SSD, and boasts a dual-memory and dual-hard drive slot design that supports free upgrades and expansions. Options for M.2 interface 5G/4G connectivity are available, along with efficient transmission via WiFi 6 and BT5.1. It includes a Thunderbolt 4 versatile interface, as well as USB, HDMI, Ethernet, and serial ports, allowing for the connection of numerous external devices. With a dual-battery setup of 56Wh + 14.4Wh, it offers long-lasting endurance, and the larger battery supports hot-swapping. The device has an IP65 protection rating and has undergone rigorous testing according to the MIL-STD-810H US military standards.
Planning a team deployment
Review the RUGGEDMASTER GZ-T14A specifications alongside the applications your team needs to use. Check the listed operating system, display dimensions and available interfaces before selecting a device for your workflow. When a scanner, reader or other module is described as optional, include that requirement in your enquiry so the exact configuration can be confirmed. Product illustrations may show an optional module or an example application. Use the written specifications to identify the capabilities required for your project.
Configuration and compatibility
For a team rollout, record the exact model, the quantity needed at each location and the software used by your staff. Match the listed network information to your destination and operating environment. Check storage requirements, charging arrangements and existing peripheral connections before preparing your shortlist. Where several memory or processor configurations are listed, confirm the requested configuration with RuggedMaster. Optional accessories and example setups help illustrate a workflow; configuration requirements should be included in your purchasing enquiry.
RUGGEDMASTER GZ-T14A bulk order enquiries
For wholesale quantities and bulk orders, contact RuggedMaster with the exact model, required quantities, preferred configuration and destination. Include any scanning, identification or software requirements for your application. Review the Specs tab and product illustrations when comparing models. Availability, the requested configuration and order details should be confirmed before purchase.
|
Hardware
|
|
|
CPU
|
12TH i5-1235U, TDP15W, 2P-Cores, 8E-Cores, 12threads, 0.9GHz~4.4GHz
Optional: i7-1255U, TDP15W, 2P-Cores, 8E-Cores, 12threads, 1.2GHz~4.7GHz |
|
GPU
|
Intel® Iris® Xe Graphics eligible
|
|
RAM/ROM
|
16GB DDR5 Optional: 32GB, up to 64GB /
256GB NGFF SSD Removeable, Optional: 512GB, up to 1TB/2TB
|
|
External Memory
|
Support TF*1,MAX 128GB
|
|

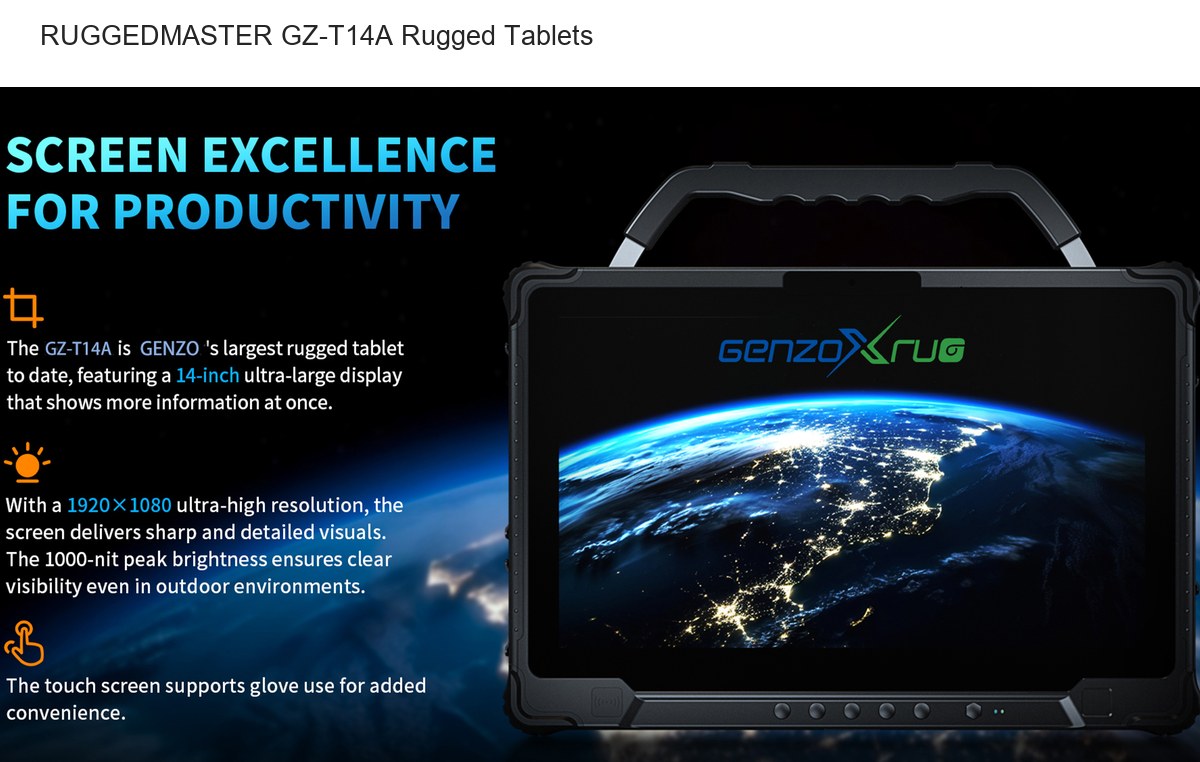

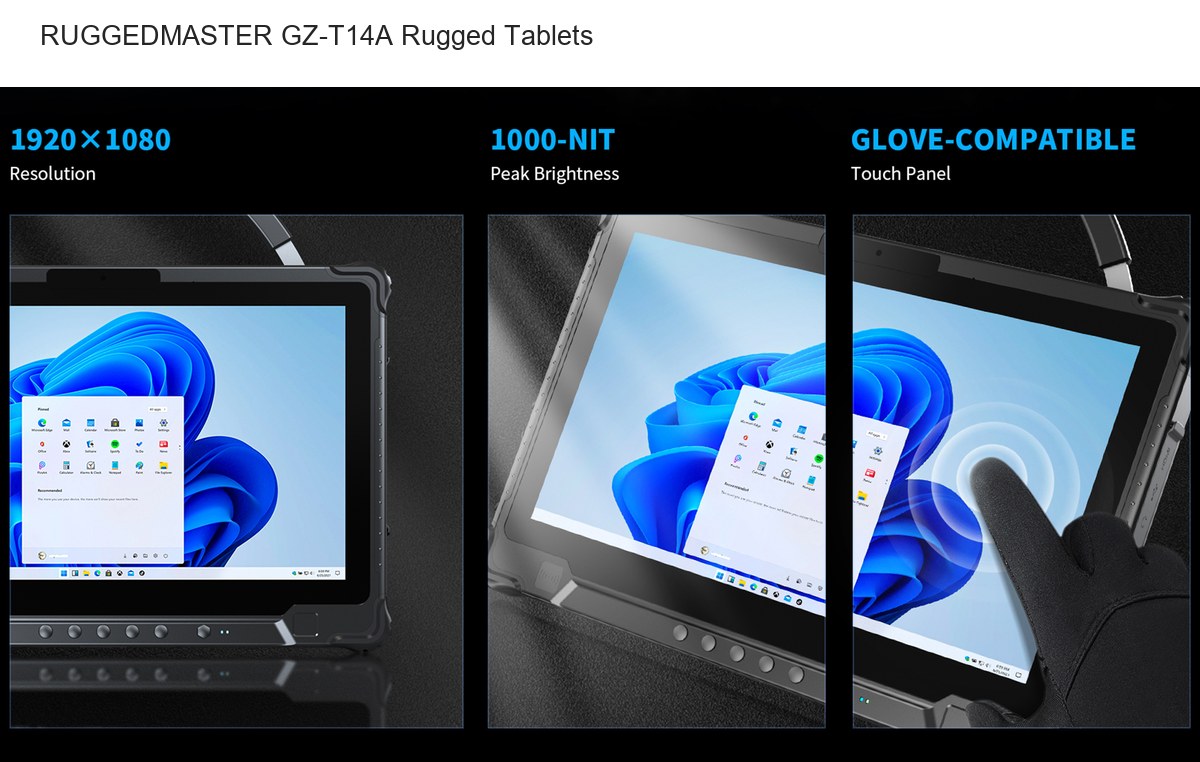

LCD Display
|
14 inch 16:10, 1080×1920P With 1000 cd/m2
|
|
Touch Panel
|
10 points Capacitive，G+G，Rigidity: above 7H-Anti-scratch, Supports glove touchV
|
|
Camera
|
Front:5.0MP, Rear: 8.0MP
|
|
RTC Battery
|
3.0V/220MAH
|
|
Battery(Small+Big)
|
Small Battery:Built in polymer lithium ion battery,Non-Removeable 11.1V/1300mAh. 30mins(default 50% volumn，default200nit，play 1080P HD video) +Big Battery:Lithium-ion polymer battery , pluggable, Hot Swap,11.55V/4850mAh.
8hrs(default 50% volumn,default200nit,play 1080P HD video)
|
|
Speaker
|
Built in 4Ω/3W waterproof speaker *2
|
|
Mic
|
Waterproof microphone 4618, specification: - 38dB±3DB
|
|
TPM
|
Built-in TPM2.0
|
|
G_sensor
|
Gravity acceleration sensor
|
|
Fingerprint
|
Built-in ×1 SPI Fingerprint (windows hellow boot login)
|
|
Fan
|
Built-in ×1 IPX5
|
|
Data Collection & Networking
|
|
|
Barcode Scanner
|
2D Optional Honeywell N3680/N4680 hardcode(Code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse)
|
|
NFC
|
Optional USB interface, supports ISO14443A, ISO14443B, IOS15693, ISO18092, Felica.
|
|
BT
|
BT5.1 (BLE) class1 Transmited distance：10m
|
|
WIFI
|
Wi-Fi 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax Dual frequency 2.4G+5.8G WIFI
|
|
4G
|
MeiGlink SLM75-VE, LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 China (China Unicom Telecom, mobile support is not good, only B8 supports no
TDD band) Europe, Middle East, Africa, Taiwan, Japan |
|
5G Optional
|
Optional NSA n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/78/79 SA n1/2/3/5/7/8/12/13/14/
18/20/25/26/28/29/30/38/ 40/41/48/66/70/71/75/ 76/77/78/79 LTE LTE-FDD B1/2/3/4/5/7/8/ 12/13/14/17/18/19/20/ 25/26/28/29/30/32/66/71 LTE-TDD B34/38/39/40/ 41/42/43/48 |
|
GPS
|
Supports single GPS or single Glonass, default GPS
|
|
OS
|
Windows 11 Pro (Home, IOT) 64bit, Language by default: English
Optional: Windows 10 IOT 64bit Windows 10 Pro 64bit Windows 10 Home 64bit
|
|
Module extension (Note: The following modules are one of four)
|
|
|
Ethernet interface
|
1* RJ45 board,(10/100M/1000M) Ethernet interface
(Standard Machine including RJ45)
|
|
Serial port
|
1* RS232
|
|
Two-dimension barcode
|
1*Honeywell N3680/N4680 hardcode
|
|
USB2.0
|
USB3.2 *1，USB2.0 *2
|
|
I/O Port & Appearance & Package
|
|
|

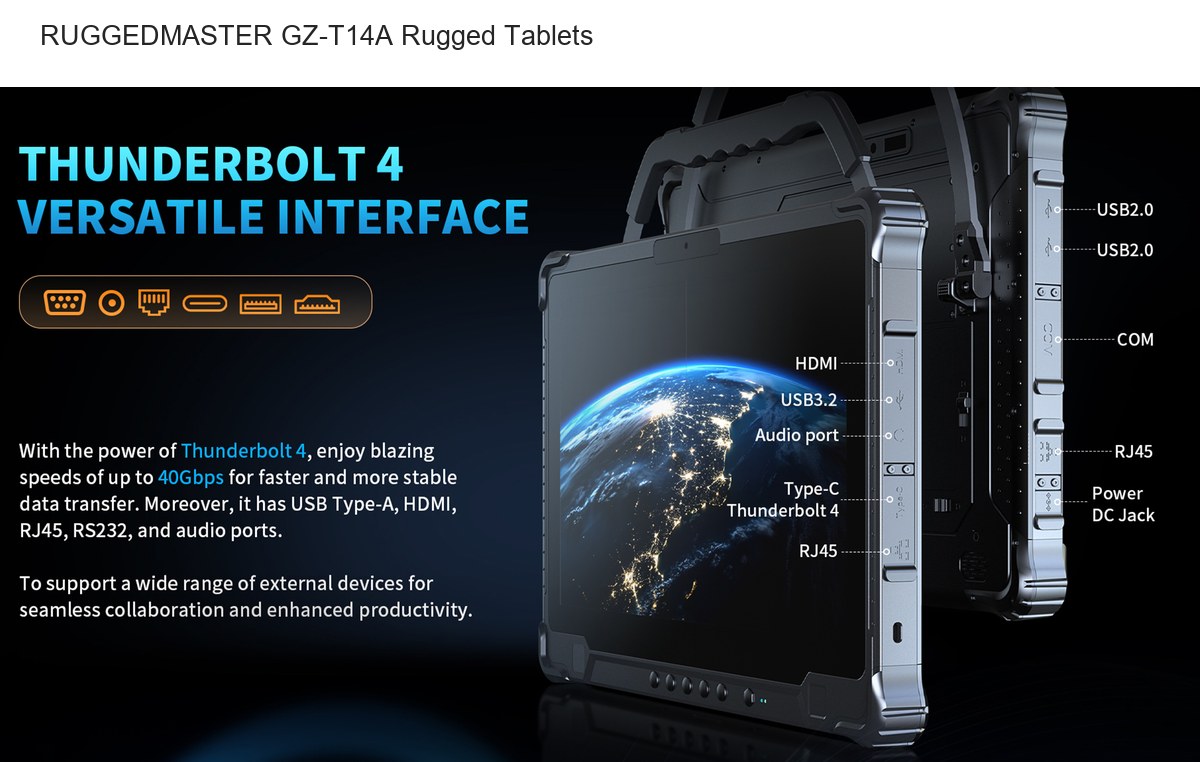

I/O Port
|
Power Button *1 Volumn + key *1 Volumn - key *1 Customized key *2（Default: P1 for opening the Control Center, P2 for opening the
camera） F key *1 (Barcode scanning)HDMI 2.0a mini x1,
USB 3.2 Type-A x 1, USB2.0 Type-A x 2
Type-c x 1(Supports Thunderbolt 4),
SIM Card x 1, TF Card x 1, RJ45*1 10M/100M/1000M self-adaptive RJ45*1 10M/100M/1000M self-adaptive (USB2.0), supports Gigabit Ethernet protocol
RS232 *1, 9 fully functional lines
12pin（USB&Docking charging） x 1, Φ3.5mm standard earphone jack x 1, Φ5.5mm DC 19V 3.78A DC jack x 1 |
|
Keys
|
Power Button *1
Volumn + key *1
Volumn - key *1
Customized key *2（Default: P1 for opening the Control Center, P2 for opening the
camera） F key *1 (Barcode scanning)
|
|
Power Adaptor
|
AC100~240V, 19V/3.78A 71.82W output
USA Standard CE approval.
UK/EU Standard Optional
|
|
Power Indicator Light
|
1. Power On: Power indicator remains solid.
2. Power Off: Power indicator turns off.
3. Sleep Mode: Power indicator blinks.
|
|
Baterry Indicator Light
|
1. Charging: Charging indicator remains solid (red). 2. Fully Charged: Charging indicator remains solid (green). 3. Large Battery Not Connected: Charging indicator flashes quickly (red). 4. Low Battery (10%) Without Adapter Connected: Charging indicator flashes quickly (red)
|
|
Dimension
|
366.2mmx246.9mmx24.8mm
|
|
Weight
|
Device unit: 1150g. 5000mAh battery：250g
|
|
Package
|
Standard configuration:Handle/USB cable/OTG cable/19V 3.78A Adapter/Packing box（Can be customized logo)
|
|
Optional Accessories
|
Docking Charger / Vehicle Mount/ Stylus / Removable Battery
|
|
Certificate System & Reliability Design
|
|
|
IP67/IP65
|
IP65 Report:Water Resistance:IP-X5，Dust Resistance:P-6X R
a.Inner Nozzle Diameter:6.3mm；
b. Water Speed:12.5±0.625L/min；
c. Water Pressure:Adjust according to water volumn；
d.Central part of water volumn:A round with a diameter of about 40mm at the distance from the nozzle 2.5m.
e.Spray time in surface of panele: About 1 min/Square meter；
f.Test time:at least 3min；
g.Distance between nozzle and panel surface:2.5～3m.
After test,there is no water leakage in sample.
|
|
CE NB
|
YES
|
|
MIL-STD-810G
|
YES
|
|
Battery
|
UN38.3，MSDS,IEC62133
|
|
Drop Height
|
1.22m composite wood floors,in operation status
|
|
Operate Temperature
|
‘-20 °C to 60 °C
|
|
Store Temperature
|
’-30 °C to 70 °C
|
|
Humidity
|
Humidity: 95% Non-Condensing
|
