RUGGEDMASTER GZ-MT105P Rugged Tablets
OS: Android 11 With GMS, CPU: MSM 6350（8core）, LCD Display: 10.1“ 16:10,1200*1920 IPS screen, 400 nits
Modle:GZ-MT105P. CPU：MSM 6350（8core）， RAM/ROM：4GB LPDDR3/ 64GB EMMC， LCD Display：10.1 inch 16:10,1200*1920 IPS screen, 400 nits，Battery: 3.7V/8000mAh. Built-in polymer lithium ion battery. Camera: Front:5.0MP, Rear: 13MP auto-facus with flashlight. Optional Items: Docking Station /1D or 2D Barcode
RAM/ROM: 4GB LPDDR3/ 64GB EMMC
External Memory: Support TF*1,MAX 256GB
Battery: 3.7V/8000mAh. Built-in polymer lithium ion battery. 8-10 Hrs(default 50% volumn,default maximum lumens brightness,play 1080P HD video)
Battery: UN38.3，MSDS,IEC62133
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
RUGGEDMASTER GZ-MT105P product details

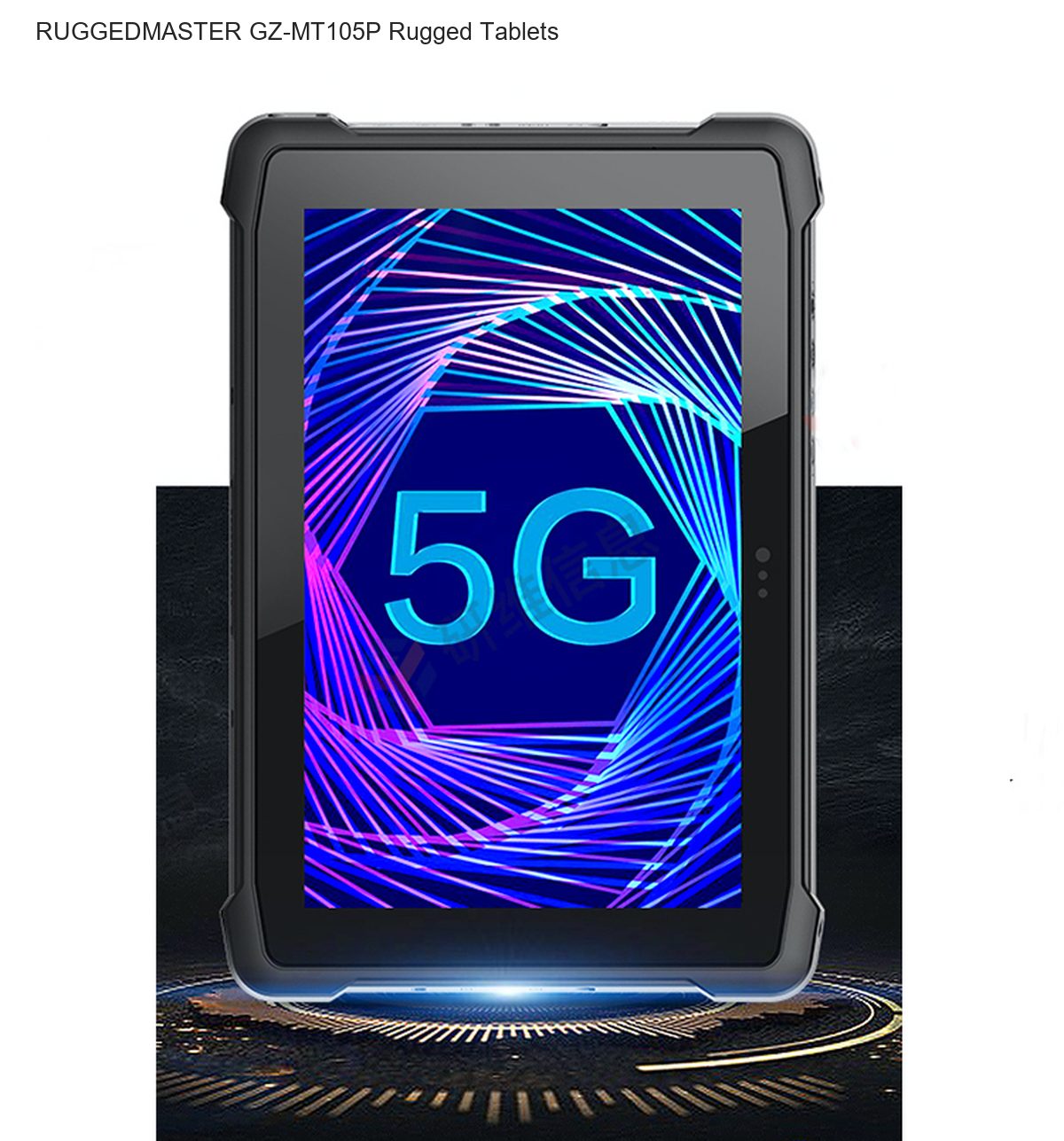

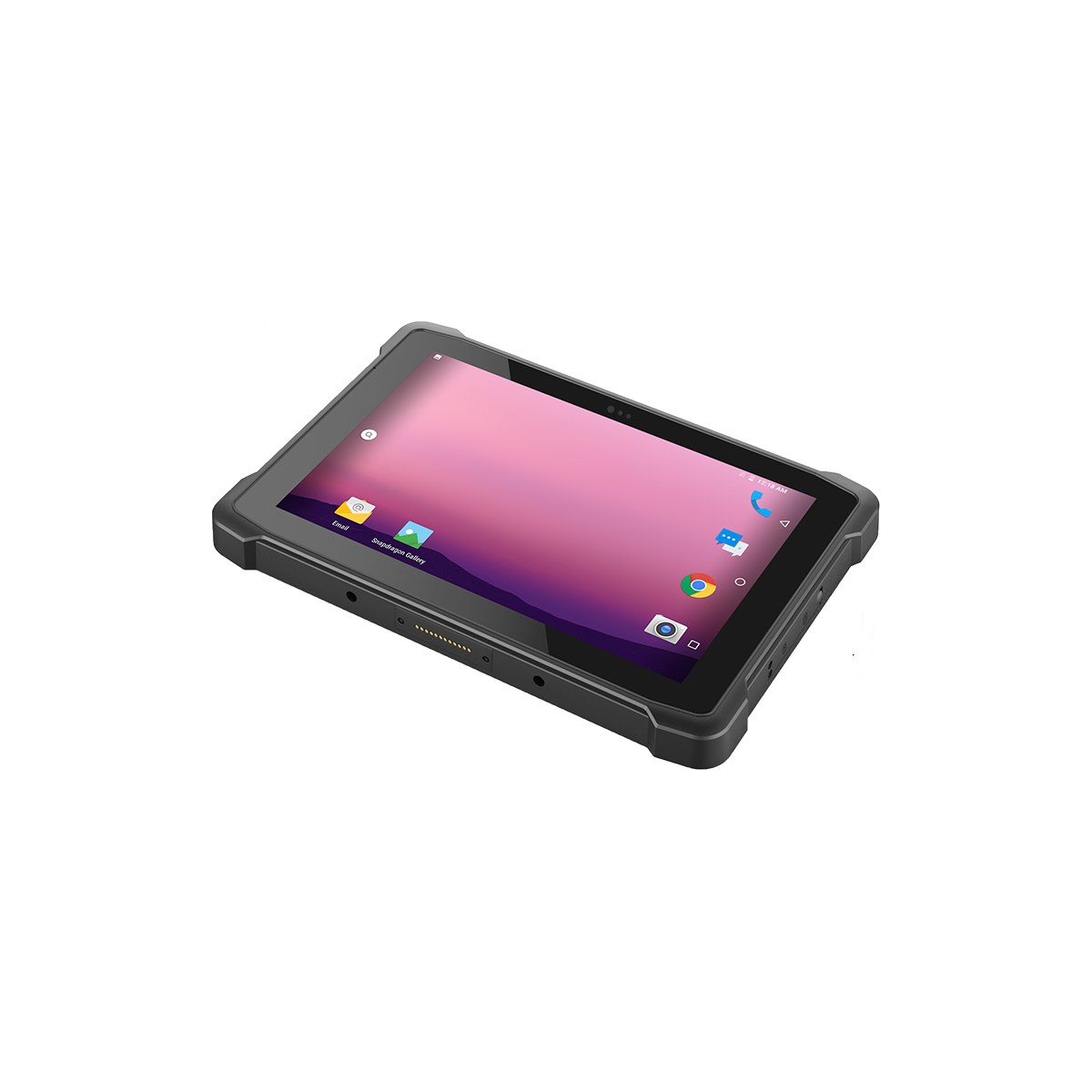

RUGGEDMASTER GZ-MT105P rugged tablets. 10 Inch 5G Rugged Android Tablet.

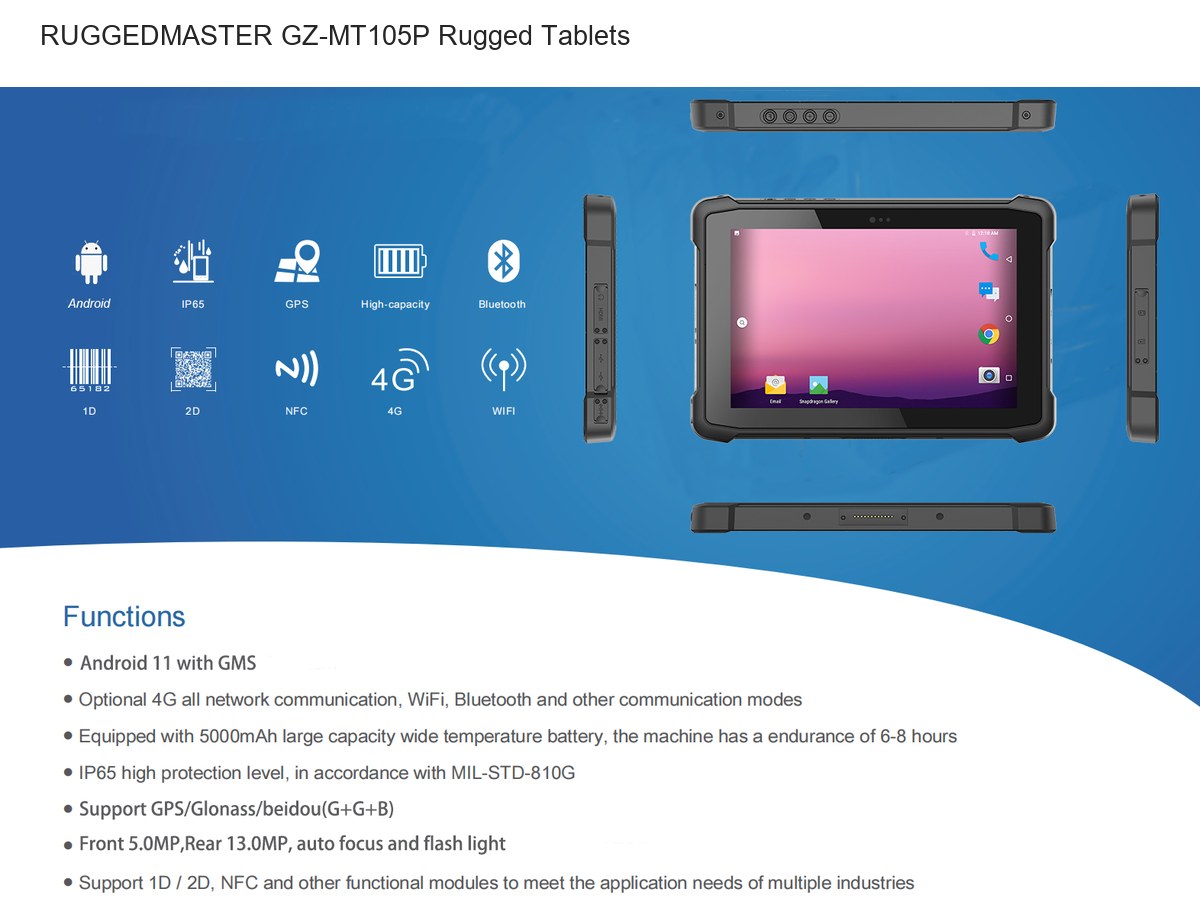

RUGGEDMASTER GZ-MT105P key features
- OS: Android 11 With GMS
- CPU: MSM 6350（8core）
- LCD Display: 10.1“ 16:10,1200*1920 IPS screen, 400 nits
- RAM/ROM: 4GB LPDDR3/ 64GB EMMC
- External Memory: Support TF*1,MAX 256GB
- Battery: 3.7V/8000mAh. Built-in polymer lithium ion battery. 8-10 Hrs(default 50% volumn,default maximum lumens brightness,play 1080P HD video)
- Battery: UN38.3，MSDS,IEC62133

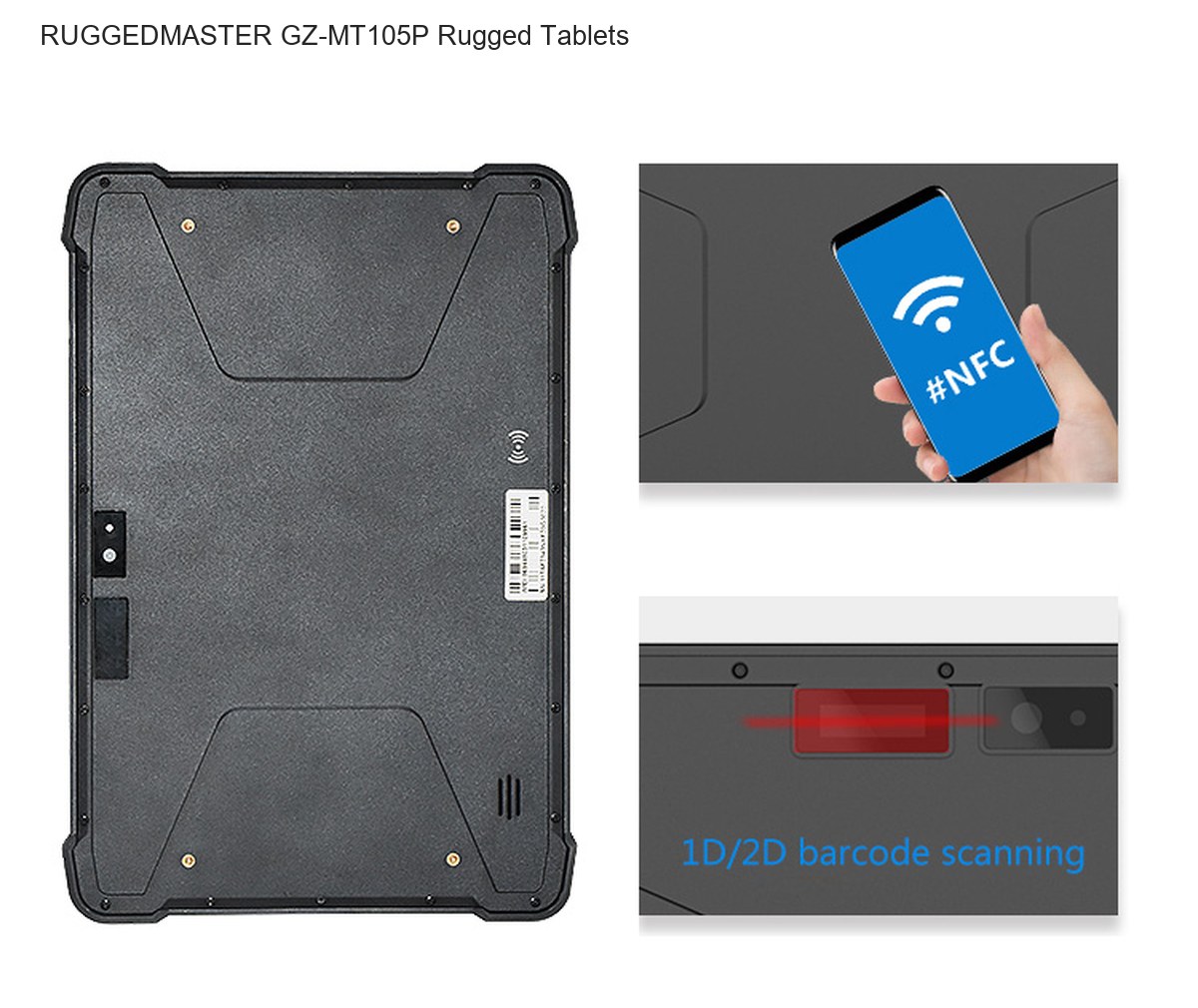

- Barcode Scanner: 1D Optional MOTO SE655E100R; 2D Optional Honeywell N3680 TTL decoding
- NFC: Build-in NFC, Support 14443A protocol under ISO / IEC, card reading distance: 3-5cm
10 Inch 5G Rugged Android Tablet
Modle:GZ-MT105P. CPU：MSM 6350（8core）， RAM/ROM：4GB LPDDR3/ 64GB EMMC， LCD Display：10.1 inch 16:10,1200*1920 IPS screen, 400 nits，Battery: 3.7V/8000mAh. Built-in polymer lithium ion battery. Camera: Front:5.0MP, Rear: 13MP auto-facus with flashlight. Optional Items: Docking Station /1D or 2D Barcode Scanner.
Planning a team deployment
Review the RUGGEDMASTER GZ-MT105P specifications alongside the applications your team needs to use. Check the listed operating system, display dimensions and available interfaces before selecting a device for your workflow. When a scanner, reader or other module is described as optional, include that requirement in your enquiry so the exact configuration can be confirmed. Product illustrations may show an optional module or an example application. Use the written specifications to identify the capabilities required for your project.
Configuration and compatibility
For a team rollout, record the exact model, the quantity needed at each location and the software used by your staff. Match the listed network information to your destination and operating environment. Check storage requirements, charging arrangements and existing peripheral connections before preparing your shortlist. Where several memory or processor configurations are listed, confirm the requested configuration with RuggedMaster. Optional accessories and example setups help illustrate a workflow; configuration requirements should be included in your purchasing enquiry.
RUGGEDMASTER GZ-MT105P bulk order enquiries
For wholesale quantities and bulk orders, contact RuggedMaster with the exact model, required quantities, preferred configuration and destination. Include any scanning, identification or software requirements for your application. Review the Specs tab and product illustrations when comparing models. Availability, the requested configuration and order details should be confirmed before purchase.
|
Hardware
|
|
|
CPU
|
MSM 6350（8core）
|
|
GPU
|
Adreno GPU 619
|
|
RAM/ROM
|
4GB LPDDR3/ 64GB EMMC
|
|
External Memory
|
Support TF*1,MAX 256GB
|
|
LCD Display
|
10.1“ 16:10,1200*1920 IPS screen, 400 nits
|
|
Touch Panel
|
10 points capacity TP Multipoints Capacitive, Rigidity: above 6H-Anti-scratch
|
|
Camera
|
Front:5.0MP, Rear: 13MP auto-facus with flashlight
|
|

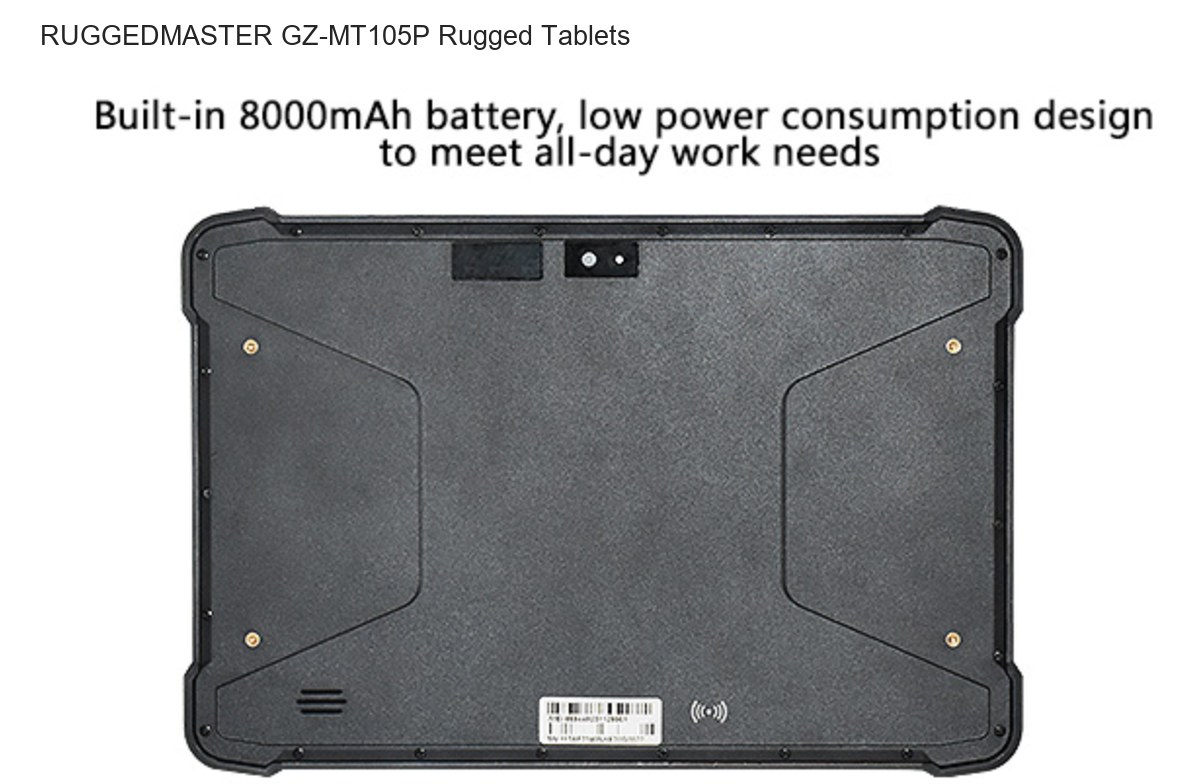

Battery
|
3.7V/8000mAh. Built-in polymer lithium ion battery.
8-10 Hrs(default 50% volumn,default maximum lumens brightness,play 1080P HD video)
|
|
Speaker
|
Embedded 8Ω/0.8W waterproof speakerx 1
|
|
Sensor
|
light Sensor *1,Gyro Sensor *1,G_sensor *1,Compass Sensor *1
|
|
Data Collection & Networking
|
|
|

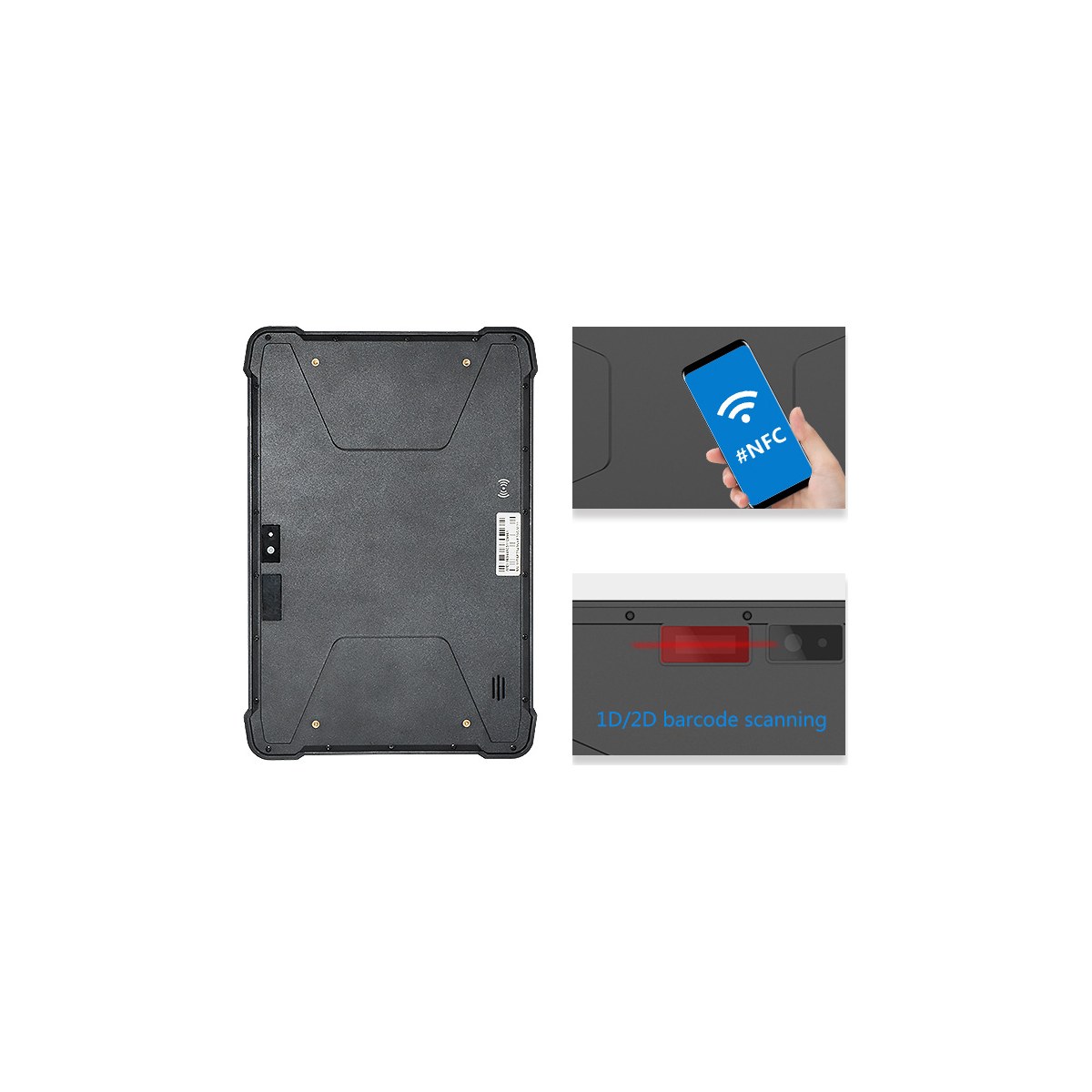

Barcode Scanner
|
1D Optional MOTO SE655E100R; 2D Optional Honeywell N3680 TTL decoding
|
|
Fingerprint
|
NO
|
|
NFC
|
Build-in NFC, Support 14443A protocol under ISO / IEC, card reading distance: 3-5cm
|
|
BT
|
BT5.1 (BLE) class1 transmission distance：10m
|
|
WIFI
|
WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.0G dual band WIFI
|
|
4G
|
5G NR:N1/N28/41/78/79 TDD-LTE: B34/38/39/40/41 FDD-LTE: B1/3/5/7/8 WCDMA: B1/5/8
|
|
GPS
|
Support :GPS L1&L5/Beidou/Glonass/Galileo/NavIC/IRNSS;
Capture sensitivity: -140 dBm;
Cool Start Time:less 50second,Hot Start Time:less 28second;
GPS frequency: 1575.42MHz, GLONASS frequency: 1602MHz
|
|
OS
|
Android 11 With GMS
|
|
I/O Port & Appearance & Package
|
|
|

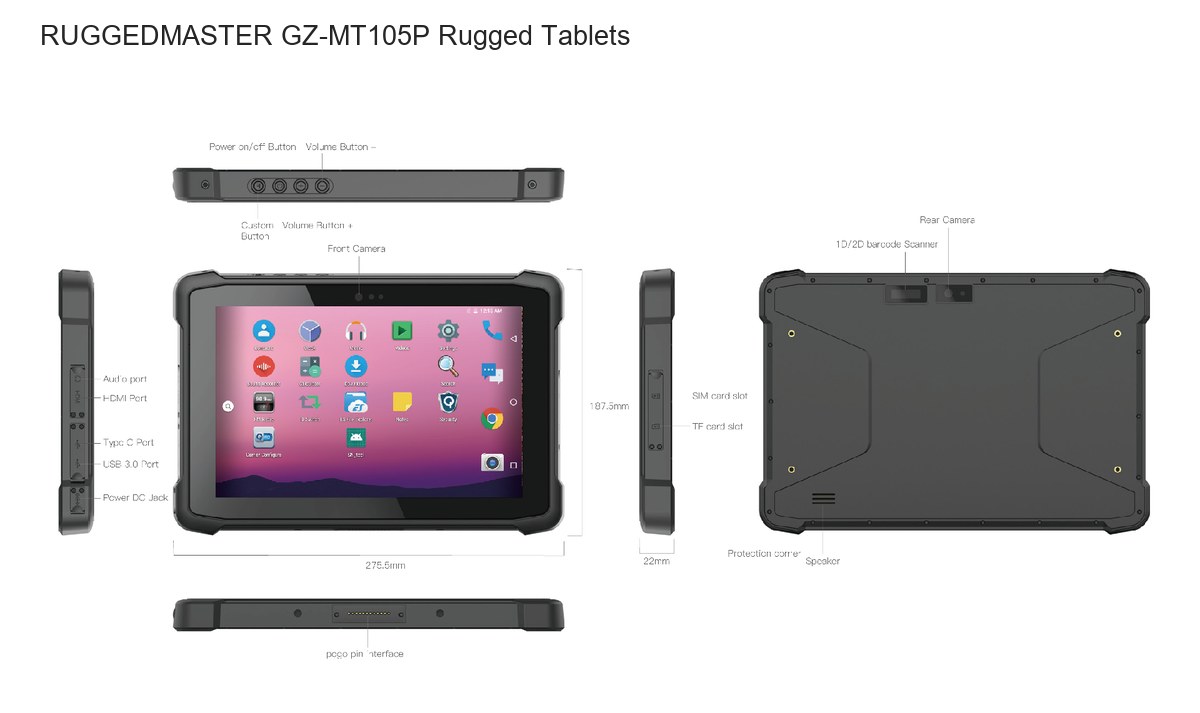

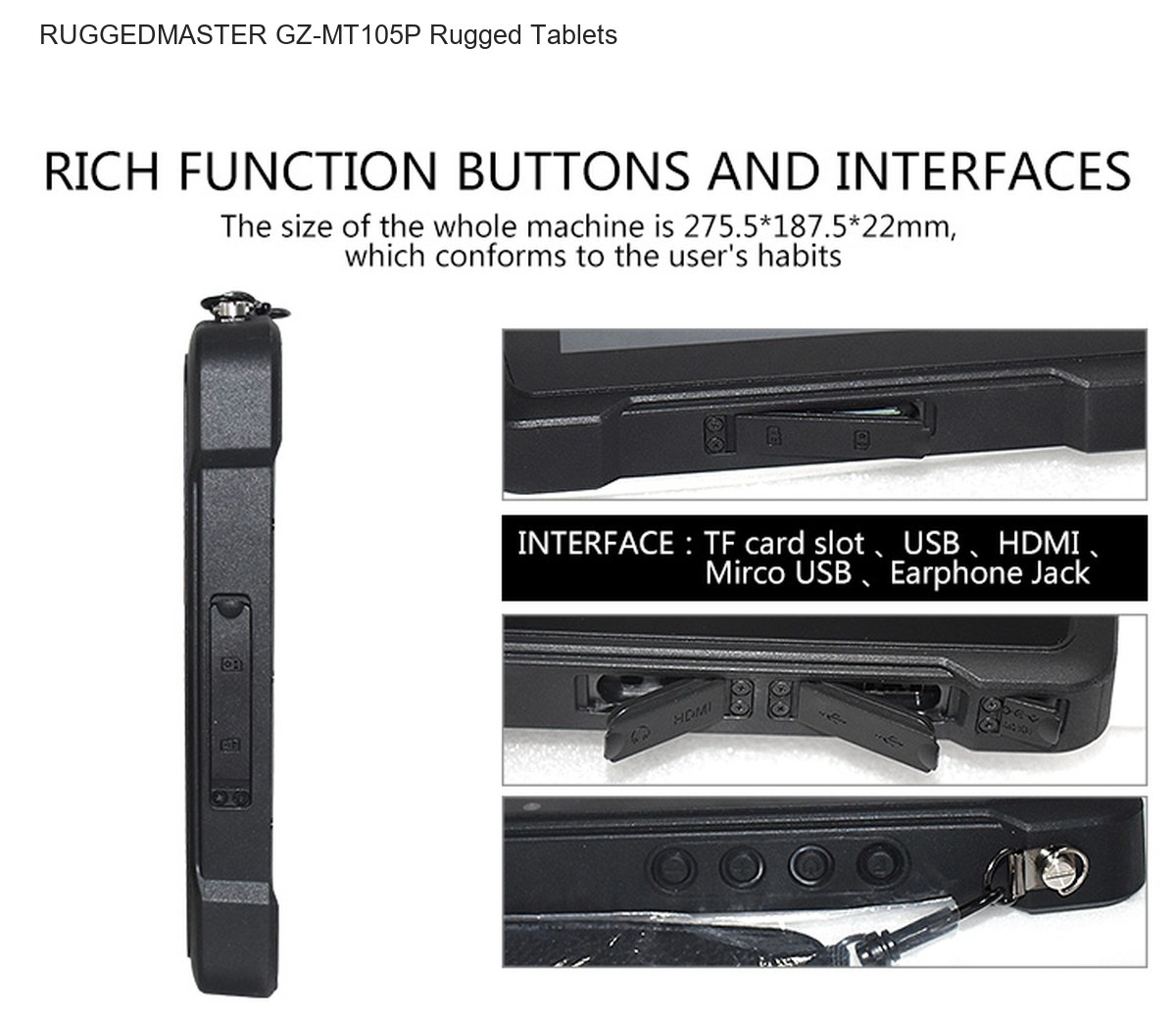

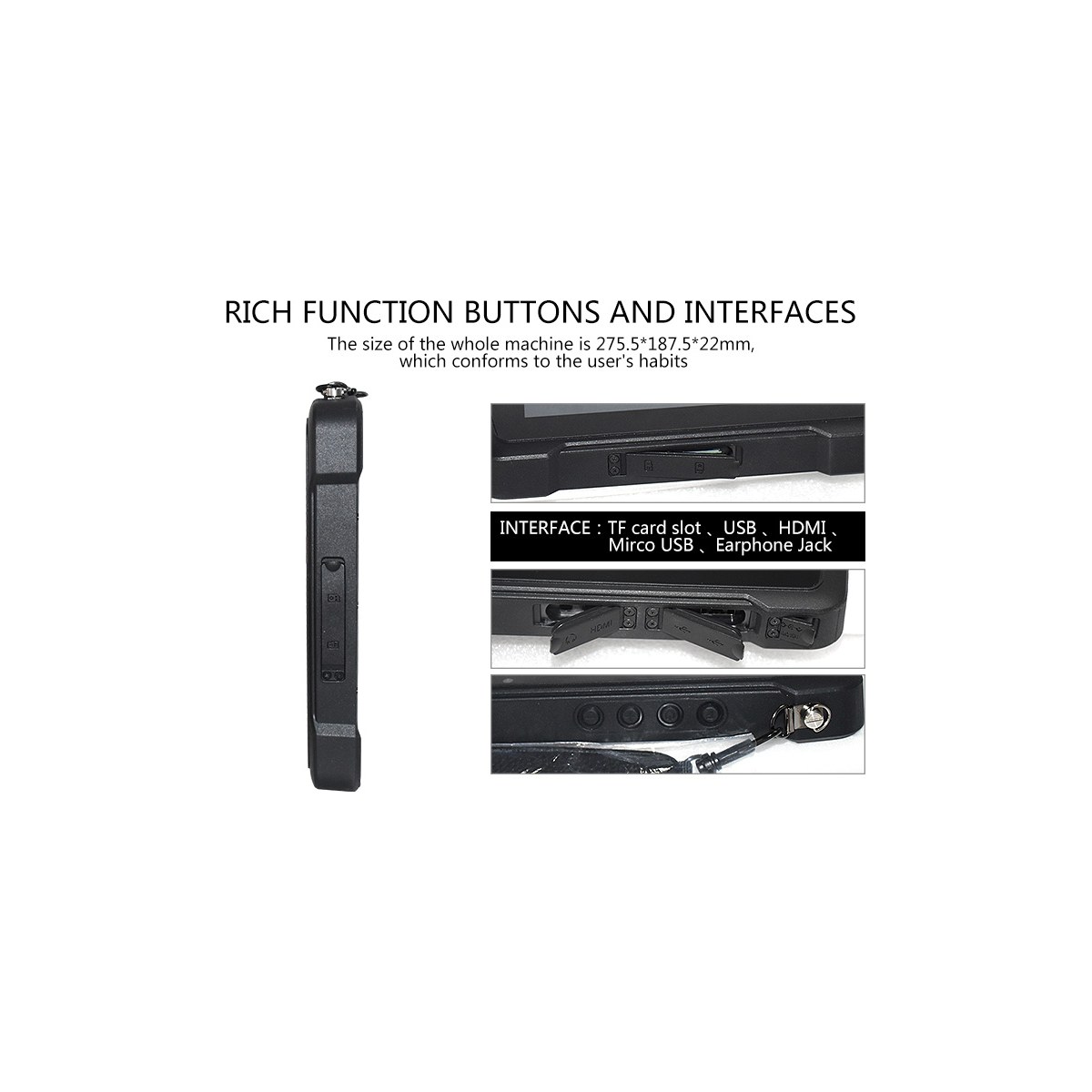

I/O Port
|

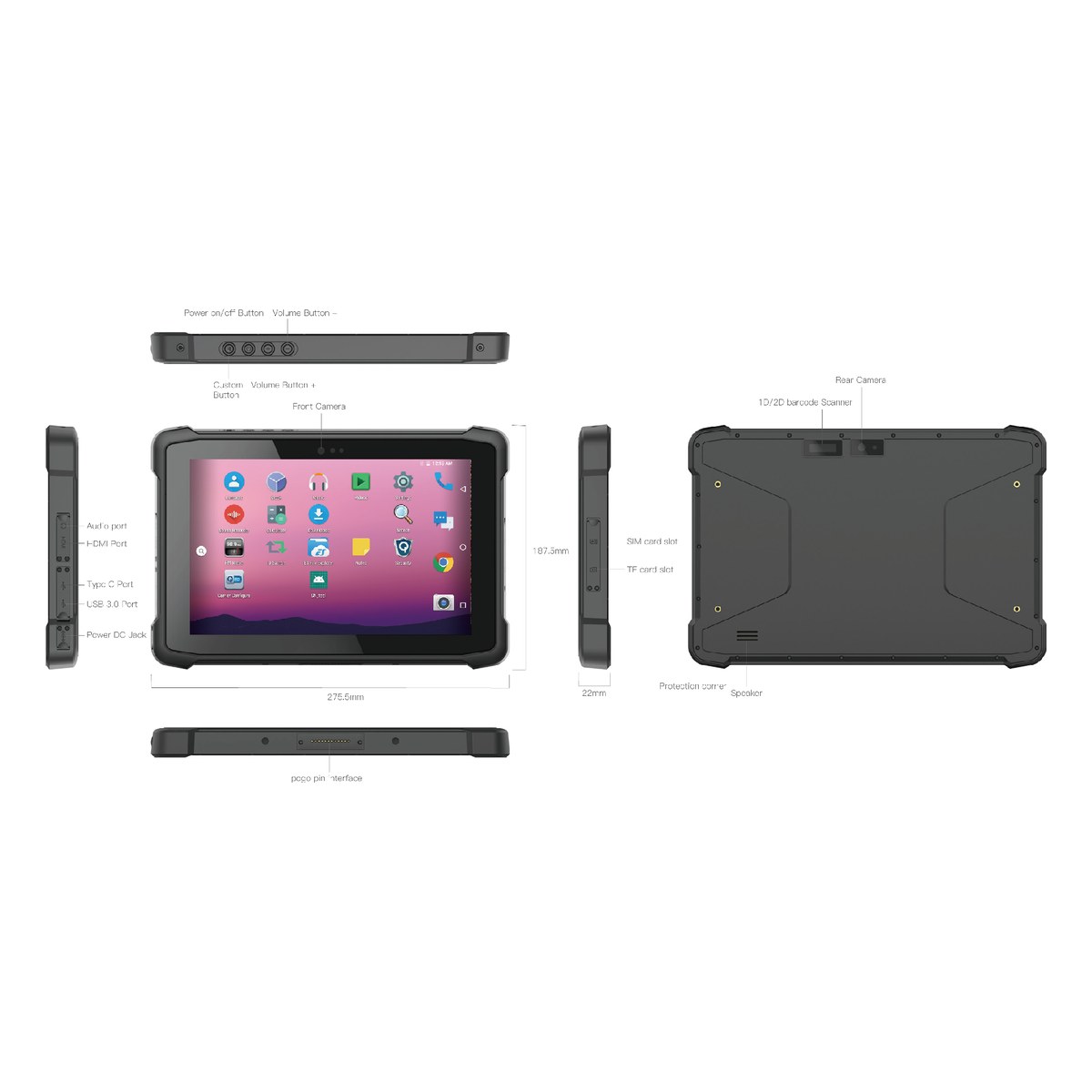

HDMI 1.4a Type-c x 1,
USB 3.0 Type-A x 1,Type-c(data&charing) x 1, SIM Card x 1, TF Card x 1, 12pins Pogo Pin x 1, Φ3.5mm standard earphone jack x 1, Φ3.5mm DC jack x 1, |
|
Dimension
|
275.7*187.5*24.5mm
|
|
Weight
|
Device unit: 970g.
|
|

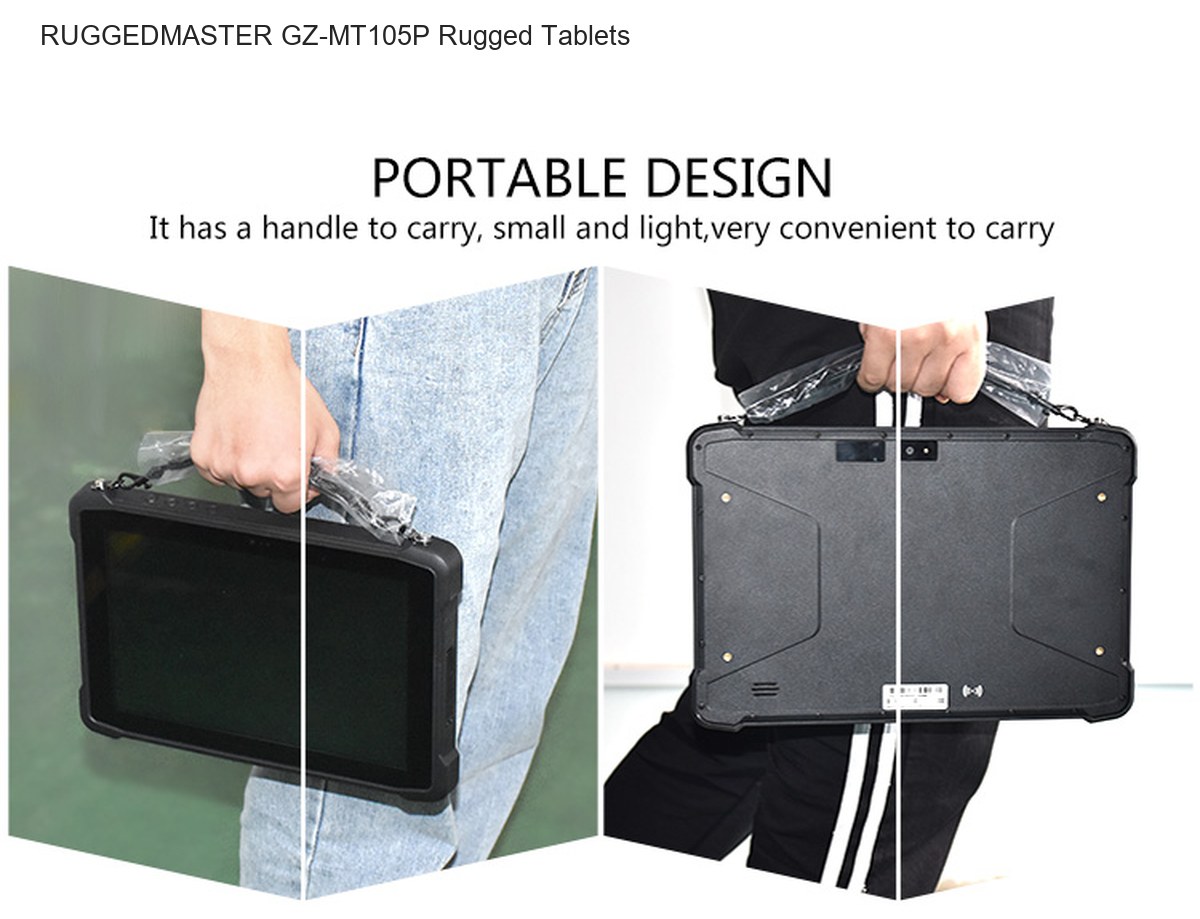

Package
|
USB cable/Hand-Straps,Charger 5V 3A/Packing box（Can be customized logo)
|
|
Certificate System & Reliability Design
|
|
|
IP67
|
IP65 Report：Water Resistance:IP-X5，Dust Resistance:IP-6X
a.Inner Nozzle Diameter：6.3mm；
b. WaterSpeed:12.5±0.625L/min；
c. Water Pressure:Adjust according to water volumn；
d.Central part of water volumn :A round with a diameter of about 40mm at the distance from the nozzle 2.5m.
e.Spray time in surface of panele: About 1 min/Square meter；
f.Test time: at least 3min；
g.Distance between nozzle and panel surface：2.5～3m.
After test,there is no water leakage in sample.
|
|
CE NB
|
YES
|
|
MIL-STD-810G
|
YES
|
|
Battery
|
UN38.3，MSDS,IEC62133
|
|
Drop Height
|
MIL-STD-810G 1.22m drop
|
|

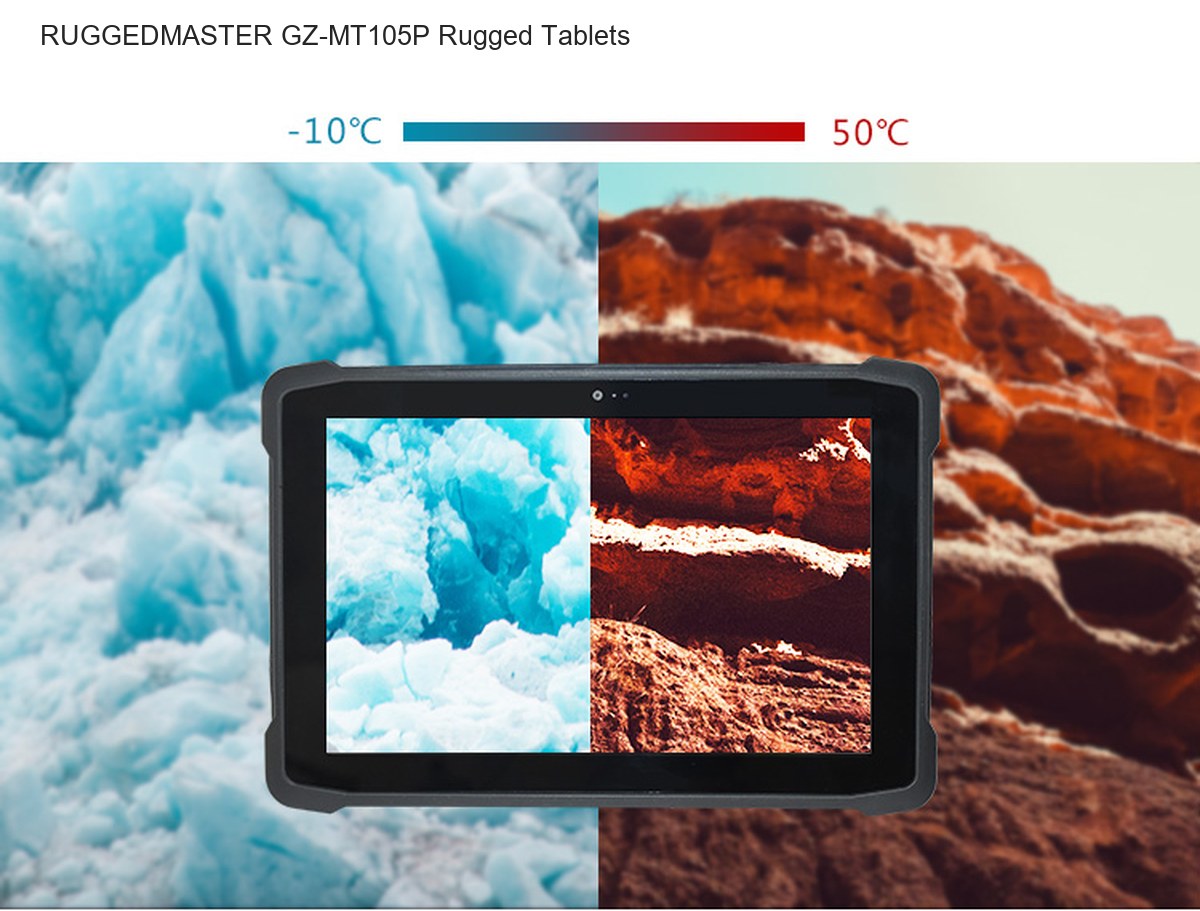

Operate Temperature
|
‘-20 °C to 60 °C
|
|
Store Temperature
|
’-30 °C to 70 °C
|
|
Humidity
|
Humidity: 95% Non-Condensing
|
