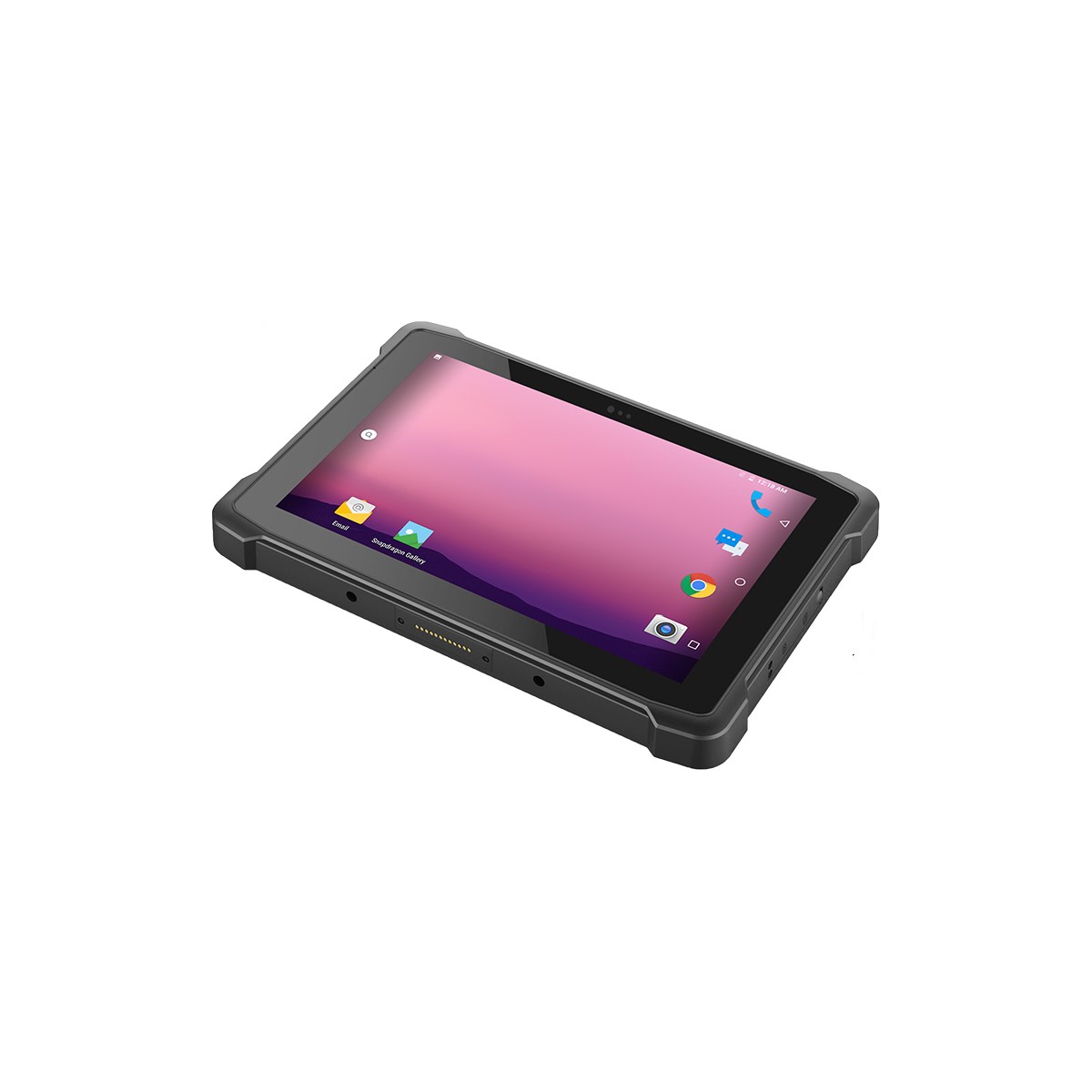

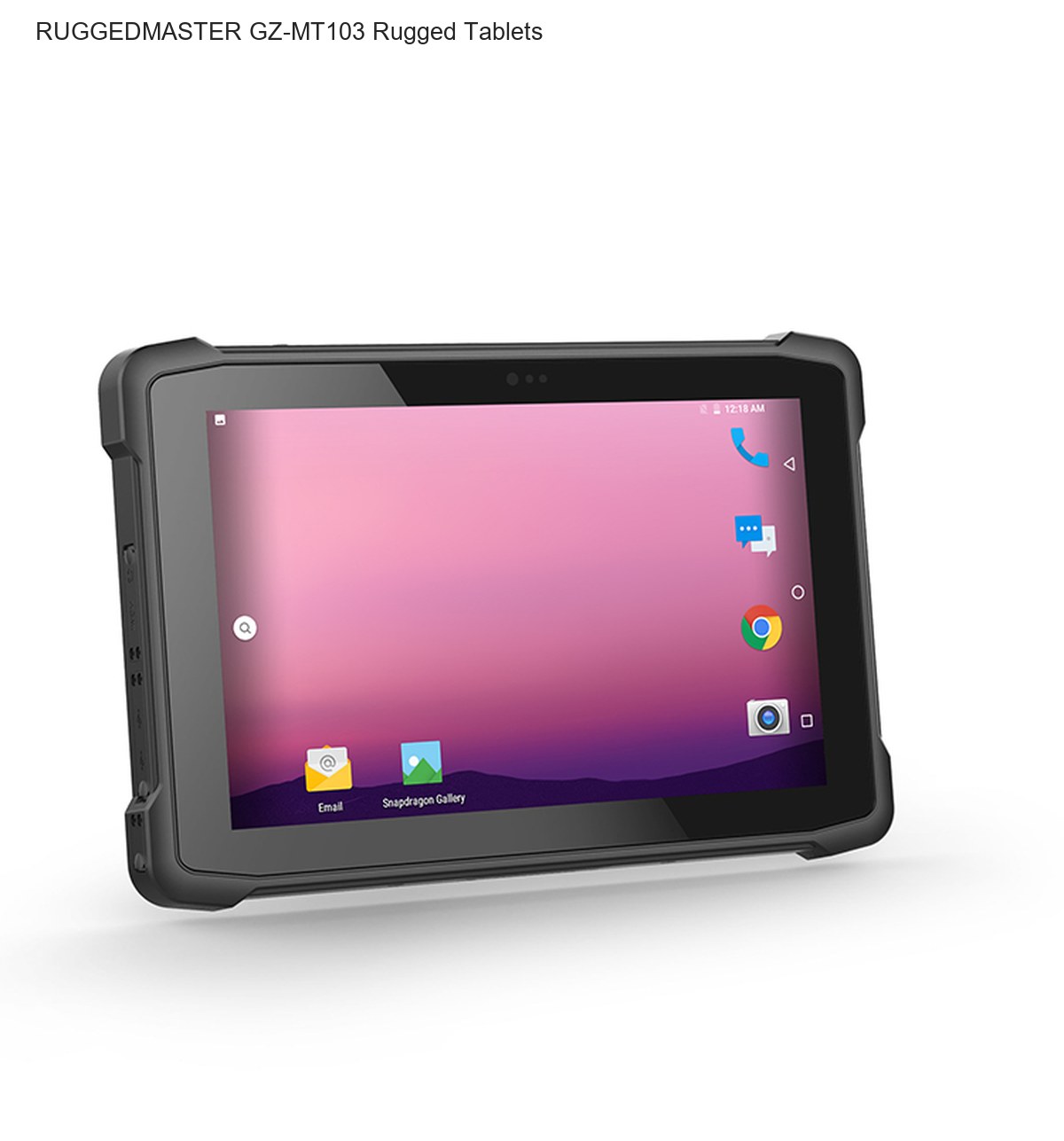

RUGGEDMASTER GZ-MT103 Rugged Tablets
OS: Android 10 or 11 With GMS, CPU: MT6771 2.0 GHz, LCD Display: 10.1“ 16:10,800*1280 IPS LCD, 450 nits
Modle:GZ-MT103. CPU：MT6771 （8core） 2.0 GHz， RAM/ROM：6GB LPDDR3/ 128GB EMMC， LCD Display：10.1 inch 16:10,800*1280 IPS LCD, 450 nits，Battery: 3.7V/8000mAh. Built-in polymer lithium ion battery. Camera: Front:5.0MP, Rear: 13MP auto-facus with flashlight. Optional Items: Docking Station /1D or 2D Barcode
RAM/ROM: 6GB LPDDR4/ 128GB UMCP
External Memory: Support TF*1,MAX 256GB
Battery: 3.7V/8000mAh. Built-in polymer lithium ion battery. 8-10 Hrs(default 50% volumn,default maximum lumens brightness,play 1080P HD video)
Battery: UN38.3，MSDS,IEC62133
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
RUGGEDMASTER GZ-MT103 product details
RUGGEDMASTER GZ-MT103 rugged tablets. Cheapest 10 inch 8+128g Rugged Android Tablet.

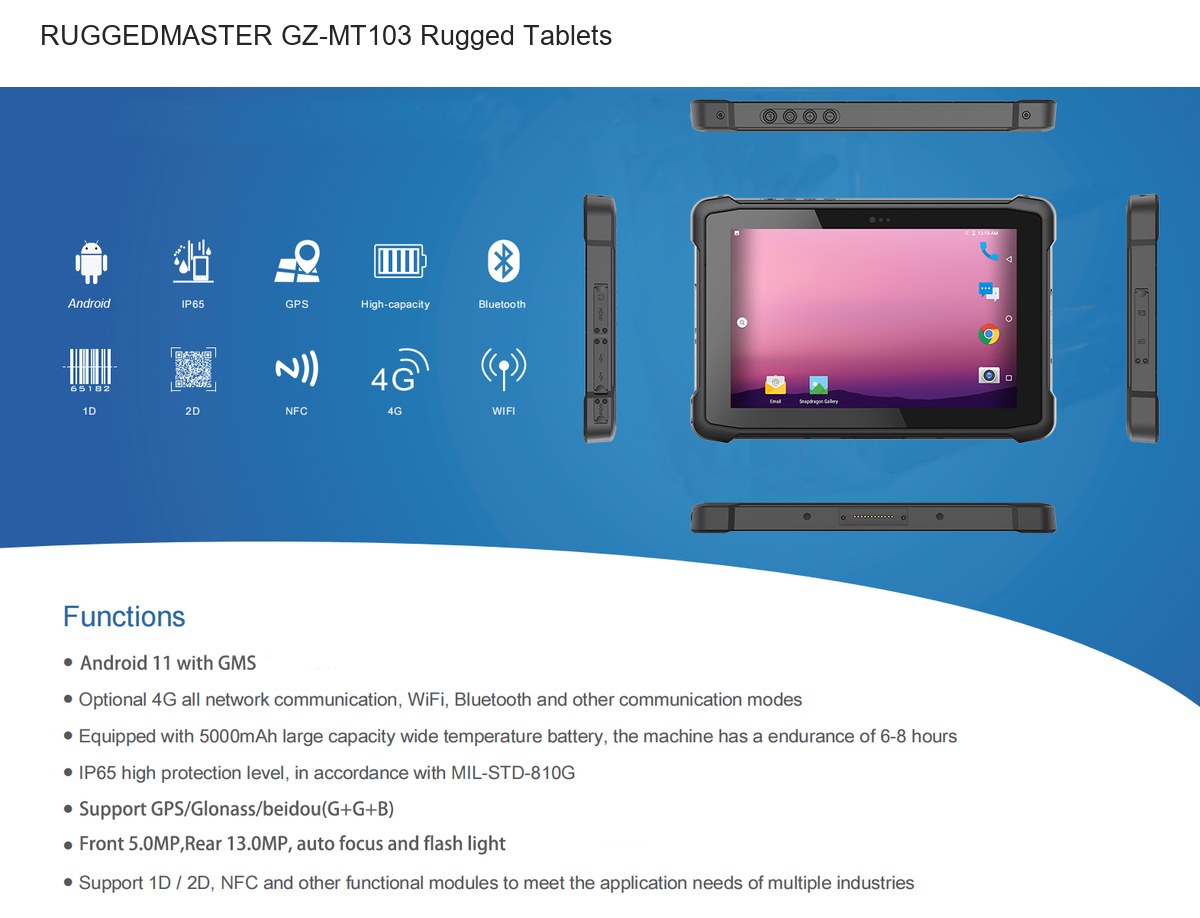

RUGGEDMASTER GZ-MT103 key features
- OS: Android 10 or 11 With GMS
- CPU: MT6771 2.0 GHz
- LCD Display: 10.1“ 16:10,800*1280 IPS LCD, 450 nits
- RAM/ROM: 6GB LPDDR4/ 128GB UMCP
- External Memory: Support TF*1,MAX 256GB
- Battery: 3.7V/8000mAh. Built-in polymer lithium ion battery. 8-10 Hrs(default 50% volumn,default maximum lumens brightness,play 1080P HD video)
- Battery: UN38.3，MSDS,IEC62133
- Barcode Scanner: 1D Optional MOTO SE655E100R; 2D Optional Honeywell N3680 TTL decoding
- NFC: Build-in NFC, 13.56MHz, ISO/IEC 14443A/B,ISO/IEC 15693, ISO/IEC 18092
Cheapest 10 inch 8+128g Rugged Android Tablet
Modle:GZ-MT103. CPU：MT6771 （8core） 2.0 GHz， RAM/ROM：6GB LPDDR3/ 128GB EMMC， LCD Display：10.1 inch 16:10,800*1280 IPS LCD, 450 nits，Battery: 3.7V/8000mAh. Built-in polymer lithium ion battery. Camera: Front:5.0MP, Rear: 13MP auto-facus with flashlight. Optional Items: Docking Station /1D or 2D Barcode Scanner.
Planning a team deployment
Review the RUGGEDMASTER GZ-MT103 specifications alongside the applications your team needs to use. Check the listed operating system, display dimensions and available interfaces before selecting a device for your workflow. When a scanner, reader or other module is described as optional, include that requirement in your enquiry so the exact configuration can be confirmed. Product illustrations may show an optional module or an example application. Use the written specifications to identify the capabilities required for your project.
Configuration and compatibility
For a team rollout, record the exact model, the quantity needed at each location and the software used by your staff. Match the listed network information to your destination and operating environment. Check storage requirements, charging arrangements and existing peripheral connections before preparing your shortlist. Where several memory or processor configurations are listed, confirm the requested configuration with RuggedMaster. Optional accessories and example setups help illustrate a workflow; configuration requirements should be included in your purchasing enquiry.
RUGGEDMASTER GZ-MT103 bulk order enquiries
For wholesale quantities and bulk orders, contact RuggedMaster with the exact model, required quantities, preferred configuration and destination. Include any scanning, identification or software requirements for your application. Review the Specs tab and product illustrations when comparing models. Availability, the requested configuration and order details should be confirmed before purchase.
|
Hardware
|
|
|
CPU
|
MT6771 2.0 GHz
|
|
GPU
|
ARM Mail-G72
|
|
RAM/ROM
|
6GB LPDDR4/ 128GB UMCP
|
|
External Memory
|
Support TF*1,MAX 256GB
|
|
LCD Display
|
10.1“ 16:10,800*1280 IPS LCD, 450 nits
|
|
Touch Panel
|
5 points capacity TP,G+G,hardness 6H, scratch resistant
|
|
Camera
|
Front:5.0MP, Rear: 13MP auto-facus with flashlight
|
|

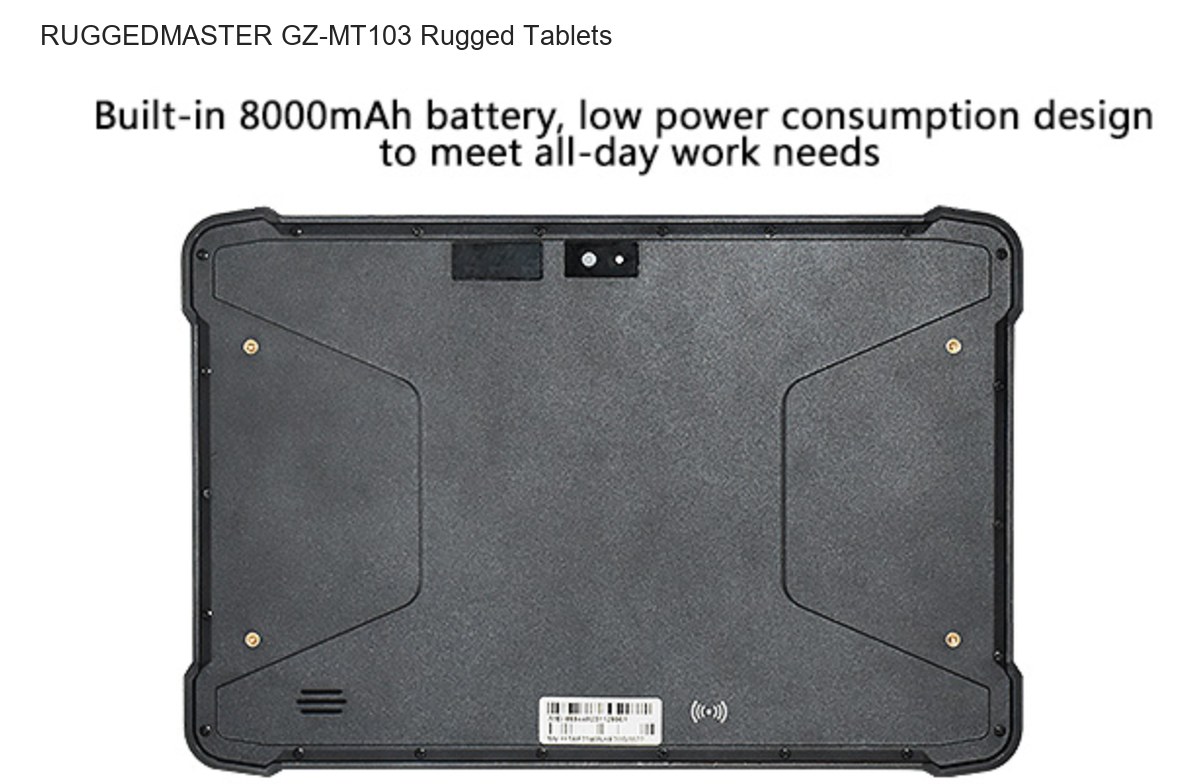

Battery
|
3.7V/8000mAh. Built-in polymer lithium ion battery.
8-10 Hrs(default 50% volumn,default maximum lumens brightness,play 1080P HD video)
|
|
Speaker
|
Embedded 8Ω/0.8W waterproof speakerx 1
|
|
Sensor
|
light Sensor *1,Gyro Sensor *1,G_sensor *1,Compass Sensor *1
|
|
Data Collection & Networking
|
|
|

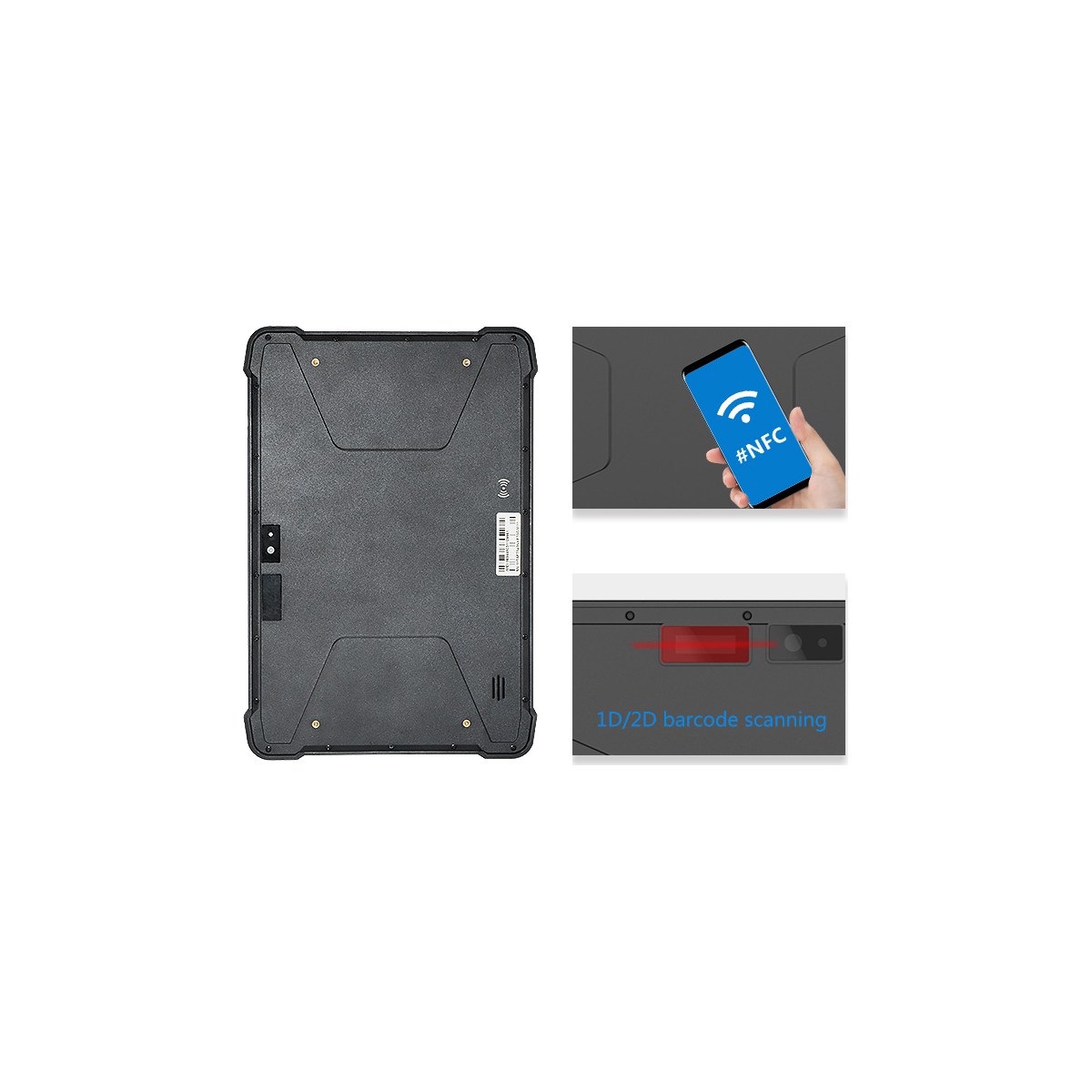

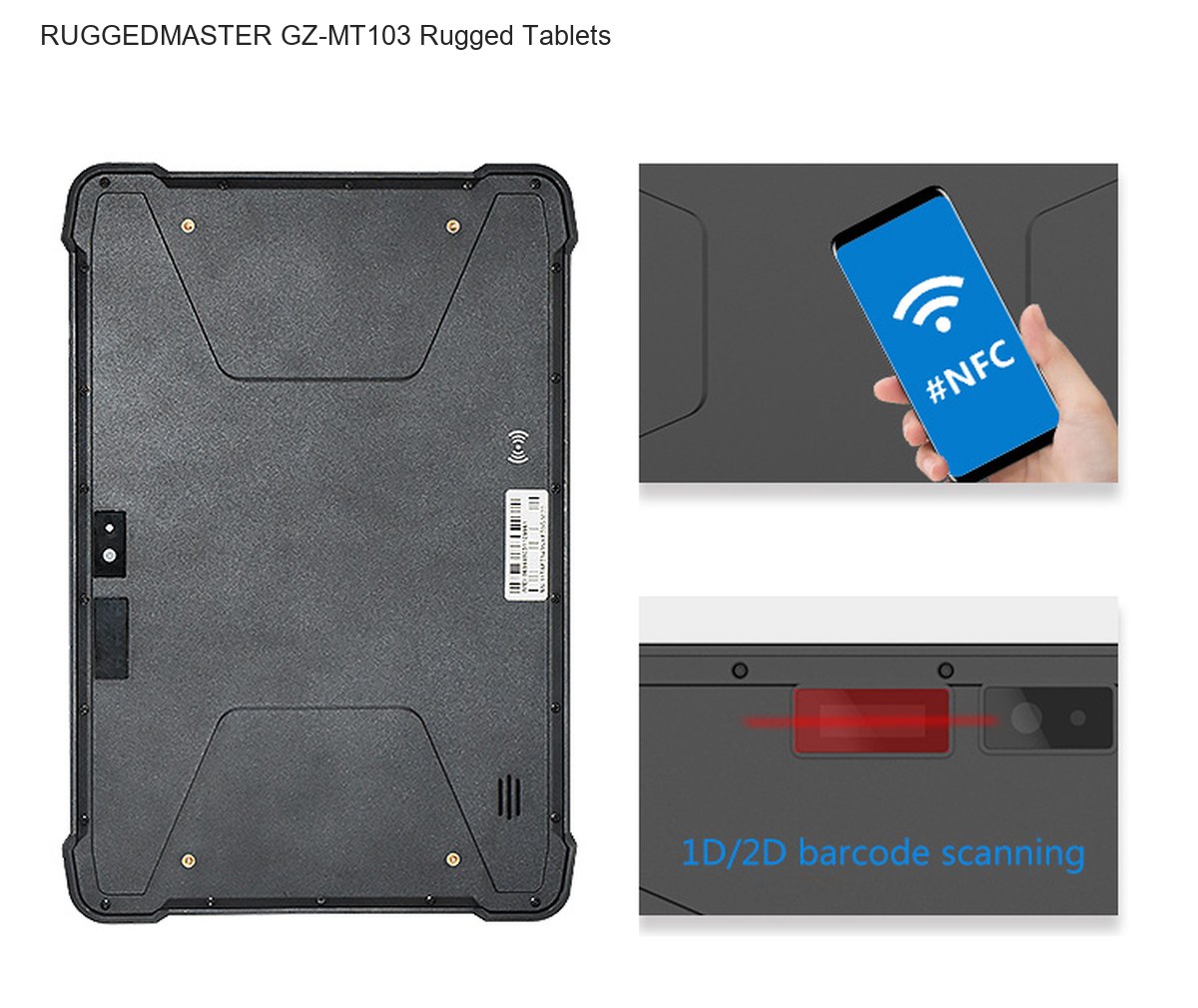

Barcode Scanner
|
1D Optional MOTO SE655E100R; 2D Optional Honeywell N3680 TTL decoding
|
|
Fingerprint
|
NO
|
|
NFC
|
Build-in NFC, 13.56MHz, ISO/IEC 14443A/B,ISO/IEC 15693, ISO/IEC 18092
|
|
BT
|
BT4.2 (BLE) class1 transmission distance：10m
|
|
WIFI
|
WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.0G dual band WIFI
|
|
4G
|
LTE Cat 7 GSM & WCDMA & TD-S（B34、B39） & TDD（B38、B39、B40、B41）& FDD（B1、B2、B3、B4、B5、B7、B8、B 17、B 20, B28a&b）
|
|
GPS
|
Support :GPS+Glonass+Beidou; Capture sensitivity: -140 dBm;
Cool Start Time:less 50second,Hot Start Time:less 28second;
GPS frequency: 1575.42MHz, GLONASS frequency: 1602MHz
|
|
OS
|
Android 10 or 11 With GMS
|
|
I/O Port & Appearance & Package
|
|
|

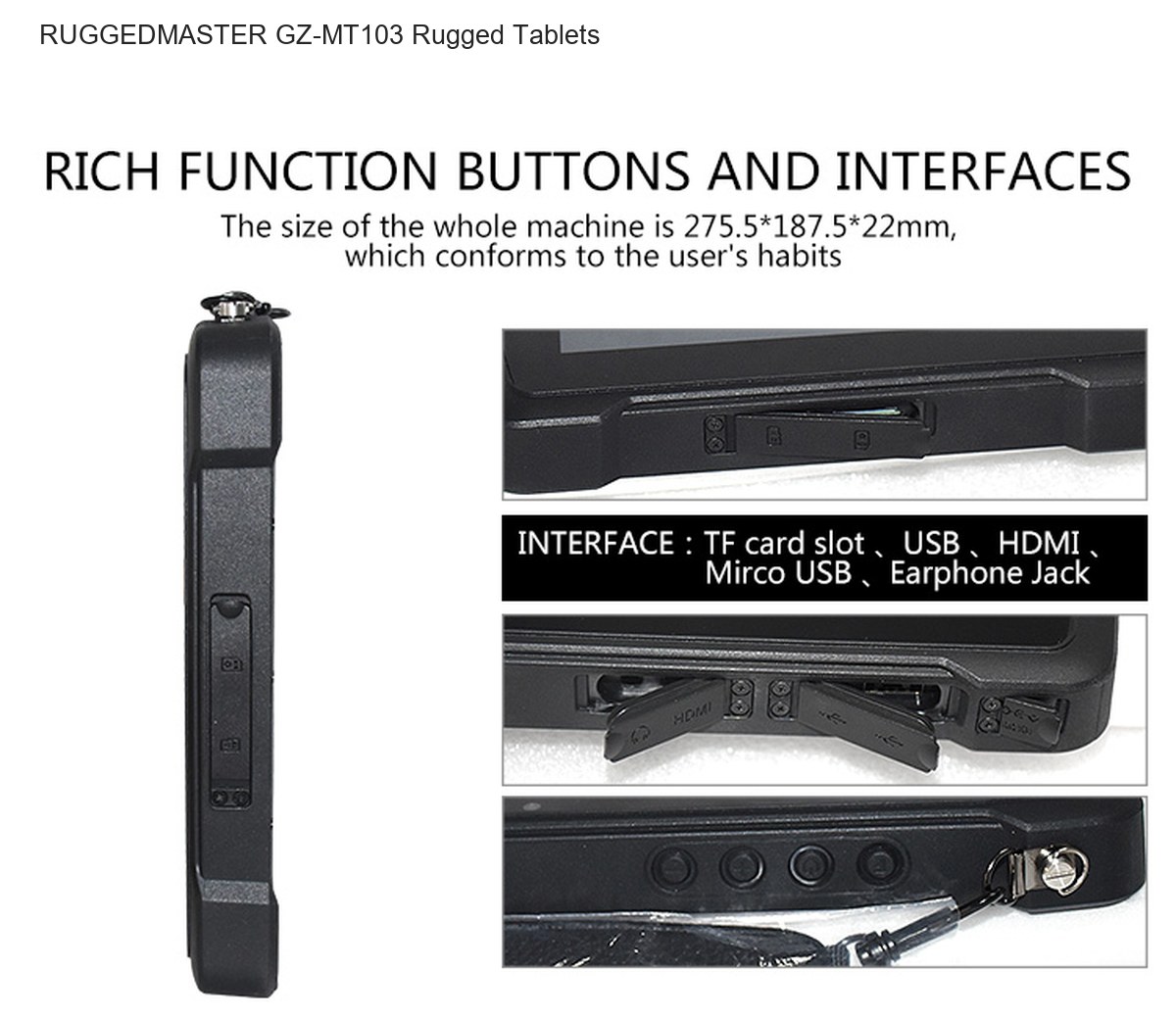

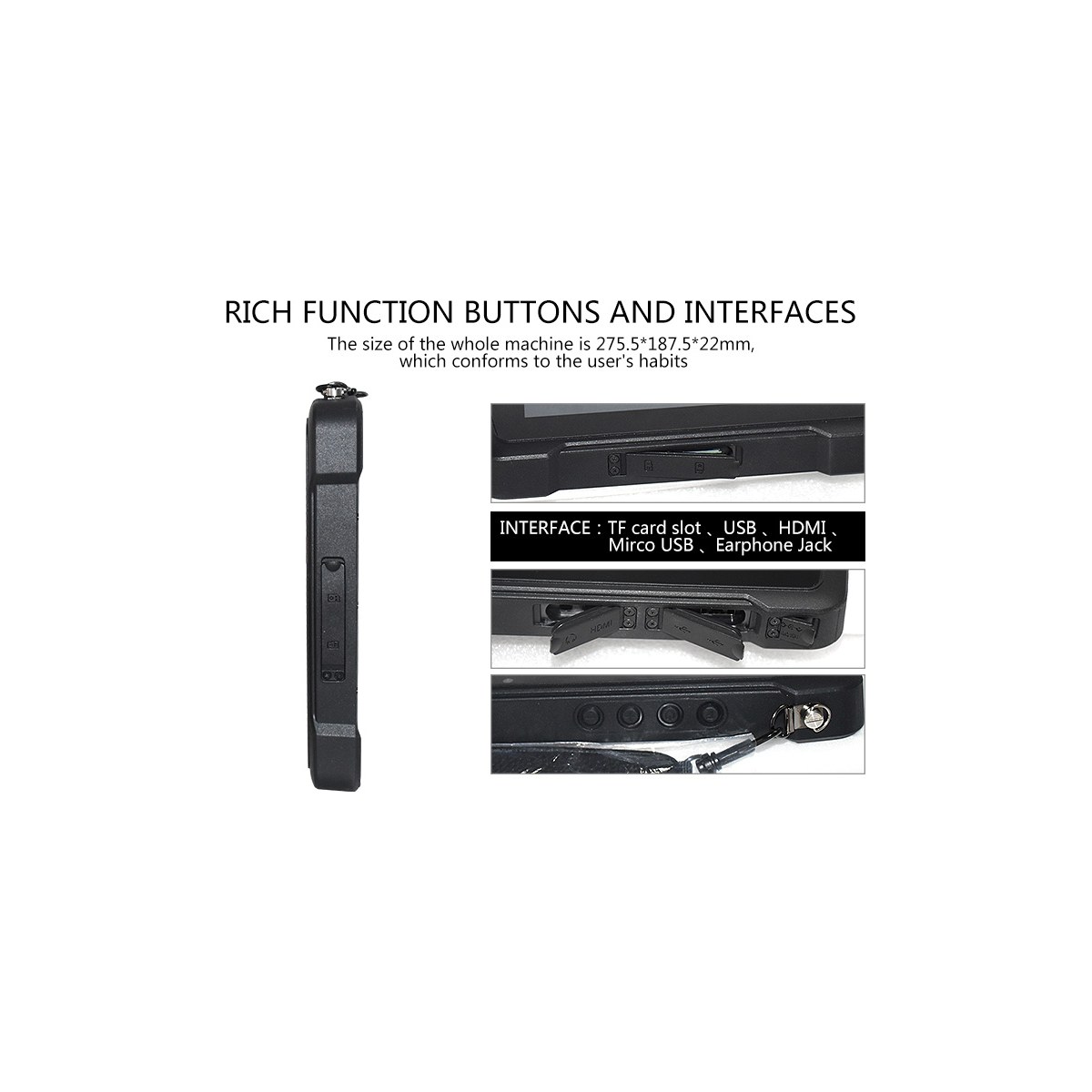

I/O Port
|
HDMI 1.4a Type-c x 1,
USB 2.0 Type-A x 1, USB2.0 Slave*1 &charge x 1, SIM Card x 1, TF Card x 1, 12pins Pogo Pin x 1, Φ3.5mm standard earphone jack x 1, Φ3.5mm DC jack x 1, |
|

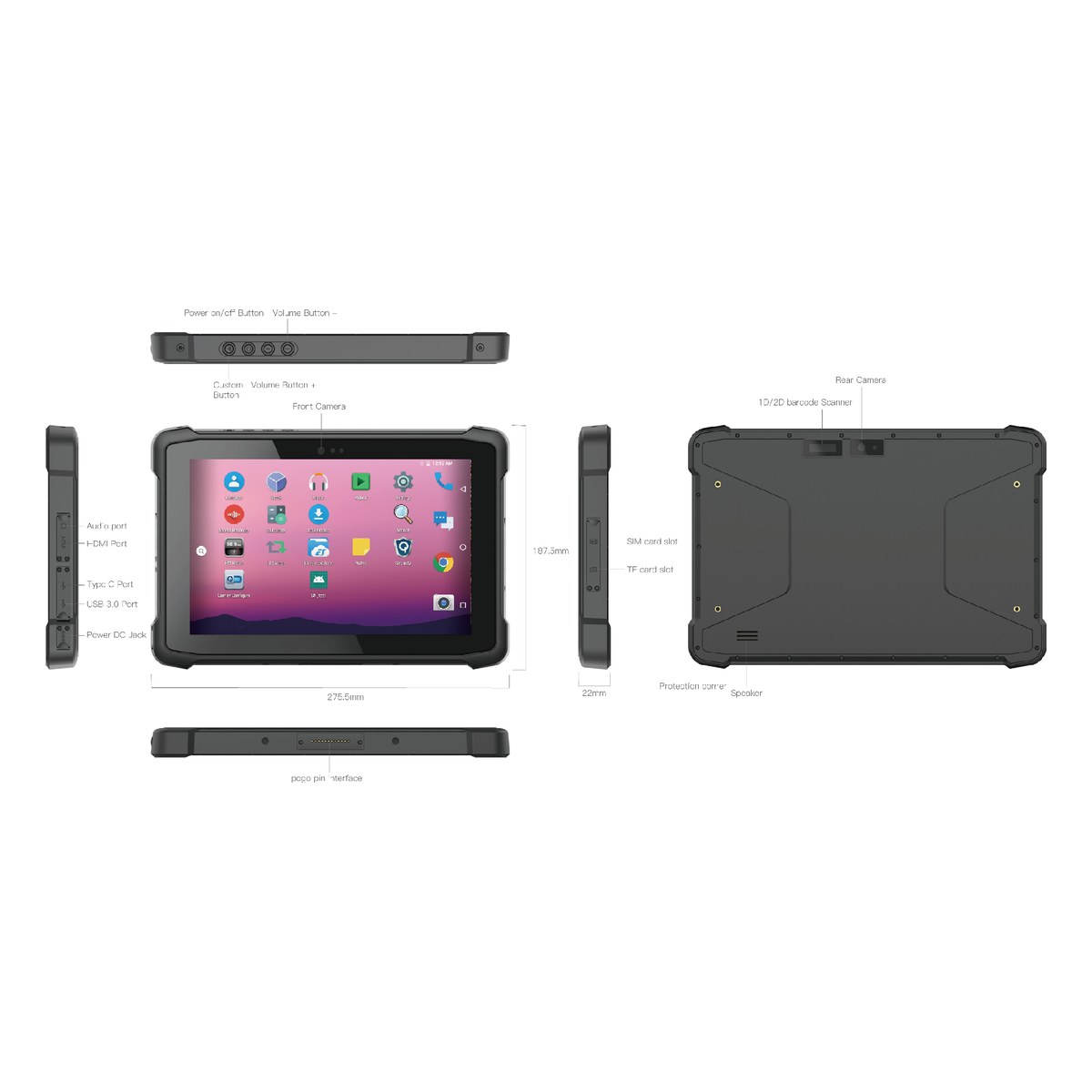

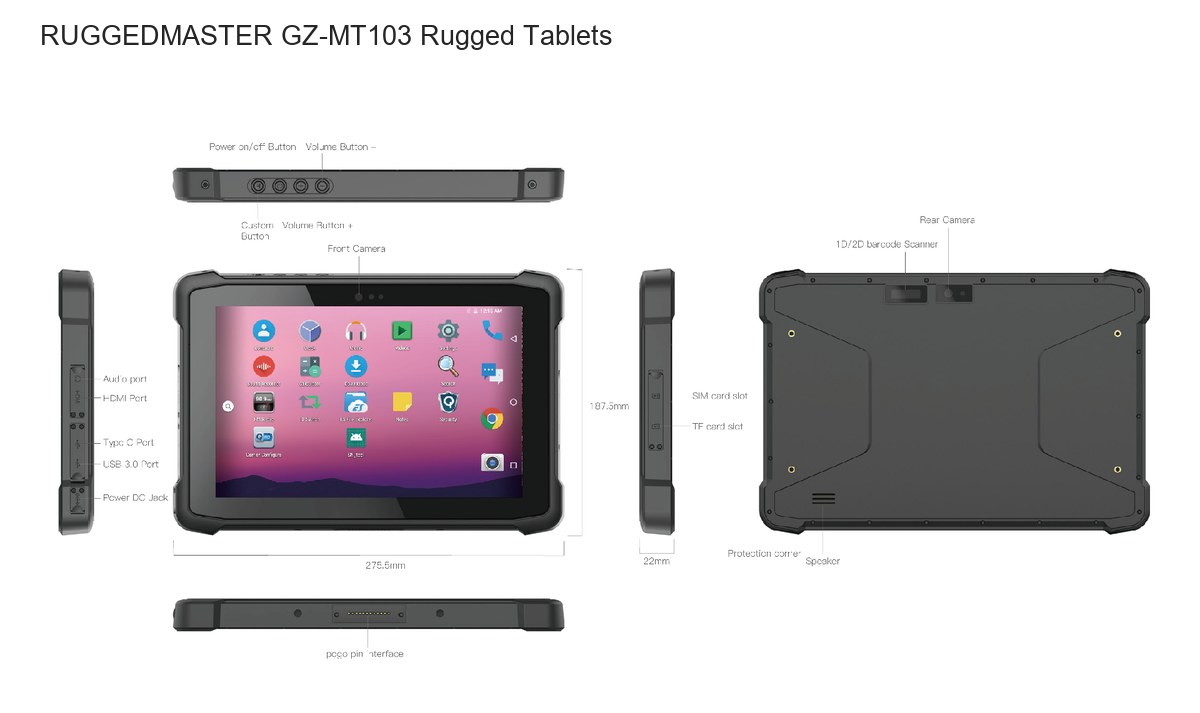

Dimension
|
275.5*187.5*22mm
|
|
Weight
|
Device unit: 1150g.
|
|
Package
|
USB cable/Charger 5V 3A/Packing box（Can be customized logo)
|
|
Certificate System & Reliability Design
|
|
|
IP67
|
IP65 Report：Water Resistance:IP-X5，Dust Resistance:IP-6X
a.Inner Nozzle Diameter：6.3mm；
b. WaterSpeed:12.5±0.625L/min；
c. Water Pressure:Adjust according to water volumn；
d.Central part of water volumn :A round with a diameter of about 40mm at the distance from the nozzle 2.5m.
e.Spray time in surface of panele: About 1 min/Square meter；
f.Test time: at least 3min；
g.Distance between nozzle and panel surface：2.5～3m.
After test,there is no water leakage in sample.
|
|
CE NB
|
YES
|
|
MIL-STD-810G
|
YES
|
|
Battery
|
UN38.3，MSDS,IEC62133
|
|
Drop Height
|
MIL-STD-810G 1.22m drop
|
|
Operate Temperature
|
‘-20 °C to 60 °C
|
|
Store Temperature
|
’-30 °C to 70 °C
|
|
Humidity
|
Humidity: 95% Non-Condensing
|
