RUGGEDMASTER FR7000 Series Fixed RFID Readers

Wholesale RUGGEDMASTER FR7000 Series Fixed RFID Readers for bulk orders at RuggedMaster. Ultra-High Frequency Integrated RFID Reader – FR7000 Series

RUGGEDMASTER FR7000 Series Product Features

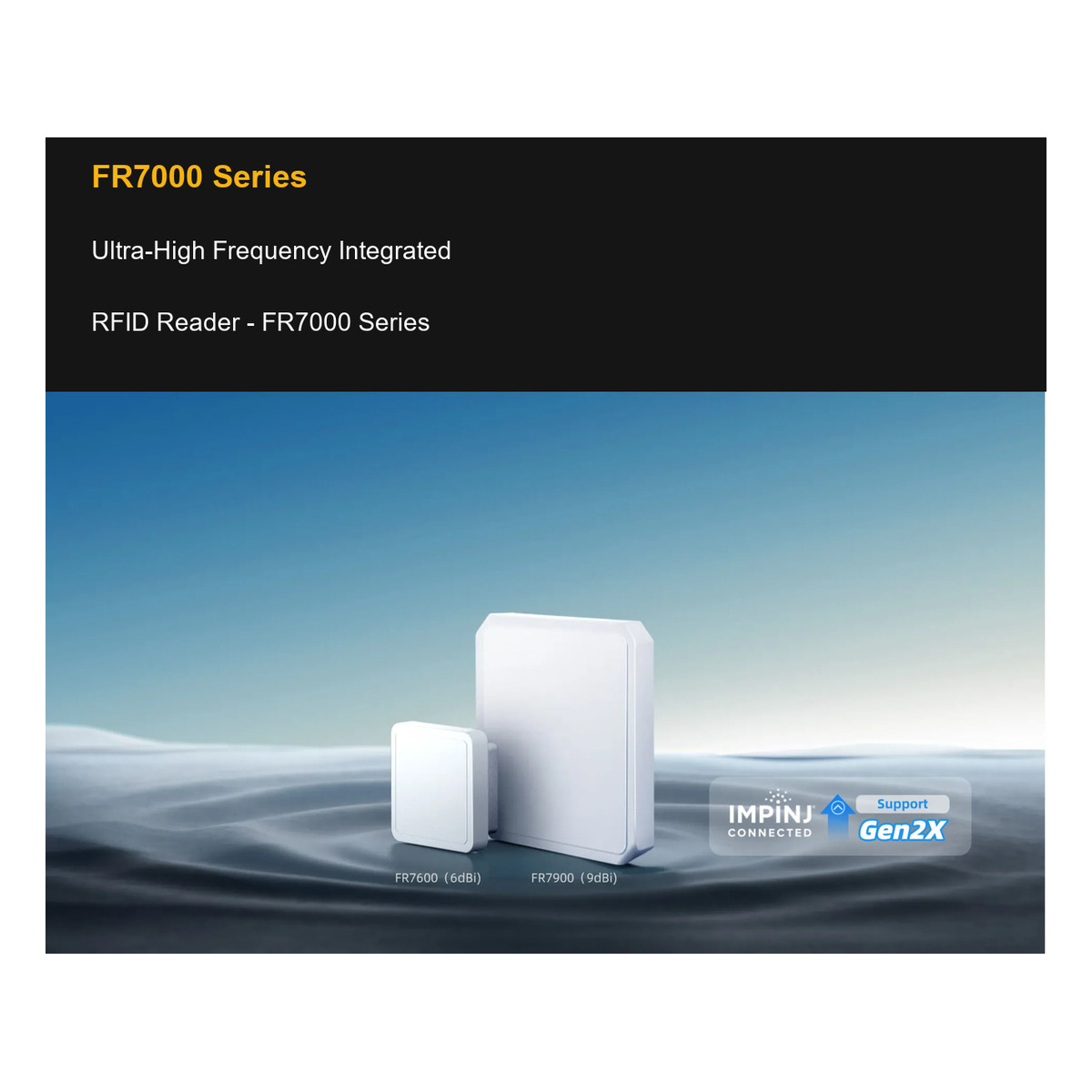

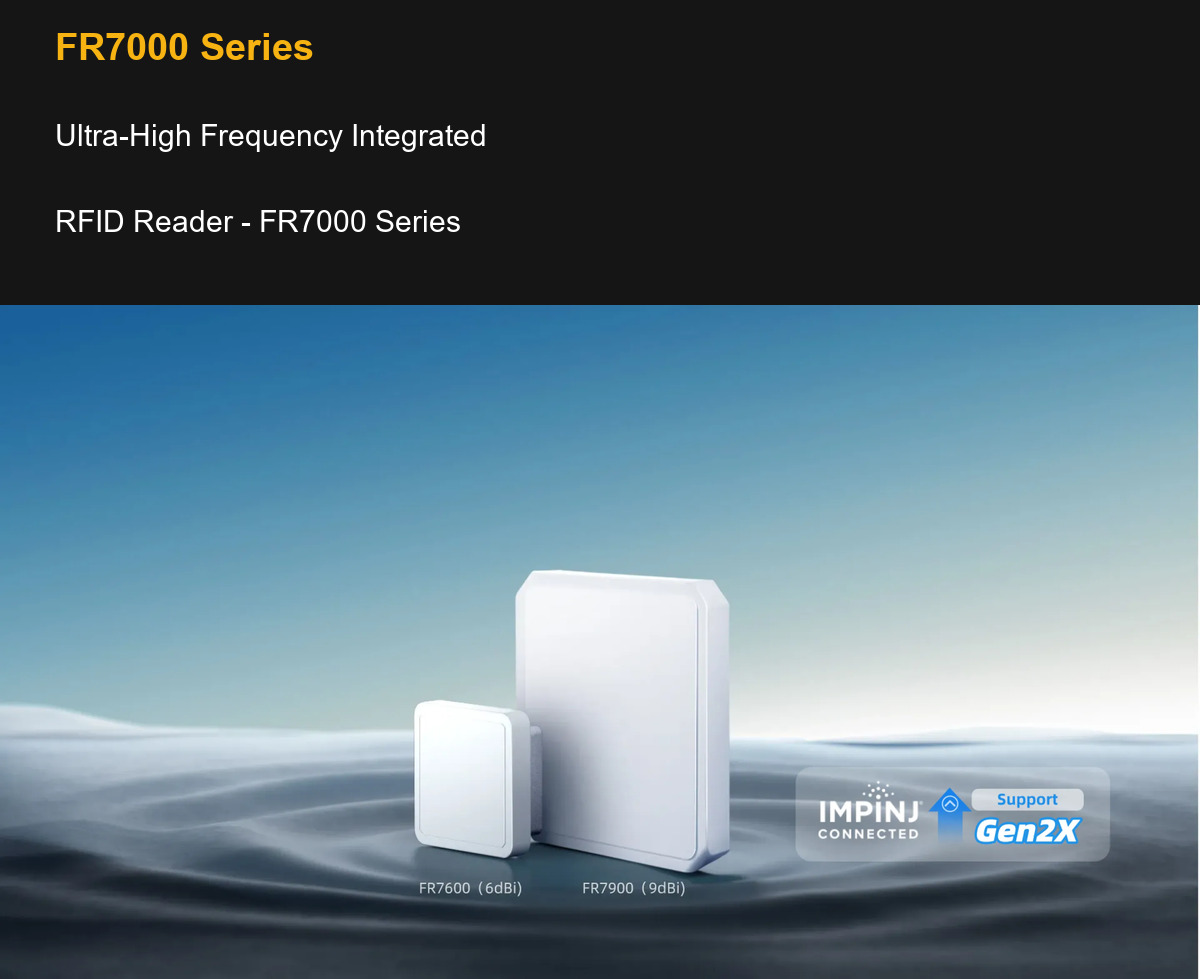

Ultra-High Frequency Integrated

RFID Reader – FR7000 Series

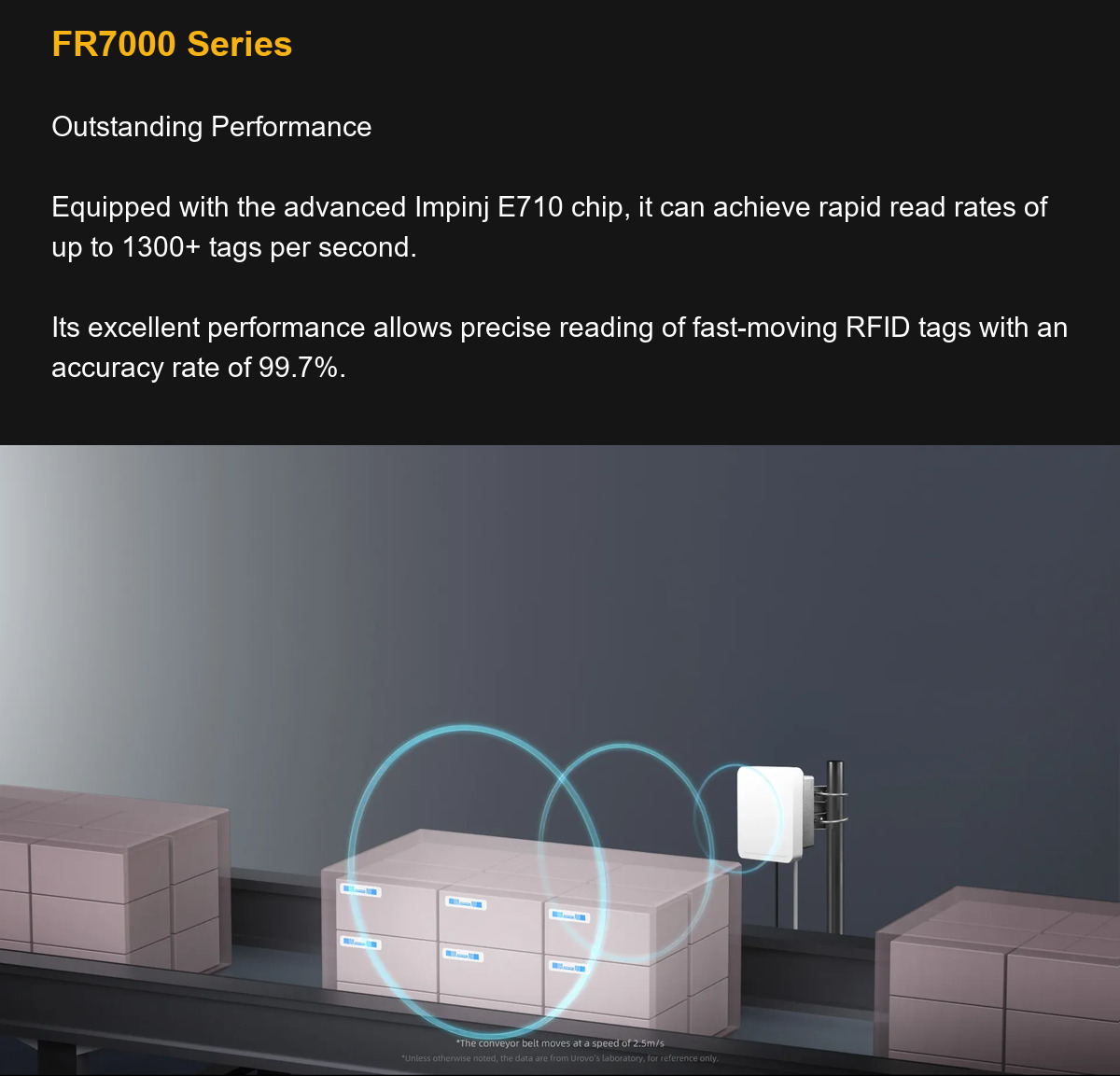

Outstanding Performance

Equipped with the advanced Impinj E710 chip, it can achieve rapid read rates of up to 1300+ tags per second.

Its excellent performance allows precise reading of fast-moving RFID tags with an accuracy rate of 99.7%.

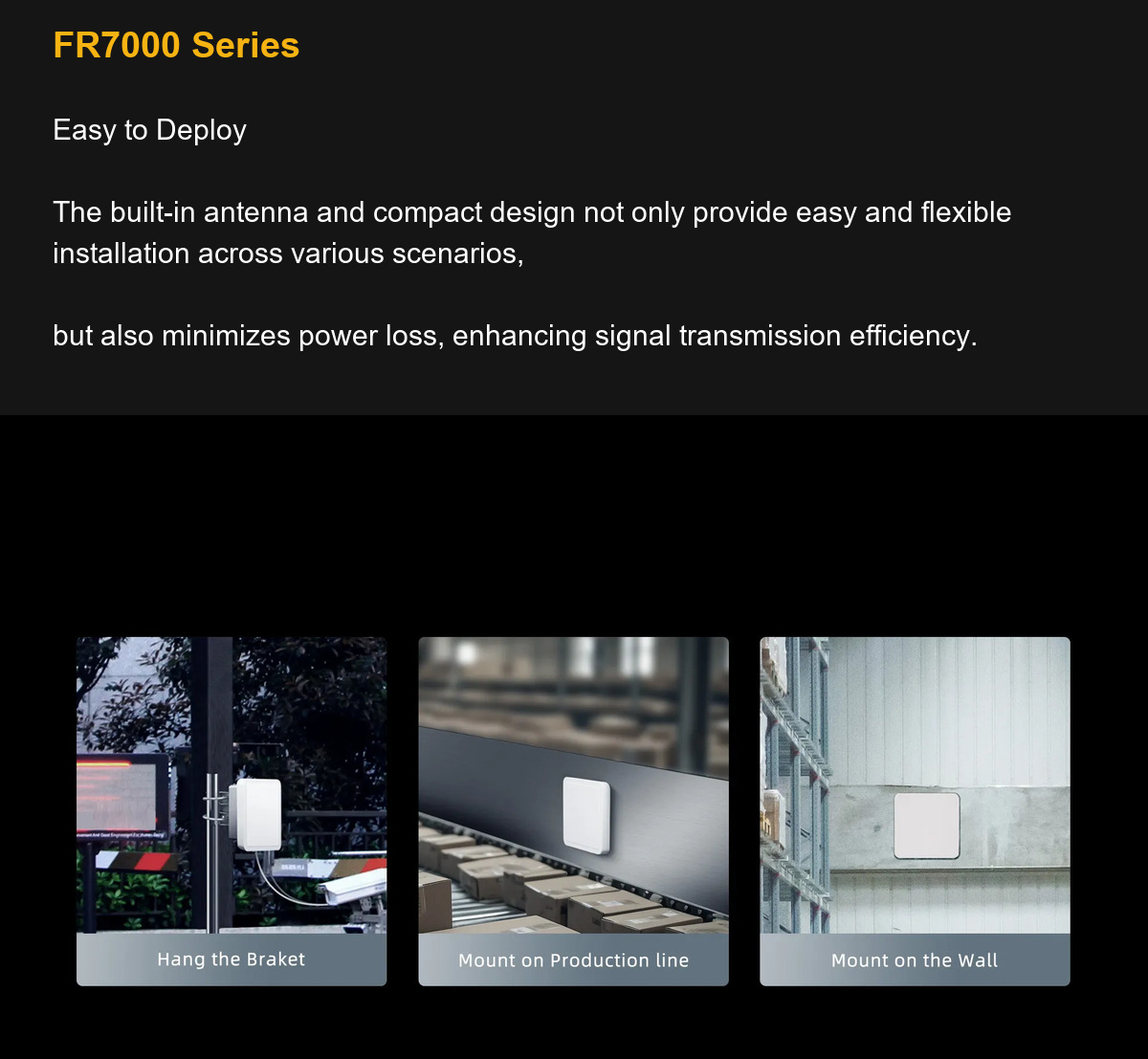

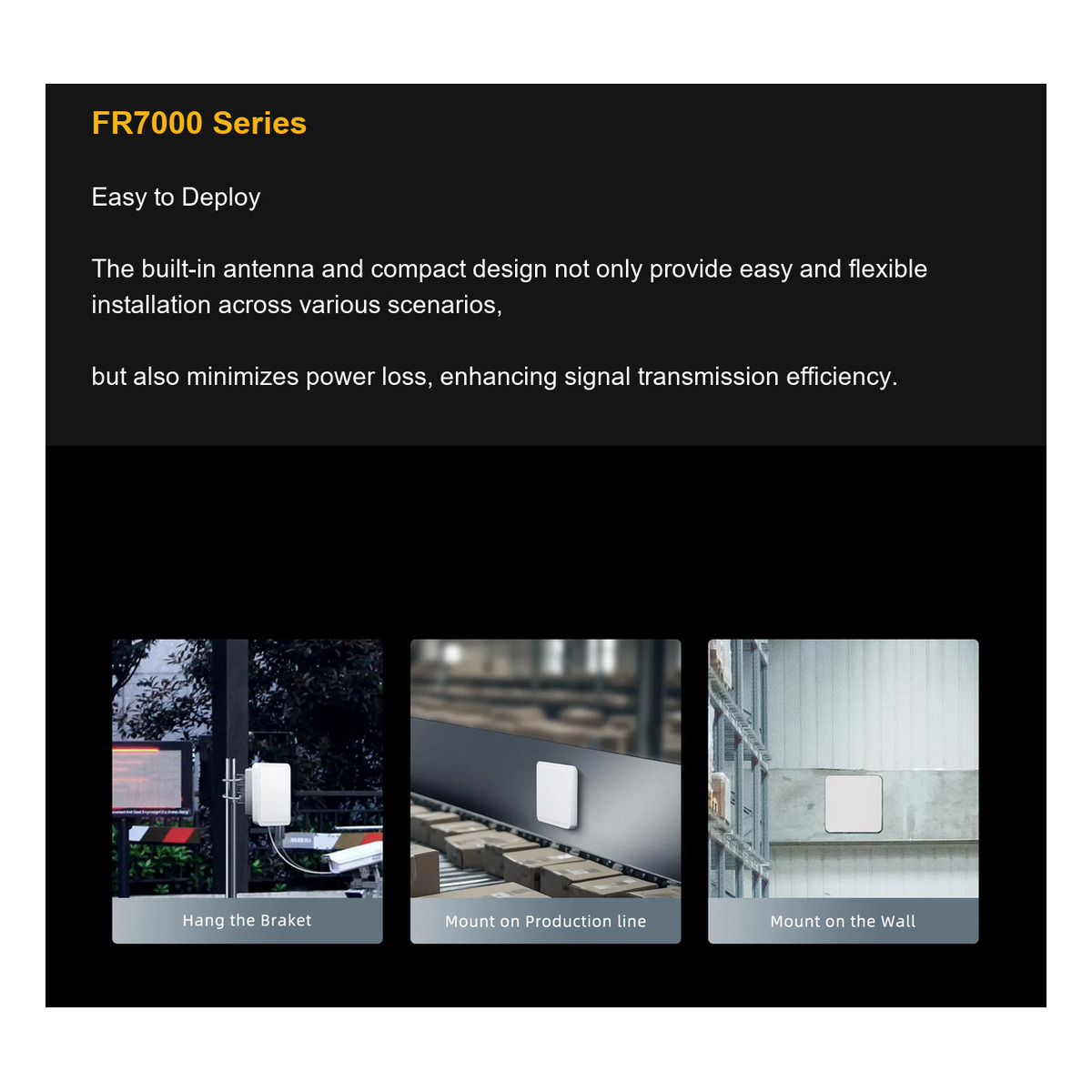

Easy to Deploy

The built-in antenna and compact design not only provide easy and flexible installation across various scenarios,

but also minimizes power loss, enhancing signal transmission efficiency.

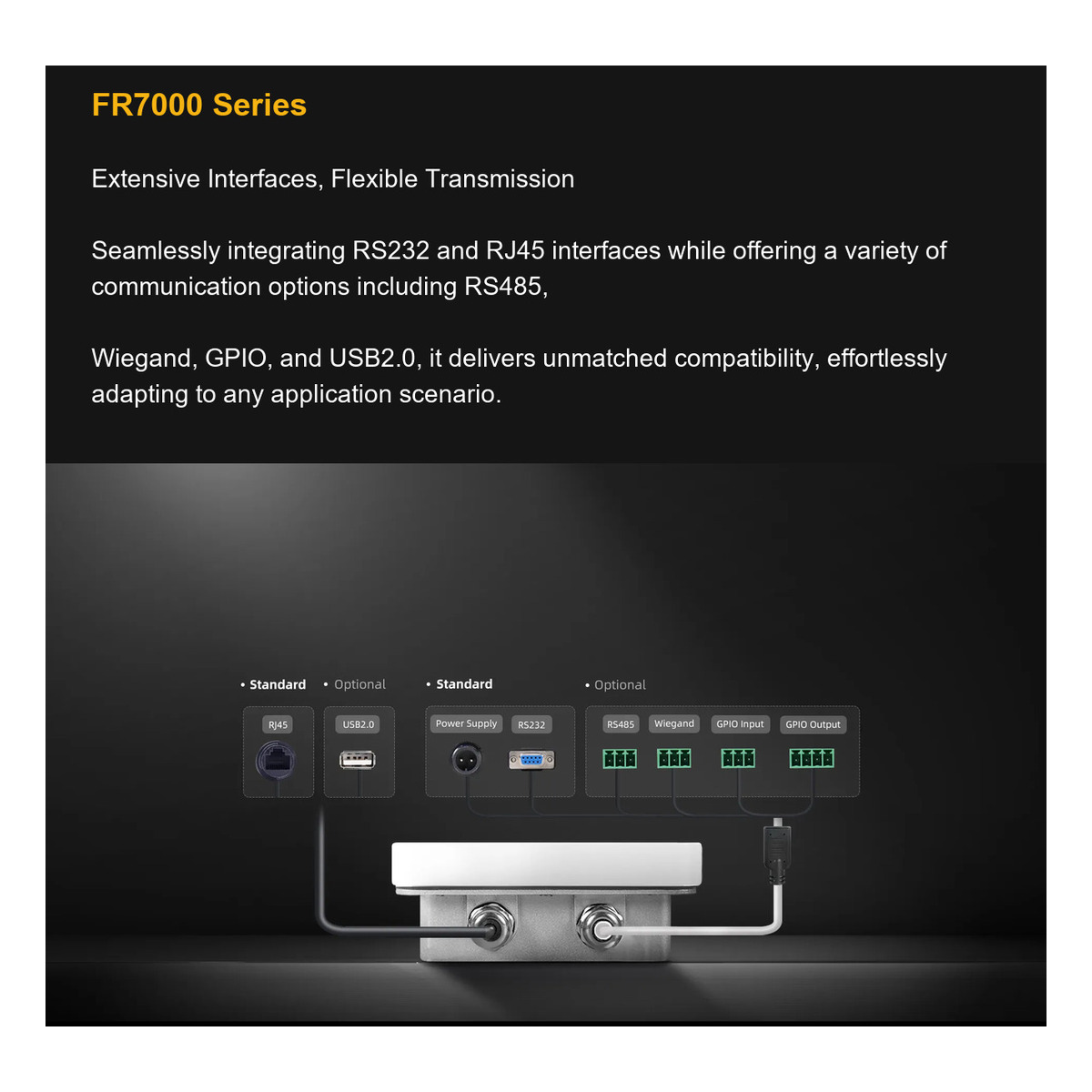

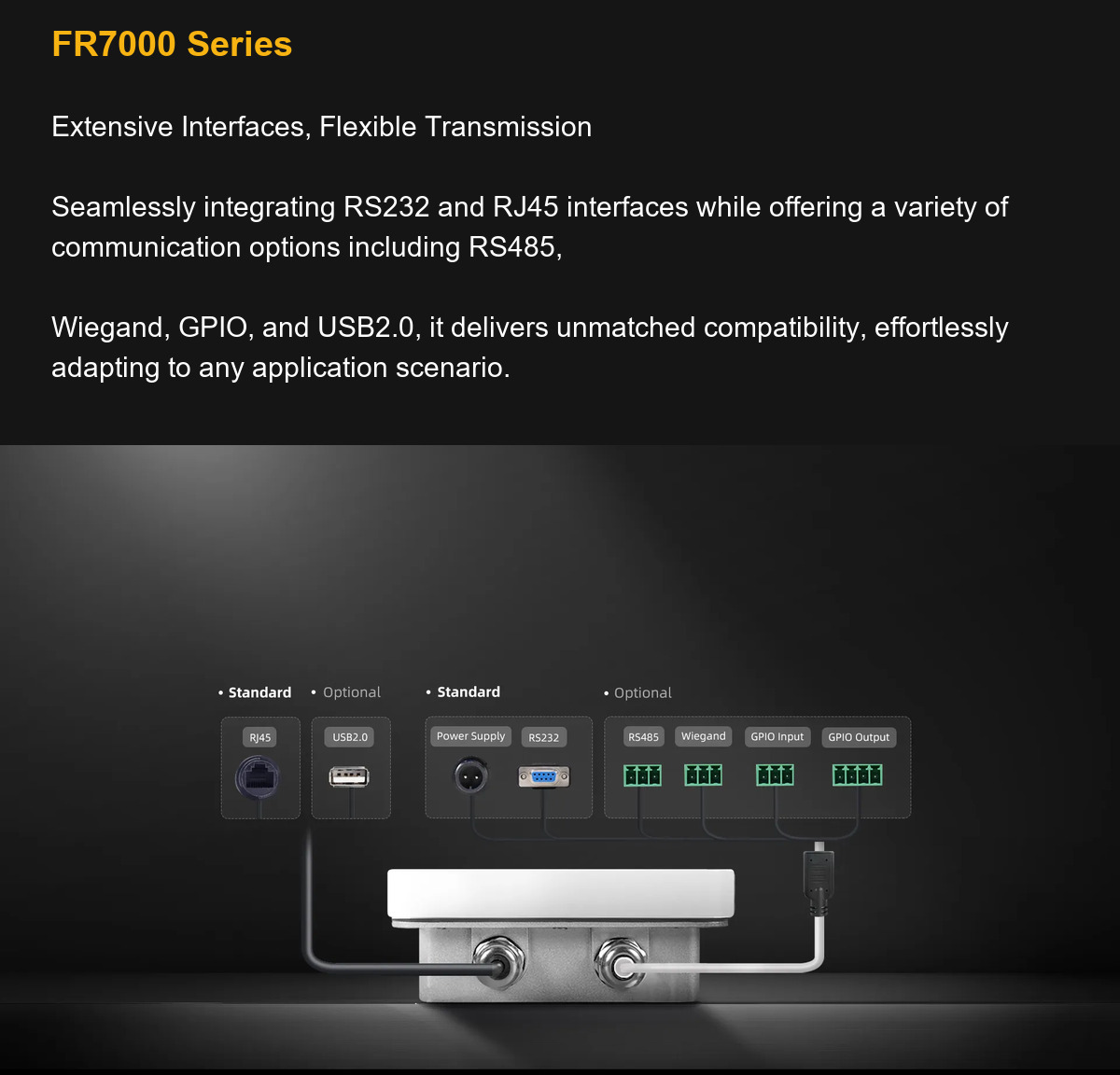

Extensive Interfaces, Flexible Transmission

Seamlessly integrating RS232 and RJ45 interfaces while offering a variety of communication options including RS485,

Wiegand, GPIO, and USB2.0, it delivers unmatched compatibility, effortlessly adapting to any application scenario.

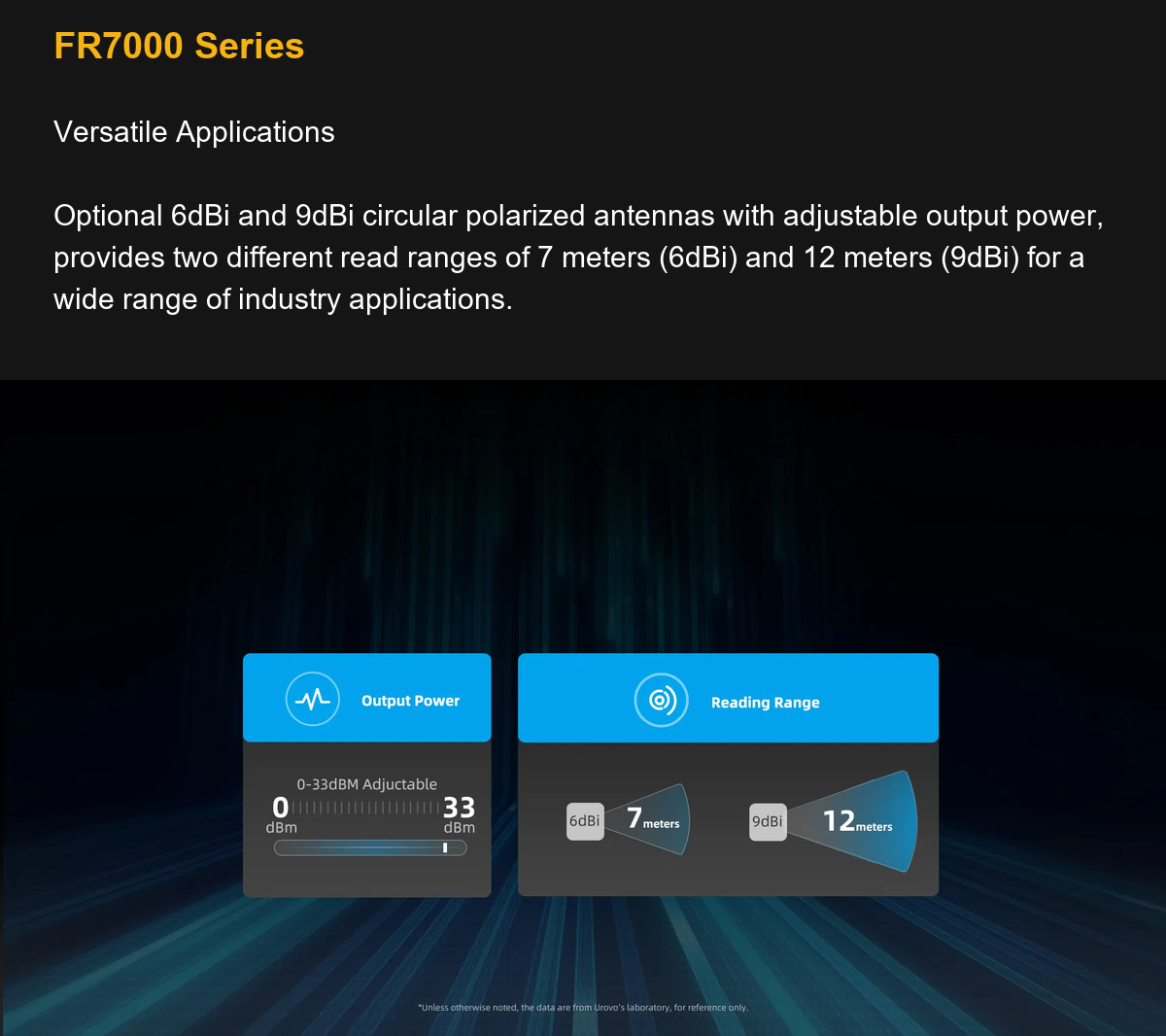

Versatile Applications

Optional 6dBi and 9dBi circular polarized antennas with adjustable output power, provides two different read ranges of 7 meters (6dBi) and 12 meters (9dBi) for a wide range of industry applications.

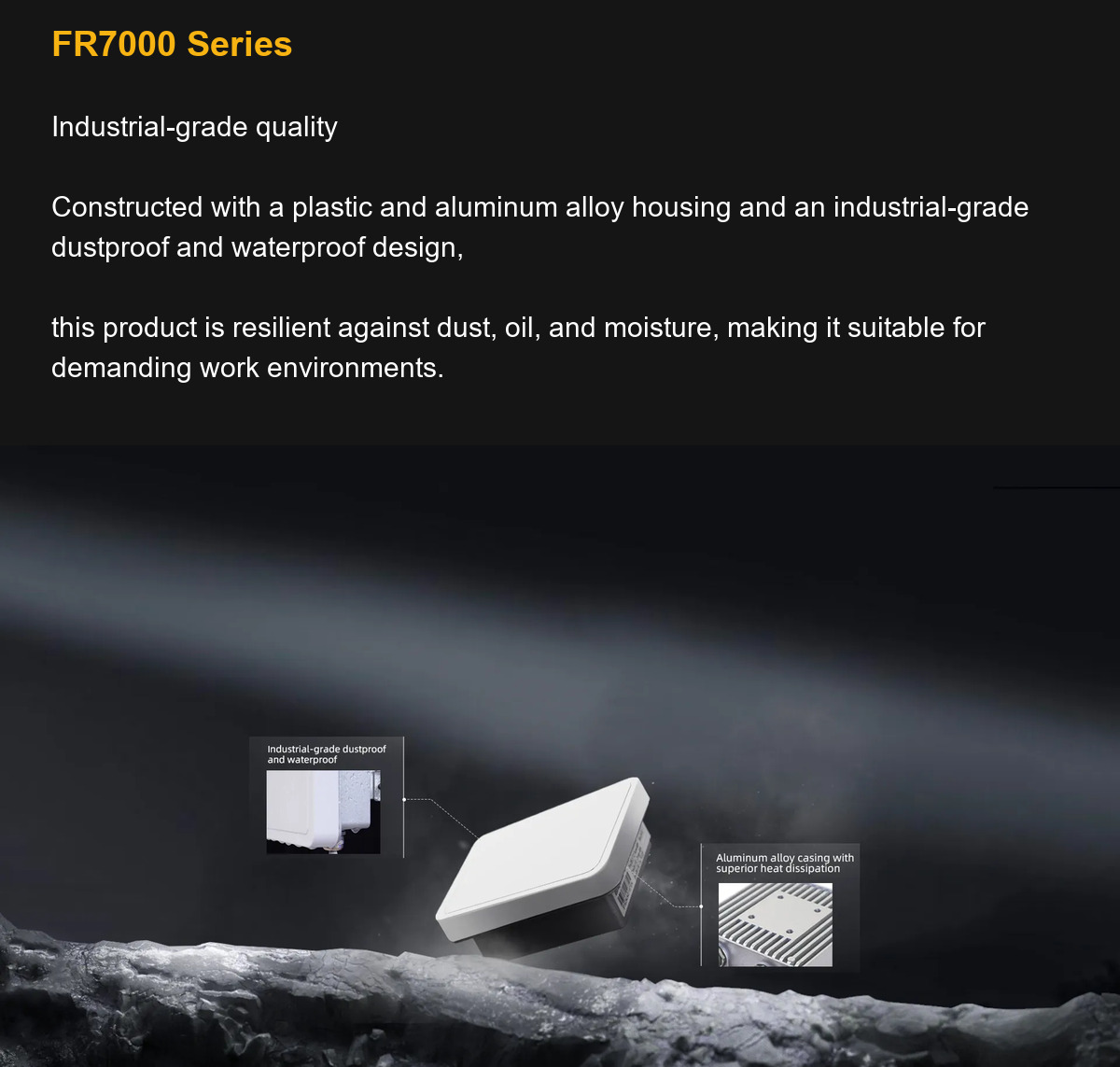

Industrial-grade quality

Constructed with a plastic and aluminum alloy housing and an industrial-grade dustproof and waterproof design,

this product is resilient against dust, oil, and moisture, making it suitable for demanding work environments.

Ultra-High Frequency Integrated

RFID Reader – FR7000 Series

Outstanding Performance

Equipped with the advanced Impinj E710 chip, it can achieve rapid read rates of up to 1300+ tags per second.

Its excellent performance allows precise reading of fast-moving RFID tags with an accuracy rate of 99.7%.

Easy to Deploy

The built-in antenna and compact design not only provide easy and flexible installation across various scenarios,

but also minimizes power loss, enhancing signal transmission efficiency.

Extensive Interfaces, Flexible Transmission

Seamlessly integrating RS232 and RJ45 interfaces while offering a variety of communication options including RS485,

Wiegand, GPIO, and USB2.0, it delivers unmatched compatibility, effortlessly adapting to any application scenario.

Versatile Applications

Optional 6dBi and 9dBi circular polarized antennas with adjustable output power, provides two different read ranges of 7 meters (6dBi) and 12 meters (9dBi) for a wide range of industry applications.

Industrial-grade quality

Constructed with a plastic and aluminum alloy housing and an industrial-grade dustproof and waterproof design,

this product is resilient against dust, oil, and moisture, making it suitable for demanding work environments.

RUGGEDMASTER FR7000 Series Technical Overview

Dimensions: 257mm×257mm×52mm(9dBi)/ 130mm×130mm×50mm(6dBi) Weight: 1800g (9dBi)/ 600g(6dBi)

Frequency: 860～960MHz (Adjustable to meet the requirements of different countries or regions)

Protocol: ISO18000-6C(EPC C1G2)

RF Output: 0~30dBm(adjustable)

Reading Range: Over 7m(6dBi)/12m(9dBi)

Power: +9V power supply, POE power supply(optional)

Interface: Support RS232, RJ45; optional RS485, Wiegand, GPIO, USB2.0, etc.

Antenna: Optional circularly polarized antenna: 6dBi/9dBi

Protection: IP67

Environmental: Operating Temp.: -10 ~ +55°C Storage Temp.: -20 ~ +75°C Humidity: 5%RH ~ 95%RH(No condensation) ESD: +/-15kv Air; +/-8kv contact

RUGGEDMASTER FR7000 Series Wholesale Selection

Select RUGGEDMASTER FR7000 Series by reviewing the configuration, dimensions and manufacturer details above. For bulk orders, provide the complete model name, intended application, required quantity and delivery destination. Keep optional configurations separate in your purchasing request so they can be checked against the listed technical information.

Compare the operating system, data capture functions and connectivity shown in the Specs tab with the requirements of your existing workflow. Check the stated interface, power supply and physical dimensions before planning installation or daily use. Where several configurations are listed, confirm the required configuration in your inquiry. Product images can show different views and example applications of the same model.

For deployment across a team or multiple locations, record the configuration required at each location and the intended working environment. Review the documented environmental limits, scanning requirements and supported connections when those fields are supplied. Optional functions listed by the manufacturer should be confirmed for the equipment you order. Use the full model name and requested quantity when preparing your wholesale inquiry.
