RUGGEDMASTER FR1000 Fixed RFID Readers

Wholesale RUGGEDMASTER FR1000 Fixed RFID Readers for bulk orders at RuggedMaster. FR1000 Intelligent Fixed UHF RFID Reader

RUGGEDMASTER FR1000 Product Features

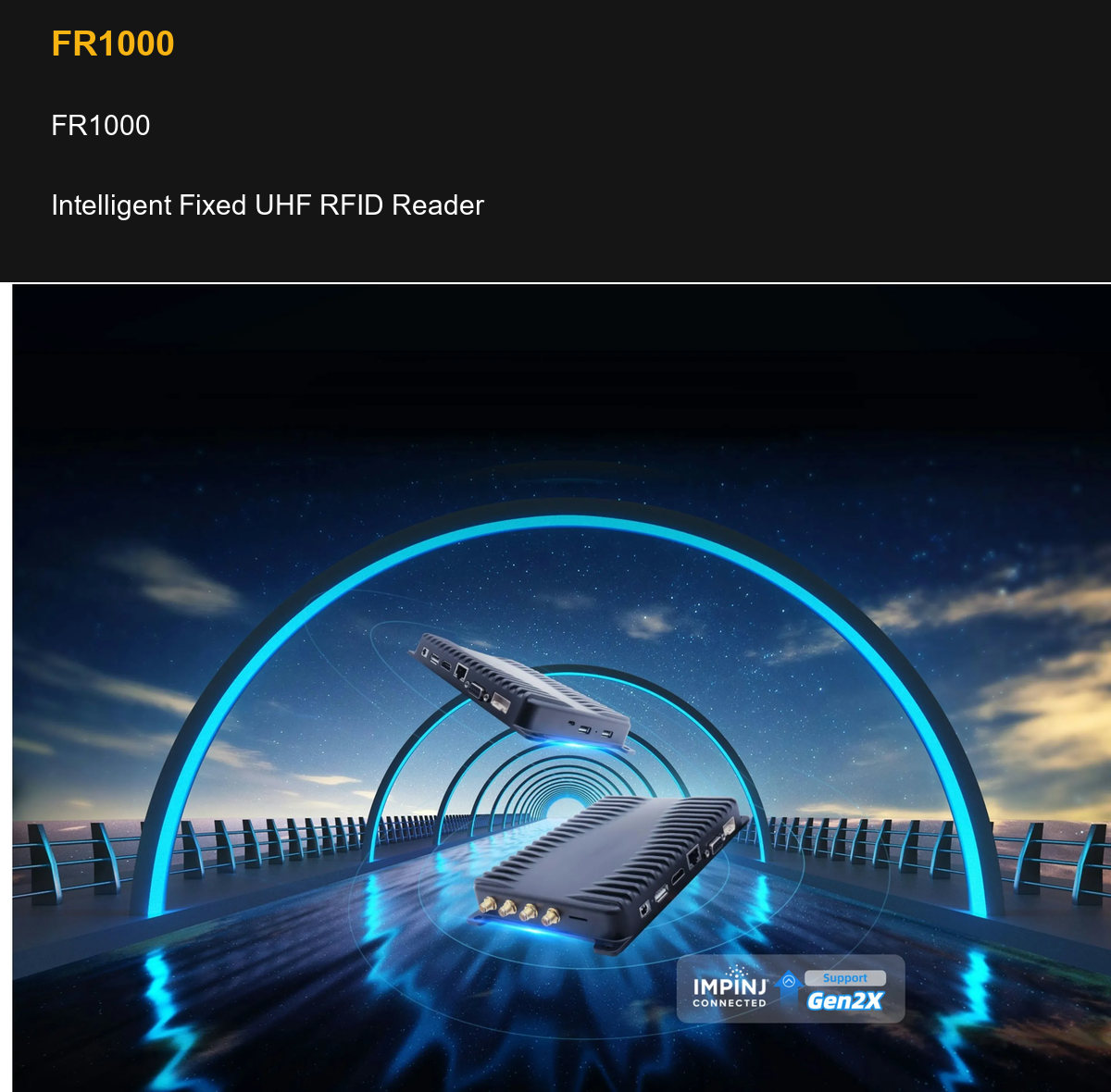

FR1000

Intelligent Fixed UHF RFID Reader

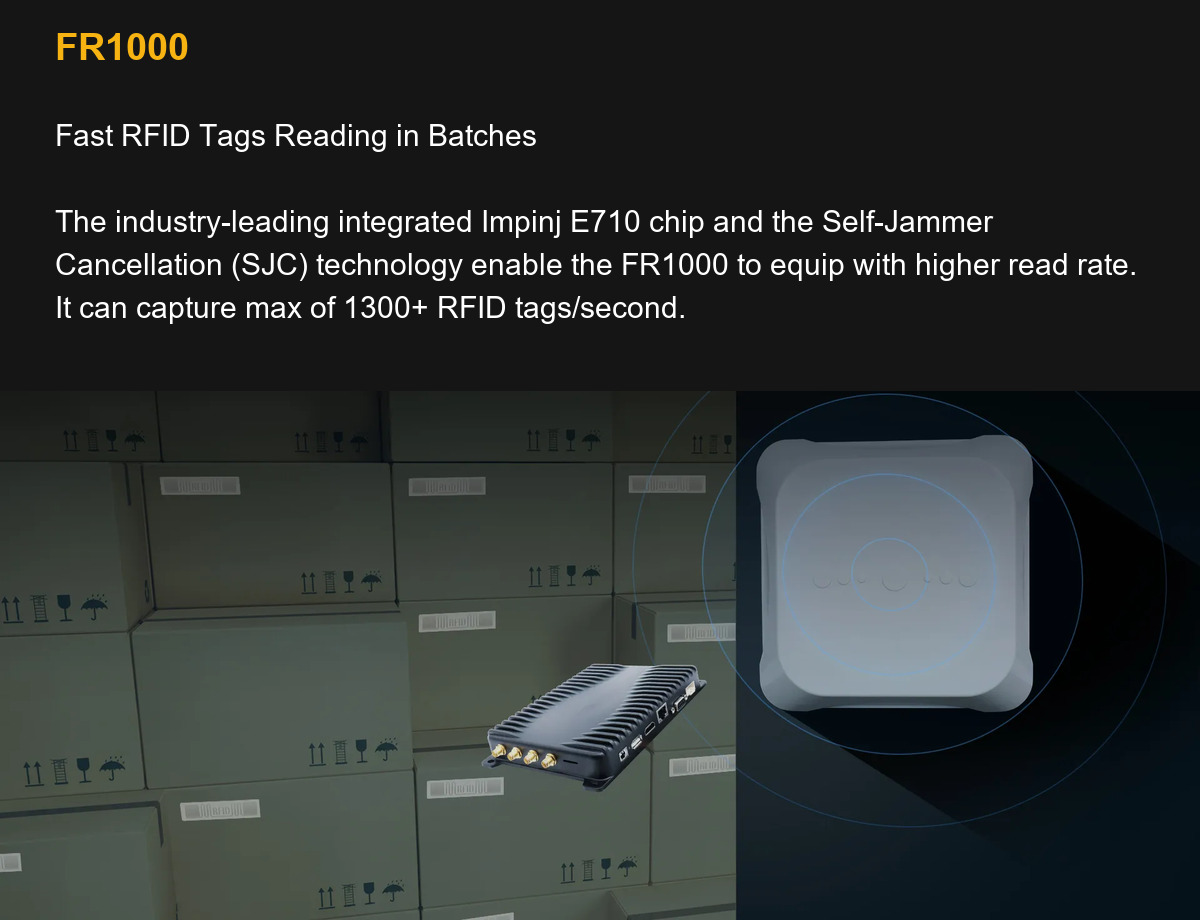

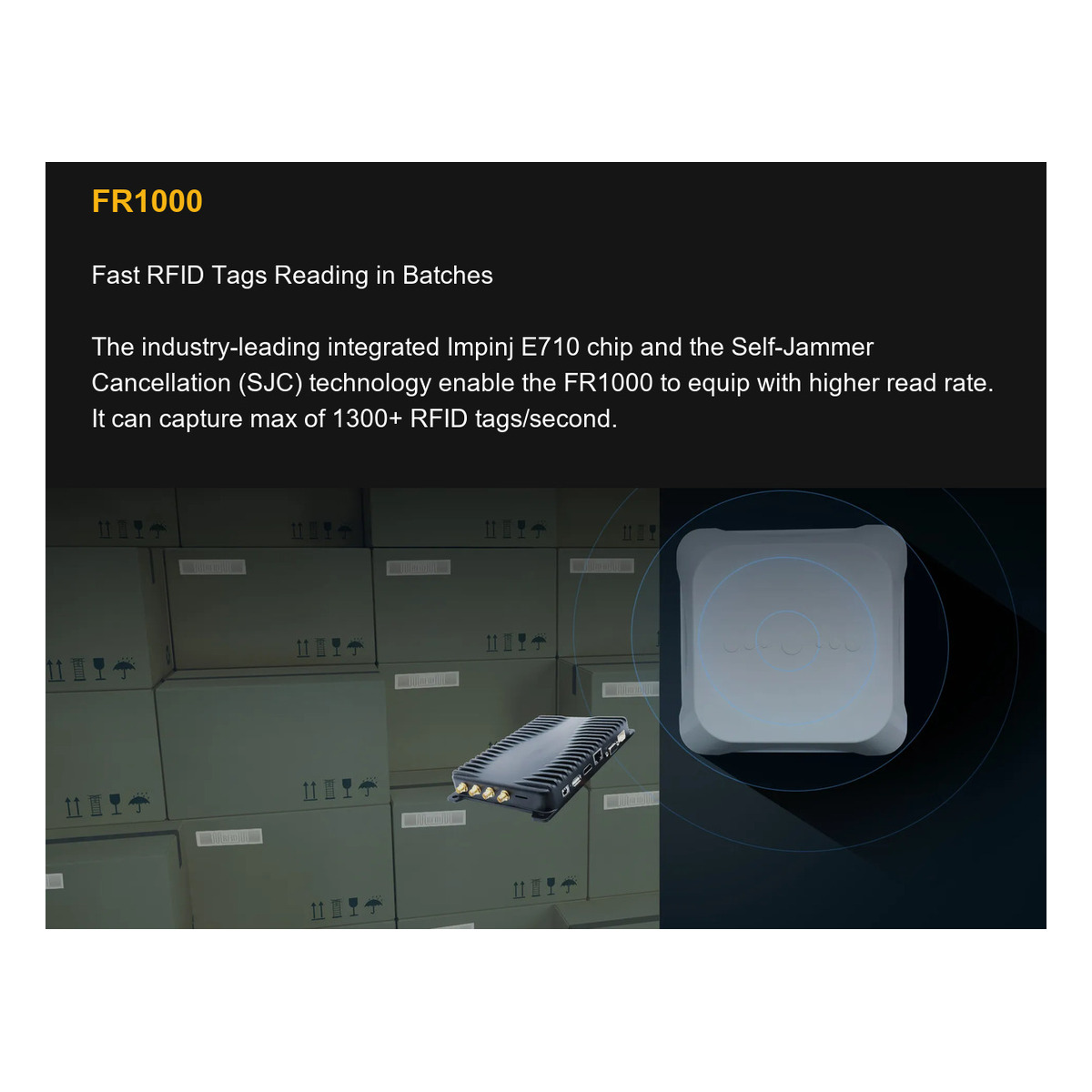

Fast RFID Tags Reading in Batches

The industry-leading integrated Impinj E710 chip and the Self-Jammer Cancellation (SJC) technology enable the FR1000 to equip with higher read rate. It can capture max of 1300+ RFID tags/second.

Enhanced Security

The FR1000 enables you to manually change IPv6 addresses and proactively monitor the network, improving security and protecting your privacy.

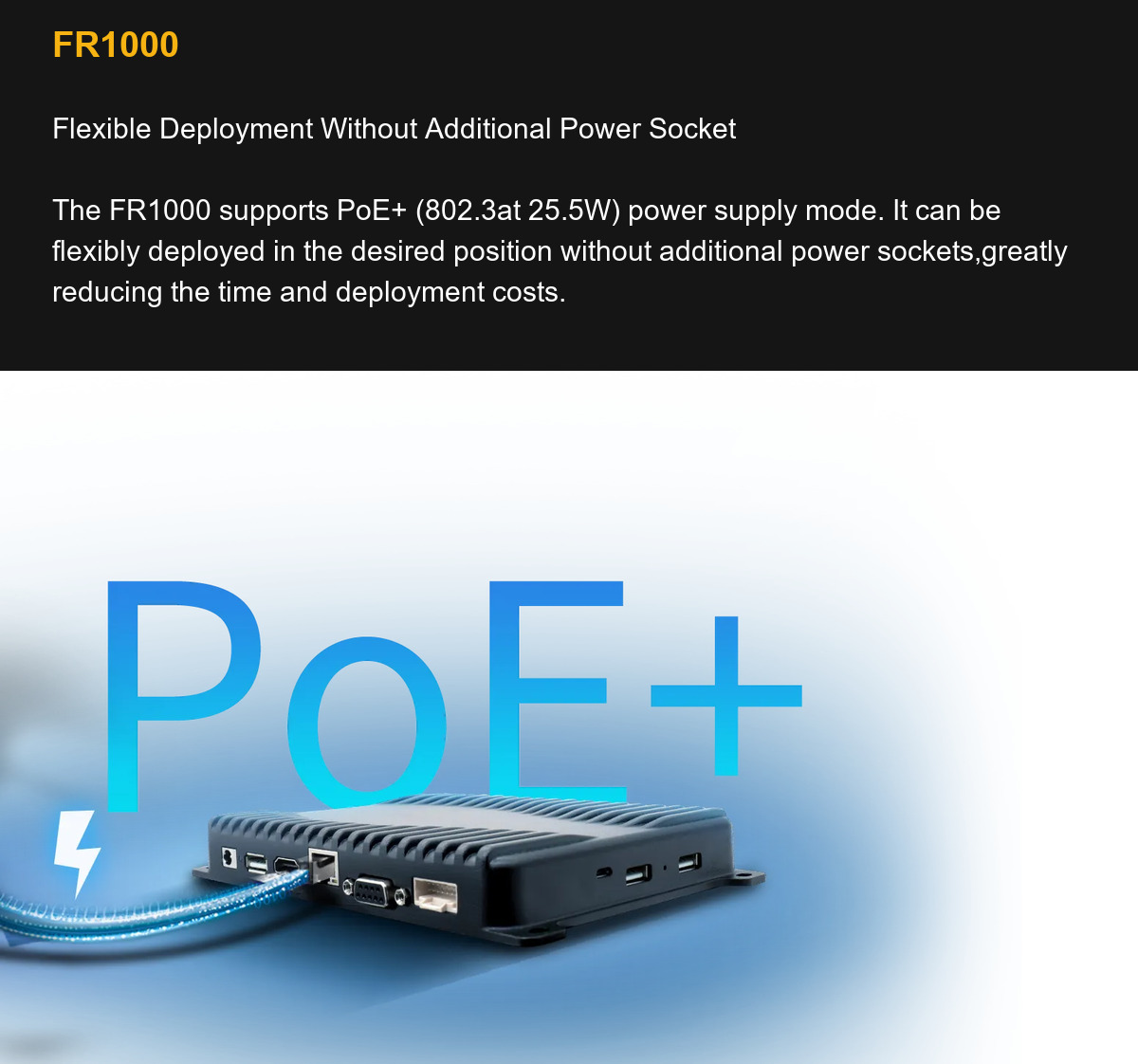

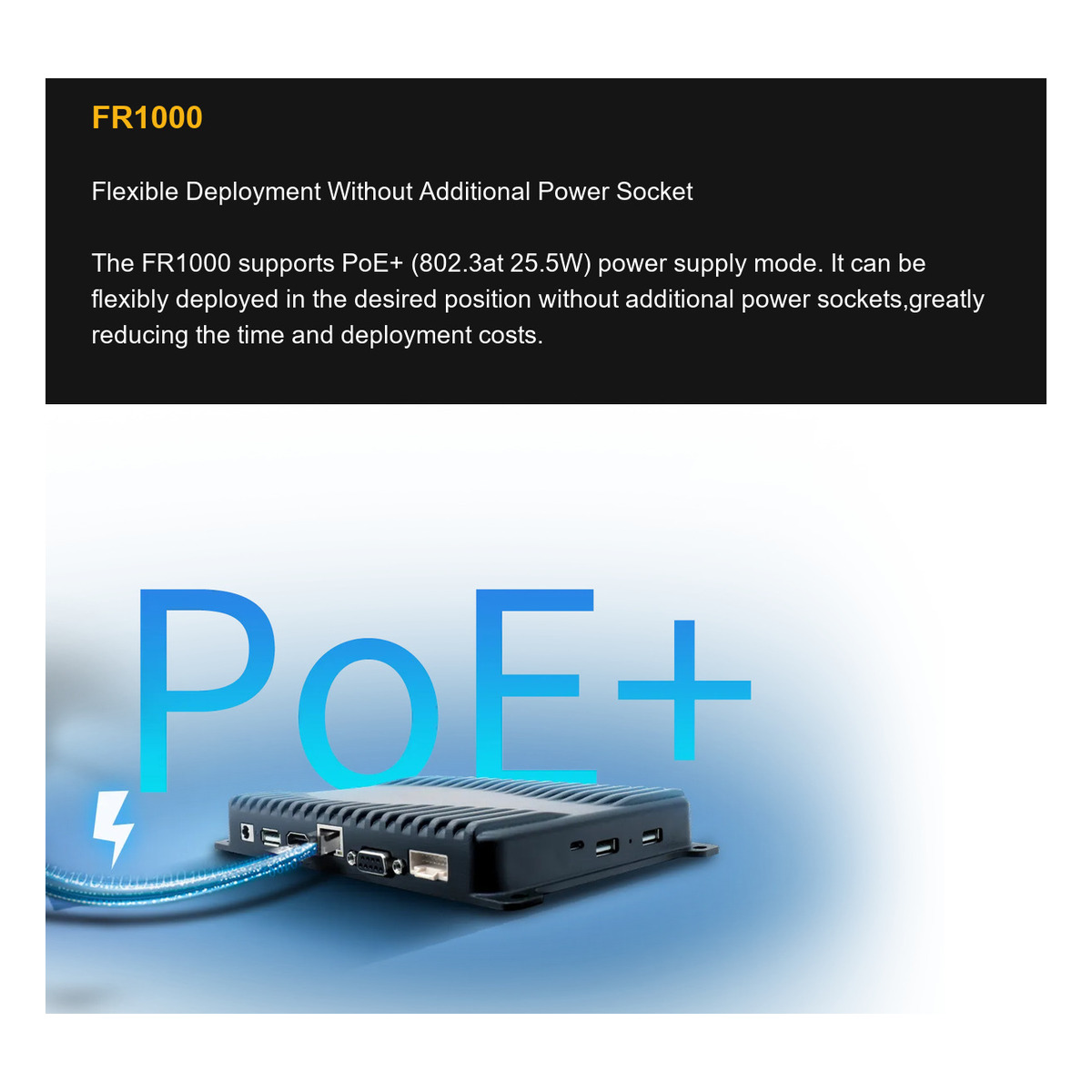

Flexible Deployment Without Additional Power Socket

The FR1000 supports PoE+ (802.3at 25.5W) power supply mode. It can be flexibly deployed in the desired position without additional power sockets,greatly reducing the time and deployment costs.

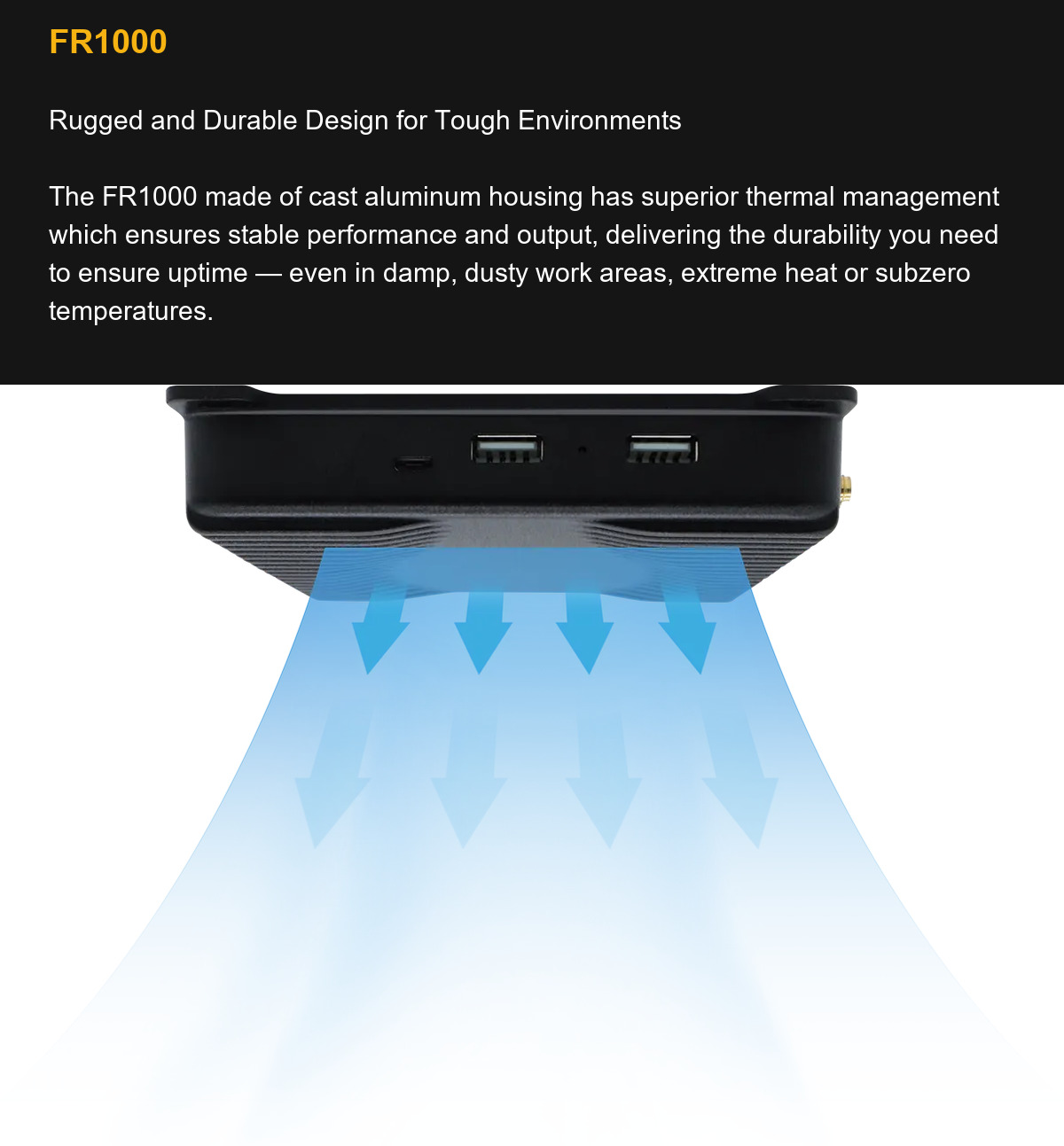

Rugged and Durable Design for Tough Environments

The FR1000 made of cast aluminum housing has superior thermal management which ensures stable performance and output, delivering the durability you need to ensure uptime — even in damp, dusty work areas, extreme heat or subzero temperatures.

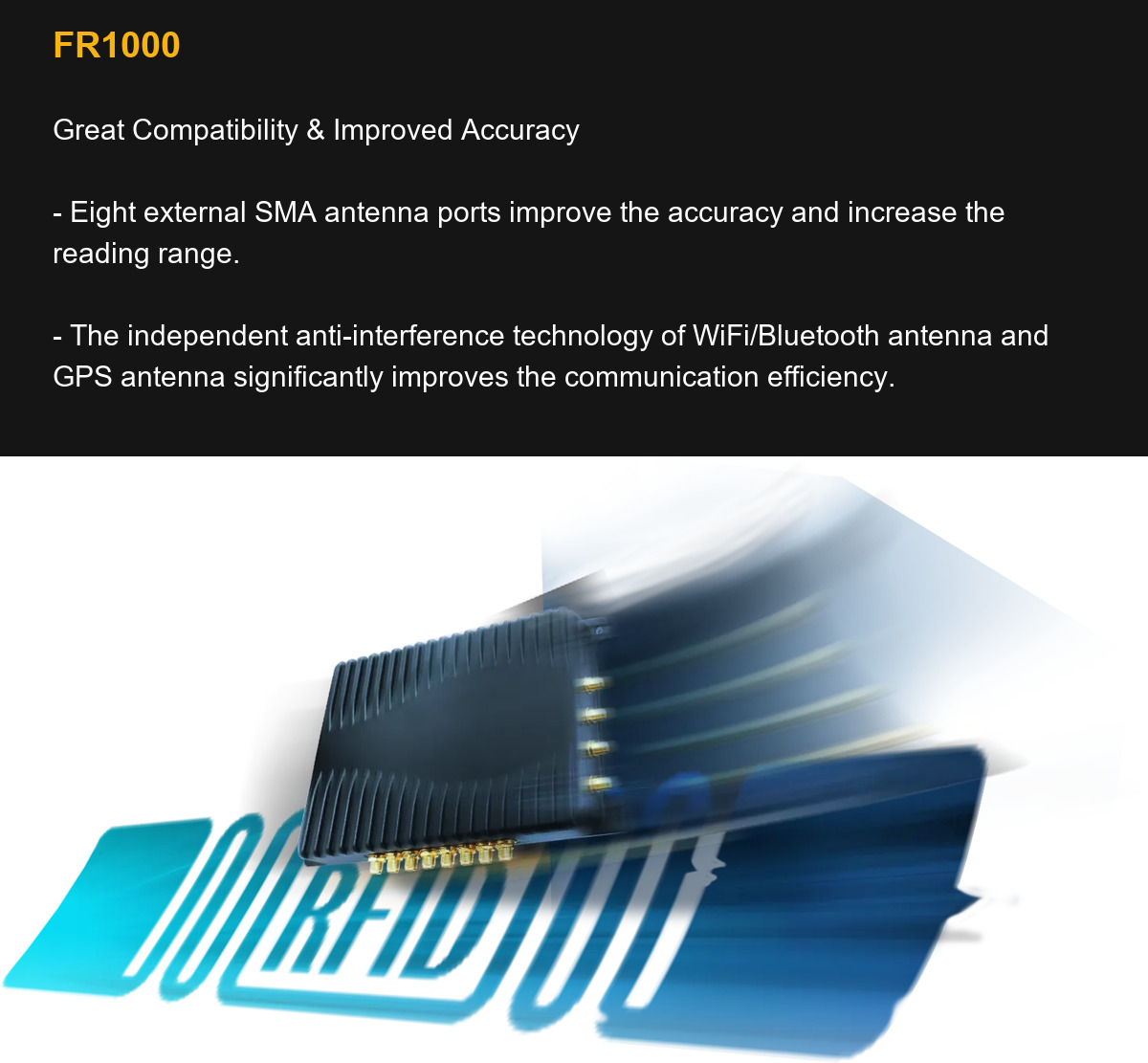

Great Compatibility & Improved Accuracy

– Eight external SMA antenna ports improve the accuracy and increase the reading range.

– The independent anti-interference technology of WiFi/Bluetooth antenna and GPS antenna significantly improves the communication efficiency.

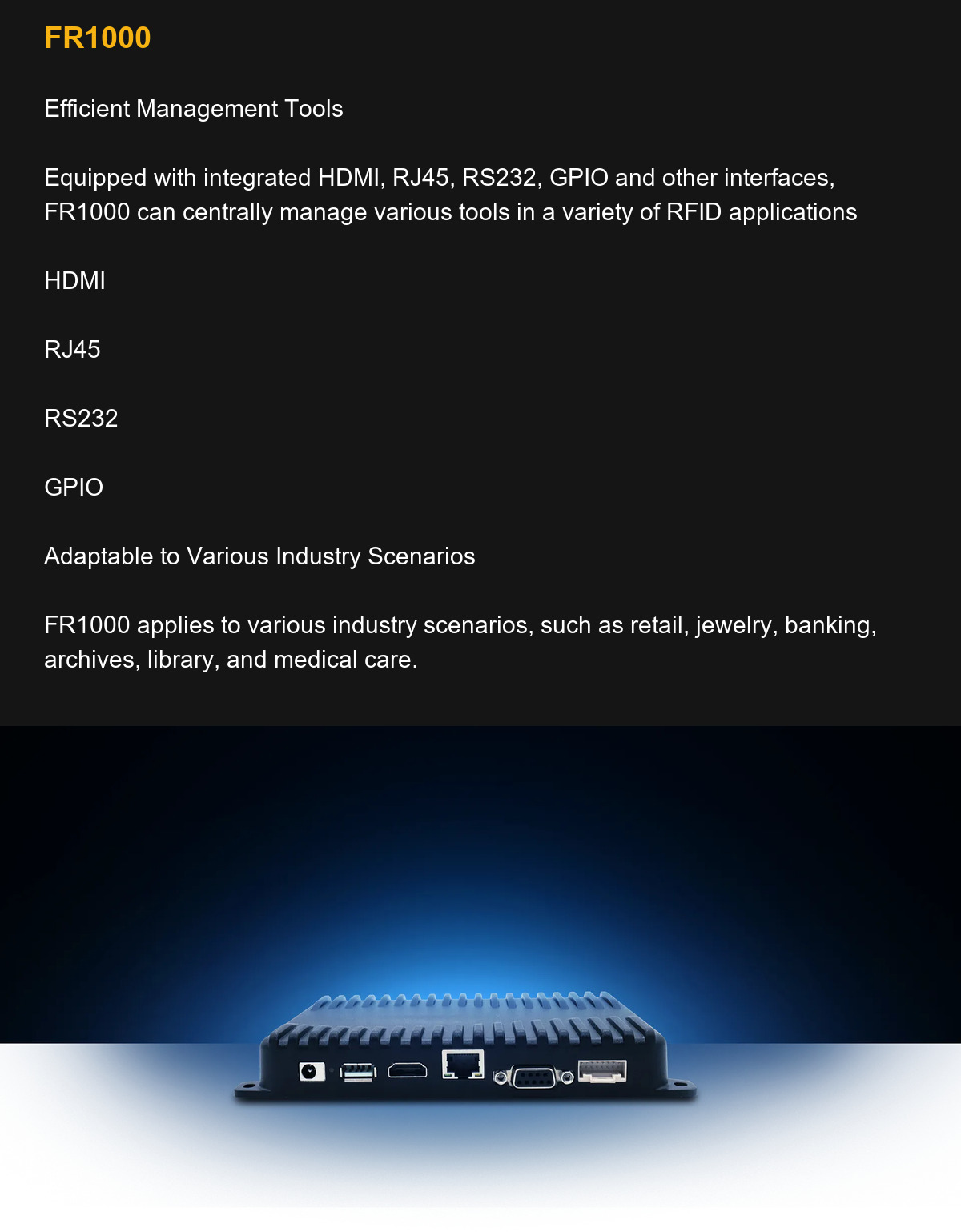

Efficient Management Tools

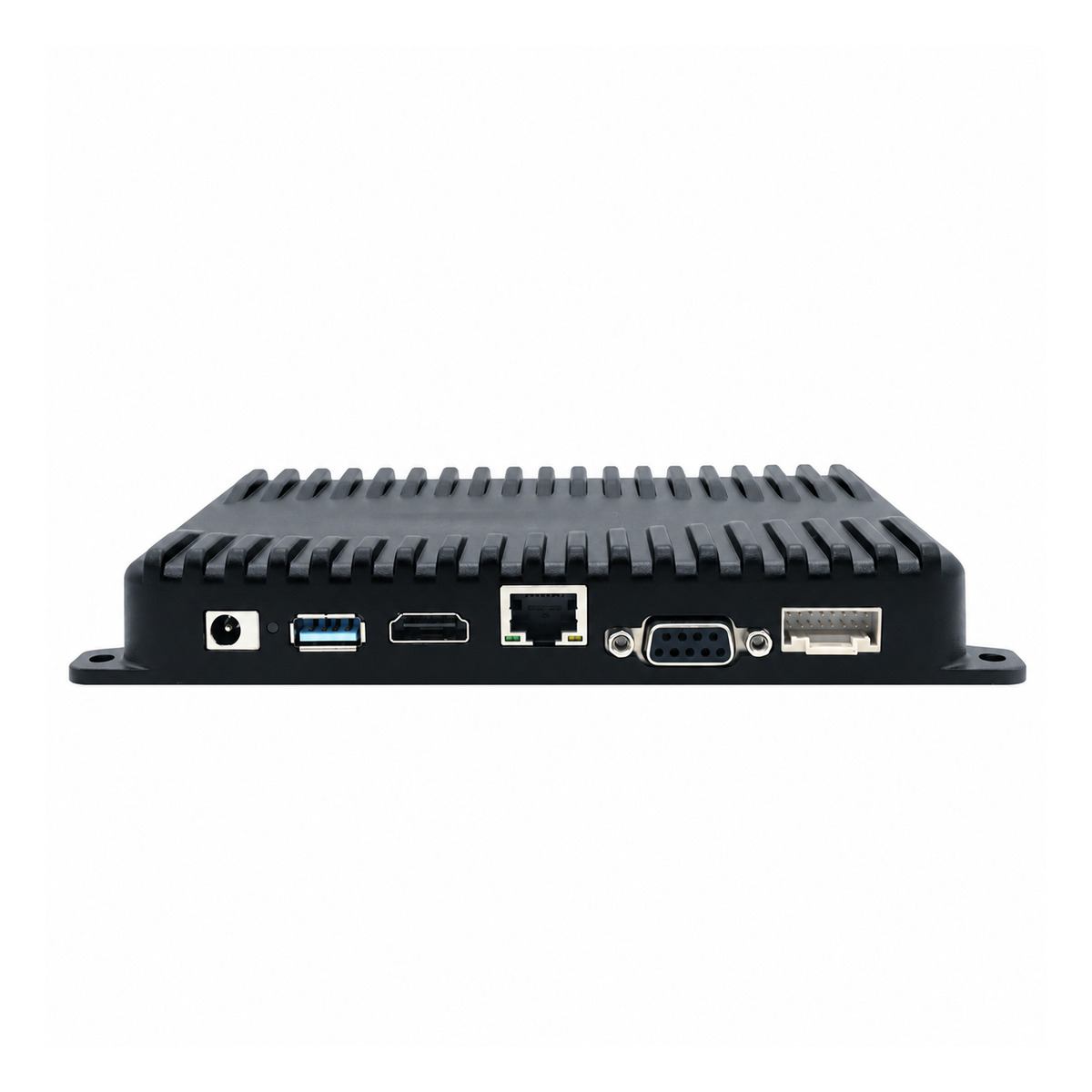

Equipped with integrated HDMI, RJ45, RS232, GPIO and other interfaces, FR1000 can centrally manage various tools in a variety of RFID applications

HDMI

RJ45

RS232

GPIO

Adaptable to Various Industry Scenarios

FR1000 applies to various industry scenarios, such as retail, jewelry, banking, archives, library, and medical care.

FR1000

Intelligent Fixed UHF RFID Reader

Fast RFID Tags Reading in Batches

The industry-leading integrated Impinj E710 chip and the Self-Jammer Cancellation (SJC) technology enable the FR1000 to equip with higher read rate. It can capture max of 1300+ RFID tags/second.

Enhanced Security

The FR1000 enables you to manually change IPv6 addresses and proactively monitor the network, improving security and protecting your privacy.

Flexible Deployment Without Additional Power Socket

The FR1000 supports PoE+ (802.3at 25.5W) power supply mode. It can be flexibly deployed in the desired position without additional power sockets,greatly reducing the time and deployment costs.

Rugged and Durable Design for Tough Environments

The FR1000 made of cast aluminum housing has superior thermal management which ensures stable performance and output, delivering the durability you need to ensure uptime — even in damp, dusty work areas, extreme heat or subzero temperatures.

Great Compatibility & Improved Accuracy

– Eight external SMA antenna ports improve the accuracy and increase the reading range.

– The independent anti-interference technology of WiFi/Bluetooth antenna and GPS antenna significantly improves the communication efficiency.

Efficient Management Tools

Equipped with integrated HDMI, RJ45, RS232, GPIO and other interfaces, FR1000 can centrally manage various tools in a variety of RFID applications

HDMI

RJ45

RS232

GPIO

Adaptable to Various Industry Scenarios

FR1000 applies to various industry scenarios, such as retail, jewelry, banking, archives, library, and medical care.

RUGGEDMASTER FR1000 Technical Overview

CPU: Octa-core 64-bit, 1.6 GHz

OS: Android

Memory: RAM: 4 GB ROM: 64 GB

Video: 1,920×1,200P HD format video output

Positioning: GPS + GLONASS or GPS + BeiDou

Dimensions: 180 mm x 128 mm x 28 mm

Interface: DC JACK, USB interface * 3, HDMI interface, RJ45 (PoE supply mode), RS232, GPIO interface, SMA antenna interface ANT1~ANT8

Antenna: GPS antenna, WiFi/Bluetooth antenna

Communication: 2.4G/5G dual-band WIFI

Environmental: Operating temperature: -30℃ to +70℃ Storage temperature: -40℃ to +85℃ Humidity: 5%-95% RH (non-condensing)

RUGGEDMASTER FR1000 Wholesale Selection

Select RUGGEDMASTER FR1000 by reviewing the configuration, dimensions and manufacturer details above. For bulk orders, provide the complete model name, intended application, required quantity and delivery destination. Keep optional configurations separate in your purchasing request so they can be checked against the listed technical information.

Compare the operating system, data capture functions and connectivity shown in the Specs tab with the requirements of your existing workflow. Check the stated interface, power supply and physical dimensions before planning installation or daily use. Where several configurations are listed, confirm the required configuration in your inquiry. Product images can show different views and example applications of the same model.

For deployment across a team or multiple locations, record the configuration required at each location and the intended working environment. Review the documented environmental limits, scanning requirements and supported connections when those fields are supplied. Optional functions listed by the manufacturer should be confirmed for the equipment you order. Use the full model name and requested quantity when preparing your wholesale inquiry.
