RUGGEDMASTER F502 Mobile Computers

Wholesale RUGGEDMASTER F502 Mobile Computers for bulk orders at RuggedMaster. F502 full screen intelligent handheld terminal The device is lightweight and easy to hold with one hand

RUGGEDMASTER F502 Product Features

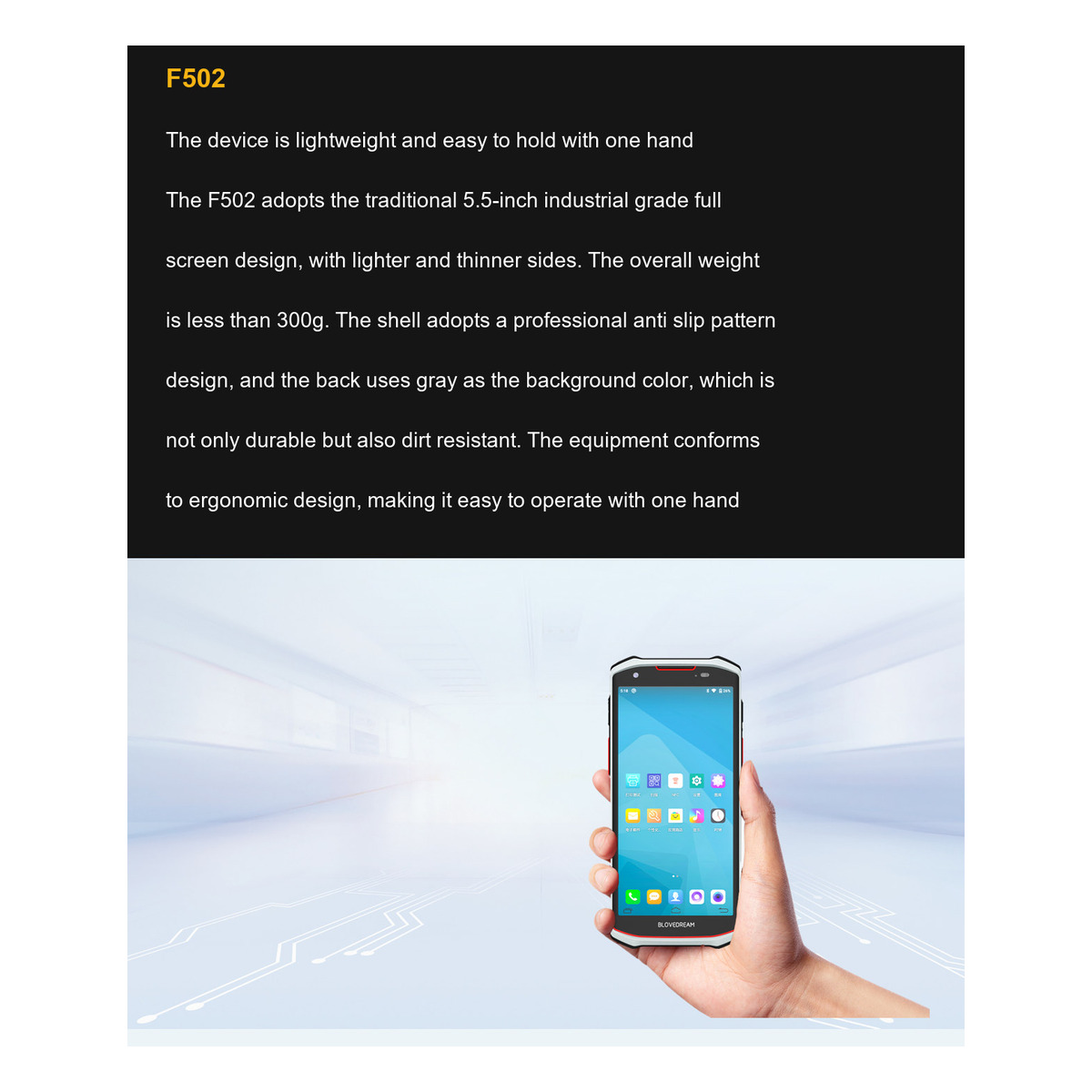

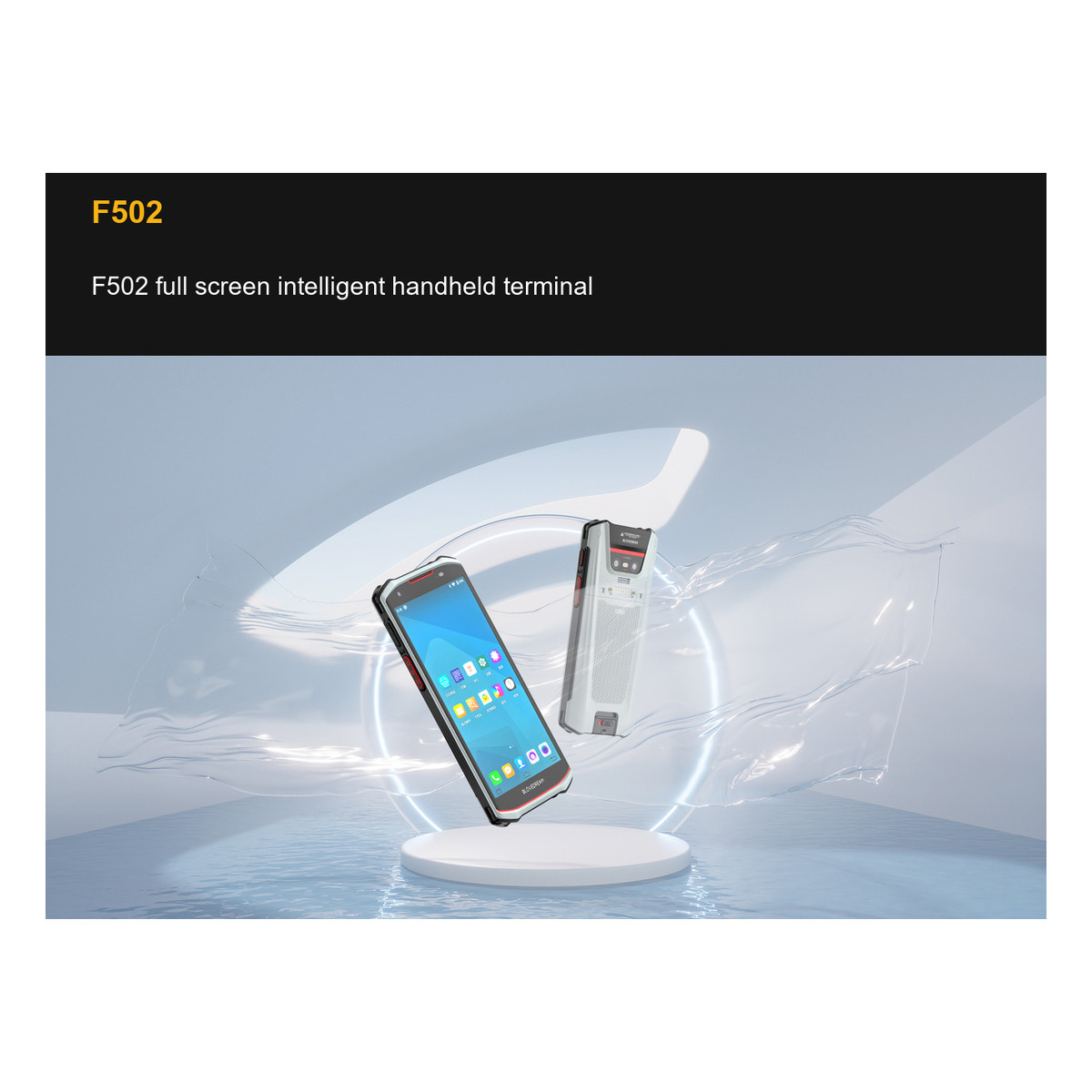

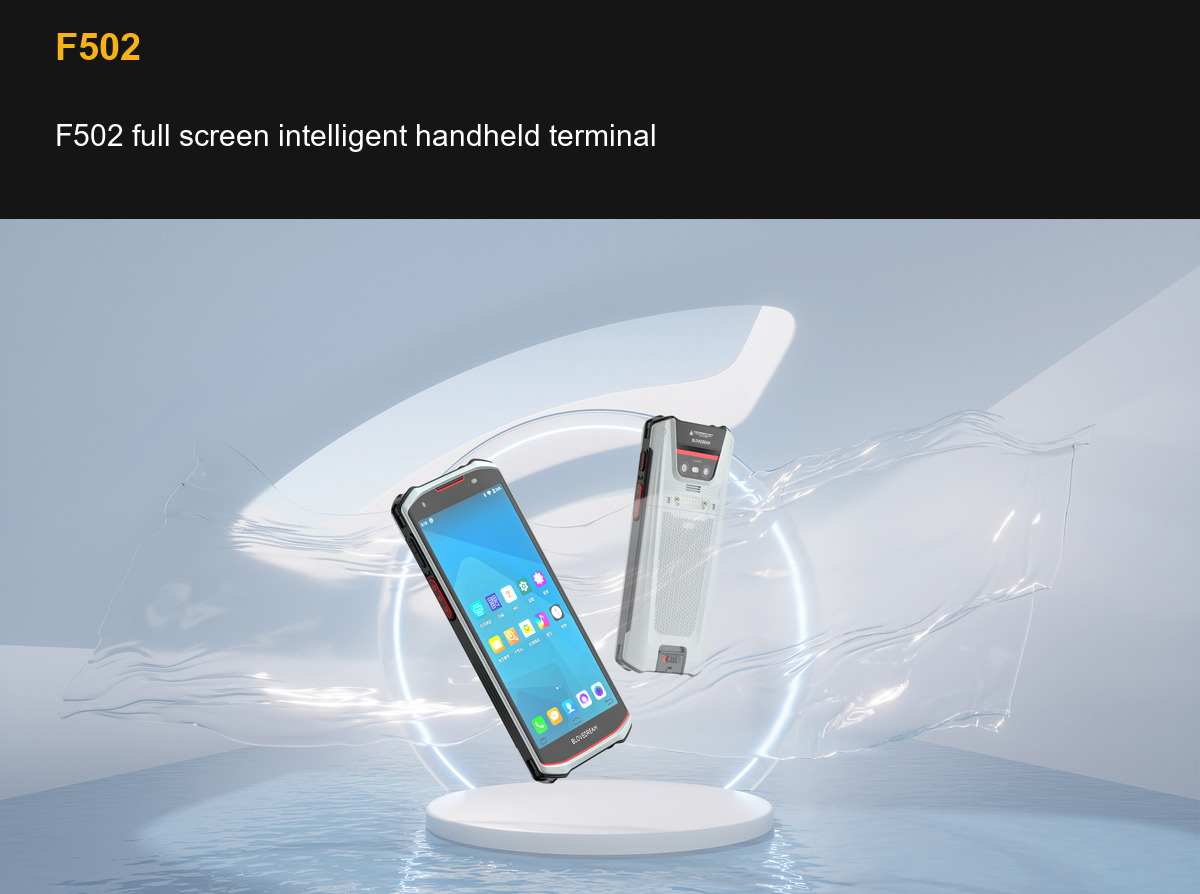

F502 full screen intelligent handheld terminal

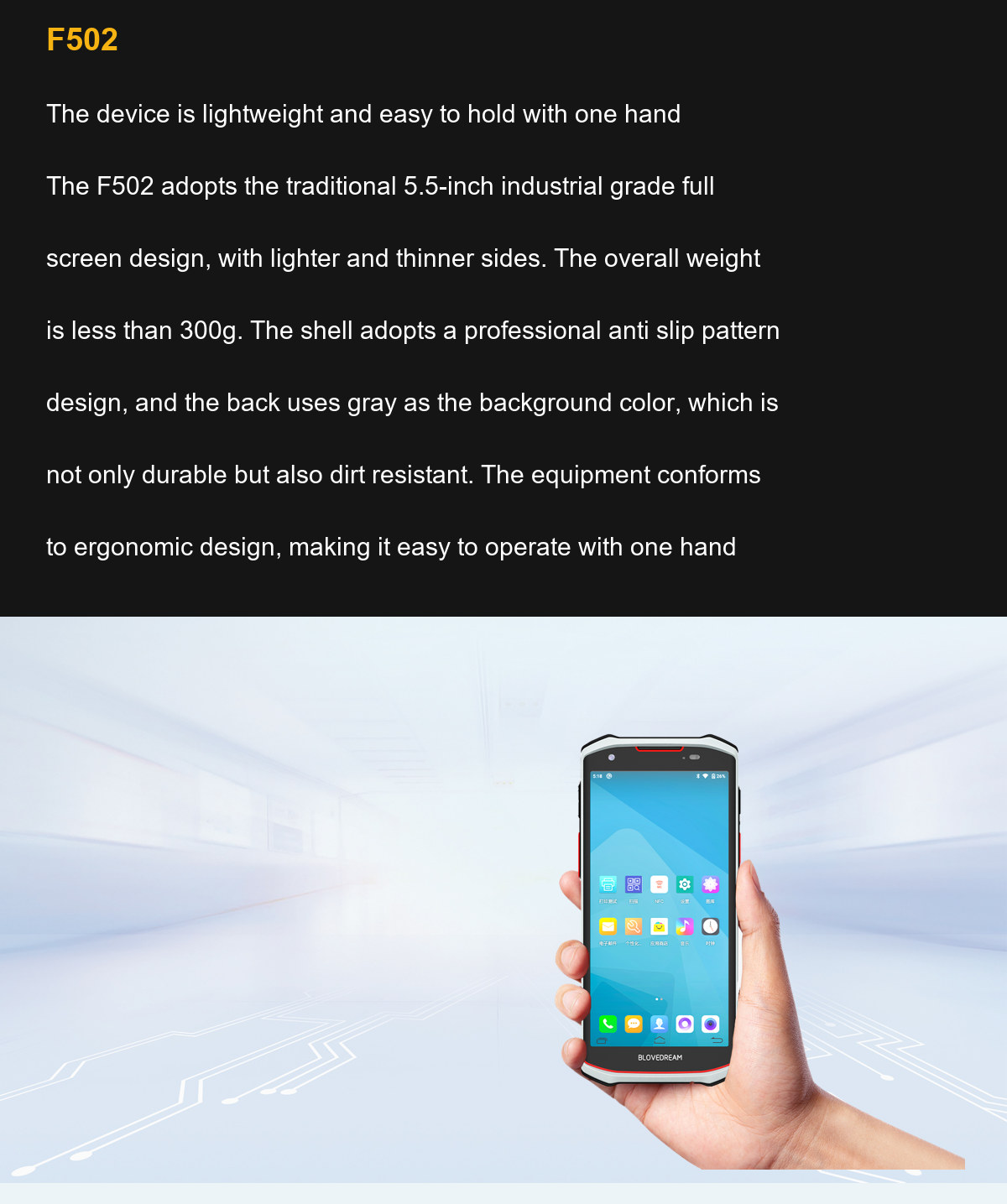

The device is lightweight and easy to hold with one hand

The F502 adopts the traditional 5.5-inch industrial grade full

screen design, with lighter and thinner sides. The overall weight

is less than 300g. The shell adopts a professional anti slip pattern

design, and the back uses gray as the background color, which is

not only durable but also dirt resistant. The equipment conforms

to ergonomic design, making it easy to operate with one hand

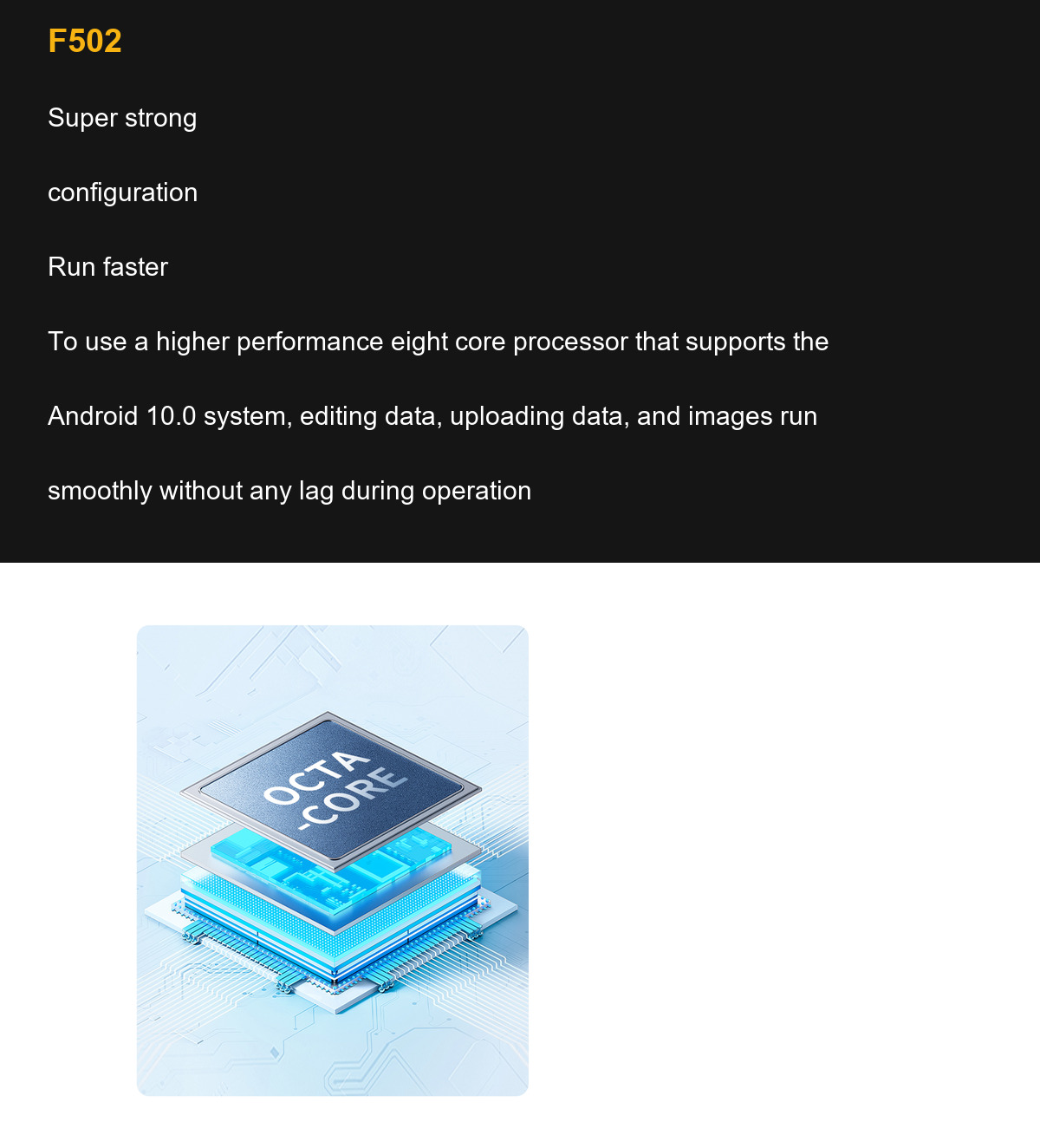

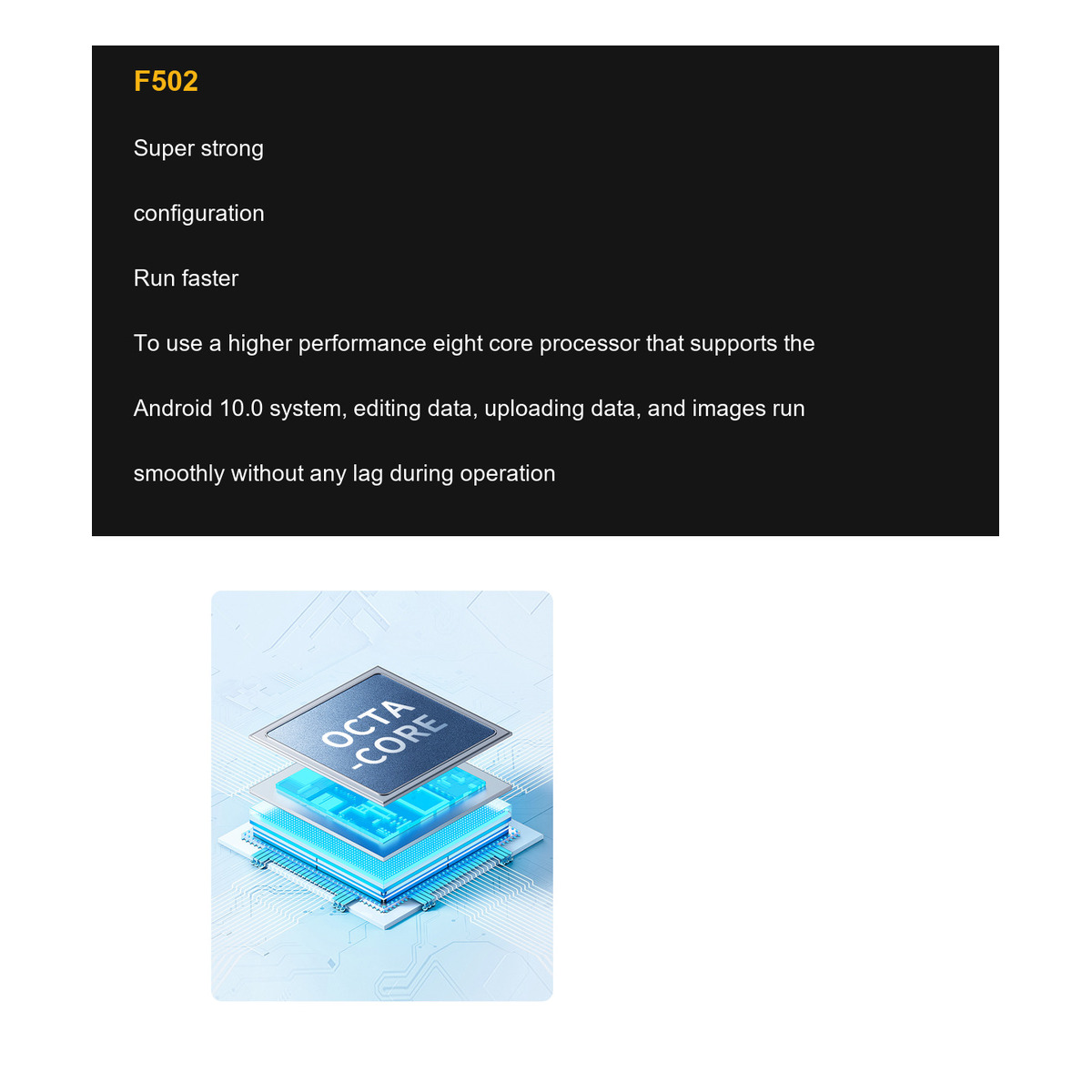

Super strong

configuration

Run faster

To use a higher performance eight core processor that supports the

Android 10.0 system, editing data, uploading data, and images run

smoothly without any lag during operation

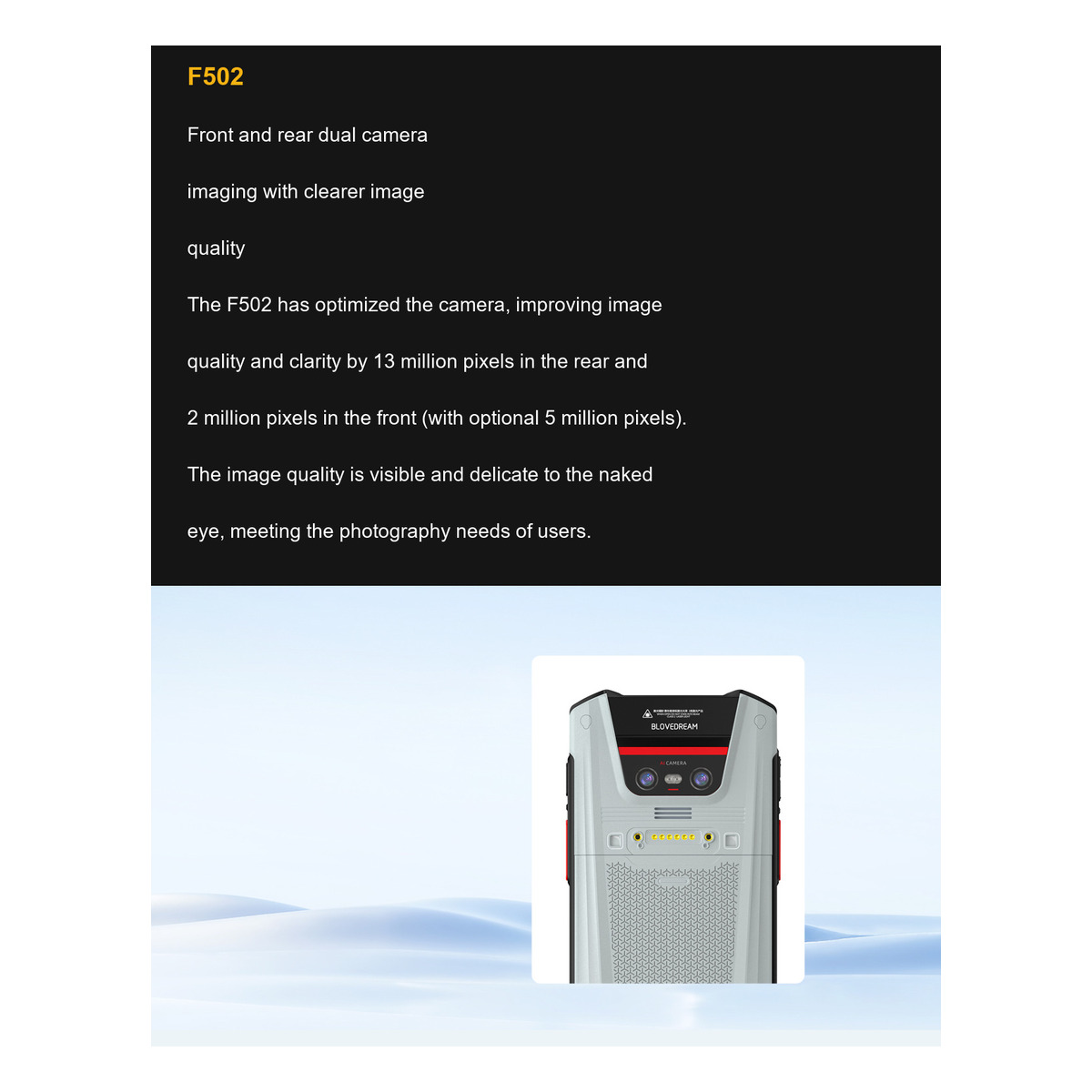

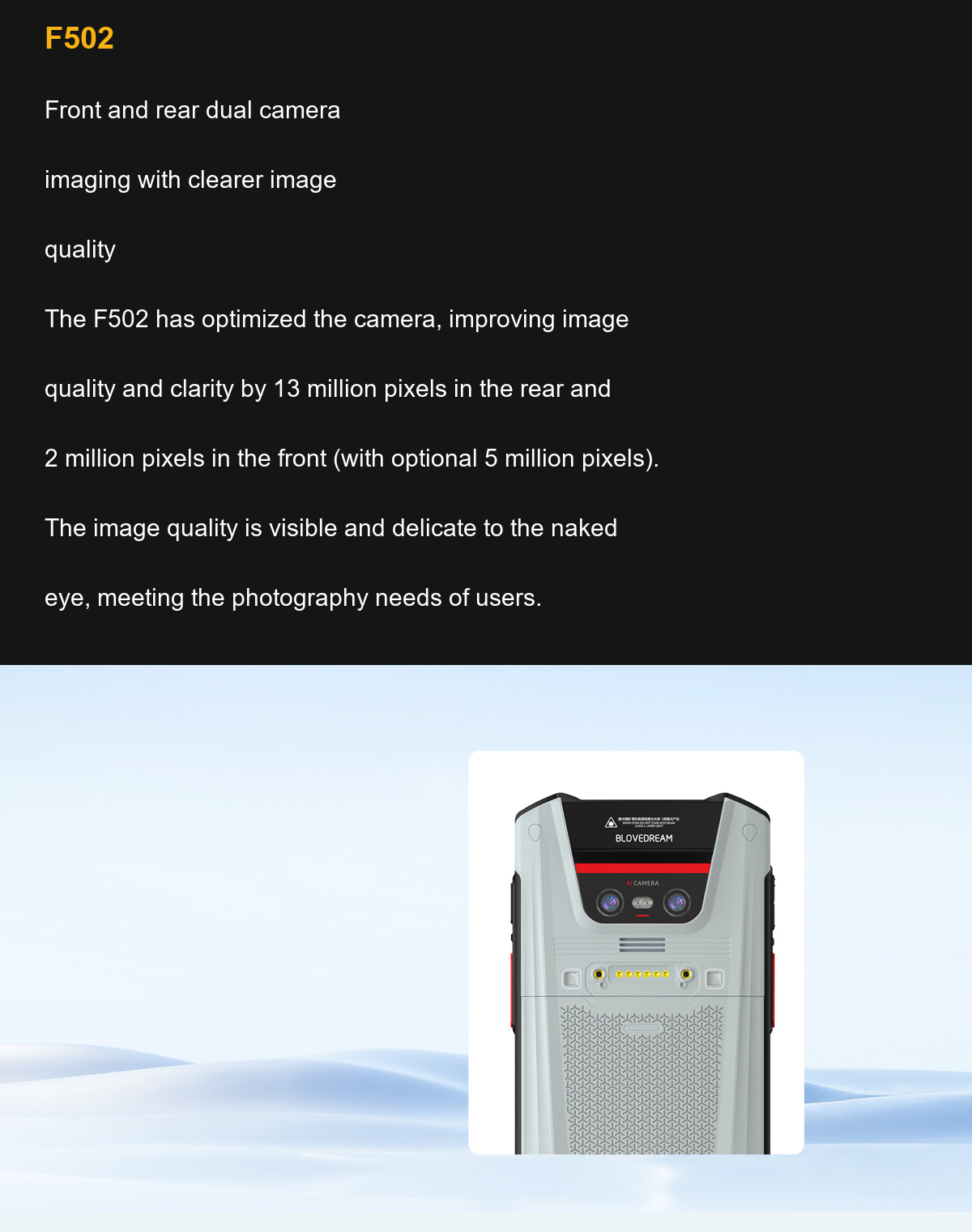

Front and rear dual camera

imaging with clearer image

quality

The F502 has optimized the camera, improving image

quality and clarity by 13 million pixels in the rear and

2 million pixels in the front (with optional 5 million pixels).

The image quality is visible and delicate to the naked

eye, meeting the photography needs of users.

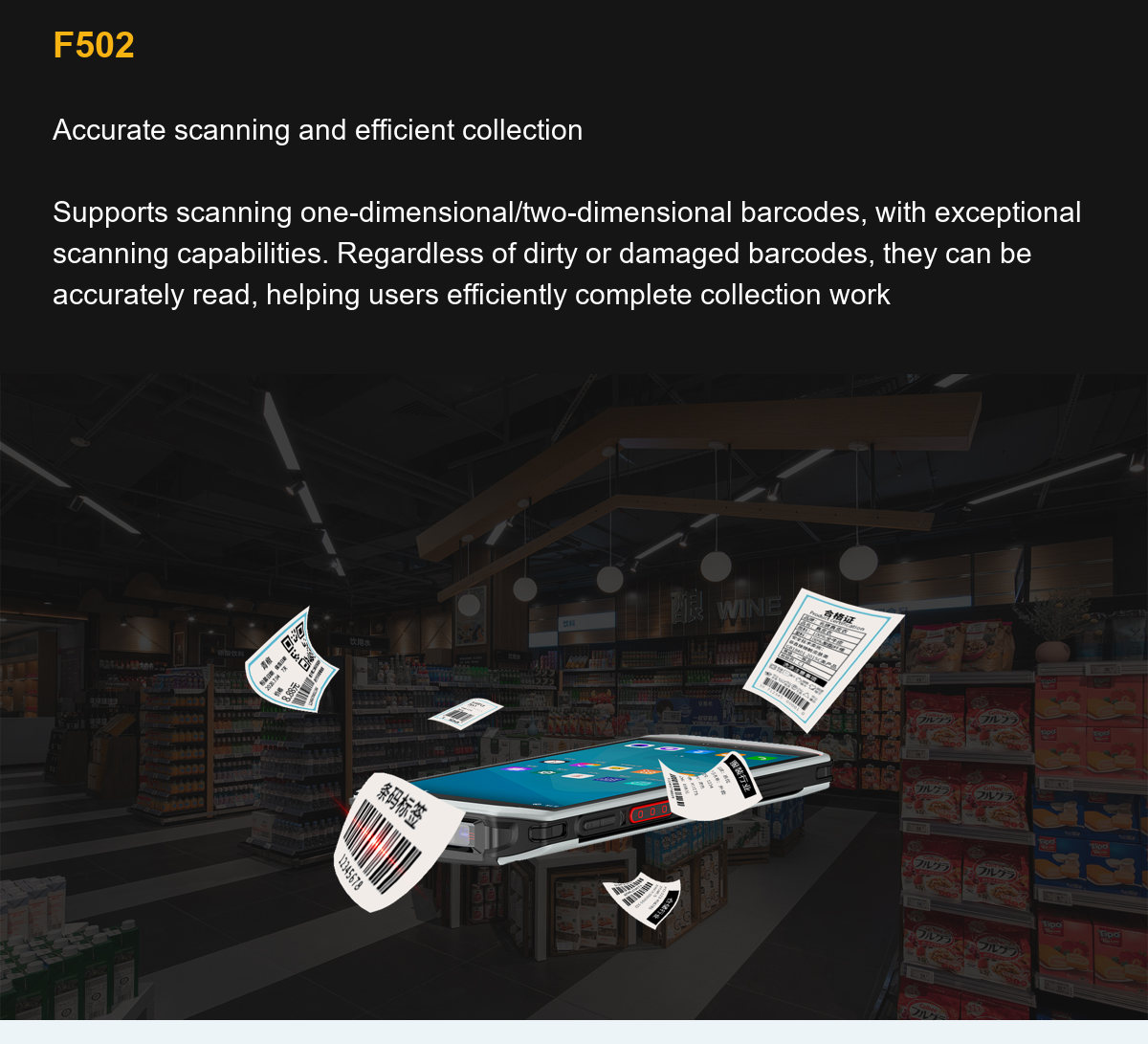

Accurate scanning and efficient collection

Supports scanning one-dimensional/two-dimensional barcodes, with exceptional scanning capabilities. Regardless of dirty or damaged barcodes, they can be accurately read, helping users efficiently complete collection work

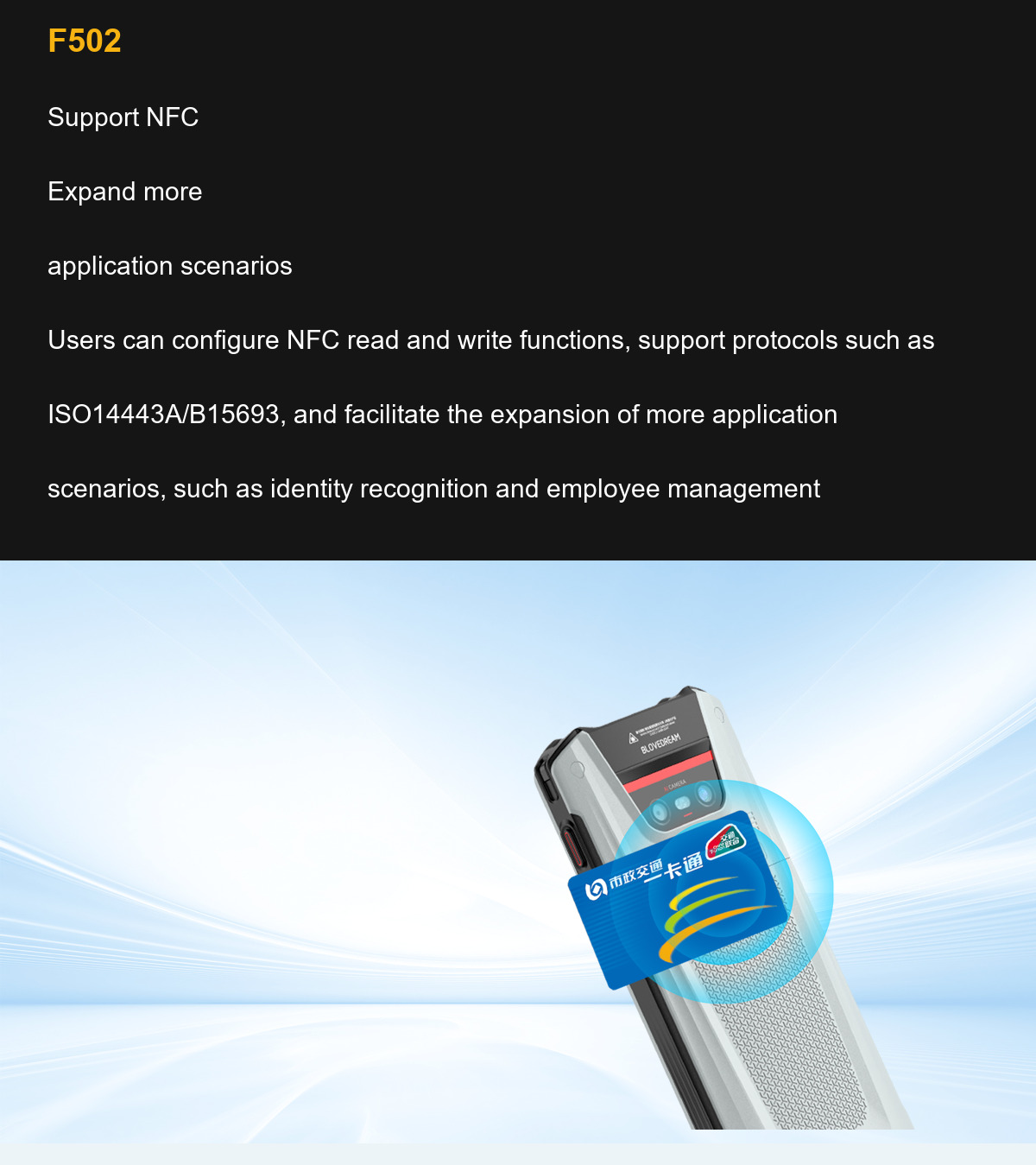

Support NFC

Expand more

application scenarios

Users can configure NFC read and write functions, support protocols such as

ISO14443A/B15693, and facilitate the expansion of more application

scenarios, such as identity recognition and employee management

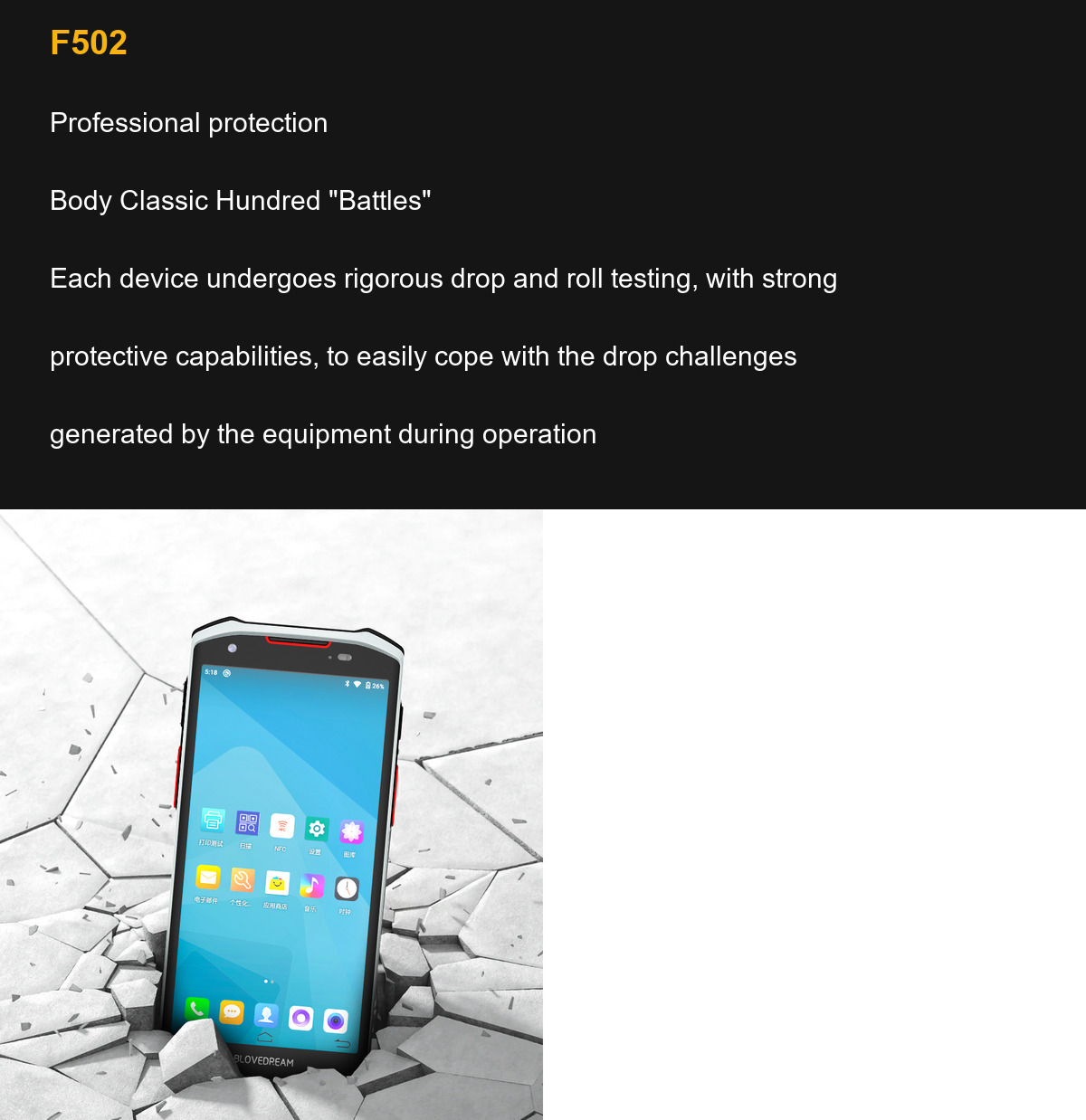

Professional protection

Body Classic Hundred "Battles"

Each device undergoes rigorous drop and roll testing, with strong

protective capabilities, to easily cope with the drop challenges

generated by the equipment during operation

F502 full screen intelligent handheld terminal

The device is lightweight and easy to hold with one hand

The F502 adopts the traditional 5.5-inch industrial grade full

screen design, with lighter and thinner sides. The overall weight

is less than 300g. The shell adopts a professional anti slip pattern

design, and the back uses gray as the background color, which is

not only durable but also dirt resistant. The equipment conforms

to ergonomic design, making it easy to operate with one hand

Super strong

configuration

Run faster

To use a higher performance eight core processor that supports the

Android 10.0 system, editing data, uploading data, and images run

smoothly without any lag during operation

Front and rear dual camera

imaging with clearer image

quality

The F502 has optimized the camera, improving image

quality and clarity by 13 million pixels in the rear and

2 million pixels in the front (with optional 5 million pixels).

The image quality is visible and delicate to the naked

eye, meeting the photography needs of users.

Accurate scanning and efficient collection

Supports scanning one-dimensional/two-dimensional barcodes, with exceptional scanning capabilities. Regardless of dirty or damaged barcodes, they can be accurately read, helping users efficiently complete collection work

Support NFC

Expand more

application scenarios

Users can configure NFC read and write functions, support protocols such as

ISO14443A/B15693, and facilitate the expansion of more application

scenarios, such as identity recognition and employee management

Professional protection

Body Classic Hundred "Battles"

Each device undergoes rigorous drop and roll testing, with strong

protective capabilities, to easily cope with the drop challenges

generated by the equipment during operation

RUGGEDMASTER F502 Technical Overview

Operating system: Android 10.0/ Android 13.0

CPU: MT6765X Octa core 64-bit 2.3GHz

RAM+ROM: 2GB+16GB 4GB+64GB

Display screen: 5.5" IPS,720×1440

Mobile Network: 4G full network

WIFI: Dual-band 2.4GHz / 5GHz, Support IEEE 802.11ac/a/b/g/n/d/e/h/i/j/k/r/vprotocol

Bluetooth: Bluetooth 5.0

Interface: Type-C USB x 1, OTG

Dimensions: 160.5mm x 70.6mm x 14.9 mm

Keypad: Power key, Volume +/- key,Scan key × 2

Card slot: TF+NANO SIM/NANO SIM×2/NANO SIM

GNSS: Support GPS,Galileo, Glonass, Beidou

User Environment: Operating Temp: -20°C to55°C Storage Temp: -40C to 70°C

Camera: Rear camera 13MP HD camera,Support auto focus, Flash, Anti-shake, Macro shooting Front camera 2MP color camera,(5MP Optional)

Sealing: IP66

Battery: 3.85V 4200mAh

2D Scanner: Honeywell N6703 N5703 N6602-W2

NFC: 13.56MHz, support ISO14443A/B 15693 agreement

RUGGEDMASTER F502 Wholesale Selection

Select RUGGEDMASTER F502 by reviewing the configuration, dimensions and manufacturer details above. For bulk orders, provide the complete model name, intended application, required quantity and delivery destination. Keep optional configurations separate in your purchasing request so they can be checked against the listed technical information.

Compare the operating system, data capture functions and connectivity shown in the Specs tab with the requirements of your existing workflow. Check the stated interface, power supply and physical dimensions before planning installation or daily use. Where several configurations are listed, confirm the required configuration in your inquiry. Product images can show different views and example applications of the same model.

For deployment across a team or multiple locations, record the configuration required at each location and the intended working environment. Review the documented environmental limits, scanning requirements and supported connections when those fields are supplied. Optional functions listed by the manufacturer should be confirmed for the equipment you order. Use the full model name and requested quantity when preparing your wholesale inquiry.
