RUGGEDMASTER E50H Mobile Computers
Type: IPSSize: 5 inch 16:9Resolution: 720*1280Brightness: 350 Nit5 points Capacitive，G+FF · Built-in Removable Lithium-ion polymer battery3.8V/4000mAh10.5hrs ( 50% volume sounds, 50% screen brightness, 1080P HD video · MTK6765 （8core）4*A53 2.0GHz4*A53 1.5GHz · Android 15/GMS · RAM LPDDR4X up to 4GB(dual channels with 16-bit data bus width) ROM 64GB EMMC · -20℃ to 60℃ · BT5.0(BLE)
Industrial Rugged Mobile Computer Full-Features to Deliver the Best Service The E50H with multiple features such as high configuration,shortcut keys, barcode scanning, long-lasting battery life, etc.The excellent performance makes it ideally deployed in diverse scenarios. E50H creates the ultimate ultra-rugged full-touch computer for all workers inside and outside the four walls-smartphone experience for maximum simplicity and the ultimate in rugged construction. Its lightweight design gives the user the perfect combination of durability, comfort, convenience and portability.
Dimension: 157.4*74.6*24.2mm
Weight: 260g
Display / Touch Panel: Type: IPSSize: 5 inch 16:9Resolution: 720*1280Brightness: 350 Nit5 points Capacitive，G+FF
Battery: Built-in Removable Lithium-ion polymer battery3.8V/4000mAh10.5hrs ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default )
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

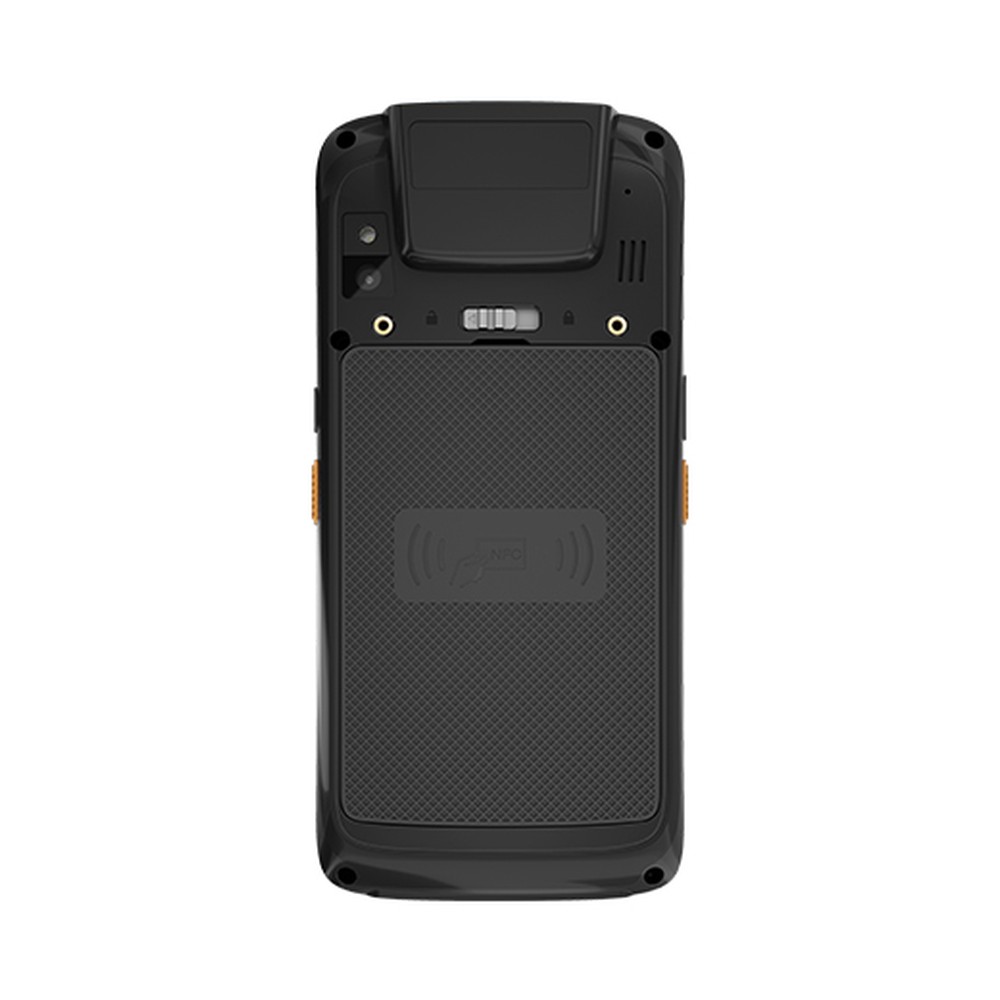

RUGGEDMASTER E50H Mobile Computers
RUGGEDMASTER E50H combines the features and configurations shown below. Review the product overview, original feature graphics and complete Specs when selecting units for a bulk order.
Industrial Rugged Mobile Computer
Full-Features to Deliver the Best Service
The E50H with multiple features such as high configuration,shortcut keys, barcode scanning, long-lasting battery life, etc.The excellent performance makes it ideally deployed in diverse scenarios. E50H creates the ultimate ultra-rugged full-touch computer for all workers inside and outside the four walls-smartphone experience for maximum simplicity and the ultimate in rugged construction. Its lightweight design gives the user the perfect combination of durability, comfort, convenience and portability.
Configuration overview
Technical specifications include Dimension: 157.4*74.6*24.2mm. Weight: 260g. Display / Touch Panel: Type: IPSSize: 5 inch 16:9Resolution: 720*1280Brightness: 350 Nit5 points Capacitive，G+FF. Battery: Built-in Removable Lithium-ion polymer battery3.8V/4000mAh10.5hrs ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default ).
Technical specifications include Power Adapter: EU Standard DC 5V/2AOptional:(EU, US, UK, AU) Choose one of four. Audio: Integrated 0.8W speaker x1Integrated microphone x1Integrated receiverClass K. I/O Interfaces: Micr usb2.0*1 OTG (Data transmission)∮3.5mm standard earphone jack x1 (US)SIM card *1TF card *1 (SDHC/SDXC supported), Max: 128GBPogo Pin (Base Charge) *1. Buttons: Power *1Volume Adjustment Key (+) *1Volume Adjustment Key (-) *1Home Key *1Bar code scanning (left and right)*2Menu*1Back*1Custom*2.
Technical specifications include Camera: Front 5MPRear 13.0MP, automatic focusing with astigmatism，PDAF support. CPU: MTK6765 （8core）4*A53 2.0GHz4*A53 1.5GHz. Operating System: Android 15/GMS. Storage: RAM LPDDR4X up to 4GB(dual channels with 16-bit data bus width) ROM 64GB EMMC.
Technical specifications include Operating Temp.: -10℃ to 50℃. Storage Temp.: -20℃ to 60℃. Humidity: 95% Non-Condensing. Drop Specifications: 1.2m Composite wood floor working.
Technical specifications include IP Protective Level: IP65IP65 Report： Water resistance：IP-X5，Dust resistance：IP-6X Report ID no.：SET2015-07677a.Inner Nozzle diameter：6.3mm； b. water speed：12.5±0.625L/min；c. Water Pressure：adjust according to water volumn；d.Central part of water volumne.Spray time in surface of panel：about 1min；f.test time：at least 3min；g.distance between nozzle and panel surface：2.5～3m。After test，there is no water leakage in sample.. SDK: Software Development Kit. Language: Java. Environment: Android Studio or Eclipse.
Technical specifications include WWAN: 4G: GSM(B2/3/5/8)+WCDMA(B1/B2/5/8)+TDS(B34/B39)+FDD(B1/2/3/4/5/7/8/13/17/20/28AB)+TDD(B38/39/40/41). WIFI: WIFI 802.11(a/b/g/n/ac) frequency 2.4G+5G dual band WIFI,Support AP seamless roaming. Bluetooth: BT5.0(BLE). GPS: Support GPS、Glonass、beidou.
Wholesale purchasing information

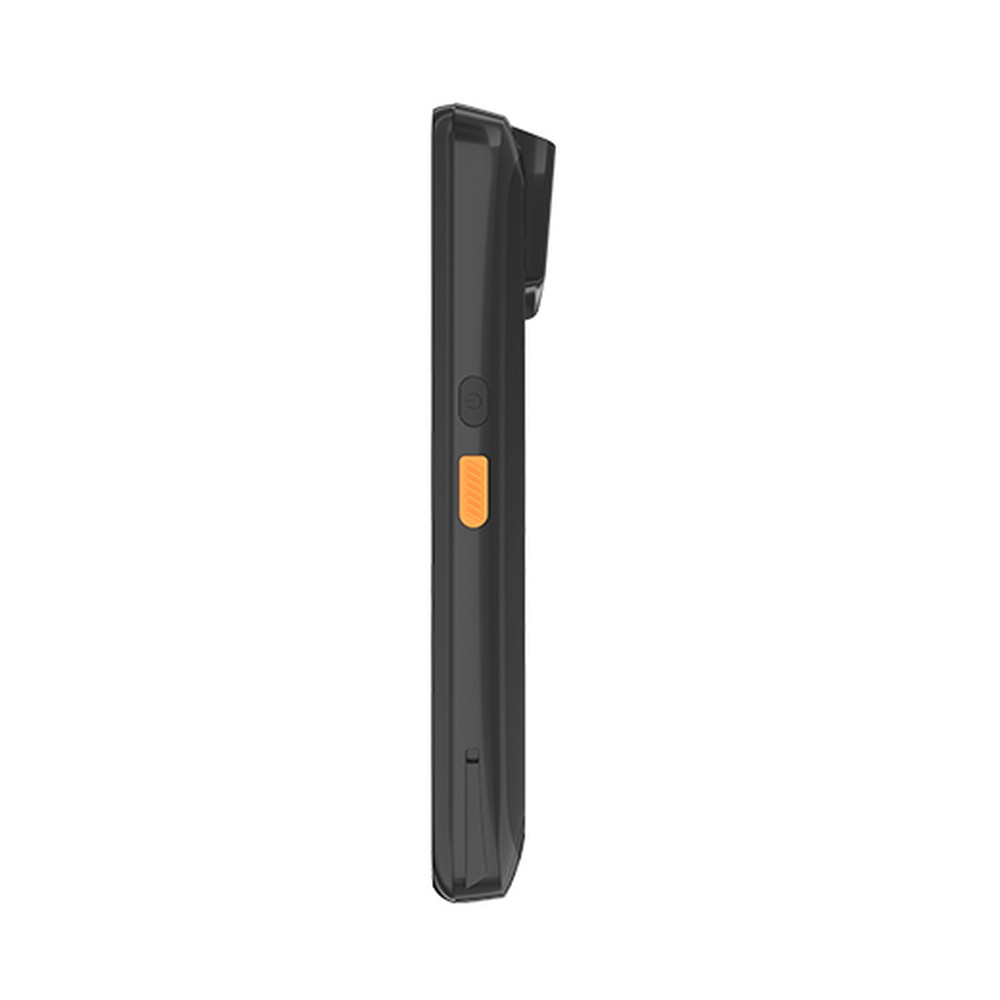

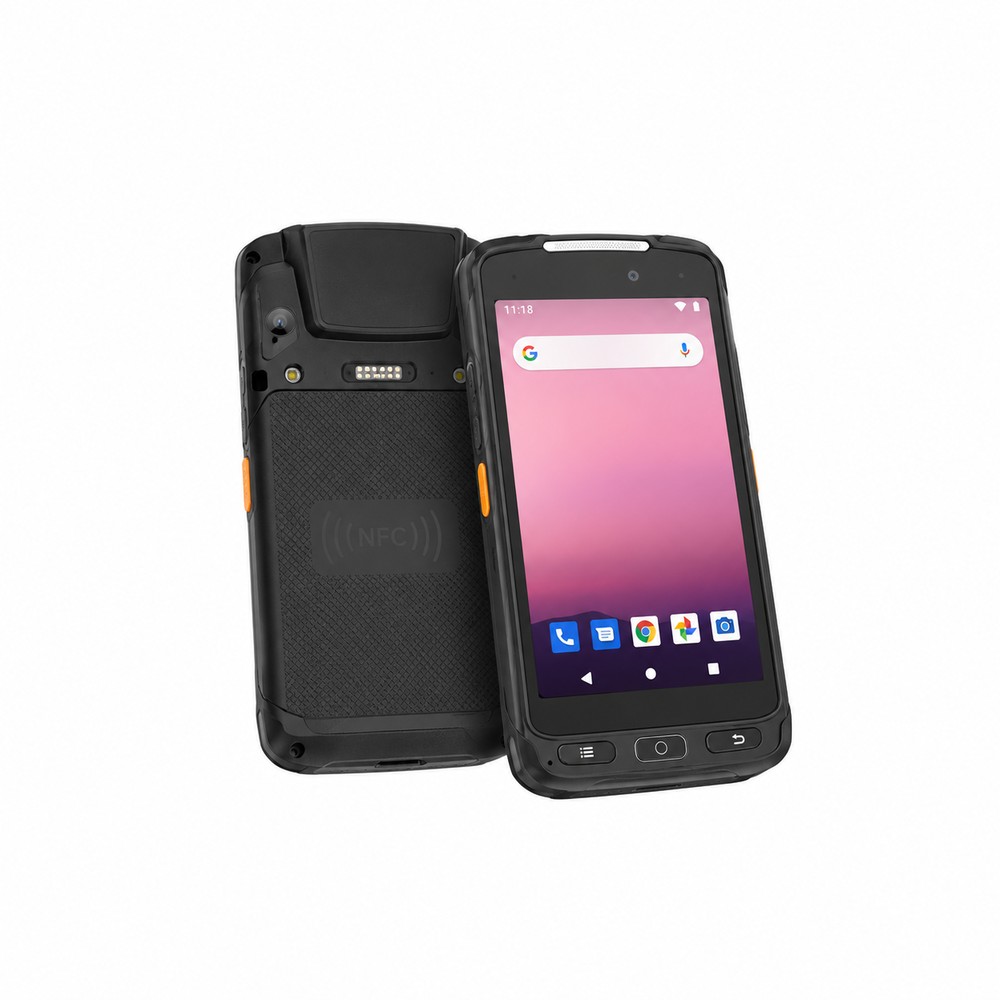

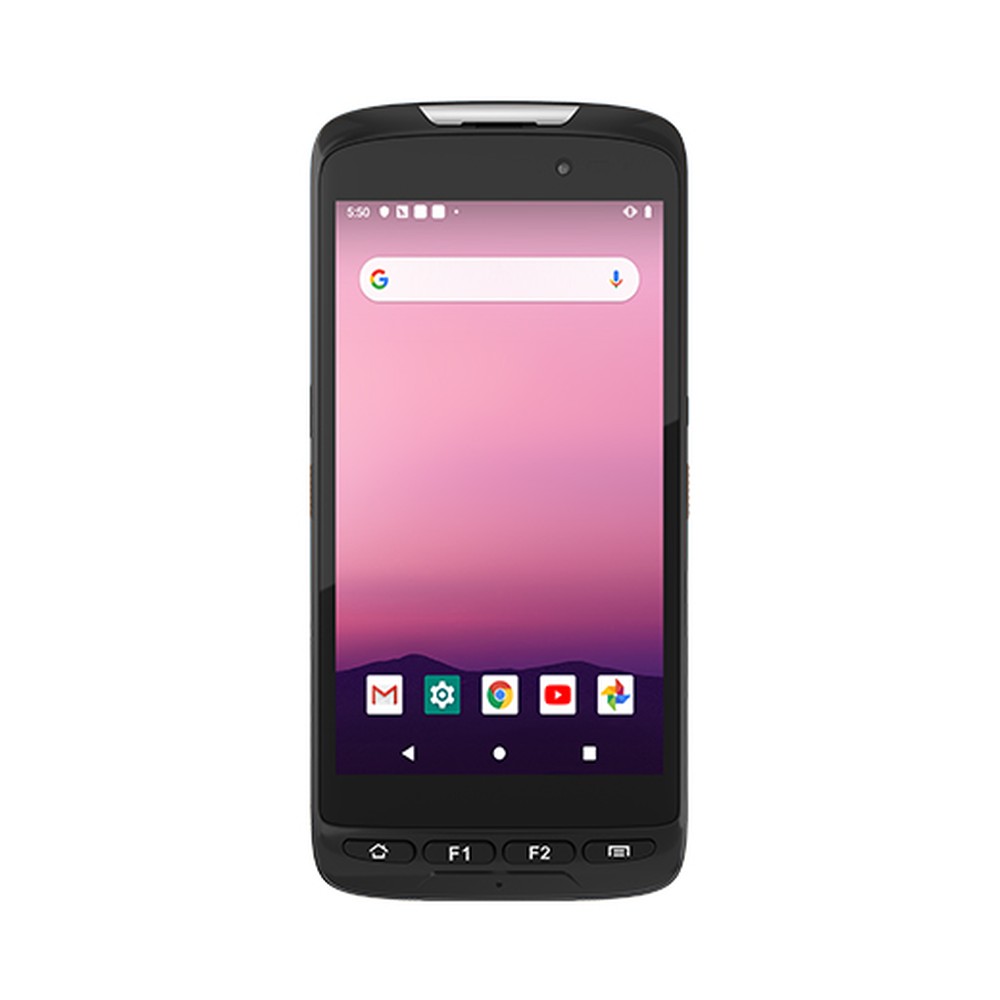

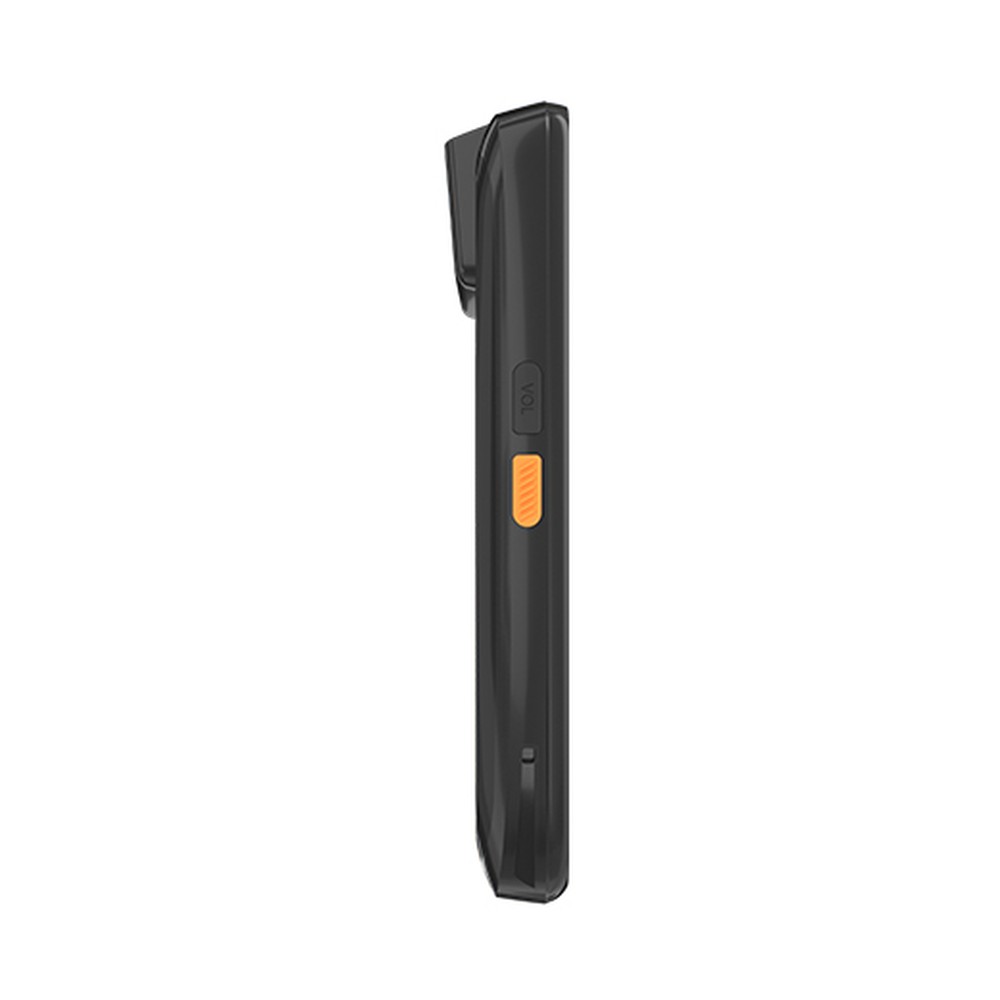

For RUGGEDMASTER E50H, compare the pictured housing, connectors and controls with the configuration required by your application. The manufacturer may describe optional modules, memory configurations or regional network bands. These options are listed for reference; confirm the required configuration when requesting a quotation. Choose the interface and data-capture functions that match your existing workflow, software and installation requirements.
Review the complete Specs tab before placing a bulk order. It preserves the technical information supplied for this model, including the available operating environment and configuration details. Product pictures show the manufacturer’s existing views and available configurations. If your project needs a particular module, operating system version or connector, state that requirement in your enquiry so the configuration can be checked before ordering.
Explore related products in our RuggedMaster product catalog or send a bulk-order enquiry.
Manufacturer feature details
| SPECIFICATIONS | ||
| PHYSICAL CHARACTERISTICS | ||
| Dimension | 157.4*74.6*24.2mm | |
| Weight | 260g | |
| Display / Touch Panel | Type: IPSSize: 5 inch 16:9Resolution: 720*1280Brightness: 350 Nit5 points Capacitive，G+FF | |
| Battery | Built-in Removable Lithium-ion polymer battery3.8V/4000mAh10.5hrs ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default ) | |
| Power Adapter | EU Standard DC 5V/2AOptional:(EU, US, UK, AU) Choose one of four | |
| Audio | Integrated 0.8W speaker x1Integrated microphone x1Integrated receiverClass K | |
| I/O Interfaces | Micr usb2.0*1 OTG (Data transmission)∮3.5mm standard earphone jack x1 (US)SIM card *1TF card *1 (SDHC/SDXC supported), Max: 128GBPogo Pin (Base Charge) *1 | |
| Buttons | Power *1Volume Adjustment Key (+) *1Volume Adjustment Key (-) *1Home Key *1Bar code scanning (left and right)*2Menu*1Back*1Custom*2 | |
| Camera | Front 5MPRear 13.0MP, automatic focusing with astigmatism，PDAF support | |
| PERFORMANCE CHARACTERSTICS | ||
| CPU | MTK6765 （8core）4*A53 2.0GHz4*A53 1.5GHz | |
| Operating System | Android 15/GMS | |
| Storage | RAM LPDDR4X up to 4GB(dual channels with 16-bit data bus width) ROM 64GB EMMC | |
| USER ENVIRONMENT | ||
| Operating Temp. | -10℃ to 50℃ | |
| Storage Temp. | -20℃ to 60℃ | |
| Humidity | 95% Non-Condensing | |
| Drop Specifications | 1.2m Composite wood floor working | |
| IP Protective Level | IP65IP65 Report： Water resistance：IP-X5，Dust resistance：IP-6X Report ID no.：SET2015-07677a.Inner Nozzle diameter：6.3mm； b. water speed：12.5±0.625L/min；c. Water Pressure：adjust according to water volumn；d.Central part of water volumne.Spray time in surface of panel：about 1min；f.test time：at least 3min；g.distance between nozzle and panel surface：2.5～3m。After test，there is no water leakage in sample. | |
| DEVELOPMENT ENVIRONMENT | ||
| SDK | Software Development Kit | |
| Language | Java | |
| Environment | Android Studio or Eclipse | |
| DATA COMMUNICATION | ||
| WWAN | 4G: GSM(B2/3/5/8)+WCDMA(B1/B2/5/8)+TDS(B34/B39)+FDD(B1/2/3/4/5/7/8/13/17/20/28AB)+TDD(B38/39/40/41) | |
| WIFI | WIFI 802.11(a/b/g/n/ac) frequency 2.4G+5G dual band WIFI,Support AP seamless roaming | |
| Bluetooth | BT5.0(BLE) | |
| GPS | Support GPS、Glonass、beidou | |
| DATA CAPTUER | ||
| Barcode Scanning | Engine Zebra SE4710Optical resolution: 5milscan speed: 50 times /sCode system: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse | |
| RFID HF（NFC） | NFC 13.56MHz support ISO/IEC under 14443A/14443B/15693/18092/mifare protocols | |
| ACCESSORIES | ||
| Standard | 1xHand-strap,1xThree-in-one Adaptor | |
| Optional | Car mount,TP protective film,Spare extra Battery,Leather protective case,Scan Pistol Grip,Docking Charger | |
