RUGGEDMASTER E22TAP Rugged Tablets
Type: IPSSize: 12.2 inch 16:10Resolution: 1920*1200Brightness: 650cd/㎡10 point capacitive screen, G+G, Corning gorilla · Removable Li-polyment Battery3.7V/12600mAh7hours ( 50% volume sounds, 50% screen brightness, 1080P HD video display by · Qualcomm SM6350 2.0GHZ · Andriod 11/GMS · RAM 8GB DDR3L ROM 128GB EMMC · -30℃ to 70℃ · BT5.1 (BLE)
NEW LAUNCH 12.2 inch Android E22TAP 2 in 1 Rugged Tablet/Notebook Full-Features to Deliver the Best Service E22TAP support for Android 14.0 system, support 12600mAh loadable batteries, 12 hours of machine endurance. Support wrist strap and removable leather keyboard, Integrated 3G/4G/5G all network communication, WiFi, Bluetooth and other communication modes,IP65 high protection level, in accordance with MIL-STD-810G. Support GPS, Glonass, more accurate positioning. Also support High strengthened glass touch pane and gigabit network interface. Rear 13 million pixel auto focus camera, easy to collect image and video information. It support 1D/2D,NFC, Fingerprint and other functional modules for free selection.
Dimension: 319.6*216*24.3 mm
Weight: 1500g
Battery: Removable Li-polyment Battery3.7V/12600mAh7hours ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default )
Power Adapter: AC100V~240V, 50Hz/60Hz Output DC 5V/4A has passed CE certificationOptional:(EU, US, UK, AU) Choose one of four
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

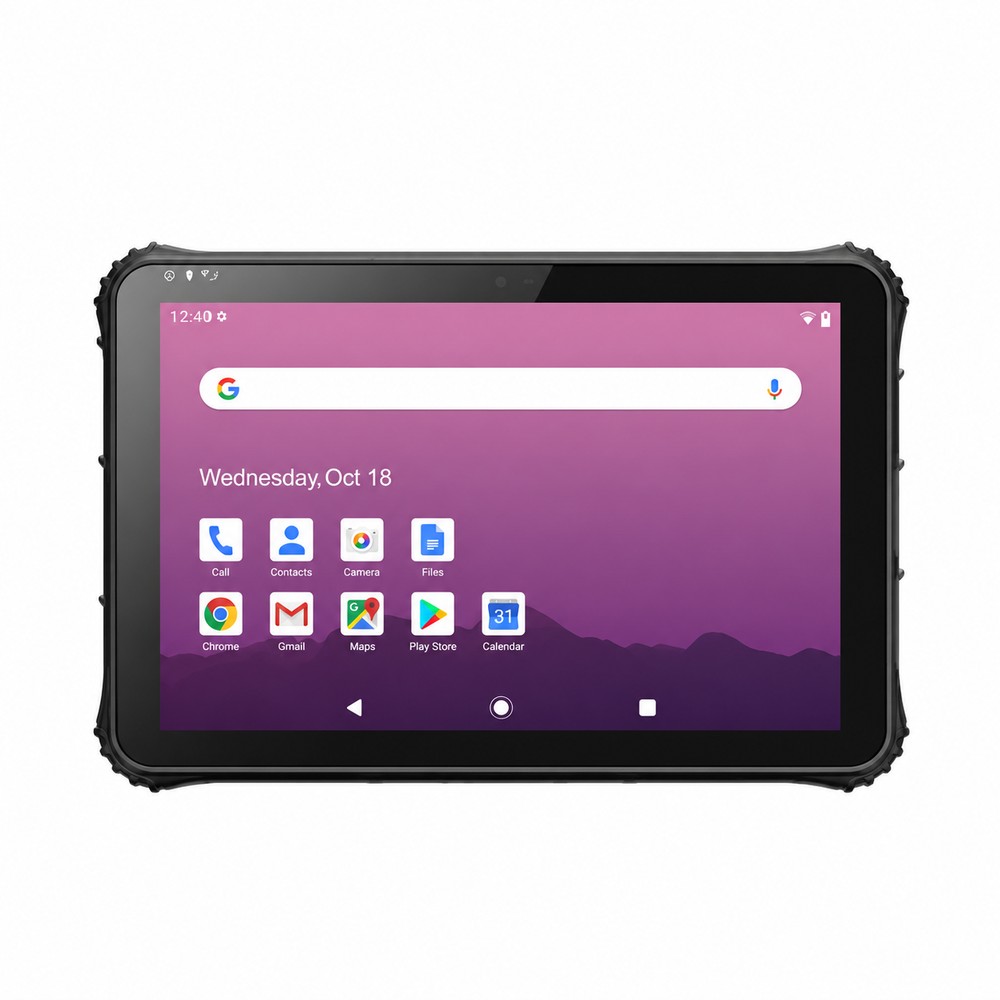

RUGGEDMASTER E22TAP Rugged Tablets
RUGGEDMASTER E22TAP combines the features and configurations shown below. Review the product overview, original feature graphics and complete Specs when selecting units for a bulk order.

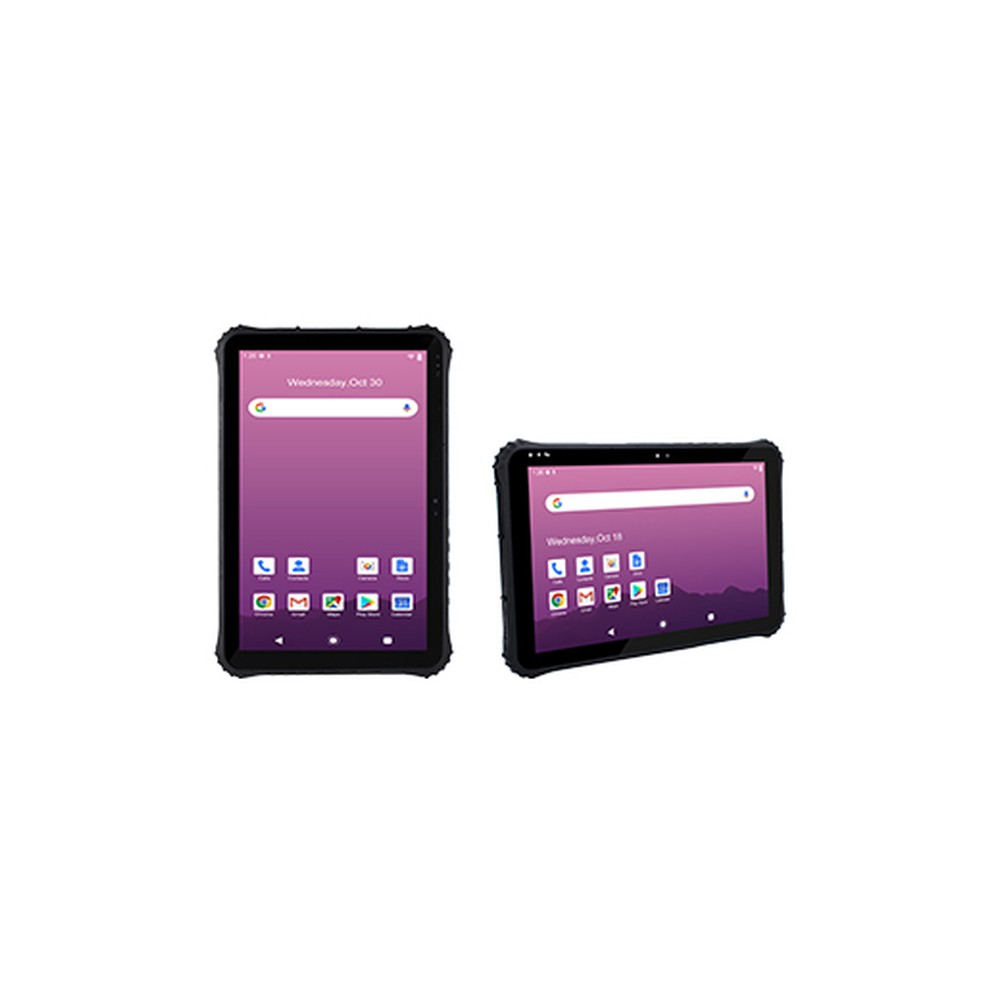

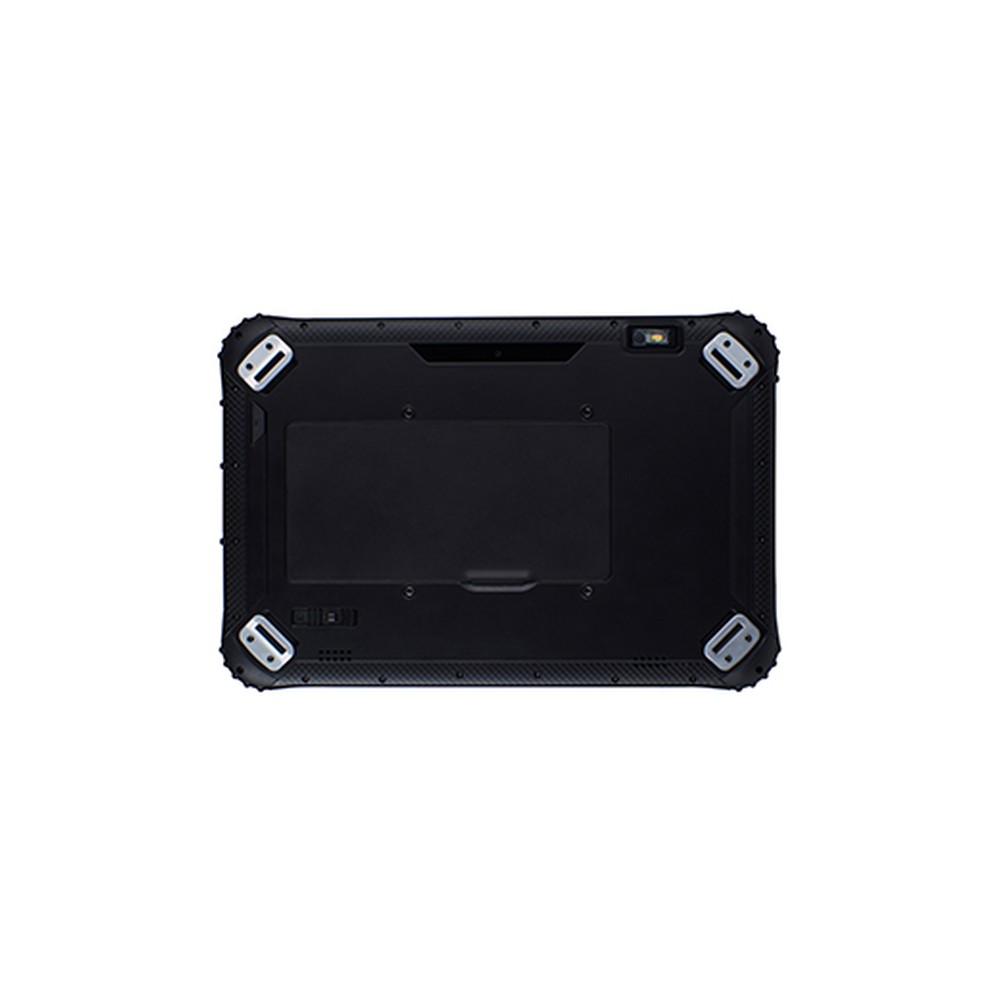

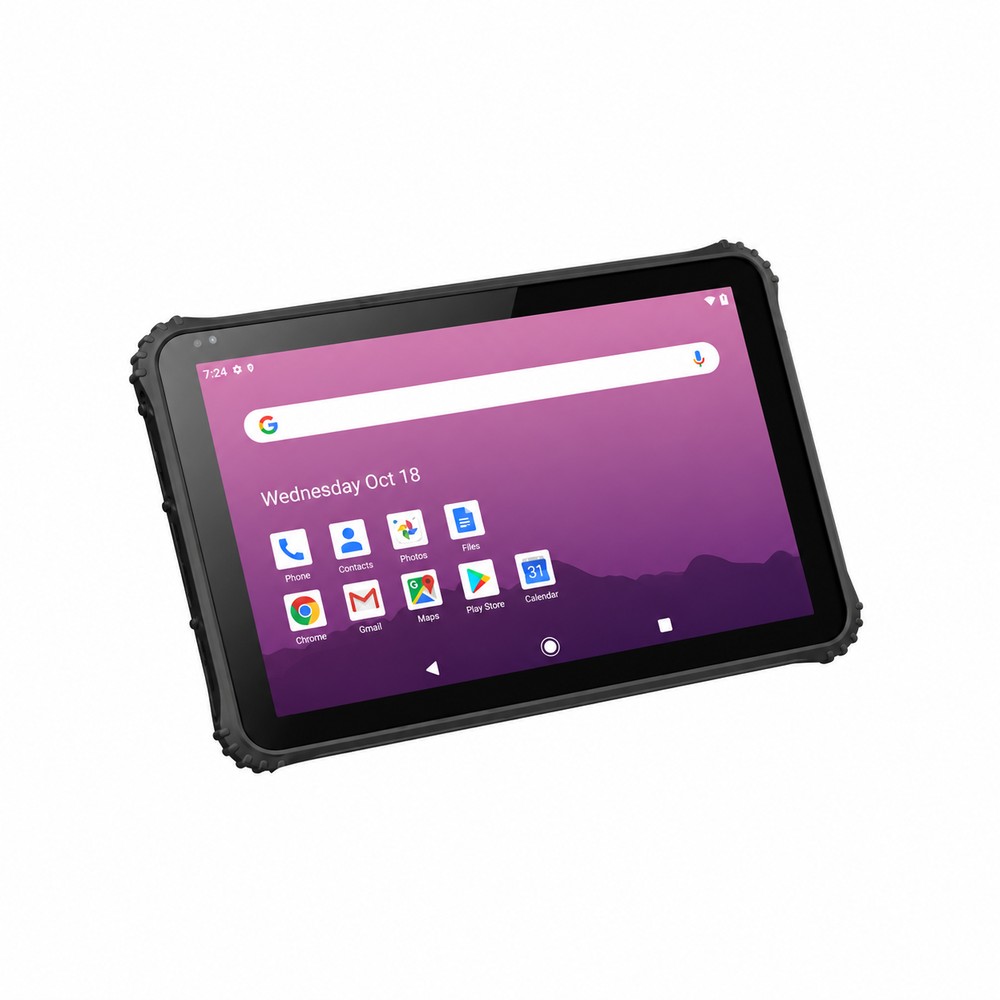

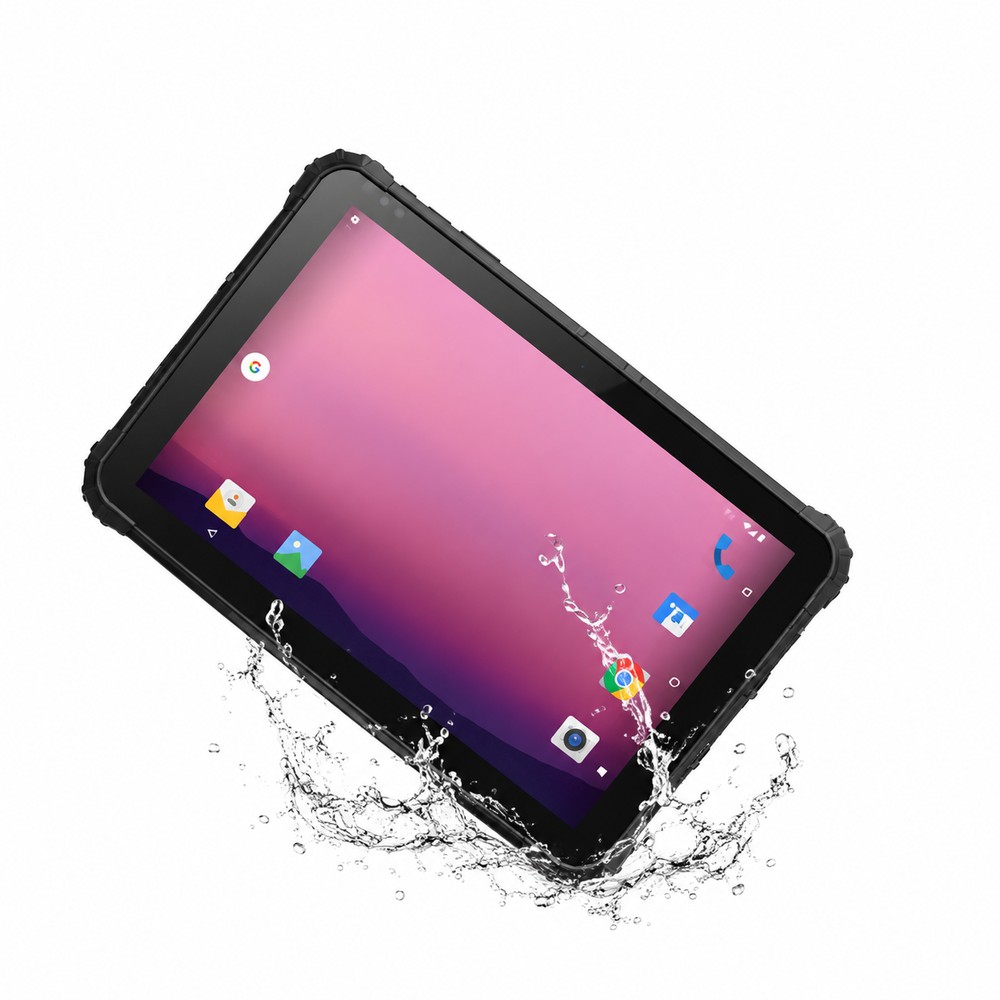

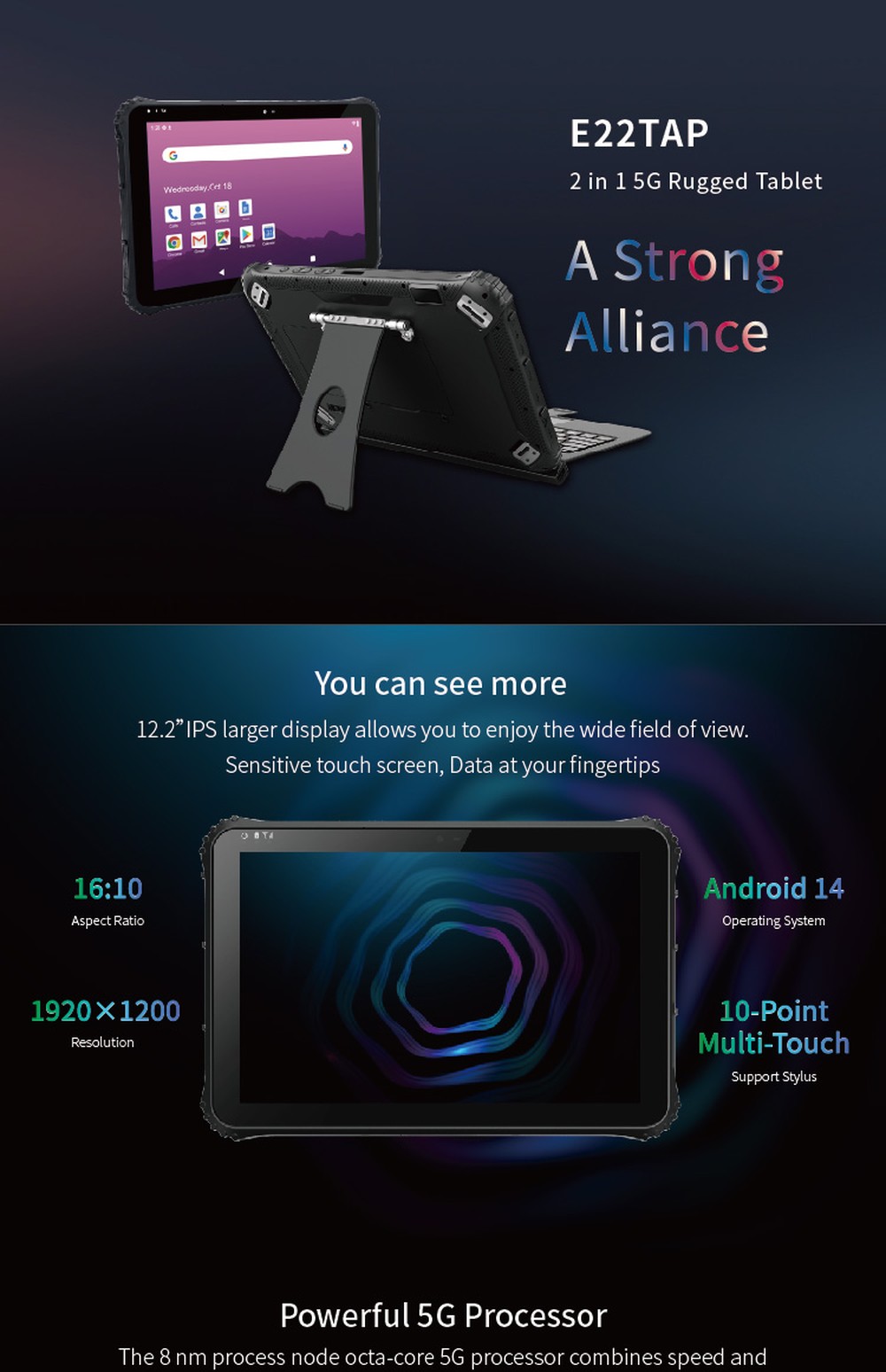

NEW LAUNCH 12.2 inch Android E22TAP 2 in 1 Rugged Tablet/Notebook
Full-Features to Deliver the Best Service

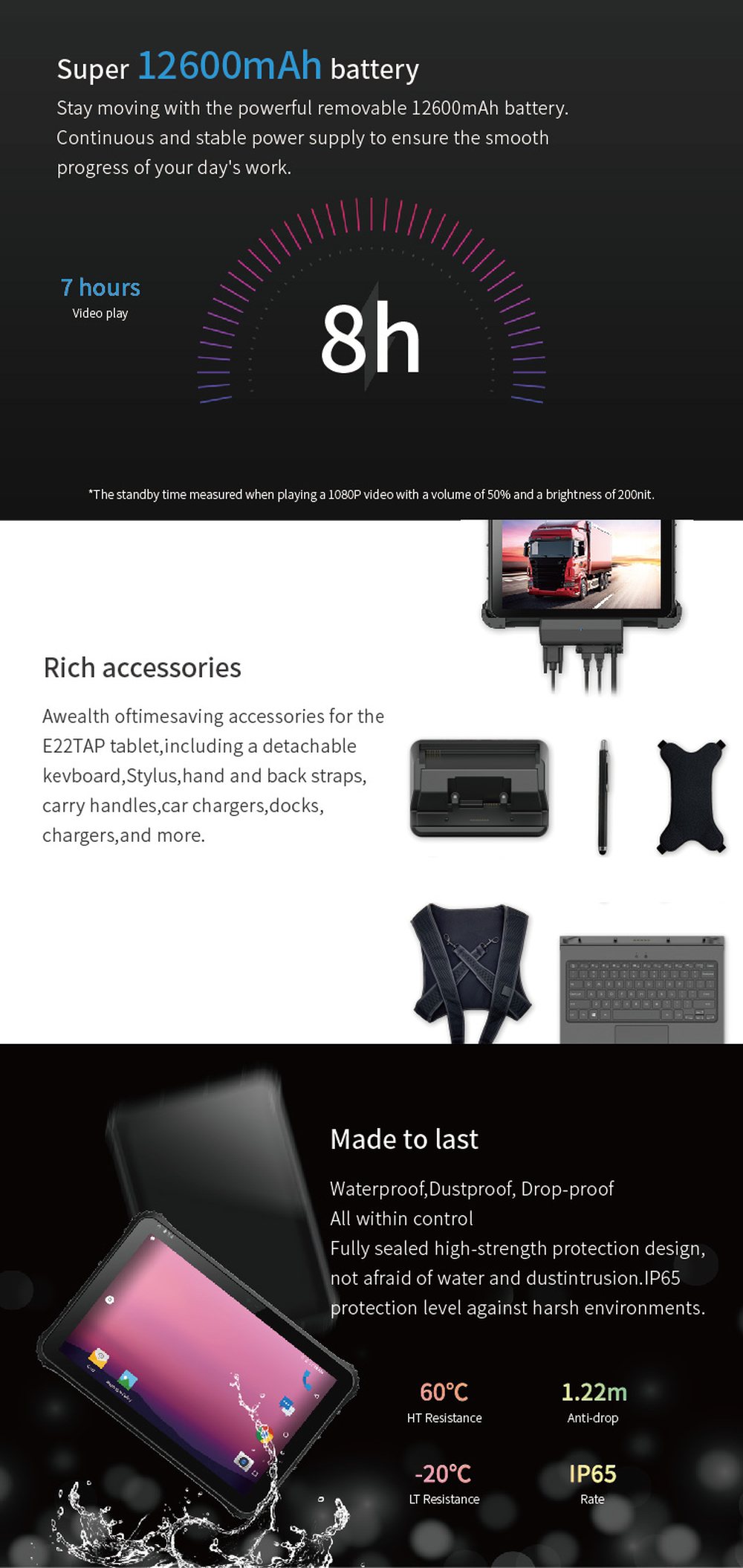

E22TAP support for Android 14.0 system, support 12600mAh loadable batteries, 12 hours of machine endurance. Support wrist strap and removable leather keyboard, Integrated 3G/4G/5G all network communication, WiFi, Bluetooth and other communication modes,IP65 high protection level, in accordance with MIL-STD-810G. Support GPS, Glonass, more accurate positioning. Also support High strengthened glass touch pane and gigabit network interface. Rear 13 million pixel auto focus camera, easy to collect image and video information. It support 1D/2D,NFC, Fingerprint and other functional modules for free selection.
Configuration overview
Technical specifications include Dimension: 319.6*216*24.3 mm. Weight: 1500g. Display / Touch Panel: Type: IPSSize: 12.2 inch 16:10Resolution: 1920*1200Brightness: 650cd/㎡10 point capacitive screen, G+G, Corning gorilla hardness above 7H, scratch resistant, COF, support GP930 stylus. Battery: Removable Li-polyment Battery3.7V/12600mAh7hours ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default ).
Technical specifications include Power Adapter: AC100V~240V, 50Hz/60Hz Output DC 5V/4A has passed CE certificationOptional:(EU, US, UK, AU) Choose one of four. Speaker: 8Ω/1W Waterproof BOX Speaker *2. I/O Interfaces: USB 2.0 *2 (4pin),USB 3.0 *1 (9pin)Type C *1 (Data & Charing)∮3.5mm standard earphone jack *1TF Card *1 max：256GSIM Card *1DC 5V/4A ∮3.5mm Power connector *1HDMI *1DB9 (RS232) *1, DB9 (RS485) *1RJ45 (10/100Mbps) *112PIN Pogo Pin *1. Buttons: Power *1Volume Adjustment Key (+) *1Volume Adjustment Key (-) *1P1 Key *1 (HOME key)P2 Key *1 (BACK key)F Key *1 (Barcode scanner) (Back of machine).
Technical specifications include Camera: Front 5.0MPRear 13.0MP. CPU: Qualcomm SM6350 2.0GHZ. Operating System: Andriod 11/GMS. Storage: RAM 8GB DDR3L ROM 128GB EMMC.
Technical specifications include Operating Temp.: -20℃ to 60℃. Storage Temp.: -30℃ to 70℃. Humidity: 95% Non-Condensing. Drop Specifications: MIL-STD-810G: 1.22m drop.
Technical specifications include IP Protective Level: IP65, CE NB,FCC,RoHS,MIL-STD-810G,Battery: UN38.3, MSDS, Aviation report, Marine report, IEC62133. SDK: Dingdata Software Development Kit. Language: Java. Environment: Android Studio or Eclipse.

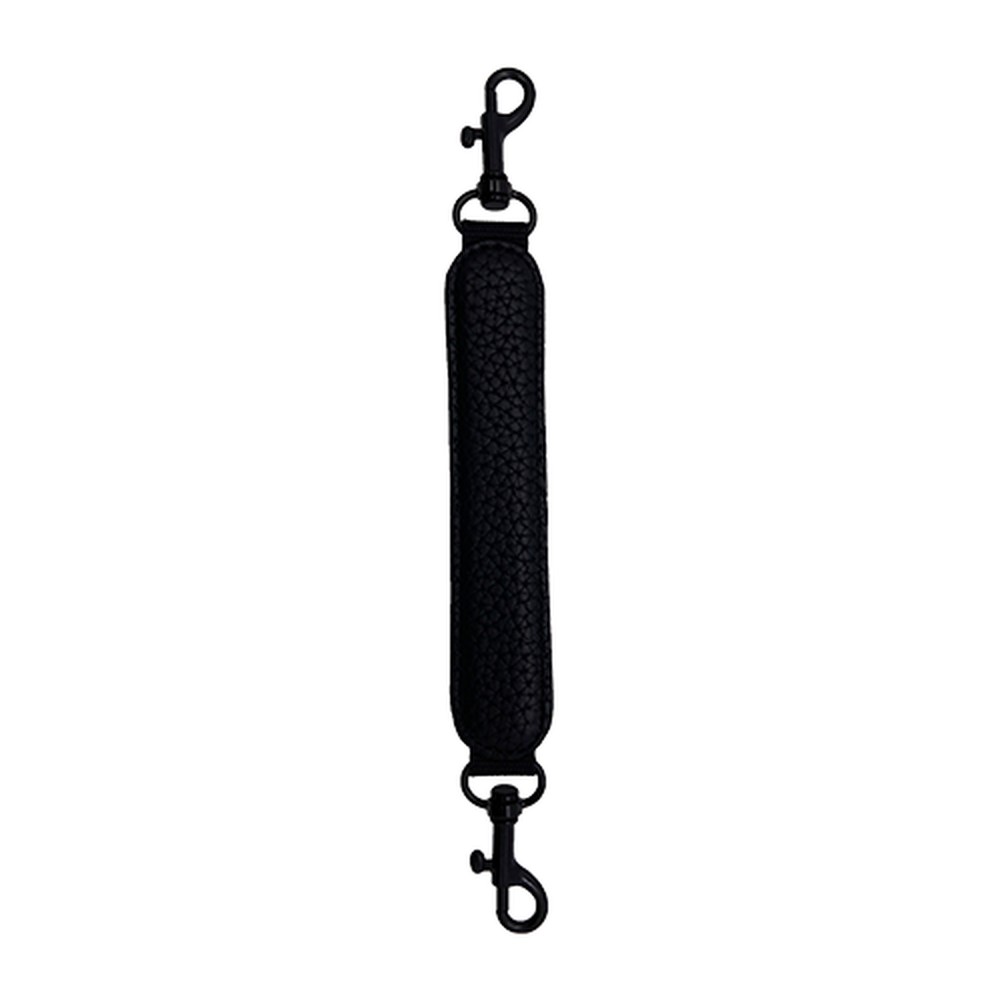

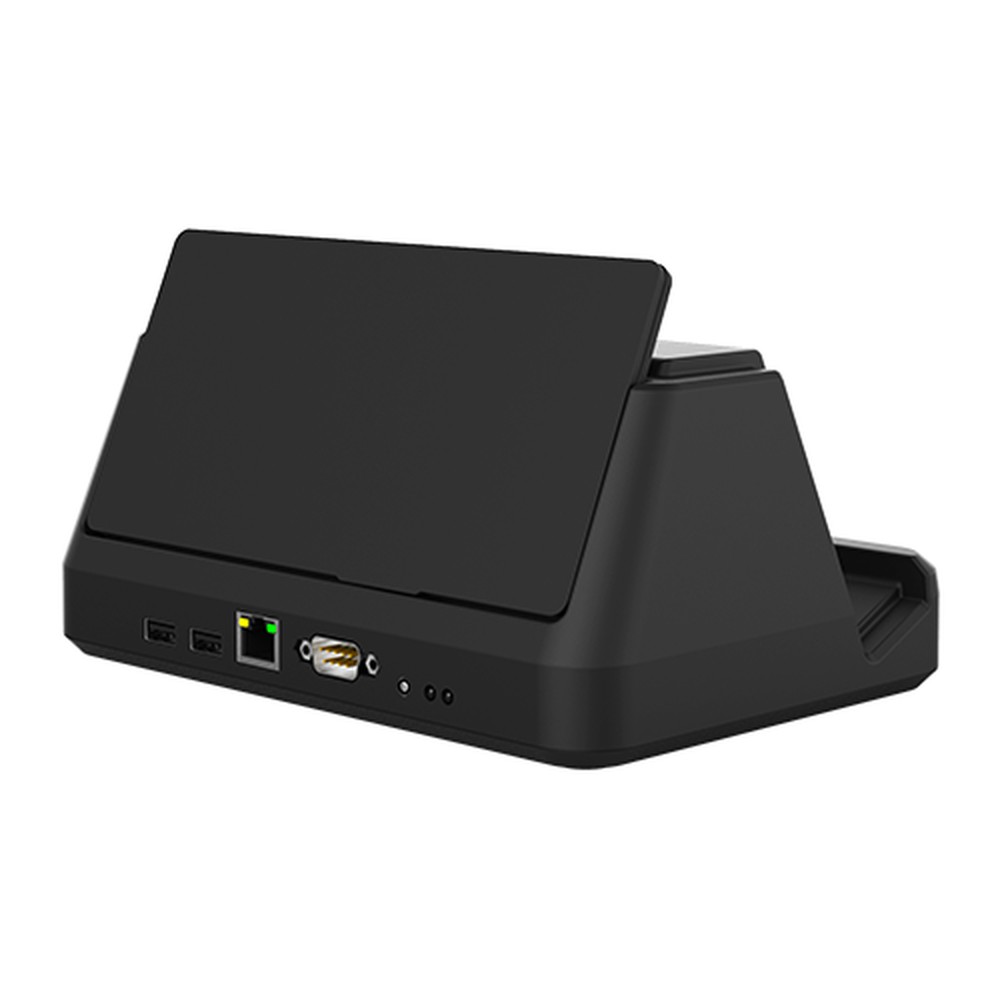

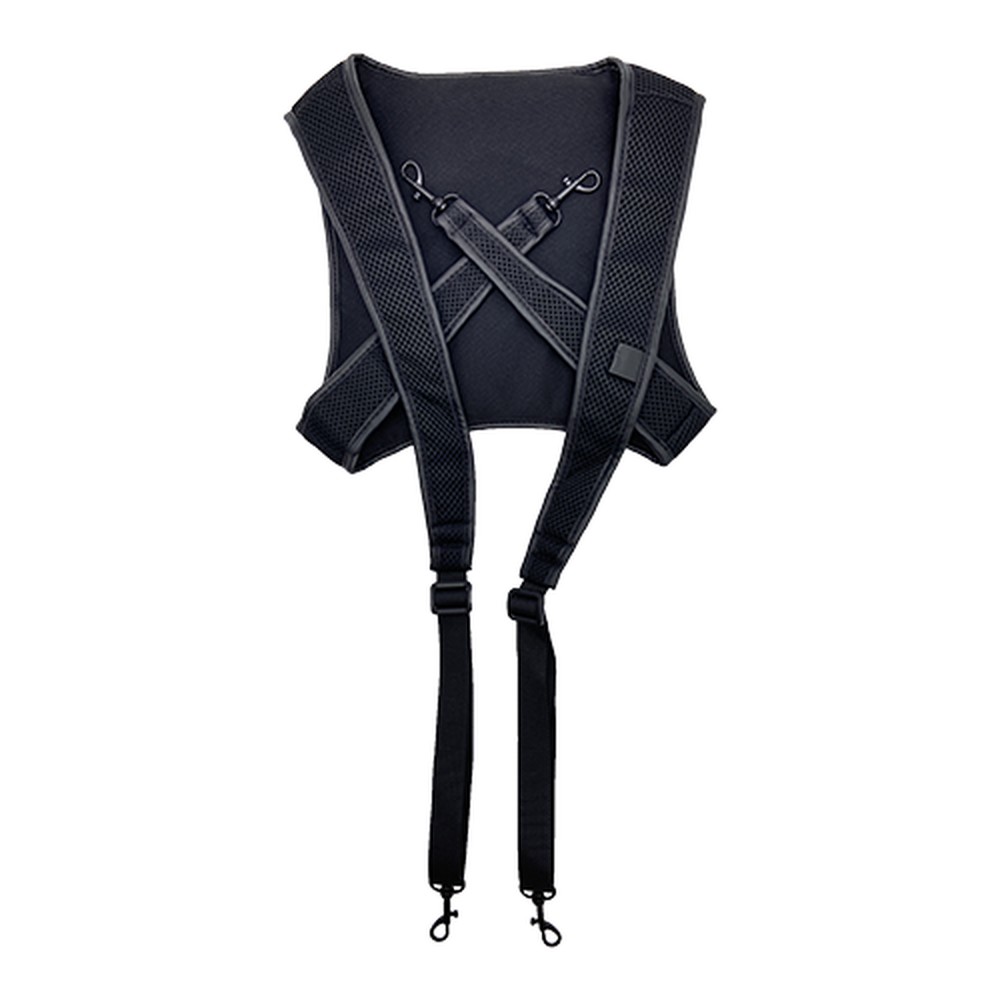

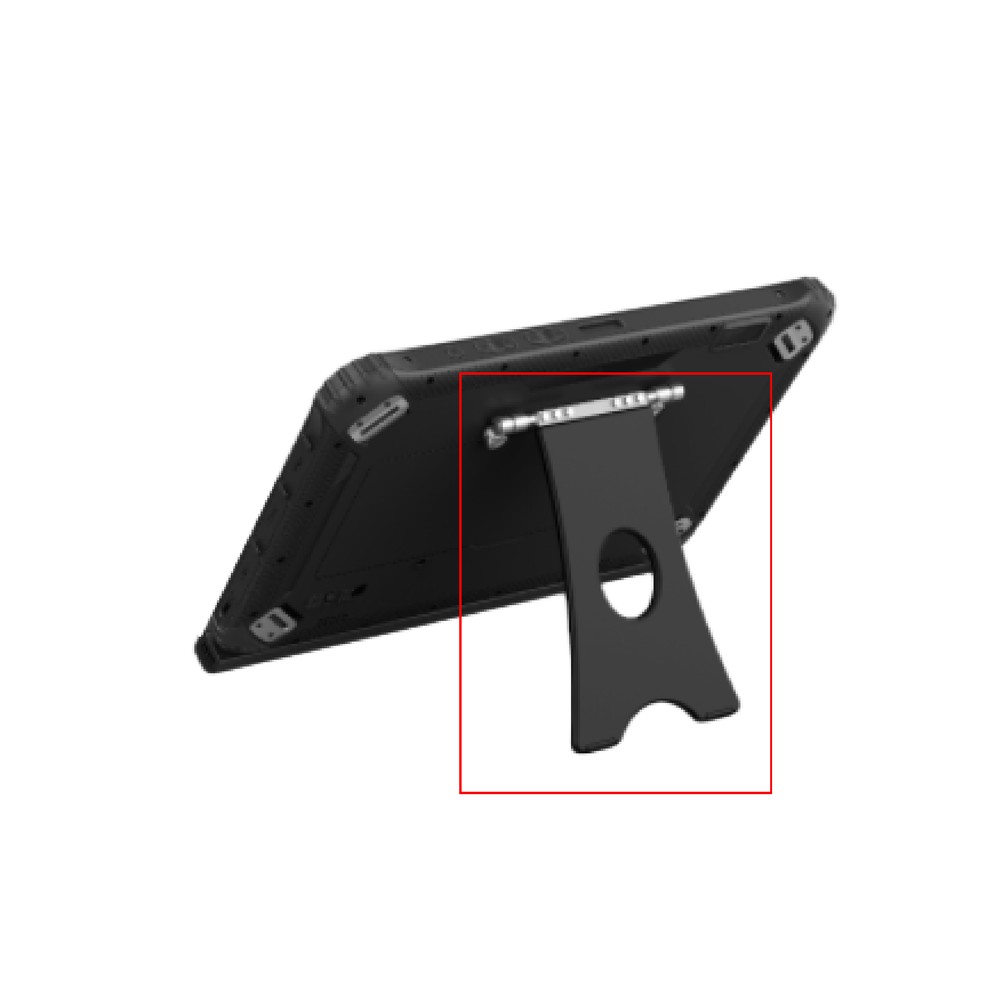

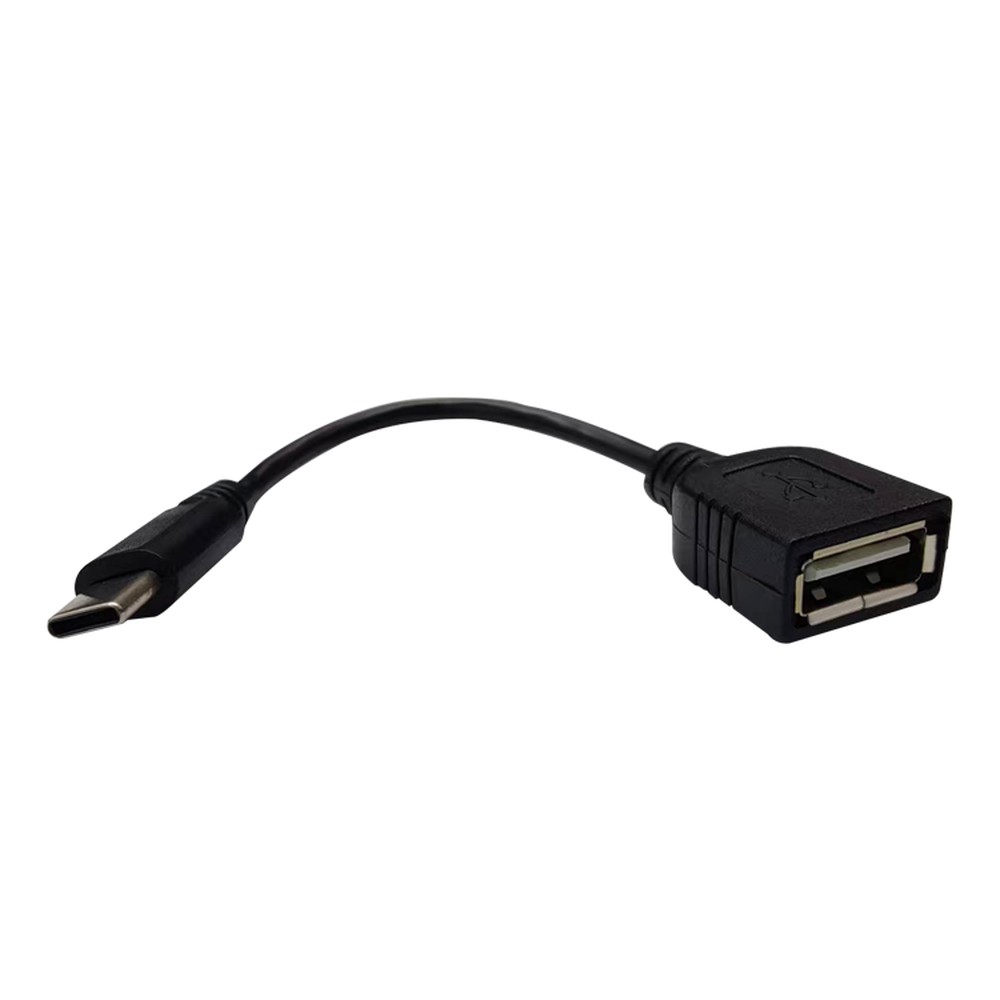

Technical specifications include WWAN: 3G: WCDMA: B1/5/84G: TDD-LTE: B34/38/39/40/41FDD-LTE: B1/3/5/85G: NR: N1/28/41/78/79. WIFI: WIFI 802.11(a/b/g/n/ac) Dual frequency 2.4G+5G. Bluetooth: BT5.1 (BLE). GPS: Sleeve support: GPS+Glonass; capture sensitivity: -140 dBm; cold start time: Standard-Accessories Holder Bracket OTG Cable Standard Adaptor Hand-strap Carry handle Optional-Accessories Car charger Hand writing pen Active capacitive pen Vehicle Mount Back Straps Shoulder girdle Removeable keyboard Docking Charger Spare Removeable Battery Download Brochure Product Mobile Computers Handheld Terminal PDA Industrial Rugged Tablet RFID Mobile Terminal Intelligent Devices Solutions & Cases Smarting Warehousing Smarting Retail Intelligent Manufacturing Logistics & Transportation Security Ticketing Management Financial Management Solution Mobile Law enforcement Solution Healthcare Management Support Download center FAQ OEM/ODM Service Service and Maintenance Partner Partner Advantage Program Become a Partner Find a Partner About Us Company Profile News & Informations Dingdata Culture Inquiry Online Contact us Contact number 0755-21385125 info@dingdataiot.com 1502 Room, Zhichuang industry park, No.49 Dabao Road, Baoan District, Shenzhen, China Copyright © All Rights Reserved Shenzhen Dingdata Technology Co.,Ltd Send Email Skype WeChat whatsapp x TOP.
Wholesale purchasing information
For RUGGEDMASTER E22TAP, compare the pictured housing, connectors and controls with the configuration required by your application. The manufacturer may describe optional modules, memory configurations or regional network bands. These options are listed for reference; confirm the required configuration when requesting a quotation. Choose the interface and data-capture functions that match your existing workflow, software and installation requirements.
Review the complete Specs tab before placing a bulk order. It preserves the technical information supplied for this model, including the available operating environment and configuration details. Product pictures show the manufacturer’s existing views and available configurations. If your project needs a particular module, operating system version or connector, state that requirement in your enquiry so the configuration can be checked before ordering.
Explore related products in our RuggedMaster product catalog or send a bulk-order enquiry.

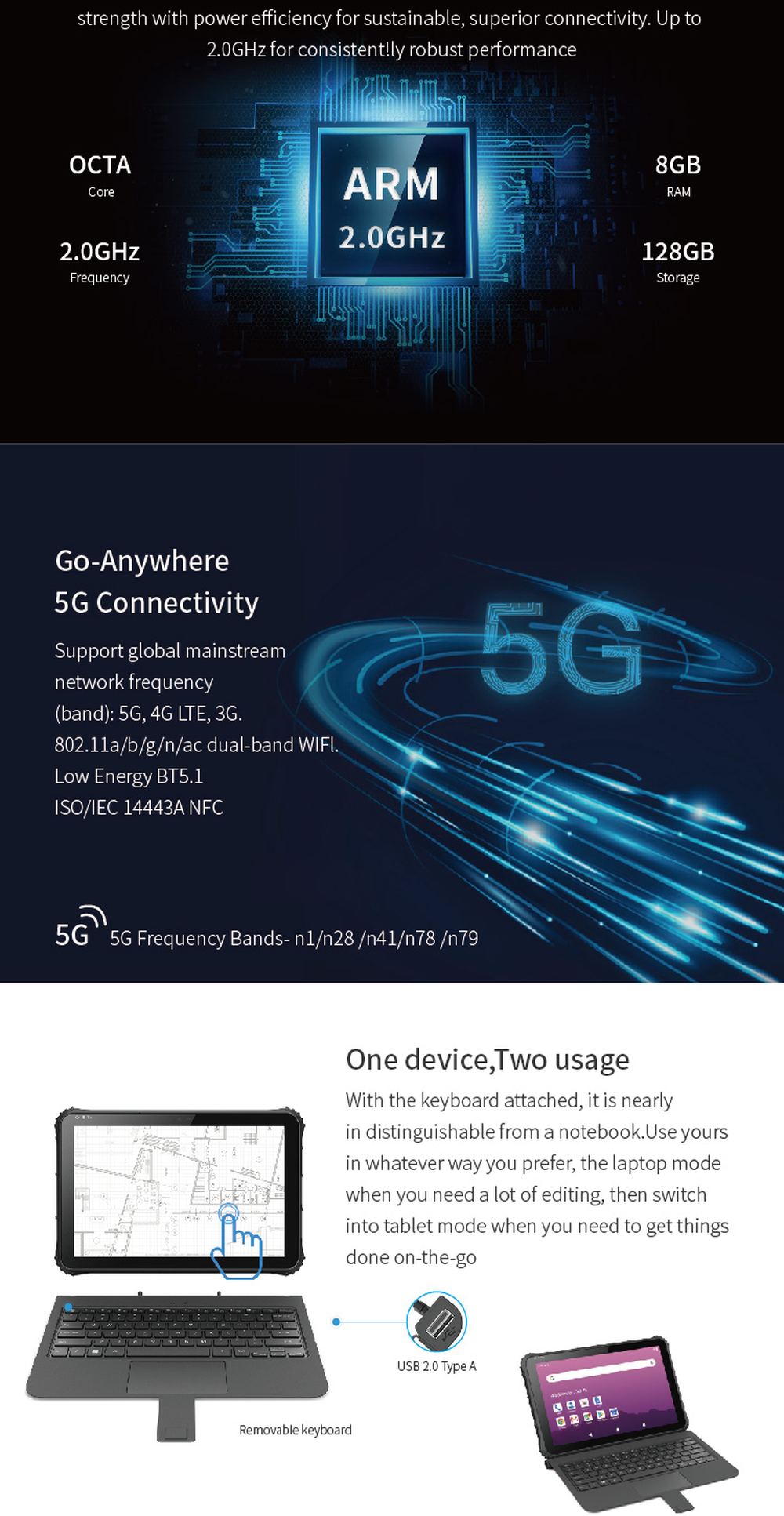

Manufacturer feature details
| SPECIFICATIONS | ||
| PHYSICAL CHARACTERISTICS | ||
| Dimension | 319.6*216*24.3 mm | |
| Weight | 1500g | |
| Display / Touch Panel | Type: IPSSize: 12.2 inch 16:10Resolution: 1920*1200Brightness: 650cd/㎡10 point capacitive screen, G+G, Corning gorilla hardness above 7H, scratch resistant, COF, support GP930 stylus | |

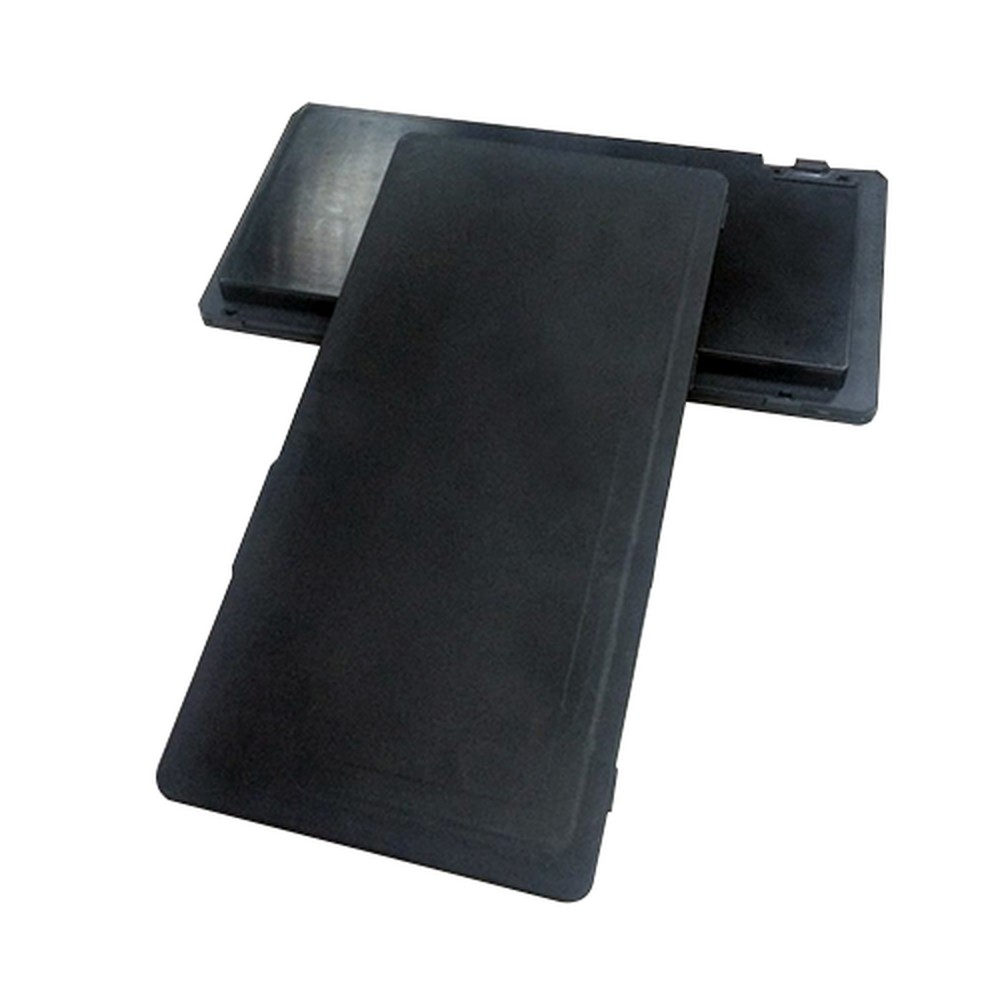

| Battery | Removable Li-polyment Battery3.7V/12600mAh7hours ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default ) | |

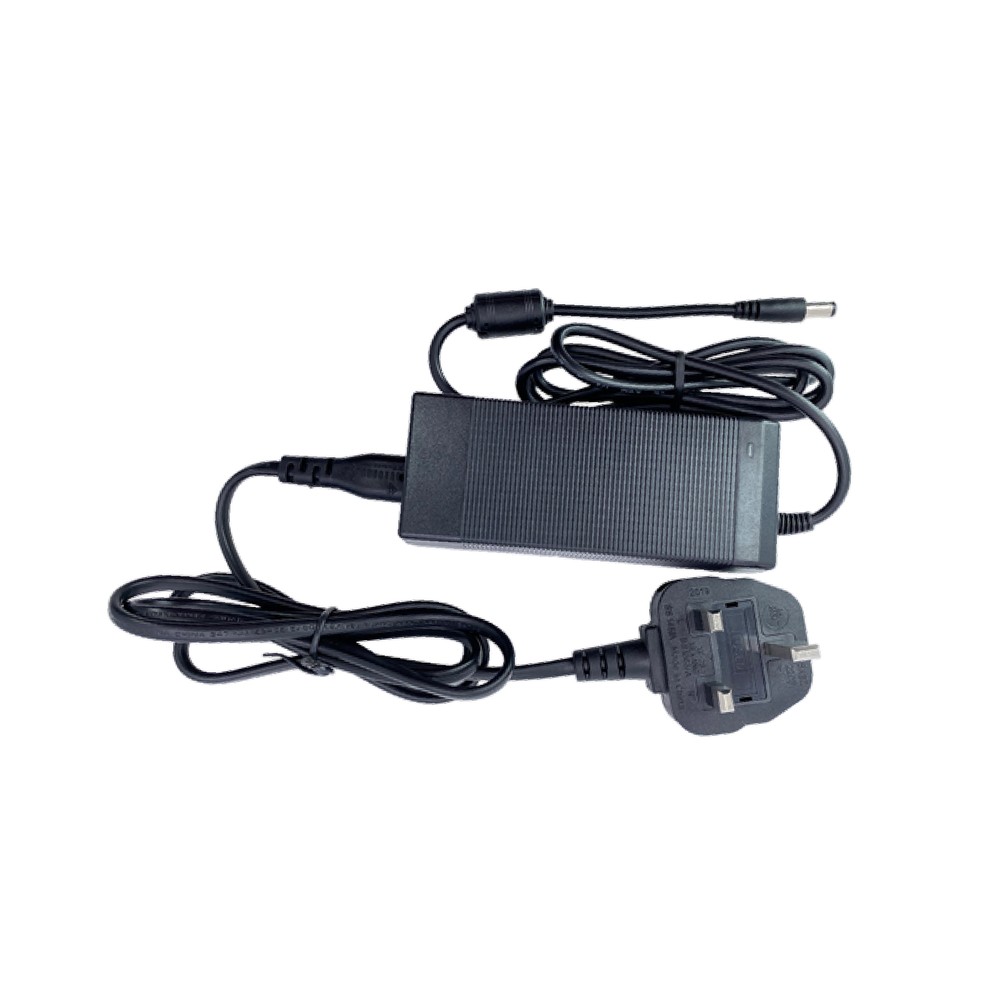

| Power Adapter | AC100V~240V, 50Hz/60Hz Output DC 5V/4A has passed CE certificationOptional:(EU, US, UK, AU) Choose one of four | |
| Speaker | 8Ω/1W Waterproof BOX Speaker *2 | |

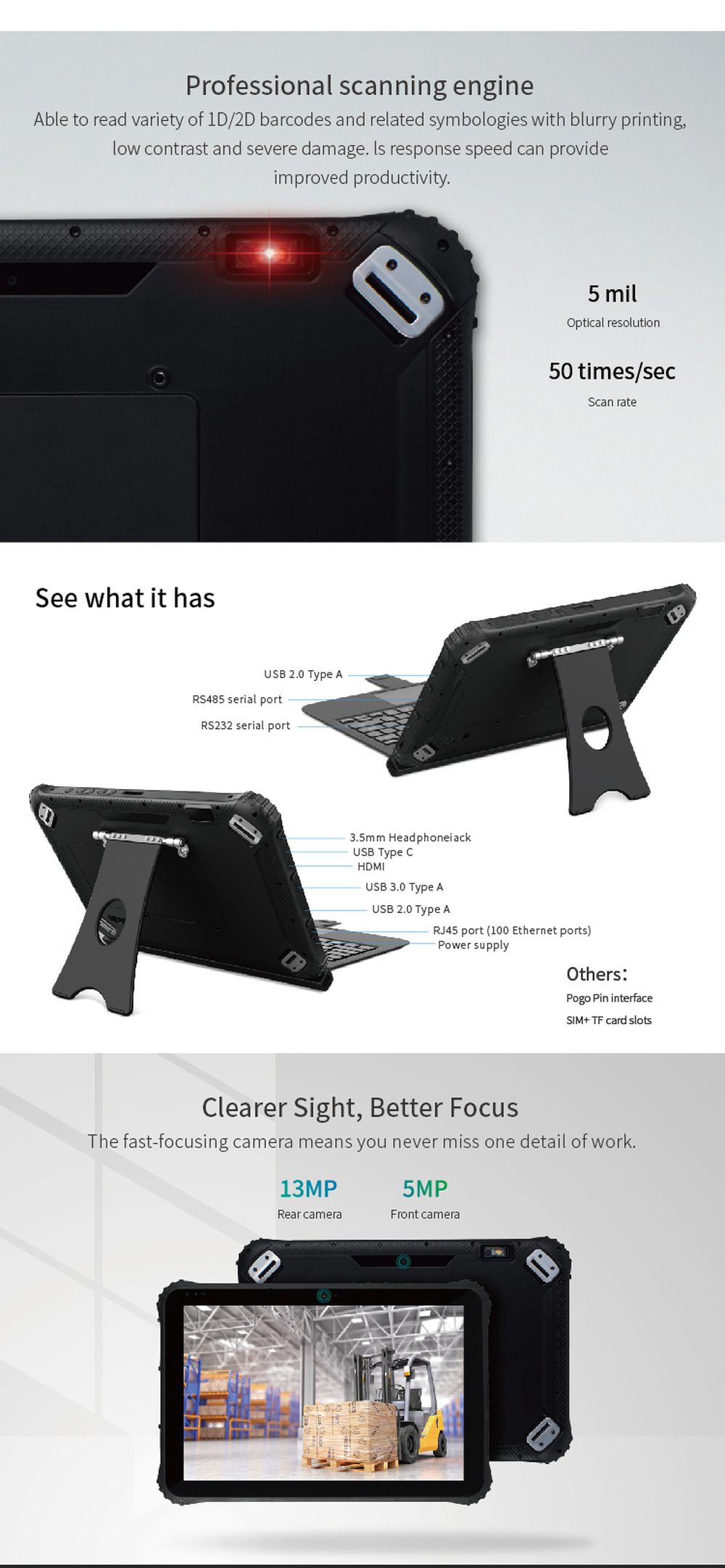

| I/O Interfaces | USB 2.0 *2 (4pin),USB 3.0 *1 (9pin)Type C *1 (Data & Charing)∮3.5mm standard earphone jack *1TF Card *1 max：256GSIM Card *1DC 5V/4A ∮3.5mm Power connector *1HDMI *1DB9 (RS232) *1, DB9 (RS485) *1RJ45 (10/100Mbps) *112PIN Pogo Pin *1 | |
| Buttons | Power *1Volume Adjustment Key (+) *1Volume Adjustment Key (-) *1P1 Key *1 (HOME key)P2 Key *1 (BACK key)F Key *1 (Barcode scanner) (Back of machine) | |
| Camera | Front 5.0MPRear 13.0MP | |
| PERFORMANCE CHARACTERSTICS | ||
| CPU | Qualcomm SM6350 2.0GHZ | |
| Operating System | Andriod 11/GMS | |
| Storage | RAM 8GB DDR3L ROM 128GB EMMC | |
| USER ENVIRONMENT | ||
| Operating Temp. | -20℃ to 60℃ | |
| Storage Temp. | -30℃ to 70℃ | |
| Humidity | 95% Non-Condensing | |
| Drop Specifications | MIL-STD-810G: 1.22m drop | |
| IP Protective Level | IP65, CE NB,FCC,RoHS,MIL-STD-810G,Battery: UN38.3, MSDS, Aviation report, Marine report, IEC62133 | |
| DEVELOPMENT ENVIRONMENT | ||
| SDK | Dingdata Software Development Kit | |
| Language | Java | |
| Environment | Android Studio or Eclipse | |
| DATA COMMUNICATION | ||
| WWAN | 3G: WCDMA: B1/5/84G: TDD-LTE: B34/38/39/40/41FDD-LTE: B1/3/5/85G: NR: N1/28/41/78/79 | |
| WIFI | WIFI 802.11(a/b/g/n/ac) Dual frequency 2.4G+5G | |
| Bluetooth | BT5.1 (BLE) | |

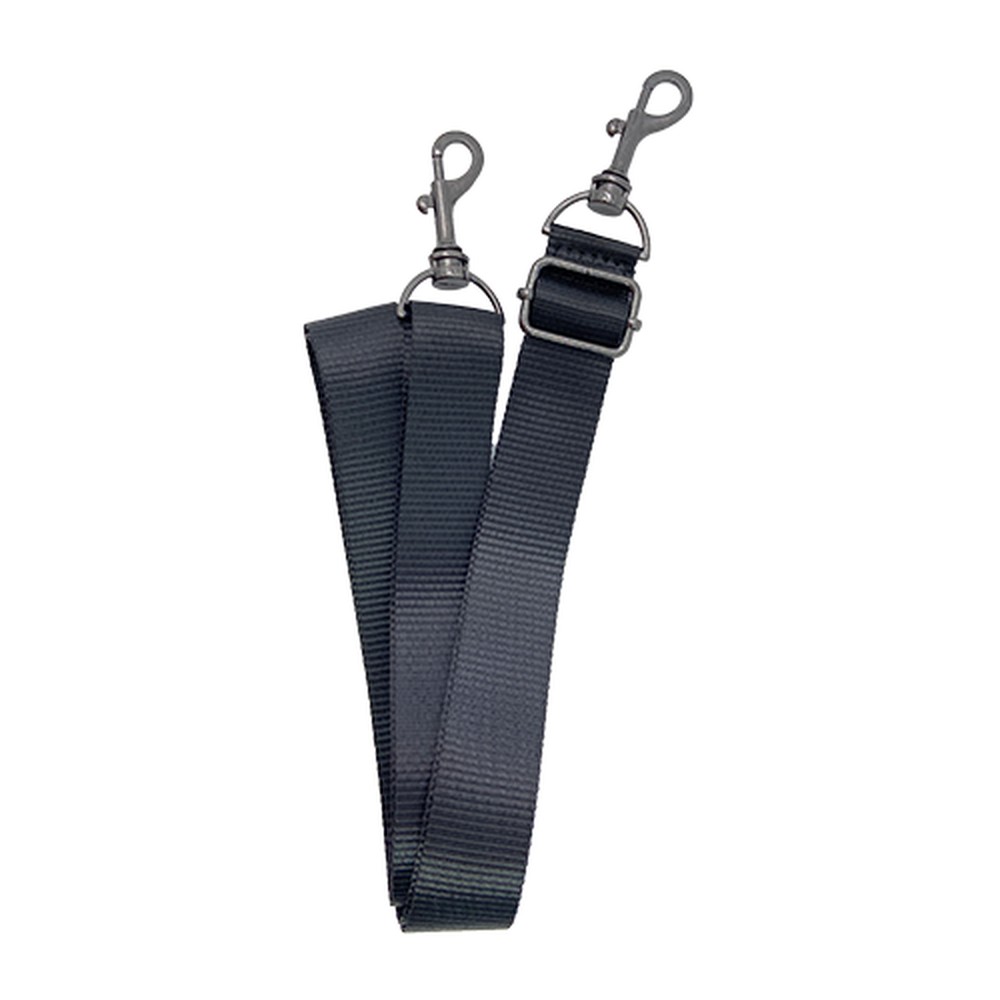

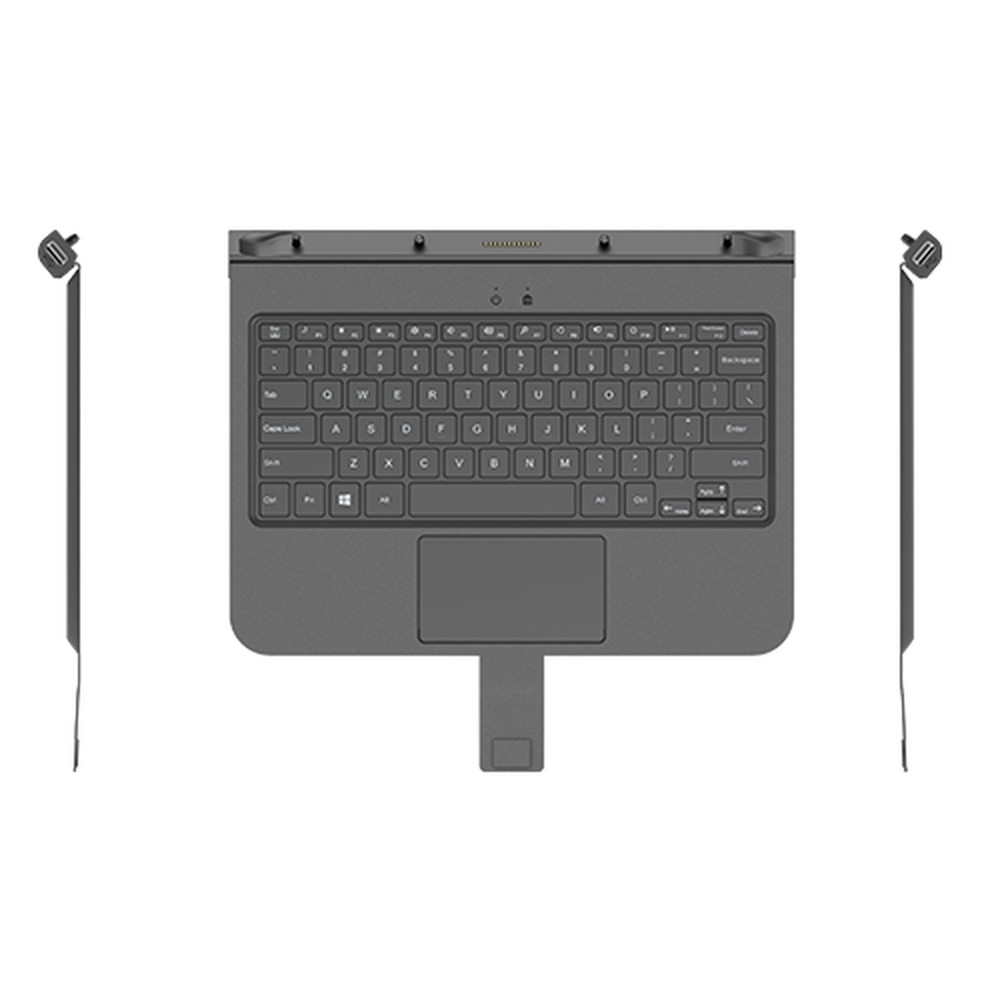

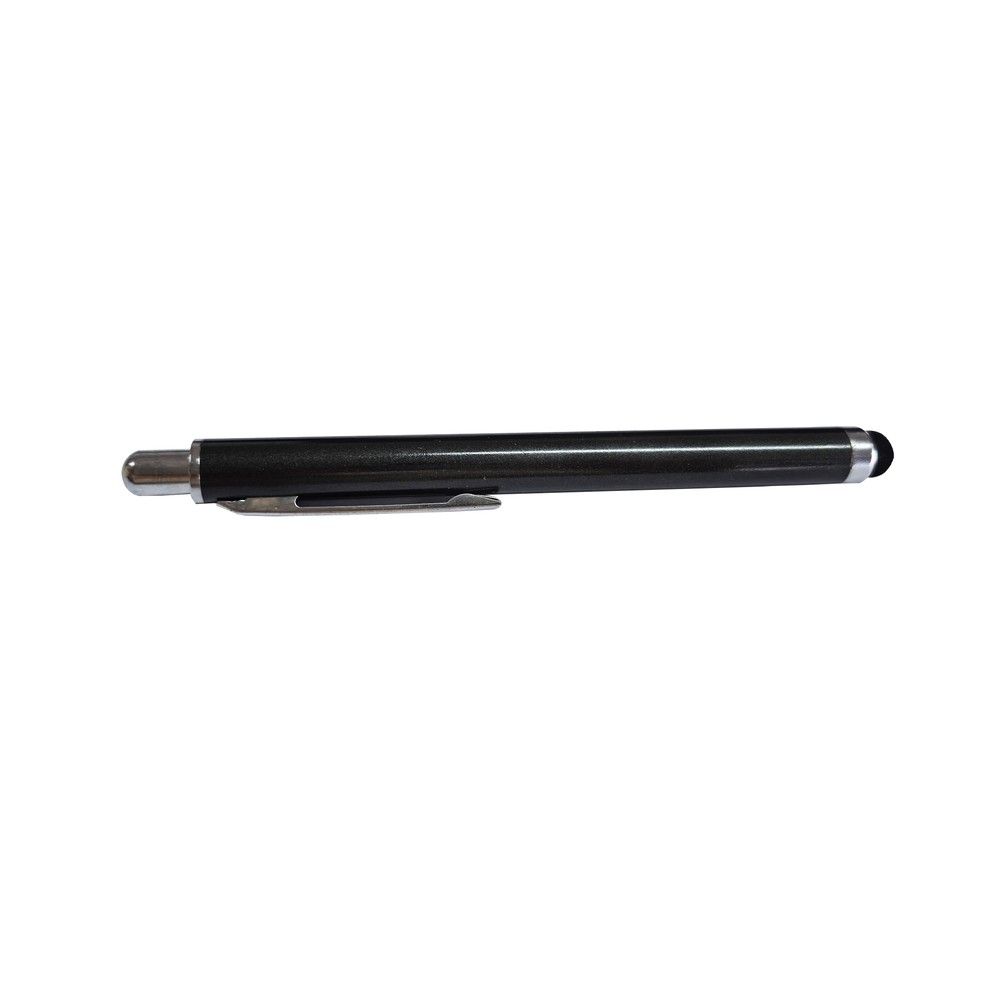

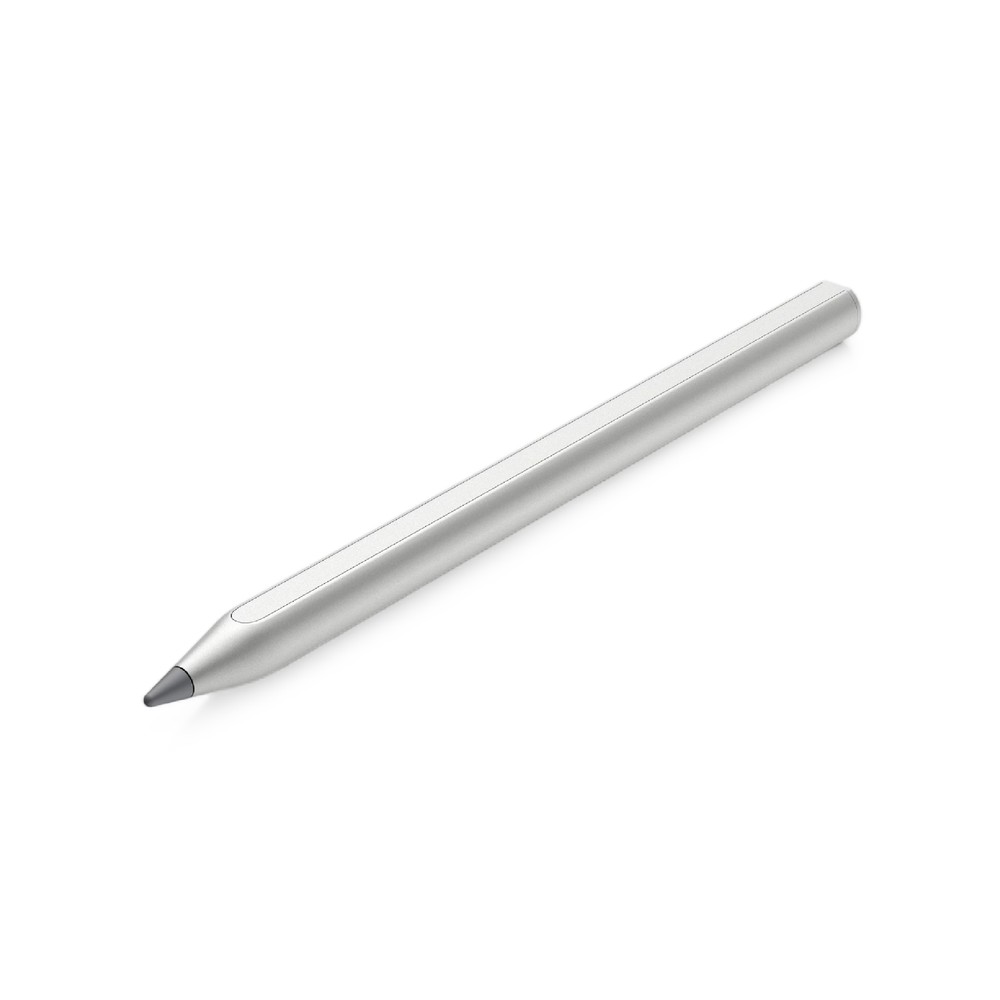

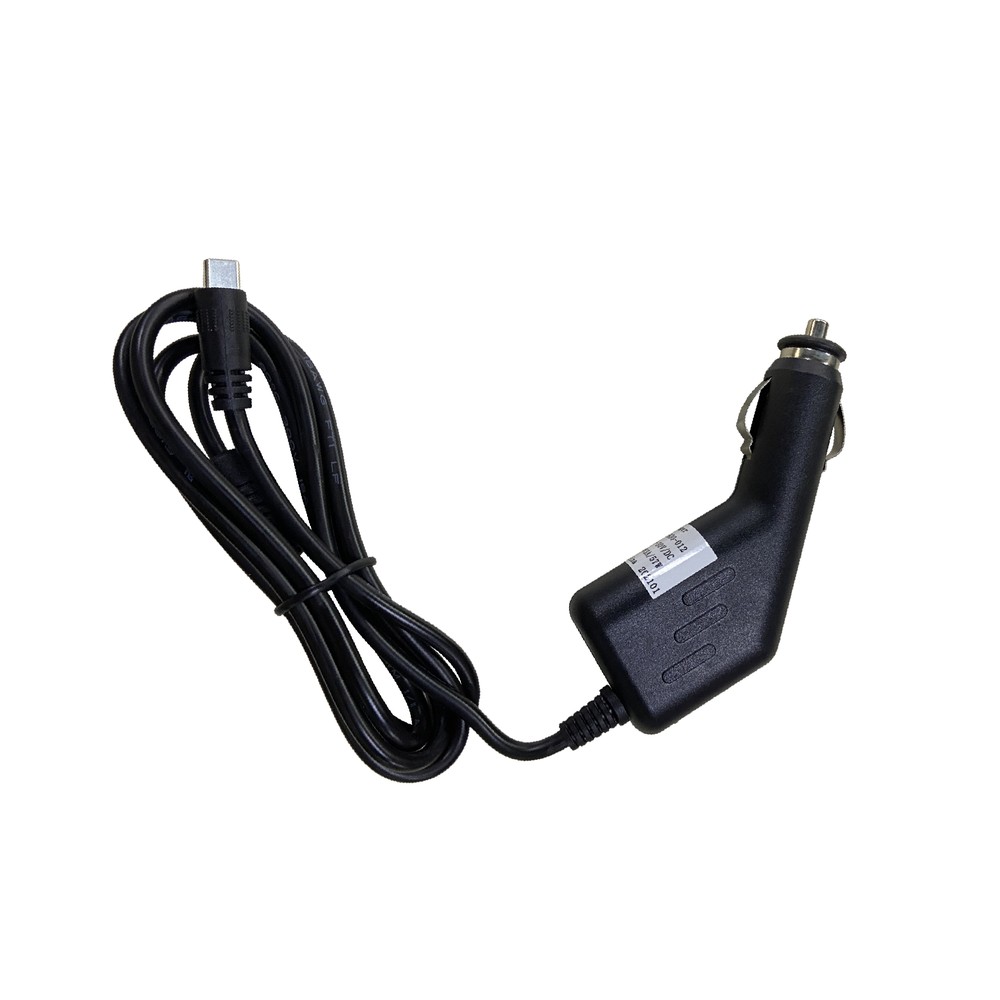

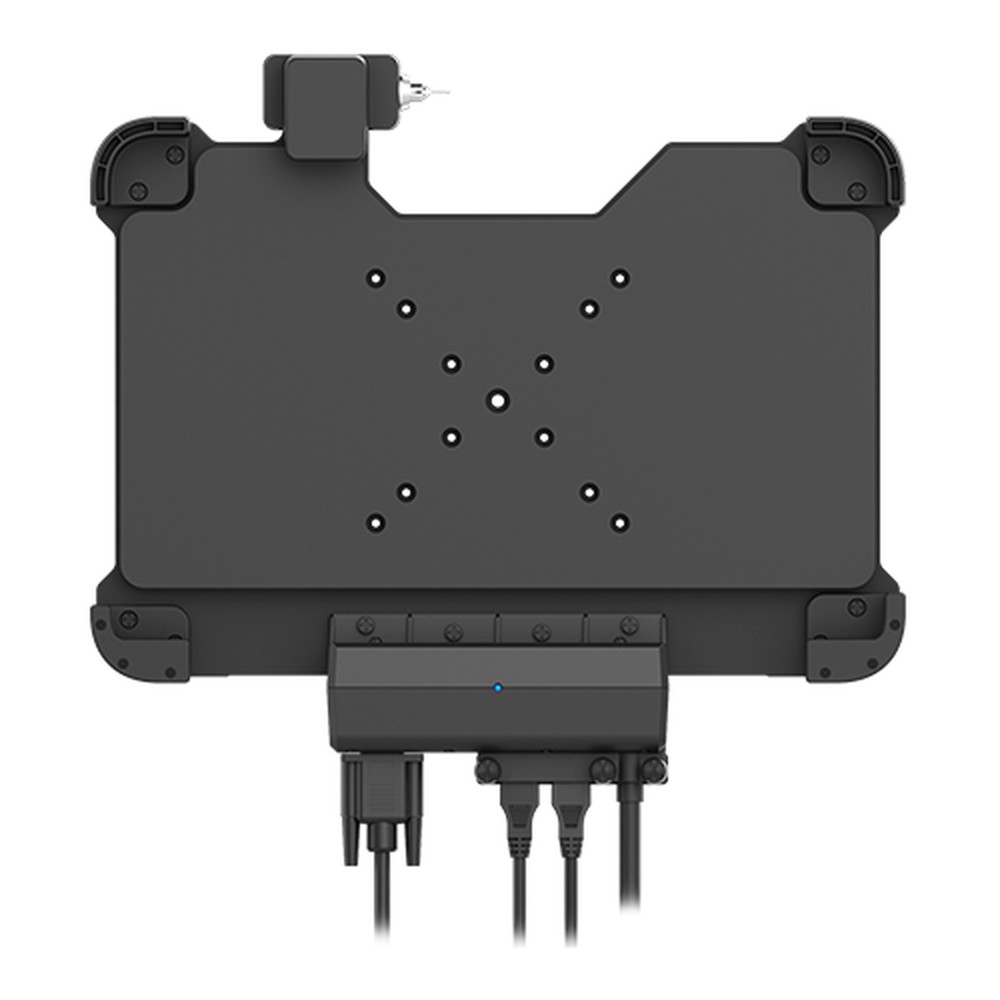

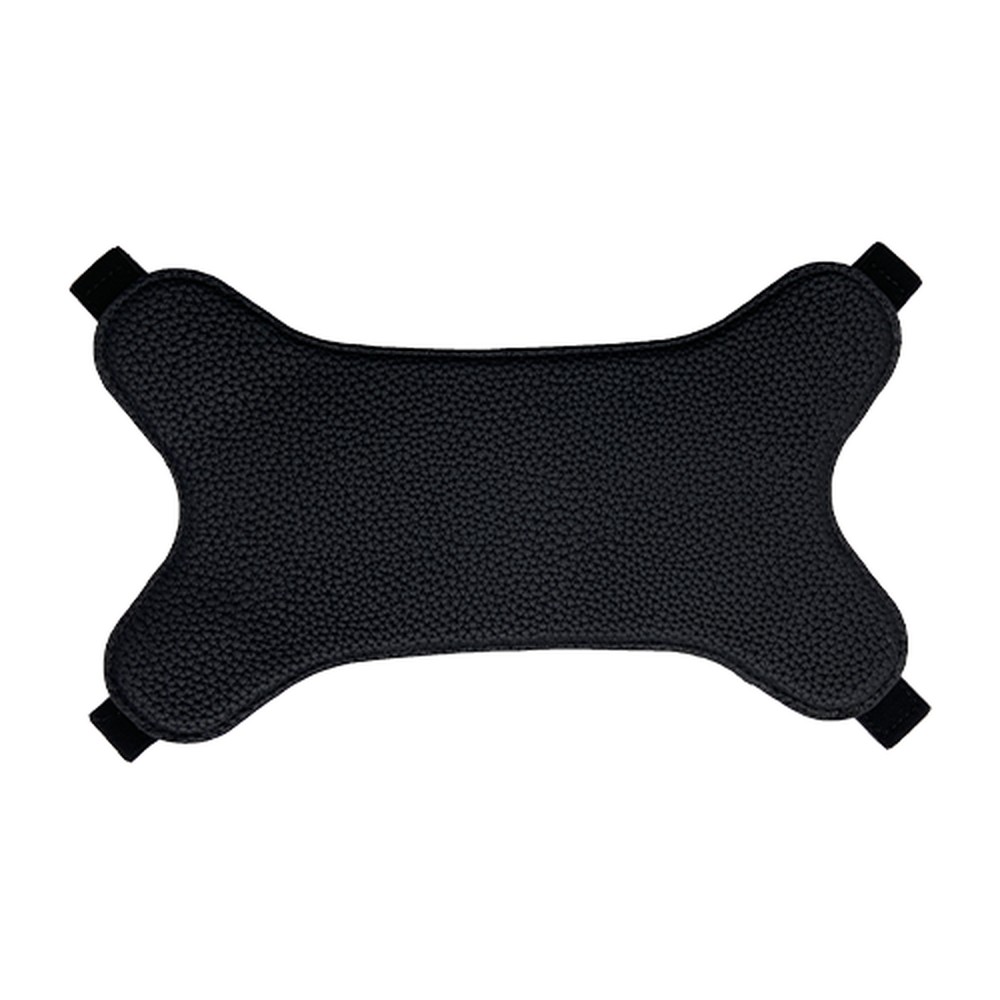

| GPS | Sleeve support: GPS+Glonass; capture sensitivity: -140 dBm; cold start time: Standard-Accessories Holder Bracket OTG Cable Standard Adaptor Hand-strap Carry handle Optional-Accessories Car charger Hand writing pen Active capacitive pen Vehicle Mount Back Straps Shoulder girdle Removeable keyboard Docking Charger Spare Removeable Battery Download Brochure Product Mobile Computers Handheld Terminal PDA Industrial Rugged Tablet RFID Mobile Terminal Intelligent Devices Solutions & Cases Smarting Warehousing Smarting Retail Intelligent Manufacturing Logistics & Transportation Security Ticketing Management Financial Management Solution Mobile Law enforcement Solution Healthcare Management Support Download center FAQ OEM/ODM Service Service and Maintenance Partner Partner Advantage Program Become a Partner Find a Partner About Us Company Profile News & Informations Dingdata Culture Inquiry Online Contact us Contact number 0755-21385125 info@dingdataiot.com 1502 Room, Zhichuang industry park, No.49 Dabao Road, Baoan District, Shenzhen, China Copyright © All Rights Reserved Shenzhen Dingdata Technology Co.,Ltd Send Email Skype WeChat whatsapp x TOP | |
| Brochure | ||
| Brochure | ||
