RUGGEDMASTER DW-X15 Rugged Laptops

RUGGEDMASTER DW-X15 Rugged Laptops overview

RUGGEDMASTER DW-X15 Rugged Laptops combines an Intel Core i5-1135G7 or i7-1165G7 processor with Intel Iris Xe graphics in a 15.6-inch rugged notebook. The Full HD screen is rated at 750 nits, with an optional ten-point capacitive touchscreen. Memory choices are 8GB, 16GB or 32GB DDR4, and SSD capacities range from 256GB to 1TB. A built-in 1750mAh battery and removable 6300mAh battery support hot swapping. The IP65 design includes TPM 2.0 and fingerprint login. Wi-Fi 6 and Bluetooth 5.1 are listed, with cellular, GNSS and NFC options available.

DW-X15 hardware and display

• 15.6-inch Full HD, 750 Nits
• 11th Gen Core i5/i7, Iris Xe Graphics
• Hot-Swap Battery, IP65, TPM 2.0
• Wi-Fi 6, Bluetooth 5.1 & Optional Cellular

Platform, power and interfaces

The DW-X15 configuration includes the following hardware and connection details. Optional components remain configuration choices and are not included in every unit.

• Product Form — 15 inch Full-rugged Notebook+IP65
• Material — Plastic material
• Dimension — 407*305.8*45.5mm(Host)
• Weight — 3.3kg
• Product Color — Black
• CPU — Intel I5  1135G7  4C/8T 2.4-4.2GHZ Intel I7  1165G7 4C/8T  2.8-4.7GHZ
• GPU — Intel Iris Xe Graphics
• DDR4 onboard — 8GB/16GB/32GB
• SSD — 256GB/512GB/1TB
• Mechanical Hard Disk — Optional: HDD
• TPM — Built-in, TPM2.0   SLB9670VQ2.0
• Hall Wwitch — Hall
• Operating System — windows 10(windows 11  optional)
• SCreen — 15.6" 16:9 1920*1080 750cd/Nits
• Touch Pannel — Optional, 10 point capacitive screen, G+G, Corning gorilla hardness above 7H, scratch resistant
• Camera — Front 2.0MP
• Buttons — PowerX1 Reset X1 (Pinhole key, One button reset) P Key X1 (One button off screen or on)
• Speaker — 8Ω/1W X2
• Microphone — Internal Digital MIC X2
• Battery (Built-in) — Build in Lithium-ion polymer battery 7.4V/1750mAh 0.5hours ( 50% volume sounds, 200 nits brightness, 720P HD video display by default )
• Battery (Hot Swap) — Removable Lithium-ion polymer battery 7.4V/6300mAh 6.5hours  ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default )
• WIFI — WIFI 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax

Configuration and deployment

RUGGEDMASTER DW-X15 Rugged Laptops supports the configuration choices recorded in the Specs tab. Compare the processor, installed memory, storage and interfaces with the software and peripherals used in your deployment. Where the source lists a module as optional, include that requirement in your enquiry so the selected hardware can be confirmed. Battery duration depends on screen brightness, wireless use and application load.

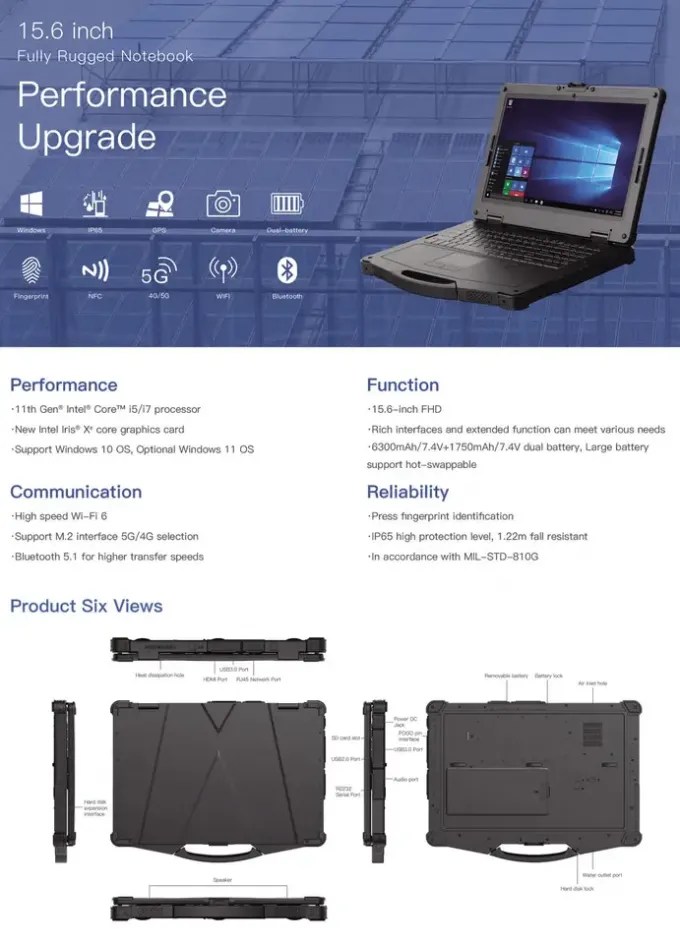

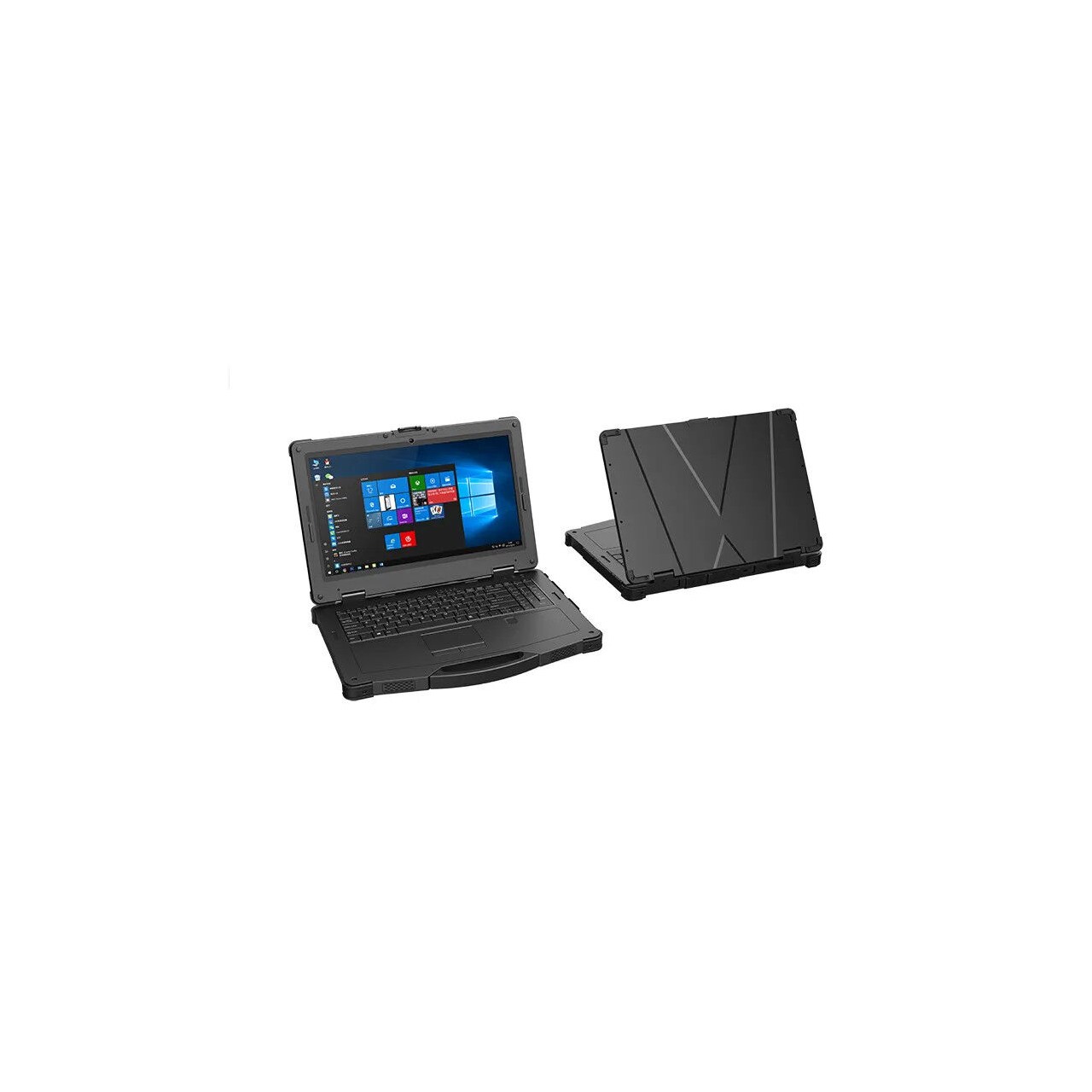

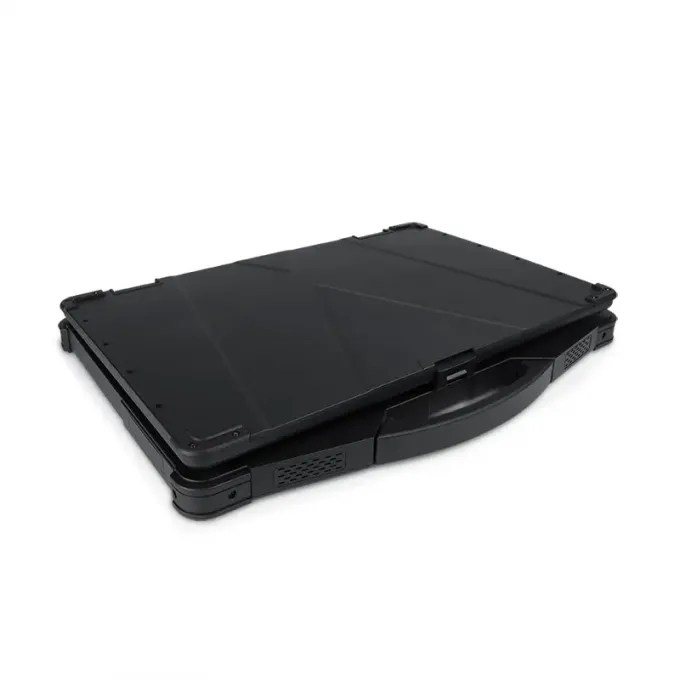

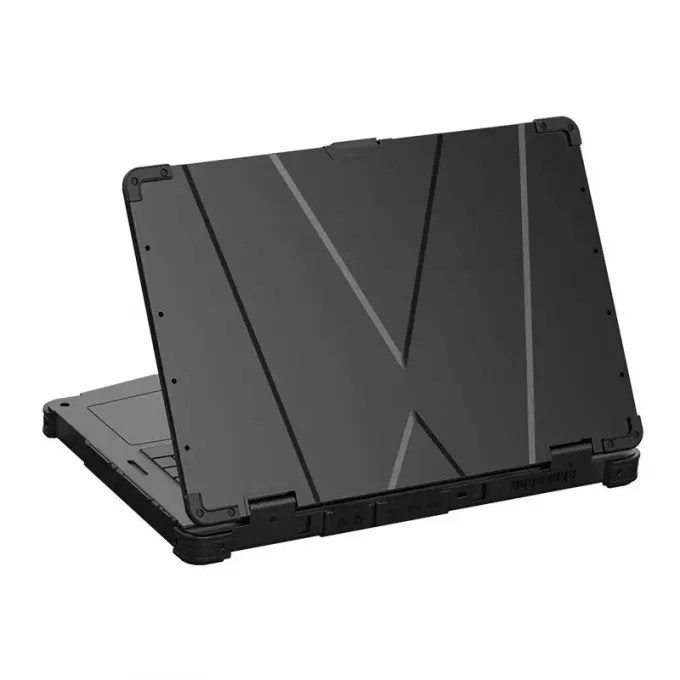

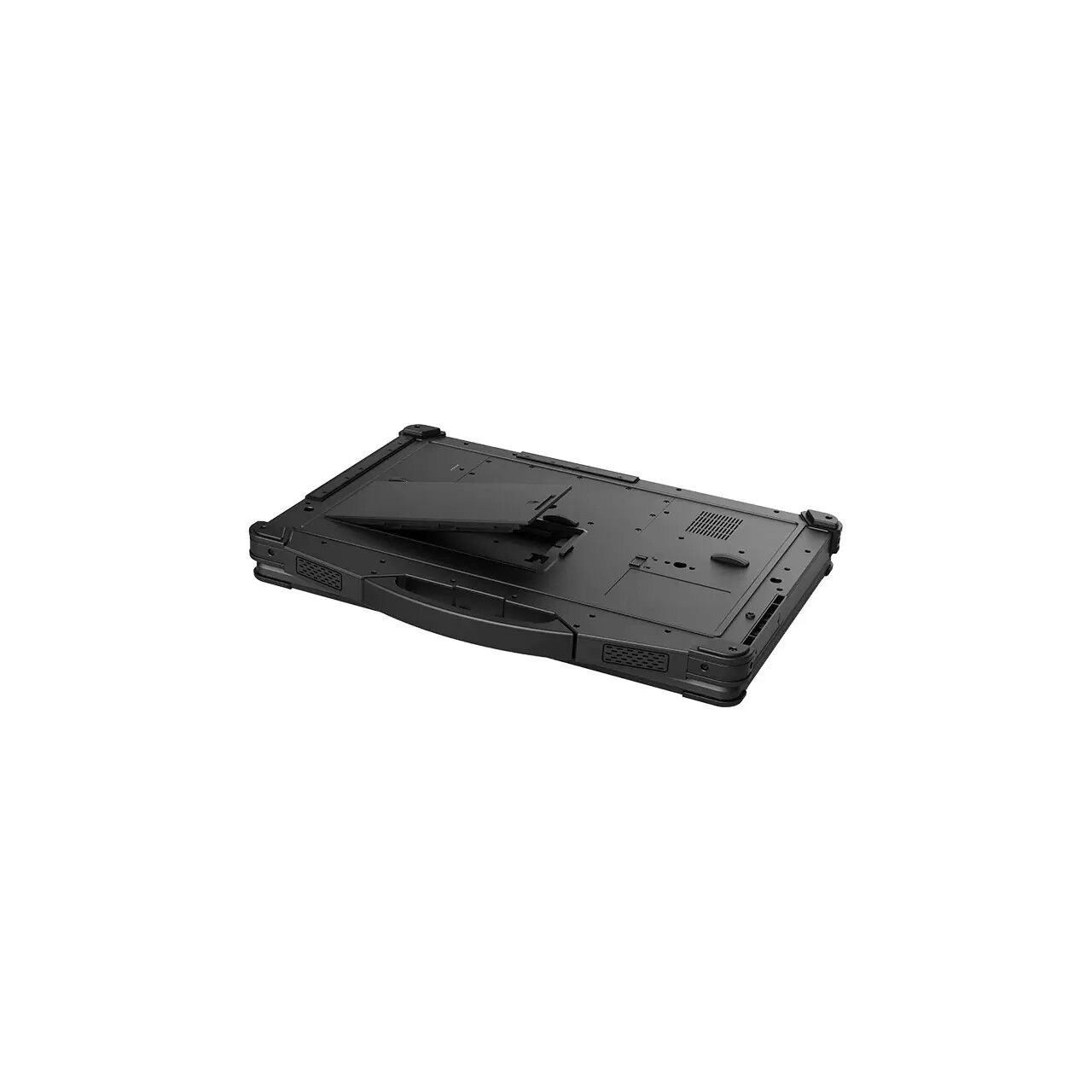

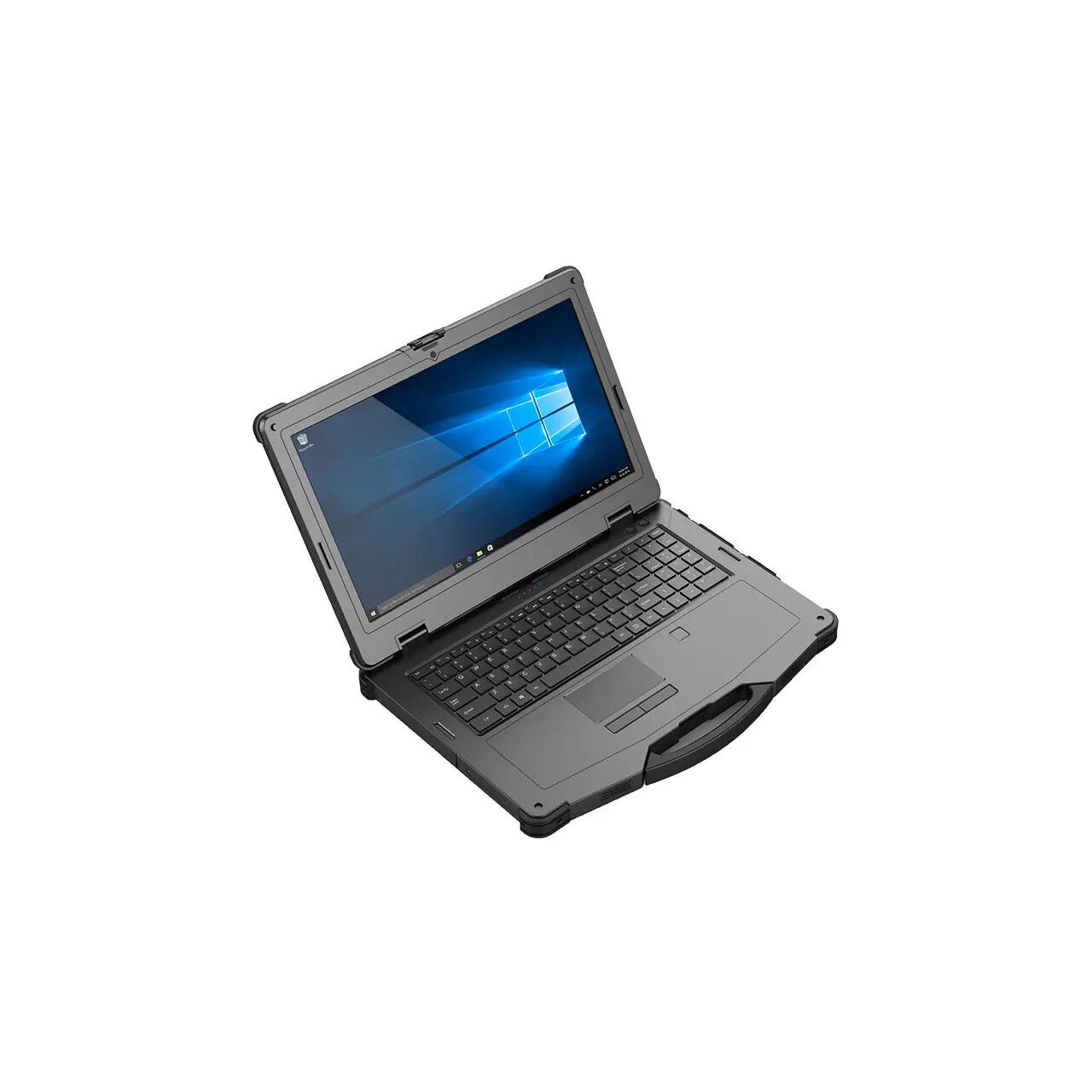

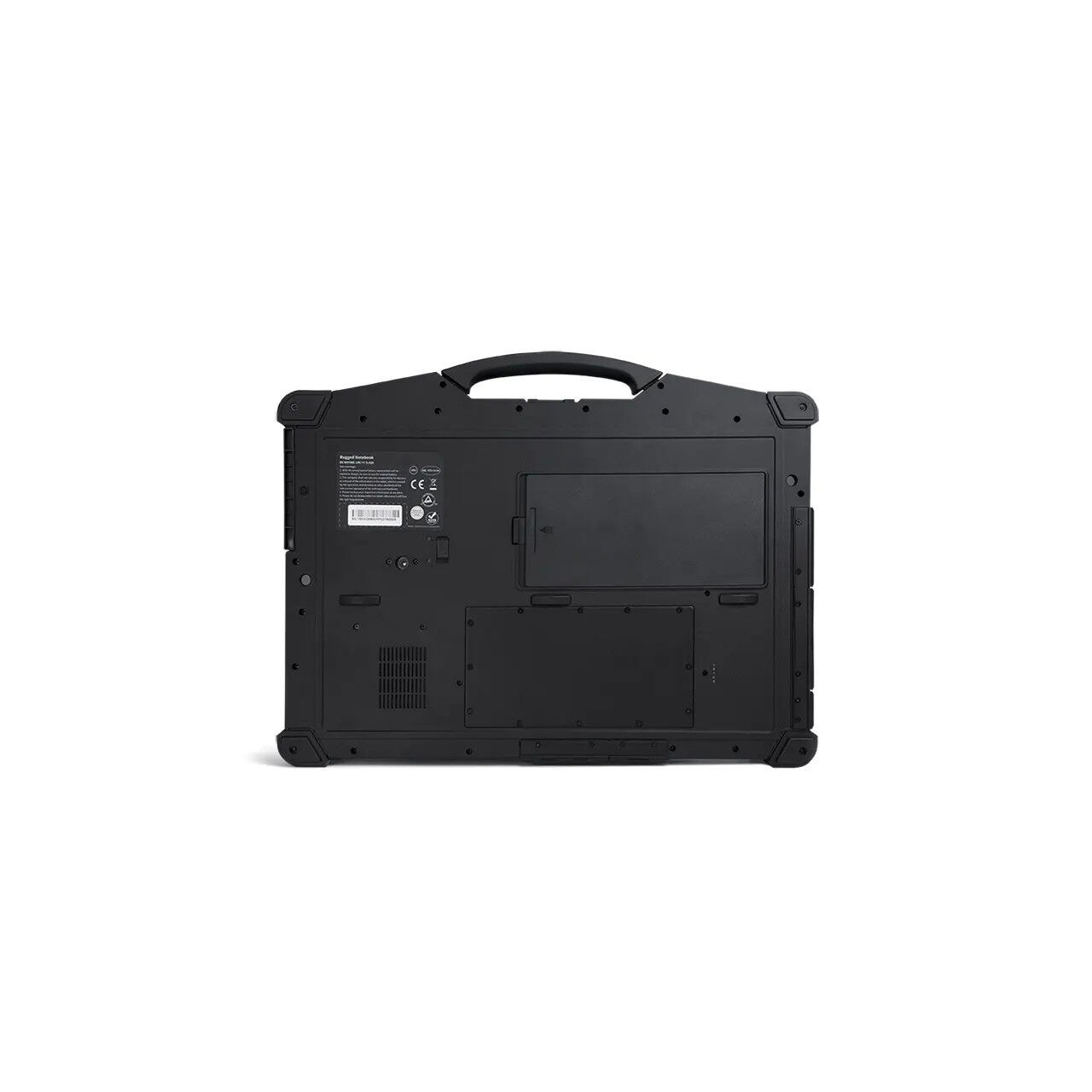

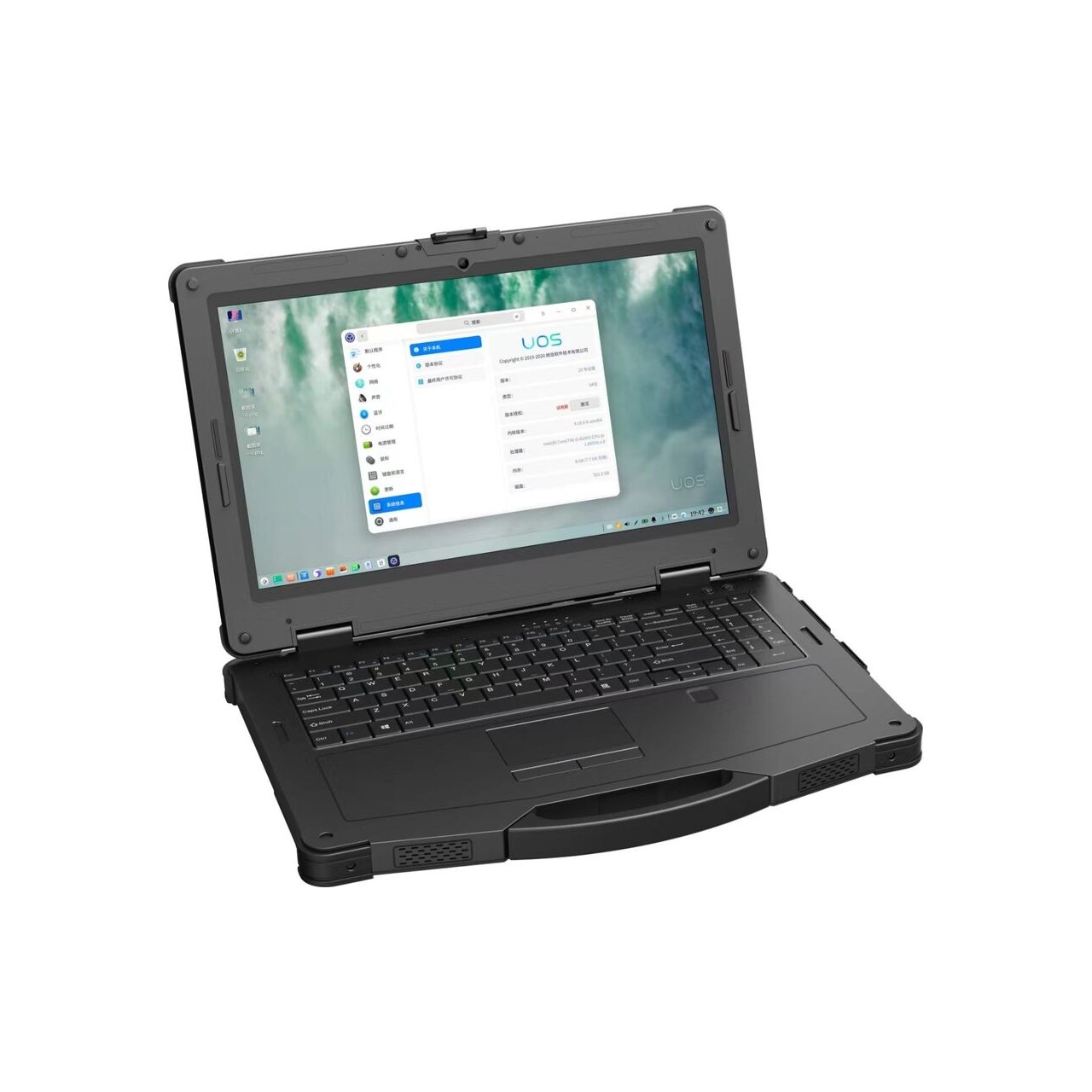

The product photographs show the enclosure, controls, connections and available finishes. Dimensions and weight refer to the configuration listed in the specification. Review the complete Specs tab for screen, battery, operating system and interface information before selecting accessories.
