RUGGEDMASTER DW-807 Rugged Tablets
8-inch IPS Display, MTK6761 Quad Core, Android 9.0, 2GB+32GB, 8000mAh, IP65, 4G LTE, NFC
The compact DW-807 brings an 8-inch IPS screen and an 8000mAh battery to mobile data collection. Its MTK6761 quad-core processor runs Android 9.0 with 2GB RAM and 32GB storage; 4GB RAM and 64GB storage are listed as options. The 1280 × 800 display, IP65 housing and physical volume controls suit handheld work. GPS, Bluetooth 4.0 and 13.56MHz NFC support navigation and identification, while biometric fingerprint capture is optional. A 2MP front camera and 13MP rear camera provide image capture.
8-inch IPS, 1280 × 800
MTK6761, Android 9.0
8000mAh Battery, IP65
4G LTE, GPS, Bluetooth 4.0 & NFC
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
RUGGEDMASTER DW-807 Rugged Tablets overview
RUGGEDMASTER DW-807 Rugged Tablets brings an 8-inch IPS screen and an 8000mAh battery to mobile data collection. Its MTK6761 quad-core processor runs Android 9.0 with 2GB RAM and 32GB storage; 4GB RAM and 64GB storage are listed as options. The 1280 × 800 display, IP65 housing and physical volume controls suit handheld work. GPS, Bluetooth 4.0 and 13.56MHz NFC support navigation and identification, while biometric fingerprint capture is optional. A 2MP front camera and 13MP rear camera provide image capture.
DW-807 hardware and display
- 8-inch IPS, 1280 × 800
- MTK6761, Android 9.0
- 8000mAh Battery, IP65
- 4G LTE, GPS, Bluetooth 4.0 & NFC
Platform, power and interfaces
The DW-807 configuration includes the following hardware and connection details. Optional components remain configuration choices and are not included in every unit.
- CPU — MTK6761 Quad core Cortex A53 2.0GHZ
- Operation system — Android 9.0
- Language — support multiple language
- Memory — 2GB (4GB optional)
- Storage Device — 32GB (64GB optional)
- Gravity — Support
- LCD — Size — 8" IPS
- PIXEL — 1280*800Pixels (16:9)
- WiFi — WIFI:IEEE802.11b/g/n wireless network
- 2G — GSM:850/900/1800/1900MHZ
- 3G — WCDMA:2100MHZ (WCDMA:850/900/1900MHZ Optional)
- 4G — B1. B2.B3.B7.B20
- GPS — Support
- FM — Support
- Biometric Fingerprint — ( Biometric Fingerprint WSQ format and collection comparison) optional
- NFC — Protocol ISO14443A/ISO14443B 13.56MHZ
- Bluetooth — Bluetooth 4.0
- Waterproof — IP65
- Dustproof — Support
- Droppingproof — Support
- Camera — Front 2.0M,Rear 13.0M
- Power adapter — 5V/2A
Configuration and deployment
RUGGEDMASTER DW-807 Rugged Tablets supports the configuration choices recorded in the Specs tab. Compare the processor, installed memory, storage and interfaces with the software and peripherals used in your deployment. Where the source lists a module as optional, include that requirement in your enquiry so the selected hardware can be confirmed. Battery duration depends on screen brightness, wireless use and application load.

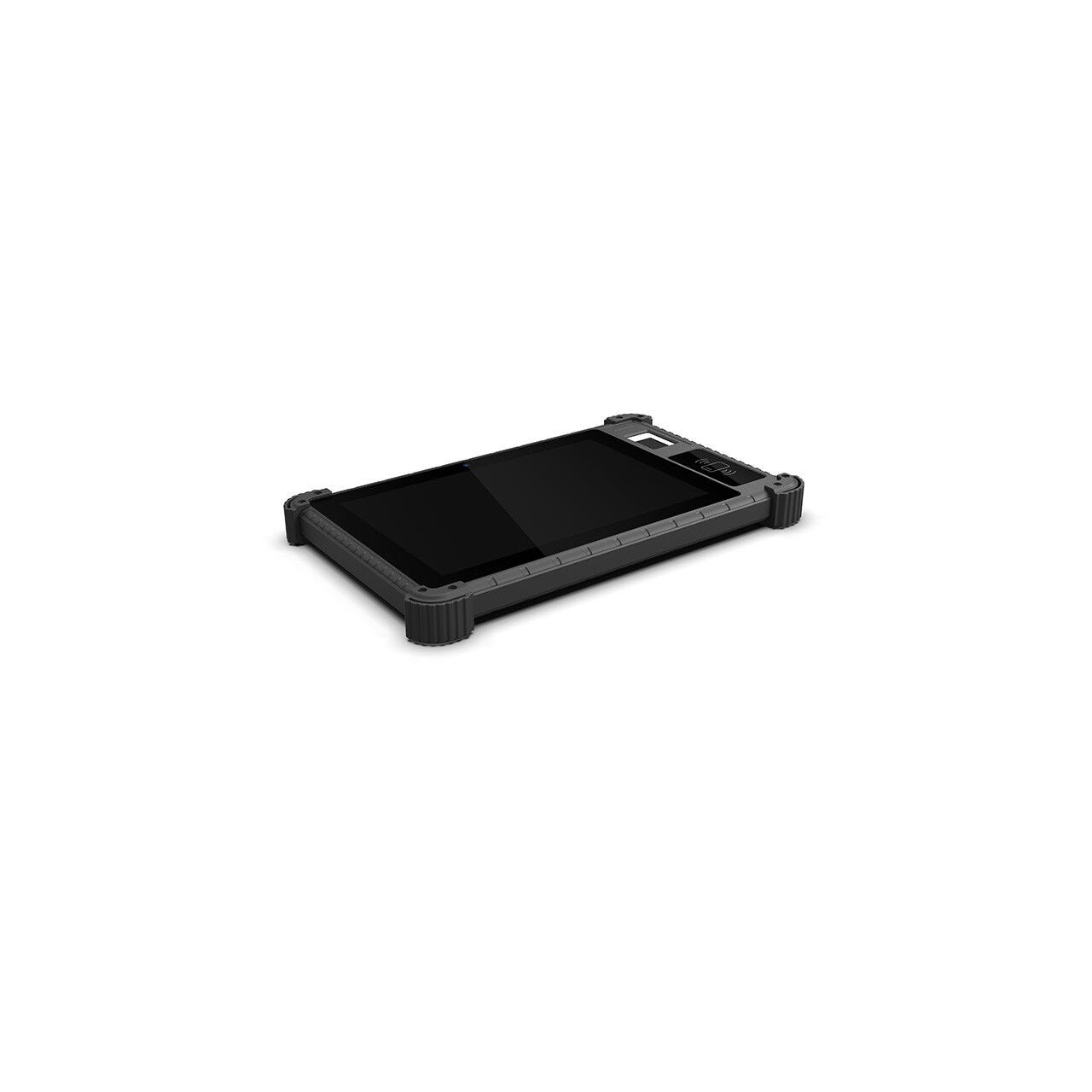

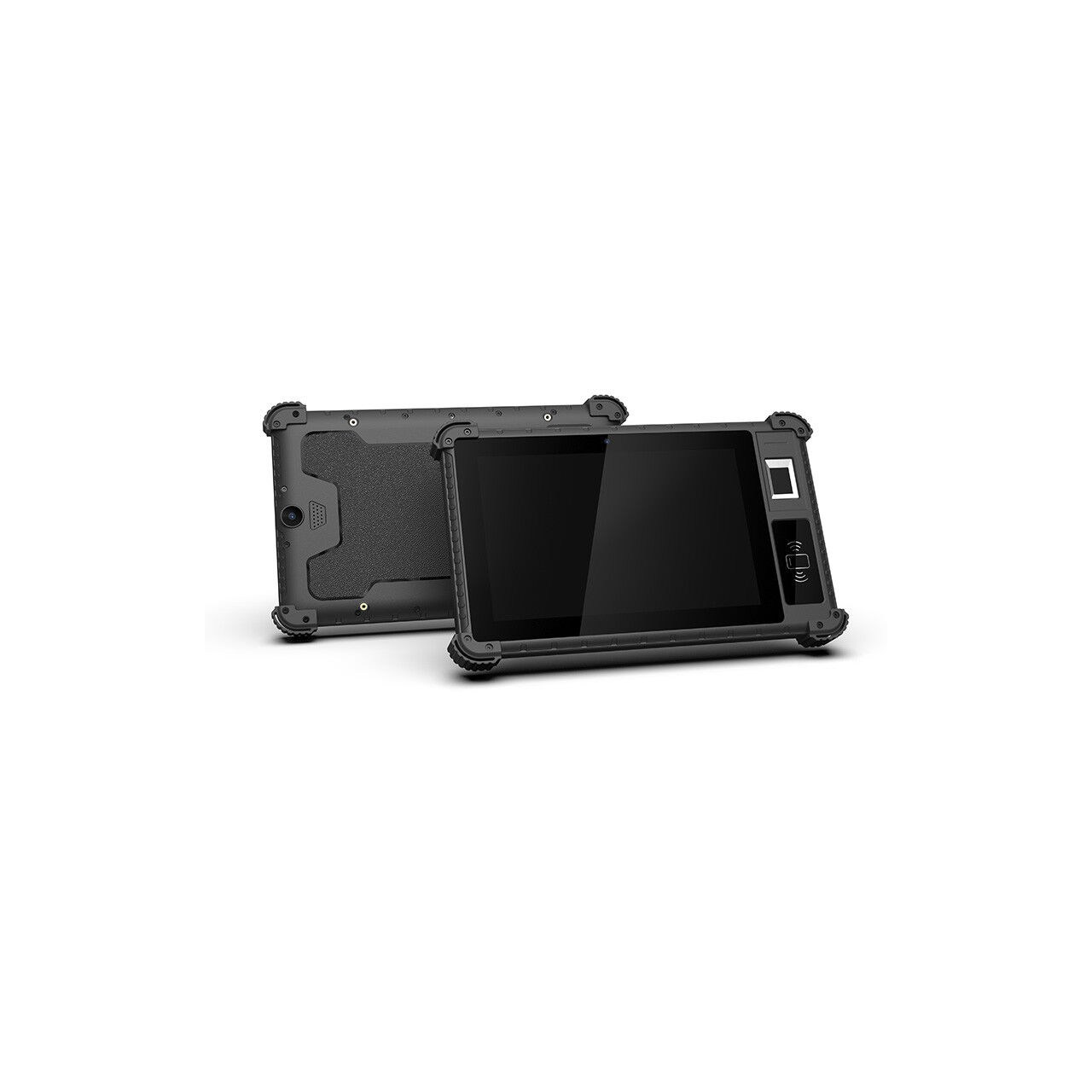

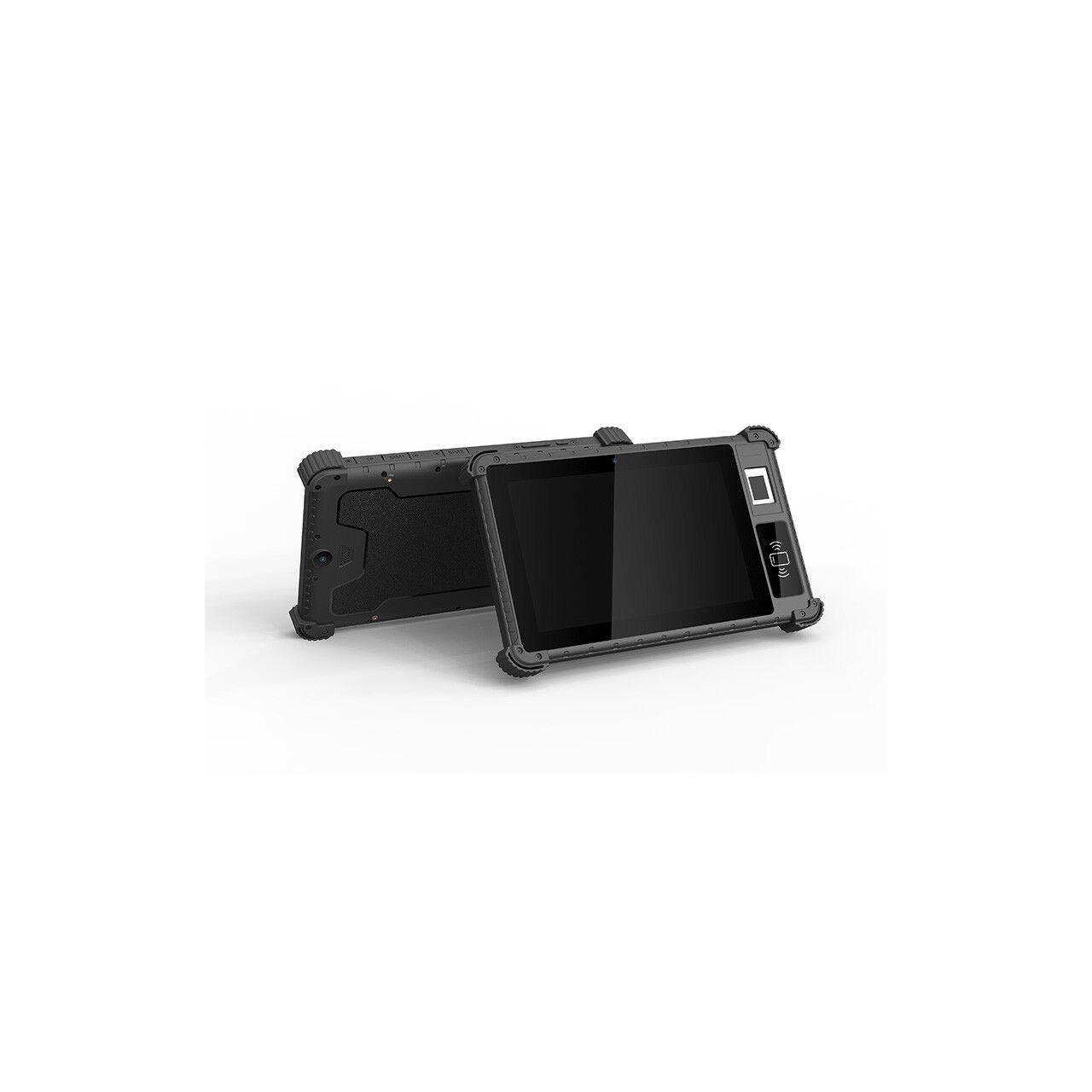

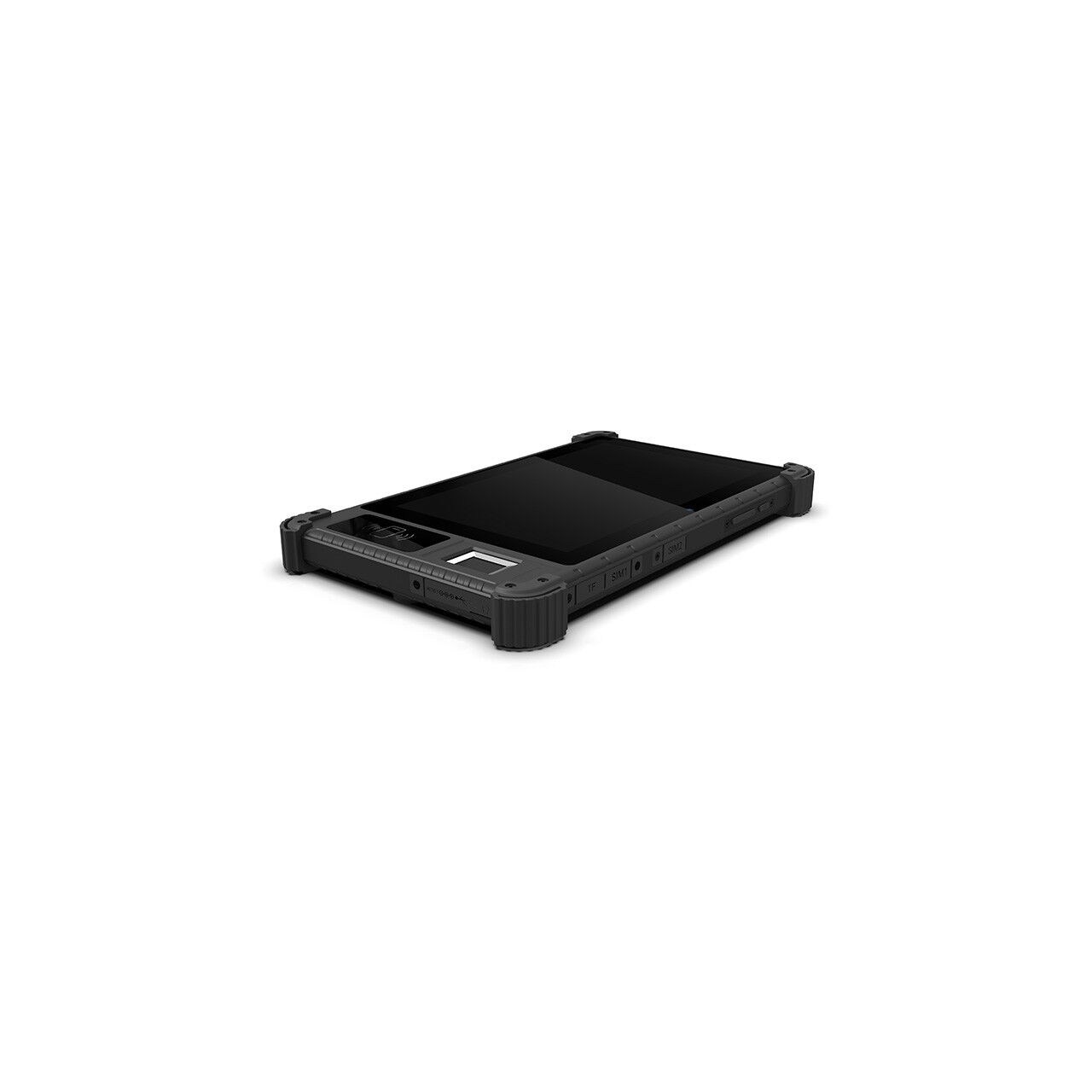

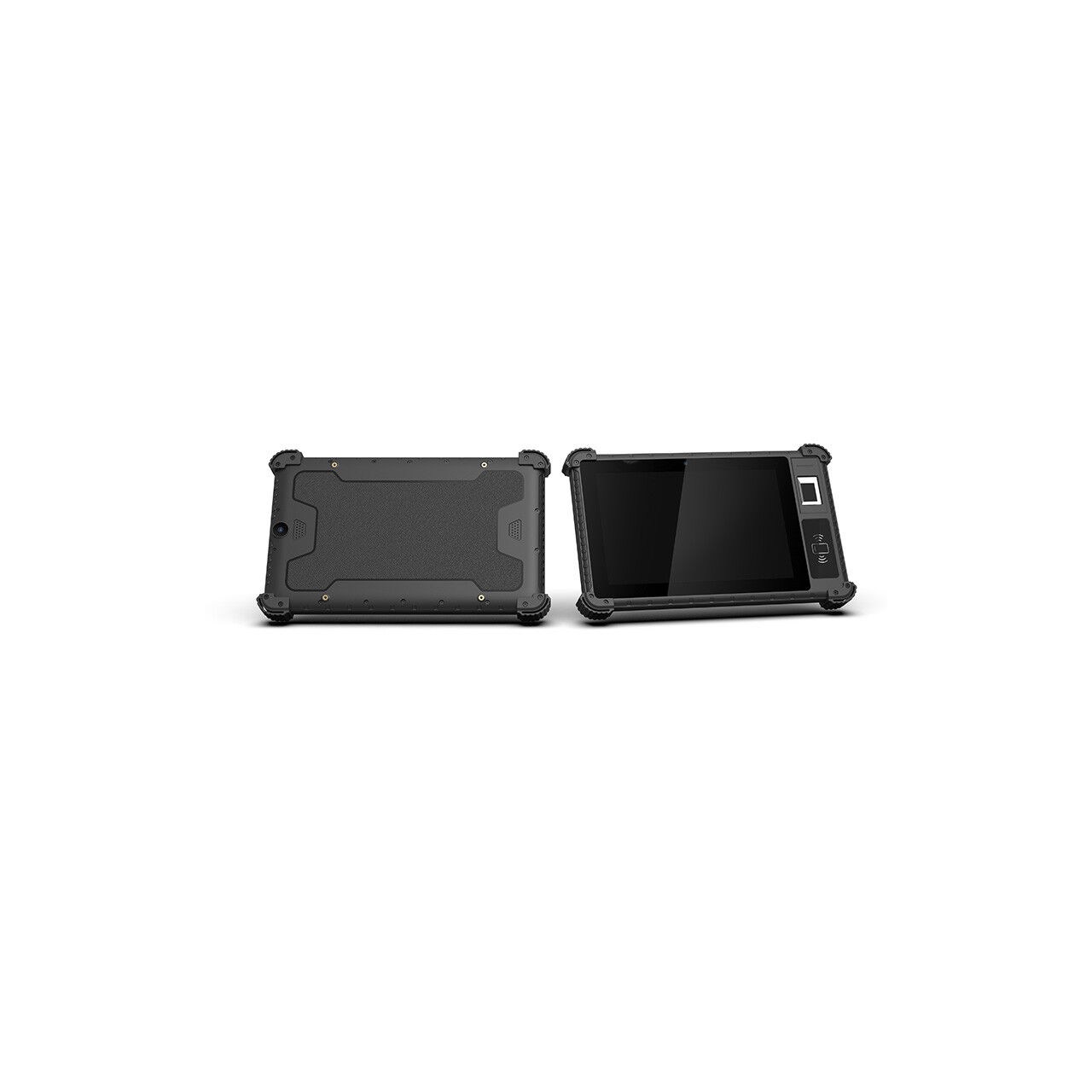

The product photographs show the enclosure, controls, connections and available finishes. Dimensions and weight refer to the configuration listed in the specification. Review the complete Specs tab for screen, battery, operating system and interface information before selecting accessories.
Explore related rugged tablets or request a wholesale configuration quote. The source product specifications provide the reference for this model.
RUGGEDMASTER DW-807 Rugged Tablets Specs
|
Specification |
||
|
CPU |
MTK6761 Quad core Cortex A53 2.0GHZ |
|
|
Operation system |
Android 9.0 |
|
|
Language |
support multiple language |
|
|
Memory |
2GB (4GB optional) |
|
|
Storage Device |
32GB (64GB optional) |
|
|
Micro-SD(Support up to 64GB) |
||
|
Gravity |
Support |
|
|
LCD |
Size |
8" IPS |
|
PIXEL |
1280*800Pixels (16:9) |
|
|
WiFi |
WIFI:IEEE802.11b/g/n wireless network |
|
|
2G |
GSM:850/900/1800/1900MHZ |
|
|
3G |
WCDMA:2100MHZ (WCDMA:850/900/1900MHZ Optional) |
|
|
4G |
B1. B2.B3.B7.B20 |
|
|
GPS |
Support |
|
|
FM |
Support |
|
|
Biometric Fingerprint |
(Biometric Fingerprint WSQ format and collection comparison) optional |
|
|
NFC |
Protocol ISO14443A/ISO14443B 13.56MHZ |
|
|
Bluetooth |
Bluetooth 4.0 |
|
|
Waterproof |
IP65 |
|
|
Dustproof |
Support |
|
|
Droppingproof |
Support |
|
|
Camera |
Front 2.0M,Rear 13.0M |
|
|
Power adapter |
5V/2A |
|
|
Battery Capacity |
3.7v/8000MAH |
|
|
I/O Port |
Type-C USB Slot*1, Sim Card Slots*1 ,TF card slot*1,3.5mm stereo headset*1 |
|
|
Function Key |
Physical Buttons key:Power/Vol+/Vol- Touch key: Back/Home/Menu/vol+/Vol- |
|
|
Movie File |
MKV(H.264 HP),AVI,RM/RMVB, MPEG-1,MPEG-2 |
|
|
Music File |
MP3,WMA,APE,FLAC,WAV |
|
|
Picture format |
JPEG,BMP,GIF,PNG,TIFF |
|
|
Size |
250*155*21mm |
|
|
Weight |
900G without pakage |
|
|
Shell Color |
Black. |
|
