RUGGEDMASTER DW-108 Rugged Tablets

RUGGEDMASTER DW-108 Rugged Tablets overview

RUGGEDMASTER DW-108 Rugged Tablets combines a larger IPS touchscreen with Android 11 and a MediaTek MTK6765 octa-core processor. Its 4GB RAM and 64GB storage support mobile business applications, and the 8000mAh battery powers the IP65 tablet away from a desk. Wired connections include RJ45 Ethernet and RS232 alongside USB and a docking connection. NFC, 4G LTE and dual-band Wi-Fi provide additional communication options. The supplier lists barcode scan-head support and optional biometric fingerprint, face-recognition and RFID hardware; these modules should be specified for the required configuration.

DW-108 hardware and display

• 10.1-inch IPS Touchscreen
• Android 11, 4GB RAM + 64GB
• 8000mAh Battery, IP65
• RJ45, RS232, NFC & Barcode Options

Platform, power and interfaces

The DW-108 configuration includes the following hardware and connection details. Optional components remain configuration choices and are not included in every unit.

• CPU — MTK6765 Octa core 2.4GHZ
• OS — Android 11
• Touch Panel — Glass+Glass
• Screen — 10" IPS 1280*800 (1920*1200 optional)
• Ram — 4GB
• Storage — 64GB
• WIFI — 802.1 ac/ b/g/n 2.4G/5G
• LTE 4G — Full netcom bands
• GPS — AGPS (Beidou /Glonass optional)
• Waterproof — IP65
• NFC — Protocol ISO14443A/ISO14443B 13.56MHZ
• Low frequency RFID — (134.2/125KHZ optional)
• UHF RFID — Optional
• Fingerprint — Biometric Fingerprint WSQ format and collection comparison Support USB/SPI communication mode /Fingerprint unlock optional
• Face recognition — Binocular camera wide dynamic face recognition camera optional
• 1D/2D barcode Scan — Scan head supporting USB and TTL-232 interface
• Magnetic compass — Support
• Gyroscope — Support
• RJ45 — Support (POE power supply optional)
• RS232 — Support
• Docking Charging — Support
• Waterproof — IP65

Configuration and deployment

RUGGEDMASTER DW-108 Rugged Tablets supports the configuration choices recorded in the Specs tab. Compare the processor, installed memory, storage and interfaces with the software and peripherals used in your deployment. Where the source lists a module as optional, include that requirement in your enquiry so the selected hardware can be confirmed. Battery duration depends on screen brightness, wireless use and application load.

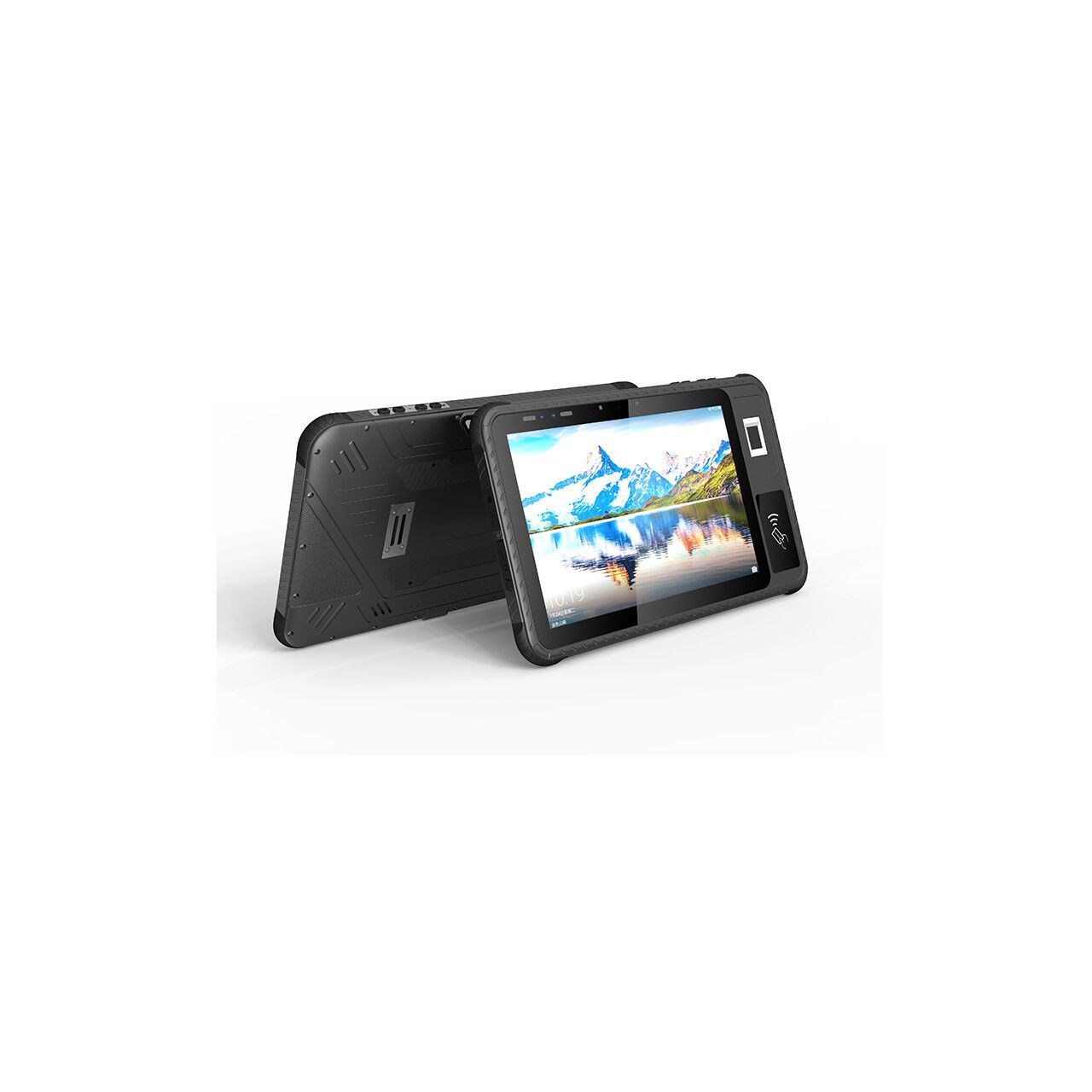

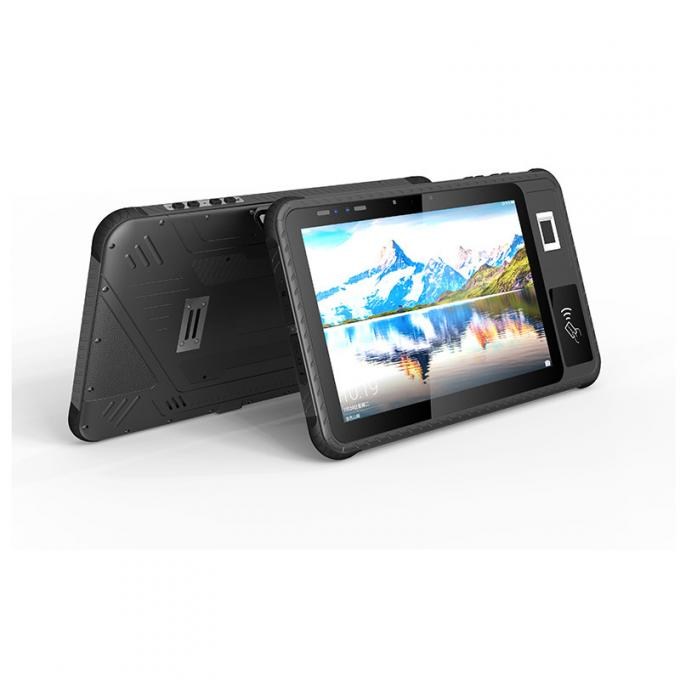

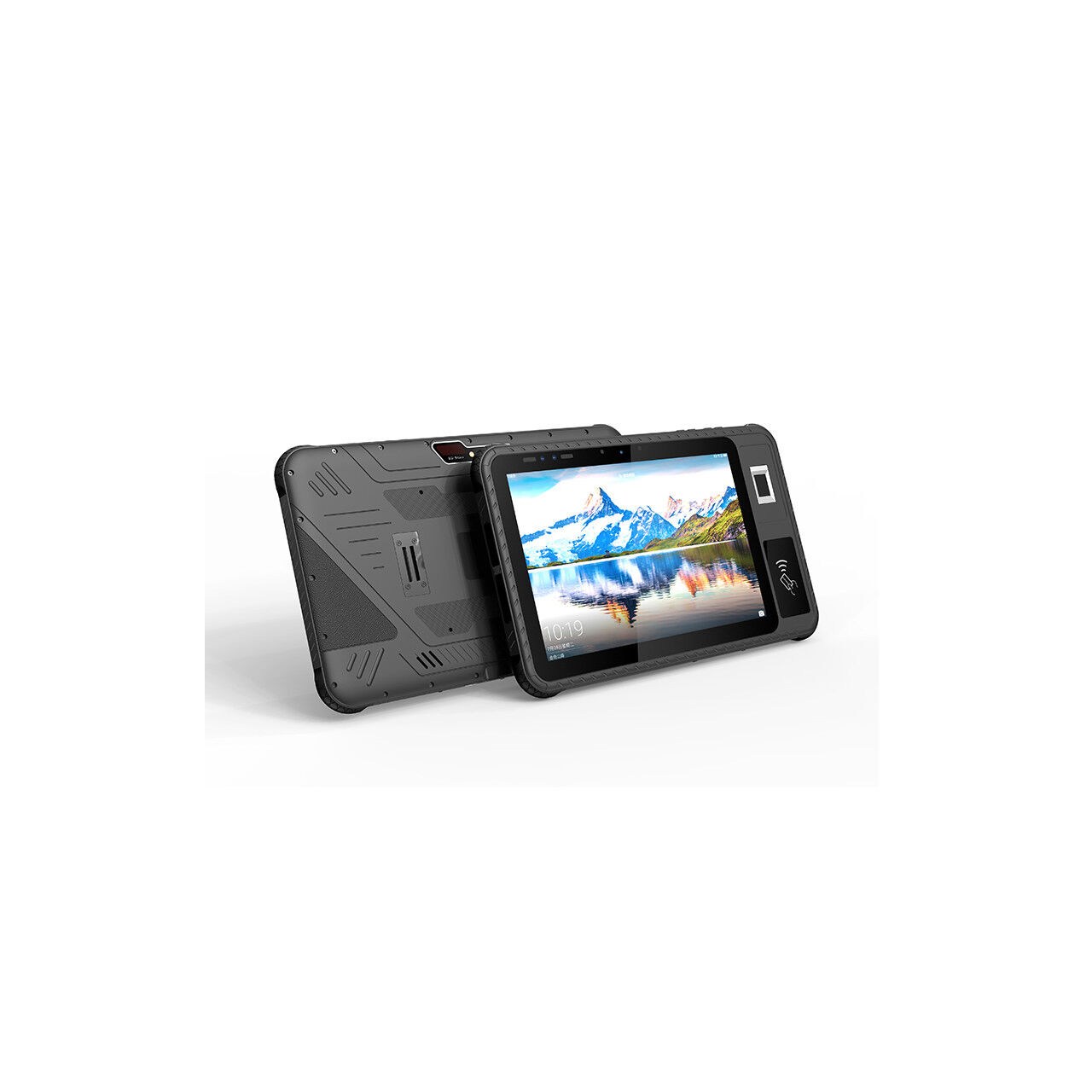

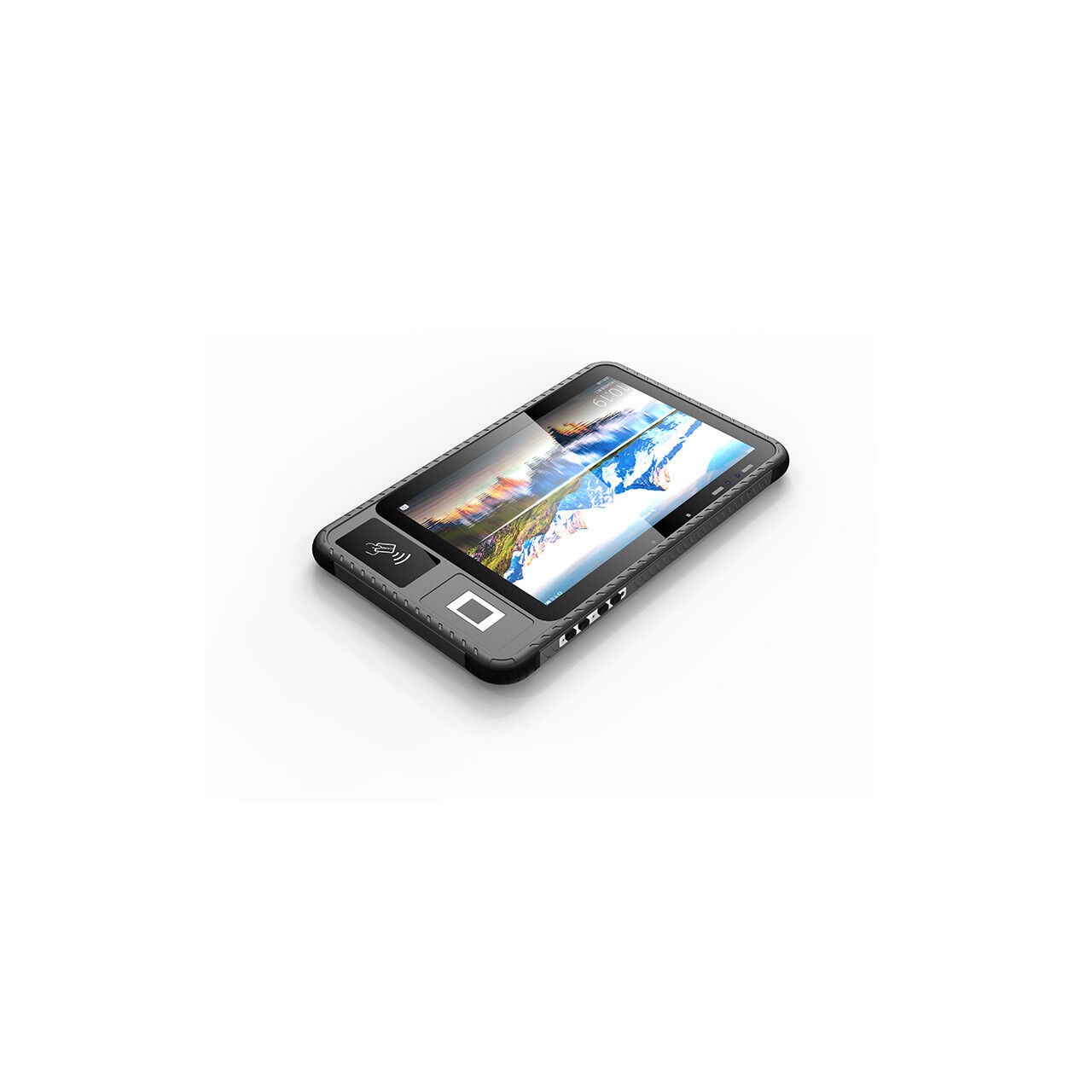

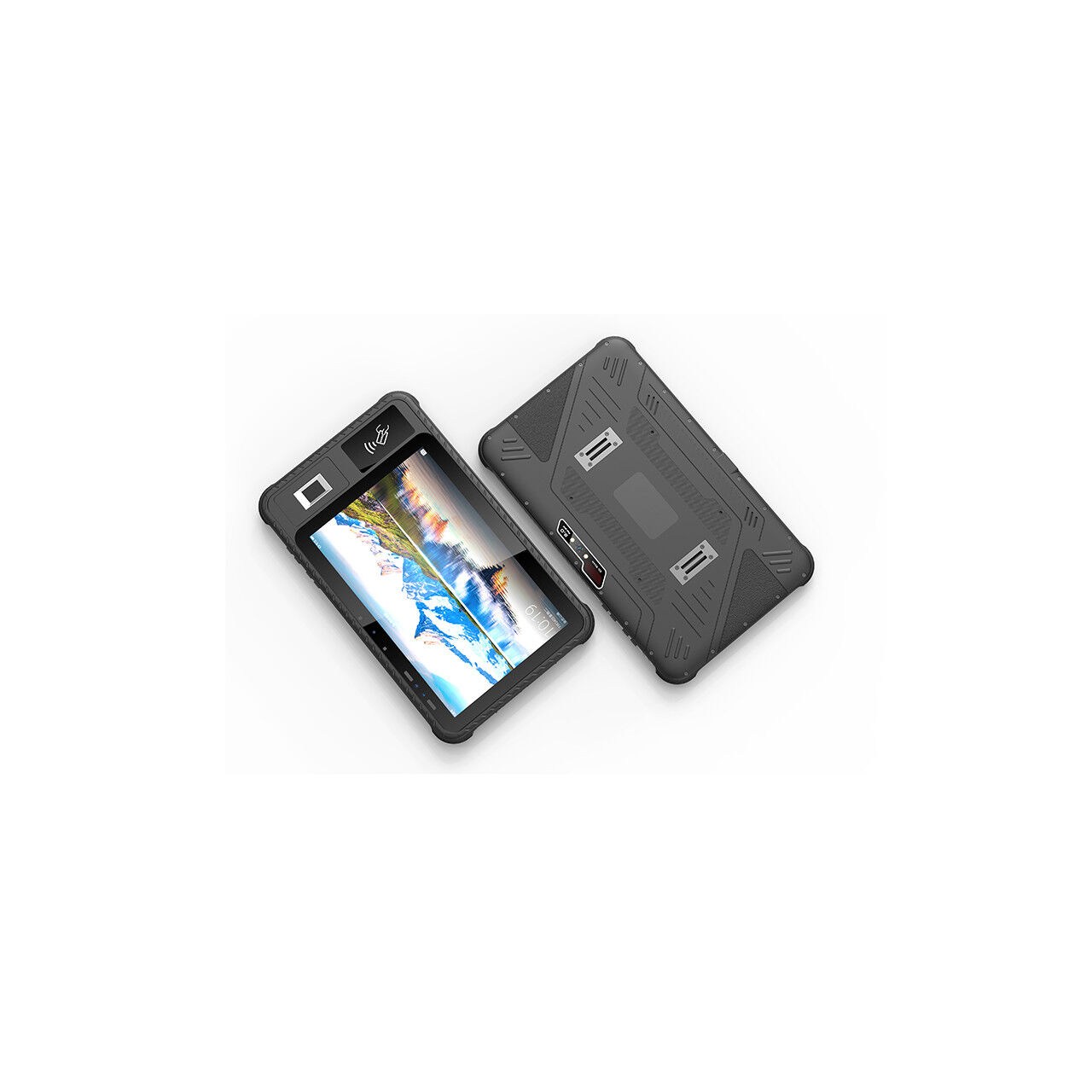

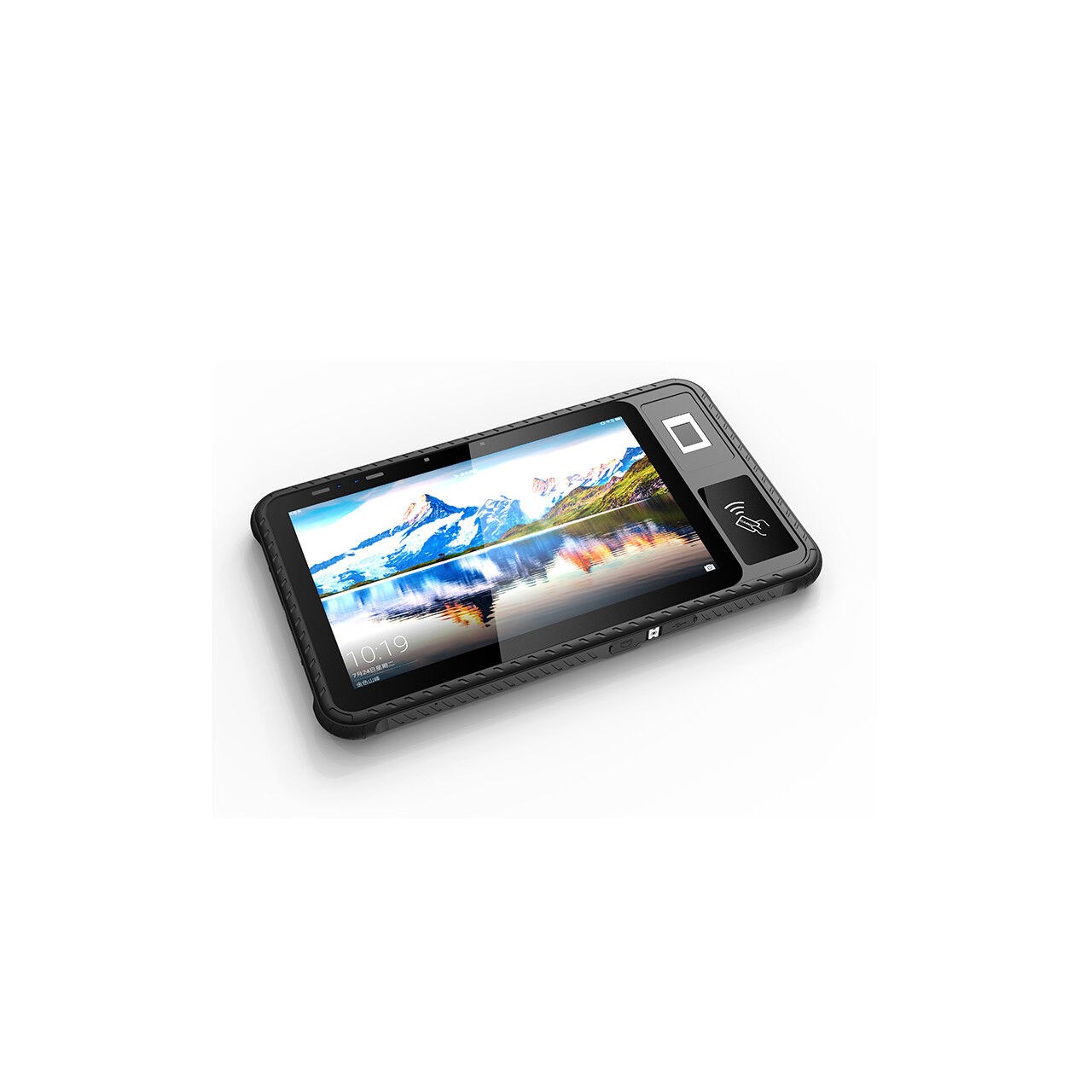

The product photographs show the enclosure, controls, connections and available finishes. Dimensions and weight refer to the configuration listed in the specification. Review the complete Specs tab for screen, battery, operating system and interface information before selecting accessories.

Explore related rugged tablets or request a wholesale configuration quote. The source product specifications provide the reference for this model.
