RUGGEDMASTER DW-103 Rugged Tablets

RUGGEDMASTER DW-103 Rugged Tablets overview

RUGGEDMASTER DW-103 Rugged Tablets pairs a 10.1-inch IPS touchscreen with an Intel Gemini Lake N4120 quad-core processor. The supplier lists 8GB LPDDR4 memory and 128GB eMMC storage, with Intel UHD 600 graphics. Its IP67 enclosure measures 280 × 184 × 26.5mm and weighs 1.15kg. An 8000mAh/7.6V battery supplies mobile power. The ten-point glass touchscreen uses an 800 × 1280 panel, and the device includes front and rear cameras. RJ45 Ethernet, dual-band Wi-Fi and Bluetooth 4.2 support industrial connectivity; 4G LTE and QR scanning hardware are optional.

DW-103 hardware and display

• 10.1-inch IPS, Ten-Point Touch
• Intel N4120, 8GB + 128GB eMMC
• 8000mAh / 7.6V Battery, IP67
• RJ45, Wi-Fi, Bluetooth & Optional 4G

Platform, power and interfaces

The DW-103 configuration includes the following hardware and connection details. Optional components remain configuration choices and are not included in every unit.

• Type — Details — Descriptions
• Product Form — Form Factor — IP67 Rugged Tablet PC
• Dimensions — 280×184×26.5mm
• Weight — 1.15KG
• LCD — Screen Size — 10.1"
• Screen Resolution — 800×1280 (IPS+HD+300ANSI)  (Standrd)
• TP — Touch Module — G+G Multi-Touch (10 Points)
• Battery — Type — Rechargeable lithium polymer
• Capacity — 8000mAh/7.6V
• Working Time — Over 8 hours (FHD local video display)
• Type — Details — Descriptions
• CPU — Type — Intel Gemini lake N4120 (Quad-Core)
• Speed — 1.1GHz ~ 2.6GHz (N4120)
• GPU — Type — Intel UHD 600 Graphics
• Memory — Capacity — 8GB LPDDR4
• Storage — eMMC — 128GB
• Camera — Front — 2M
• Rear — 5M
• Speaker — Built-in — 8Ω/1W*2pcs with water proof
• Micphone — Built-in — Yes
• G-sensor — Built-in — Yes
• Light-sensor — Built-in — Optional

Configuration and deployment

RUGGEDMASTER DW-103 Rugged Tablets supports the configuration choices recorded in the Specs tab. Compare the processor, installed memory, storage and interfaces with the software and peripherals used in your deployment. Where the source lists a module as optional, include that requirement in your enquiry so the selected hardware can be confirmed. Battery duration depends on screen brightness, wireless use and application load.

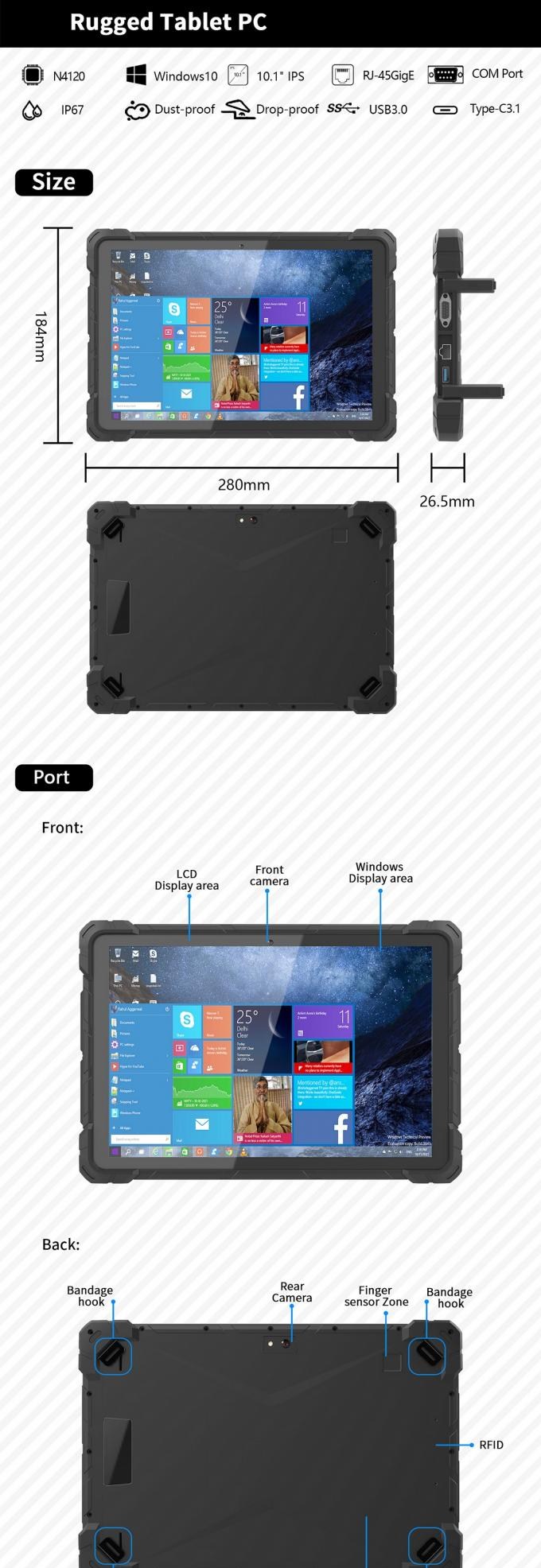

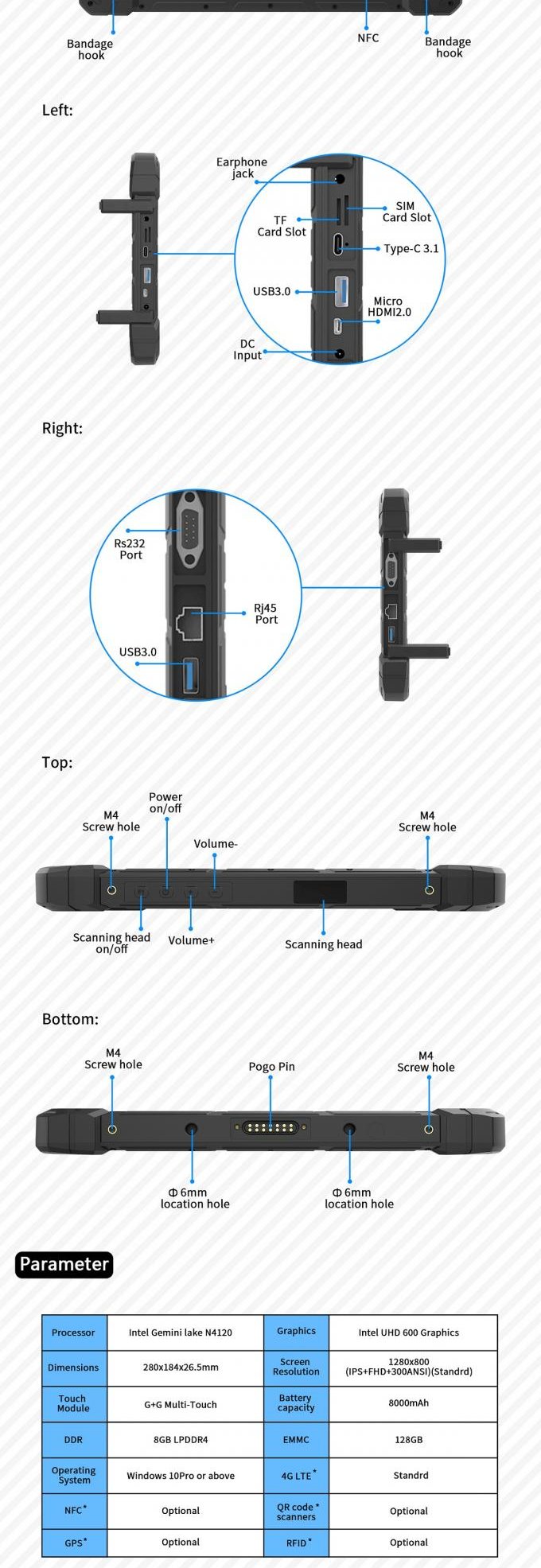

The product photographs show the enclosure, controls, connections and available finishes. Dimensions and weight refer to the configuration listed in the specification. Review the complete Specs tab for screen, battery, operating system and interface information before selecting accessories.
