RUGGEDMASTER DT910 Handheld RFID Readers

Description

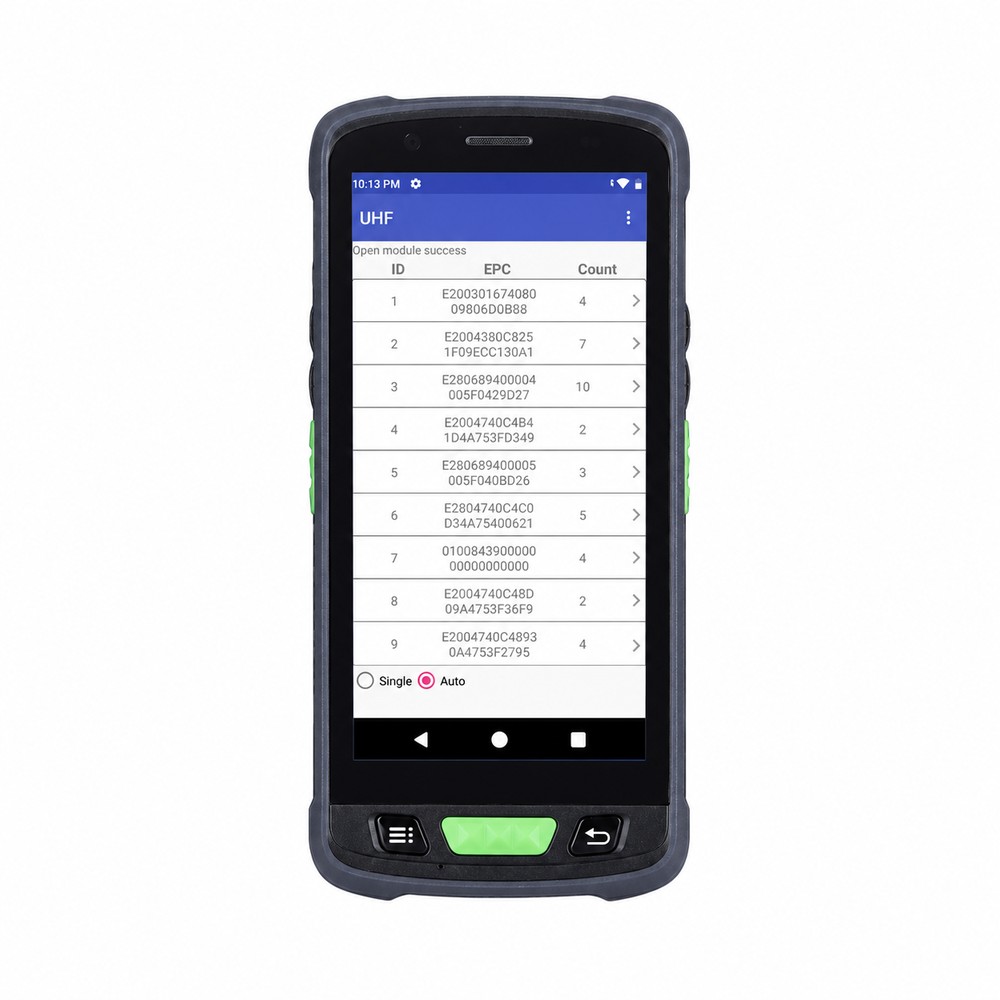

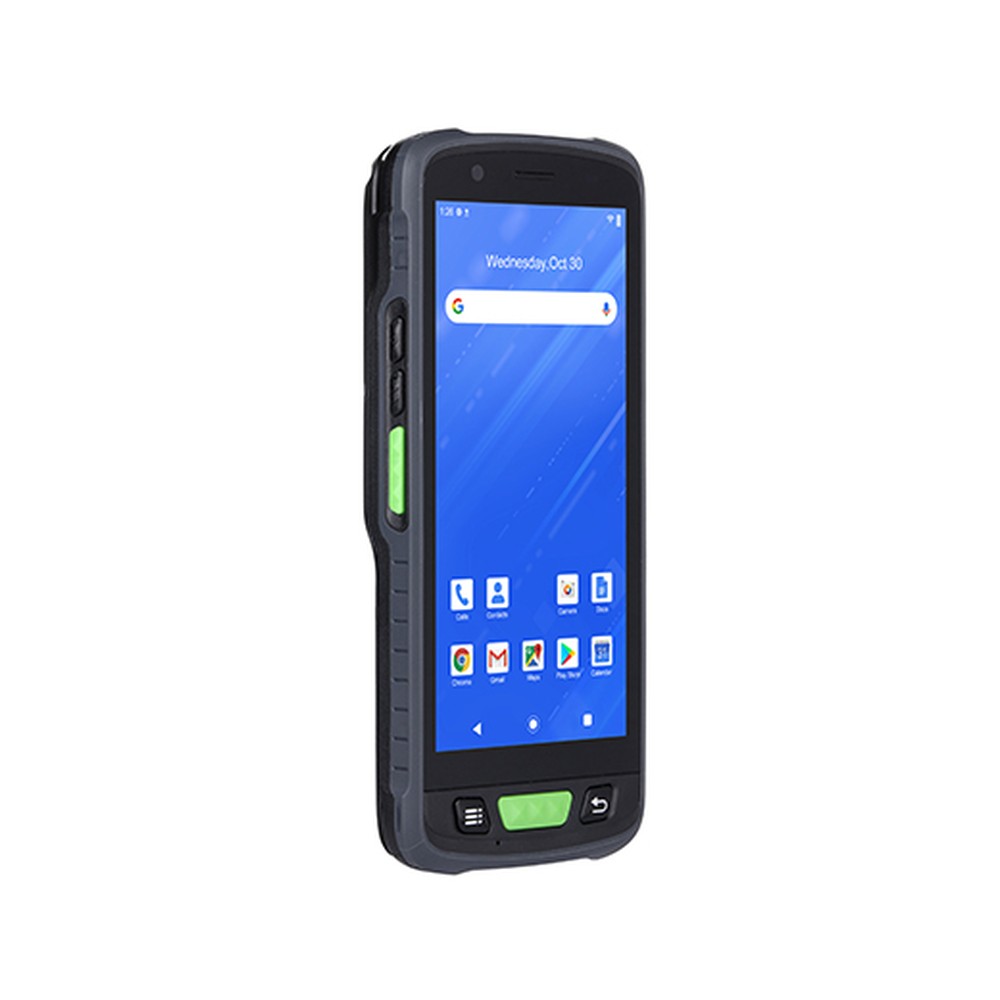

RUGGEDMASTER DT910 Handheld RFID Readers

RUGGEDMASTER DT910 combines the features and configurations shown below. Review the product overview, original feature graphics and complete Specs when selecting units for a bulk order.

Livestock Dedicated Rugged Handheld RFID LF Terminal

Full-Features to Deliver the Best Service

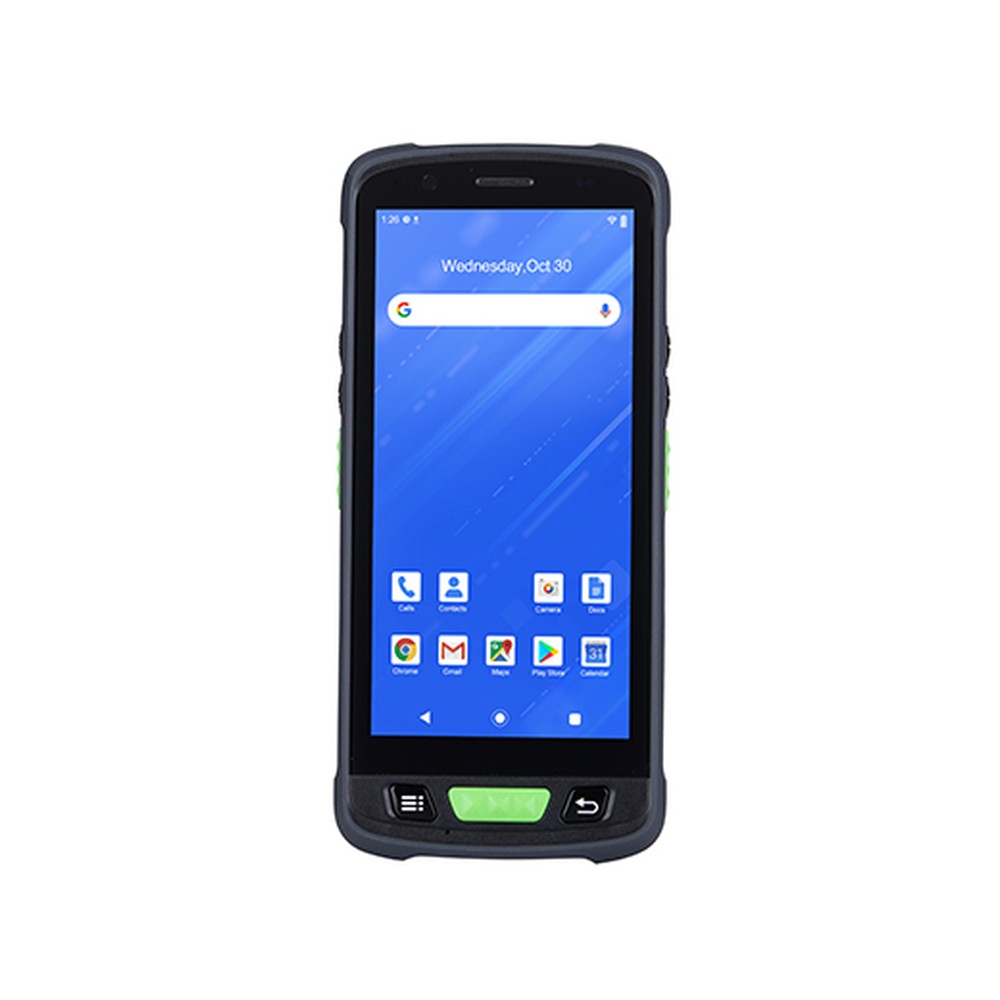

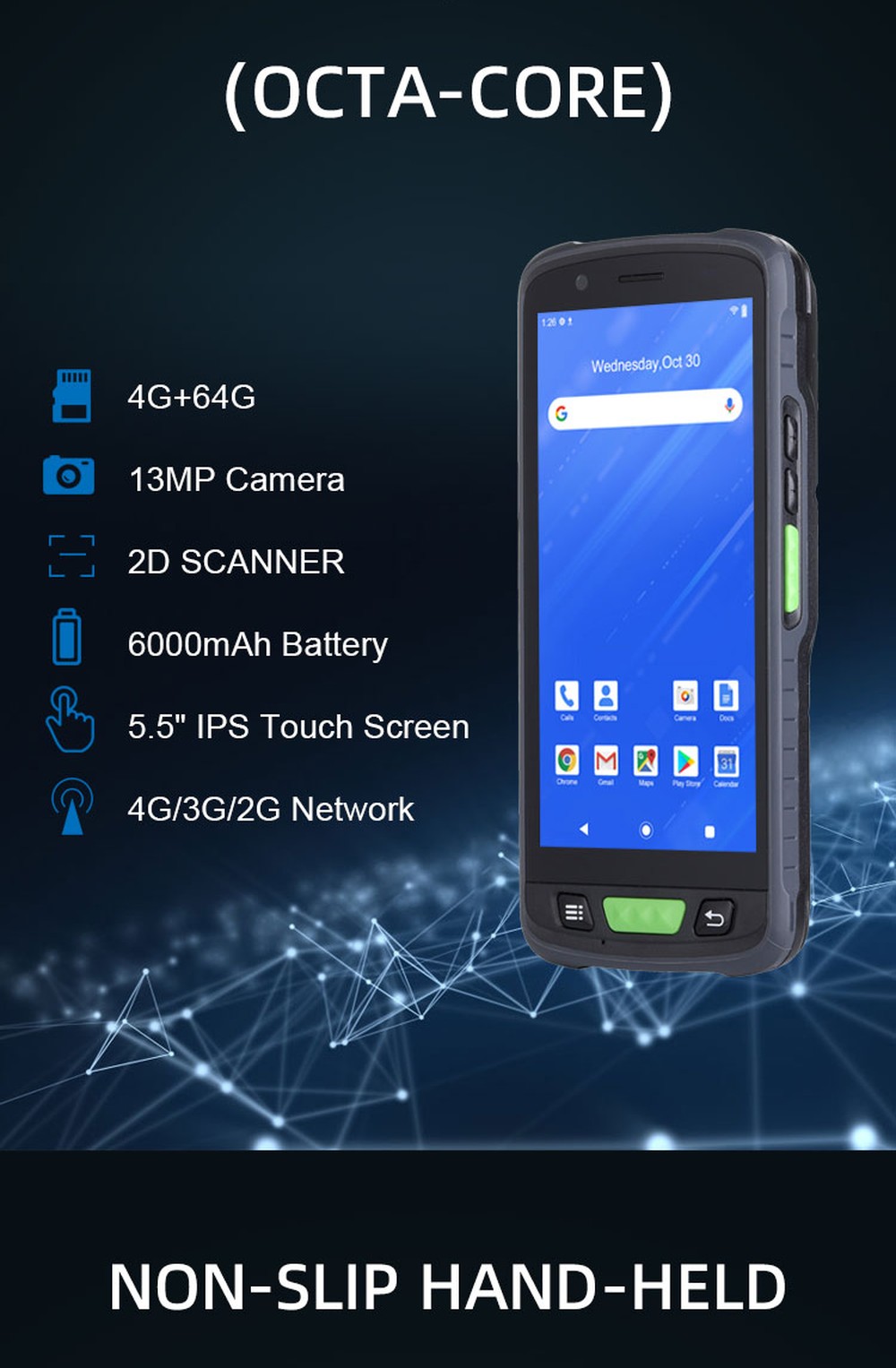

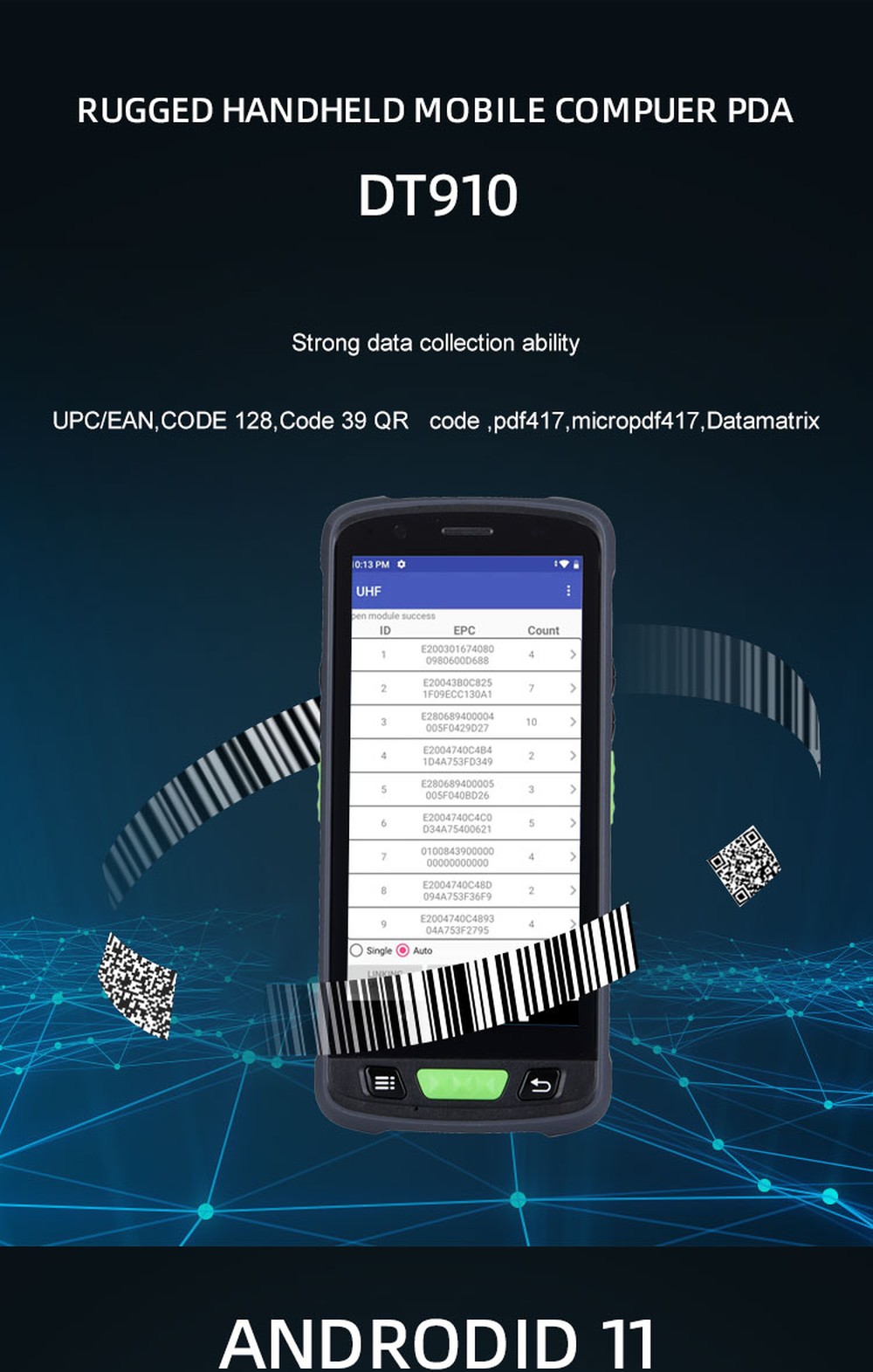

DT910 built-in fuselage 6000mAh large capacity battery. Reliable heat dissipation design guarantees high power and high recognition rate，and is perfect for Livestock application. Excellent protection，certification of 1.5m height six side drop test. Its excellent ruggedness can operate reliably in many different harsh environment applications.The display of DT910 is one of the most boastful features of the handset. It comes with a 5.5 inch screen that has a resolution of 1440*720 pixels and 18:9 as the aspect ratio. It further assures you of a crystal clear and immersive experience. DT910 is equipped with a Octa-core 2.0Ghz Processor so that you can enjoy an uninterrupted preference. It features Android 11 OS, LF 134.2K/125K module combined with high sensitivity four arm spiral antenna has strong performance, Support reading various FDX and HDX RFID Tags.

Configuration overview

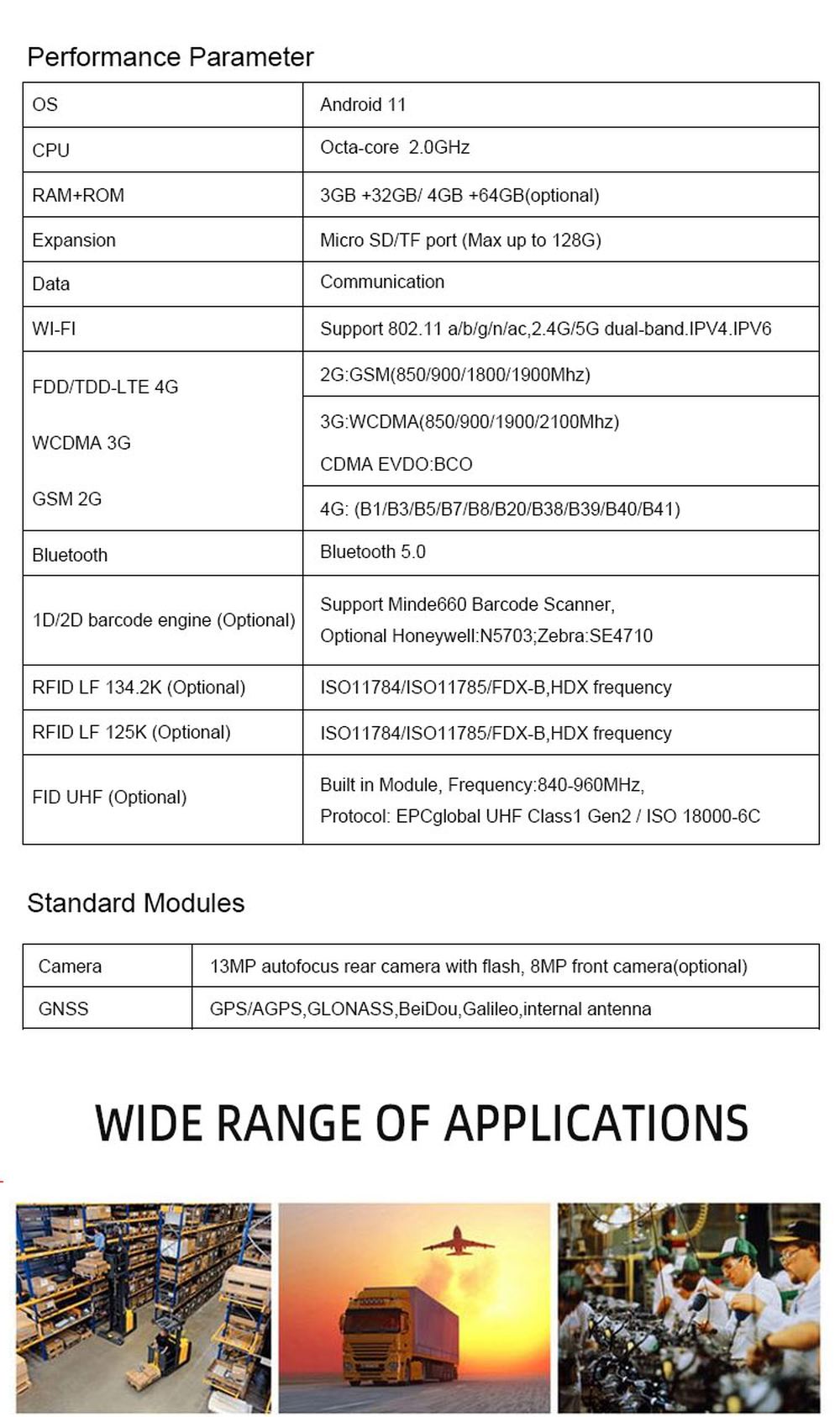

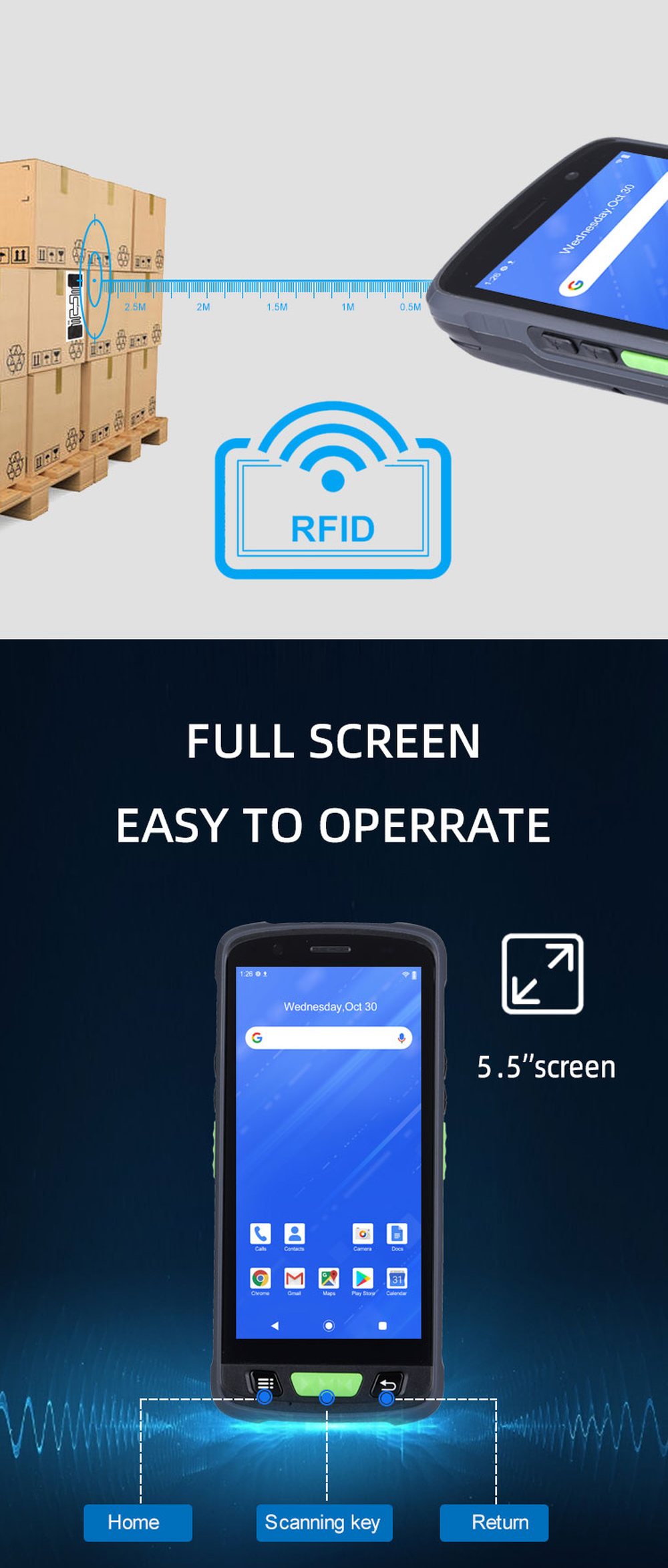

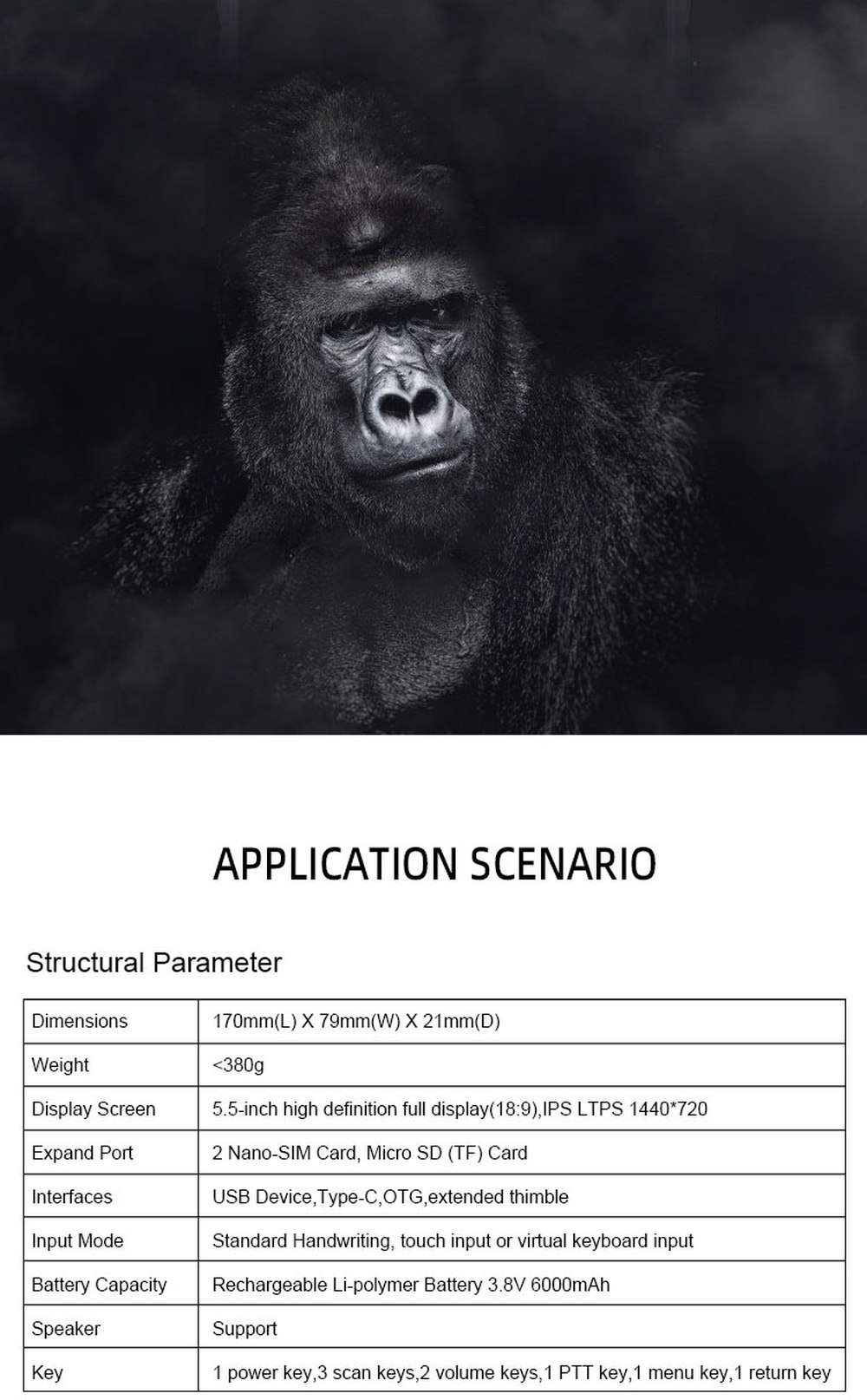

Technical specifications include Dimension: 170mm(L) X 79mm(W) X 21mm(D). Weight: 350g. Display / Touch Panel: 5.5-inch high definition full display(18:9),IPS LTPS 1440*720. Expansions: Micro SD (TF) Card Max support 128GB.

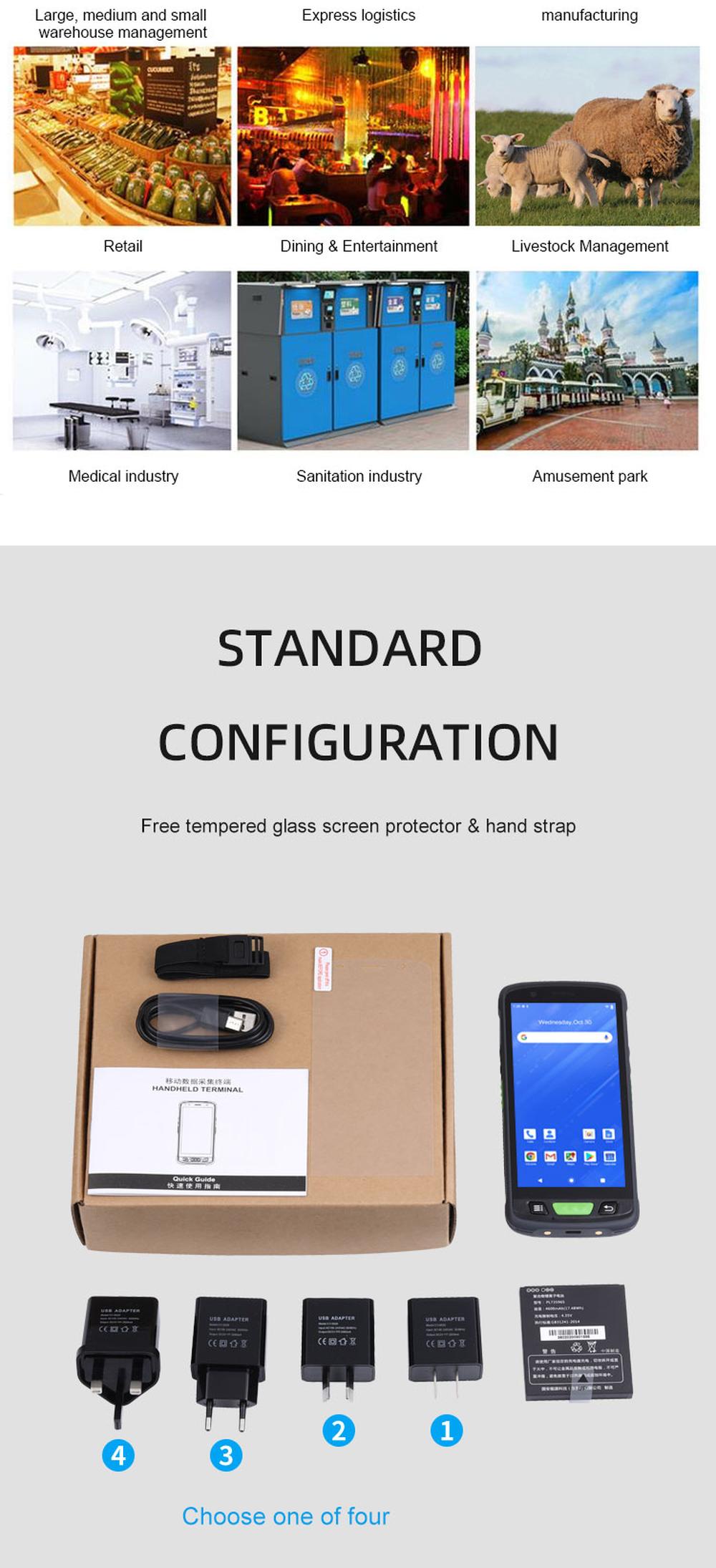

Technical specifications include Battery: Li-ion, rechargeable, 6000 mAh /3.8V Standby: over 500 hoursContinuous use: over 10 hours (depending on user environment). Power Adapter: Output DC 5V2A American standard has passed CE certificationOptional:(EU, US, UK, AU) Choose one of four. Audio: 1 microphone; 1 speaker; receiver. I/O Interfaces: USB Device,Type-C,OTG,extended thimble2 Nano-SIM Card, Micro SD (TF) Card.

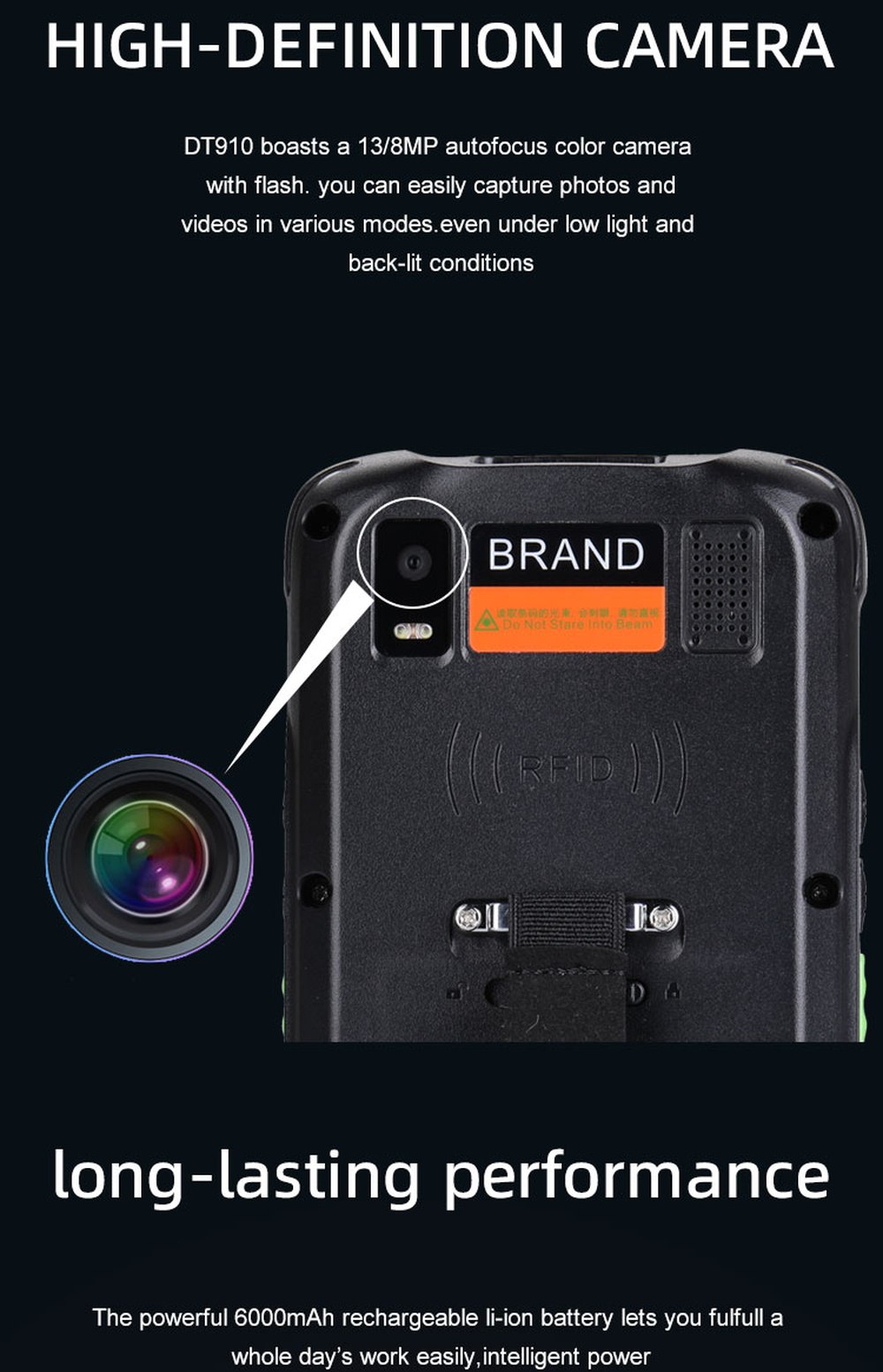

Technical specifications include Buttons: 1 power key,3 scan keys,2 volume keys,1 PTT key,1 menu key,1 return key. Camera: 13MP autofocus rear camera with flash, 8MP front camera(optional). CPU: Cortex-A53 2.2 GHz Octa-core. Operating System: Android 15/GMS.

Technical specifications include Storage: RAM 4GB / ROM 64GB. Operating Temp.: -20℃ to 50℃. Storage Temp.: -40℃ to 70℃. Humidity: 5%RH to 95%RH(non-condensing).

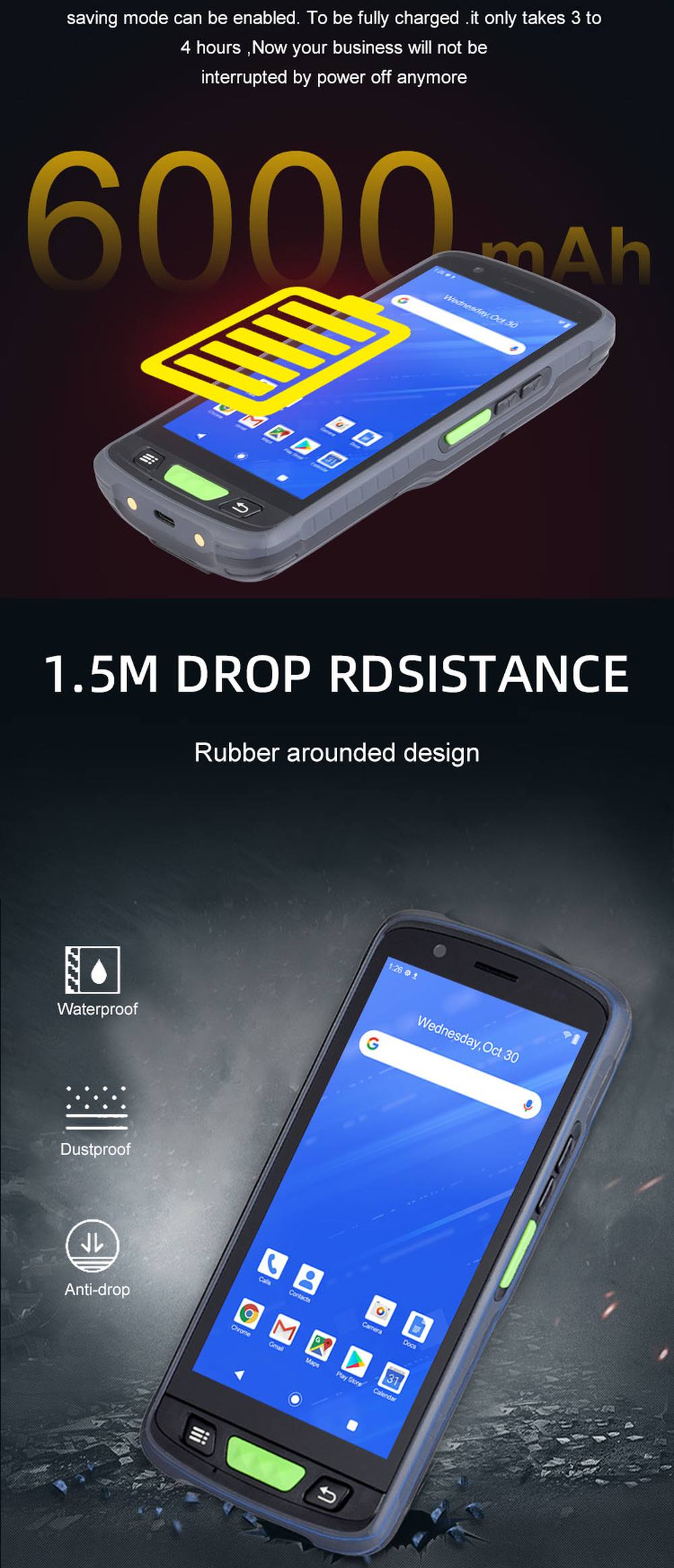

Technical specifications include Drop Specifications: 6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature. IP Protective Level: IP67. SDK: Dingdata Software Development Kit. Language: Java.

Technical specifications include Environment: Android Studio or Eclipse. WWAN: 2G:GSM(850/900/1800/1900Mhz)3G:WCDMA(850/900/1900/2100Mhz) CDMA EVDO:BCO4G: (B1/B3/B5/B7/B8/B20/B38/B39/B40/B41). WIFI: Support 802.11 a/b/g/n/ac,2.4G/5G. dual-band.IPV4.IPV6. Bluetooth: Bluetooth 5.0.

Wholesale purchasing information

For RUGGEDMASTER DT910, compare the pictured housing, connectors and controls with the configuration required by your application. The manufacturer may describe optional modules, memory configurations or regional network bands. These options are listed for reference; confirm the required configuration when requesting a quotation. Choose the interface and data-capture functions that match your existing workflow, software and installation requirements.

Review the complete Specs tab before placing a bulk order. It preserves the technical information supplied for this model, including the available operating environment and configuration details. Product pictures show the manufacturer’s existing views and available configurations. If your project needs a particular module, operating system version or connector, state that requirement in your enquiry so the configuration can be checked before ordering.

Explore related products in our RuggedMaster product catalog or send a bulk-order enquiry.

Manufacturer feature details
