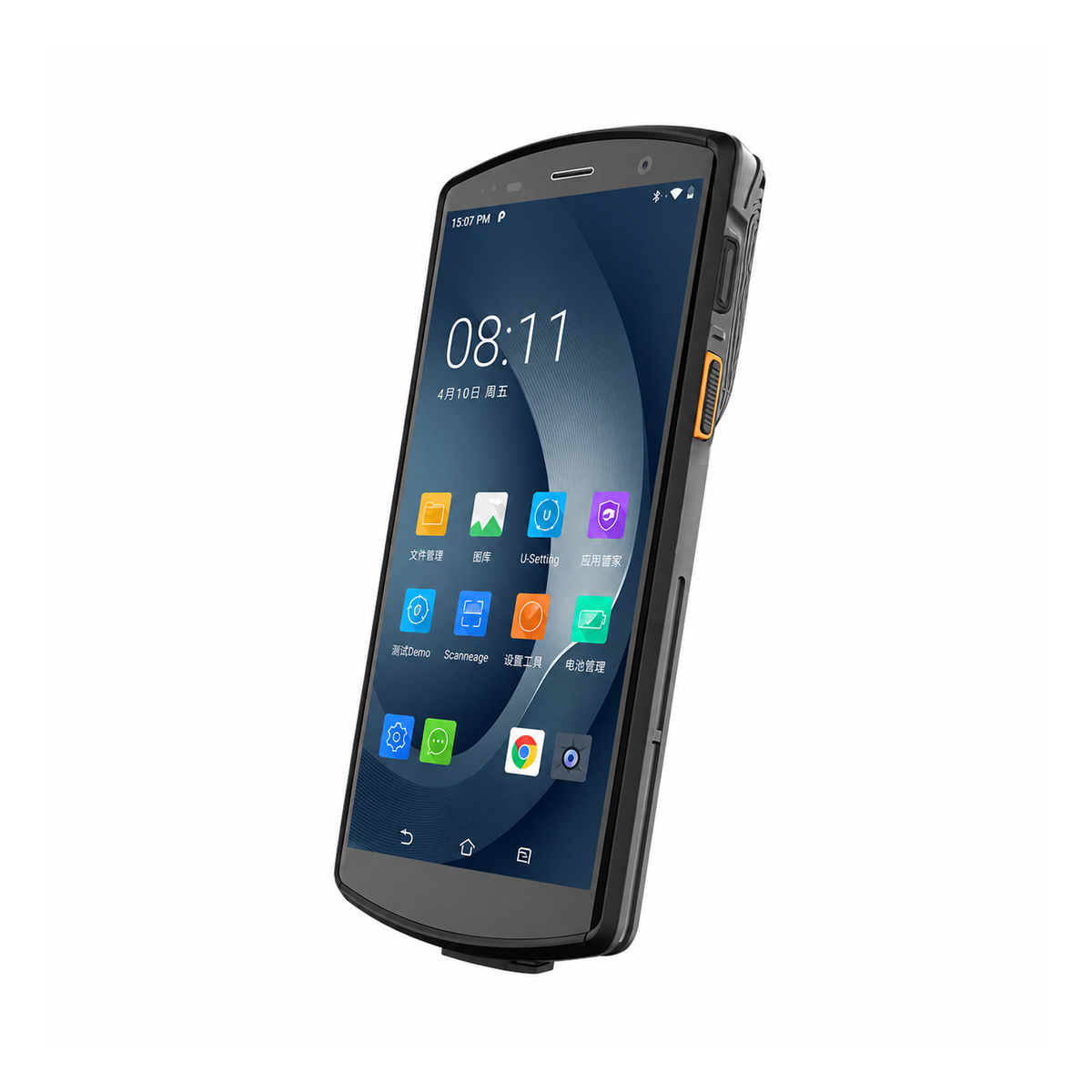

RUGGEDMASTER DT50(D) Handheld RFID Readers

Wholesale RUGGEDMASTER DT50(D) Handheld RFID Readers for bulk orders at RuggedMaster. Portable UHF RFID Reader DT50(D)

RUGGEDMASTER DT50(D) Product Features

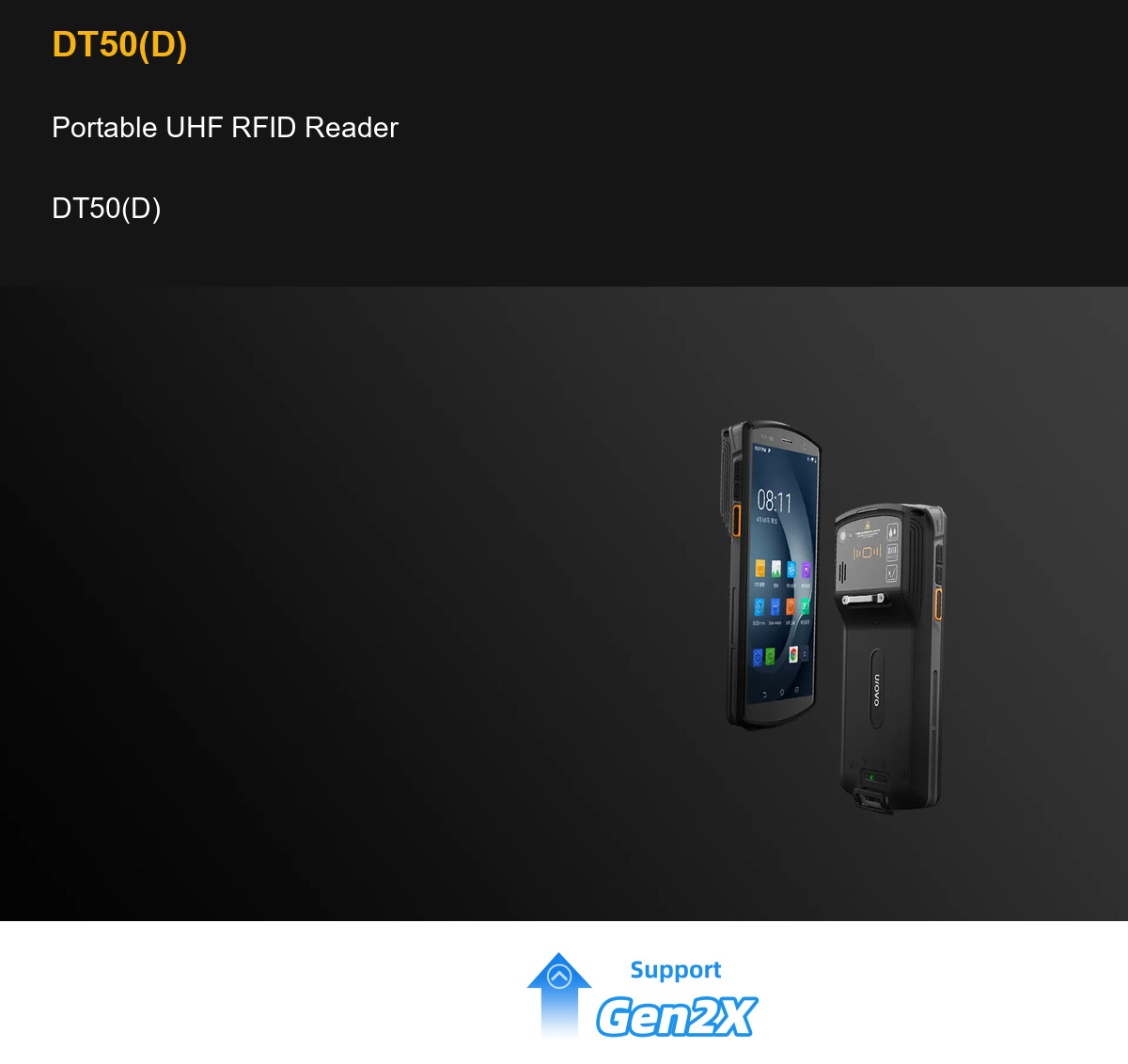

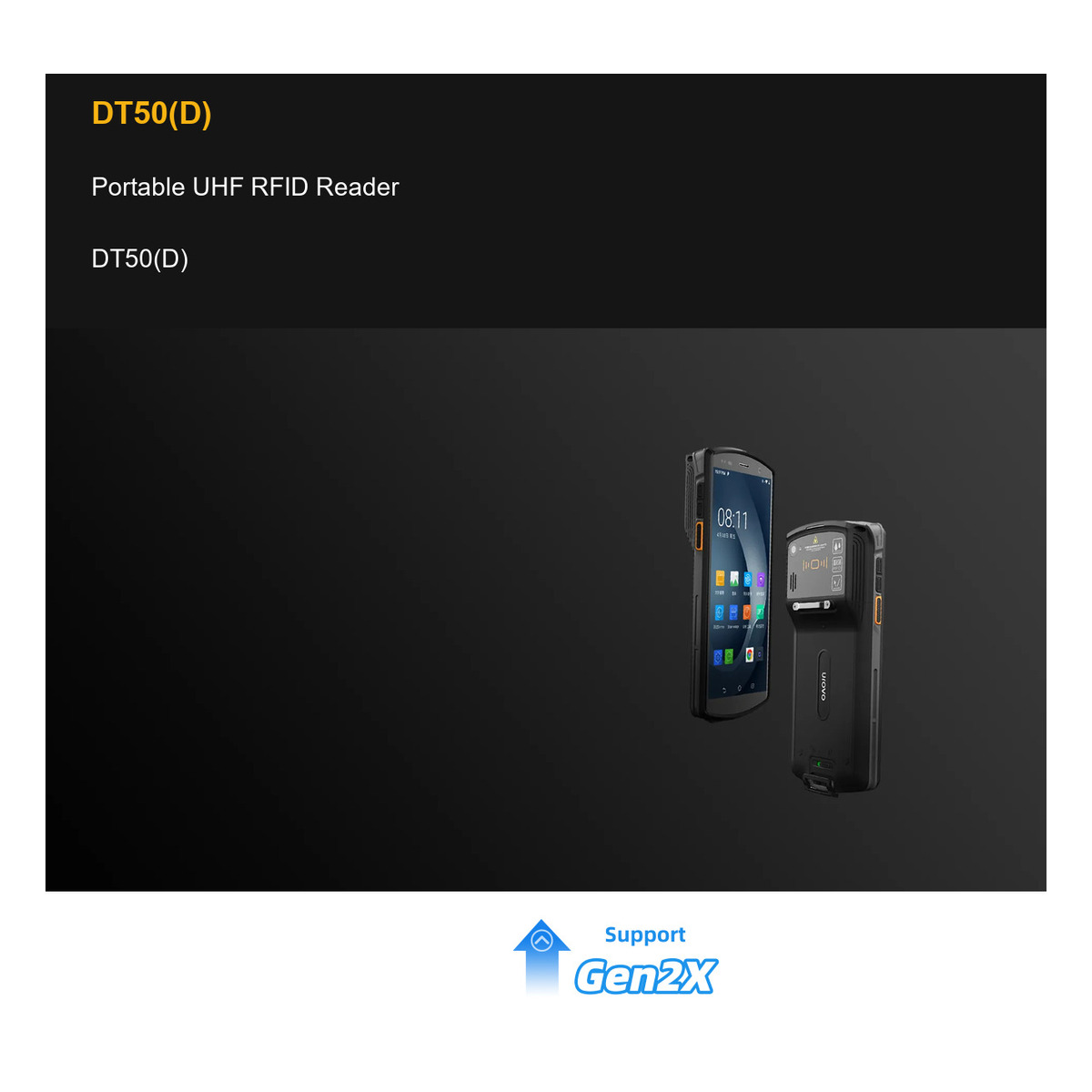

Portable UHF RFID Reader

DT50(D)

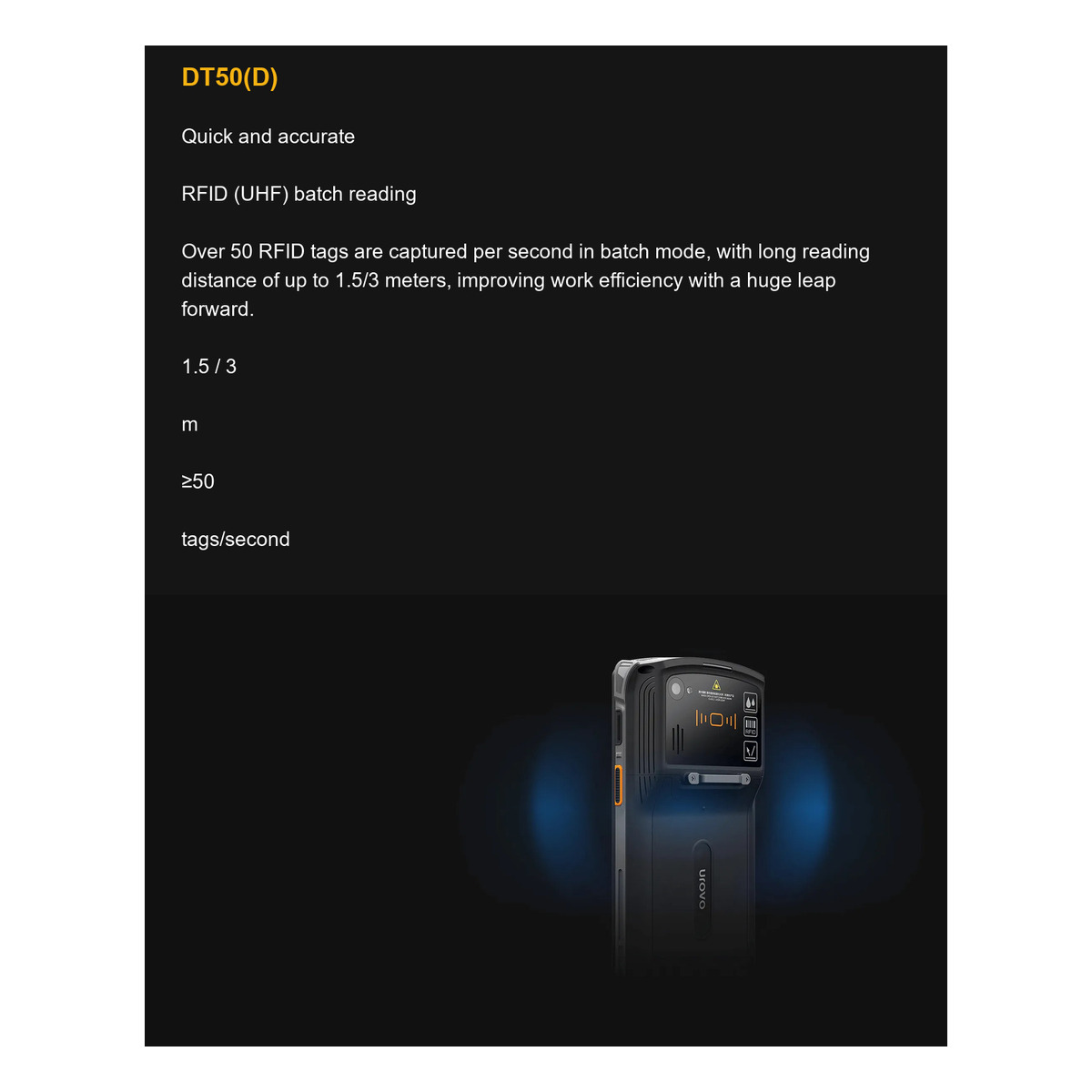

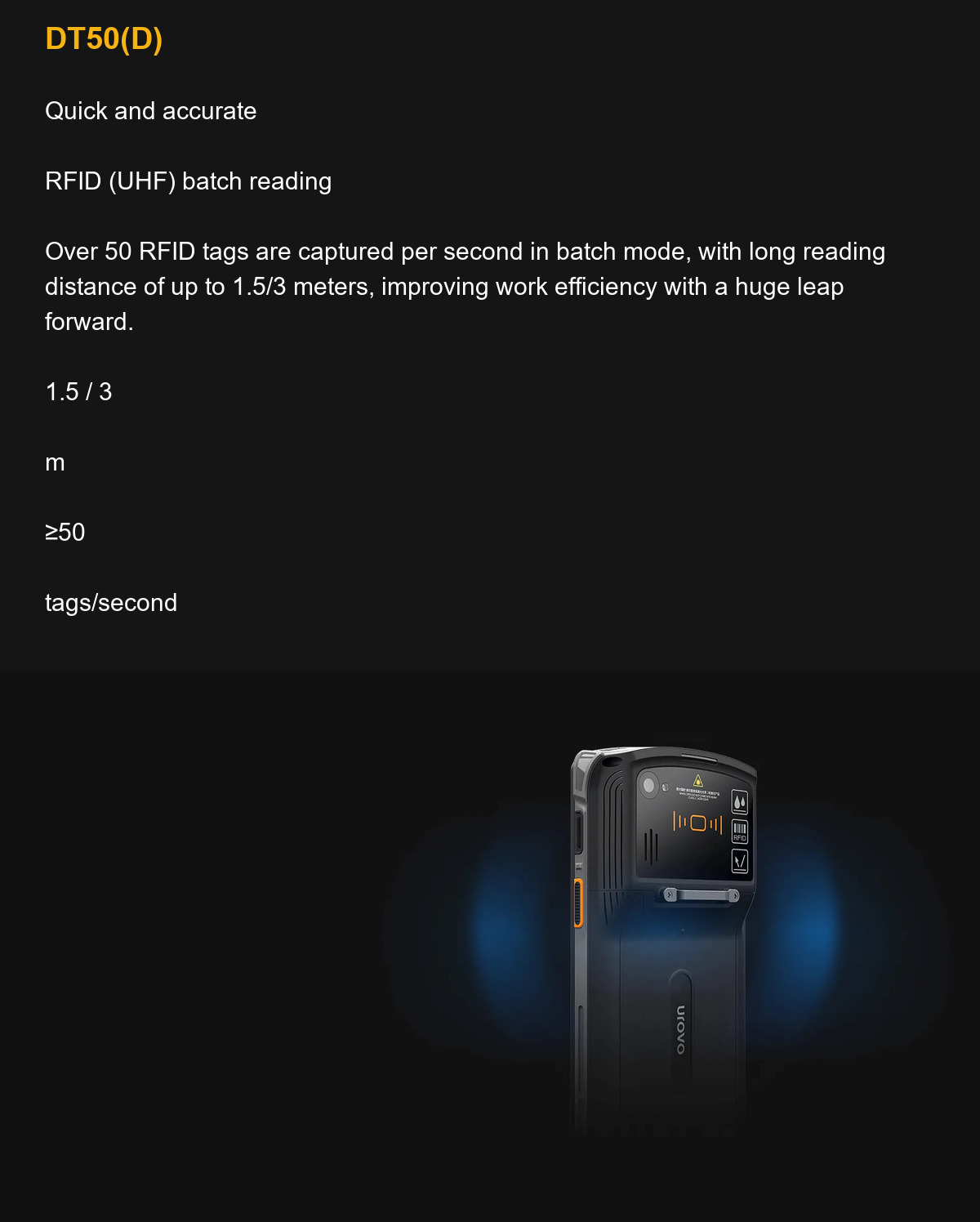

Quick and accurate

RFID (UHF) batch reading

Over 50 RFID tags are captured per second in batch mode, with long reading distance of up to 1.5/3 meters, improving work efficiency with a huge leap forward.

1.5 / 3

m

≥50

tags/second

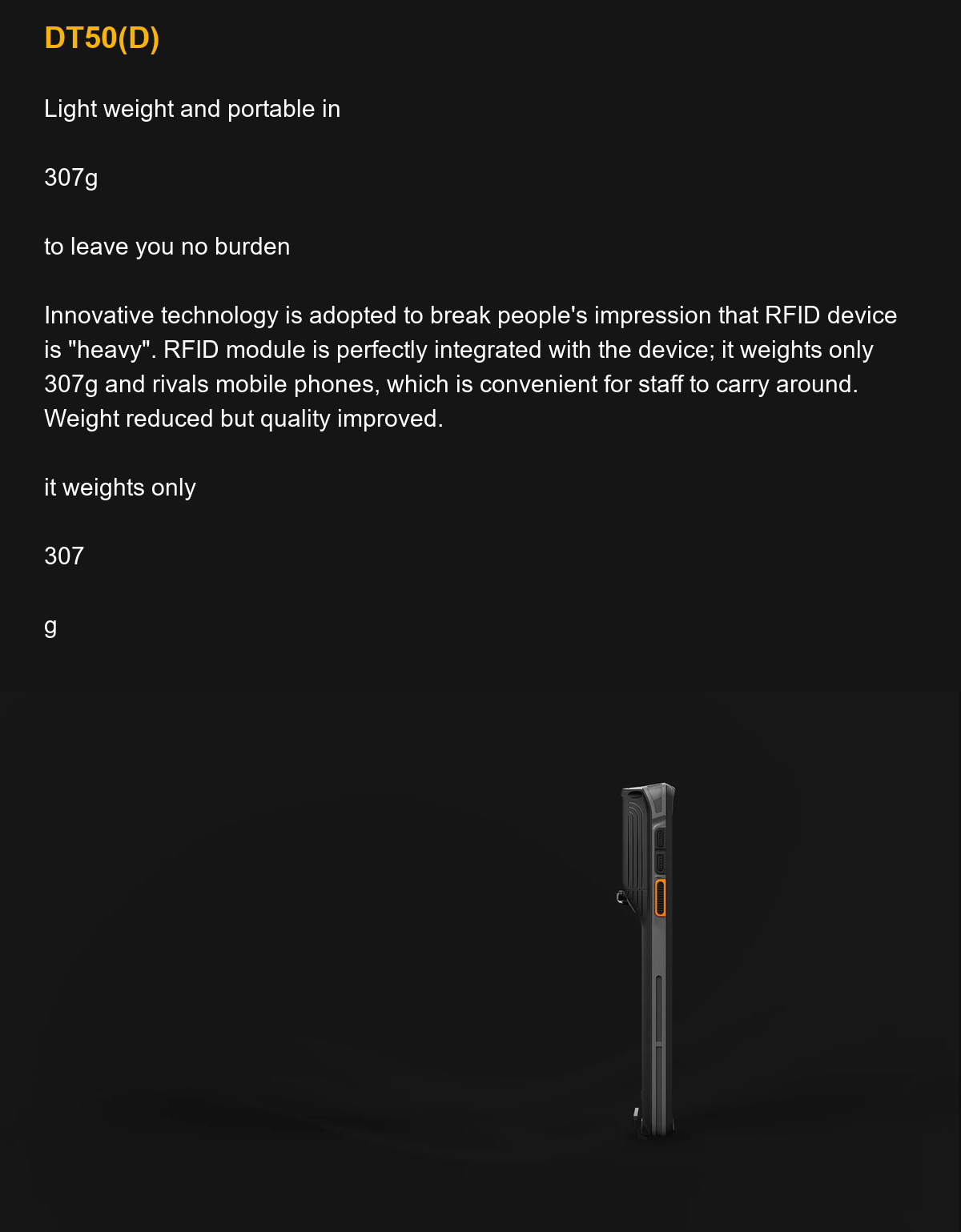

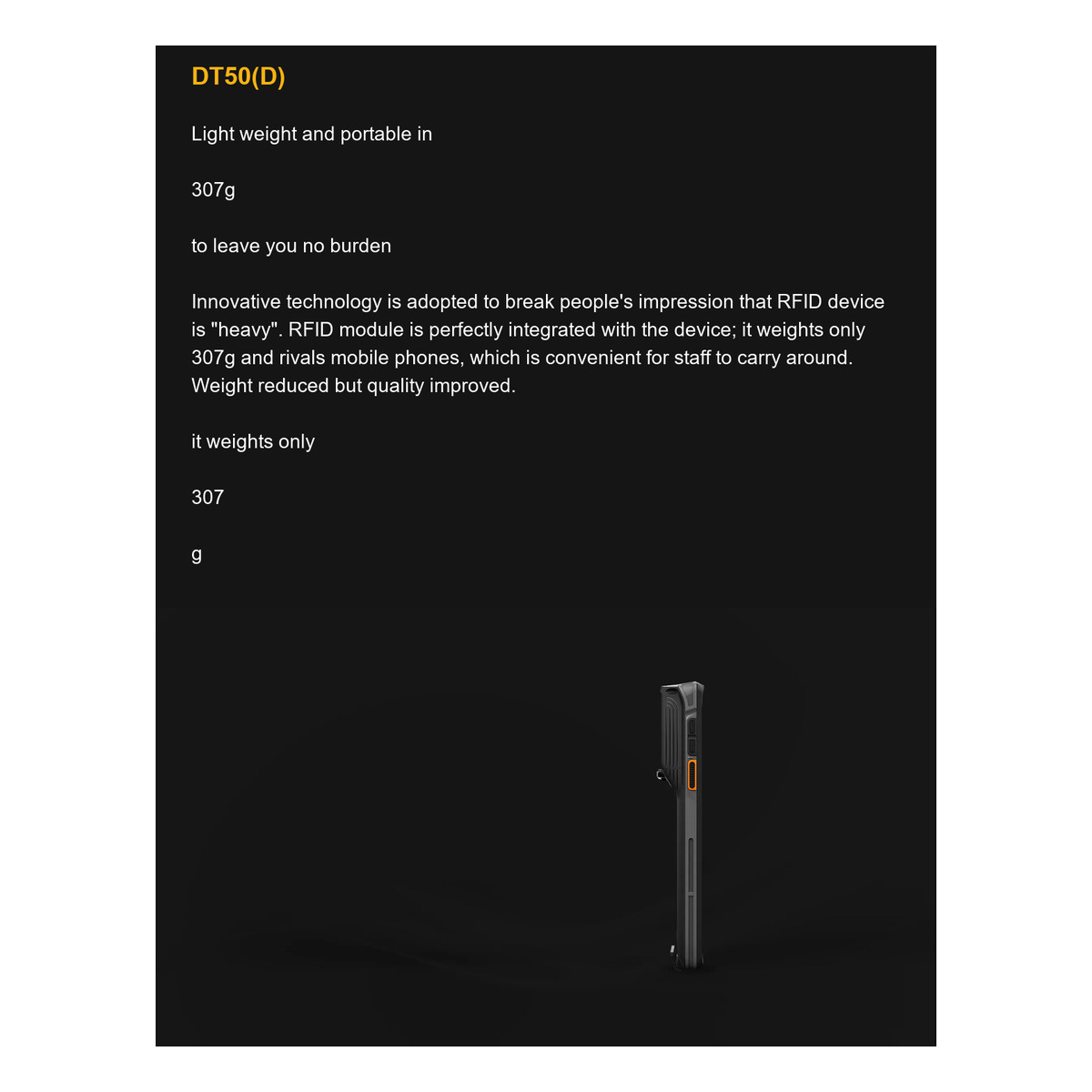

Light weight and portable in

307g

to leave you no burden

Innovative technology is adopted to break people's impression that RFID device is "heavy". RFID module is perfectly integrated with the device; it weights only 307g and rivals mobile phones, which is convenient for staff to carry around. Weight reduced but quality improved.

it weights only

307

g

High-performance configuration to make it more outstanding

High-performance configuration to

make it more outstanding

With built-in high-performance Qualcomm Octa-core CPU and Android 9.0 operating system, multiple tasks processing with low power consumption is enabled. Massive data storage of 4GB RAM+64GB ROM with a maximum extended memory of 256GB, allow your operation be more efficient;

high-performance Octa-core CPU

Android

4GB RAM+64GB ROM

with a maximum extended memory of 256GB

With built-in high-performance Octa-core CPU and Android operating system, multiple tasks processing with low power consumption is enabled. Massive data storage of 4GB RAM+64GB ROM with a maximum extended memory of 256GB, allow your operation be more efficient;

Keep you online in the IOT Era

Support DSDS and full network in 4G/3G/2G

to keep you always be online everywhere.

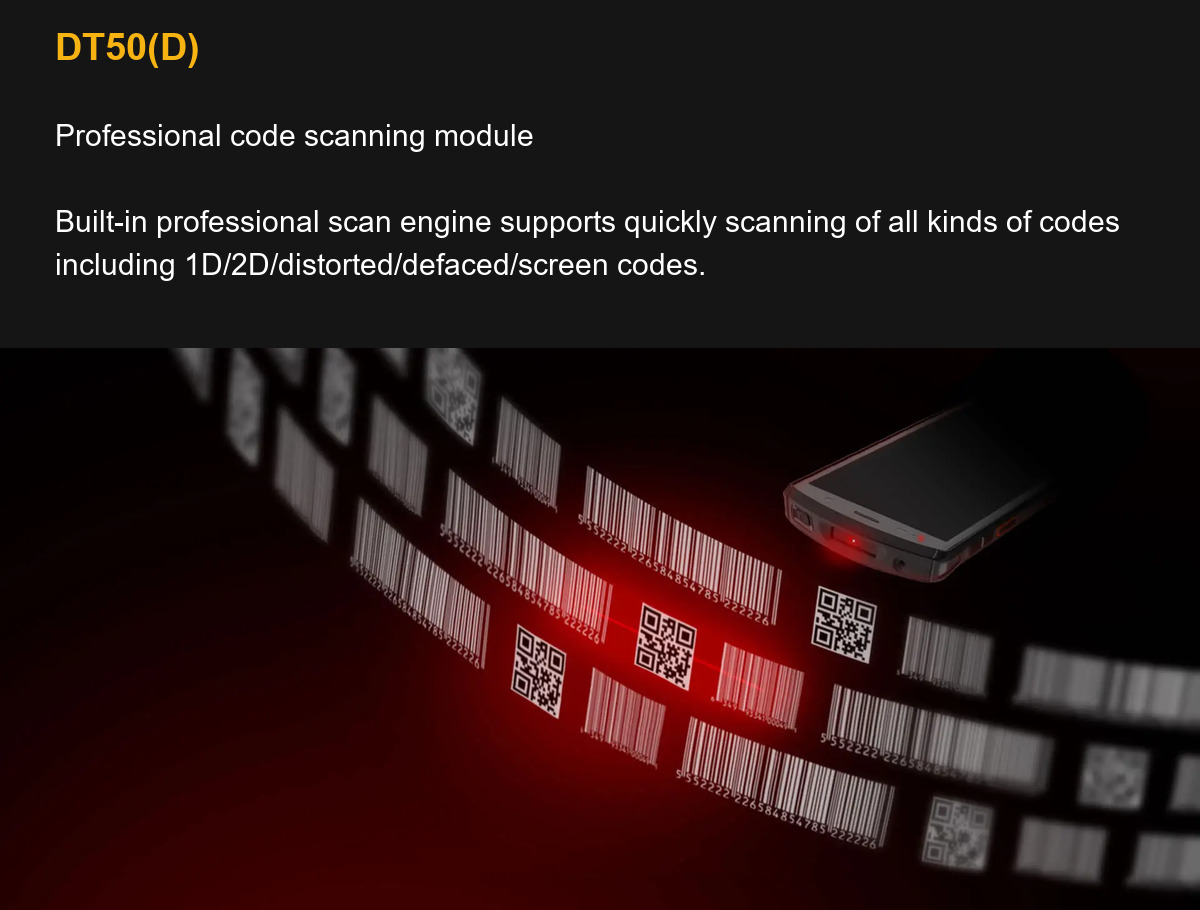

Professional code scanning module

Built-in professional scan engine supports quickly scanning of all kinds of codes including 1D/2D/distorted/defaced/screen codes.

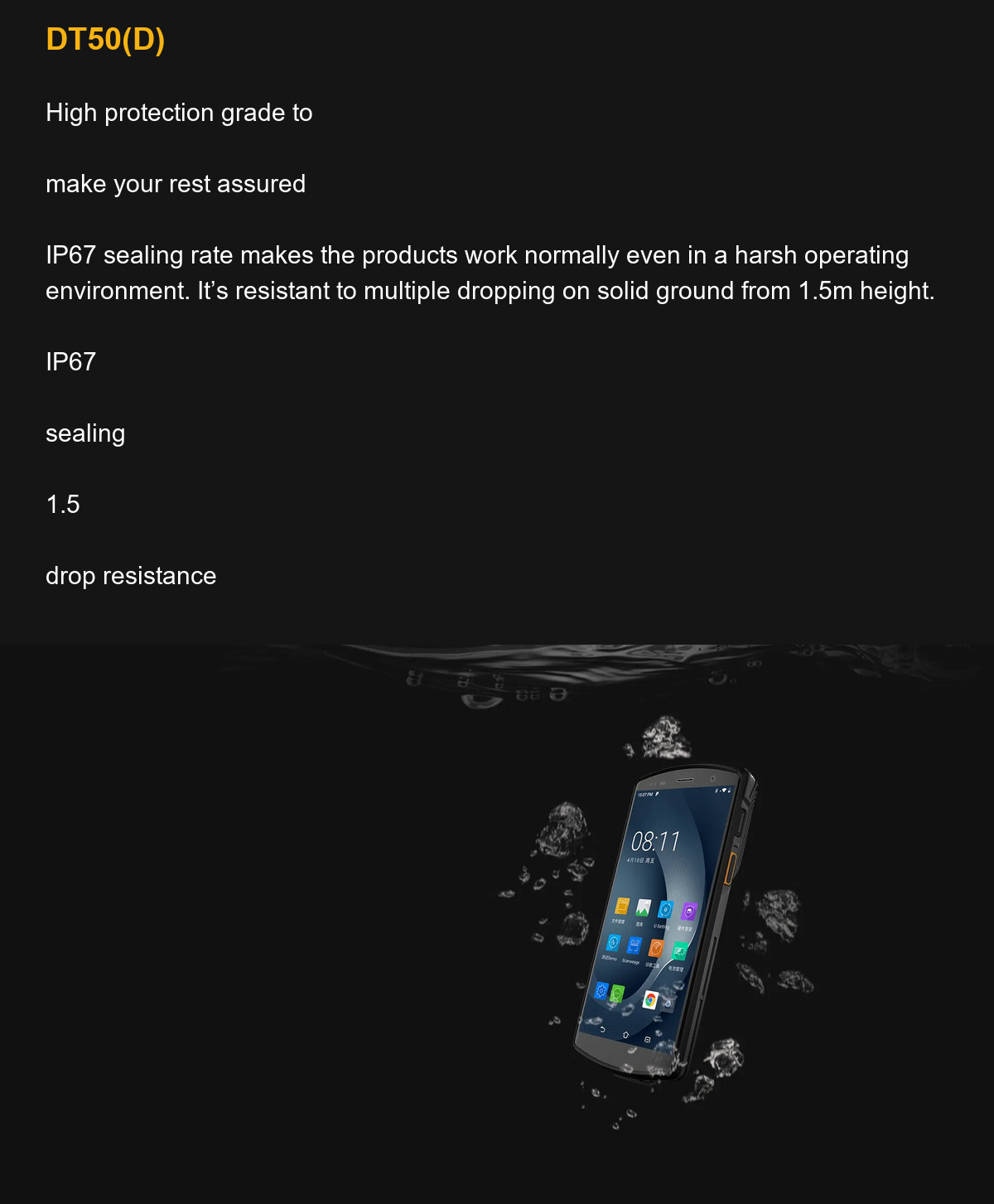

High protection grade to

make your rest assured

IP67 sealing rate makes the products work normally even in a harsh operating environment. It’s resistant to multiple dropping on solid ground from 1.5m height.

IP67

sealing

1.5

drop resistance

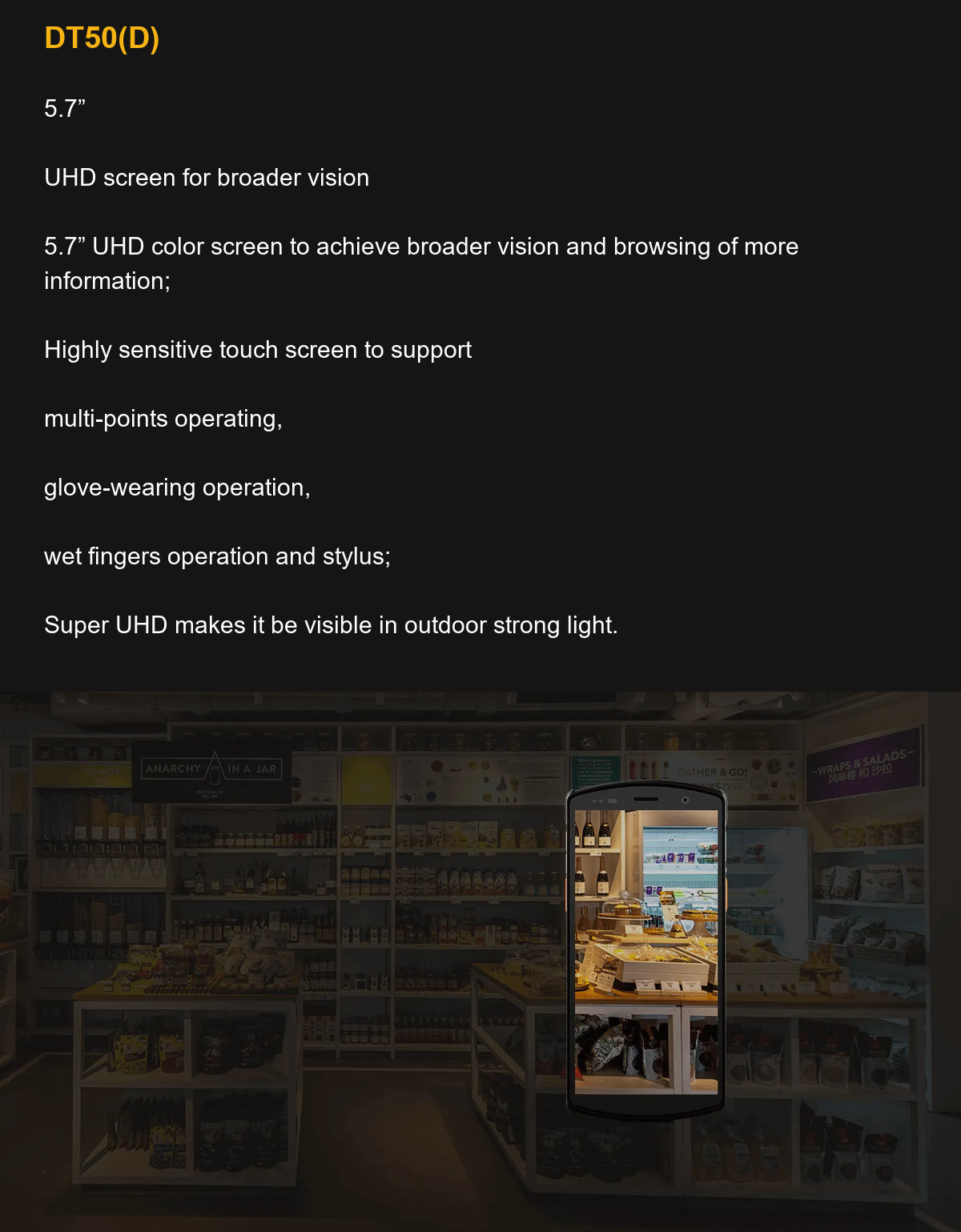

5.7”

UHD screen for broader vision

5.7” UHD color screen to achieve broader vision and browsing of more information;

Highly sensitive touch screen to support

multi-points operating,

glove-wearing operation,

wet fingers operation and stylus;

Super UHD makes it be visible in outdoor strong light.

Support NFC to

expand more possibilities

Support NFC for communication between devices and data transmission in short distance with safe, stable and efficient characteristics, and have outstanding performance in card swiping scenarios.

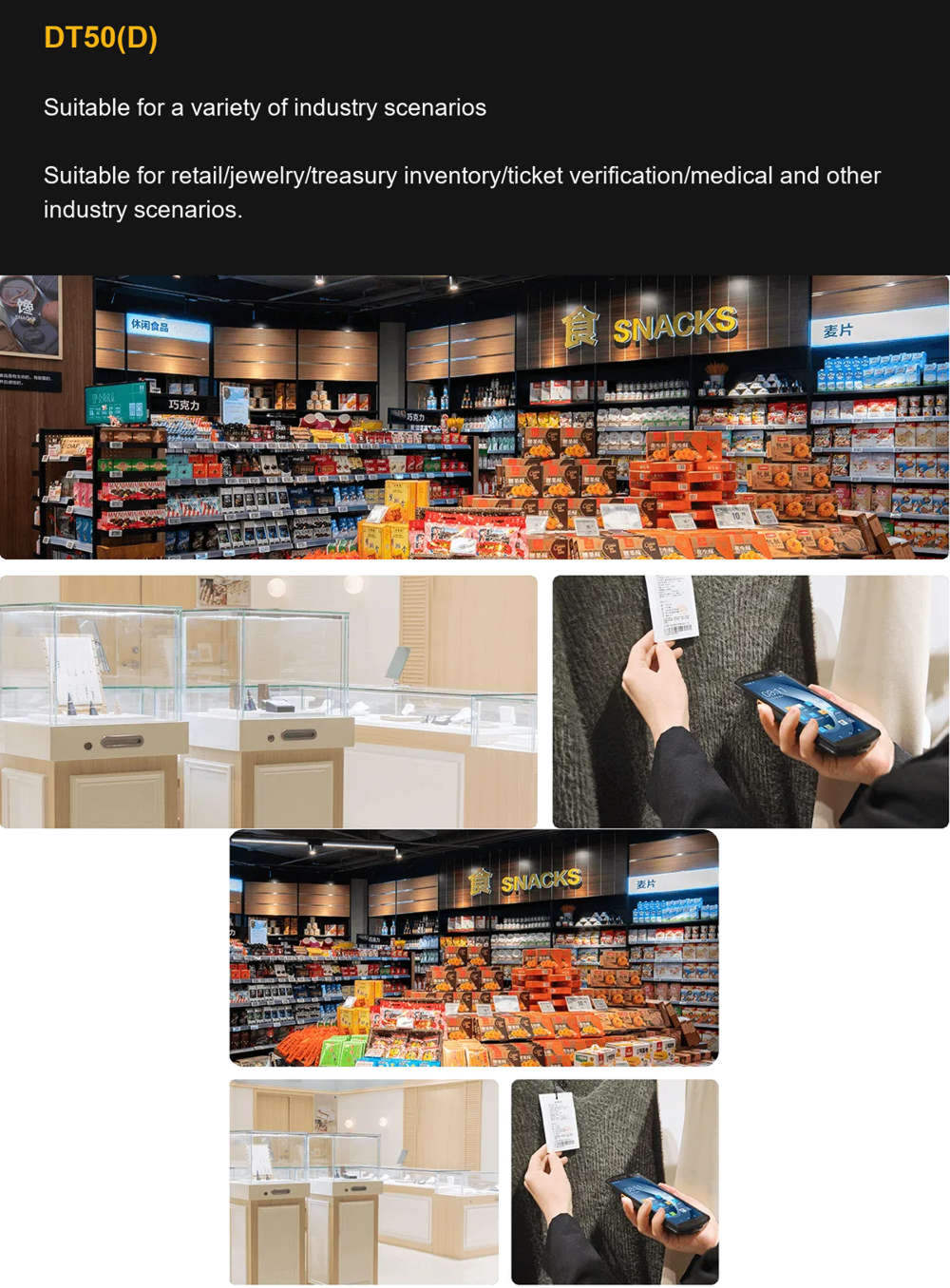

Suitable for a variety of industry scenarios

Suitable for retail/jewelry/treasury inventory/ticket verification/medical and other industry scenarios.

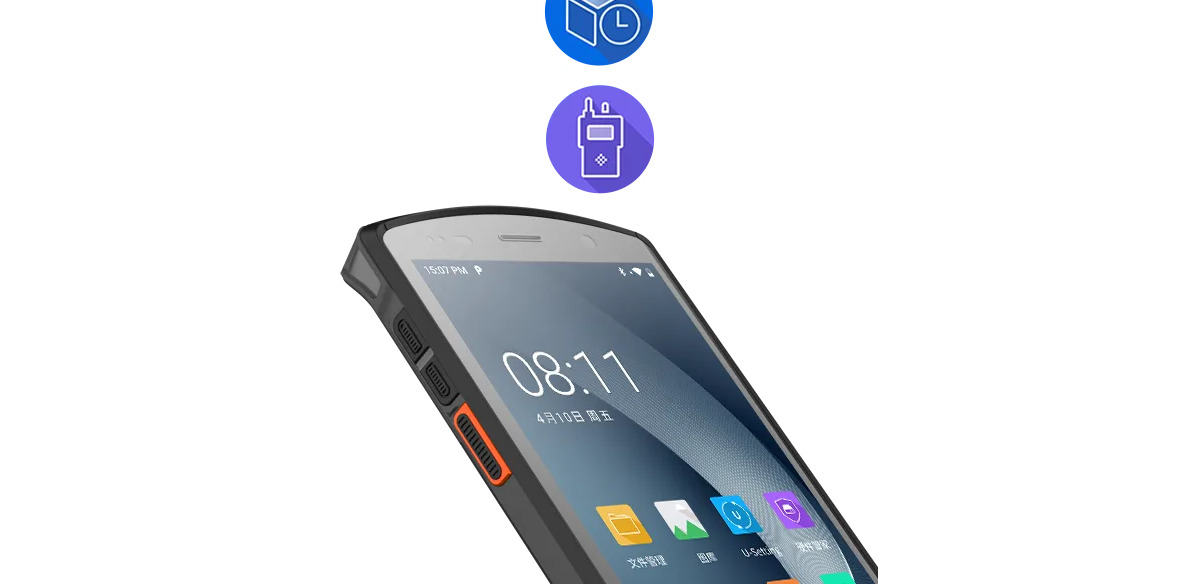

UEE software to provide you with more convenient services

UROVO provides customized UEE software for enterprises, helping users to manage devices and apps in batches, conveniently, efficiently and effortlessly, so as to meet personalized demands of enterprises and help them solve problems in time.

Learn more

Feature Settings

AppMarket

Enterprise Launcher

U-Stage

App Autoinstall

U-talking

Portable UHF RFID Reader

Portable UHF RFID Reader

DT50(D)

Quick and accurate

RFID (UHF) batch reading

Over 50 RFID tags are captured per second in batch mode, with long reading distance of up to 1.5/3 meters, improving work efficiency with a huge leap forward.

1.5 / 3

m

≥50

tags/second

Light weight and portable in

307g

to leave you no burden

Innovative technology is adopted to break people's impression that RFID device is "heavy". RFID module is perfectly integrated with the device; it weights only 307g and rivals mobile phones, which is convenient for staff to carry around. Weight reduced but quality improved.

it weights only

307

g

High-performance configuration to make it more outstanding

High-performance configuration to

make it more outstanding

With built-in high-performance Qualcomm Octa-core CPU and Android 9.0 operating system, multiple tasks processing with low power consumption is enabled. Massive data storage of 4GB RAM+64GB ROM with a maximum extended memory of 256GB, allow your operation be more efficient;

high-performance Octa-core CPU

Android

4GB RAM+64GB ROM

with a maximum extended memory of 256GB

With built-in high-performance Octa-core CPU and Android operating system, multiple tasks processing with low power consumption is enabled. Massive data storage of 4GB RAM+64GB ROM with a maximum extended memory of 256GB, allow your operation be more efficient;

Keep you online in the IOT Era

Support DSDS and full network in 4G/3G/2G

to keep you always be online everywhere.

Professional code scanning module

Built-in professional scan engine supports quickly scanning of all kinds of codes including 1D/2D/distorted/defaced/screen codes.

High protection grade to

make your rest assured

IP67 sealing rate makes the products work normally even in a harsh operating environment. It’s resistant to multiple dropping on solid ground from 1.5m height.

IP67

sealing

1.5

drop resistance

5.7”

UHD screen for broader vision

5.7” UHD color screen to achieve broader vision and browsing of more information;

Highly sensitive touch screen to support

multi-points operating,

glove-wearing operation,

wet fingers operation and stylus;

Super UHD makes it be visible in outdoor strong light.

Support NFC to

expand more possibilities

Support NFC for communication between devices and data transmission in short distance with safe, stable and efficient characteristics, and have outstanding performance in card swiping scenarios.

Suitable for a variety of industry scenarios

Suitable for retail/jewelry/treasury inventory/ticket verification/medical and other industry scenarios.

UEE software to provide you with more convenient services

UROVO provides customized UEE software for enterprises, helping users to manage devices and apps in batches, conveniently, efficiently and effortlessly, so as to meet personalized demands of enterprises and help them solve problems in time.

Learn more

UROVO provides customized UEE software for enterprises, helping users to manage devices and apps in batches, conveniently, efficiently and effortlessly, so as to meet personalized demands of enterprises and help them solve problems in time.

Feature Settings

AppMarket

Enterprise Launcher

U-Stage

App Autoinstall

U-talking

RUGGEDMASTER DT50(D) Technical Overview

CPU: Octa-core 2.45GHz

OS: Android

Memory: RAM: 3GB ROM: 32GB RAM：4GB ROM：64GB (optional) Micro-SD card, Up to 256 GB

Display: 5.7 inch display, 720*1440

Touchpanel: Ultra sensitive capacitive touch panel Support multi-touch Works with gloves and wet fingers

Dimensions: 162.6*76*13.6mm

Weight: 307g

Scanning: Professional scan engine； Support international standard 1D/2D barcode； Support barcode displayed on screen and colored barcode；

RFID(UHF): RFID tags reading, up to 1.5m/3m

Audio: Dual-Microphone (noise cancellation), Speaker (1.5W), Receiver

Power: Capacity：3.85V 5000mAh

Buttons: PWR button Vol+/- button scan button*2 custom button

WWAN: 4G，3G，2G

Bluetooth: BT+BR/EDR+BLE

Wi-Fi: 2.4G/5G，IEEE 802.11a/b/ g/n/ac/d/e/h/i/k/r/v/w

GPS: GPS A-GPS BeiDou GLONASS Galileo

Camera: Front 5MP Rear 13MP with flash

Protection: IP67 1.5m drop resistance

Environmental: Operating Temp.：-20 ～ +60℃ Storage Temp.：-40 ～ +70℃ Humidity ：5%RH～95%RH ((No condensation) ESD ：+/-15kv Air; +/-8kv contact

RUGGEDMASTER DT50(D) Wholesale Selection

Select RUGGEDMASTER DT50(D) by reviewing the configuration, dimensions and manufacturer details above. For bulk orders, provide the complete model name, intended application, required quantity and delivery destination. Keep optional configurations separate in your purchasing request so they can be checked against the listed technical information.

Compare the operating system, data capture functions and connectivity shown in the Specs tab with the requirements of your existing workflow. Check the stated interface, power supply and physical dimensions before planning installation or daily use. Where several configurations are listed, confirm the required configuration in your inquiry. Product images can show different views and example applications of the same model.

For deployment across a team or multiple locations, record the configuration required at each location and the intended working environment. Review the documented environmental limits, scanning requirements and supported connections when those fields are supplied. Optional functions listed by the manufacturer should be confirmed for the equipment you order. Use the full model name and requested quantity when preparing your wholesale inquiry.
