RUGGEDMASTER DN65U Handheld RFID Readers
5.5-inch high definition full display (18:9), IPS IGZO 1440 x 720Multi-touch panel, gloves and wet hands supported · Removable main battery (normal version:4420 mAh );5200 mAh optional pistol battery, support QC3.0 and RTC · Qualcomm Snapdragon”662 Octa-core, 2.0 GHz · Android 13/GMS · 4 GB + 64 GB (Optional 6 GB + 128 GB)Supports up to 256 GB Micro SD card · -40℃ to 70℃ · Bluetooth 5.1, transmission distance is 5 to 10m
Retail/Inventory Dedicated Rugged Handheld UHF Terminal Full-Features to Deliver the Best Service DN65U is a highly expandable large-screen rugged handheld computer. Equipped with Qualcomm octa-core processor and Android 13 OS, DN65U comes with a 5.5-inch HD display, barcode scanning, and NFC functions. The device supports quick charge and UHF sled for high extensibility. The premium Android 13 version offers optional fingerprint recognition, volume measurement, built-in UHF functions and with Wi-Fi 6-ready platform for higher data throughput and security that fully satisfy the needs in logistics,warehouse,manufacturing, retail, etc. applications.
Dimension: 160.0*76.0*15.5/17.0 mm
Weight: 287g / 10.12 oz.(device with battery)
Display / Touch Panel: 5.5-inch high definition full display (18:9), IPS IGZO 1440 x 720Multi-touch panel, gloves and wet hands supported
Expansions: Supports up to 256GB Micro SD (TF) card
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
RUGGEDMASTER DN65U Handheld RFID Readers
RUGGEDMASTER DN65U combines the features and configurations shown below. Review the product overview, original feature graphics and complete Specs when selecting units for a bulk order.
Retail/Inventory Dedicated Rugged Handheld UHF Terminal
Full-Features to Deliver the Best Service
DN65U is a highly expandable large-screen rugged handheld computer. Equipped with Qualcomm octa-core processor and Android 13 OS, DN65U comes with a 5.5-inch HD display, barcode scanning, and NFC functions. The device supports quick charge and UHF sled for high extensibility. The premium Android 13 version offers optional fingerprint recognition, volume measurement, built-in UHF functions and with Wi-Fi 6-ready platform for higher data throughput and security that fully satisfy the needs in logistics,warehouse,manufacturing, retail, etc. applications.
Configuration overview
Technical specifications include Dimension: 160.0*76.0*15.5/17.0 mm. Weight: 287g / 10.12 oz.(device with battery). Display / Touch Panel: 5.5-inch high definition full display (18:9), IPS IGZO 1440 x 720Multi-touch panel, gloves and wet hands supported. Expansions: Supports up to 256GB Micro SD (TF) card.
Technical specifications include Battery: Removable main battery (normal version:4420 mAh );5200 mAh optional pistol battery, support QC3.0 and RTC. Power Adapter: 100-240V input, 5V 2A output, to be used with the DC-BK-TypeC data cable or fast charging power adapter, 100-240V input, 5V3A / 12V1.5A / 9V2A output, to be used with the DC-BK-TypeC data cableOptional:(EU, US, UK, AU) Choose one of four. Audio: 2 microphones, 1 for noise cancellation; 1 speaker; receiver. I/O Interfaces: USB Type-C, USB 3.1, OTG, extended thimble;1 slot for Nano SIM card, 1 slot for Nano SIM or TF card.
Technical specifications include Buttons/Keys: 1 power key, 2 scan keys, 2 volume keys. Camera: Rear 13MP Autofocus with flash. CPU: Qualcomm Snapdragon”662 Octa-core, 2.0 GHz. Operating System: Android 13/GMS.
Technical specifications include Storage: 4 GB + 64 GB (Optional 6 GB + 128 GB)Supports up to 256 GB Micro SD card. Operating Temp.: -20℃ to 50℃. Storage Temp.: -40℃ to 70℃. Humidity: 5%RH to 95%RH(non-condensing).
Technical specifications include Drop Specifications: Multiple 1.8 m / 5.91 ft. drops (at least 20 times) to the concrete acrossthe operating temperature range. IP Protective Level: IP65 per IEC sealing specifications, IP67 optional. SDK: Software Development Kit. Language: Java.
Technical specifications include Environment: Android Studio or Eclipse. WWAN: 4G: B1/B3/B5/B7/B8/B20/B38/B39/B40/B41 (Europe, Asia)4G: B2/B4/B5/B7/B12/B13/B17/B28A/B28B/B38 (America). WIFI: Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v, 2.4G/5G dual-band,IPV4, IPV6, 5G PA;. Bluetooth: Bluetooth 5.1, transmission distance is 5 to 10m.
Wholesale purchasing information
For RUGGEDMASTER DN65U, compare the pictured housing, connectors and controls with the configuration required by your application. The manufacturer may describe optional modules, memory configurations or regional network bands. These options are listed for reference; confirm the required configuration when requesting a quotation. Choose the interface and data-capture functions that match your existing workflow, software and installation requirements.
Review the complete Specs tab before placing a bulk order. It preserves the technical information supplied for this model, including the available operating environment and configuration details. Product pictures show the manufacturer’s existing views and available configurations. If your project needs a particular module, operating system version or connector, state that requirement in your enquiry so the configuration can be checked before ordering.
Explore related products in our RuggedMaster product catalog or send a bulk-order enquiry.

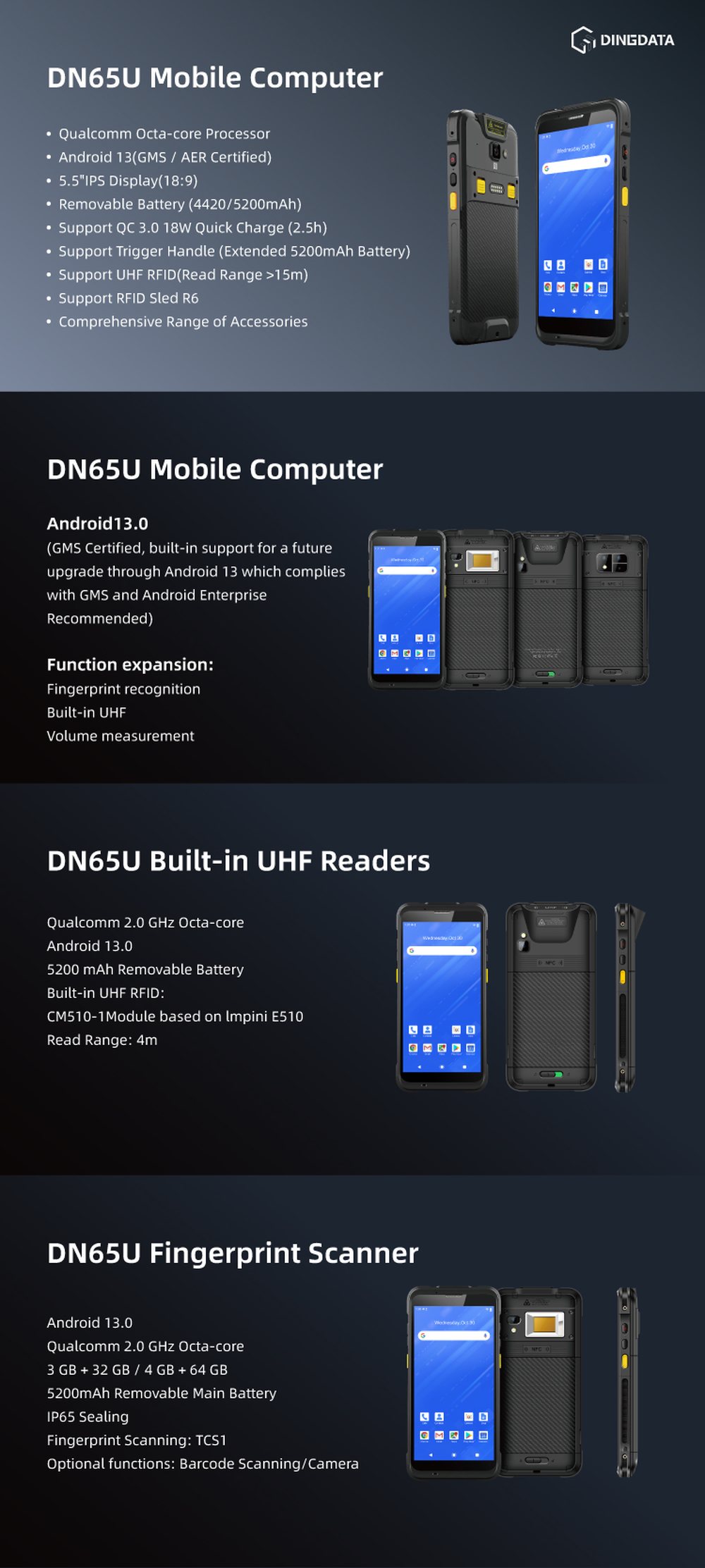

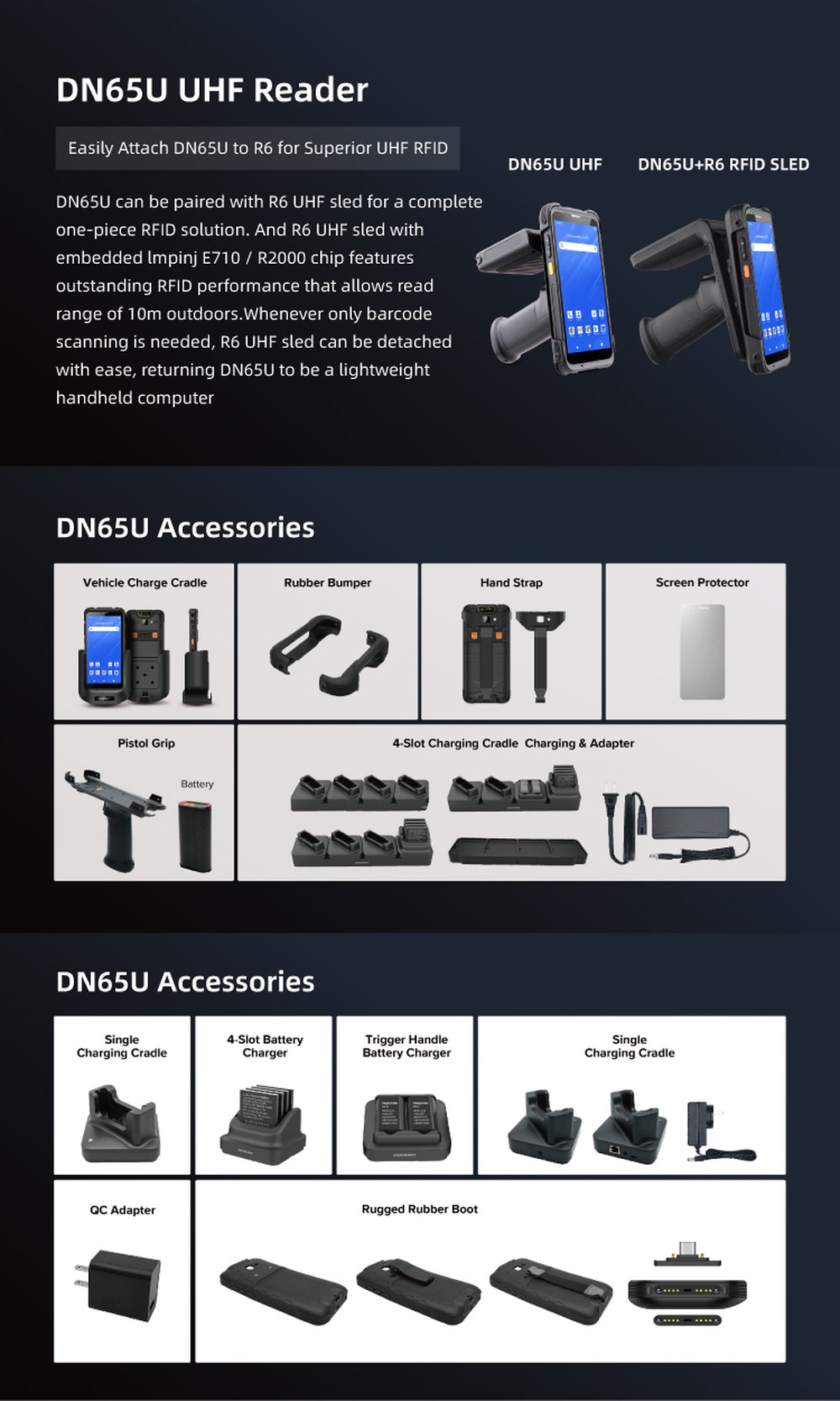

Manufacturer feature details
| SPECIFICATIONS | ||
| PHYSICAL CHARACTERISTICS | ||
| Dimension | 160.0*76.0*15.5/17.0 mm | |
| Weight | 287g / 10.12 oz.(device with battery) | |
| Display / Touch Panel | 5.5-inch high definition full display (18:9), IPS IGZO 1440 x 720Multi-touch panel, gloves and wet hands supported | |
| Expansions | Supports up to 256GB Micro SD (TF) card | |
| Battery | Removable main battery (normal version:4420 mAh );5200 mAh optional pistol battery, support QC3.0 and RTC | |
| Power Adapter | 100-240V input, 5V 2A output, to be used with the DC-BK-TypeC data cable or fast charging power adapter, 100-240V input, 5V3A / 12V1.5A / 9V2A output, to be used with the DC-BK-TypeC data cableOptional:(EU, US, UK, AU) Choose one of four | |
| Audio | 2 microphones, 1 for noise cancellation; 1 speaker; receiver | |
| I/O Interfaces | USB Type-C, USB 3.1, OTG, extended thimble;1 slot for Nano SIM card, 1 slot for Nano SIM or TF card | |
| Buttons/Keys | 1 power key, 2 scan keys, 2 volume keys | |
| Camera | Rear 13MP Autofocus with flash | |
| PERFORMANCE CHARACTERSTICS | ||
| CPU | Qualcomm Snapdragon”662 Octa-core, 2.0 GHz | |
| Operating System | Android 13/GMS | |
| Storage | 4 GB + 64 GB (Optional 6 GB + 128 GB)Supports up to 256 GB Micro SD card | |
| USER ENVIRONMENT | ||
| Operating Temp. | -20℃ to 50℃ | |
| Storage Temp. | -40℃ to 70℃ | |
| Humidity | 5%RH to 95%RH(non-condensing) | |
| Drop Specifications | Multiple 1.8 m / 5.91 ft. drops (at least 20 times) to the concrete acrossthe operating temperature range | |
| IP Protective Level | IP65 per IEC sealing specifications, IP67 optional | |
| DEVELOPMENT ENVIRONMENT | ||
| SDK | Software Development Kit | |
| Language | Java | |
| Environment | Android Studio or Eclipse | |
| DATA COMMUNICATION | ||
| WWAN | 4G: B1/B3/B5/B7/B8/B20/B38/B39/B40/B41 (Europe, Asia)4G: B2/B4/B5/B7/B12/B13/B17/B28A/B28B/B38 (America) | |
| WIFI | Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v, 2.4G/5G dual-band,IPV4, IPV6, 5G PA; | |
| Bluetooth | Bluetooth 5.1, transmission distance is 5 to 10m | |
| GPS | GPS/AGPS,GLONASS, BeiDou, Galileo, internal antenna | |
| DATA CAPTUER | ||
| Barcode Scanning (optional) | Zebra: SE4710; Honywell: N6603/6703; Newland N1; E3200;1A166S1D Symbologies: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.2D Symbologies: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal,Dutch Postal (KIX), etc. | |
| RFID HF（NFC） | Frequency : 13.56MHz,Protocol: ISO 14443A/B &15693,NFC-IP1,NFC-IP2 etc, R/W Range: 0cm to 6cm | |
| RFID UHF (optional) | Engine：Impinj E710Frequency：865~868MHz or 920~925MHz/ 902~928MHzProtocol：EPC C1 GEN2/ISO 18000-6CAntenna :Circular Polarized AntennaR/W Range：Up to 20 m(tags and environment dependent) | |
| ACCESSORIES | ||
| Standard | 1xPower Supply; 1xLithium Polymer Battery; 1xType-C cable | |
| Optional | Hand strap; Charger Cradle; Protective film ; Pistol Grip Gun; Battery docking ,Rubber Bumper,etc | |
