RUGGEDMASTER DN60M Mobile Computers

Description

RUGGEDMASTER DN60M Mobile Computers

RUGGEDMASTER DN60M combines the features and configurations shown below. Review the product overview, original feature graphics and complete Specs when selecting units for a bulk order.

Design for medical industry，the white angel of handheld terminal

Full-Features to Deliver the Best Service

DN60M is a elligent terminal equipment for medical industry application, especially fungi-proofing materials has adopt for the body. Supporting a variety of communication methods，the data of medical are delived by a lot of ways at real time. According to medical demand，it will add the nameplate of user.1D/2D scanning engine with millisecond response speed can accurately identify various complex barcodes. With NFC module，it supports muti scene use，and the card reading distance is 3cm-5cm. It come with all of the features you'd expect.DN60M is equipped with a Octa-core 2.2Ghz Processor so that you can enjoy an uninterrupted preference. It features Android 13 OS. The incredible speed and smooth performance that make multi-tasking really easy.A super larger memory of ROM lets you download and save more data.

Configuration overview

Technical specifications include Dimension: 164.5*79.4*12.3mm. Weight: ＜265g(Depends on device function configuration）. Display / Touch Panel: 5.93 " IPS color display,resolution 720×1440, 450cd/m2, Supports multi-touch. Expansions: Micro SD/TF port (Max up to 256G).

Technical specifications include Battery: Rechargeable polymer battery (3.8V4200MAh)Standby time >350 hoursSupport fast charge, removable batteryCharging time ＜ 1.5H,(Use the standard fast charging source adapter and data cable). Power Adapter: 待定Optional:(EU, US, UK, AU) Choose one of four. Audio: Speaker (mono), Microphone, receiver. I/O Interfaces: Type-C USB x 1, OTG， Nano SIM card.

Technical specifications include Buttons/Keys: Power button, Volume +/- button,Scan button × 2. Camera: Rear camera：13MP HD camera,2MP auxiliary camera Support auto focus, Flash, Anti-shake, Macro shootingFront camera：8MP front camera(optional). CPU: Cortex-A76/A55 Octa-core 64-bit 2.2GHz high-performance processor. Operating System: Android 13/GMS.

Technical specifications include Storage: 4GB+64GB (Optional 6GB+128GB). Operating Temp.: -20℃ to 50℃. Storage Temp.: -40℃ to 70℃. Humidity: 5%RH to 95%RH(non-condensing).

Technical specifications include Drop Specifications: 6 sides can bear impact from 1.2m drop to cement floor in the range of operating temperature. IP Protective Level: IP67. SDK: Software Development Kit. Language: Java.

Technical specifications include Environment: Android Studio or Eclipse. WWAN: GSM: B2/3/5/8WCDMA: B1/2/4/5/8/6/19CDMA: BC0/BC1TDS: 34/39TDD: 34/39/38/40/41FDD: B1/2/3/4/5/7/8/12/17/18/19/20/26/28AB5G:N1/N3/N5/N8/N20/N28/N38/N41/N77/N78/N79. WIFI: Dual frequency 2.4GHz/5GHz, support IEEE 802.11ac/a/b/g/n/d/e/h/i/j/k/r/v protocol. Bluetooth: Support BT 5.0Transmission distance 5-10 meters.

Wholesale purchasing information

For RUGGEDMASTER DN60M, compare the pictured housing, connectors and controls with the configuration required by your application. The manufacturer may describe optional modules, memory configurations or regional network bands. These options are listed for reference; confirm the required configuration when requesting a quotation. Choose the interface and data-capture functions that match your existing workflow, software and installation requirements.

Review the complete Specs tab before placing a bulk order. It preserves the technical information supplied for this model, including the available operating environment and configuration details. Product pictures show the manufacturer’s existing views and available configurations. If your project needs a particular module, operating system version or connector, state that requirement in your enquiry so the configuration can be checked before ordering.

Explore related products in our RuggedMaster product catalog or send a bulk-order enquiry.

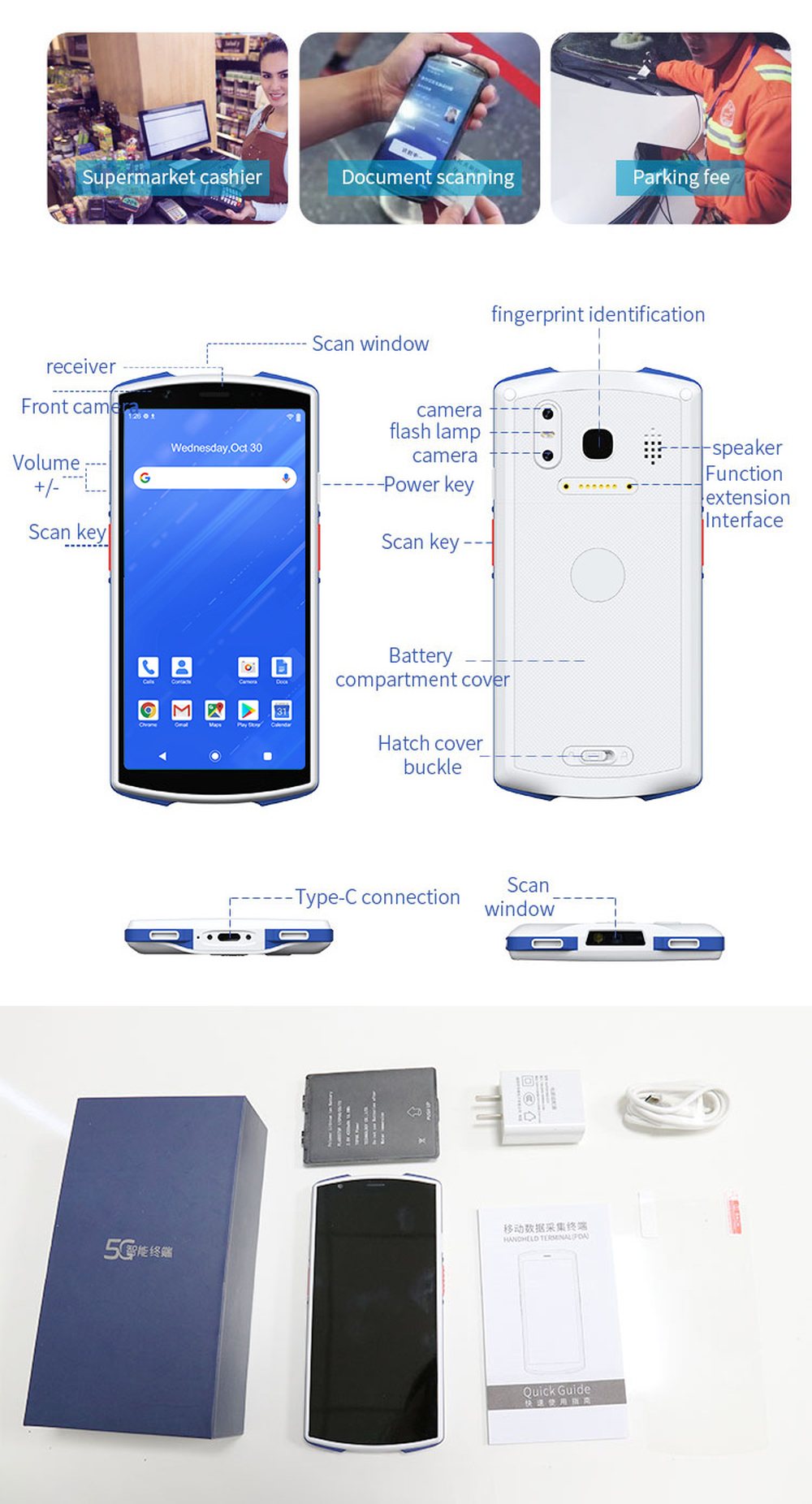

Manufacturer feature details
