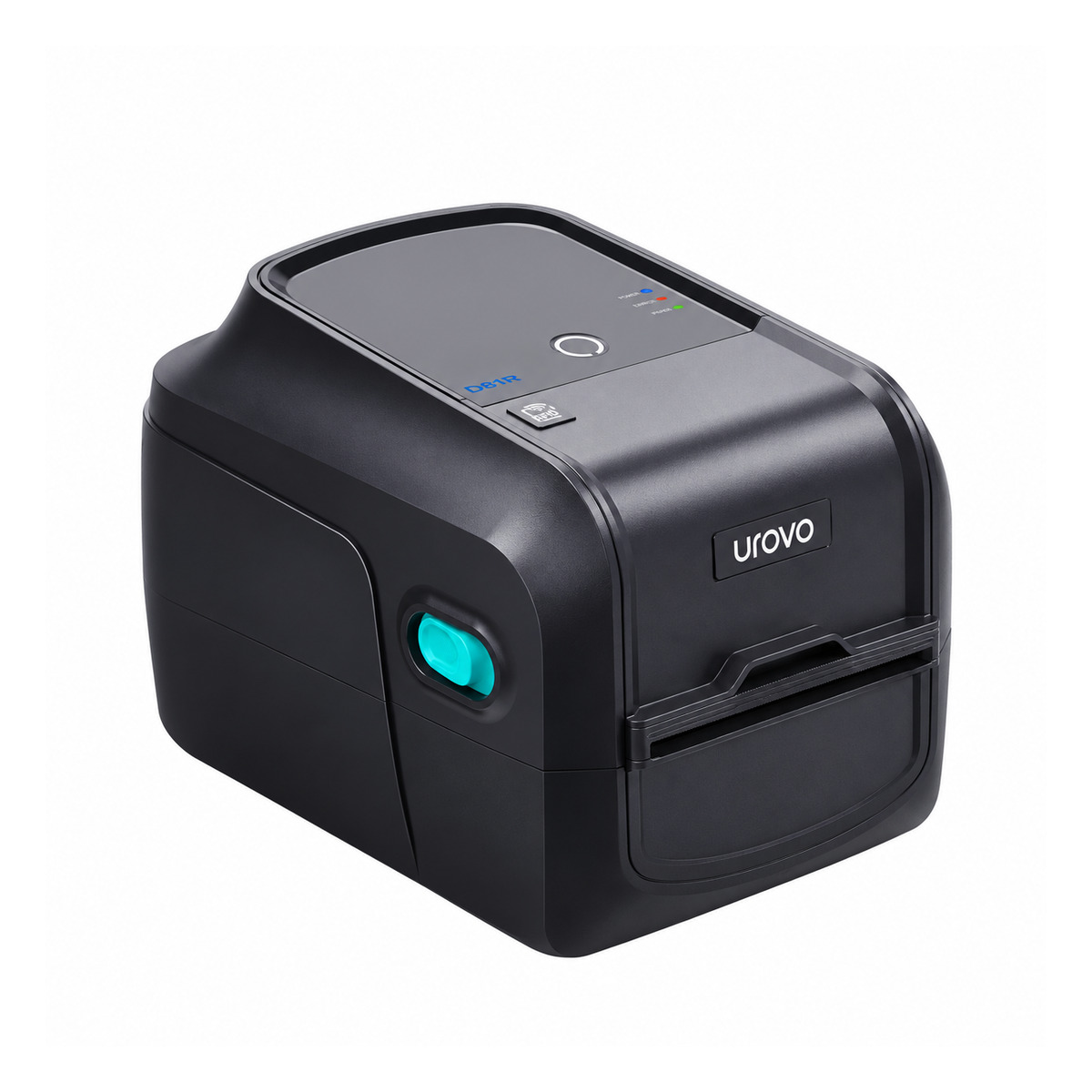

RUGGEDMASTER D81R Series RFID Printers

Wholesale RUGGEDMASTER D81R Series RFID Printers for bulk orders at RuggedMaster. D81R Series RFID Desktop Printer

RUGGEDMASTER D81R Series Product Features

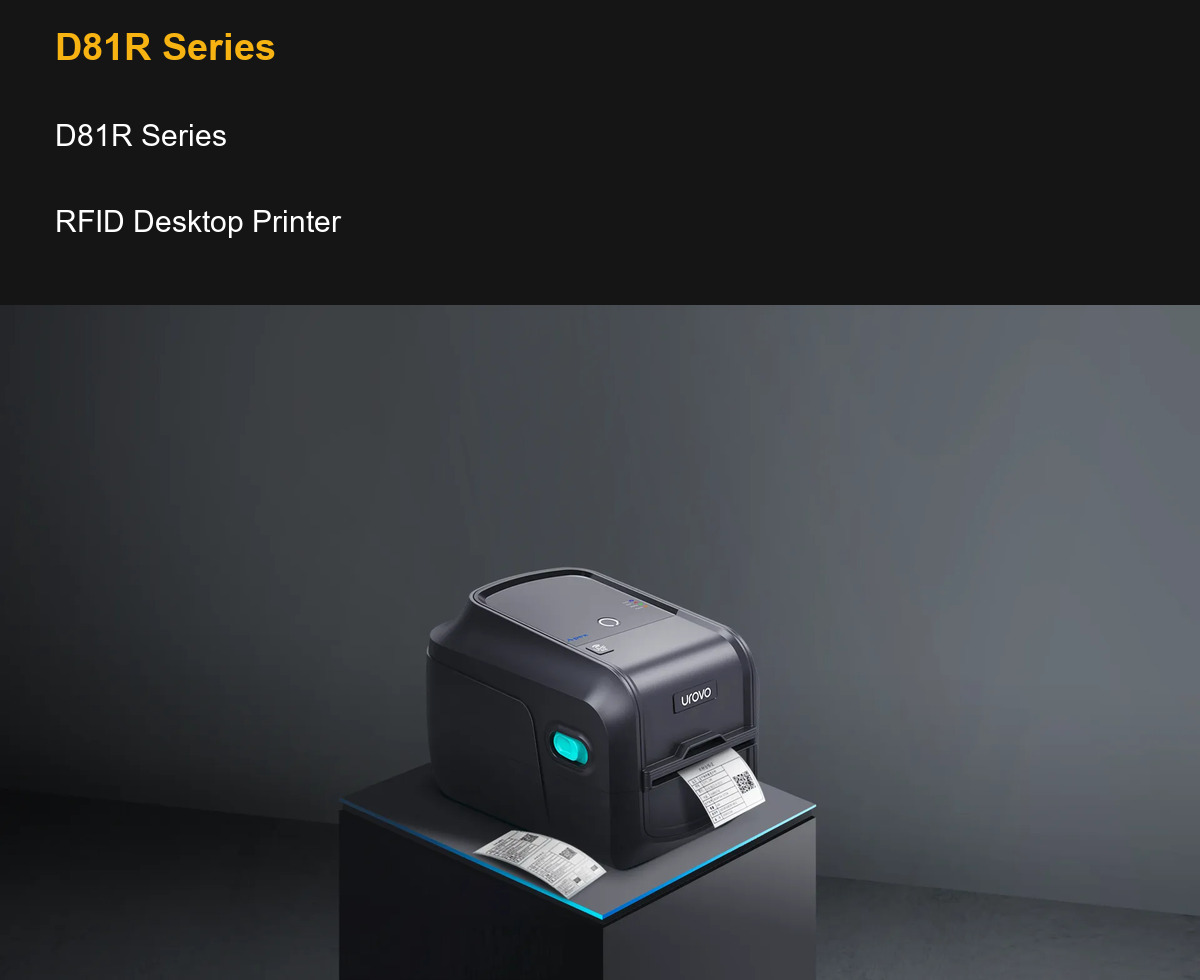

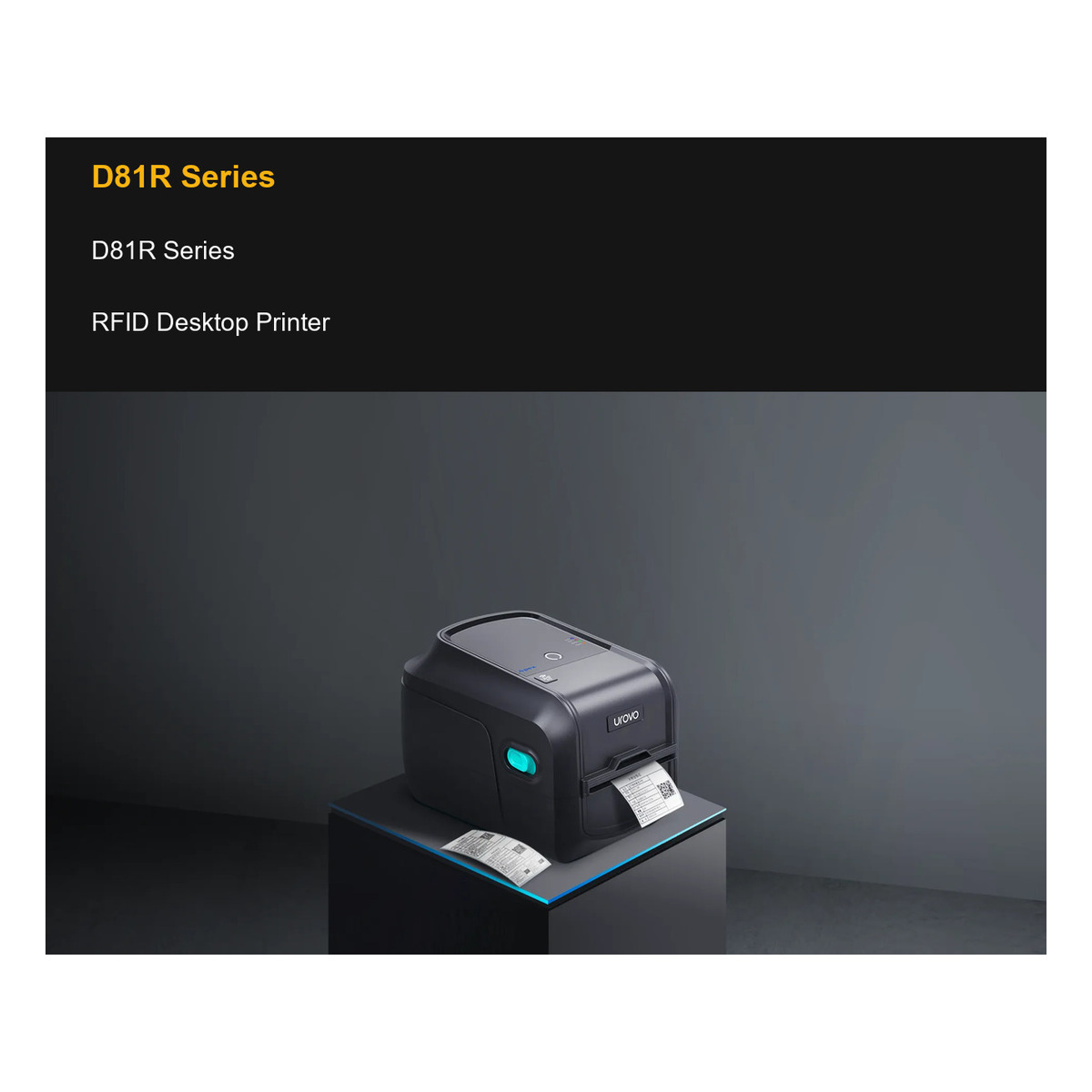

D81R Series

RFID Desktop Printer

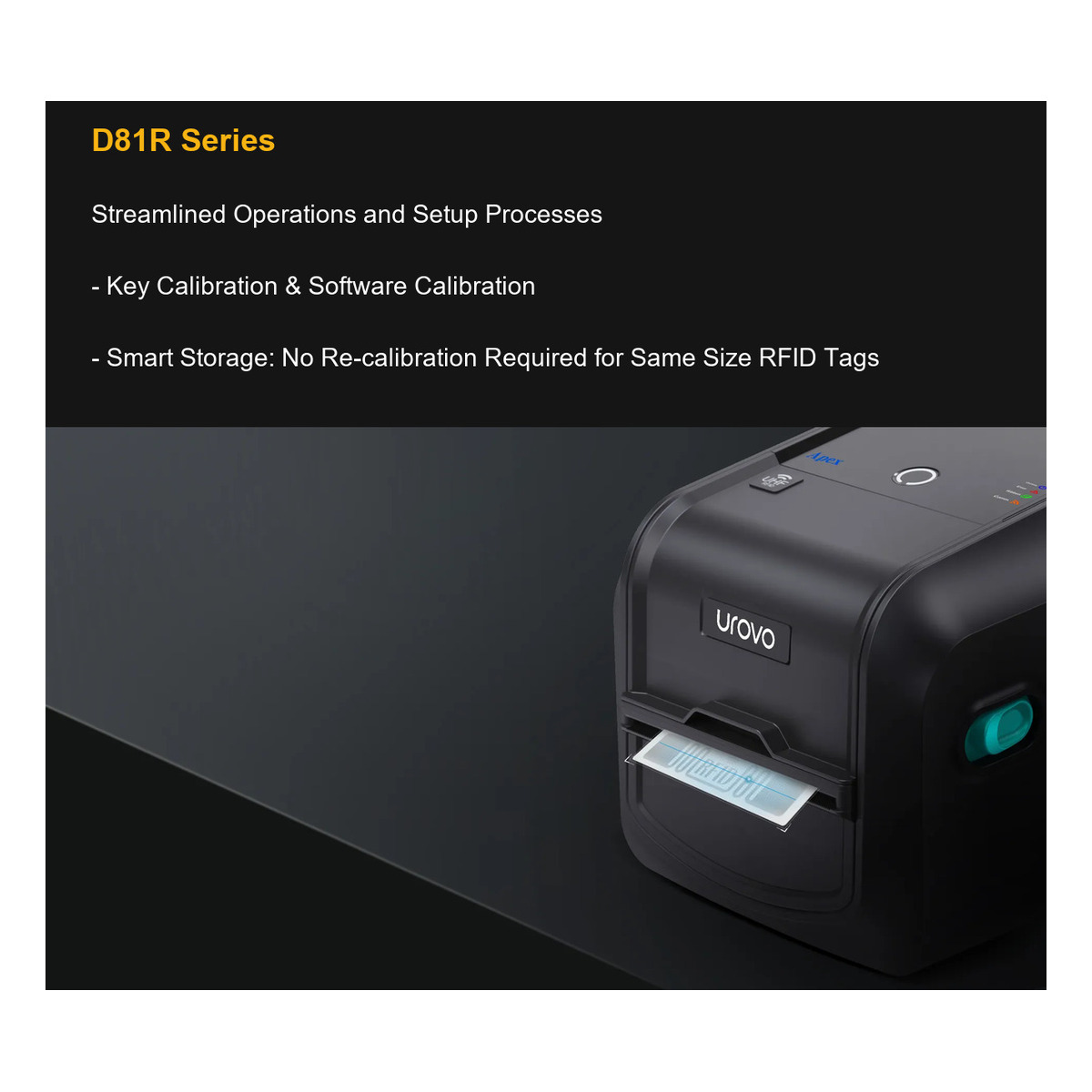

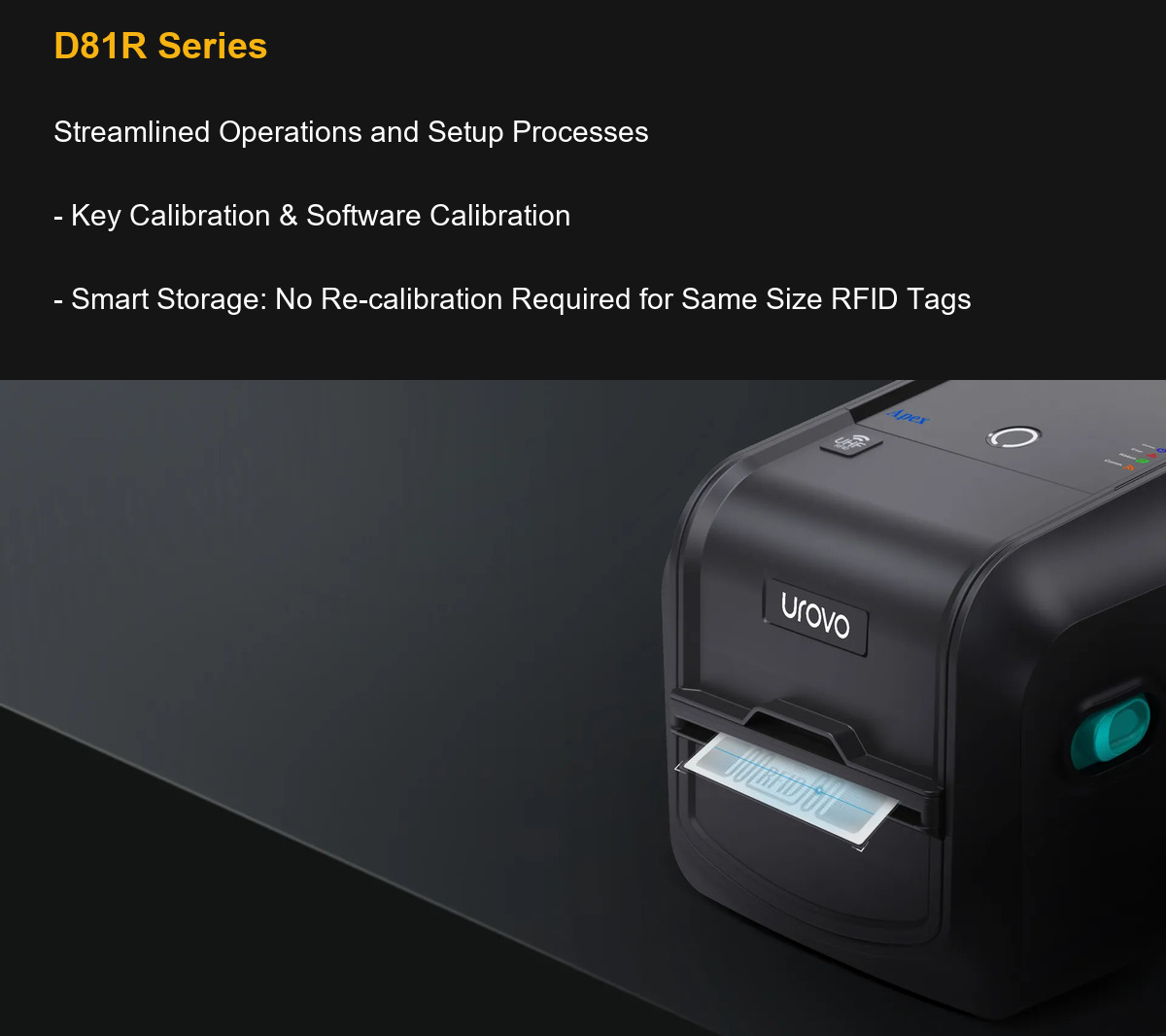

Streamlined Operations and Setup Processes

– Key Calibration & Software Calibration

– Smart Storage: No Re-calibration Required for Same Size RFID Tags

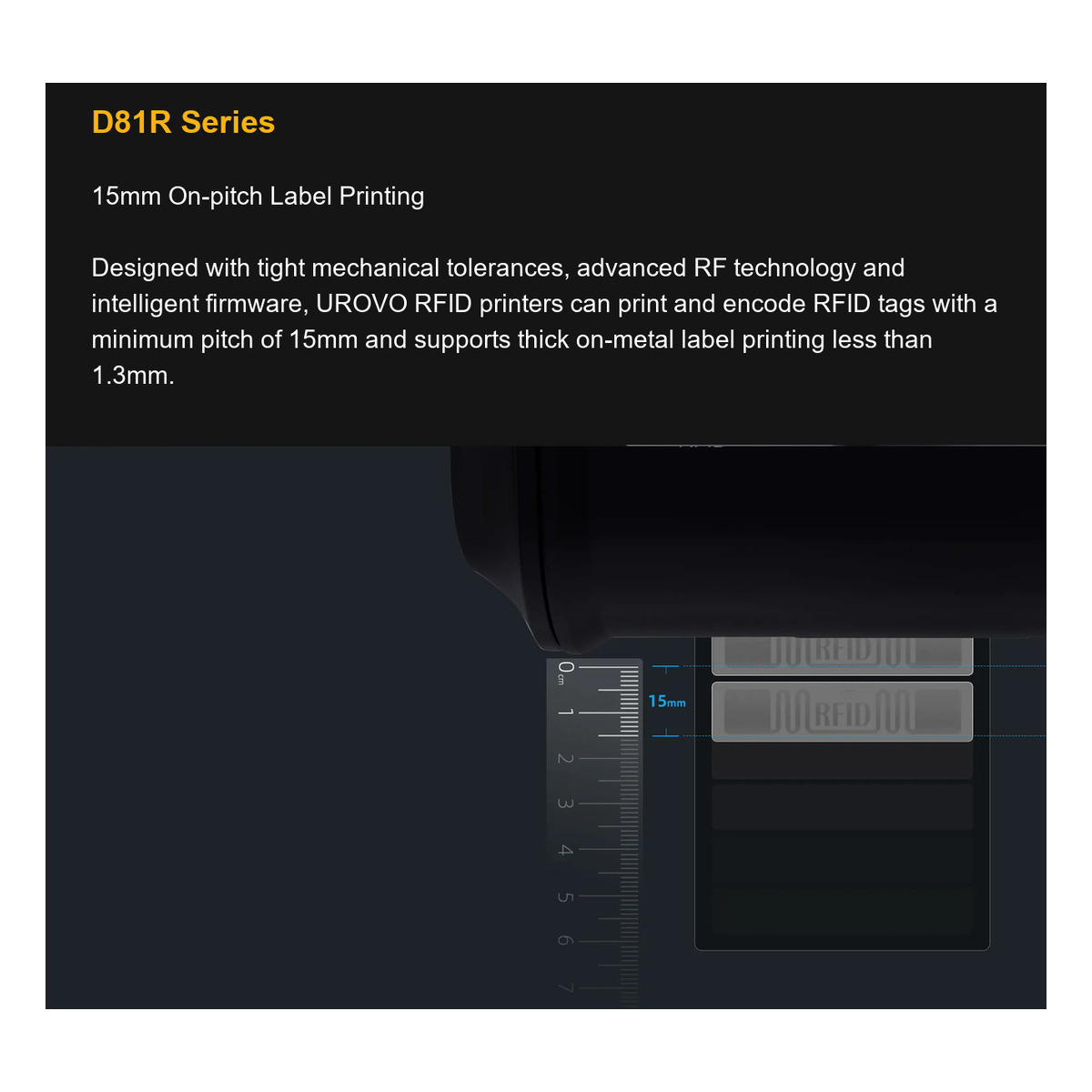

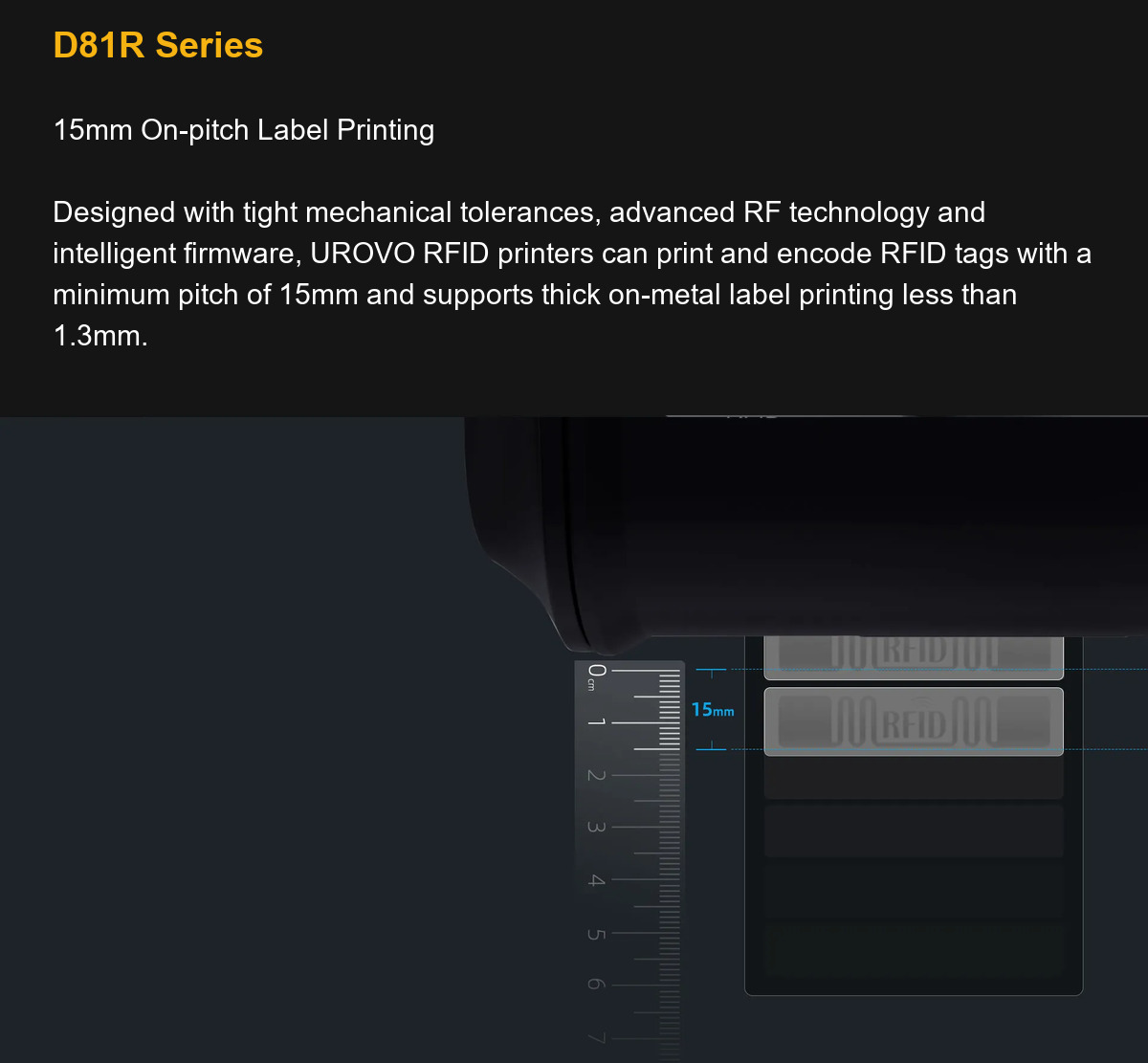

15mm On-pitch Label Printing

Designed with tight mechanical tolerances, advanced RF technology and intelligent firmware, UROVO RFID printers can print and encode RFID tags with a minimum pitch of 15mm and supports thick on-metal label printing less than 1.3mm.

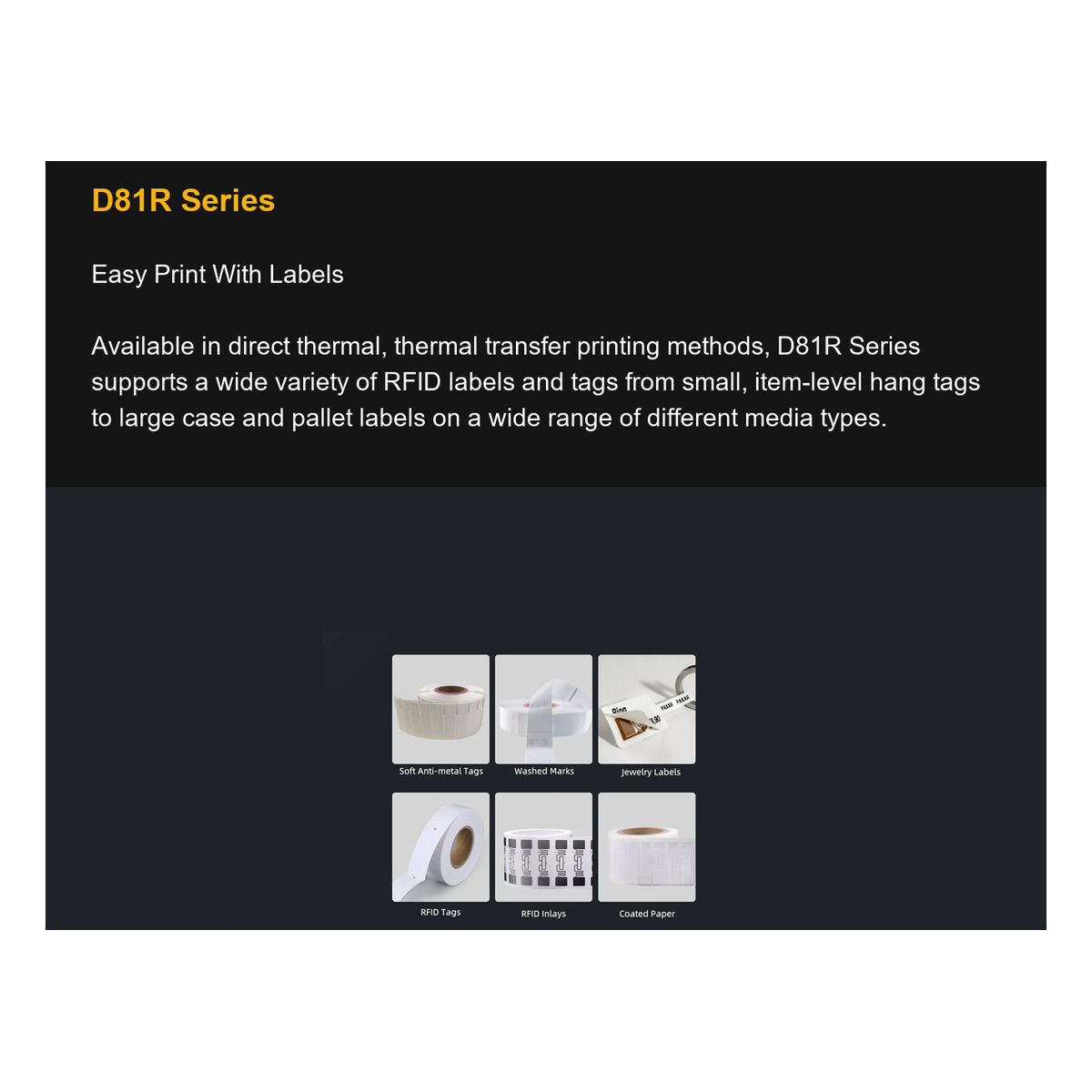

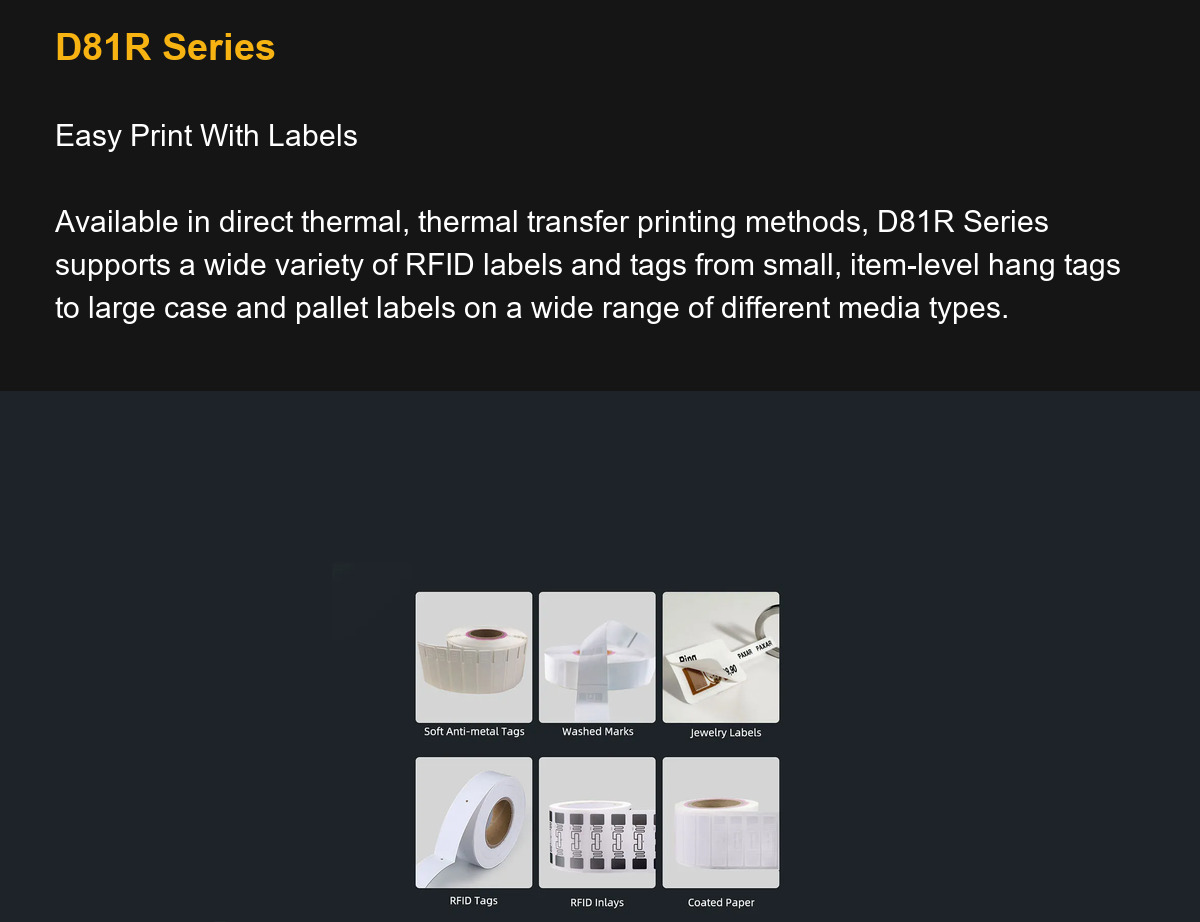

Easy Print With Labels

Available in direct thermal, thermal transfer printing methods, D81R Series supports a wide variety of RFID labels and tags from small, item-level hang tags to large case and pallet labels on a wide range of different media types.

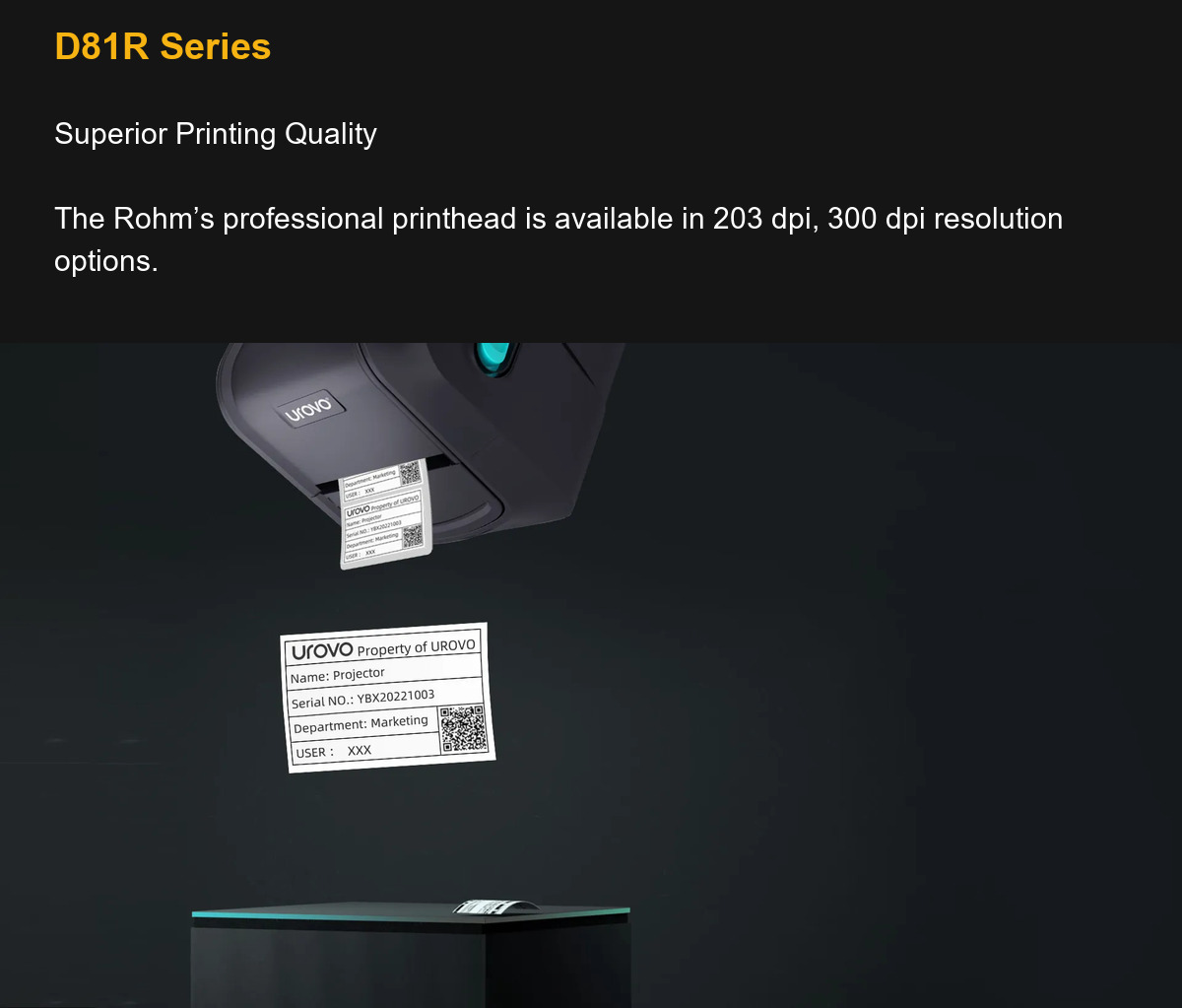

Superior Printing Quality

The Rohm’s professional printhead is available in 203 dpi, 300 dpi resolution options.

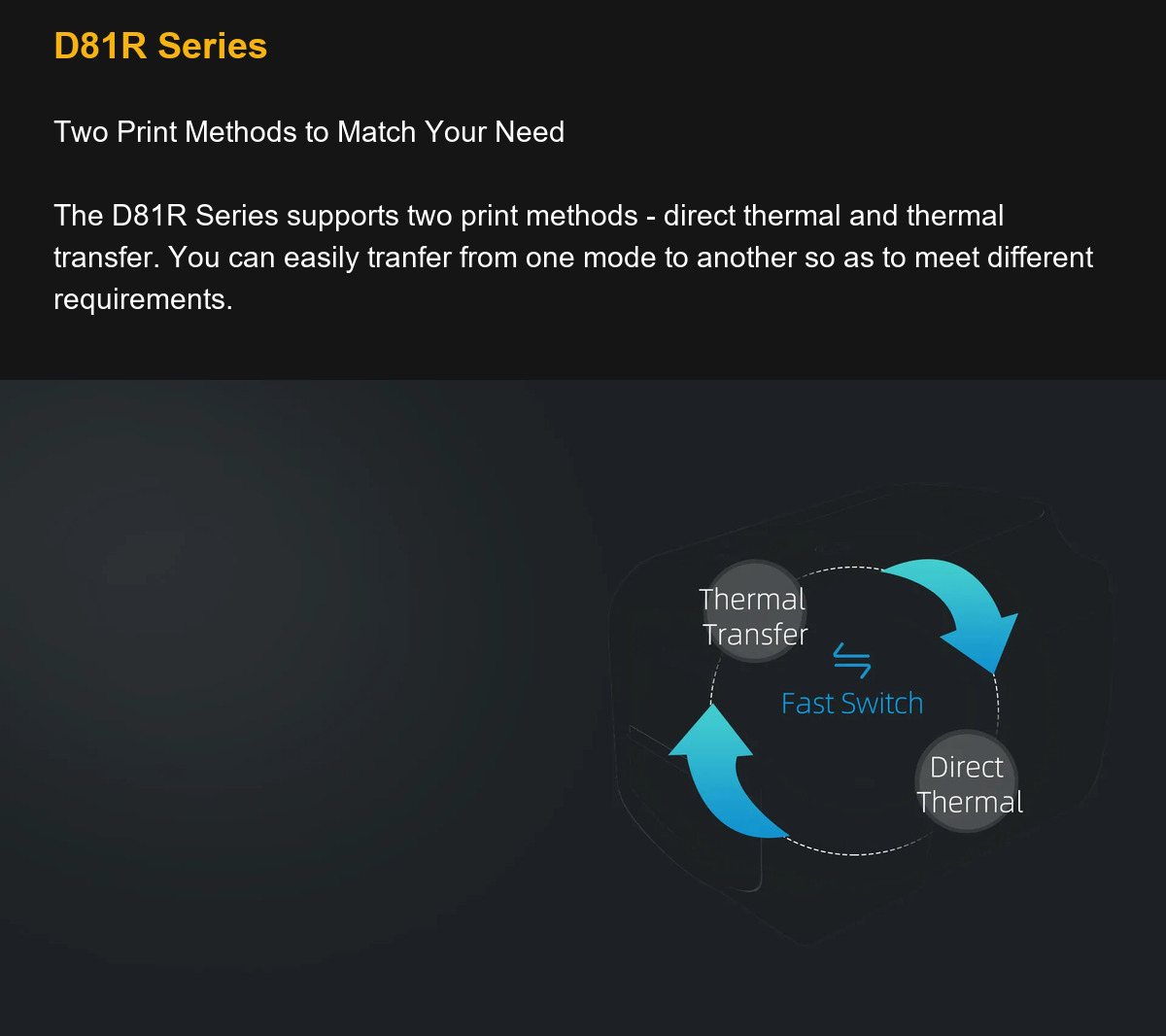

Two Print Methods to Match Your Need

The D81R Series supports two print methods – direct thermal and thermal transfer. You can easily tranfer from one mode to another so as to meet different requirements.

Multiple Industry Scenarios

The D81R Series is a robust and powerful RFID print-encoder label printer that is perfect for v industries including transport and logistics, healthcare, manufacturinariousg, warehousing, government, and more.

D81R Series

RFID Desktop Printer

Streamlined Operations and Setup Processes

– Key Calibration & Software Calibration

– Smart Storage: No Re-calibration Required for Same Size RFID Tags

15mm On-pitch Label Printing

Designed with tight mechanical tolerances, advanced RF technology and intelligent firmware, UROVO RFID printers can print and encode RFID tags with a minimum pitch of 15mm and supports thick on-metal label printing less than 1.3mm.

Easy Print With Labels

Available in direct thermal, thermal transfer printing methods, D81R Series supports a wide variety of RFID labels and tags from small, item-level hang tags to large case and pallet labels on a wide range of different media types.

Superior Printing Quality

The Rohm’s professional printhead is available in 203 dpi, 300 dpi resolution options.

Two Print Methods to Match Your Need

The D81R Series supports two print methods – direct thermal and thermal transfer. You can easily tranfer from one mode to another so as to meet different requirements.

Multiple Industry Scenarios

The D81R Series is a robust and powerful RFID print-encoder label printer that is perfect for v industries including transport and logistics, healthcare, manufacturinariousg, warehousing, government, and more.

RUGGEDMASTER D81R Series Technical Overview

CPU: 500 MHZ, 32 bits, Cotext-M7

Memory: 8MB SDRAM 16MB FLASH

Dimensions: – Size：280mm x 190mm x 198.3mm – Net Weight: 2.7kg

Environmental: – Operating temp.: +5 ~ +40°C, 25~ 85%(non-condensing) – Storage temp.: -40 ~ +60°C, 10~90%(non-condensing)

Communication: USB 2.0 480Mbps Bluetooth 2.4GHz/5GHz dual-band Wi-Fi(optional)

Printing Specifications: – Print Methods: Direct Thermal/Thermal Transfer – Emulation: TSPL, ZPL, ZPL II, – Resolution:203DPI(D812R), 300DPI(D813R) – Maximum Print Speed: 4 inch/s(print and encode) – Maximum Print Width: 104mm(D812R), 108.4mm(D813R) – Maximum Print Length:1000mm

Media Type: RFID Tags Flexible Anti-Metal Labels Jewelry Adhesive Labels Copperplate Paper Labels

RFID Specifications: -RFID standard protocol: EPC Class1 Gen2/ISO18000-6C -RFID job monitoring tools track RFID performance -Support reading the TID, EPC, TID+EPC data of the labels -Support RFID password Lock/Unlock configuration

RUGGEDMASTER D81R Series Wholesale Selection

Select RUGGEDMASTER D81R Series by reviewing the configuration, dimensions and manufacturer details above. For bulk orders, provide the complete model name, intended application, required quantity and delivery destination. Keep optional configurations separate in your purchasing request so they can be checked against the listed technical information.

Compare the operating system, data capture functions and connectivity shown in the Specs tab with the requirements of your existing workflow. Check the stated interface, power supply and physical dimensions before planning installation or daily use. Where several configurations are listed, confirm the required configuration in your inquiry. Product images can show different views and example applications of the same model.

For deployment across a team or multiple locations, record the configuration required at each location and the intended working environment. Review the documented environmental limits, scanning requirements and supported connections when those fields are supplied. Optional functions listed by the manufacturer should be confirmed for the equipment you order. Use the full model name and requested quantity when preparing your wholesale inquiry.
