RUGGEDMASTER D61F Handheld Terminals
4-inch high definition display, 800*480Multi-touch panel, gloves and wet hands supported · 6700 mAh removable main battery, 5000 mAh optionalpistol battery, support QC3.0 and RTC; Built in 50mAh backupbattery, · Octa-core, 2.0 GHz · Android 13/GMS · RAM 4GB / ROM 64GB · -40℉ to 158℉/-40℃ to 70℃ · Bluetooth 5.1
Cold-chain Warehousing Dedicated Rugged Handheld PDA. The Thinnest Rugged PDA in the World Rugged by design and refined in form, D61F offers flexible 37-key layouts for intensive input workflows. Optional ultra-long-range scanning captures distant barcodes with precision. Add the ergonomic handle for enhanced grip and extended power – up to 11,700mAh. The dual-battery system supports hot-swapping and a pop-out design for nonstop operation. More than just efficient, the D61F is a dependable workhorse engineered for high-demand environments – ready to perform, shift after shift.
Dimension: 203.50 x 72.8 x 160 mm / 8.01 x 2.87 x 6.30in. (with pistol)203.50 x 72.8 x 34.8 mm / 8.01 x 2.87 x 1.37in. (without pistol)
Weight: 385g / 13.58oz. (device with battery)571g / 20.14oz. (device with pistol and battery)
Display / Touch Panel: 4-inch high definition display, 800*480Multi-touch panel, gloves and wet hands supported
Expansions: Supports up to 256 GB Micro SD card
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

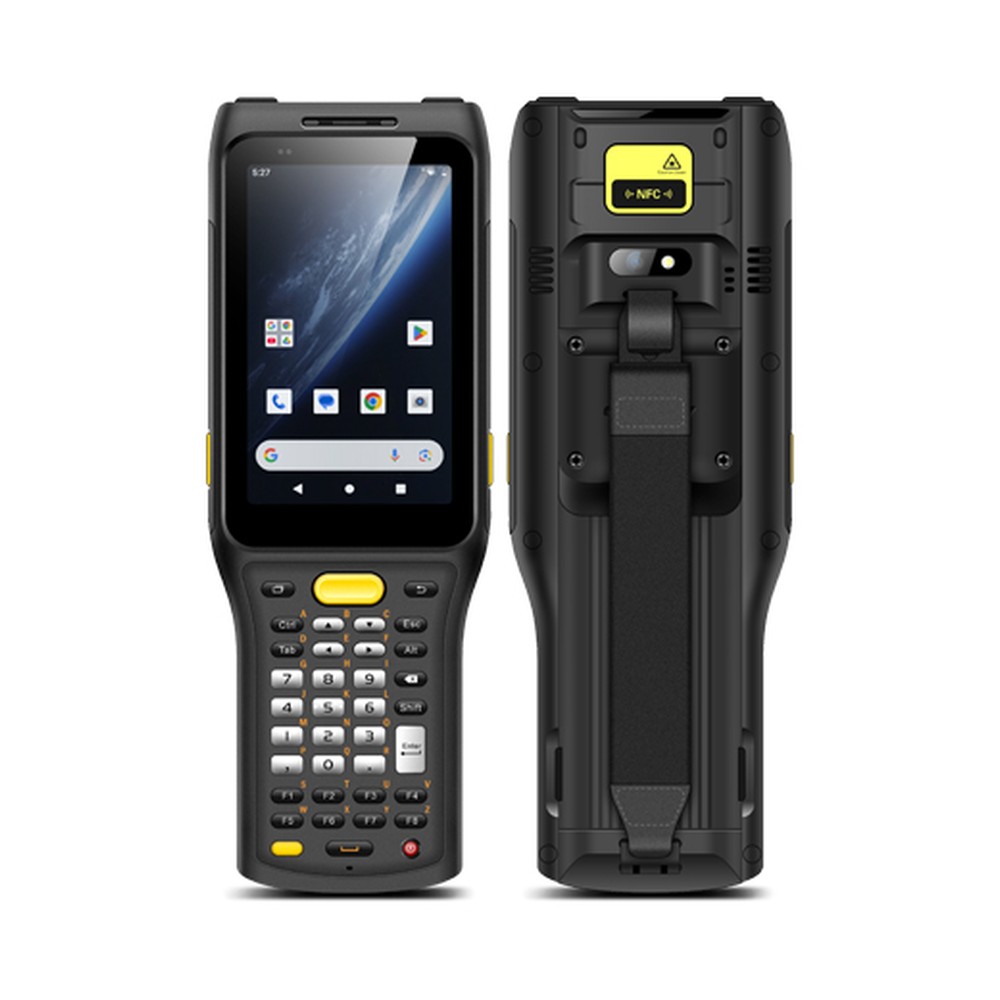

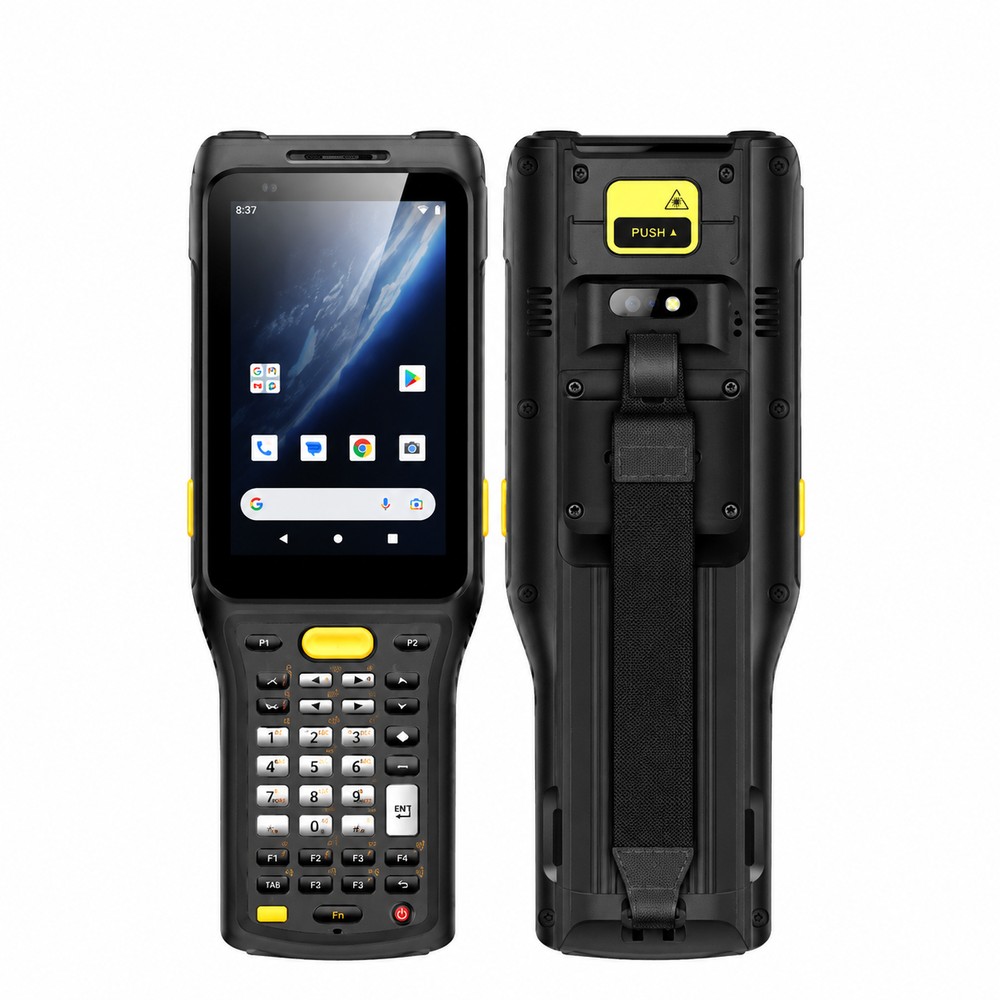

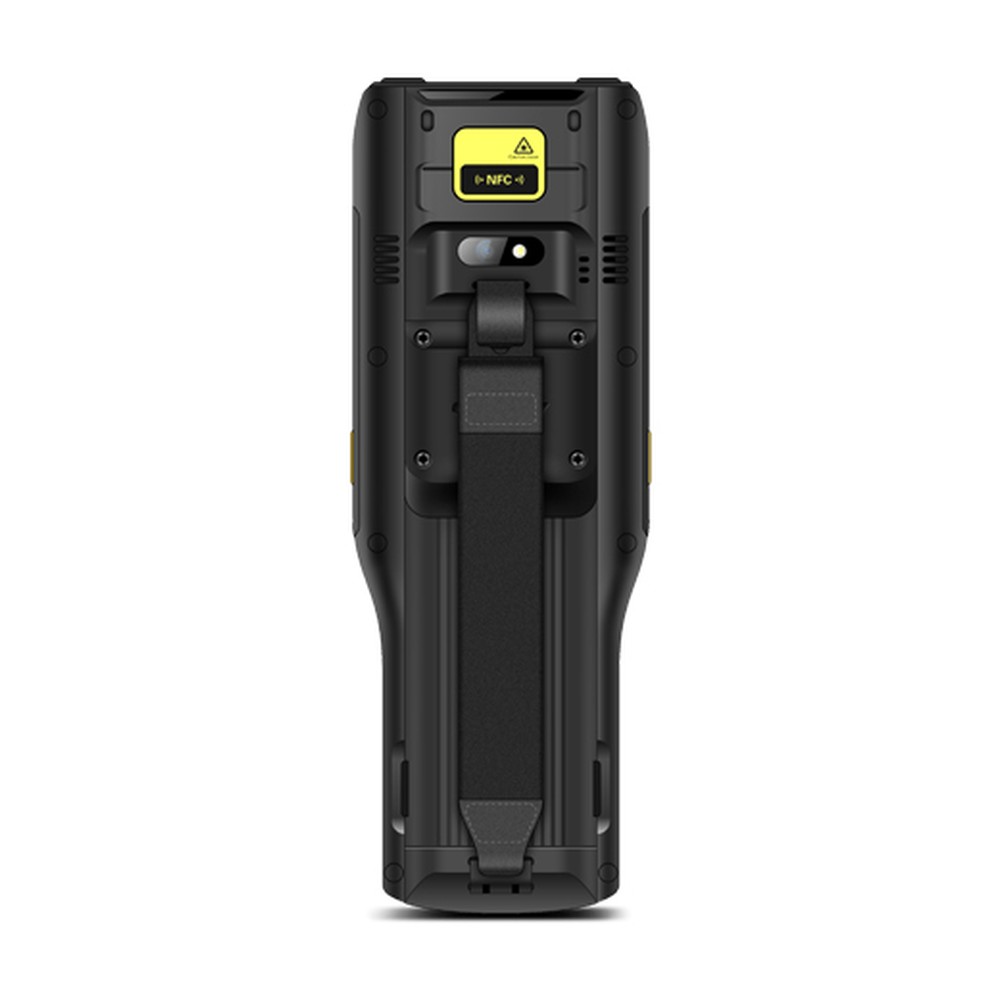

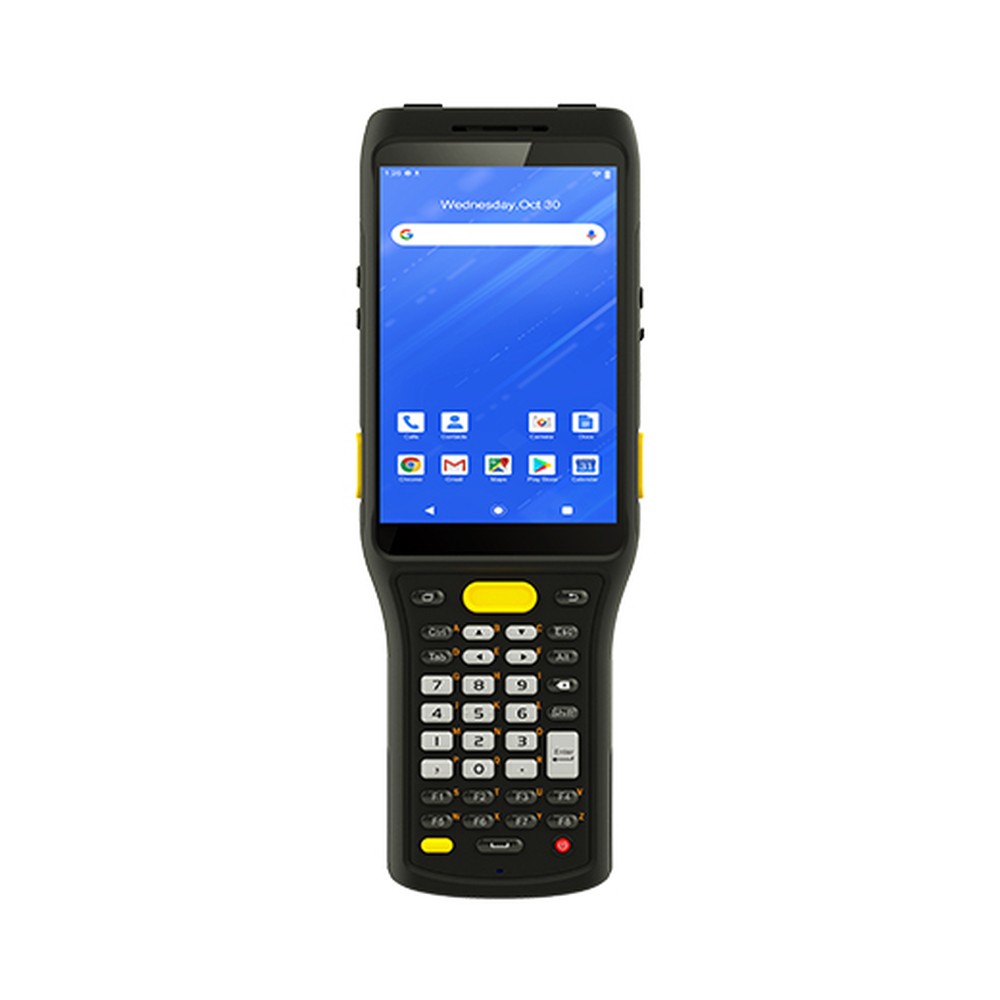

RUGGEDMASTER D61F Handheld Terminals
RUGGEDMASTER D61F combines the features and configurations shown below. Review the product overview, original feature graphics and complete Specs when selecting units for a bulk order.
Cold-chain Warehousing Dedicated Rugged Handheld PDA. The Thinnest Rugged PDA in the World

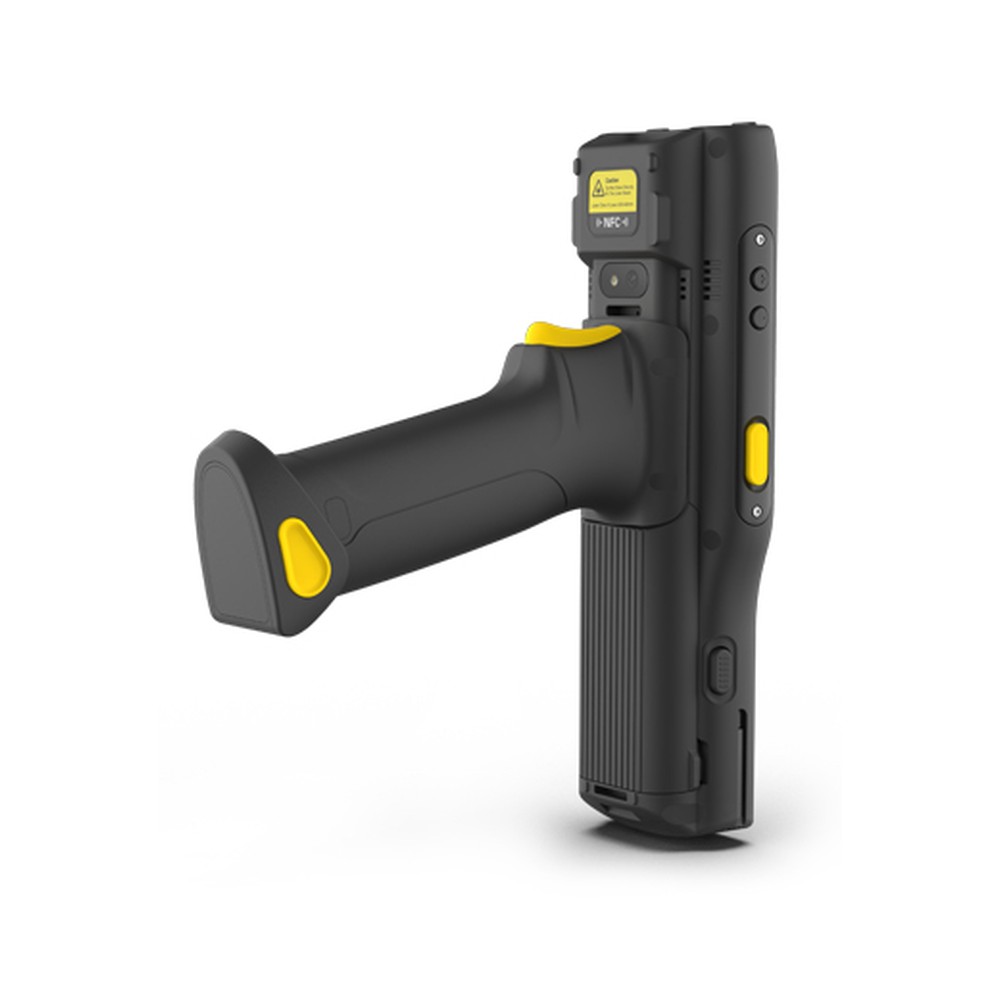

Rugged by design and refined in form, D61F offers flexible 37-key layouts for intensive input workflows. Optional ultra-long-range scanning captures distant barcodes with precision. Add the ergonomic handle for enhanced grip and extended power – up to 11,700mAh. The dual-battery system supports hot-swapping and a pop-out design for nonstop operation. More than just efficient, the D61F is a dependable workhorse engineered for high-demand environments – ready to perform, shift after shift.
Configuration overview
Technical specifications include Dimension: 203.50 x 72.8 x 160 mm / 8.01 x 2.87 x 6.30in. (with pistol)203.50 x 72.8 x 34.8 mm / 8.01 x 2.87 x 1.37in. (without pistol). Weight: 385g / 13.58oz. (device with battery)571g / 20.14oz. (device with pistol and battery). Display / Touch Panel: 4-inch high definition display, 800*480Multi-touch panel, gloves and wet hands supported. Expansions: Supports up to 256 GB Micro SD card.
Technical specifications include Battery: 6700 mAh removable main battery, 5000 mAh optionalpistol battery, support QC3.0 and RTC; Built in 50mAh backupbattery, pistol battery with meter; supporting battery hot swap,improving reliability and ensuring user data security. Power Adapter: 100-240V input, 5V 2A output, to be used with the DC-BK-TypeC data cable or fast charging power adapter, 100-240V input, 5V3A /12V1.5A / 9V2A output, to be used with the DC-BK-TypeC data cableOptional:(EU, US, UK, AU) Choose one of four. Audio: 1 microphone for noise cancellation; 1 speaker; 1 receiver. I/O Interfaces: USB Type-C, USB 3.1, OTG, extended thimble.
Technical specifications include Buttons/Keys: Main keyboard (Optional) : 27 keys / 37 keys / 47 keys;Side keys: 2 scan keys + 2 volume keys + 1 user-defined key. Camera: Rear 13 MP Autofocus with flash. CPU: Octa-core, 2.0 GHz. Operating System: Android 13/GMS.
Technical specifications include Storage: RAM 4GB / ROM 64GB. Operating Temp.: -4℉ to 122℉/-20℃ to 50℃. Storage Temp.: -40℉ to 158℉/-40℃ to 70℃. Humidity: 5%RH to 95%RH(non-condensing).
Technical specifications include Drop Specifications: Multiple 1.5 m / 4.92 ft. drops to the concrete across the operatingtemperature range. IP Protective Level: IP67 per IEC sealing specifications. SDK: Dingdata Software Development Kit. Language: Java.
Technical specifications include Environment: Android Studio or Eclipse. WWAN: 2G: 850/900/1800/1900 MHz3G: CDMA EVDO: BC0WCDMA: 850/900/1700/1900/2100MHzTD-SCDMA: A/F(B34/B39)4G: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B28/B38/ B39/B40/B41. WIFI: Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v, 2.4G/5G dualband, IPV4, IPV6, 5G PA;Fast roaming: PMKID caching, 802.11r, OKCOperating Channels: 2.4G(channel 1~13),5G(channel 36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132,136,140,144,149,153,157,161,165), Depends on localregulationsSecurity and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES),WAPI-PSK—EAP-TTLS, EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC,etc.. Bluetooth: Bluetooth 5.1.
Wholesale purchasing information
For RUGGEDMASTER D61F, compare the pictured housing, connectors and controls with the configuration required by your application. The manufacturer may describe optional modules, memory configurations or regional network bands. These options are listed for reference; confirm the required configuration when requesting a quotation. Choose the interface and data-capture functions that match your existing workflow, software and installation requirements.
Review the complete Specs tab before placing a bulk order. It preserves the technical information supplied for this model, including the available operating environment and configuration details. Product pictures show the manufacturer’s existing views and available configurations. If your project needs a particular module, operating system version or connector, state that requirement in your enquiry so the configuration can be checked before ordering.
Explore related products in our RuggedMaster product catalog or send a bulk-order enquiry.

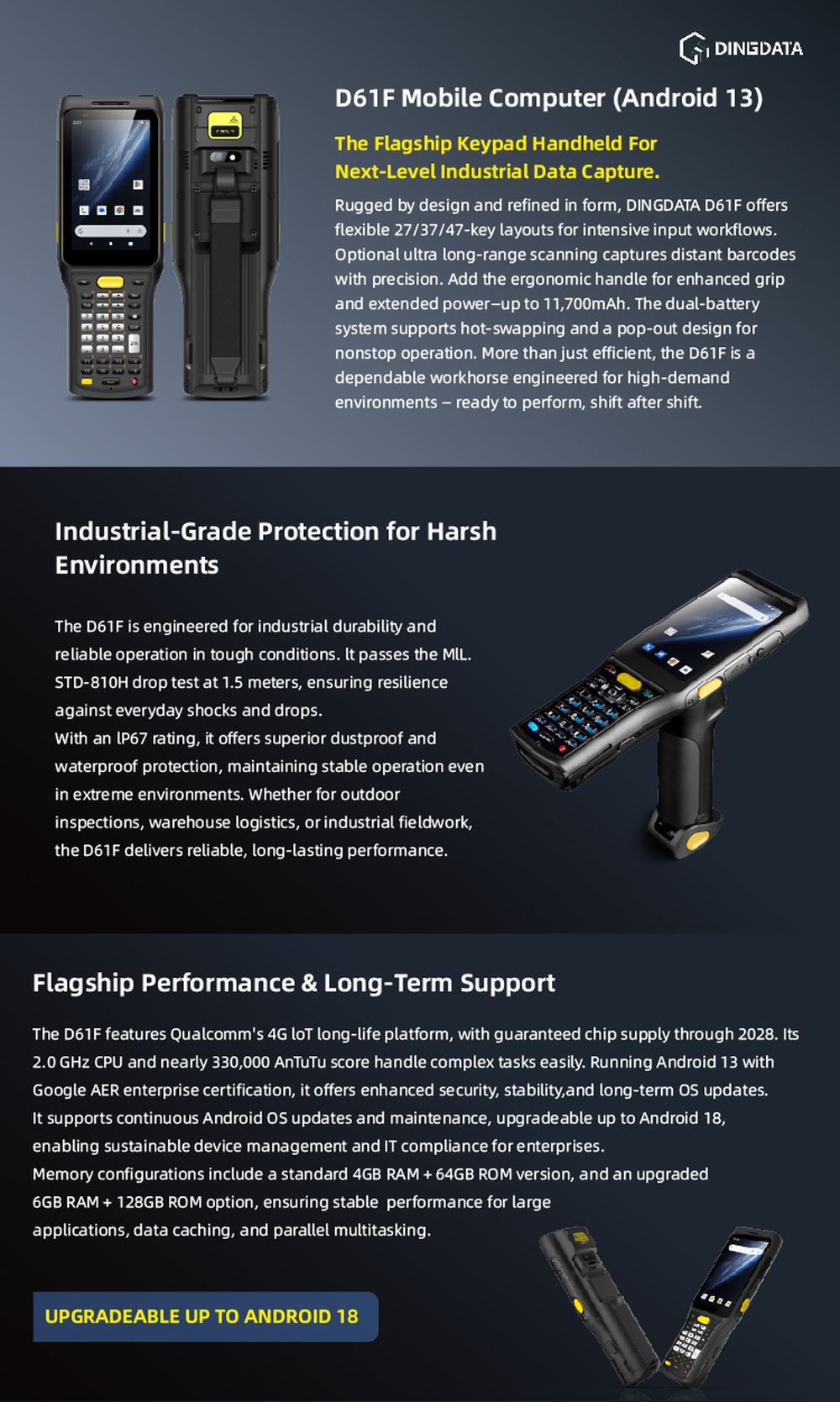

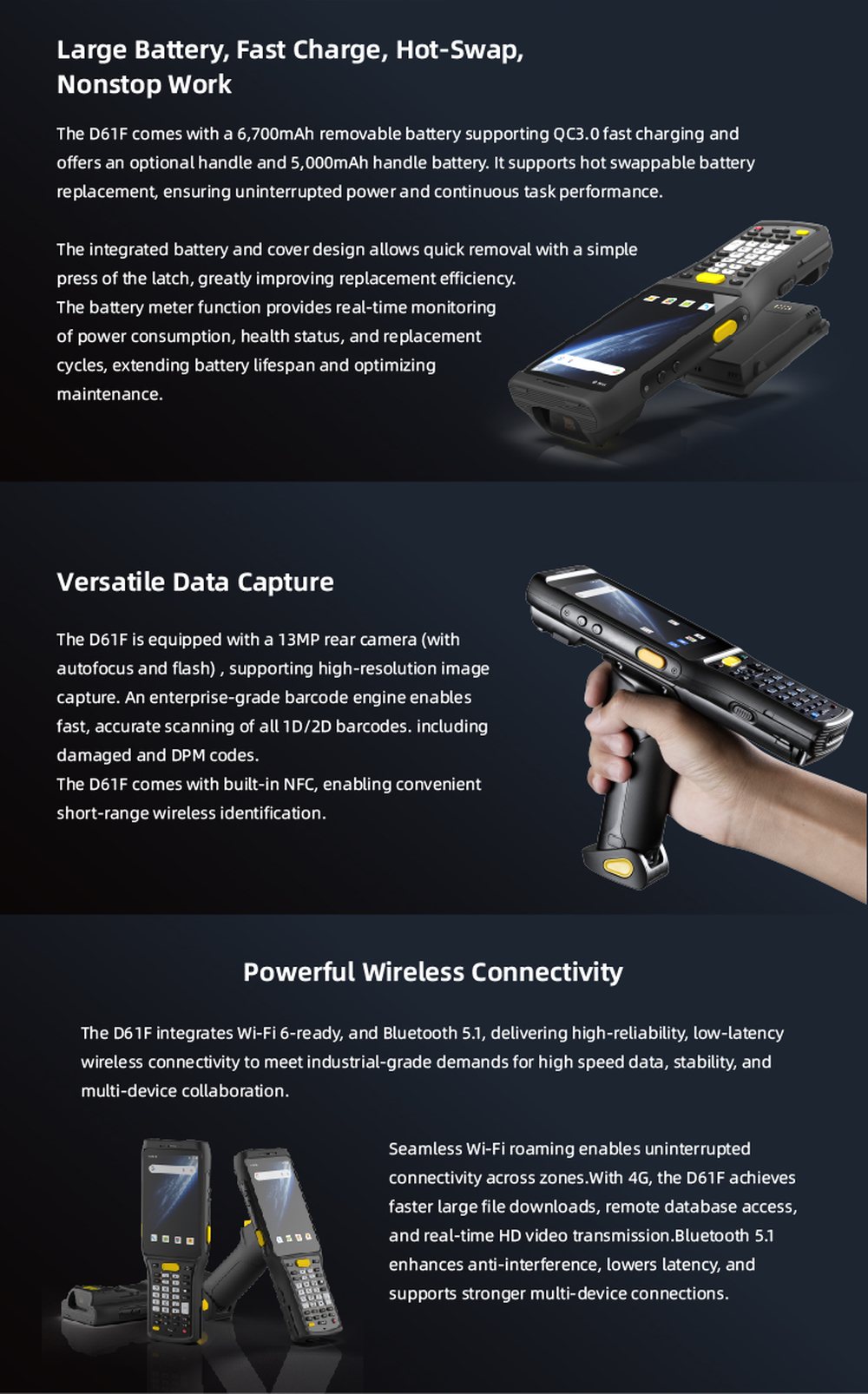

Manufacturer feature details
| SPECIFICATIONS | ||
| PHYSICAL CHARACTERISTICS | ||
| Dimension | 203.50 x 72.8 x 160 mm / 8.01 x 2.87 x 6.30in. (with pistol)203.50 x 72.8 x 34.8 mm / 8.01 x 2.87 x 1.37in. (without pistol) | |
| Weight | 385g / 13.58oz. (device with battery)571g / 20.14oz. (device with pistol and battery) | |
| Display / Touch Panel | 4-inch high definition display, 800*480Multi-touch panel, gloves and wet hands supported | |
| Expansions | Supports up to 256 GB Micro SD card | |
| Battery | 6700 mAh removable main battery, 5000 mAh optionalpistol battery, support QC3.0 and RTC; Built in 50mAh backupbattery, pistol battery with meter; supporting battery hot swap,improving reliability and ensuring user data security | |
| Power Adapter | 100-240V input, 5V 2A output, to be used with the DC-BK-TypeC data cable or fast charging power adapter, 100-240V input, 5V3A /12V1.5A / 9V2A output, to be used with the DC-BK-TypeC data cableOptional:(EU, US, UK, AU) Choose one of four | |
| Audio | 1 microphone for noise cancellation; 1 speaker; 1 receiver | |
| I/O Interfaces | USB Type-C, USB 3.1, OTG, extended thimble | |
| Buttons/Keys | Main keyboard (Optional) : 27 keys / 37 keys / 47 keys;Side keys: 2 scan keys + 2 volume keys + 1 user-defined key | |
| Camera | Rear 13 MP Autofocus with flash | |
| PERFORMANCE CHARACTERSTICS | ||
| CPU | Octa-core, 2.0 GHz | |
| Operating System | Android 13/GMS | |
| Storage | RAM 4GB / ROM 64GB | |
| USER ENVIRONMENT | ||
| Operating Temp. | -4℉ to 122℉/-20℃ to 50℃ | |
| Storage Temp. | -40℉ to 158℉/-40℃ to 70℃ | |
| Humidity | 5%RH to 95%RH(non-condensing) | |
| Drop Specifications | Multiple 1.5 m / 4.92 ft. drops to the concrete across the operatingtemperature range | |
| IP Protective Level | IP67 per IEC sealing specifications | |
| DEVELOPMENT ENVIRONMENT | ||
| SDK | Dingdata Software Development Kit | |
| Language | Java | |
| Environment | Android Studio or Eclipse | |
| DATA COMMUNICATION | ||
| WWAN | 2G: 850/900/1800/1900 MHz3G: CDMA EVDO: BC0WCDMA: 850/900/1700/1900/2100MHzTD-SCDMA: A/F(B34/B39)4G: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B28/B38/ B39/B40/B41 | |
| WIFI | Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v, 2.4G/5G dualband, IPV4, IPV6, 5G PA;Fast roaming: PMKID caching, 802.11r, OKCOperating Channels: 2.4G(channel 1~13),5G(channel 36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132,136,140,144,149,153,157,161,165), Depends on localregulationsSecurity and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES),WAPI-PSK—EAP-TTLS, EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC,etc. | |
| Bluetooth | Bluetooth 5.1 | |
| GPS | GPS/AGPS,GLONASS, BeiDou, Galileo, internal antenna | |
| DATA CAPTUER | ||
| Barcode Scanning (optional) | 2D ScannerZebra: SE4710/SE4750/SE4850/SE55/SE58Honeywell: N6603/N6703/N6803FR; CM601D SymbologiesUPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5,Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.2D SymbologiesPDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QRcode, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal(KIX), etc. | |
| RFID HF（NFC） | Frequency : 13.56MHz,Protocol: ISO 14443A/B &15693,NFC-IP1,NFC-IP2 etc,Chips M1 card (S50, S70), CPU card, NFC tags, etc.Range 2-4 cm | |
| ACCESSORIES | ||
| Standard | 1xPower Supply; 1xLithium Polymer Battery; 1xType-C cable | |
| Optional | Hand strap; Charger Cradle; Protective film ; Pistol Grip Gun; Battery docking ,Rubber Bumper,etc | |
