RUGGEDMASTER CMX-T17X Rugged Tablets
Solid PC · MT6789 octa-core,2*A76 2.2GHz, Android 14 GMS, 8GB+128GB, 10.1 inch TFT 16:10,1920×1200,700 nits, Rechargeable polymer battery( 3.7V/8500mAh) Working time:9 hours ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default ), Zebra SE4710
RUGGEDMASTER CMX-T17X. The manufacturer specifications list MT6789 octa-core,2*A76 2.2GHz, Android 14 GMS, 8GB+128GB, 10.1 inch TFT 16:10,1920×1200,700 nits, Rechargeable polymer battery( 3.7V/8500mAh) Working time:9 hours ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default ), Zebra SE4710. Review the full hardware and connection details in the Specs tab for your project.
CPU: MT6789 octa-core,2*A76 2.2GHz
RAM+ROM: 8GB+128GB
Display: 10.1 inch TFT 16:10,1920×1200,700 nits
Extension interface (3 choose 1): RJ45(10/100M) x1(standard), DB9 (RS232) x1, USB 2.0 Type-Ax1
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

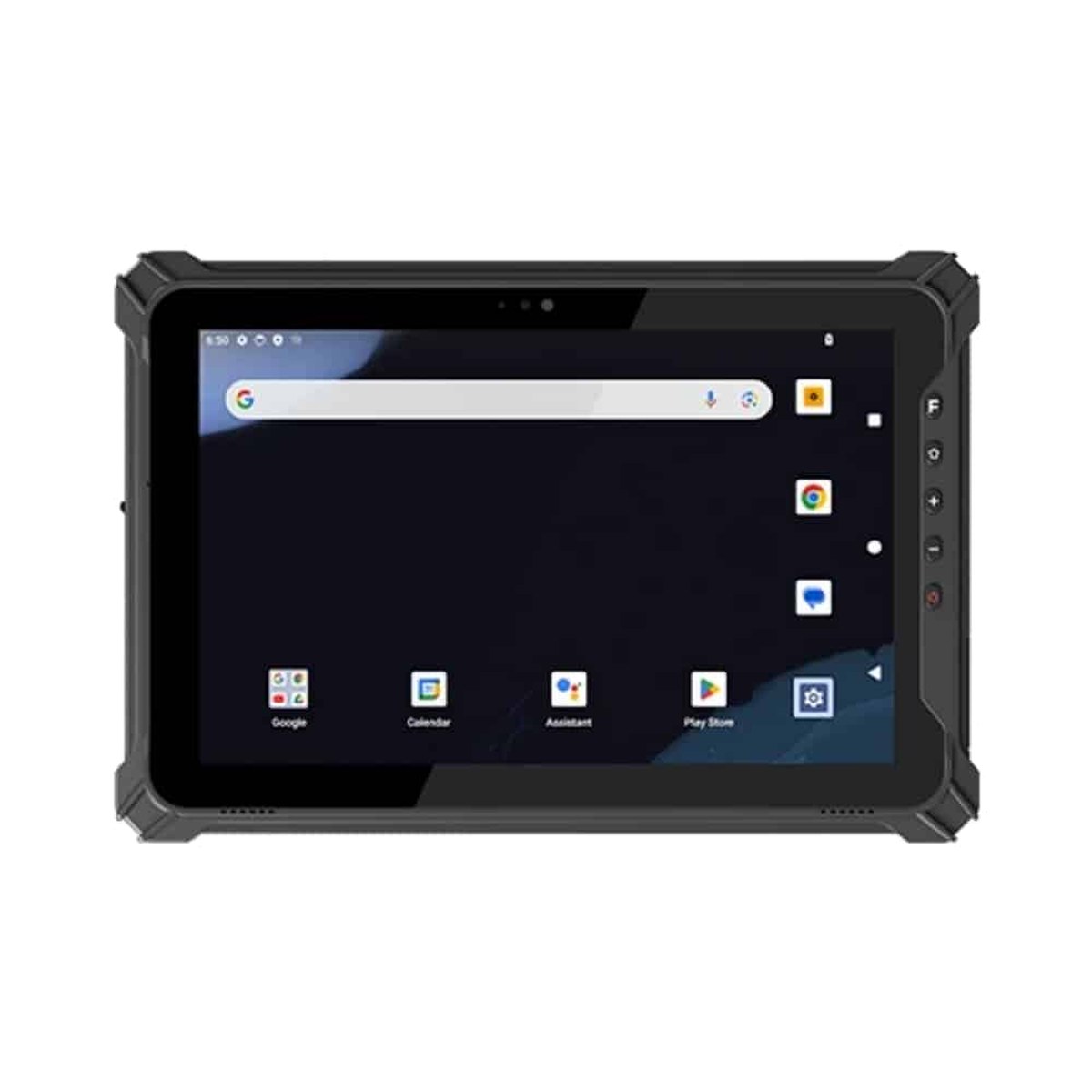

RUGGEDMASTER CMX-T17X Rugged Tablets
RUGGEDMASTER CMX-T17X rugged tablets is listed for wholesale enquiries through RuggedMaster. MT6789 octa-core,2*A76 2.2GHz, Android 14 GMS, 8GB+128GB, 10.1 inch TFT 16:10,1920×1200,700 nits, Rechargeable polymer battery( 3.7V/8500mAh) Working time:9 hours ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default ), Zebra SE4710.
Here is a basic parameter of CMX-T17X Rugged Tablet PC
Special Note : Product data is for reference only and subject to change without notice
RUGGEDMASTER CMX-T17X features and specifications
Model: CMX-T17X.
CPU: MT6789 octa-core,2*A76 2.2GHz.
GPU: ARM G57 MC2.
RAM+ROM: 8GB+128GB.
System: Android 14 GMS.
WLAN: WiFi 802.11 a/b/g/n/ac (2.4G+5.8G).
WWAN: 2G:GSM (850/900/ 1800/ 1900MHz) 3G:WCDMA (850/900/ 1900/2100MHz) LTE FDD: B1/B2/B3/B4/B5/B7/B8/B17/B28A&B LTE TDD: B38/B39/B40/B41.
Bluetooth: Support Bluetooth5.2,transmission distance 10m.
GNSS: Support GPS/GLONASS/Beidou/Galileo/QZSS/SBAS.
Dimensions: 274.9mm×188.7mm×23.1mm.
Weight: 1140g (Including battery).

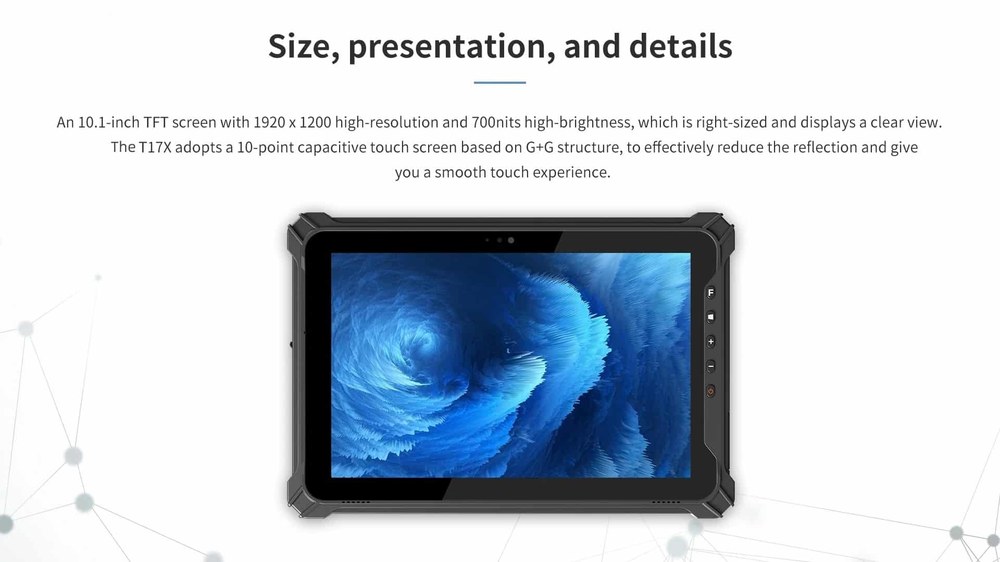

Display: 10.1 inch TFT 16:10,1920×1200,700 nits.
TP: 10 point G+G capacitive touch screen.Gorilla glass.

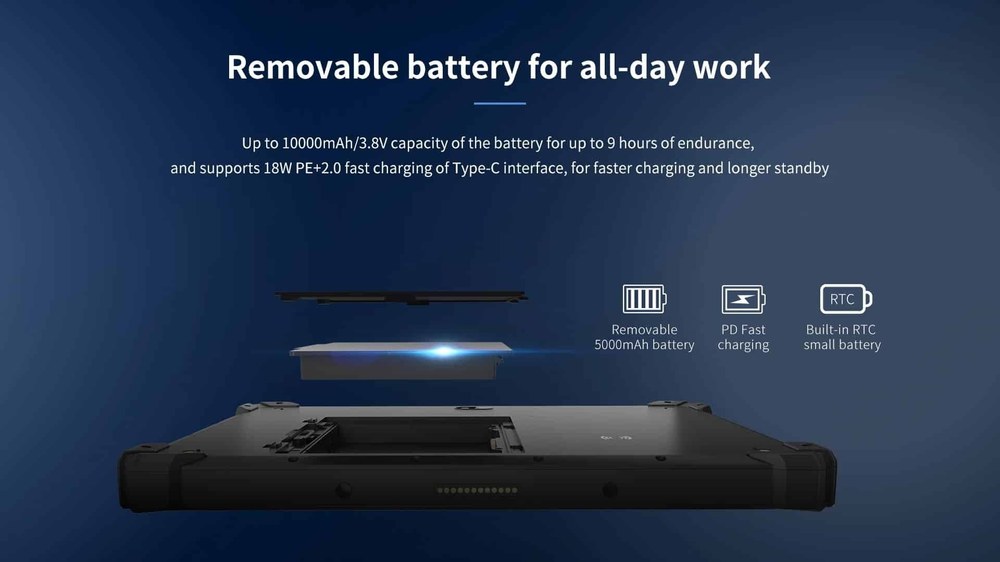

Battery capacity: Rechargeable polymer battery( 3.7V/8500mAh) Working time:9 hours ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default ).
Expansion Card slot: SIM Card x 2, TF Card (Three in one card holder).

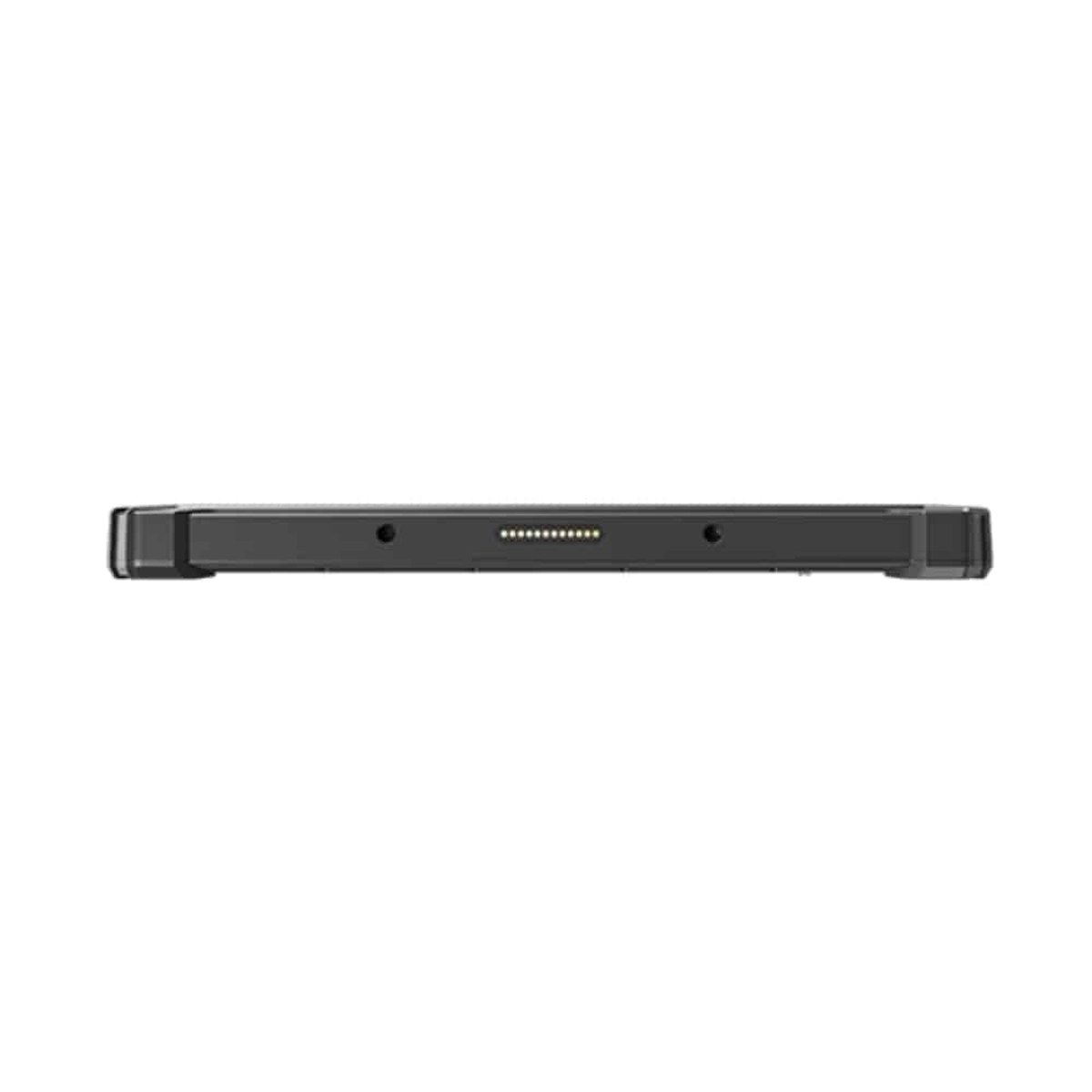

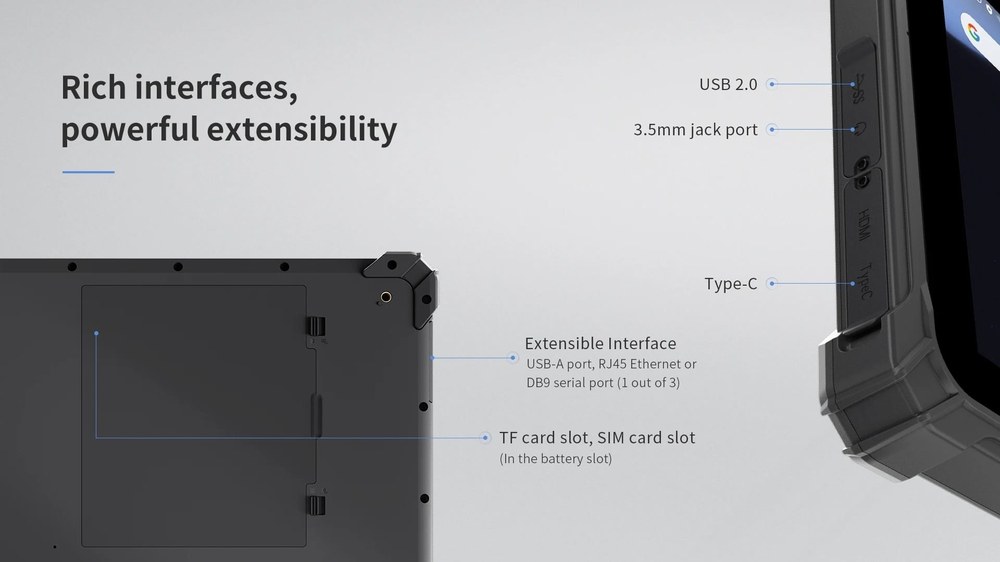

Communication interface: USB 2.0 Type Ax1,Type Cx1,12PIN Pogo Pinx 1, Φ3.5mm standard earphone jackx1,Φ3.5mm DC jack x 1.
Extension interface (3 choose 1): RJ45(10/100M) x1(standard), DB9 (RS232) x1, USB 2.0 Type-Ax1.
Power: USB Type-C interface, supports fast charging PE+2.0, maximum power of 18W,maximum 9V/2A.

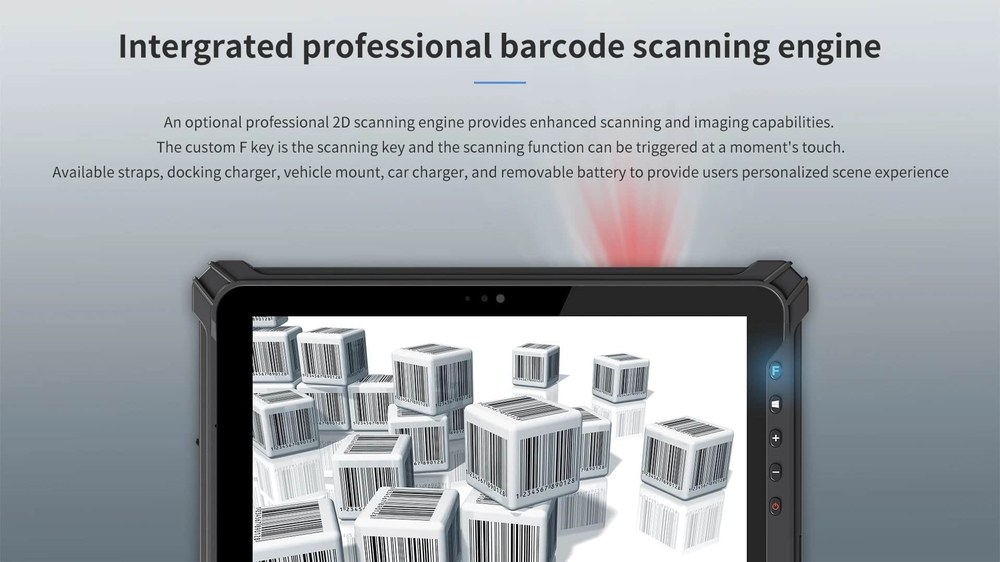

Barcode Scanning: Zebra SE4710.
1D Symbologies: Code 39,Code 93,Code 128 Codabar(NW-7),Code 11 UPC-A/UPC-E EAN-8/EAN-13 Interleaved 2-of-5(ITF)Industrial 2-of-5,Standard 2-of-5 MSI/Plessey、Postnet,Planet Code RSS/GS1 DataBar.
2D Symbologies: PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code,MaxiCode ,Hanxin Code,etc..
Rear camera: 13MP color camera Support auto focus,Flash,Anti-shake,Macro shooting.
Front camera: 5MP color camera.
Frequency: 13.56MHz.
Protocol: ISO/IEC 14443A protocol.
Distance: 2cm-5cm.
Operating temperature: -20℃-60℃.
Storage temperature: -30℃-70℃.
Environment humidity: 95% RH(no condensation).
Drop: 6 sides can withstand a height of 1.22 meters,falling to the marble..

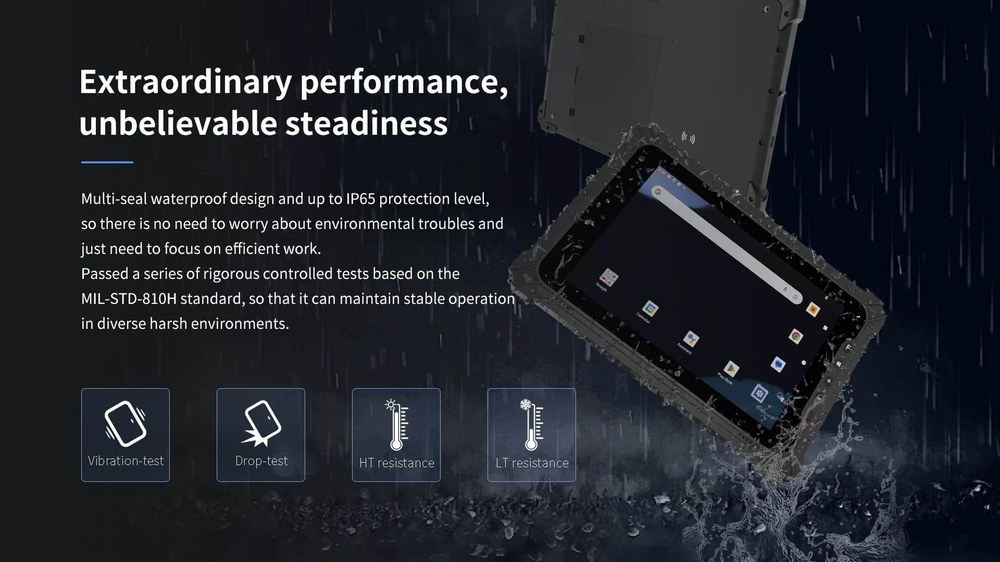

Sealing: IP65 certified,MIL-STD-810H certified.
Standard: Adapter,Data cable,Hand-strap.
Optional: Docking Charger,Vehicle Mount.
RUGGEDMASTER CMX-T17X bulk orders
For a RUGGEDMASTER CMX-T17X wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.
Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.

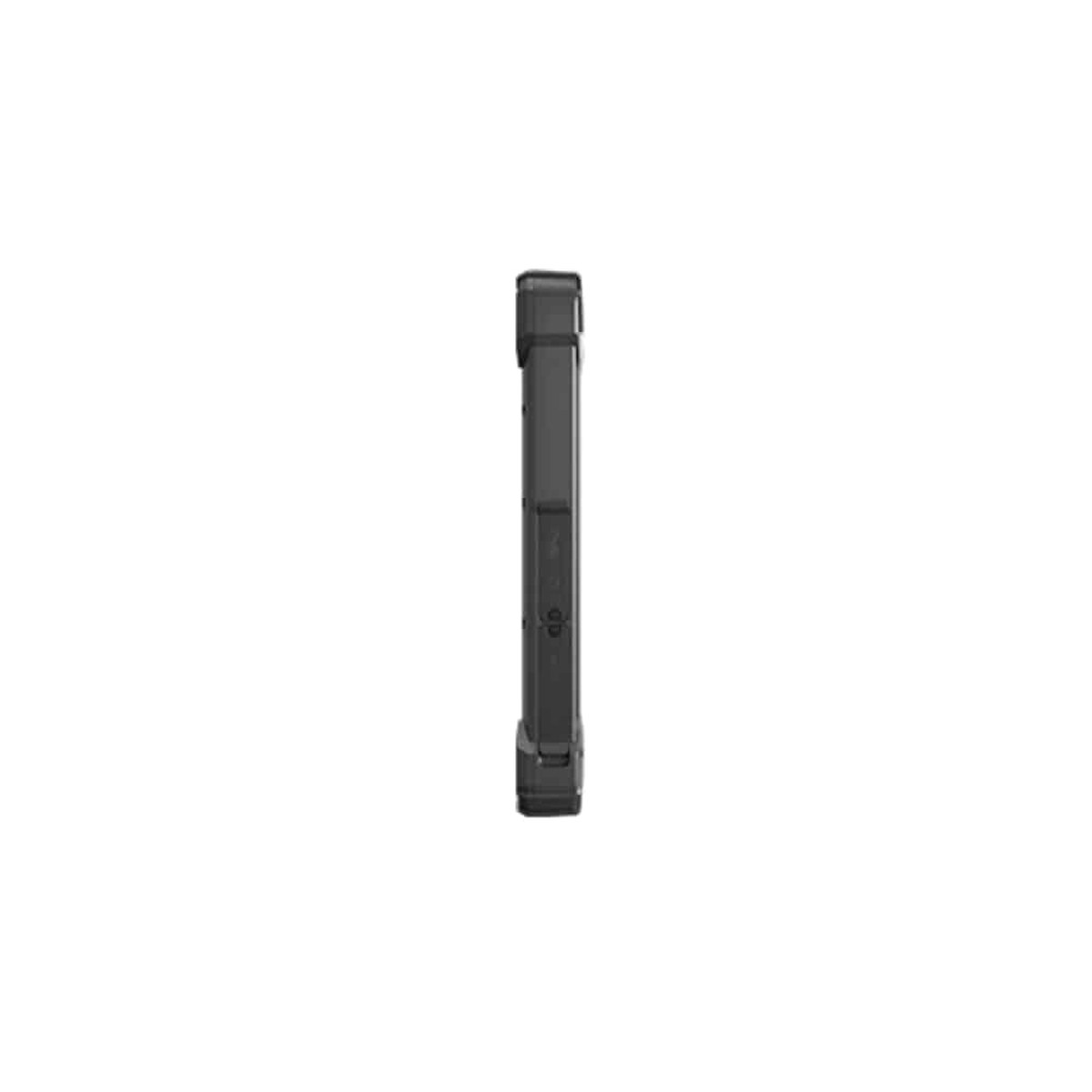

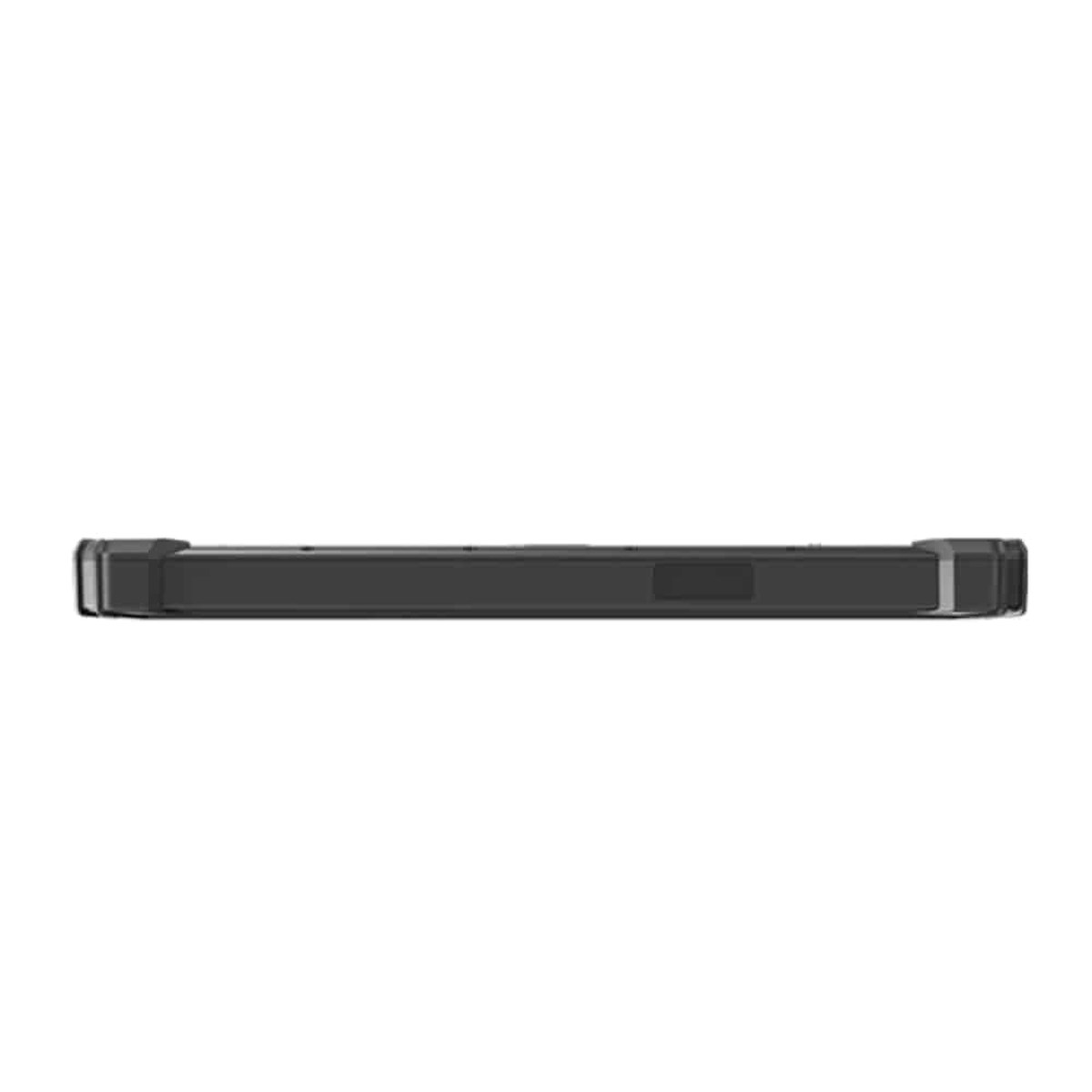

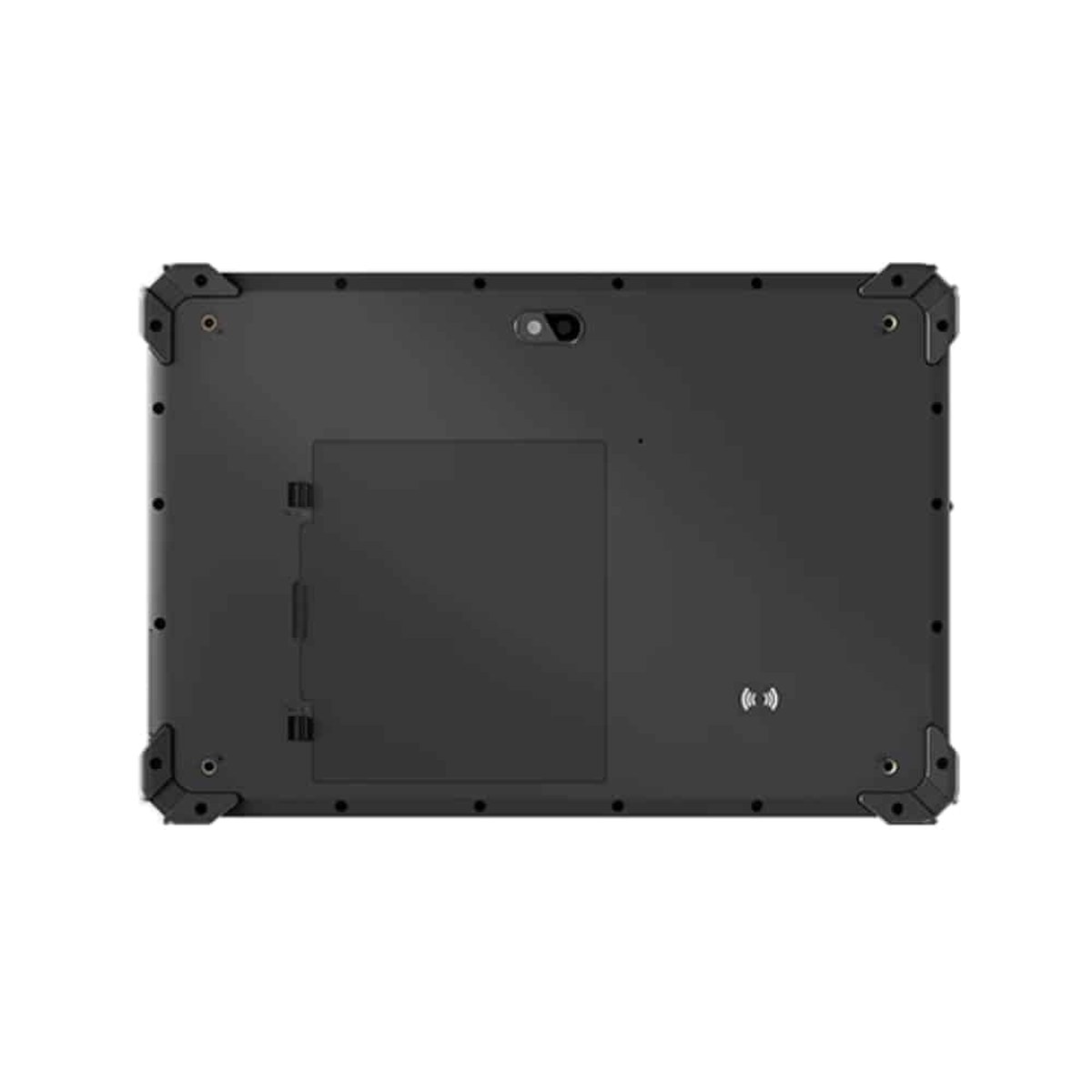

Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.
Compare the RUGGEDMASTER CMX-T17X dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
Explore RuggedMaster wholesale products.
| Model | CMX-T17X |
|---|---|
| CPU | MT6789 octa-core,2*A76 2.2GHz |
| GPU | ARM G57 MC2 |
| RAM+ROM | 8GB+128GB |
| System | Android 14 GMS |
| WLAN | WiFi 802.11 a/b/g/n/ac (2.4G+5.8G) |
| WWAN | 2G:GSM (850/900/ 1800/ 1900MHz) 3G:WCDMA (850/900/ 1900/2100MHz) LTE FDD: B1/B2/B3/B4/B5/B7/B8/B17/B28A&B LTE TDD: B38/B39/B40/B41 |
| Bluetooth | Support Bluetooth5.2,transmission distance 10m |
| GNSS | Support GPS/GLONASS/Beidou/Galileo/QZSS/SBAS |
| Dimensions | 274.9mm×188.7mm×23.1mm |
| Weight | 1140g (Including battery) |
| Display | 10.1 inch TFT 16:10,1920×1200,700 nits |
| TP | 10 point G+G capacitive touch screen.Gorilla glass |
| Battery capacity | Rechargeable polymer battery( 3.7V/8500mAh) Working time:9 hours ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default ) |
| Expansion Card slot | SIM Card x 2, TF Card (Three in one card holder) |
| Communication interface | USB 2.0 Type Ax1,Type Cx1,12PIN Pogo Pinx 1, Φ3.5mm standard earphone jackx1,Φ3.5mm DC jack x 1 |
| Extension interface (3 choose 1) | RJ45(10/100M) x1(standard), DB9 (RS232) x1, USB 2.0 Type-Ax1 |
| Power | USB Type-C interface, supports fast charging PE+2.0, maximum power of 18W,maximum 9V/2A |
| Barcode Scanning | Zebra SE4710 |
| 1D Symbologies | Code 39,Code 93,Code 128 Codabar(NW-7),Code 11 UPC-A/UPC-E EAN-8/EAN-13 Interleaved 2-of-5(ITF)Industrial 2-of-5,Standard 2-of-5 MSI/Plessey、Postnet,Planet Code RSS/GS1 DataBar |
| 2D Symbologies | PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code,MaxiCode ,Hanxin Code,etc. |
| Rear camera | 13MP color camera Support auto focus,Flash,Anti-shake,Macro shooting |
| Front camera | 5MP color camera |
| Frequency | 13.56MHz |
| Protocol | ISO/IEC 14443A protocol |
| Distance | 2cm-5cm |
| Operating temperature | -20℃-60℃ |
| Storage temperature | -30℃-70℃ |
| Environment humidity | 95% RH(no condensation) |
| Drop | 6 sides can withstand a height of 1.22 meters,falling to the marble. |
| Sealing | IP65 certified,MIL-STD-810H certified |
| Standard | Adapter,Data cable,Hand-strap |
| Optional | Docking Charger,Vehicle Mount |
