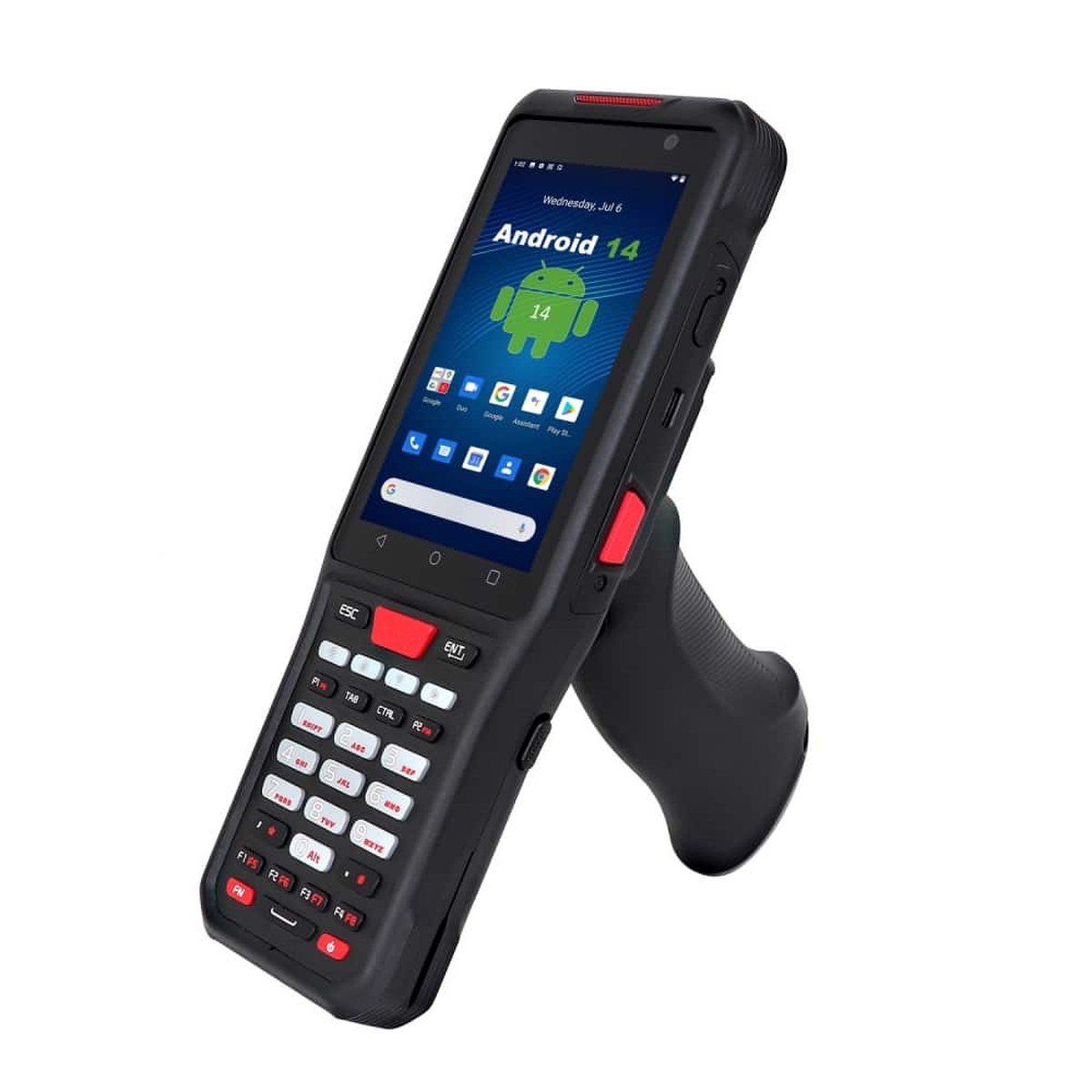

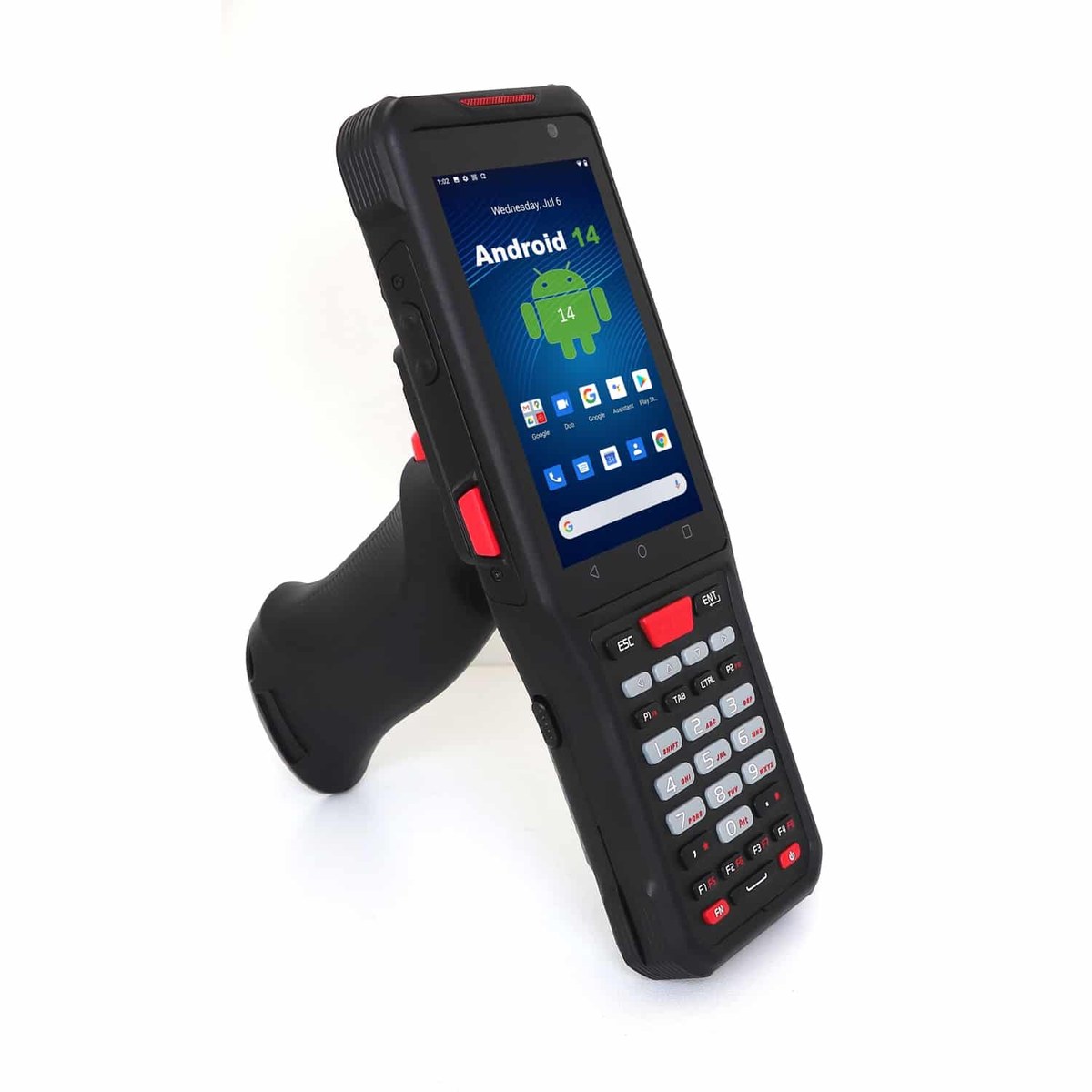

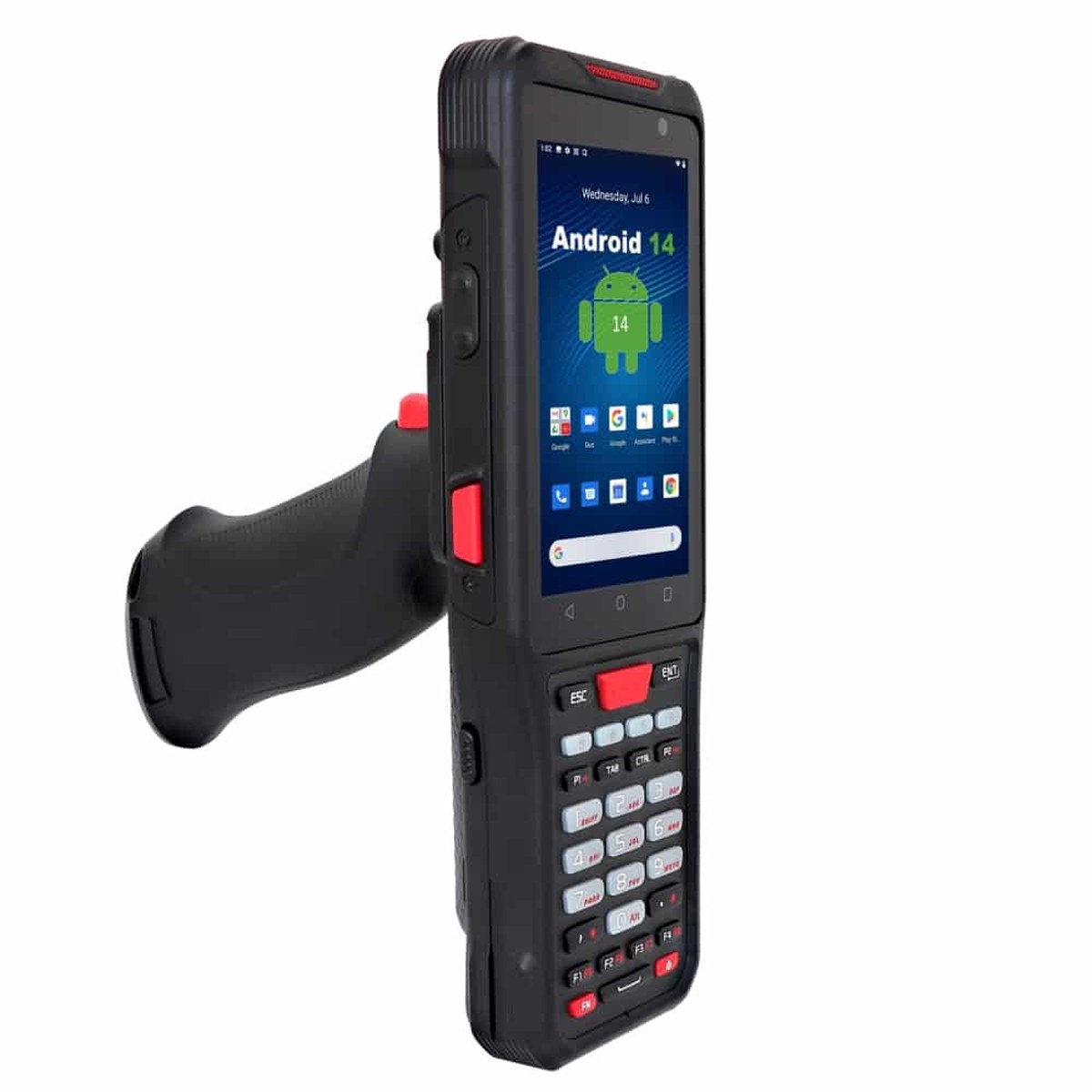

RUGGEDMASTER CMX-T14 Industrial PDAs
Reliable Android Logistics PDA · MT6769 2.2 GHz octa-core CPU Feature Octa (8) 64bit MT6789 G99 2x Arm Cortex-A76 up to 2.2GHz 6x Arm Cortex-A55 up to 2.0GHz, Android 14 GMS, 6GB+64GB, 4.0″ IPS HD (480×800),, Li-ion,rechargeable,7.74V 4500mAh +100mAh/Lithium polymer backup battery, Newland N1 2D scanner/Zebra 2D SE4710/SE4770/SE5500 long distance scanner for optional
RUGGEDMASTER CMX-T14. The manufacturer specifications list MT6769 2.2 GHz octa-core CPU Feature Octa (8) 64bit MT6789 G99 2x Arm Cortex-A76 up to 2.2GHz 6x Arm Cortex-A55 up to 2.0GHz, Android 14 GMS, 6GB+64GB, 4.0″ IPS HD (480×800),, Li-ion,rechargeable,7.74V 4500mAh +100mAh/Lithium polymer backup battery, Newland N1 2D scanner/Zebra 2D SE4710/SE4770/SE5500 long distance scanner for optional. Review the full hardware and connection details in the Specs tab for your project.
CPU: MT6769 2.2 GHz octa-core CPU Feature Octa (8) 64bit MT6789 G99 2x Arm Cortex-A76 up to 2.2GHz 6x Arm Cortex-A55 up to 2.0GHz
RAM+ROM: 6GB+64GB
Display: 4.0″ IPS HD (480×800),
Touch Screen: Corning Gorilla Glass,multi-touch panel,gloves and wet hands supported
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
RUGGEDMASTER CMX-T14 Industrial PDAs
RUGGEDMASTER CMX-T14 industrial pdas is listed for wholesale enquiries through RuggedMaster. MT6769 2.2 GHz octa-core CPU Feature Octa (8) 64bit MT6789 G99 2x Arm Cortex-A76 up to 2.2GHz 6x Arm Cortex-A55 up to 2.0GHz, Android 14 GMS, 6GB+64GB, 4.0″ IPS HD (480×800),, Li-ion,rechargeable,7.74V 4500mAh +100mAh/Lithium polymer backup battery, Newland N1 2D scanner/Zebra 2D SE4710/SE4770/SE5500 long distance scanner for optional.
Here is a basic parameter of CMX-T14 Android Logistics PDA
Special Note : Product data is for reference only and subject to change without notice
RUGGEDMASTER CMX-T14 features and specifications
Model: CMX-T14.
CPU: MT6769 2.2 GHz octa-core CPU Feature Octa (8) 64bit MT6789 G99 2x Arm Cortex-A76 up to 2.2GHz 6x Arm Cortex-A55 up to 2.0GHz.
GPU: Arm Mali-G57 MC2.
RAM+ROM: 6GB+64GB.
System: Android 14 GMS.
WIFI: IEEE802.11 a/b/g/n/ac,2.4G/5G dual-band, internal antenna.
Bluetooth: BT5.2.
GNSS: GPS/AGPS, GLONASS,BeiDou;internal antenna.
Dimensions: 203.5 mm (L) × 72mm (W) × 32mm (H).
Weight: Main devie 385g;Pistol grip 105g;UHF antenna174g.
Display: 4.0″ IPS HD (480×800),.
Touch Screen: Corning Gorilla Glass,multi-touch panel,gloves and wet hands supported.
Battery capacity: Li-ion,rechargeable,7.74V 4500mAh +100mAh/Lithium polymer backup battery.
Expansion Card slot: 2 slots for SIM card, 1 slot for TF card,Supports up to 256 GB TF card.
Communication interface: USB 2.0 (Type-C) x1,OTG Supported.
Keypad: Power Button:Support Side Buttons:2 scan keys,2 volume keys Main keyboard (Optional):27 keys/37 keys/ 47 keys.
Sensors: G-sensor:MXC6655XA Magnetometer:MMC5603NJ Light Sensor:STK3311-X Gyroscope:ICM-42607-P.

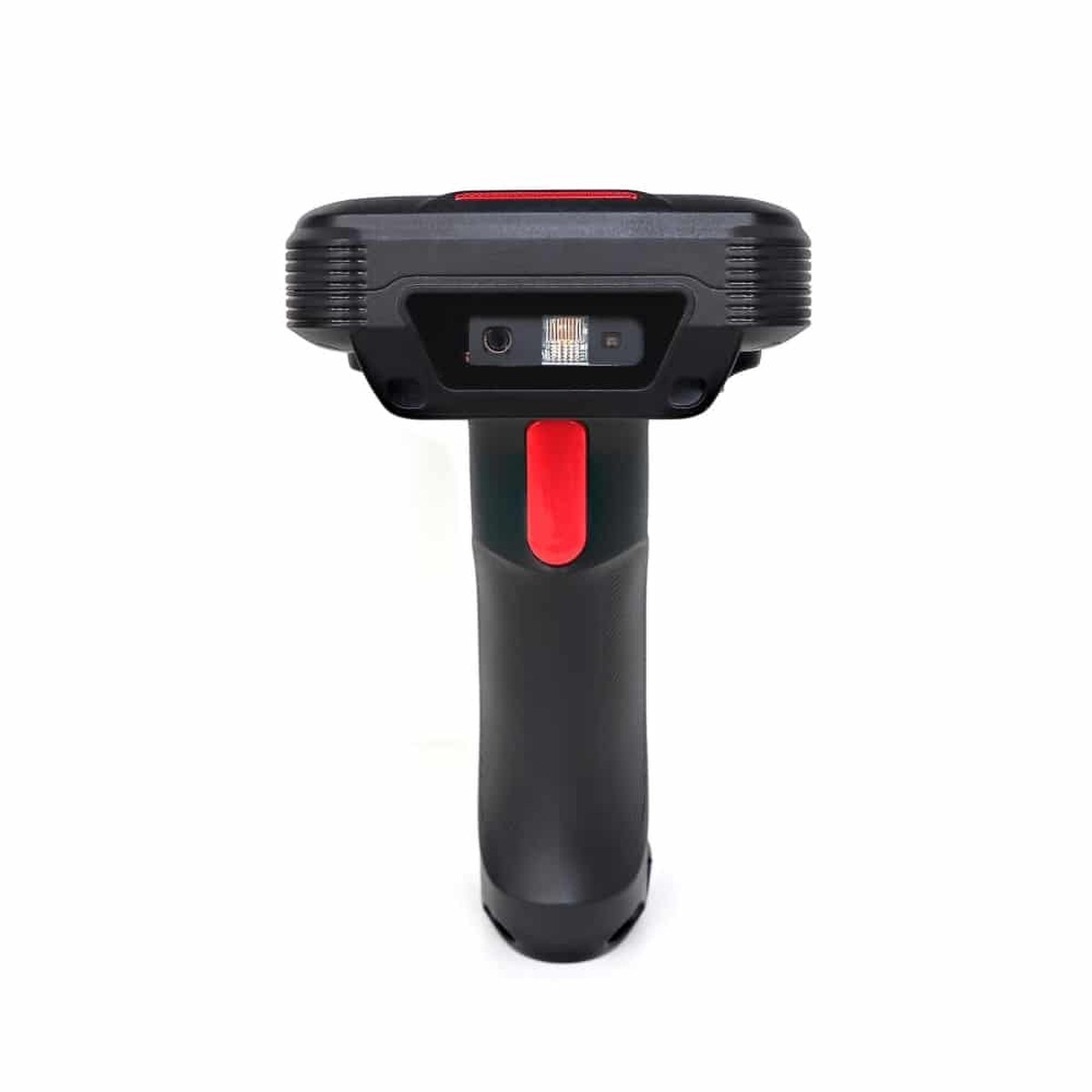

Barcode Scanning: Newland N1 2D scanner/Zebra 2D SE4710/SE4770/SE5500 long distance scanner for optional.
1D Symbologies: Code 39,Code 93,Code 128 Codabar(NW-7),Code 11 UPC-A/UPC-E EAN-8/EAN-13 Interleaved 2-of-5(ITF)Industrial 2-of-5,Standard 2-of-5 MSI/Plessey、Postnet,Planet Code RSS/GS1 DataBar.
2D Symbologies: PDF417,MicroPDF417,Composite,RSS,TLC-39,Datamatrix ,QR code,Micro QR code,Aztec ,MaxiCode,HanXi,etc,Postal Codes..
Engine: EM710 module based on Impinj.
Frequency: 865MHz-868MHz/920-925MHz/902-928MHz.
Protocol: EPC C1 GEN /ISO18000-6C.
R/W range: 1-20M depend on Test environment and label types and sizes.
Reading rate: >200 tags/s (circular polarization).
Rear camera: 16MP HD camera,Support auto focus ,Flash.
Front camera: 5MP color camera.
Frequency: 13.56MHz.
Protocol: Support ISO14443A/B,15693 agreement.
Distance: 2cm-5cm.
Operating temperature: -10℃ – 50℃.
Storage temperature: -20℃ – 60℃.
Environment humidity: 5%RH–95% RH(no condensation).
Drop: 1.22m drop resistance.
Sealing: IP65.
Standard: Adapter,Data cable,WristBand.

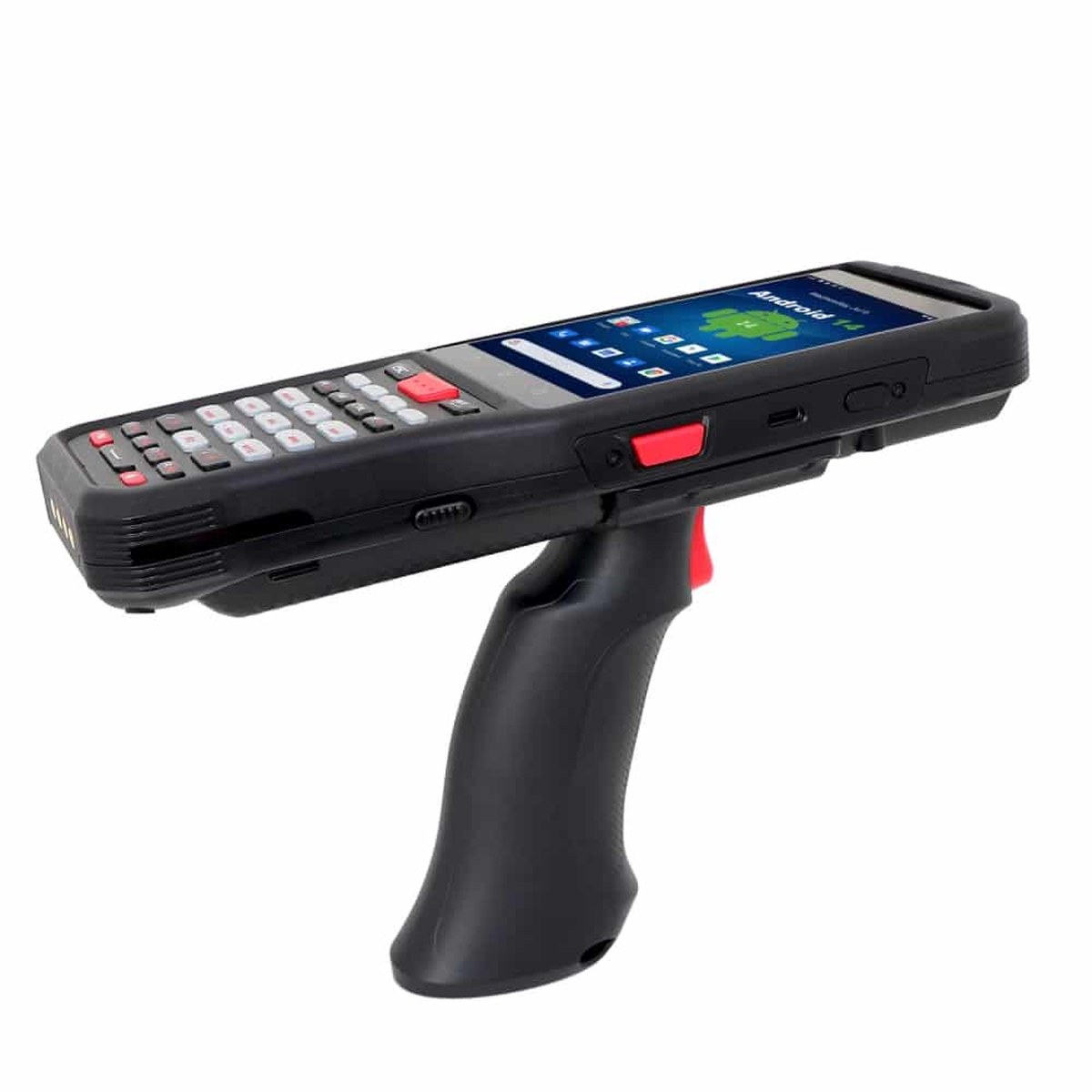

Optional: Dock station,Glass protective flim,Pistol Grip,Carry bag.
RUGGEDMASTER CMX-T14 bulk orders
For a RUGGEDMASTER CMX-T14 wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.
Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.
Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.
Compare the RUGGEDMASTER CMX-T14 dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
Explore RuggedMaster wholesale products.
| Model | CMX-T14 |
|---|---|
| CPU | MT6769 2.2 GHz octa-core CPU Feature Octa (8) 64bit MT6789 G99 2x Arm Cortex-A76 up to 2.2GHz 6x Arm Cortex-A55 up to 2.0GHz |
| GPU | Arm Mali-G57 MC2 |
| RAM+ROM | 6GB+64GB |
| System | Android 14 GMS |
| WIFI | IEEE802.11 a/b/g/n/ac,2.4G/5G dual-band, internal antenna |
| Bluetooth | BT5.2 |
| GNSS | GPS/AGPS, GLONASS,BeiDou;internal antenna |
| Dimensions | 203.5 mm (L) × 72mm (W) × 32mm (H) |
| Weight | Main devie 385g;Pistol grip 105g;UHF antenna174g |
| Display | 4.0″ IPS HD (480×800), |
| Touch Screen | Corning Gorilla Glass,multi-touch panel,gloves and wet hands supported |
| Battery capacity | Li-ion,rechargeable,7.74V 4500mAh +100mAh/Lithium polymer backup battery |
| Expansion Card slot | 2 slots for SIM card, 1 slot for TF card,Supports up to 256 GB TF card |
| Communication interface | USB 2.0 (Type-C) x1,OTG Supported |
| Keypad | Power Button:Support Side Buttons:2 scan keys,2 volume keys Main keyboard (Optional):27 keys/37 keys/ 47 keys |
| Sensors | G-sensor:MXC6655XA Magnetometer:MMC5603NJ Light Sensor:STK3311-X Gyroscope:ICM-42607-P |
| Barcode Scanning | Newland N1 2D scanner/Zebra 2D SE4710/SE4770/SE5500 long distance scanner for optional |
| 1D Symbologies | Code 39,Code 93,Code 128 Codabar(NW-7),Code 11 UPC-A/UPC-E EAN-8/EAN-13 Interleaved 2-of-5(ITF)Industrial 2-of-5,Standard 2-of-5 MSI/Plessey、Postnet,Planet Code RSS/GS1 DataBar |
| 2D Symbologies | PDF417,MicroPDF417,Composite,RSS,TLC-39,Datamatrix ,QR code,Micro QR code,Aztec ,MaxiCode,HanXi,etc,Postal Codes. |
| Engine | EM710 module based on Impinj |
| Frequency | 865MHz-868MHz/920-925MHz/902-928MHz |
| Protocol | EPC C1 GEN /ISO18000-6C |
| R/W range | 1-20M depend on Test environment and label types and sizes |
| Reading rate | >200 tags/s (circular polarization) |
| Rear camera | 16MP HD camera,Support auto focus ,Flash |
| Front camera | 5MP color camera |
| Frequency | 13.56MHz |
| Protocol | Support ISO14443A/B,15693 agreement |
| Distance | 2cm-5cm |
| Operating temperature | -10℃ – 50℃ |
| Storage temperature | -20℃ – 60℃ |
| Environment humidity | 5%RH–95% RH(no condensation) |
| Drop | 1.22m drop resistance |
| Sealing | IP65 |
| Standard | Adapter,Data cable,WristBand |
| Optional | Dock station,Glass protective flim,Pistol Grip,Carry bag |
