RUGGEDMASTER CMX-Q185M Rugged Tablets
Reliable 5G Industrial Tablet PC · Qualcomm QCM6490 Octa-core 2.7G ARM, Android 14 GMS, 8GB LPDDR4x+128GB EMMC, 10.1 inch FHD 16:10,1920×1200,1000 nits, Rechargeable polymer battery( 3.8V/10000mAh) Working time:8 hours ( 50% volume sounds, 50% screen brightness,1080P HD video display by default ), Zebra SE4710
RUGGEDMASTER CMX-Q185M. The manufacturer specifications list Qualcomm QCM6490 Octa-core 2.7G ARM, Android 14 GMS, 8GB LPDDR4x+128GB EMMC, 10.1 inch FHD 16:10,1920×1200,1000 nits, Rechargeable polymer battery( 3.8V/10000mAh) Working time:8 hours ( 50% volume sounds, 50% screen brightness,1080P HD video display by default ), Zebra SE4710. Review the full hardware and connection details in the Specs tab for your project.
CPU: Qualcomm QCM6490 Octa-core 2.7G ARM
RAM+ROM: 8GB LPDDR4x+128GB EMMC
Display: 10.1 inch FHD 16:10,1920×1200,1000 nits
Operating temperature: -20℃-60℃
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
RUGGEDMASTER CMX-Q185M Rugged Tablets
RUGGEDMASTER CMX-Q185M rugged tablets is listed for wholesale enquiries through RuggedMaster. Qualcomm QCM6490 Octa-core 2.7G ARM, Android 14 GMS, 8GB LPDDR4x+128GB EMMC, 10.1 inch FHD 16:10,1920×1200,1000 nits, Rechargeable polymer battery( 3.8V/10000mAh) Working time:8 hours ( 50% volume sounds, 50% screen brightness,1080P HD video display by default ), Zebra SE4710.
Here is a basic parameter of CMX-Q185M Industrial Tablet PC
Special Note : Product data is for reference only and subject to change without notice
RUGGEDMASTER CMX-Q185M features and specifications
Model: CMX-Q185M.
CPU: Qualcomm QCM6490 Octa-core 2.7G ARM.
RAM+ROM: 8GB LPDDR4x+128GB EMMC.
System: Android 14 GMS.

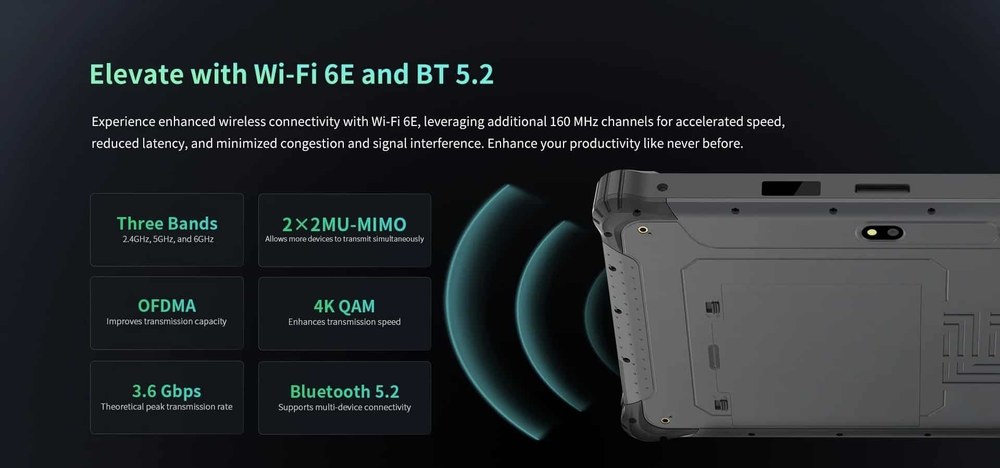

WLAN: Wi-Fi 6E&DBS,IEEE 802.11a/b/g/n/ac/ ax,Wi-Fi 2×2 MU-MIMO.
WWAN: 5G:SA/NSA:n1/3/5/7/8/20/28/38/40/41/77/78/79 4G:B1/2/3/4/5/7/8/12/17/18/19/ 20/26/28/ 32/34/38/39/40/41/42 3G:B1/2/4/5/6/8/19 2G:B2/3/5 8.
Bluetooth: Support Bluetooth5.2 BLE,transmission distance 10m.
GNSS: Supports: GPS/GLONASS/BDS;Dual-frequency L1+L5;.
Dimensions: 274.9mm×188.7mm×22.2mm.
Weight: 1020g (Including battery).

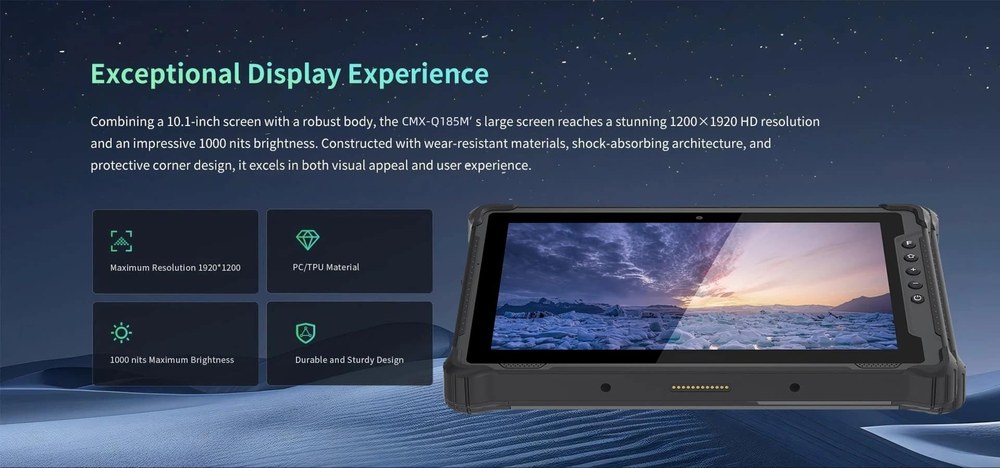

Display: 10.1 inch FHD 16:10,1920×1200,1000 nits.
TP: 10 point G+G capacitive touch screen.Gorilla glass.

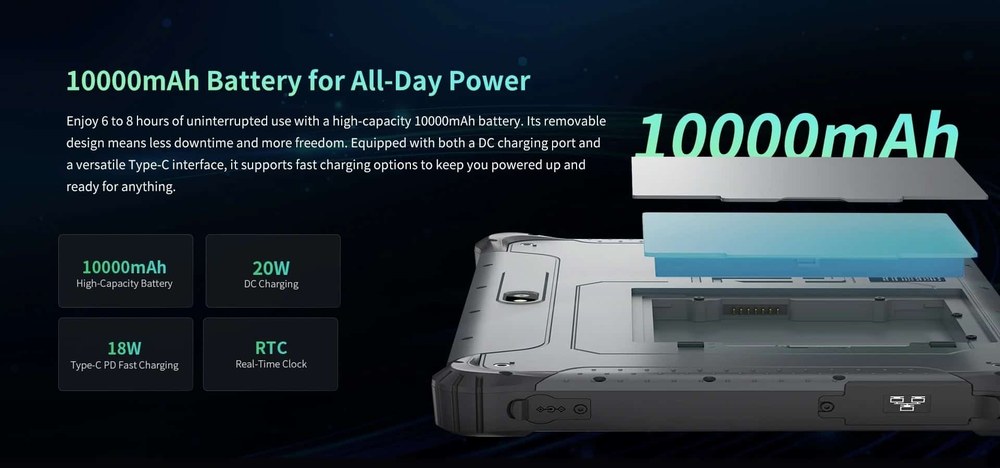

Battery capacity: Rechargeable polymer battery( 3.8V/10000mAh) Working time:8 hours ( 50% volume sounds, 50% screen brightness,1080P HD video display by default ).
Expansion Card slot: Nano-SIMx2/Micro SD Supports up to 512GBx1 (three-in-one card slot).

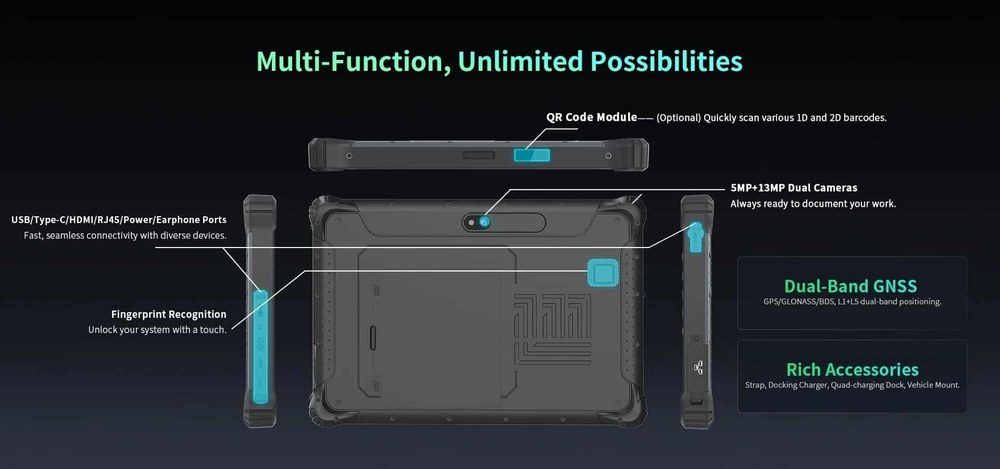

Communication interface: USB 3.0 Type-Ax1,Type-C(Data&Charging) x1, RJ45x1, HDMIx1,12PIN Pogox1, Φ3.5mm standard earphone jackx1,.
Power: Power Input 100-240V AC0.5A 50/60Hz DC Output 5V/4A.
Barcode Scanning: Zebra SE4710.
1D Symbologies: Code 39,Code 93,Code 128 Codabar(NW-7),Code 11 UPC-A/UPC-E EAN-8/EAN-13 Interleaved 2-of-5(ITF)Industrial 2-of-5,Standard 2-of-5 MSI/Plessey、Postnet,Planet Code RSS/GS1 DataBar.
2D Symbologies: PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code,MaxiCode ,Hanxin Code,etc..
Rear camera: 13MP color camera Support auto focus,Flash,Anti-shake,Macro shooting.
Front camera: 5MP color camera.
Frequency: 13.56MHz.
Protocol: ISO/IEC 14443A protocol.
Distance: 2cm-5cm.
Operating temperature: -20℃-60℃.
Storage temperature: -30℃-70℃.
Environment humidity: 95% RH(no condensation).
Drop: 6 sides can withstand a height of 1.22 meters,falling to the marble..

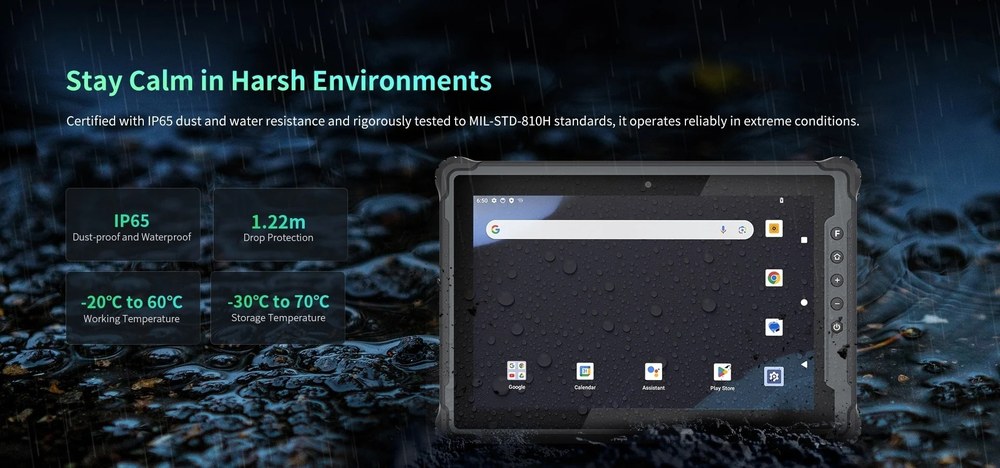

Sealing: IP65 certified,MIL-STD-810H certified.
Standard: Adapter,Data cable,Hand-strap.
Optional: Docking Charger,Vehicle Mount.
RUGGEDMASTER CMX-Q185M bulk orders
For a RUGGEDMASTER CMX-Q185M wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.
Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.

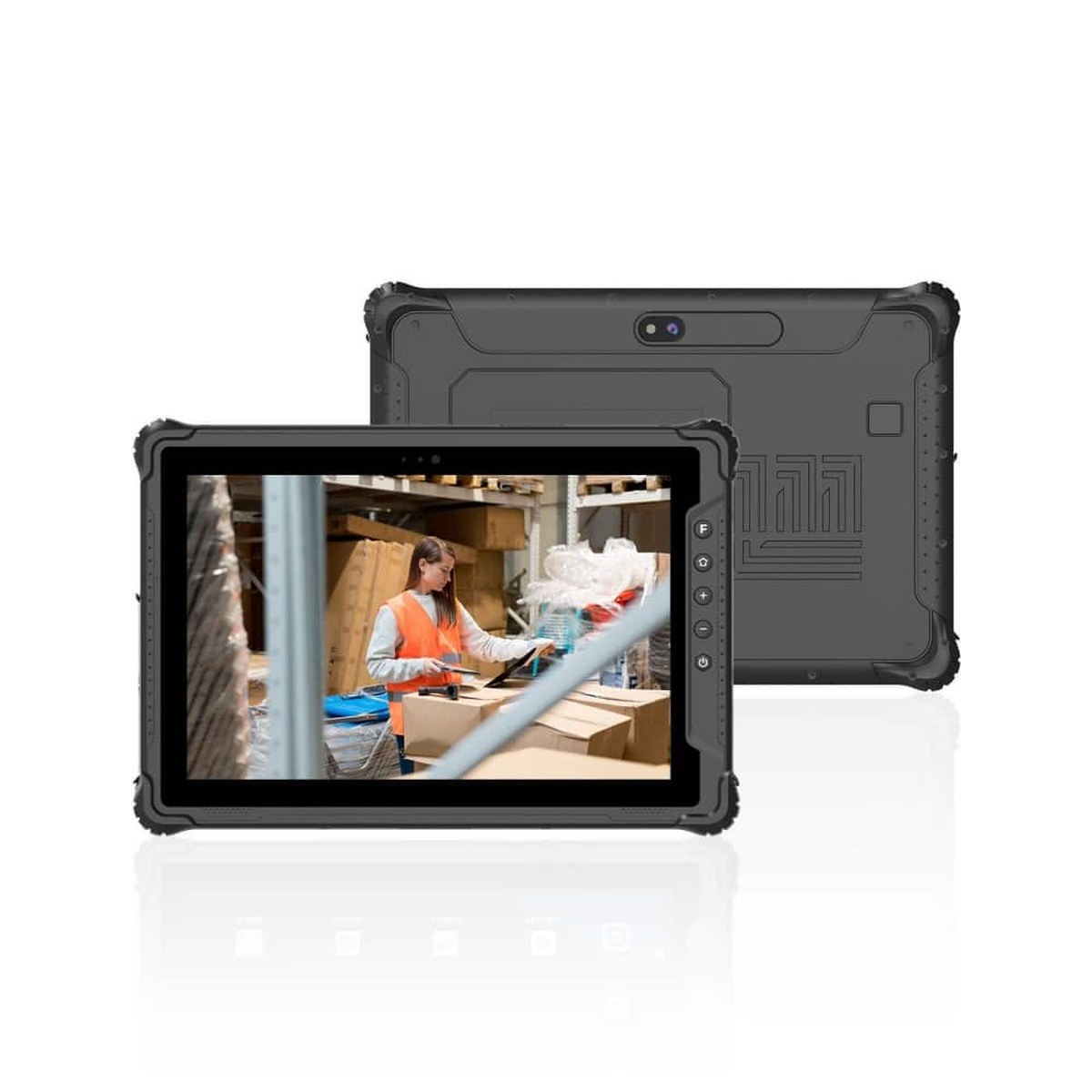

Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.
Compare the RUGGEDMASTER CMX-Q185M dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
Explore RuggedMaster wholesale products.
| Model | CMX-Q185M |
|---|---|
| CPU | Qualcomm QCM6490 Octa-core 2.7G ARM |
| RAM+ROM | 8GB LPDDR4x+128GB EMMC |
| System | Android 14 GMS |
| WLAN | Wi-Fi 6E&DBS,IEEE 802.11a/b/g/n/ac/ ax,Wi-Fi 2×2 MU-MIMO |
| WWAN | 5G:SA/NSA:n1/3/5/7/8/20/28/38/40/41/77/78/79 4G:B1/2/3/4/5/7/8/12/17/18/19/ 20/26/28/ 32/34/38/39/40/41/42 3G:B1/2/4/5/6/8/19 2G:B2/3/5 8 |
| Bluetooth | Support Bluetooth5.2 BLE,transmission distance 10m |
| GNSS | Supports: GPS/GLONASS/BDS;Dual-frequency L1+L5; |
| Dimensions | 274.9mm×188.7mm×22.2mm |
| Weight | 1020g (Including battery) |
| Display | 10.1 inch FHD 16:10,1920×1200,1000 nits |
| TP | 10 point G+G capacitive touch screen.Gorilla glass |
| Battery capacity | Rechargeable polymer battery( 3.8V/10000mAh) Working time:8 hours ( 50% volume sounds, 50% screen brightness,1080P HD video display by default ) |
| Expansion Card slot | Nano-SIMx2/Micro SD Supports up to 512GBx1 (three-in-one card slot) |
| Communication interface | USB 3.0 Type-Ax1,Type-C(Data&Charging) x1, RJ45x1, HDMIx1,12PIN Pogox1, Φ3.5mm standard earphone jackx1, |
| Power | Power Input 100-240V AC0.5A 50/60Hz DC Output 5V/4A |
| Barcode Scanning | Zebra SE4710 |
| 1D Symbologies | Code 39,Code 93,Code 128 Codabar(NW-7),Code 11 UPC-A/UPC-E EAN-8/EAN-13 Interleaved 2-of-5(ITF)Industrial 2-of-5,Standard 2-of-5 MSI/Plessey、Postnet,Planet Code RSS/GS1 DataBar |
| 2D Symbologies | PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code,MaxiCode ,Hanxin Code,etc. |
| Rear camera | 13MP color camera Support auto focus,Flash,Anti-shake,Macro shooting |
| Front camera | 5MP color camera |
| Frequency | 13.56MHz |
| Protocol | ISO/IEC 14443A protocol |
| Distance | 2cm-5cm |
| Operating temperature | -20℃-60℃ |
| Storage temperature | -30℃-70℃ |
| Environment humidity | 95% RH(no condensation) |
| Drop | 6 sides can withstand a height of 1.22 meters,falling to the marble. |
| Sealing | IP65 certified,MIL-STD-810H certified |
| Standard | Adapter,Data cable,Hand-strap |
| Optional | Docking Charger,Vehicle Mount |
