RUGGEDMASTER CMX-P501 Industrial PDAs
High Quality Handheld PDA Printer · MT6762 Cortex-A53 Octa core 64-bit 2.0GHz high-performance processor, Android 13, 4GB+64GB, 5.5″ IPS color display,resolution 720×1440, Rechargeable polymer battery 7.6V 2750mAh(Equal to 3.8V 5500mAh),removable, Honeywell N5703/Honeywell N6703/6602-W2 for optional
RUGGEDMASTER CMX-P501. The manufacturer specifications list MT6762 Cortex-A53 Octa core 64-bit 2.0GHz high-performance processor, Android 13, 4GB+64GB, 5.5″ IPS color display,resolution 720×1440, Rechargeable polymer battery 7.6V 2750mAh(Equal to 3.8V 5500mAh),removable, Honeywell N5703/Honeywell N6703/6602-W2 for optional. Review the full hardware and connection details in the Specs tab for your project.
CPU: MT6762 Cortex-A53 Octa core 64-bit 2.0GHz high-performance processor
RAM+ROM: 4GB+64GB
Display: 5.5″ IPS color display,resolution 720×1440
Operating temperature: -20℃-55℃
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

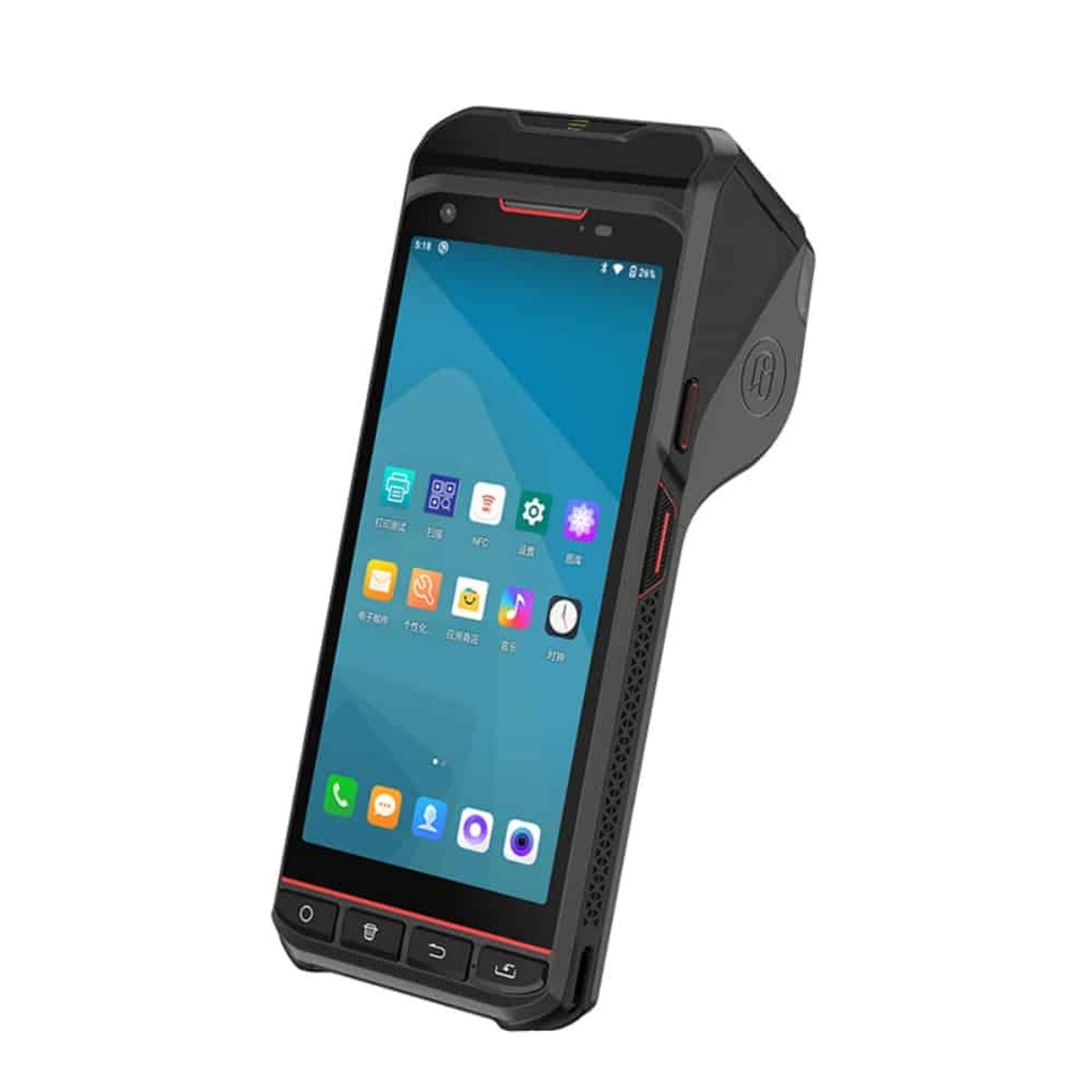

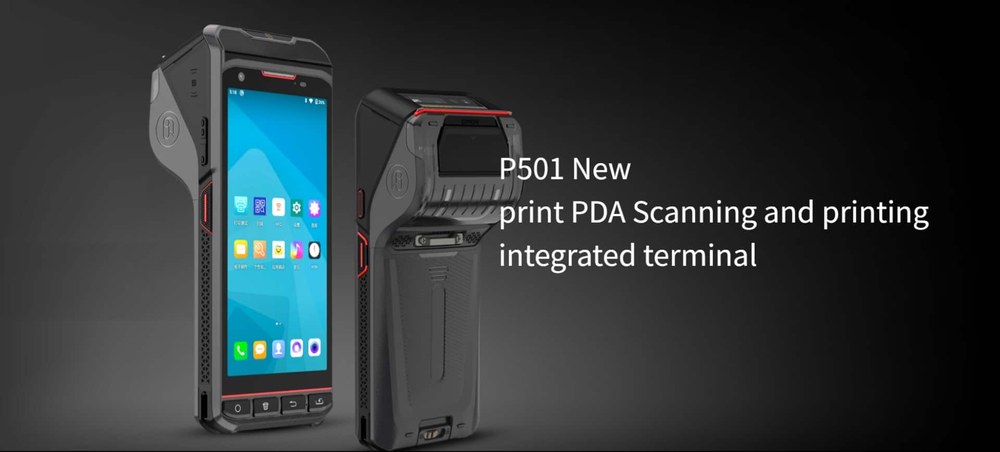

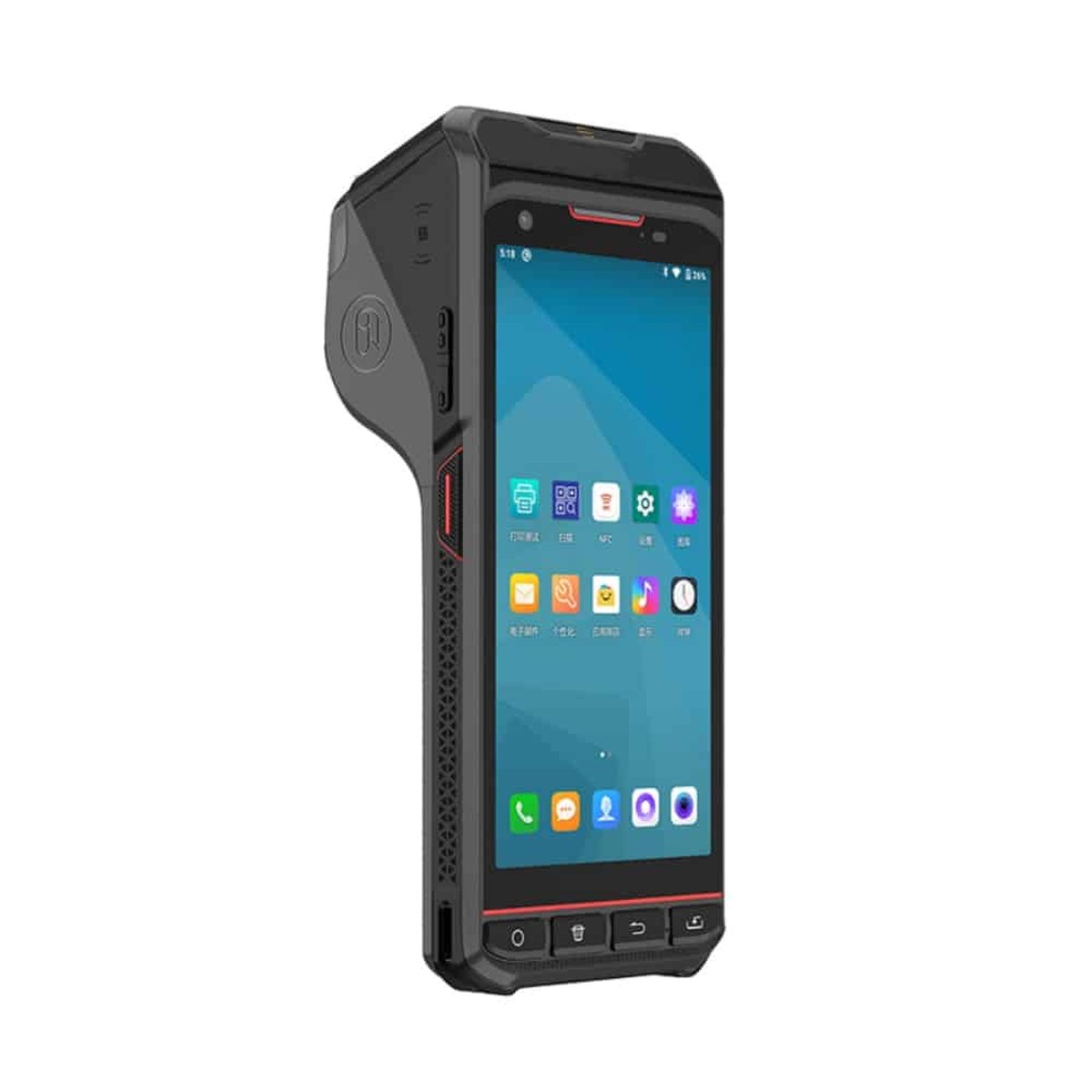

RUGGEDMASTER CMX-P501 Industrial PDAs
RUGGEDMASTER CMX-P501 industrial pdas is listed for wholesale enquiries through RuggedMaster. MT6762 Cortex-A53 Octa core 64-bit 2.0GHz high-performance processor, Android 13, 4GB+64GB, 5.5″ IPS color display,resolution 720×1440, Rechargeable polymer battery 7.6V 2750mAh(Equal to 3.8V 5500mAh),removable, Honeywell N5703/Honeywell N6703/6602-W2 for optional.
Here is a Basic Parameter of CMX-P501 Handheld PDA Printer
Special Note : Product data is for reference only and subject to change without notice
RUGGEDMASTER CMX-P501 features and specifications
Model: CMX-P501.
CPU: MT6762 Cortex-A53 Octa core 64-bit 2.0GHz high-performance processor.
RAM+ROM: 4GB+64GB.
System: Android 13.
WLAN: Dual-band 2.4GHz / 5GHz Support IEEE 802.11ac/a/b/g/ n/d/e/h/i/j/k/r/v protocol.
WWAN: 2G:GSM (850/900/ 1800/ 1900MHz) 3G:WCDMA (850/900/ 1900/2100MHz) 4G:FDD:B1/B3/B4/B7/B8/B12/B20 TDD:B38/B39/B40/B41.
Bluetooth: Support Bluetooth5.0+BLE,transmission distance 5-10 meters.
GNSS: Support GPS,Galileo,Glonass,Beidou,internal antenna.
Dimensions: 179mm×74.5mm×22.5mm (the thinnest) 49.5mm (the printing part）.
Weight: <500g (Depends on device function configuration）.
Display: 5.5″ IPS color display,resolution 720×1440.
TP: Supports multi-touch.
Battery capacity: Rechargeable polymer battery 7.6V 2750mAh(Equal to 3.8V 5500mAh),removable Standby time>350 hours Working time>12 hours Charging time:3 to 4 hours.
Expansion Card slot: Nano SIM card×1,TF card×1,PSAM×2(Optional).
Communication interface: Type-C USB×1,OTG.
Audio: Speaker(loudness >95db),dual microphone support noise reduction,Receiver.
Keypad: Home key,Delete key,Back key,Confirm key,Silicone keys:Power key,Volume +/- key,Scan key×2.
Sensors: Gravity sensor,Light sensor,Proximity sensor.

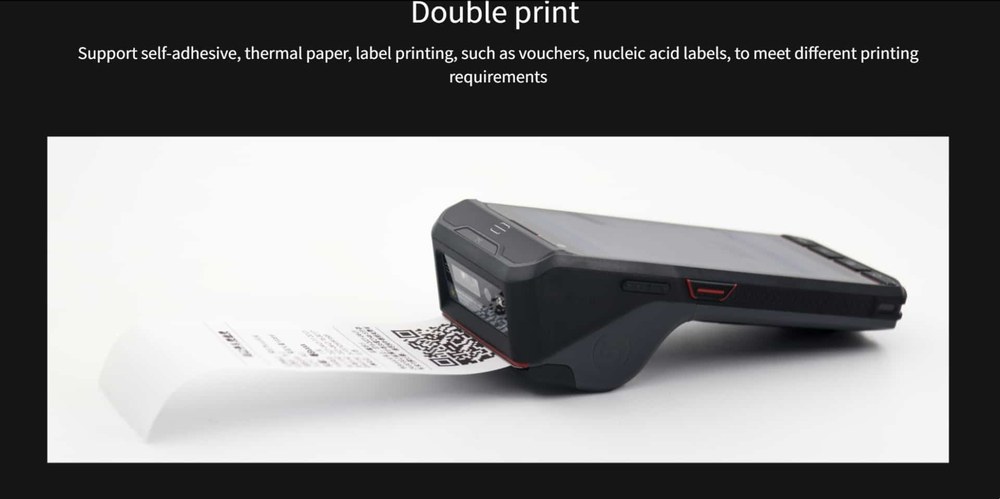

Paper Supported: Support label/sticker/receipt printing,Black mark printing.

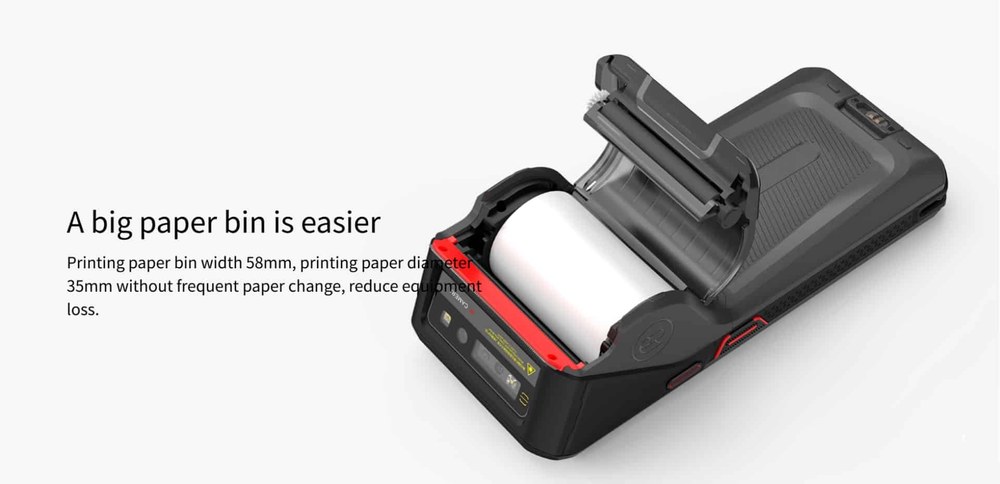

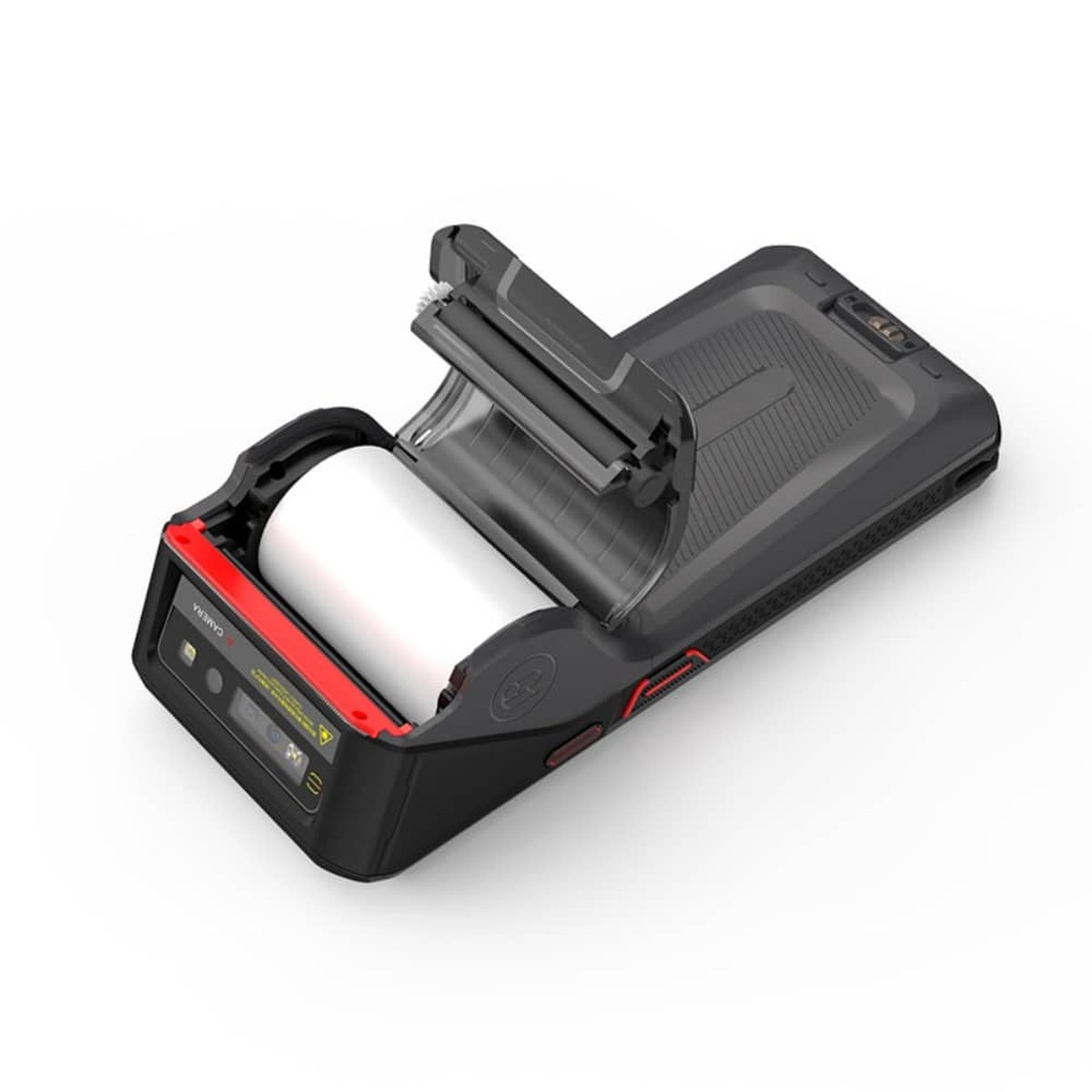

Paper size: Width:58mm Paper roll diameter:35mm Print points:384 dots.
Printing speed: 70mm/s.

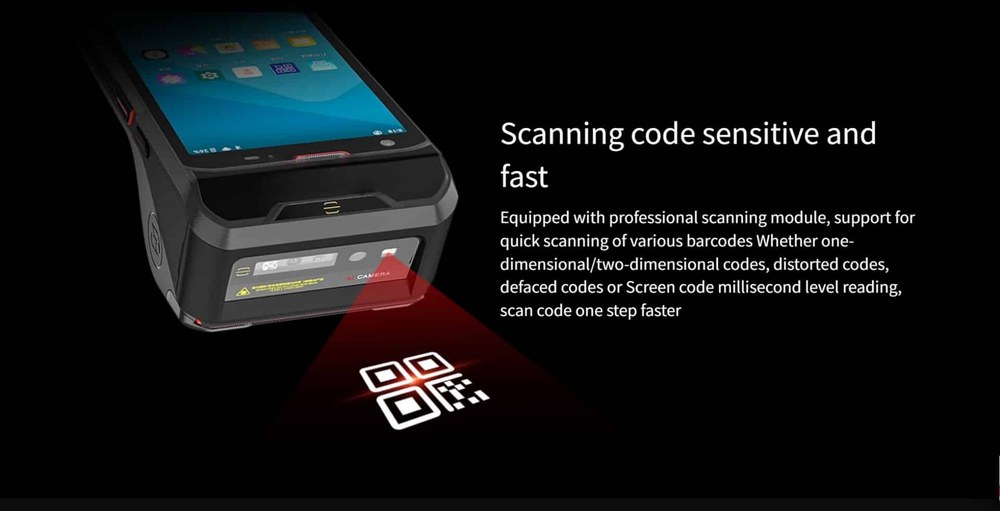

Barcode Scanning: Honeywell N5703/Honeywell N6703/6602-W2 for optional.
1D Symbologies: Code128,EAN-13,EAN-8,Code39,UPC-A,UPC-E,Co dabar,Interleaved 2 of 5,China post 25,ISBN/ISSN, Code93,UCC/EAN-128,GS1 Databar,HIBC,etc ..
2D Symbologies: PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code,MaxiCode ,Hanxin Code,etc..
Rear camera: Rear:13MP HD camera,Support auto focus,Flash, Anti-shake, Macro shooting.
Front camera: 2MP color camera.
Frequency: 13.56MHz.
Protocol: Support ISO14443A/B,15693 agreement.
Distance: 2cm-5cm.

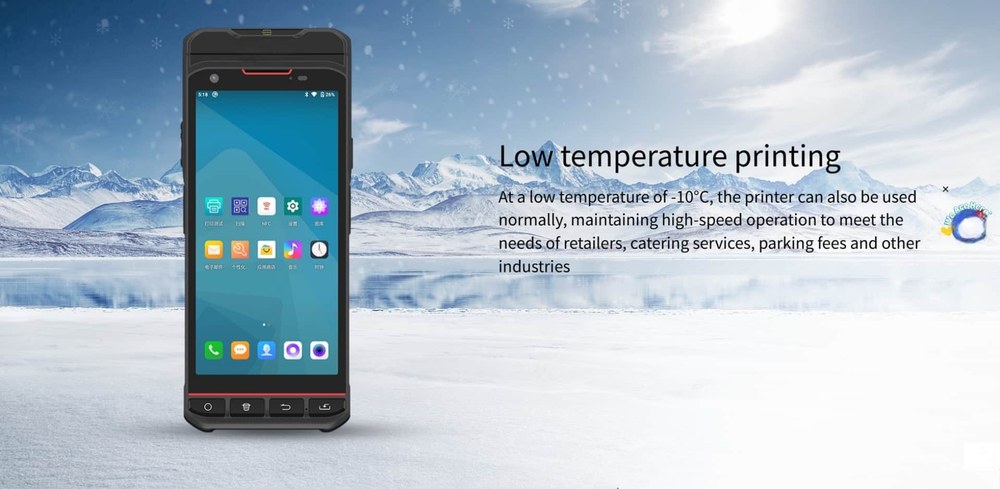

Operating temperature: -20℃-55℃.
Storage temperature: -40℃-70℃.
Environment humidity: 5%RH–95% RH(no condensation).

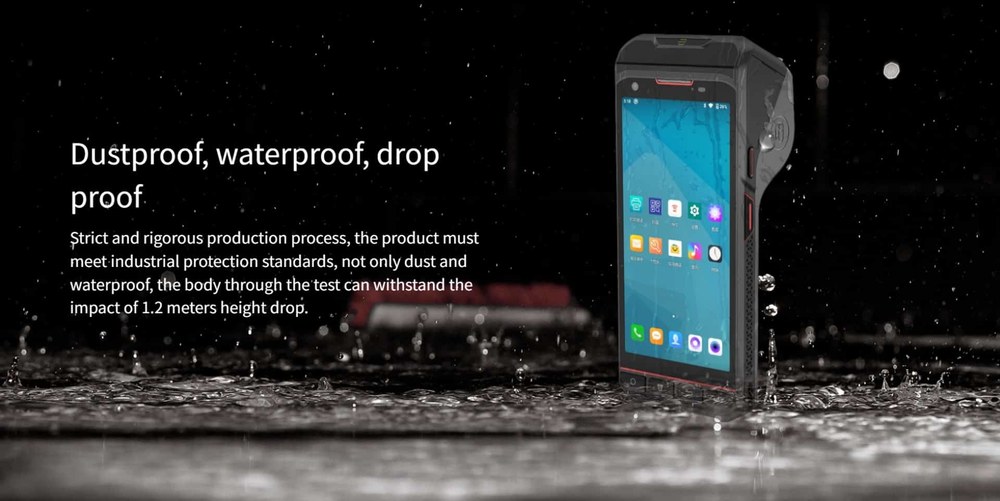

Drop: 6 sides can withstand a height of 1.5 meters,falling to the marble..
Rolling test: 0.5m continuous rolling,1000 times.
Sealing: IP66.
Standard: Adapter,Data cable,Protective film,Instruction manual.

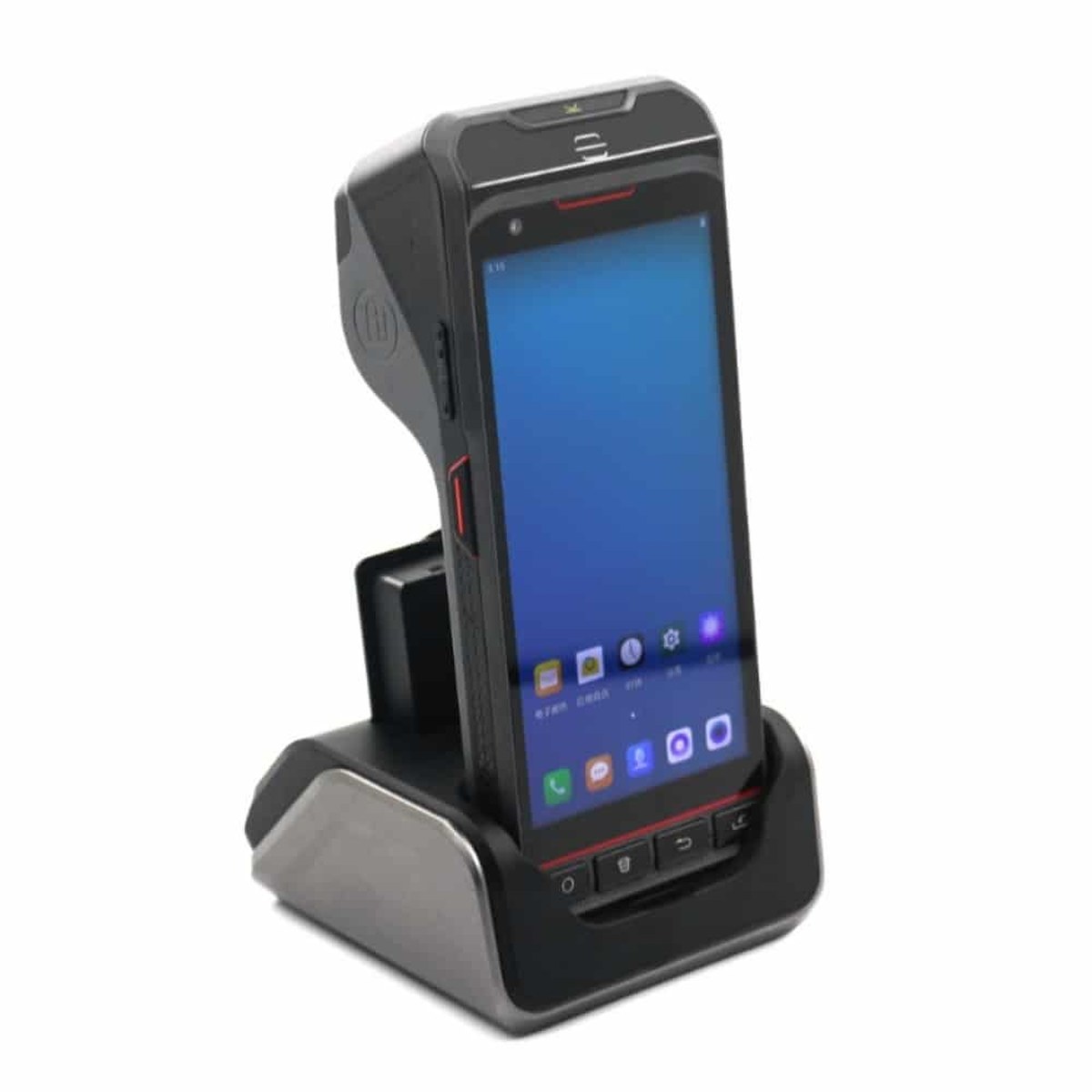

Optional: Glass Protective film,Dock station.
RUGGEDMASTER CMX-P501 bulk orders
For a RUGGEDMASTER CMX-P501 wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.
Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.
Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.
Compare the RUGGEDMASTER CMX-P501 dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
Explore RuggedMaster wholesale products.
| Model | CMX-P501 |
|---|---|
| CPU | MT6762 Cortex-A53 Octa core 64-bit 2.0GHz high-performance processor |
| RAM+ROM | 4GB+64GB |
| System | Android 13 |
| WLAN | Dual-band 2.4GHz / 5GHz Support IEEE 802.11ac/a/b/g/ n/d/e/h/i/j/k/r/v protocol |
| WWAN | 2G:GSM (850/900/ 1800/ 1900MHz) 3G:WCDMA (850/900/ 1900/2100MHz) 4G:FDD:B1/B3/B4/B7/B8/B12/B20 TDD:B38/B39/B40/B41 |
| Bluetooth | Support Bluetooth5.0+BLE,transmission distance 5-10 meters |
| GNSS | Support GPS,Galileo,Glonass,Beidou,internal antenna |
| Dimensions | 179mm×74.5mm×22.5mm (the thinnest) 49.5mm (the printing part） |
| Weight | <500g (Depends on device function configuration） |
| Display | 5.5″ IPS color display,resolution 720×1440 |
| TP | Supports multi-touch |
| Battery capacity | Rechargeable polymer battery 7.6V 2750mAh(Equal to 3.8V 5500mAh),removable Standby time>350 hours Working time>12 hours Charging time:3 to 4 hours |
| Expansion Card slot | Nano SIM card×1,TF card×1,PSAM×2(Optional) |
| Communication interface | Type-C USB×1,OTG |
| Audio | Speaker(loudness >95db),dual microphone support noise reduction,Receiver |
| Keypad | Home key,Delete key,Back key,Confirm key,Silicone keys:Power key,Volume +/- key,Scan key×2 |
| Sensors | Gravity sensor,Light sensor,Proximity sensor |
| Paper Supported | Support label/sticker/receipt printing,Black mark printing |
| Paper size | Width:58mm Paper roll diameter:35mm Print points:384 dots |
| Printing speed | 70mm/s |
| Barcode Scanning | Honeywell N5703/Honeywell N6703/6602-W2 for optional |
| 1D Symbologies | Code128,EAN-13,EAN-8,Code39,UPC-A,UPC-E,Co dabar,Interleaved 2 of 5,China post 25,ISBN/ISSN, Code93,UCC/EAN-128,GS1 Databar,HIBC,etc . |
| 2D Symbologies | PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code,MaxiCode ,Hanxin Code,etc. |
| Rear camera | Rear:13MP HD camera,Support auto focus,Flash, Anti-shake, Macro shooting |
| Front camera | 2MP color camera |
| Frequency | 13.56MHz |
| Protocol | Support ISO14443A/B,15693 agreement |
| Distance | 2cm-5cm |
| Operating temperature | -20℃-55℃ |
| Storage temperature | -40℃-70℃ |
| Environment humidity | 5%RH–95% RH(no condensation) |
| Drop | 6 sides can withstand a height of 1.5 meters,falling to the marble. |
| Rolling test | 0.5m continuous rolling,1000 times |
| Sealing | IP66 |
| Standard | Adapter,Data cable,Protective film,Instruction manual |
| Optional | Glass Protective film,Dock station |
