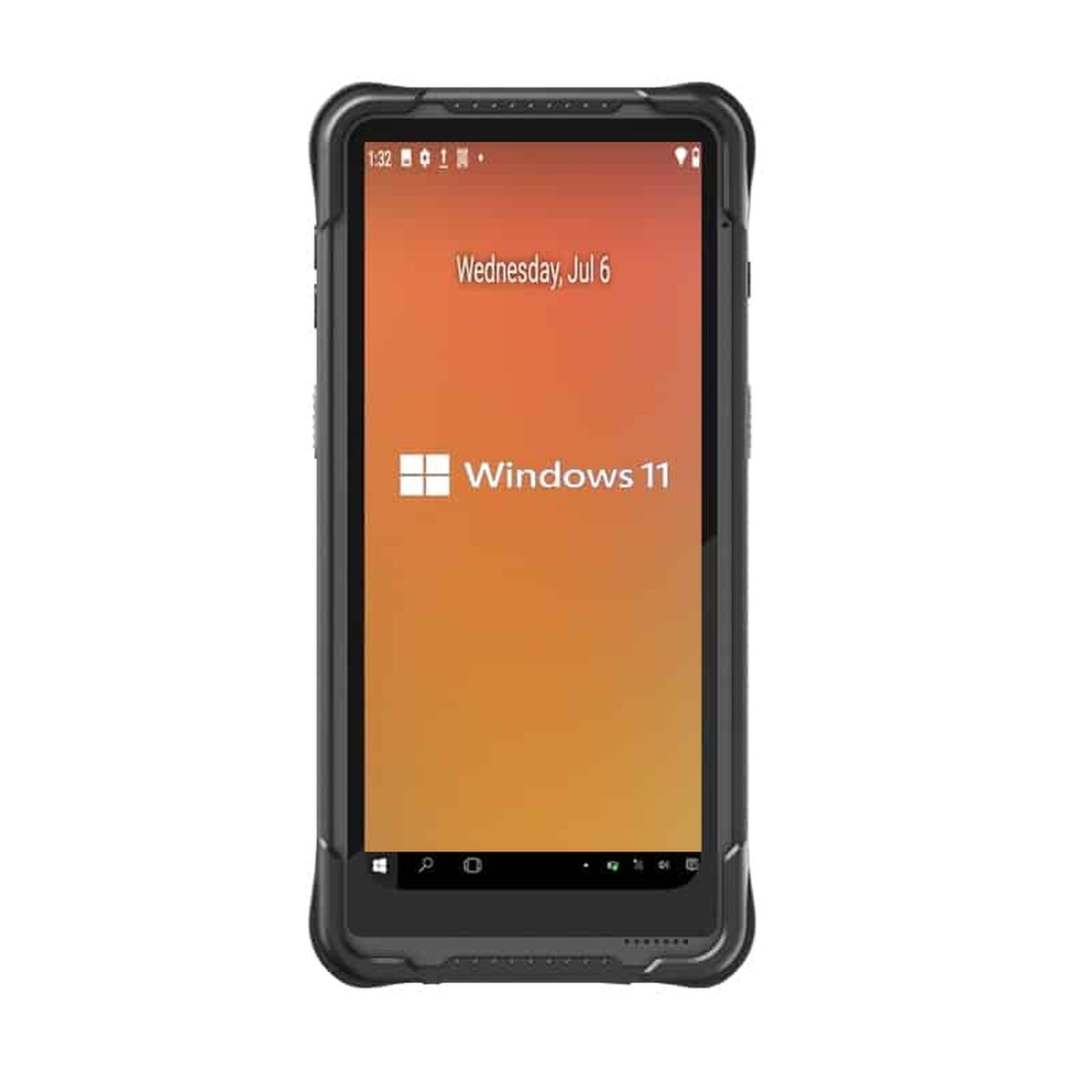

RUGGEDMASTER CMX-I61J Industrial PDAs
Solid Windows 11 Handheld PDA · CPU:MT6789(Helio G99) Octa core 2.2GHZ CPU, windows 11 (IOT), Optional windows 10 (IOT), 8GB+128GB, 6.5 inch TFT 20:9, 720*1600, 500cd/cm², 7.4V/4000mAh equal to 3.7V 8000mAh, Honeyewell 2D Engine
RUGGEDMASTER CMX-I61J. The manufacturer specifications list CPU:MT6789(Helio G99) Octa core 2.2GHZ CPU, windows 11 (IOT), Optional windows 10 (IOT), 8GB+128GB, 6.5 inch TFT 20:9, 720*1600, 500cd/cm², 7.4V/4000mAh equal to 3.7V 8000mAh, Honeyewell 2D Engine. Review the full hardware and connection details in the Specs tab for your project.
CPU: CPU:MT6789(Helio G99) Octa core 2.2GHZ CPU
RAM+ROM: 8GB+128GB
Display: 6.5 inch TFT 20:9, 720*1600, 500cd/cm²
Touch Screen: 5 point G+FF capacitive touch screen Corning®Gorilla®Glass
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
RUGGEDMASTER CMX-I61J Industrial PDAs
RUGGEDMASTER CMX-I61J industrial pdas is listed for wholesale enquiries through RuggedMaster. CPU:MT6789(Helio G99) Octa core 2.2GHZ CPU, windows 11 (IOT), Optional windows 10 (IOT), 8GB+128GB, 6.5 inch TFT 20:9, 720*1600, 500cd/cm², 7.4V/4000mAh equal to 3.7V 8000mAh, Honeyewell 2D Engine.
Here is a basic parameter of CMX-I61J Windows 11 Handheld PDA
Special Note : Product data is for reference only and subject to change without notice
RUGGEDMASTER CMX-I61J features and specifications
Model: CMX-I61J.
CPU: CPU:MT6789(Helio G99) Octa core 2.2GHZ CPU.
GPU: ARM G57 MC2.
RAM+ROM: 8GB+128GB.
System: windows 11 (IOT), Optional windows 10 (IOT).
WIFI: WIFI 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.8G WIFI.
WWAN: LTE FDD: B1/B3/B7/B8/B20 LTE TDD: B40 WCDMA: B1/B5/B8 GSM: 900/1800 Optional: LTE-FDD:B2/4/5/12/13/17/18/25/26 LTE-TOD:B41 WCDMA: B2/4/5 CDMA&EVDO: BC0/BC1 GSM: 850/1900 LTE-FDD: B2/4/5/7/8/28 LTE-TOD:B40 WCDMA: B2/5/8 GSM:850/900/1900.
Bluetooth: BT5.0 Transmission distance:greater than10m.
GNSS: GPS+GLONASS.
Dimensions: 183.1mm(L)*88.6mm(W)*24.1mm(H).
Weight: 470g.

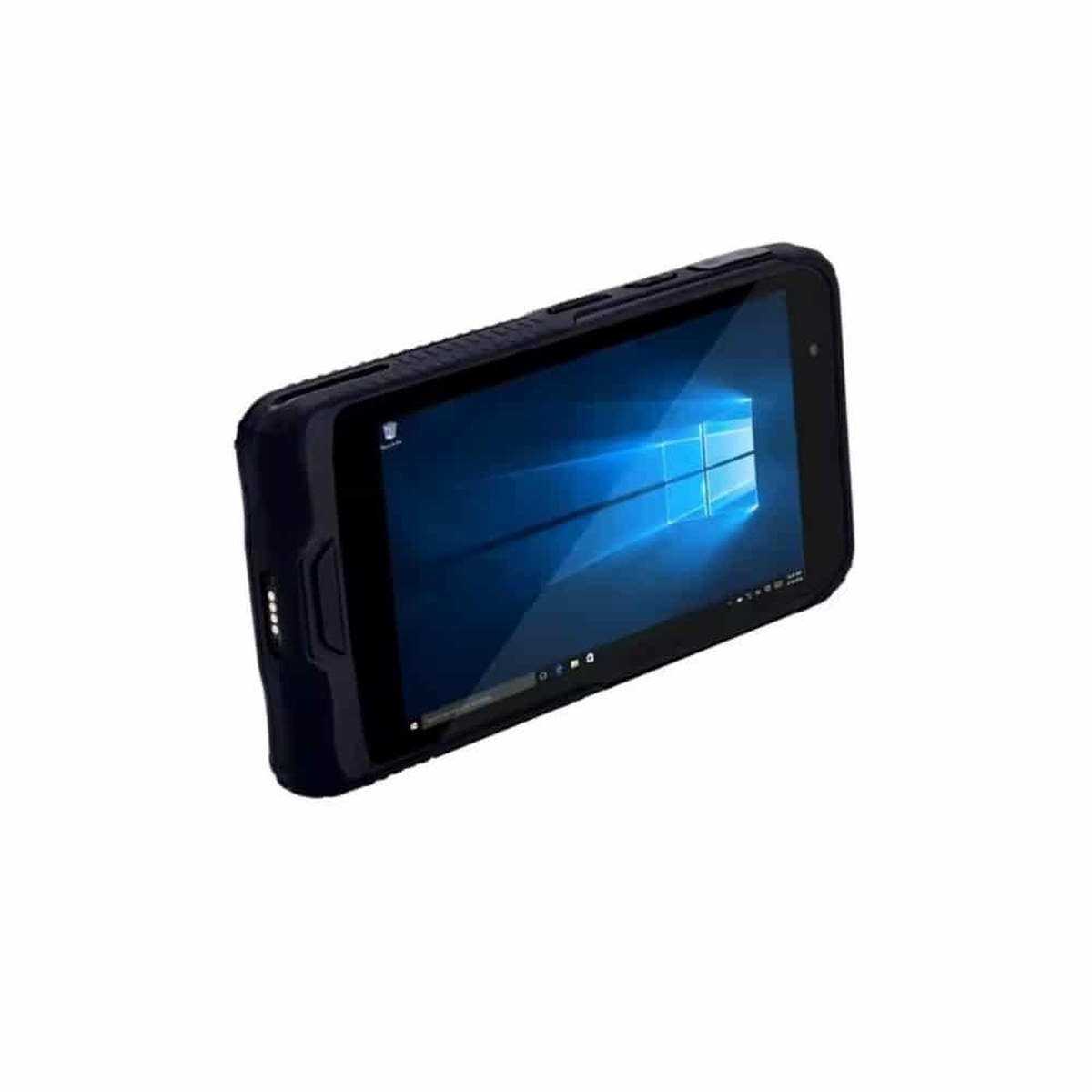

Display: 6.5 inch TFT 20:9, 720*1600, 500cd/cm².
Touch Screen: 5 point G+FF capacitive touch screen Corning®Gorilla®Glass.

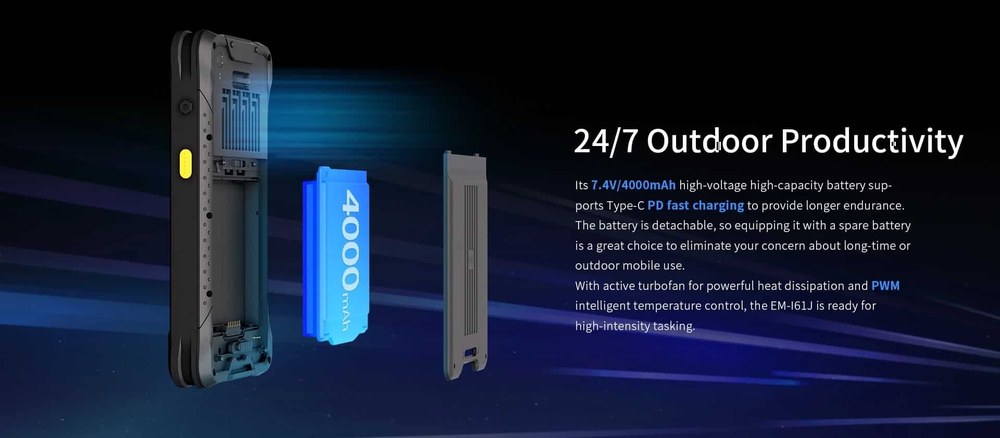

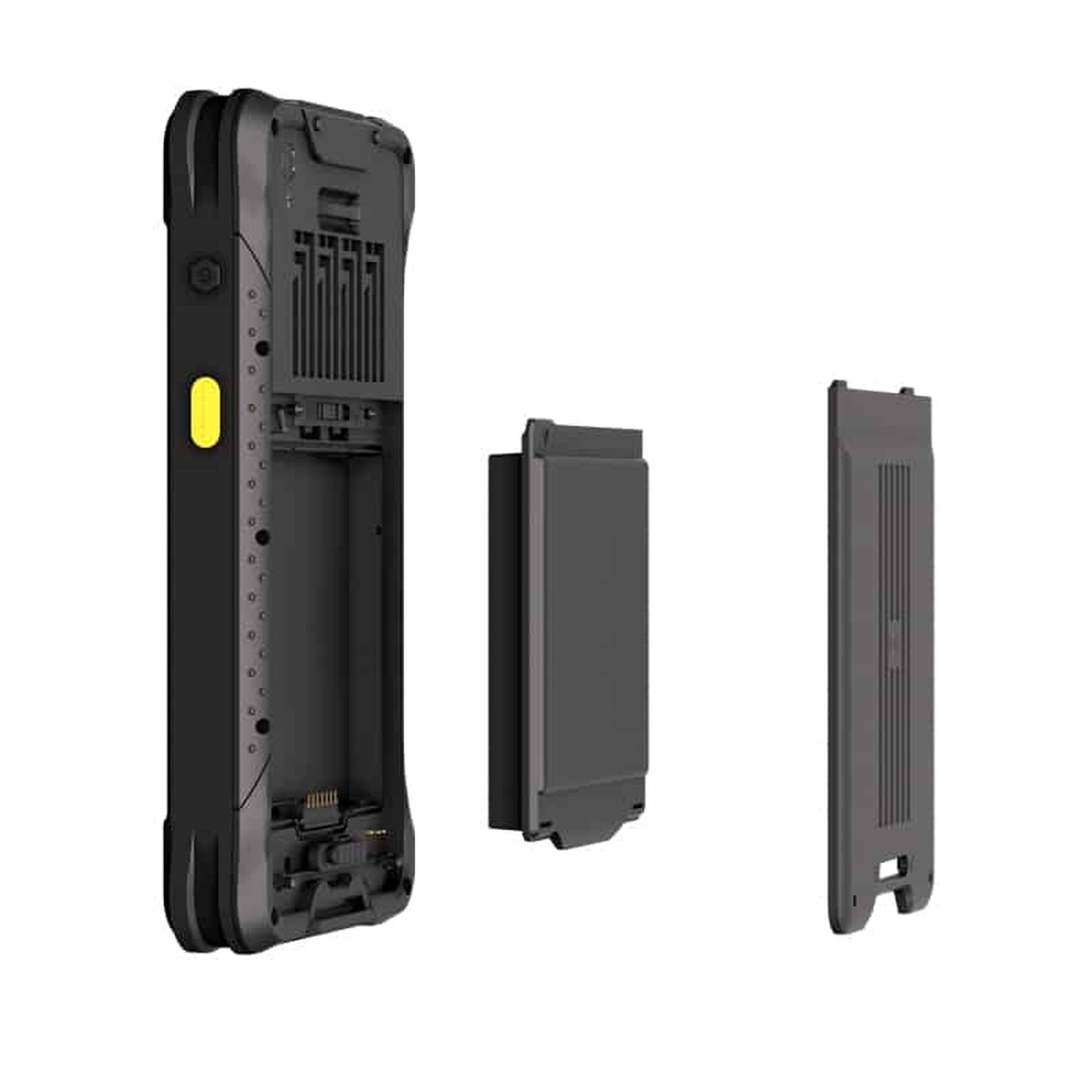

Battery capacity: 7.4V/4000mAh equal to 3.7V 8000mAh.
Endurance: About 8 hours(50% volume sounds, 50% screen brightness, 1080P HD video display by default ).
Expansion Card slot: TF card *1, Max: 512GB Nano-SIM * 1 Pogo Pin (Suitable docking charger DC61J).
Communication interface: TYPE-C 2.0*1 OTG (Data transmission) Standard USB-A port/Data Transfer (3.0).
Power adapter: Input 100-240V AC 0.5A 50/60Hz PD3.0 45W.
Keypad: Power key,Volume +/- key,Scan key×2.
Barcode Scanning: Honeyewell 2D Engine.
2D Symbologies: Optical resolution: 5mil Scanning speed: 30 times/s Support code: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse etc..
Rear camera: Rear 8.0MP camera with auto focus.
Front camera: Front 5.0MP.
Frequency: 13.56MHz.
Protocol: Support ISO/IEC 14443A/14443B/15693/18092/ mifare protocol.
Distance: 2cm-5cm.
Operating temperature: -10℃ – 50℃.
Storage temperature: -20℃ – 60℃.
Environment humidity: 5%RH–95% RH(no condensation).
Drop: 1.5m drop resistance.
Sealing: IP67.

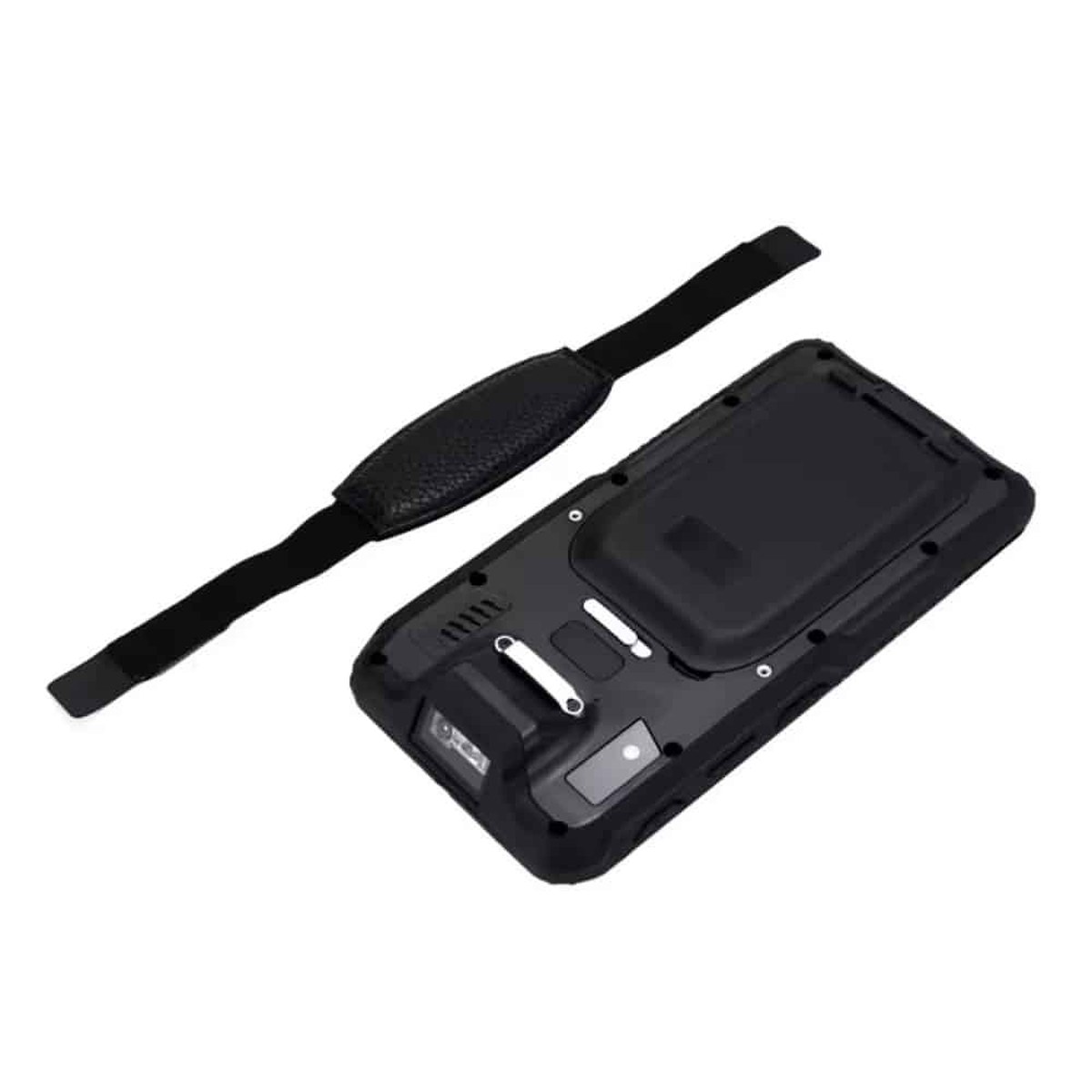

Standard: Adapter,Data cable,Hand-strap.

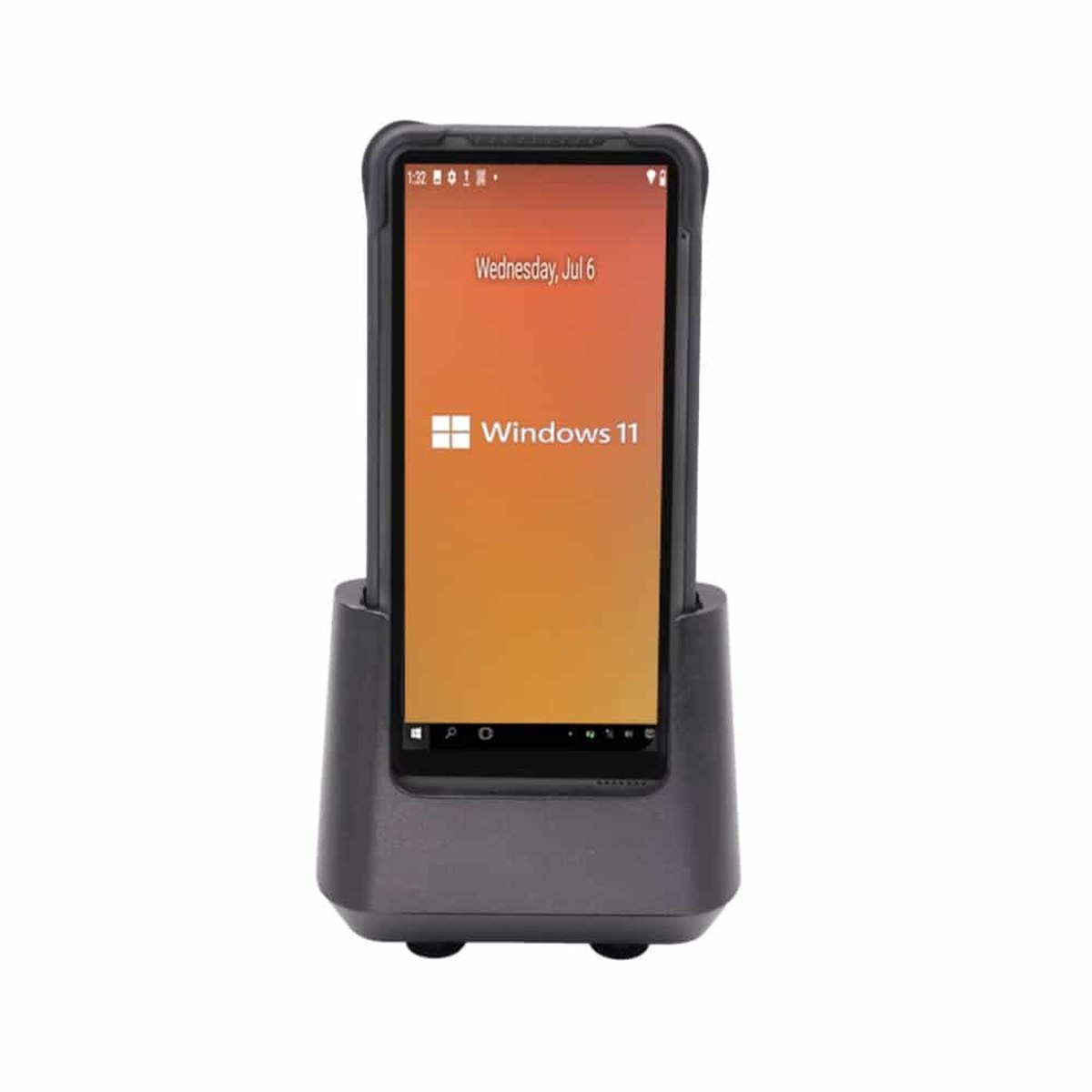

Optional: Dock station.
RUGGEDMASTER CMX-I61J bulk orders
For a RUGGEDMASTER CMX-I61J wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.
Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.
Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.
Compare the RUGGEDMASTER CMX-I61J dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
Explore RuggedMaster wholesale products.
| Model | CMX-I61J |
|---|---|
| CPU | CPU:MT6789(Helio G99) Octa core 2.2GHZ CPU |
| GPU | ARM G57 MC2 |
| RAM+ROM | 8GB+128GB |
| System | windows 11 (IOT), Optional windows 10 (IOT) |
| WIFI | WIFI 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.8G WIFI |
| WWAN | LTE FDD: B1/B3/B7/B8/B20 LTE TDD: B40 WCDMA: B1/B5/B8 GSM: 900/1800 Optional: LTE-FDD:B2/4/5/12/13/17/18/25/26 LTE-TOD:B41 WCDMA: B2/4/5 CDMA&EVDO: BC0/BC1 GSM: 850/1900 LTE-FDD: B2/4/5/7/8/28 LTE-TOD:B40 WCDMA: B2/5/8 GSM:850/900/1900 |
| Bluetooth | BT5.0 Transmission distance:greater than10m |
| GNSS | GPS+GLONASS |
| Dimensions | 183.1mm(L)*88.6mm(W)*24.1mm(H) |
| Weight | 470g |
| Display | 6.5 inch TFT 20:9, 720*1600, 500cd/cm² |
| Touch Screen | 5 point G+FF capacitive touch screen Corning®Gorilla®Glass |
| Battery capacity | 7.4V/4000mAh equal to 3.7V 8000mAh |
| Endurance | About 8 hours(50% volume sounds, 50% screen brightness, 1080P HD video display by default ) |
| Expansion Card slot | TF card *1, Max: 512GB Nano-SIM * 1 Pogo Pin (Suitable docking charger DC61J) |
| Communication interface | TYPE-C 2.0*1 OTG (Data transmission) Standard USB-A port/Data Transfer (3.0) |
| Power adapter | Input 100-240V AC 0.5A 50/60Hz PD3.0 45W |
| Keypad | Power key,Volume +/- key,Scan key×2 |
| Barcode Scanning | Honeyewell 2D Engine |
| 2D Symbologies | Optical resolution: 5mil Scanning speed: 30 times/s Support code: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse etc. |
| Rear camera | Rear 8.0MP camera with auto focus |
| Front camera | Front 5.0MP |
| Frequency | 13.56MHz |
| Protocol | Support ISO/IEC 14443A/14443B/15693/18092/ mifare protocol |
| Distance | 2cm-5cm |
| Operating temperature | -10℃ – 50℃ |
| Storage temperature | -20℃ – 60℃ |
| Environment humidity | 5%RH–95% RH(no condensation) |
| Drop | 1.5m drop resistance |
| Sealing | IP67 |
| Standard | Adapter,Data cable,Hand-strap |
| Optional | Dock station |
