RUGGEDMASTER CMX-I14A Rugged Tablets
Solid Rugged Windows Tablet · Intel i5-1235U (12MB cache, up to 4.4 GHz,10 cores,12 threads,TDP 15W) Optional Intel i7-1255U (12MB cache,up to 4.7 GHz,10 cores,12 threads,TDP 15W), Windows 11 Pro Optional Windows 11 Home/IOT, 16GB DDR5 SO-DIMM Optional 32GB DDR5, 14.0″ FHD (1920×1080),1000 nits, Li-ion battery, 11.4V, 4700mAh, 6.5h Li-ion battery, 11.1V, 1300mAh Separate RTC3V/210mAh
RUGGEDMASTER CMX-I14A. The manufacturer specifications list Intel i5-1235U (12MB cache, up to 4.4 GHz,10 cores,12 threads,TDP 15W) Optional Intel i7-1255U (12MB cache,up to 4.7 GHz,10 cores,12 threads,TDP 15W), Windows 11 Pro Optional Windows 11 Home/IOT, 16GB DDR5 SO-DIMM Optional 32GB DDR5, 14.0″ FHD (1920×1080),1000 nits, Li-ion battery, 11.4V, 4700mAh, 6.5h Li-ion battery, 11.1V, 1300mAh Separate RTC3V/210mAh. Review the full hardware and connection details in the Specs tab for your project.
Memory: 16GB DDR5 SO-DIMM Optional 32GB DDR5
Display: 14.0″ FHD (1920×1080),1000 nits
Battery capacity: Li-ion battery, 11.4V, 4700mAh, 6.5h Li-ion battery, 11.1V, 1300mAh Separate RTC3V/210mAh
Operating temperature: -20℃-60℃
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
RUGGEDMASTER CMX-I14A Rugged Tablets
RUGGEDMASTER CMX-I14A rugged tablets is listed for wholesale enquiries through RuggedMaster. Intel i5-1235U (12MB cache, up to 4.4 GHz,10 cores,12 threads,TDP 15W) Optional Intel i7-1255U (12MB cache,up to 4.7 GHz,10 cores,12 threads,TDP 15W), Windows 11 Pro Optional Windows 11 Home/IOT, 16GB DDR5 SO-DIMM Optional 32GB DDR5, 14.0″ FHD (1920×1080),1000 nits, Li-ion battery, 11.4V, 4700mAh, 6.5h Li-ion battery, 11.1V, 1300mAh Separate RTC3V/210mAh.
Here is a basic parameter of CMX-I14A Rugged Windows Tablet
Special Note : Product data is for reference only and subject to change without notice
RUGGEDMASTER CMX-I14A features and specifications
Model: CMX-I14A.
CPU: Intel i5-1235U (12MB cache, up to 4.4 GHz,10 cores,12 threads,TDP 15W) Optional Intel i7-1255U (12MB cache,up to 4.7 GHz,10 cores,12 threads,TDP 15W).
GPU: Intel® Iris® Xe Graphics eligible.
Memory: 16GB DDR5 SO-DIMM Optional 32GB DDR5.
Storage: 256GB PCIe SSD Optional 512GB/1TB SSD.
System: Windows 11 Pro Optional Windows 11 Home/IOT.
WLAN: Intel® Wi-Fi 6 (802.11 ax).
WWAN: 4G LTE LTE-FDD: B1/3/5/7/8/20/28 LTE-TDD: B38/40/41 WCDMA: B1/5/8 GSM: / Optional 5G.
Bluetooth: Bluetooth® 5.1.
GNSS: Support GPS.
Dimensions: 366.2mm×246.9mm×24.8mm.
Weight: 2350g (Including battery).

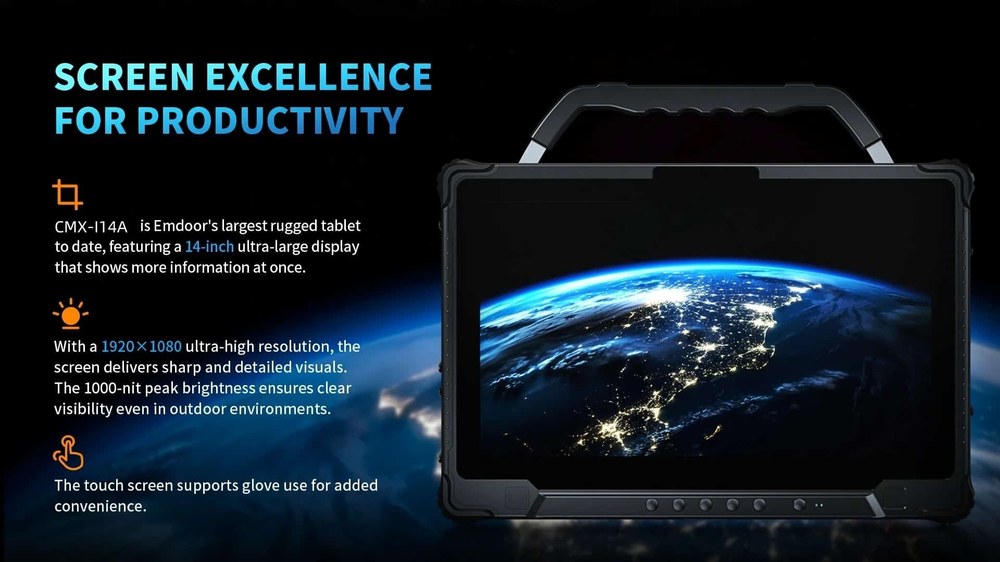

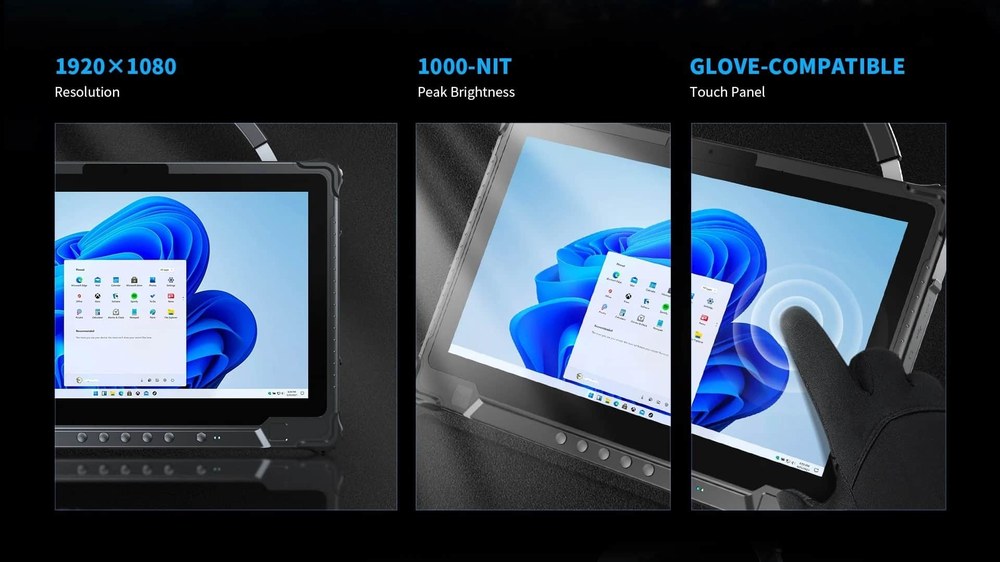

Display: 14.0″ FHD (1920×1080),1000 nits.
TP: 10-point capacitive touch screen, supports glove touch mode.
Battery capacity: Li-ion battery, 11.4V, 4700mAh, 6.5h Li-ion battery, 11.1V, 1300mAh Separate RTC3V/210mAh.
Expansion Card slot: SIM Cardx1, Micro SD Cardx1.

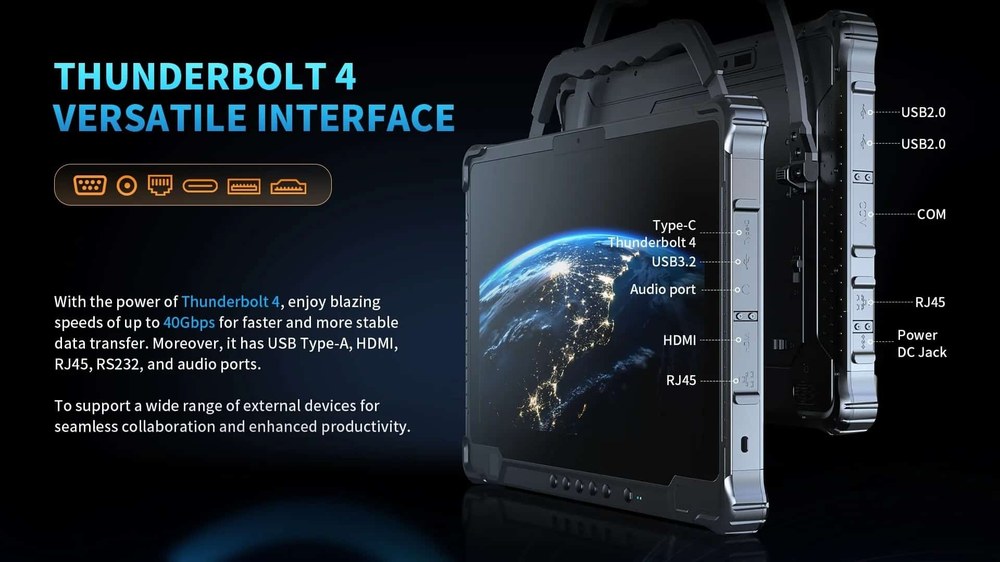

Communication interface: USB 3.2 Gen 2 (Type-A) x1 Thunderbolt 4 (Type-C) x1 3.5mm audio jack x1 HDMI 2.0a mini x1 10/100/1000 Ethernet (RJ45) x2 Fan x1 12-pin Pogo pin x1 (charge & USB) USB 2.0 (Type-A) x2 Serial port (RS232: D-sub, 9-pin) x1 5.5 mm DC in jack x1.
Expansion Module: Optional 2nd NVME PCIe SSD Optional user-definable PCIe module.
Power: AC adapter: 100-240V, 50Hz-60Hz, 71.82W (19V/3.78A).
Barcode Scanning: Zebra SE4710.
1D Symbologies: Code 39,Code 93,Code 128 Codabar(NW-7),Code 11 UPC-A/UPC-E EAN-8/EAN-13 Interleaved 2-of-5(ITF)Industrial 2-of-5,Standard 2-of-5 MSI/Plessey,Postnet,Planet Code RSS/GS1 DataBar.
2D Symbologies: PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code,MaxiCode ,Hanxin Code,etc..
Rear camera: AF 8.0 MP rear camera.
Front camera: MF 5.0 MP front camera.
Frequency: 13.56MHz.
Protocol: ISO/IEC 14443A protocol.
Distance: 2cm-5cm.
Operating temperature: -20℃-60℃.
Storage temperature: -30℃-70℃.
Environment humidity: 95% RH(no condensation).

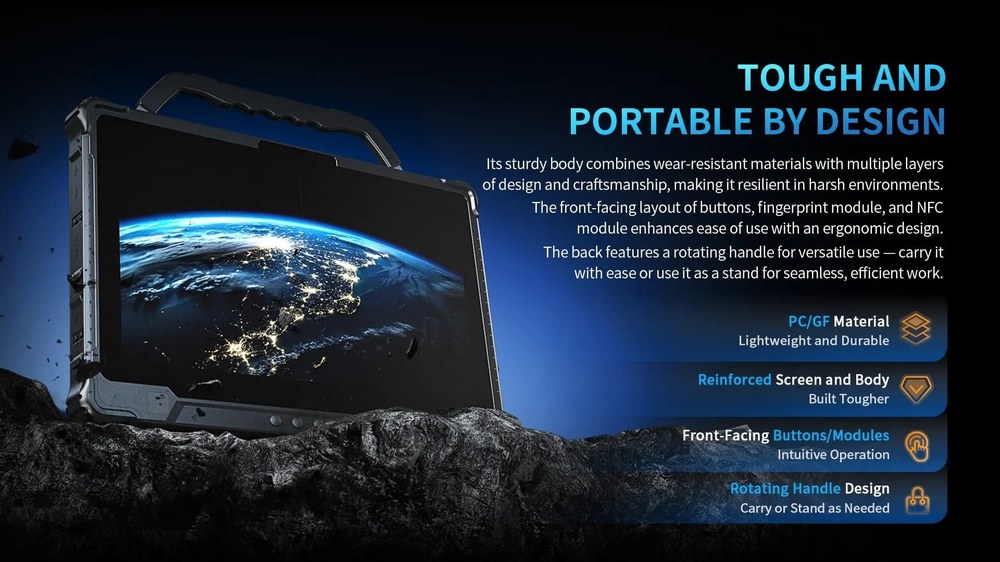

Drop: 6 sides can withstand a height of 1.22 meters,falling to the marble..
Sealing: IP65 certified,MIL-STD-810H certified.
Standard: Adapter,Data cable,carry handle.
RUGGEDMASTER CMX-I14A bulk orders
For a RUGGEDMASTER CMX-I14A wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.
Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.
Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.
Compare the RUGGEDMASTER CMX-I14A dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
Explore RuggedMaster wholesale products.
| Model | CMX-I14A |
|---|---|
| CPU | Intel i5-1235U (12MB cache, up to 4.4 GHz,10 cores,12 threads,TDP 15W) Optional Intel i7-1255U (12MB cache,up to 4.7 GHz,10 cores,12 threads,TDP 15W) |
| GPU | Intel® Iris® Xe Graphics eligible |
| Memory | 16GB DDR5 SO-DIMM Optional 32GB DDR5 |
| Storage | 256GB PCIe SSD Optional 512GB/1TB SSD |
| System | Windows 11 Pro Optional Windows 11 Home/IOT |
| WLAN | Intel® Wi-Fi 6 (802.11 ax) |
| WWAN | 4G LTE LTE-FDD: B1/3/5/7/8/20/28 LTE-TDD: B38/40/41 WCDMA: B1/5/8 GSM: / Optional 5G |
| Bluetooth | Bluetooth® 5.1 |
| GNSS | Support GPS |
| Dimensions | 366.2mm×246.9mm×24.8mm |
| Weight | 2350g (Including battery) |
| Display | 14.0″ FHD (1920×1080),1000 nits |
| TP | 10-point capacitive touch screen, supports glove touch mode |
| Battery capacity | Li-ion battery, 11.4V, 4700mAh, 6.5h Li-ion battery, 11.1V, 1300mAh Separate RTC3V/210mAh |
| Expansion Card slot | SIM Cardx1, Micro SD Cardx1 |
| Communication interface | USB 3.2 Gen 2 (Type-A) x1 Thunderbolt 4 (Type-C) x1 3.5mm audio jack x1 HDMI 2.0a mini x1 10/100/1000 Ethernet (RJ45) x2 Fan x1 12-pin Pogo pin x1 (charge & USB) USB 2.0 (Type-A) x2 Serial port (RS232: D-sub, 9-pin) x1 5.5 mm DC in jack x1 |
| Expansion Module | Optional 2nd NVME PCIe SSD Optional user-definable PCIe module |
| Power | AC adapter: 100-240V, 50Hz-60Hz, 71.82W (19V/3.78A) |
| Barcode Scanning | Zebra SE4710 |
| 1D Symbologies | Code 39,Code 93,Code 128 Codabar(NW-7),Code 11 UPC-A/UPC-E EAN-8/EAN-13 Interleaved 2-of-5(ITF)Industrial 2-of-5,Standard 2-of-5 MSI/Plessey,Postnet,Planet Code RSS/GS1 DataBar |
| 2D Symbologies | PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code,MaxiCode ,Hanxin Code,etc. |
| Rear camera | AF 8.0 MP rear camera |
| Front camera | MF 5.0 MP front camera |
| Frequency | 13.56MHz |
| Protocol | ISO/IEC 14443A protocol |
| Distance | 2cm-5cm |
| Operating temperature | -20℃-60℃ |
| Storage temperature | -30℃-70℃ |
| Environment humidity | 95% RH(no condensation) |
| Drop | 6 sides can withstand a height of 1.22 meters,falling to the marble. |
| Sealing | IP65 certified,MIL-STD-810H certified |
| Standard | Adapter,Data cable,carry handle |
