RUGGEDMASTER CMX-H68T Industrial PDAs
Solid Large screen · CPU:MT6789(Helio G99) Octa core 2.2GHZ CPU, Android 14 GMS, 8GB+128GB, 6.56-inch TFT screen 20:9,resolution 720*1612, 670 Nit, 3.85V/5800mAh Built-in Polymer Lithium-ion Battery, Zebra 2D SE4710 Engine(default) Honeywell 2D Long range reader for optional (10m max)
RUGGEDMASTER CMX-H68T. The manufacturer specifications list CPU:MT6789(Helio G99) Octa core 2.2GHZ CPU, Android 14 GMS, 8GB+128GB, 6.56-inch TFT screen 20:9,resolution 720*1612, 670 Nit, 3.85V/5800mAh Built-in Polymer Lithium-ion Battery, Zebra 2D SE4710 Engine(default) Honeywell 2D Long range reader for optional (10m max). Review the full hardware and connection details in the Specs tab for your project.
CPU: CPU:MT6789(Helio G99) Octa core 2.2GHZ CPU
RAM+ROM: 8GB+128GB
Display: 6.56-inch TFT screen 20:9,resolution 720*1612, 670 Nit
Touch Screen: 5-point capacitive touch screen
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

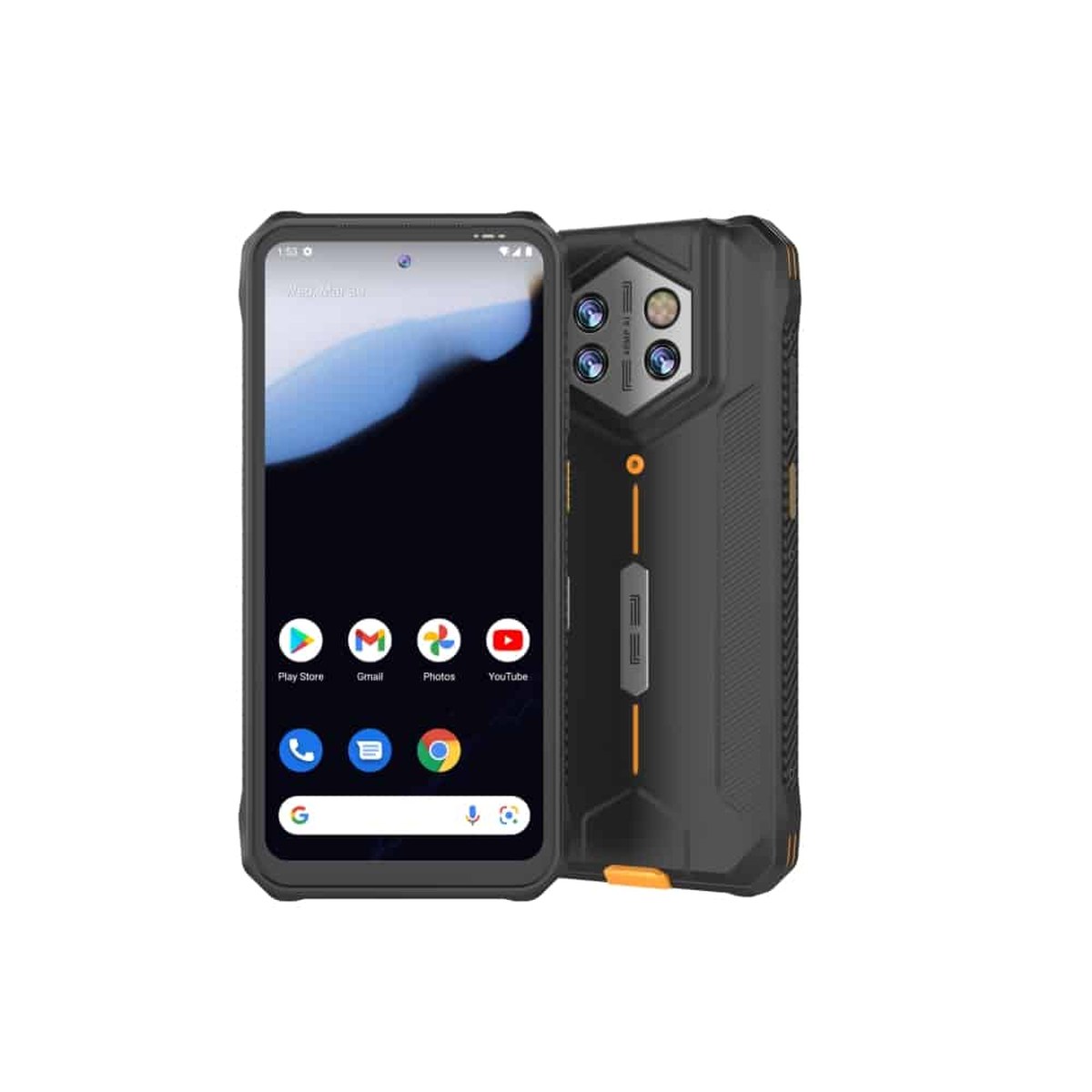

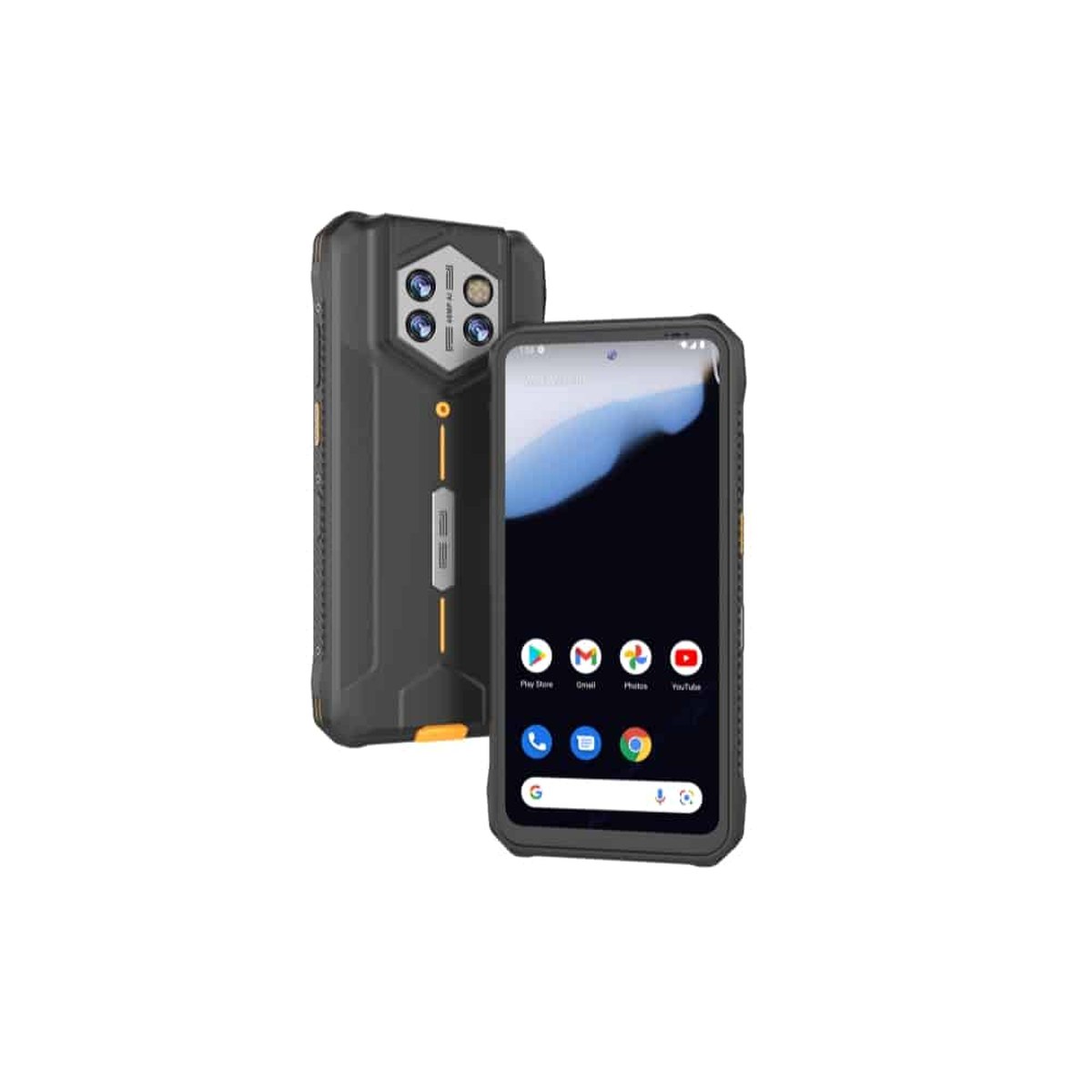

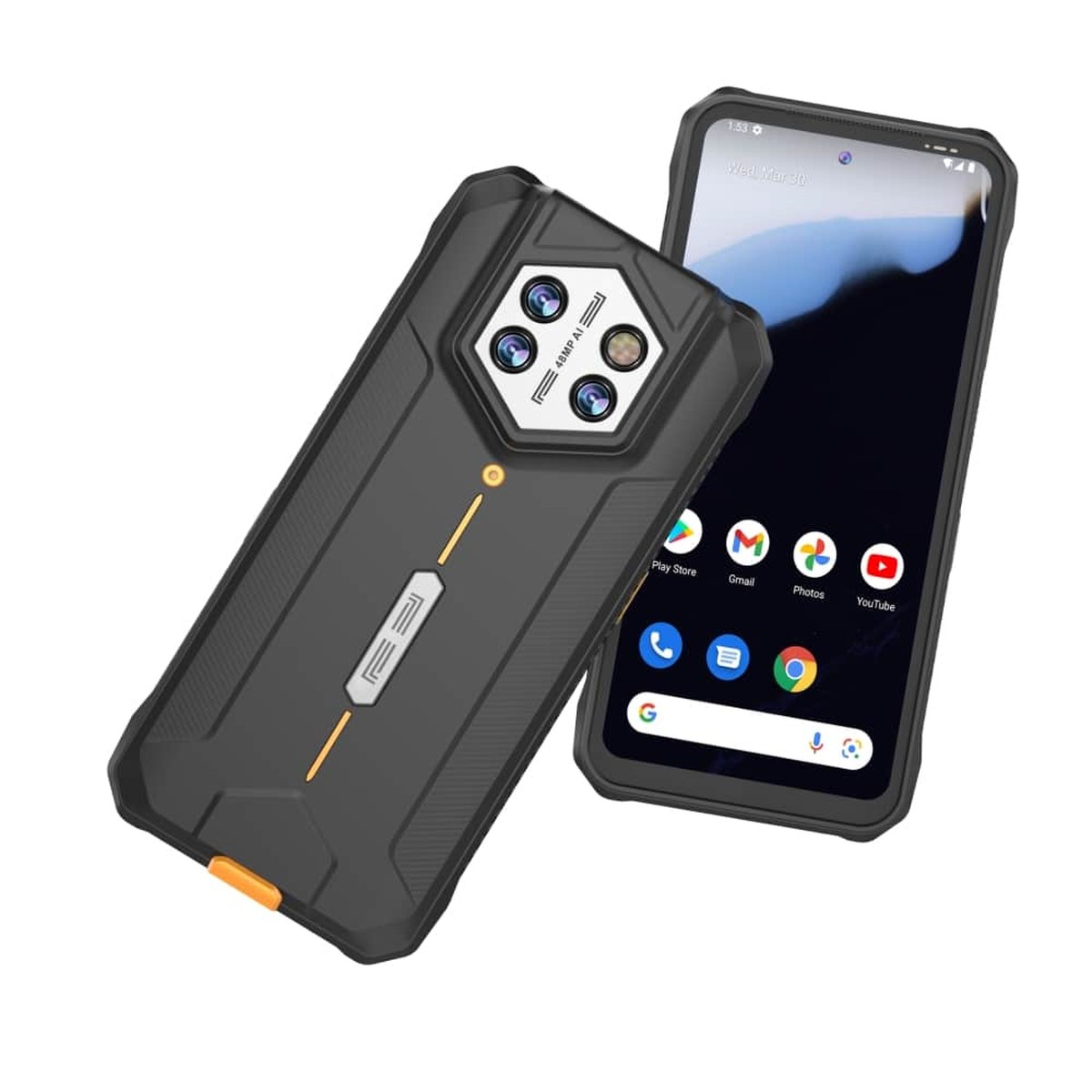

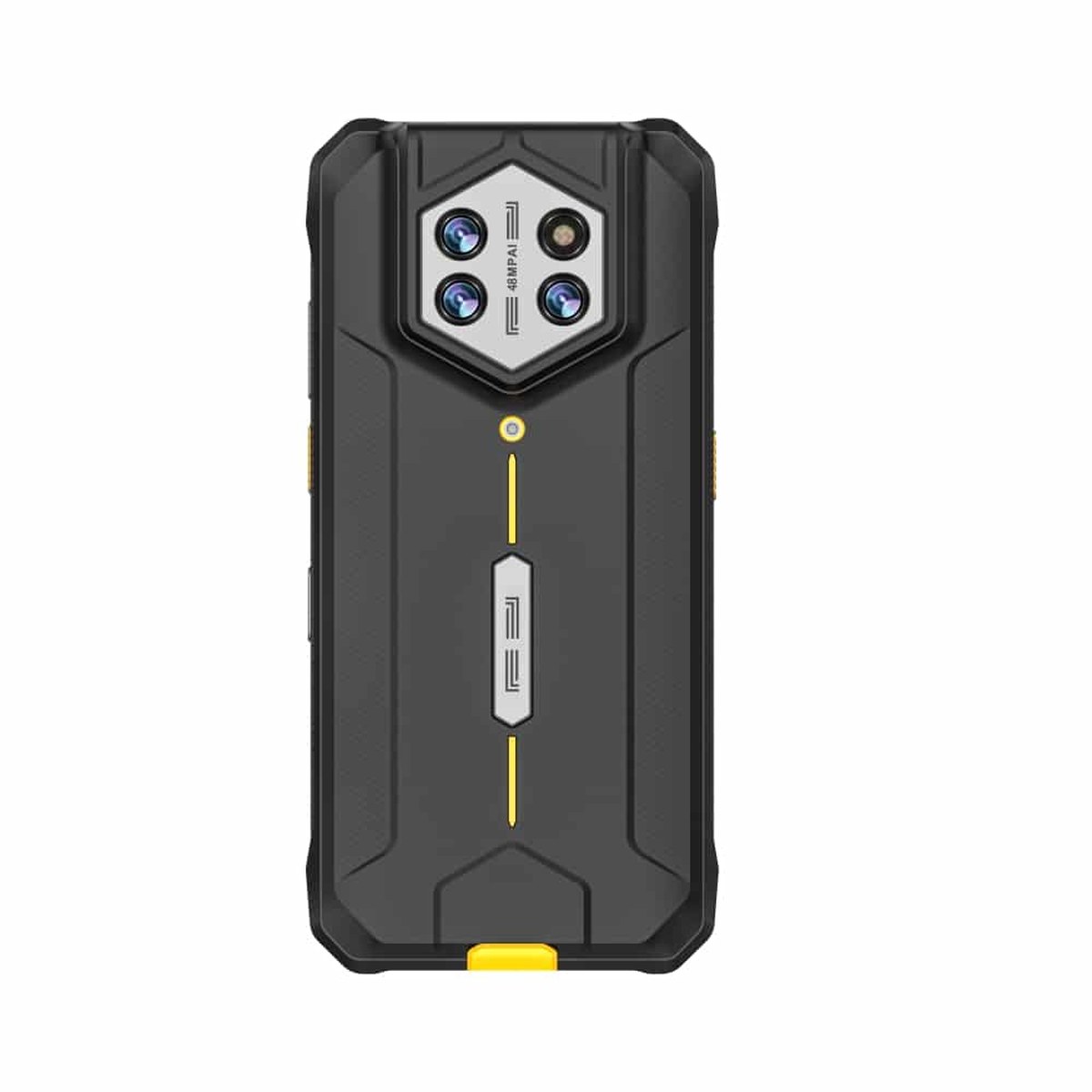

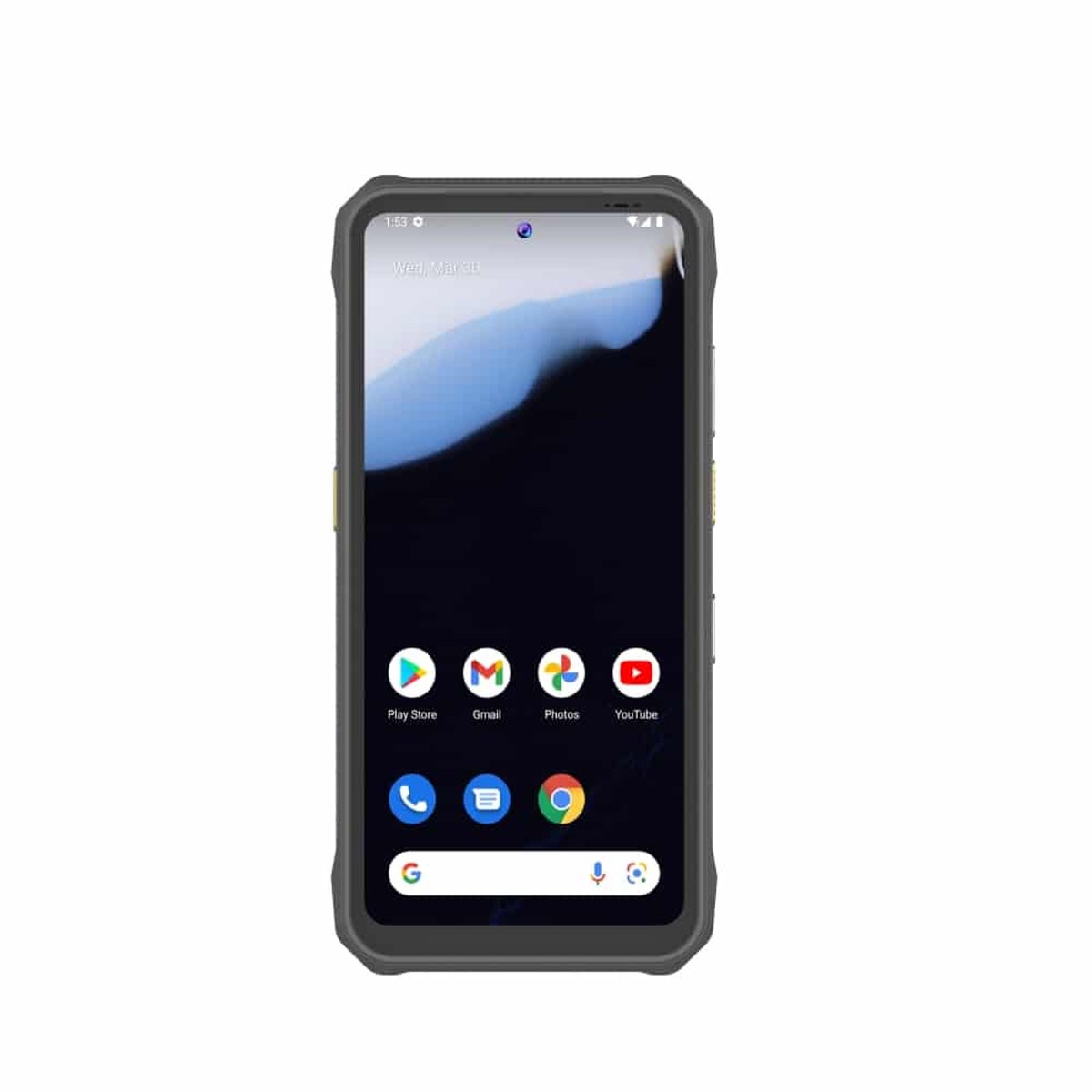

RUGGEDMASTER CMX-H68T Industrial PDAs
RUGGEDMASTER CMX-H68T industrial pdas is listed for wholesale enquiries through RuggedMaster. CPU:MT6789(Helio G99) Octa core 2.2GHZ CPU, Android 14 GMS, 8GB+128GB, 6.56-inch TFT screen 20:9,resolution 720*1612, 670 Nit, 3.85V/5800mAh Built-in Polymer Lithium-ion Battery, Zebra 2D SE4710 Engine(default) Honeywell 2D Long range reader for optional (10m max).
Here is a basic parameter of CMX-H68T Industrial PDA
Special Note : Product data is for reference only and subject to change without notice
RUGGEDMASTER CMX-H68T features and specifications
Model: CMX-H68T.
CPU: CPU:MT6789(Helio G99) Octa core 2.2GHZ CPU.
GPU: ARM G57 MC2.
RAM+ROM: 8GB+128GB.
System: Android 14 GMS.
WIFI: WIFI 802.11(a/b/g/n/ac), frequency 2.4G+5.0G.
WWAN: 2G:GSM(B2/3/5/8) 3G:WCDMA(B1/2/4/5/8) FDD(B1/2/3/4/5/7/8/12/13/17/18/19/20/25/2 6/28A/28B/30/66) TDD(B34/38/39/40/41).
Bluetooth: BT5.1 (BLE) class1 Transmission Distance: 30m.
GNSS: Supports GPS/Beidou/Galileo/GLONASS Supports AGPS Cold Start Time: <60 seconds.
Dimensions: 170.2mm(L)*80.7mm(W)*14mm(H).
Weight: <350g (Depends on device function configuration).
Display: 6.56-inch TFT screen 20:9,resolution 720*1612, 670 Nit.
Touch Screen: 5-point capacitive touch screen.
Battery capacity: 3.85V/5800mAh Built-in Polymer Lithium-ion Battery.
Endurance: Battery Life: About 17h24min (Default 70dB volume; Default 300nit screen brightness; Playing 1080P HD video) Charging Time: About 1h50min.
Expansion Card slot: TF Card*1 SIM Card *2 Pogo Pin (Charging) *1.
Communication interface: Type C *1 (Charging/Data/Earphone/Reverse Charging 6W).
Power adapter: 33W Fast Charge Adapter.
Keypad: Power key,Volume +/- key,Scan key×2.
Sensors: Gravity sensor,Light sensor,Proximity sensor.
Barcode Scanning: Zebra 2D SE4710 Engine(default) Honeywell 2D Long range reader for optional (10m max).
1D Symbologies: Code 39,Code 93,Code 128 Codabar(NW-7),Code 11 UPC-A/UPC-E EAN-8/EAN-13 Interleaved 2-of-5(ITF)Industrial 2-of-5,Standard 2-of-5 MSI/Plessey、Postnet,Planet Code RSS/GS1 DataBar.
2D Symbologies: PDF417,MicroPDF417,Composite,RSS,TLC-39,Datamatrix ,QR code,Micro QR code,Aztec ,MaxiCode,HanXi,etc,Postal Codes..

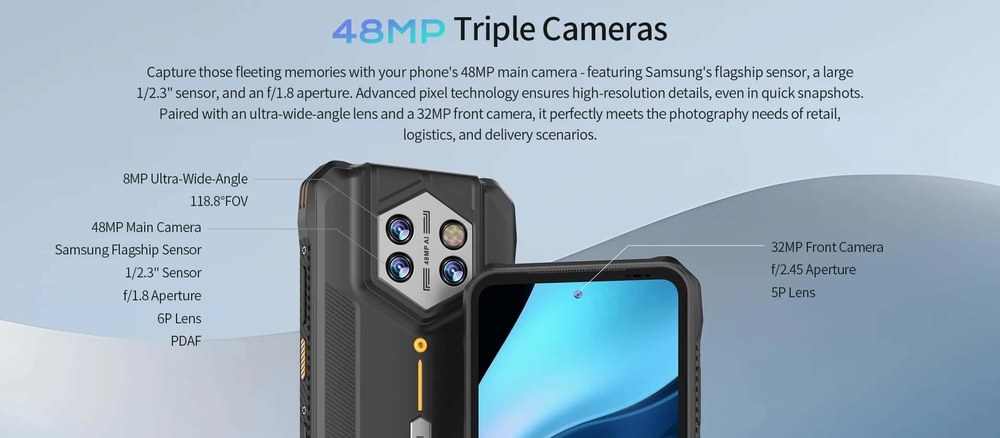

Rear camera: Rear Main Camera 48MP + Rear Secondary Camera 8MP Wide-angle.
Front camera: Front 32MP.
Frequency: 13.56MHz.
Protocol: Supports ISO18092, ISO14443 A/B, ISO15693 protocols, Mifare compliance;.
Distance: 2cm-5cm.
Operating temperature: -10℃ – 50℃.
Storage temperature: -20℃ – 60℃.
Environment humidity: 5%RH–95% RH(no condensation).
Drop: 1.5m drop resistance.
Sealing: IP68.
Standard: Adapter,Data cable,Instruction manual.
Optional: Dock station.
RUGGEDMASTER CMX-H68T bulk orders
For a RUGGEDMASTER CMX-H68T wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.
Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.
Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.
Compare the RUGGEDMASTER CMX-H68T dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
Explore RuggedMaster wholesale products.
| Model | CMX-H68T |
|---|---|
| CPU | CPU:MT6789(Helio G99) Octa core 2.2GHZ CPU |
| GPU | ARM G57 MC2 |
| RAM+ROM | 8GB+128GB |
| System | Android 14 GMS |
| WIFI | WIFI 802.11(a/b/g/n/ac), frequency 2.4G+5.0G |
| WWAN | 2G:GSM(B2/3/5/8) 3G:WCDMA(B1/2/4/5/8) FDD(B1/2/3/4/5/7/8/12/13/17/18/19/20/25/2 6/28A/28B/30/66) TDD(B34/38/39/40/41) |
| Bluetooth | BT5.1 (BLE) class1 Transmission Distance: 30m |
| GNSS | Supports GPS/Beidou/Galileo/GLONASS Supports AGPS Cold Start Time: <60 seconds |
| Dimensions | 170.2mm(L)*80.7mm(W)*14mm(H) |
| Weight | <350g (Depends on device function configuration) |
| Display | 6.56-inch TFT screen 20:9,resolution 720*1612, 670 Nit |
| Touch Screen | 5-point capacitive touch screen |
| Battery capacity | 3.85V/5800mAh Built-in Polymer Lithium-ion Battery |
| Endurance | Battery Life: About 17h24min (Default 70dB volume; Default 300nit screen brightness; Playing 1080P HD video) Charging Time: About 1h50min |
| Expansion Card slot | TF Card*1 SIM Card *2 Pogo Pin (Charging) *1 |
| Communication interface | Type C *1 (Charging/Data/Earphone/Reverse Charging 6W) |
| Power adapter | 33W Fast Charge Adapter |
| Keypad | Power key,Volume +/- key,Scan key×2 |
| Sensors | Gravity sensor,Light sensor,Proximity sensor |
| Barcode Scanning | Zebra 2D SE4710 Engine(default) Honeywell 2D Long range reader for optional (10m max) |
| 1D Symbologies | Code 39,Code 93,Code 128 Codabar(NW-7),Code 11 UPC-A/UPC-E EAN-8/EAN-13 Interleaved 2-of-5(ITF)Industrial 2-of-5,Standard 2-of-5 MSI/Plessey、Postnet,Planet Code RSS/GS1 DataBar |
| 2D Symbologies | PDF417,MicroPDF417,Composite,RSS,TLC-39,Datamatrix ,QR code,Micro QR code,Aztec ,MaxiCode,HanXi,etc,Postal Codes. |
| Rear camera | Rear Main Camera 48MP + Rear Secondary Camera 8MP Wide-angle |
| Front camera | Front 32MP |
| Frequency | 13.56MHz |
| Protocol | Supports ISO18092, ISO14443 A/B, ISO15693 protocols, Mifare compliance; |
| Distance | 2cm-5cm |
| Operating temperature | -10℃ – 50℃ |
| Storage temperature | -20℃ – 60℃ |
| Environment humidity | 5%RH–95% RH(no condensation) |
| Drop | 1.5m drop resistance |
| Sealing | IP68 |
| Standard | Adapter,Data cable,Instruction manual |
| Optional | Dock station |
