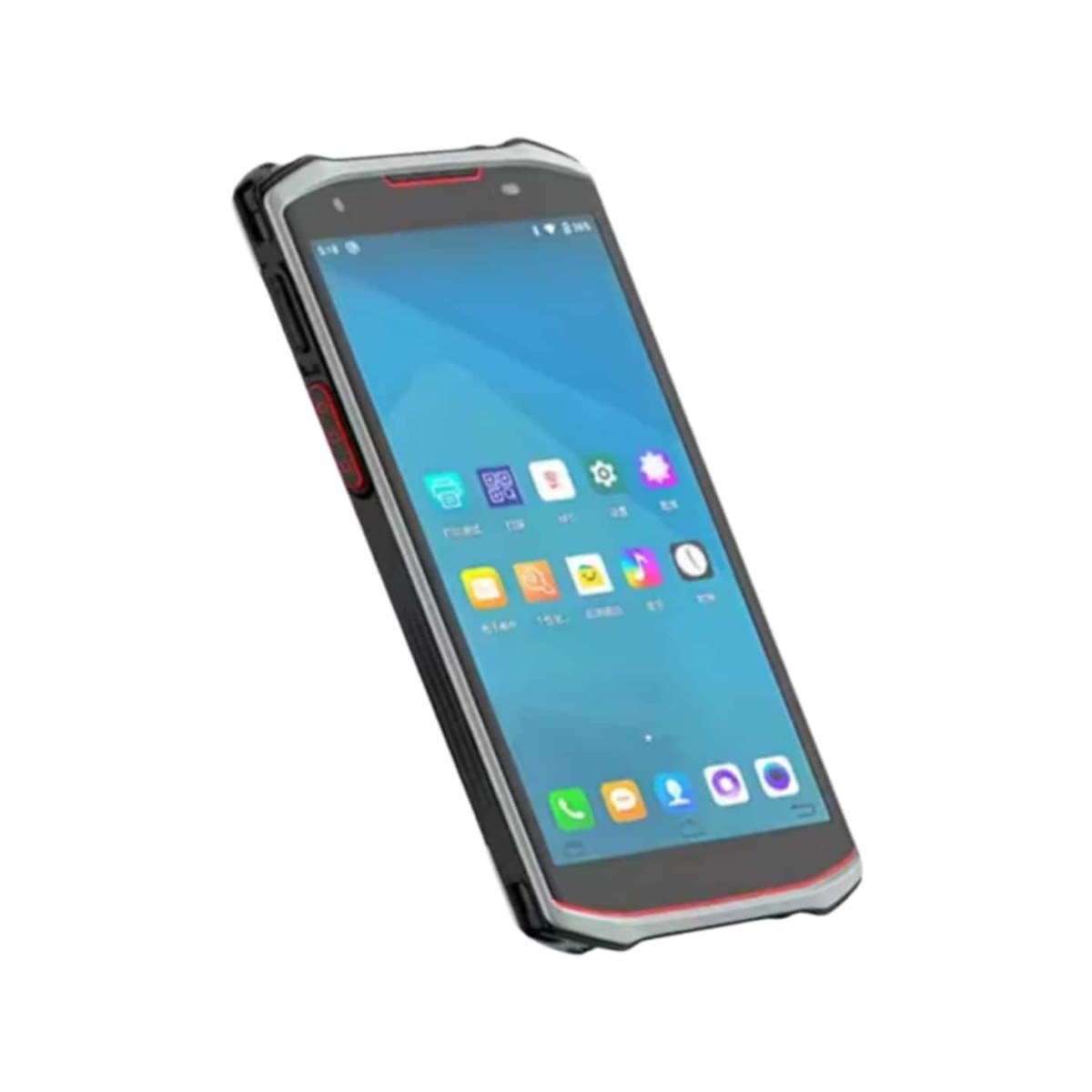

RUGGEDMASTER CMX-F502 industrial pdas is listed for wholesale enquiries through RuggedMaster. MT6762 Octa-core 64-bit 2 .0GHz high-performance processor, Android 13, 4GB+64GB, 5.5″ IPS color display,resolution 720×1440, Rechargeable polymer battery (3.85V 4200mAh) Standby time>350 hours Charging time<3 hours,use standard power adapter and data cable, Honeywell N5703/Honeywell N6703/6602-W2 2D Engine for optional.

Here is a basic parameter of CMX-F502 PDA Android Scanner

Special Note : Product data is for reference only and subject to change without notice

RUGGEDMASTER CMX-F502 features and specifications

Model: CMX-F502.

CPU: MT6762 Octa-core 64-bit 2 .0GHz high-performance processor.

RAM+ROM: 4GB+64GB.

Expand memory: Micro SD(TF) Supports up to 256GB.

System: Android 13.

WLAN: Dual-band 2.4GHz / 5GHz Support IEEE 802.11ac/a/b/g/ n/d/e/h/i/j/k/r/v protocol.

WWAN: 2G:GSM (850/900/ 1800/ 1900MHz) 3G:WCDMA (850/900/ 1900/2100MHz) 4G:FDD:B1/B3/B4/B7/B8/B12/B20 TDD:B38/B39/B40/B41.

Bluetooth: Support Bluetooth5.0+BLE,transmission distance 5-10 meters.

GNSS: Support GPS,Galileo,Glonass,Beidou.

Dimensions: 160.5mm x 70 .6mm x 14 .9 mm (The thinnest).

Weight: <300g (Depends on device function configuration).

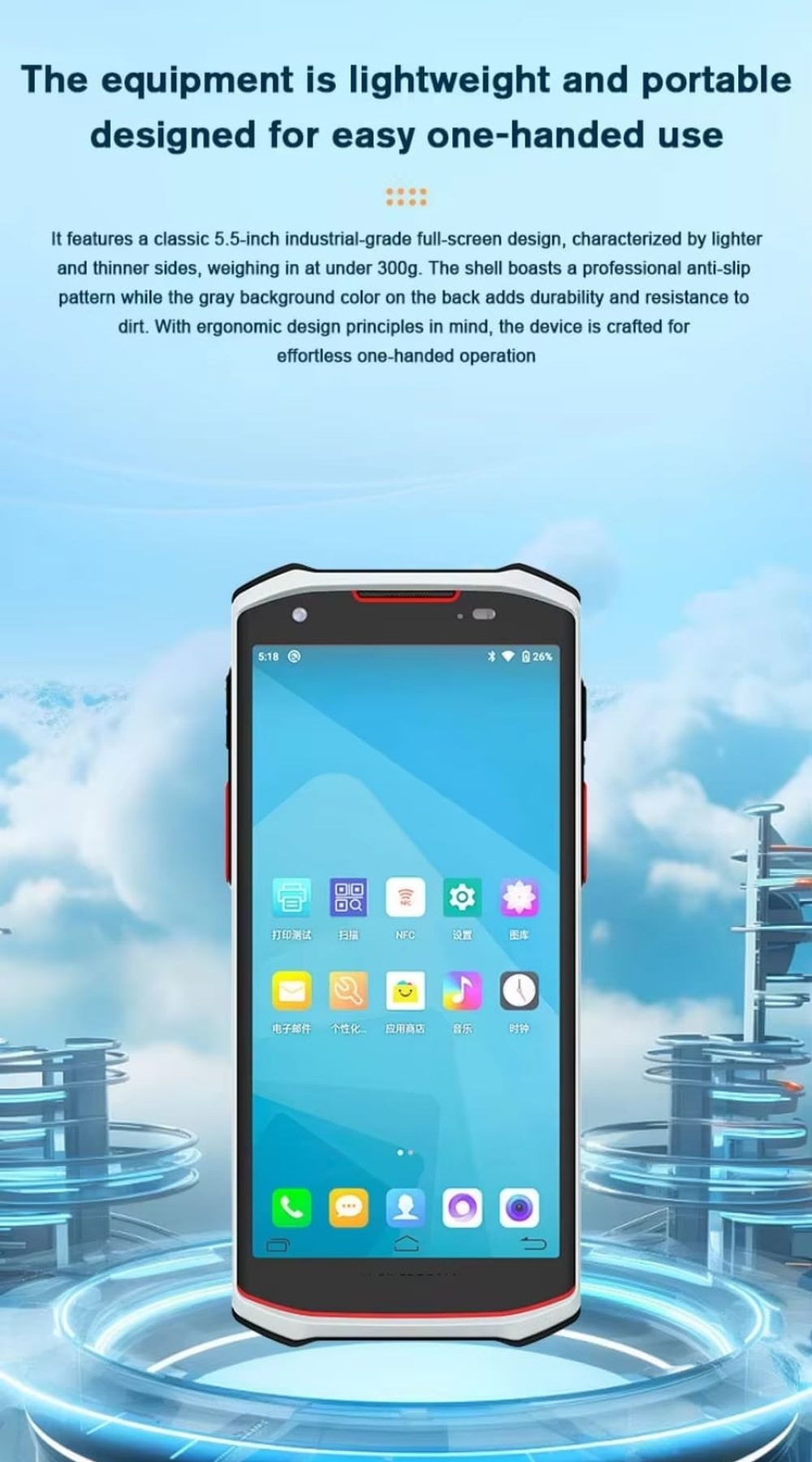

Display: 5.5″ IPS color display,resolution 720×1440.

TP: Supports multi-touch.

Battery capacity: Rechargeable polymer battery (3.85V 4200mAh) Standby time>350 hours Charging time<3 hours,use standard power adapter and data cable.

Expansion Card slot: Standard : NANO SIM×2 TF+NANO SIM or Single NANO SIM (Optional).

Communication interface: Type-C 2.0 USBx1,OTG.

Speaker volume: > 94db (test distance 10cm).

Audio: Speaker (mono), Microphone,Receiver.

Keypad: Power key,Volume +/- key,Scan key×2.

Sensors: Gravity sensor,Light sensor,Proximity sensor.

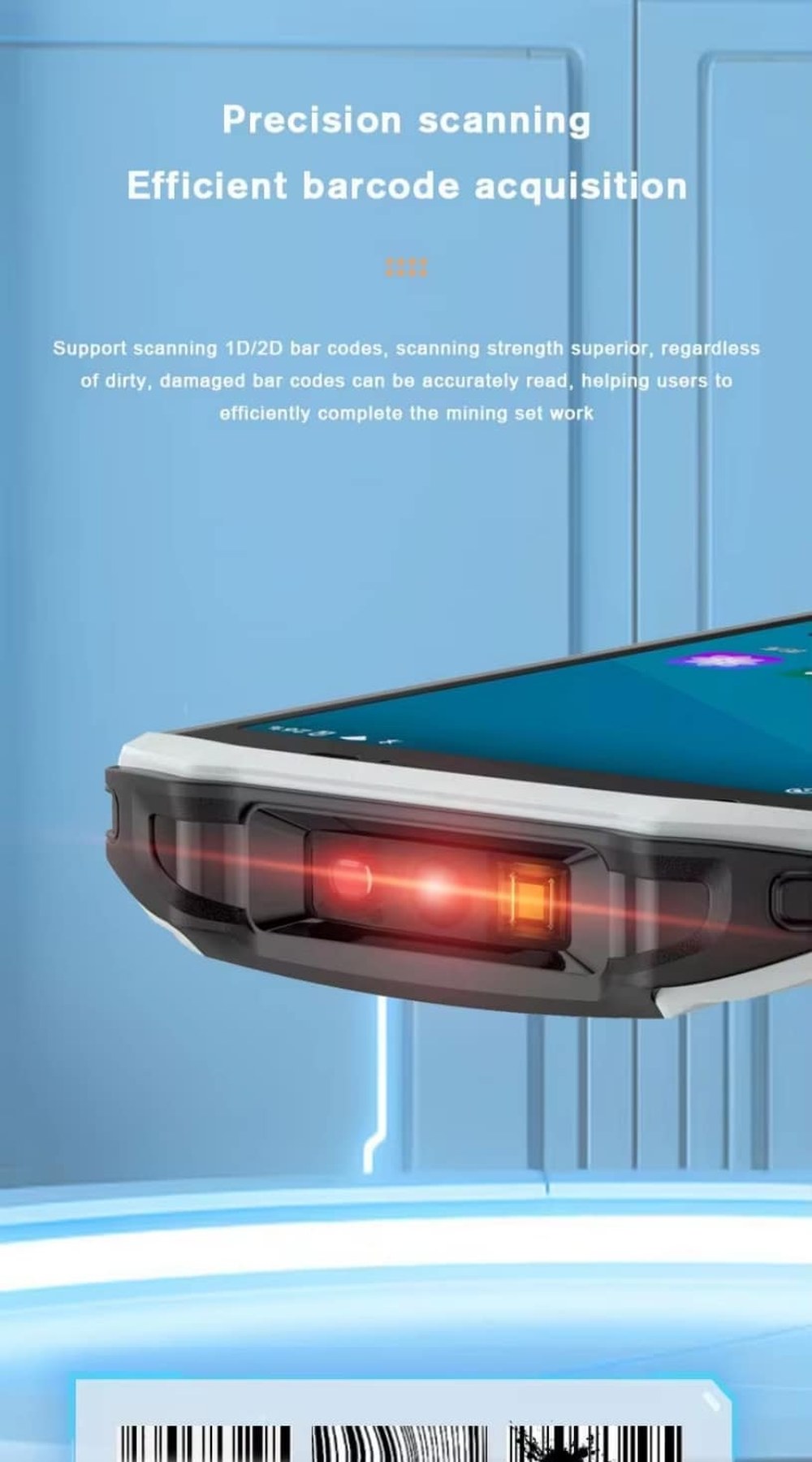

Barcode Scanning: Honeywell N5703/Honeywell N6703/6602-W2 2D Engine for optional.

1D Symbologies: Code128,EAN-13,EAN-8,Code39,UPC-A,UPC-E,Co dabar,Interleaved 2 of 5,China post 25,ISBN/ ISSN,Code93,UCC/EAN-128,GS1 Databar,HIBC,etc ..

2D Symbologies: PDF417,MicroPDF417,Composite,RSS,TLC-39,Datamatrix ,QR code,Micro QR code,Aztec ,MaxiCode,HanXi,etc ..

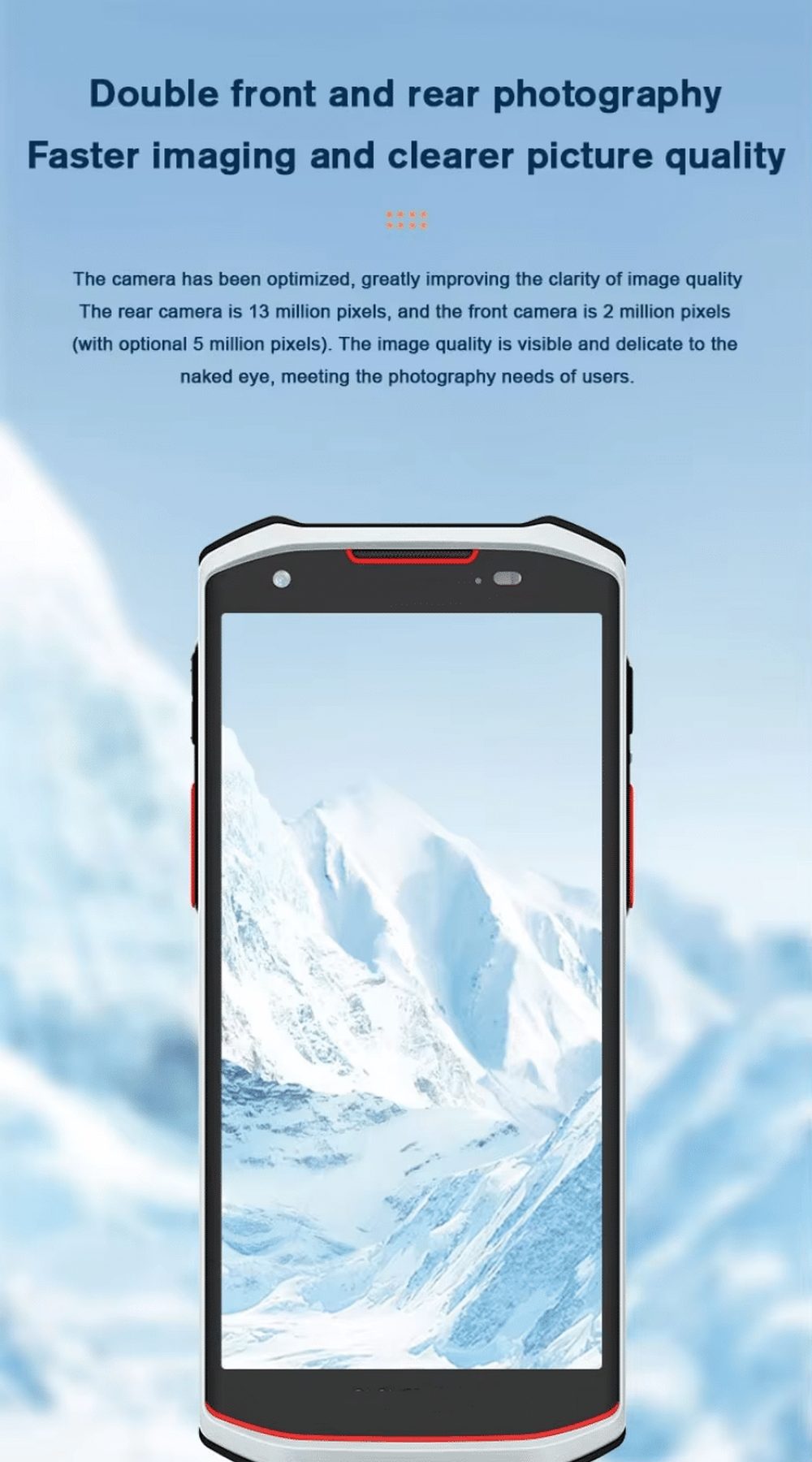

Rear camera: 13MP HD camera,Support auto focus ,Flash,Anti-shake ,Macro shooting.

Front camera: 2MP color camera,5MP color camera(optional).

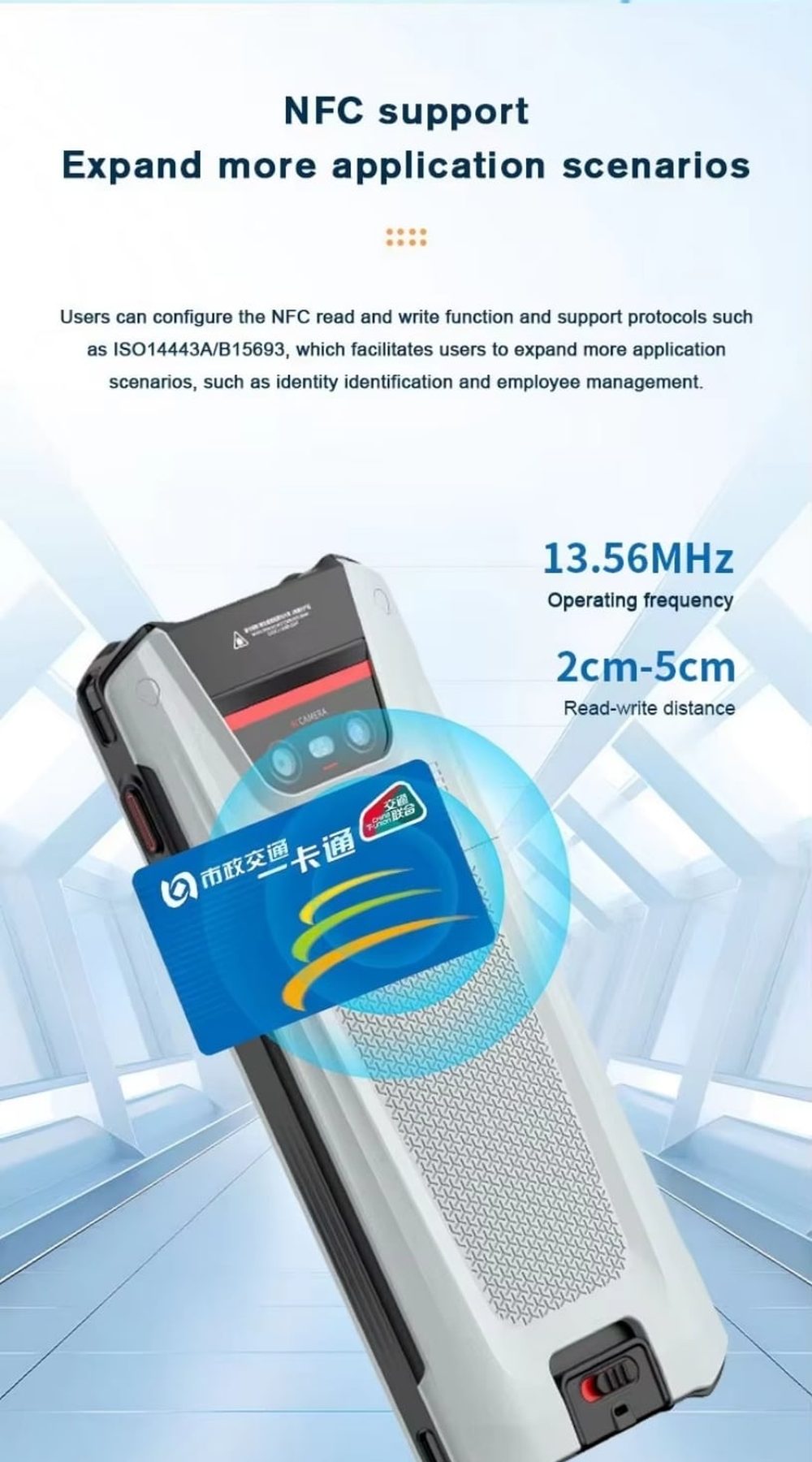

Frequency: 13.56MHz.

Protocol: Support ISO14443A/B,15693 agreement.

Distance: 2cm-5cm.

Operating temperature: -20℃ – 55℃.

Storage temperature: -40℃ – 70℃.

Environment humidity: 5%RH–95% RH(no condensation).

Drop: 6 sides can withstand a height of 1.5 meters,falling to the marble..

Rolling test: 0.5m rolling for 6 sides,can still work steadily.

Sealing: IP66.

Standard: Adapter,Data cable,Protective film,Instruction manual.

Optional: Glass Protective film,TPU Protective Case,Dock station,hand strap.

RUGGEDMASTER CMX-F502 bulk orders

For a RUGGEDMASTER CMX-F502 wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.

Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.

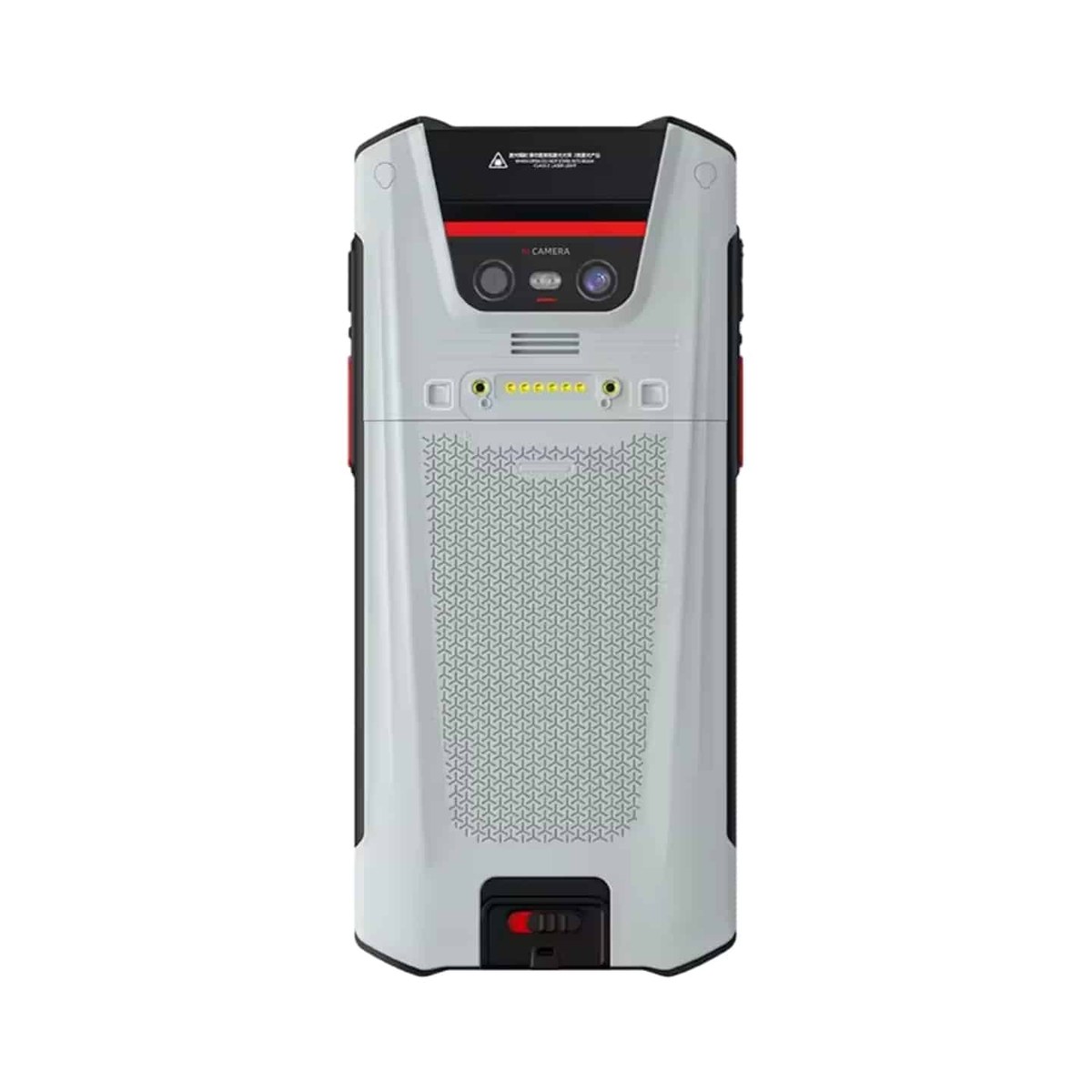

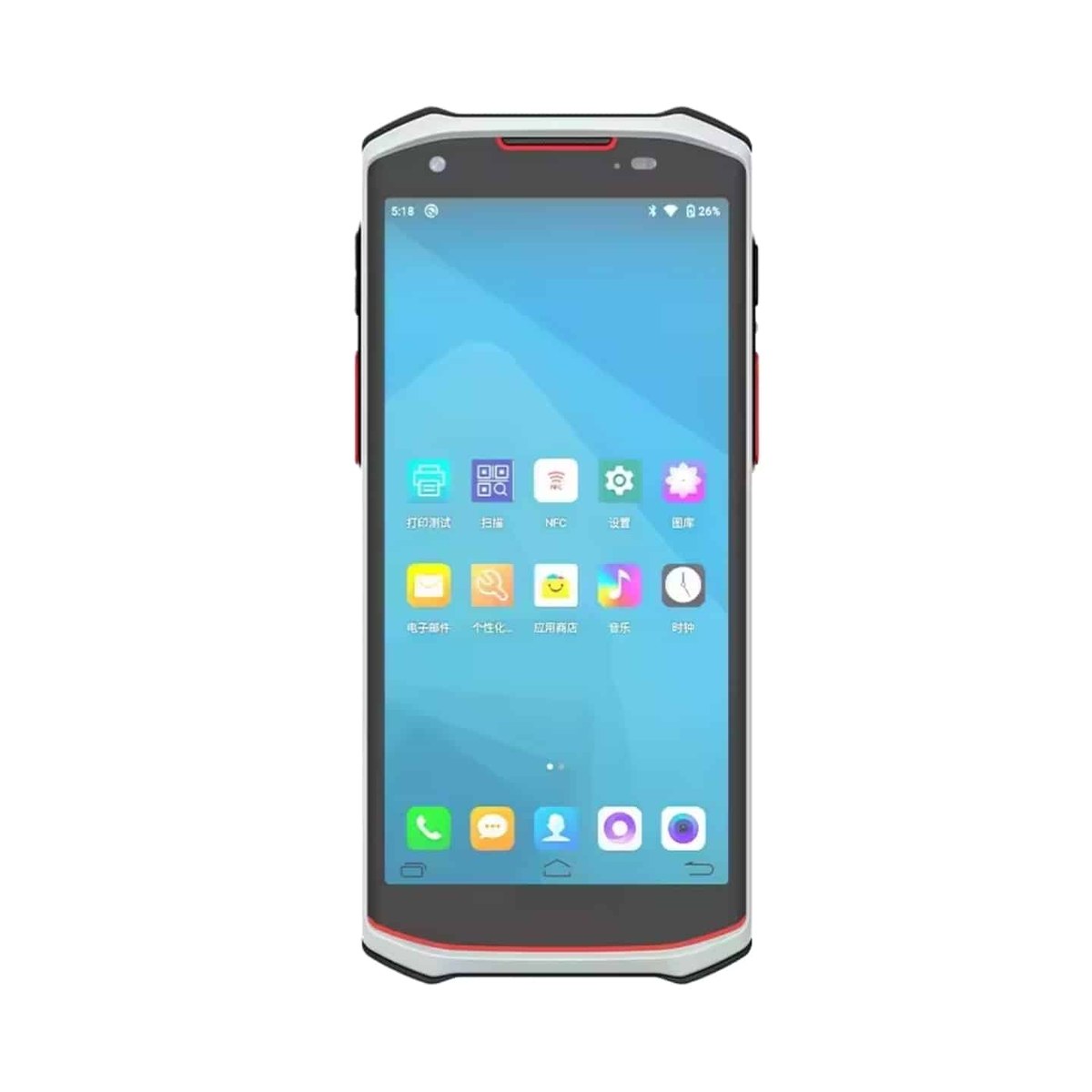

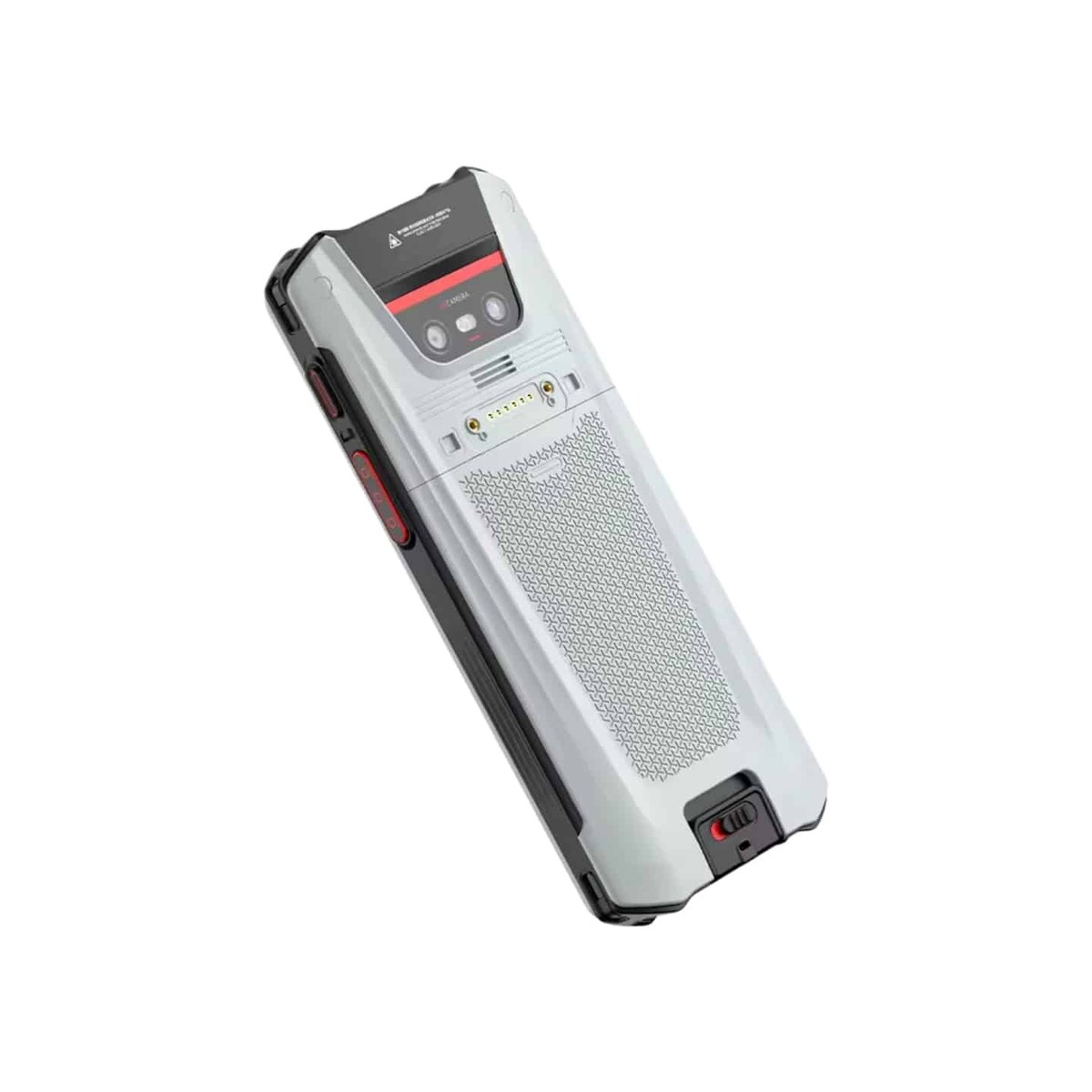

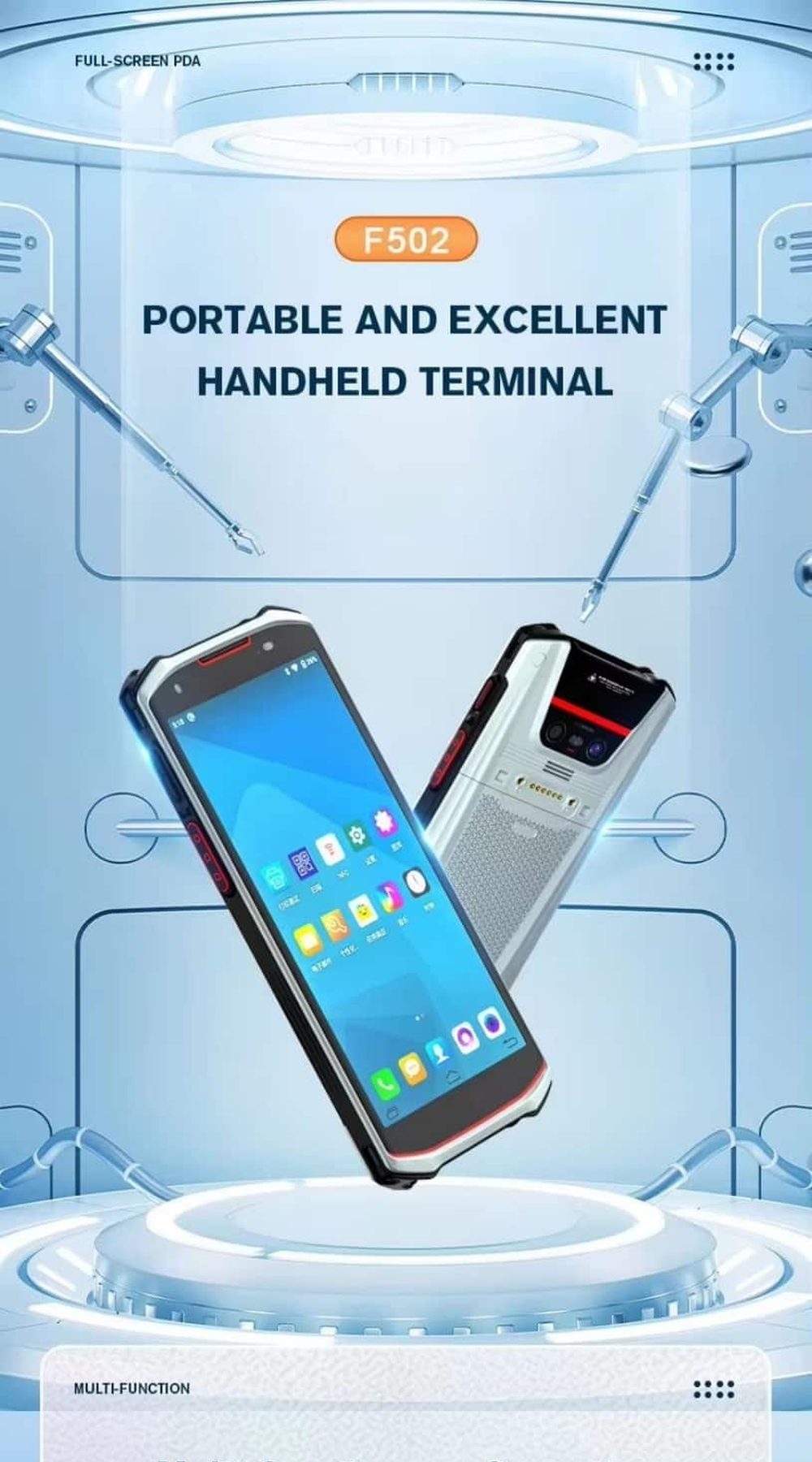

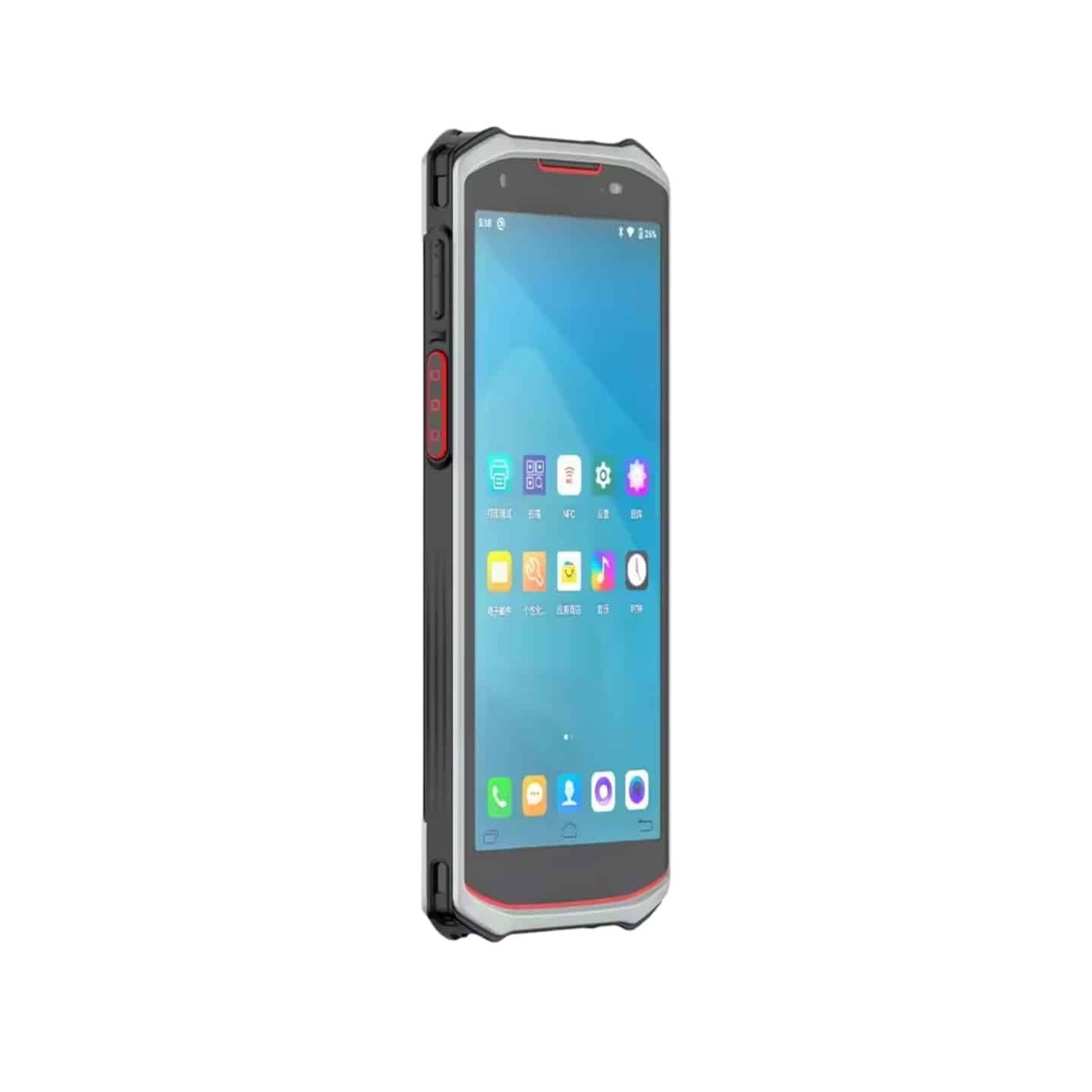

Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.

Compare the RUGGEDMASTER CMX-F502 dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
