RUGGEDMASTER C6200 Mobile Computers

OS: Android 11; GMS, 90-day security updates, Android Enterprise Recommended, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported. Committed support for a future upgrade to Android 12, 13, and Android 14 pending feasibility, CPU: 2.0GHz, Snapdragon™ 662 Octa-core CPU (2.0 GHz), Screen Size: 5.5-inch high definition full display (18:9), IPS IGZO 1440 x 720, Memory: 3 GB RAM / 32 GB Flash (4+64GB optional)

RUGGEDMASTER C6200 Rugged PDA is comply with MIL-STD-810 drop and shock proof, IP65 waterproof rated and equipped with a high strength Gorilla Glass touch panel, to help prevent shattered glass and easy scratches. And it come with an Android 11 OS , include features such as built-in NFC, 4G LTE, UHF ,Fingerprint laser barcode scanner.

Screen Size: 5.5-inch high definition full display (18:9), IPS IGZO 1440 x 720

Memory: 3 GB RAM / 32 GB Flash (4+64GB optional)

Battery: Removable main battery (normal version:4420 mAh ; Android 11 with fingerprint / built-in UHF / volume measurement version: 5200mAh )

Sealing: IP65 per IEC sealing specifications

SEND US A MESSAGE

Just Email Us :

Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109

CONTACT INFORMATION

Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109

Reply Within 24hours for almost message!

Description

RUGGEDMASTER C6200 product details

RUGGEDMASTER C6200 mobile computers. 5.5 inch Qualcomm® Snapdragon™ Rugged handheld PDA scanner.

RUGGEDMASTER C6200 key specifications

  • OS: Android 11; GMS, 90-day security updates, Android Enterprise Recommended, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported. Committed support for a future upgrade to Android 12, 13, and Android 14 pending feasibility
  • CPU: 2.0GHz, Snapdragon™ 662 Octa-core CPU (2.0 GHz)
  • Screen Size: 5.5-inch high definition full display (18:9), IPS IGZO 1440 x 720
  • Memory: 3 GB RAM / 32 GB Flash (4+64GB optional)
  • Battery: Removable main battery (normal version:4420 mAh ; Android 11 with fingerprint / built-in UHF / volume measurement version: 5200mAh )
  • Sealing: IP65 per IEC sealing specifications
  • HF RFID: Support HF/NFC Frequency 13.56MhzSupport: ISO 14443A&15693, NFC-IP1, NFC-IP2

Introduction

RUGGEDMASTER C6200 Rugged PDA is comply with MIL-STD-810 drop and shock proof, IP65 waterproof rated and equipped with a high strength Gorilla Glass touch panel, to help prevent shattered glass and easy scratches. And it come with an Android 11 OS , include features such as built-in NFC, 4G LTE, UHF ,Fingerprint laser barcode scanner. High performance and economic cost help C6200 become a ideal tool for industrial applications including Warehousing, Logistics, and commercial applications like Inventory Management, Retail, and Hospitality.

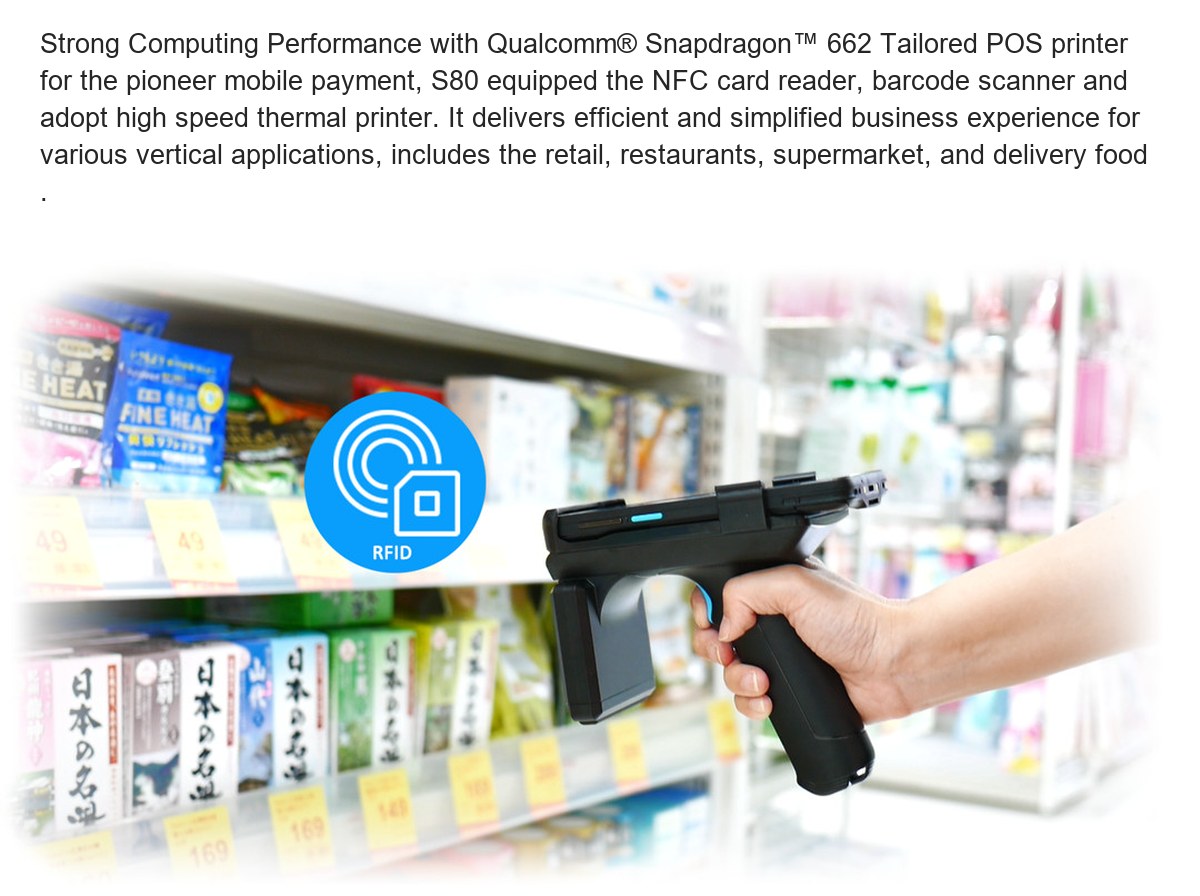

Strong Computing Performance with Qualcomm® Snapdragon™ 662

Tailored POS printer for the pioneer mobile payment, S80 equipped the NFC card reader, barcode scanner and adopt high speed thermal printer. It delivers efficient and simplified business experience for various vertical applications, includes the retail, restaurants, supermarket, and delivery food .

RUGGEDMASTER C6200 mobile computers feature illustration

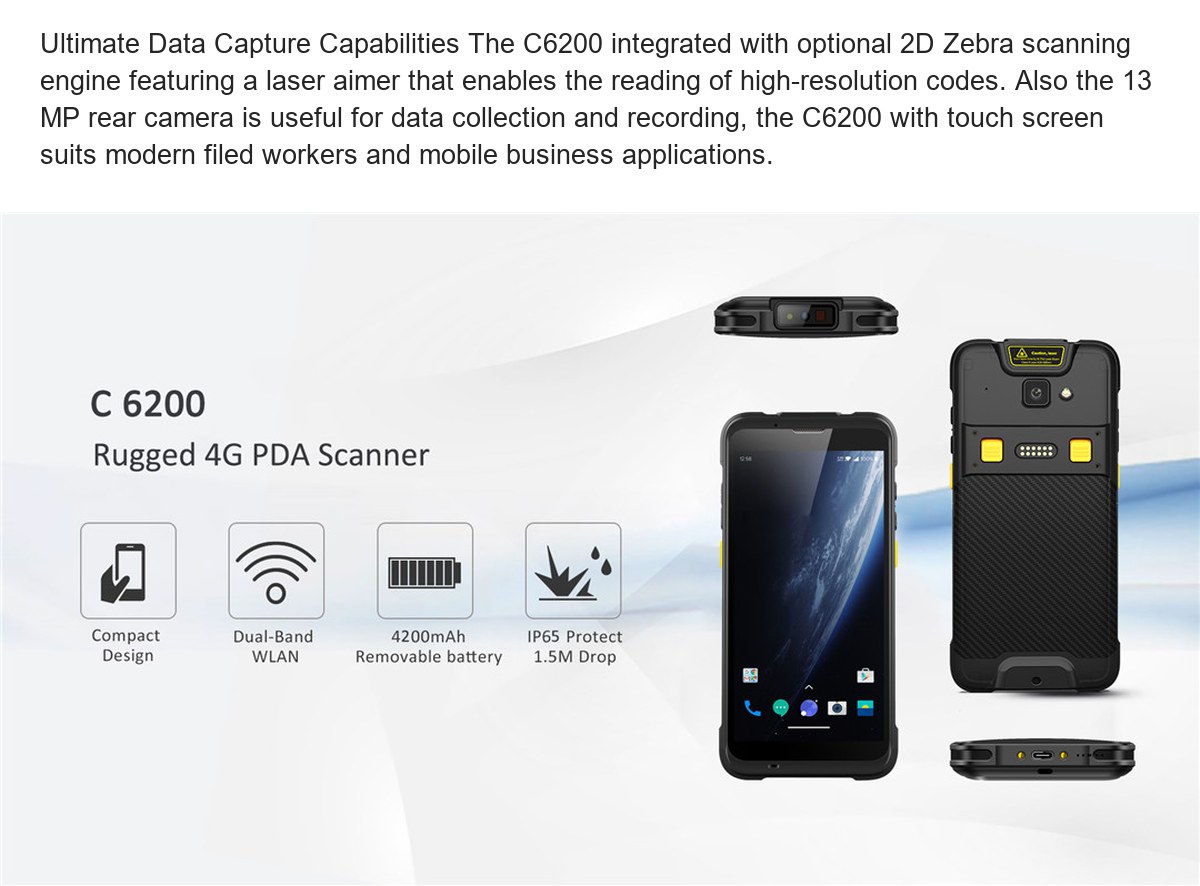

Ultimate Data Capture Capabilities

The C6200 integrated with optional 2D Zebra scanning engine featuring a laser aimer that enables the reading of high-resolution codes. Also the 13 MP rear camera is useful for data collection and recording, the C6200 with touch screen suits modern filed workers and mobile business applications.

RUGGEDMASTER C6200 mobile computers feature illustration

Tailored to survive personal digital assistant

Sealed to IP65, the C6200 rugged portable PDA is built to withstand harsh environments protect against water and dust. Compliant with MIL-STD-810G standard, it can work in extreme temperatures ranging from -10°C to 50°C and endure shock, vibration, and 1.2m drops.

RUGGEDMASTER C6200 mobile computers feature illustration

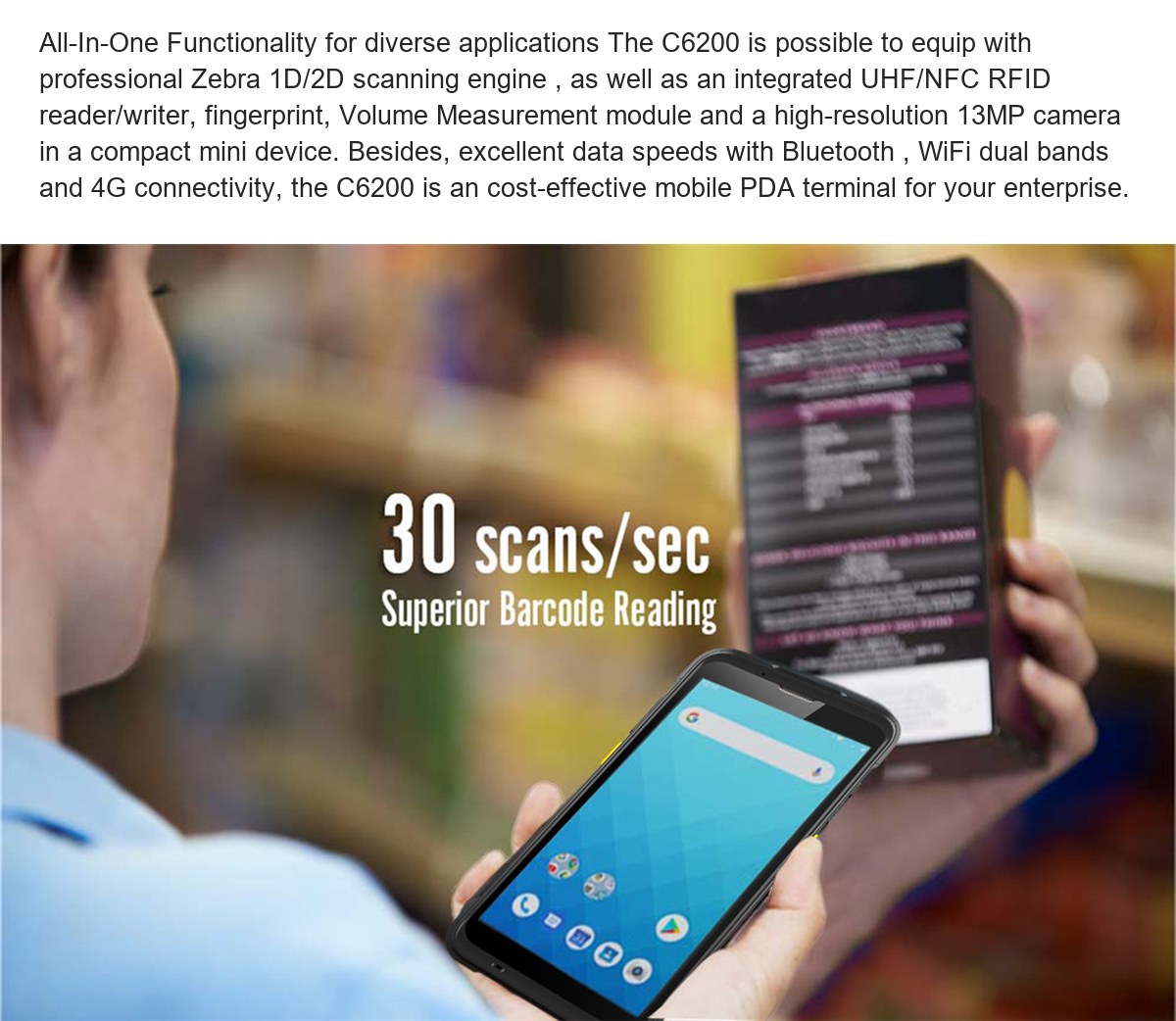

All-In-One Functionality for diverse applications

The C6200 is possible to equip with professional Zebra 1D/2D scanning engine , as well as an integrated UHF/NFC RFID reader/writer, fingerprint, Volume Measurement module and a high-resolution 13MP camera in a compact mini device. Besides, excellent data speeds with Bluetooth , WiFi dual bands and 4G connectivity, the C6200 is an cost-effective mobile PDA terminal for your enterprise.

RUGGEDMASTER C6200 mobile computers feature illustration

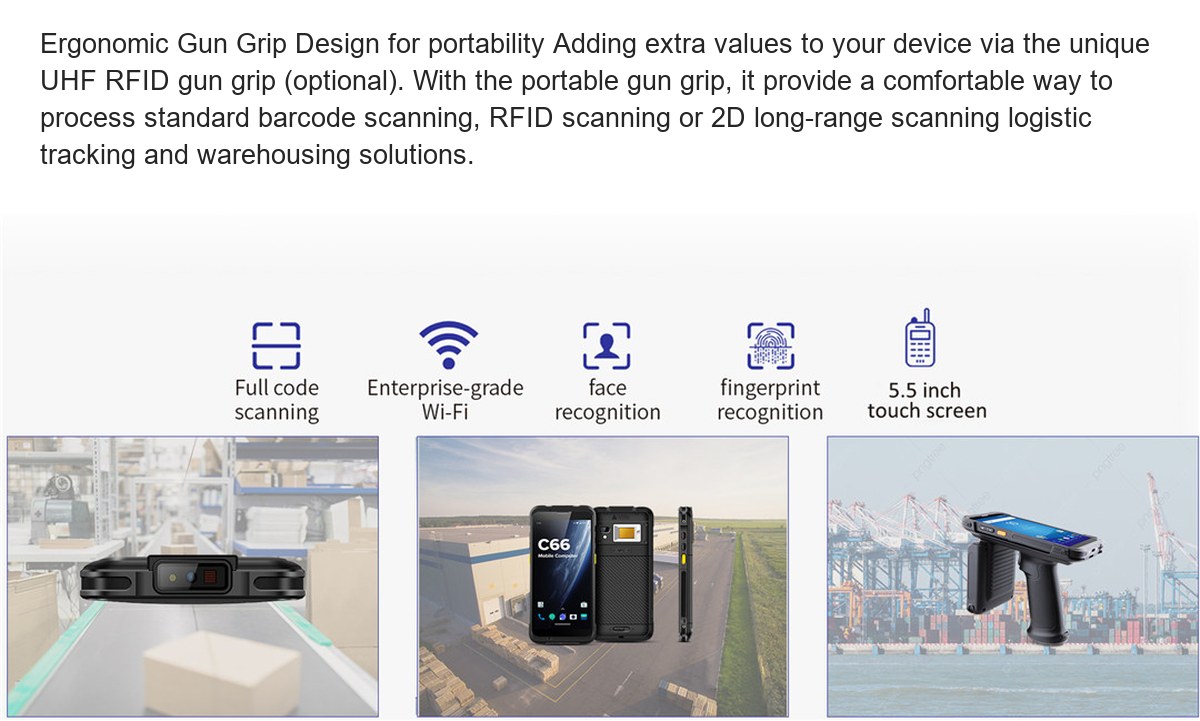

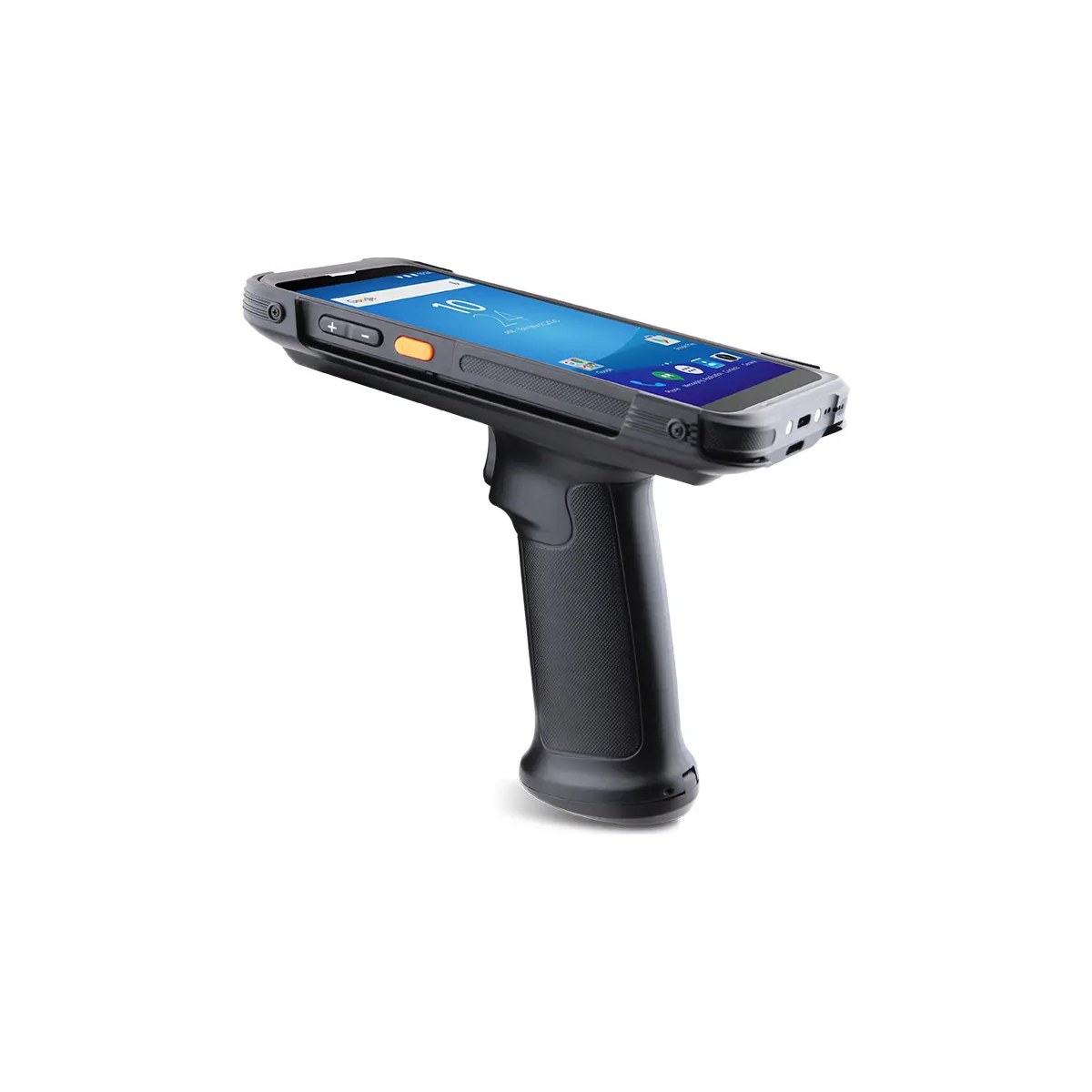

Ergonomic Gun Grip Design for portability

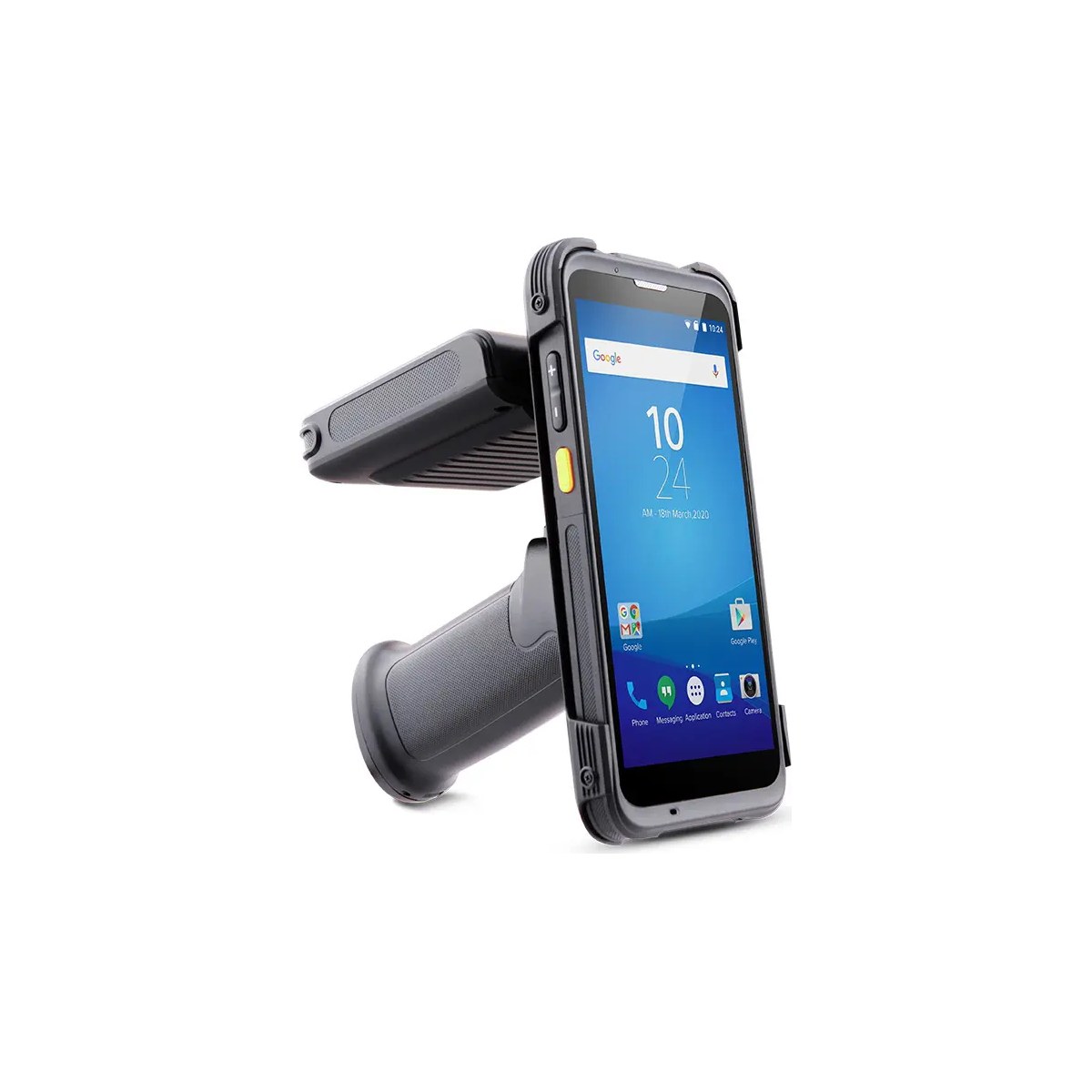

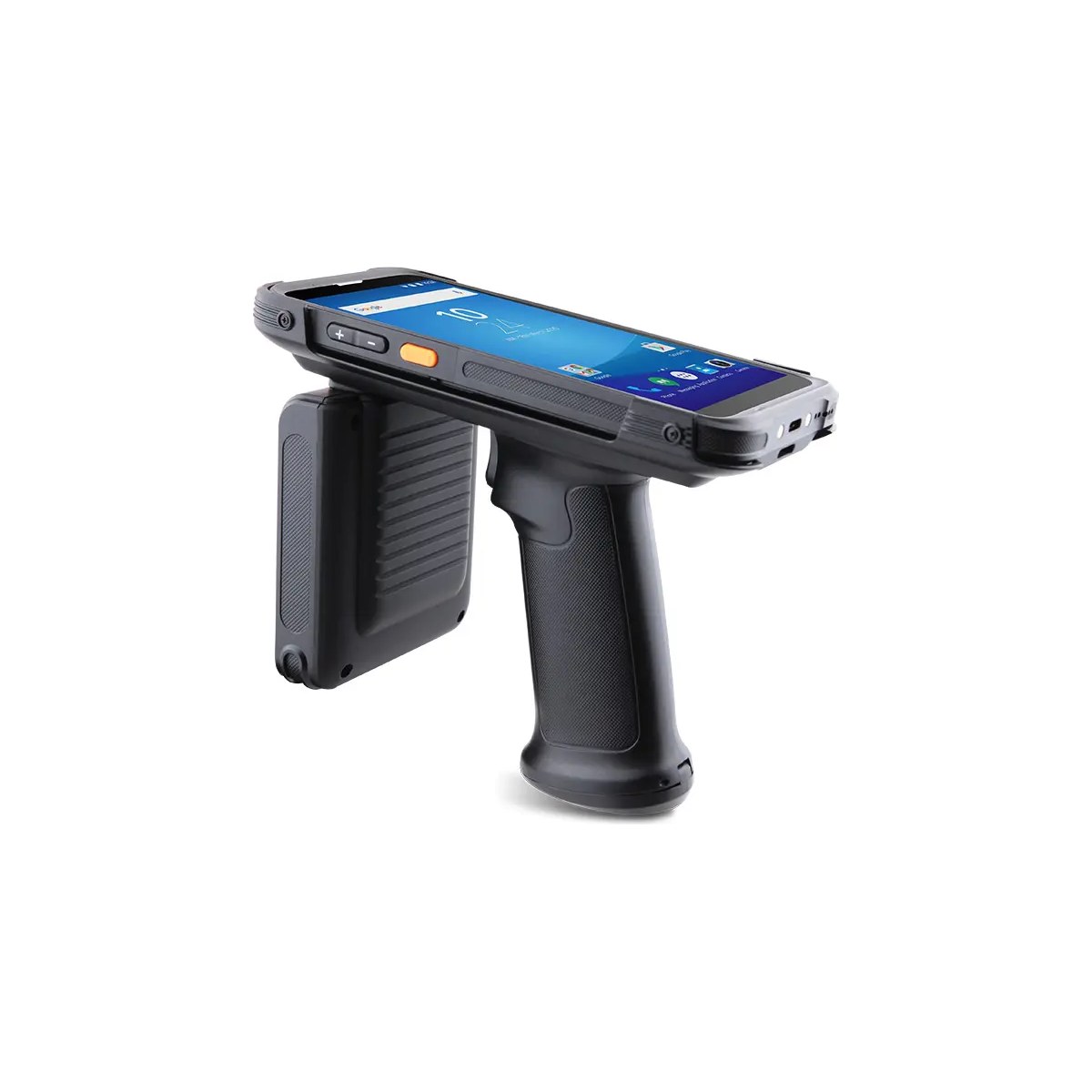

Adding extra values to your device via the unique UHF RFID gun grip (optional). With the portable gun grip, it provide a comfortable way to process standard barcode scanning, RFID scanning or 2D long-range scanning logistic tracking and warehousing solutions.

RUGGEDMASTER C6200 mobile computers feature illustration

RUGGEDMASTER C6200 bulk purchasing enquiries

For wholesale quantities and bulk orders, contact RuggedMaster with the exact model, required quantities, preferred configuration and destination. Include any scanning, identification or software requirements for your application. Review the Specs tab and product illustrations when comparing models. Availability, the requested configuration and order details should be confirmed before purchase.

Operation System
OS Android 11; GMS, 90-day security updates, Android Enterprise Recommended, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported. Committed support for a future upgrade to Android 12, 13, and Android 14 pending feasibility
GMS certified GMS certified and AER
CPU 2.0GHz, Snapdragon™ 662 Octa-core CPU (2.0 GHz)
Memory 3 GB RAM / 32 GB Flash (4+64GB optional)
Languages support English, Simplified Chinese, Traditional Chinese, Japanese,Spanish, German, French, Italian, Portuguese, Korean and multiple languages
Hardware specification
Screen Size 5.5-inch high definition full display (18:9), IPS IGZO 1440 x 720
Touch Panel Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Buttons / Keypad 1 power key, 2 scan keys, 2 volume keys
Camera rear 13 megapixels, with flash and auto focus function
Indicator Type LED, Speaker, Vibrator
Battery Removable main battery (normal version:4420 mAh ; Android 11 with fingerprint / built-in UHF / volume measurement version: 5200mAh )
Sensor Accelerometer sensor, light sensor, proximity sensor, gravity sensor
Symbologies (optional)
1D Barcodes 1D: UPC/EAN/JAN, GS1 DataBar, Code 39, Code 128, Code 32, Code 93, Codabar/NW7, Interleaved 2 of 5, Matrix 2 of 5, MSI, Trioptic
2D Barcodes 2D: PDF417, MicroPDF417, Composite, RSS TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, U PostNet, US Planet, UK Postal, Australia Postal, Japan Postal, Dutch Postal. etc
HF RFID Support HF/NFC Frequency 13.56MhzSupport: ISO 14443A&15693, NFC-IP1, NFC-IP2
Volume Measurement Measured distance 40m-4m
Communication
Bluetooth® Bluetooth®5
WLAN Wireless LAN 802.11a/b/g/n/ac, 2.4GHz and 5GHz Dual Frequency
WWAN (Europe, Asia) GSM: 850,900,1800,1900 MHzWCDMA: 850/1900/2100MHzLTE :B1/B3/B5/B7/B8/B20/B38/B39/B40/B41
WWAN (America) LTE:B2/B4/B5/B7/B8/B12/B13/B17/B28A/B28B/B38
GPS GPS (AGPs), Beidou navigation, error range ± 5m
I/O Interfaces
USB USB Type-C, USB 3.1, OTG, extended thimble;
POGO PIN PogoPin bottom: Charging via cradle
SIM Slot 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
Expansion Slot MicroSD, up to 256 GB
Audio One speaker with Smart PA (95±3dB @ 10cm), One receiver, Dual noise-cancelling microphones
Enclosure
Dimensions ( W x H x D ) 160mm x 76mm x 15.5mm
Weight 295g (with battery)
Durability
Drop Specification Multiple 1.8 m / 5.91 ft. drops (at least 20 times) to the concrete across theoperating temperature range
Sealing IP65 per IEC sealing specifications
Environmental
Operating temperature -20°C to 50°C
Storage temperature - 20°C to 70°C (without battery)
Charging temperature 0°C to 45°C
Relative Humidity 5% ~ 95% (Non-Condensing)
What comes in the box
The standard package contents C6200 TerminalUSB Cable (Type C)Adaptor (Europe)Lithium Polymer Battery
Optional Accessory Hand StrapCharging dockingSeparate handle with one buttonHandle + battery (handle battery 5200 mAh, one button)UHF back clip + handle (5200 mAh, one button)Rubber Bumper
